Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#42989) — 300 parça

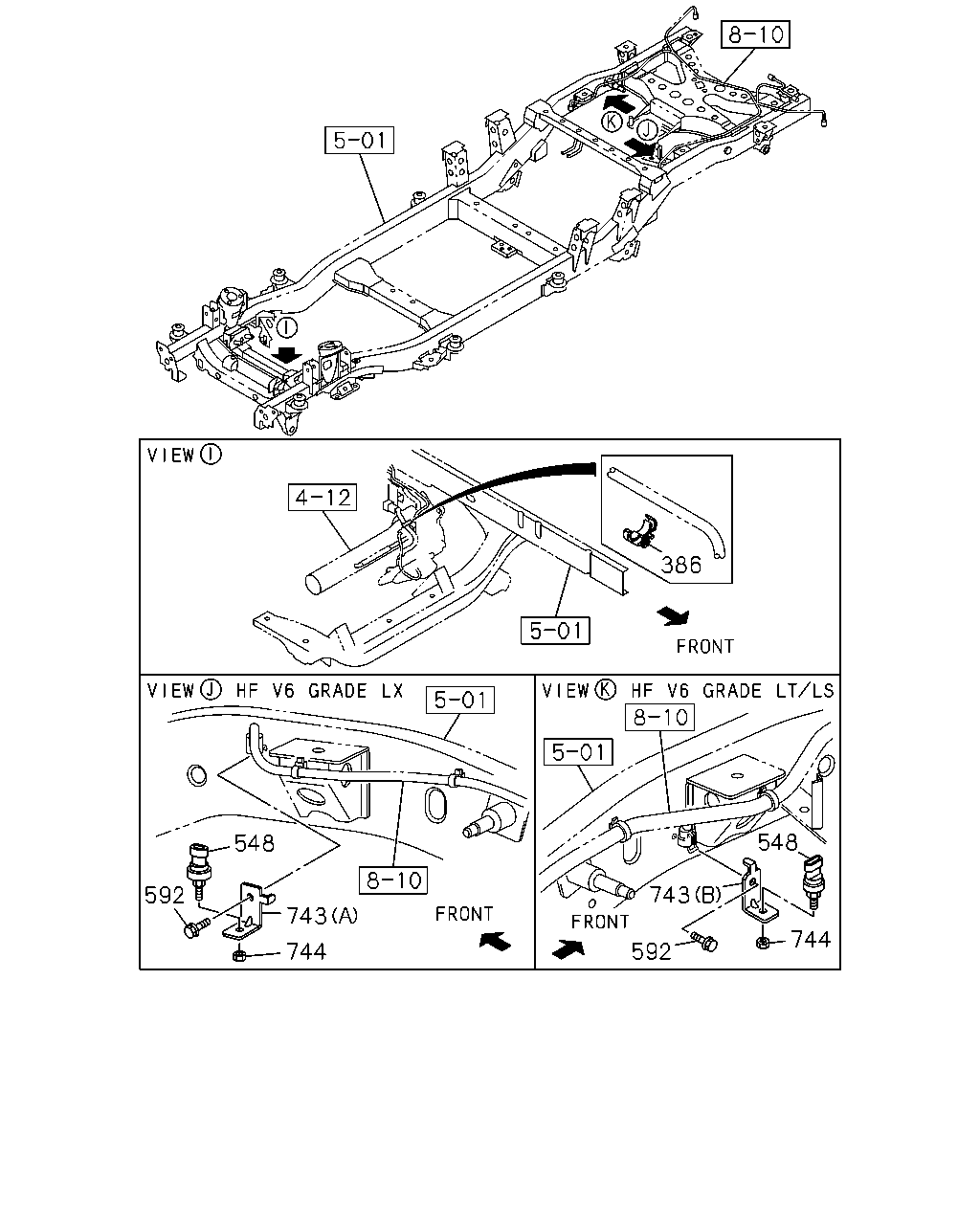

548 592 743 744 592 744 743 548 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
386	02.559 CLIP; HARNESS 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) SHIFT ON THE FLY<NR4> ID=7-10	8-94472-578-0	01	1	0307-0402	●	●	●
386	02.559 CLIP; HARNESS SHIFT ON THE FLY<NR4> ID=7-10	8-94472-578-0	01	1	0403-0508	●	●	●
386	02.559 CLIP; HARNESS 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) SHIFT ON THE FLY<NR4> ID=7-10	8-94472-578-0	01	1	0509-0609	●	●	●
386	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> ID=7-10	8-94472-578-0	01	1	0610-0612	●	●	●
386	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> ID=7-10	8-94472-578-0	01	1	0701-0912	●	●	●
386	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> ID=7-10	8-94472-578-0	01	1	1001-	●	●	●
548	03.425 SENSOR; ACCELERATION HF V6 ENG(LCA)	8-98004-467-0	01	1	0509-0512	●	●	●	●	●	●	●	●
548	03.425 SENSOR; ACCELERATION HF V6 ENG(LCA)	8-98004-467-0	01	1	0601-	●	●	●	●	●	●	●	●
548	03.425 SENSOR; ACCELERATION C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13)	8-98004-467-0	01	1	0601-			●			●	●	●
592	02.490 BOLT; SENSOR HF V6 ENG(LCA) 02.343 M6X16 FLANGE	0-28650-616-0	01	1	0509-0601	●	●	●	●	●	●	●	●
592	02.490 BOLT; SENSOR HF V6 ENG(LCA) 02.343 M6X16 FLANGE	0-28650-616-0	01	1	0602-	●	●	●	●	●	●	●	●
592	02.490 BOLT; SENSOR C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) 02.343 M6X16 FLANGE	0-28650-616-0	01	1	0602-			●			●	●	●
743	09.196 BRACKET; SENSOR HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98004-371-0	01	1	0509-0702	●	●	●	●	●	●	●	●
743	09.196 BRACKET; SENSOR HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98052-190-0	01	1	0703-	●	●	●	●	●	●	●	●
743	09.196 BRACKET; SENSOR HF V6 ENG(LCA) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98001-227-0	01	1	0509-0512	●	●	●	●	●	●	●	●
743	09.196 BRACKET; SENSOR HF V6 ENG(LCA) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98001-227-0	01	1	0601-0702	●	●	●	●	●	●	●	●
743	09.196 BRACKET; SENSOR C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) (A)	8-98001-227-0	01	1	0601-0702			●			●	●	●
743	09.196 BRACKET; SENSOR HF V6 ENG(LCA) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98052-188-0	01	1	0703-	●	●	●	●	●	●	●	●
743	09.196 BRACKET; SENSOR C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) (A)	8-98052-188-0	01	1	0703-			●			●	●	●
744	09.277 NUT; SENSOR HF V6 ENG(LCA) 03.604	8-11082-413-0	01	1	0509-0601	●	●	●	●	●	●	●	●
744	09.277 NUT; SENSOR HF V6 ENG(LCA) 03.604	8-11082-413-0	01	1	0602-	●	●	●	●	●	●	●	●
744	09.277 NUT; SENSOR C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) 03.604	8-11082-413-0	01	1	0602-			●			●	●	●

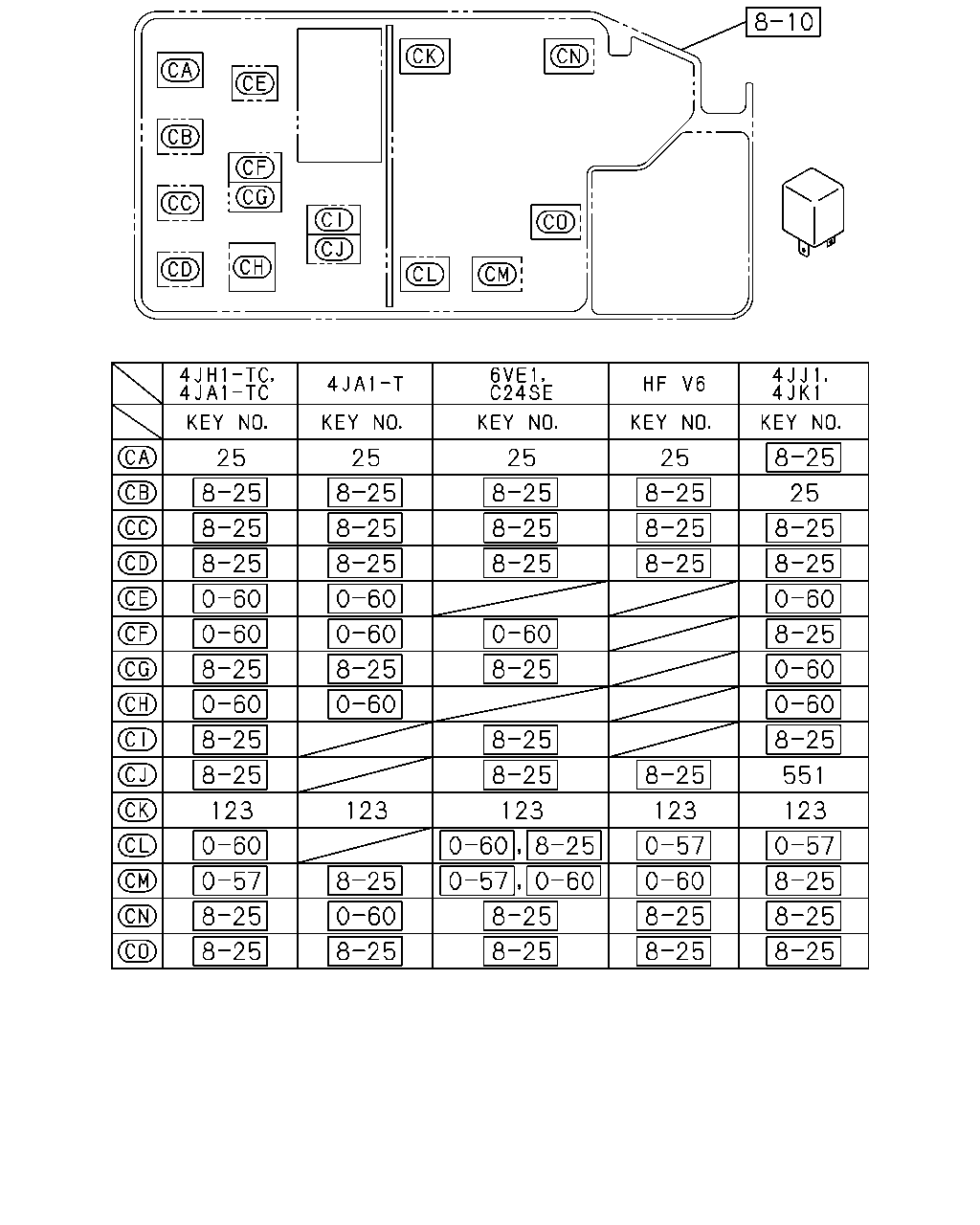

25 231 231 123 25 231 231 123 123 231 231 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
25	02.100 RELAY; TAIL LAMP 02.485 12V YAZAKI	8-97309-292-0	01	1	0307-0609	●	●	●	●	●	●	●	●
25	02.100 RELAY; TAIL LAMP 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●	●	●	●	●
25	02.100 RELAY; TAIL LAMP 4JH1-TC ENG(RDM) EURO2 SPECIFICATION<NT2> EXC. COOLER WO/HEATER(C65) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●	●	●	●	●	●
25	02.100 RELAY; TAIL LAMP 6VE1 ENG(LX5) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508				●	●	●	●	●
25	02.100 RELAY; TAIL LAMP C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
25	02.100 RELAY; TAIL LAMP 6VE1 ENG(LX5) A/T AISIN(RMD) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●
25	02.100 RELAY; TAIL LAMP 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) IMMOBILIZER SYSTEM<7KC> 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●
25	02.100 RELAY; TAIL LAMP 4JH1-TC ENG(RDM) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512	●	●	●	●	●	●	●	●
25	02.100 RELAY; TAIL LAMP C24SE ENG(LG1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512		●	●	●	●	●	●	●
25	02.100 RELAY; TAIL LAMP 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TC ENG(L4Z) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512	●	●	●	●		●		●
25	02.100 RELAY; TAIL LAMP C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609	●	●	●	●	●	●	●	●
25	02.100 RELAY; TAIL LAMP 4JH1-TC ENG(RDM) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609	●	●	●	●	●	●	●	●
25	02.100 RELAY; TAIL LAMP 02.575 12V OMRON	8-98005-407-0	01	1	0610-	●	●	●	●	●	●	●	●
123	02.270 RELAY; HTR 03.670 12V YAZAKI	8-98146-834-0	01	1	0710-	●	●	●	●	●	●	●	●
123	02.270 RELAY; HTR 02.485 12V YAZAKI	8-97309-294-0	01	1	0307-0508	●	●	●	●	●	●	●	●
123	02.270 RELAY; HTR C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.485 12V YAZAKI	8-97309-294-0	01	1	0509-0609	●	●	●	●	●	●	●	●
123	02.270 RELAY; HTR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.485 12V YAZAKI	8-97309-294-0	01	1	1006-	●	●	●	●	●	●	●	●
123	02.270 RELAY; HTR 4JH1-TC ENG(RDM) EURO2 SPECIFICATION<NT2> EXC. COOLER WO/HEATER(C65) 02.510 12V OMRON	8-97125-441-1	01	1	0508-0508	●	●	●	●	●	●	●	●
123	02.270 RELAY; HTR 6VE1 ENG(LX5) 02.510 12V OMRON	8-97125-441-1	01	1	0508-0508				●	●	●	●	●
123	02.270 RELAY; HTR C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) 02.510 12V OMRON	8-97125-441-1	01	1	0508-0508						●	●	●
123	02.270 RELAY; HTR 6VE1 ENG(LX5) A/T AISIN(RMD) 02.510 12V OMRON	8-97125-441-1	01	1	0508-0508	●	●	●
123	02.270 RELAY; HTR 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) IMMOBILIZER SYSTEM<7KC> 02.510 12V OMRON	8-97125-441-1	01	1	0508-0508	●	●	●
123	02.270 RELAY; HTR HF V6 ENG(LCA),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z) 02.510 12V OMRON	8-97125-441-1	01	1	0509-0512	●	●	●	●	●	●	●	●
123	02.270 RELAY; HTR 4JH1-TC ENG(RDM) EMISSION SYSTEM R15-04<K75>,EURO3 SPECIFICATION<NT3> 02.510 12V OMRON	8-97125-441-1	01	1	0509-0512	●	●	●	●		●		●
123	02.270 RELAY; HTR 4JH1-TC ENG(RDM) EURO2 SPECIFICATION<NT2> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AUSTRALIA EQUIPMENT(B13) 02.510 12V OMRON	8-97125-441-1	01	1	0509-0512				●		●		●
123	02.270 RELAY; HTR C24SE ENG(LG1) EXC. AUSTRALIA EQUIPMENT(B13),4 WHEEL ANTI LOCK BRAKE<JE5> 02.510 12V OMRON	8-97125-441-1	01	1	0509-0512		●	●			●	●	●
123	02.270 RELAY; HTR 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13) 02.510 12V OMRON	8-97125-441-1	01	1	0509-0512								●
123	02.270 RELAY; HTR 4JH1-TC ENG(RDM) EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13) 02.510 12V OMRON	8-97125-441-1	01	1	0509-0512	●	●	●
123	02.270 RELAY; HTR HF V6 ENG(LCA),C24SE ENG(LG1), 4JA1-T ENG(LP0),6VE1 ENG(LX5),4JA1-TC ENG(L4Z) 02.510 12V OMRON	8-97125-441-1	01	1	0601-0609	●	●	●	●	●	●	●	●
123	02.270 RELAY; HTR 4JH1-TC ENG(RDM) EMISSION SYSTEM R15-04<K75>,EURO3 SPECIFICATION<NT3> EXC. AUSTRALIA EQUIPMENT(B13) 02.510 12V OMRON	8-97125-441-1	01	1	0601-0609				●		●		●
123	02.270 RELAY; HTR 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EURO2 SPECIFICATION<NT2> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AUSTRALIA EQUIPMENT(B13) 02.510 12V OMRON	8-97125-441-1	01	1	0601-0609				●		●		●
123	02.270 RELAY; HTR 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13) 02.510 12V OMRON	8-97125-441-1	01	1	0601-0609								●
123	02.270 RELAY; HTR 4JH1-TC ENG(RDM) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATI ON<NT3> EXC. AUSTRALIA EQUIPMENT(B13) 02.510 12V OMRON	8-97125-441-1	01	1	0601-0609	●	●	●
123	02.270 RELAY; HTR 02.510 12V OMRON	8-97125-441-1	01	1	0610-0709	●	●	●	●	●	●	●	●
123	02.270 RELAY; HTR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.510 12V OMRON	8-97125-441-1	01	1	0710-0912	●	●	●	●	●	●	●	●
123	02.270 RELAY; HTR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.510 12V OMRON	8-97125-441-1	01	1	1001-	●	●	●	●	●	●	●	●
123	02.270 RELAY; HTR 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 3-GROOVE W/DAMPER	8-97025-441-1	01	1	0509-0609				●		●		●
231	02.270 RELAY; HAZARD 09.778 12V YAZAKI	8-97309-293-0	02	1	0307-0402	●	●	●	●	●	●	●	●
231	02.270 RELAY; HAZARD C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 09.778 12V YAZAKI	8-97309-293-0	02	1	0403-0411	●	●	●	●	●	●	●	●
231	02.270 RELAY; HAZARD 09.778 12V YAZAKI	8-97309-293-0	02	1	0412-0508	●	●	●	●	●	●	●	●
231	02.270 RELAY; HAZARD 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> 09.778 12V YAZAKI	8-97309-293-0	02	1	0509-0512	●	●	●	●		●		●
231	02.270 RELAY; HAZARD 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 09.778 12V YAZAKI	8-97309-293-0	02	1	0509-0512			●
231	02.270 RELAY; HAZARD 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> 09.778 12V YAZAKI	8-97309-293-0	02	1	0601-0609	●	●	●	●		●		●
231	02.270 RELAY; HAZARD C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) EURO3 SPECIFICATION<NT3> 09.778 12V YAZAKI	8-97309-293-0	02	1	0601-0609						●	●	●
231	02.270 RELAY; HAZARD 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 09.778 12V YAZAKI	8-97309-293-0	02	1	0601-0609			●
231	02.270 RELAY; HAZARD 4JH1-TC ENG(RDM) EURO2 SPECIFICATION<NT2> EXC. COOLER WO/HEATER(C65) 02.575 12V OMRON	8-98005-407-0	02	1	0508-0508	●	●	●	●	●	●	●	●
231	02.270 RELAY; HAZARD 6VE1 ENG(LX5) 02.575 12V OMRON	8-98005-407-0	02	1	0508-0508				●	●	●	●	●
231	02.270 RELAY; HAZARD 6VE1 ENG(LX5) A/T AISIN(RMD) 02.575 12V OMRON	8-98005-407-0	02	1	0508-0508	●	●	●
231	02.270 RELAY; HAZARD 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) IMMOBILIZER SYSTEM<7KC> 02.575 12V OMRON	8-98005-407-0	02	1	0508-0508	●	●	●
231	02.270 RELAY; HAZARD C24SE ENG(LG1) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AUSTRALIA EQUIPMENT(B13) EURO3 SPECIFICATION<NT3> 02.575 12V OMRON	8-98005-407-0	02	1	0601-0609						●		●
231	02.270 RELAY; HAZARD C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EURO3 SPECIFICATION<NT3> 02.575 12V OMRON	8-98005-407-0	02	1	0601-0609							●

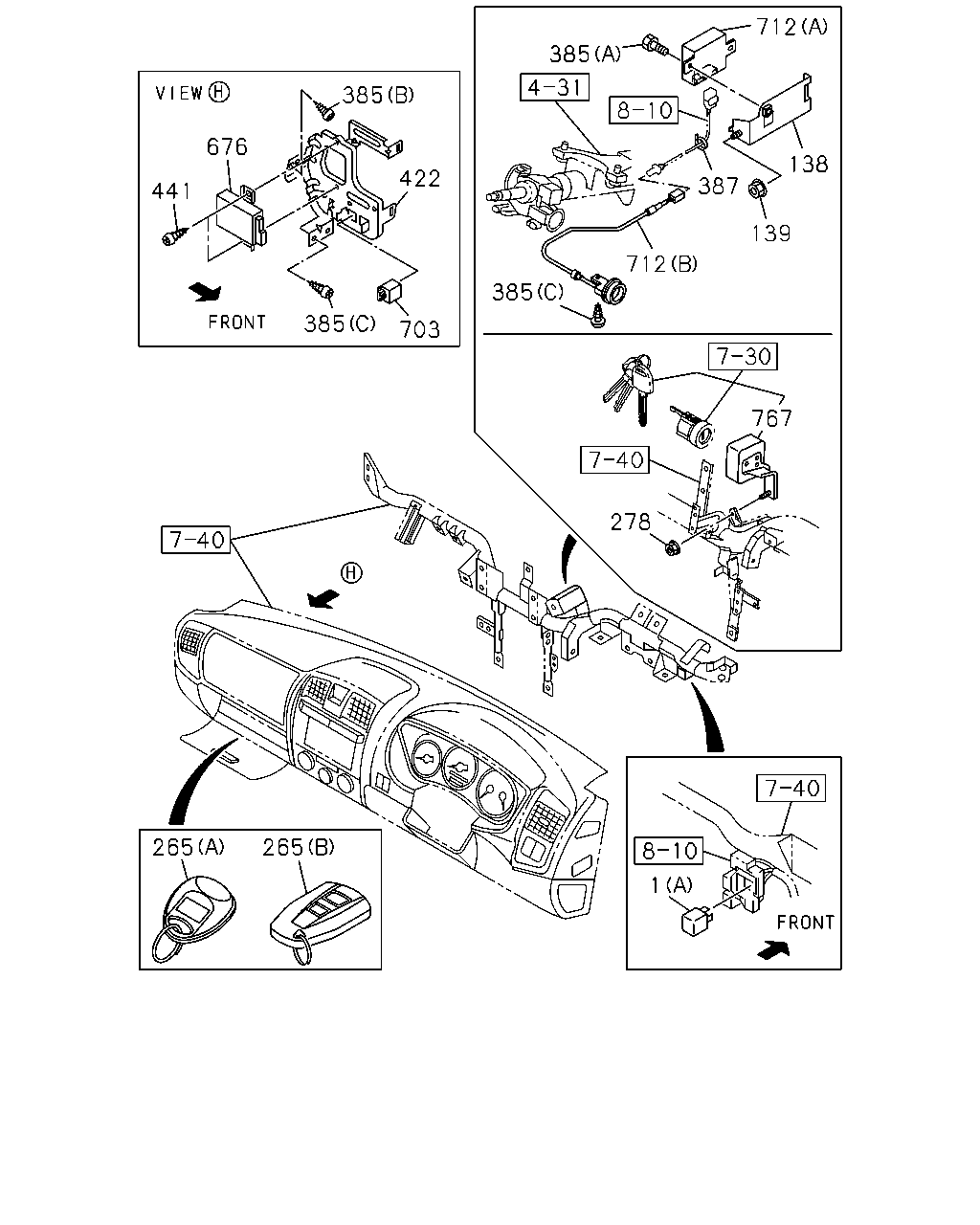

712 385 387 138 139 712 385 422 385 676 441 385 703 278 767 1 265 265

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	02.575 UNIT; FLASHER (A) 12V DENSO	8-97912-779-0	01	1	0307-0510	●	●	●	●	●	●	●	●
1	02.575 UNIT; FLASHER (A) 12V DENSO	8-98032-675-0	01	1	0511-	●	●	●	●	●	●	●	●
1	02.575 UNIT; FLASHER 6VE1 ENG(LX5),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI T HEFT<7KY> 09.778 (B) 12V YAZAKI	8-97309-293-0	02	1	0406-0502	●	●	●	●	●	●	●	●
1	02.575 UNIT; FLASHER 6VE1 ENG(LX5),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 09.778 (B) 12V YAZAKI	8-97309-293-0	02	1	0406-0502	●	●	●	●	●	●	●	●
1	02.575 UNIT; FLASHER 6VE1 ENG(LX5),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI T HEFT<7KY> (B) 12V OMRON	8-98005-407-0	02	1	0503-0508	●	●	●	●	●	●	●	●
1	02.575 UNIT; FLASHER 6VE1 ENG(LX5),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) 12V OMRON	8-98005-407-0	02	1	0503-0508	●	●	●	●	●	●	●	●
138	02.810 BRACKET; ANTI THEFT CONT IMMOBILIZER SYSTEM<7KC>	8-97357-768-0	01	1	0307-0609	●	●	●	●	●	●	●	●
138	02.810 BRACKET; ANTI THEFT CONT C24SE ENG(LG1) IMMOBILIZER SYSTEM<7KC>	8-97357-768-0	01	1	0610-			●			●	●	●
139	02.810 NUT; ANTI THEFT BRKT IMMOBILIZER SYSTEM<7KC> 01.062 M6 FLANGE	0-91180-106-0	01	1	0307-0609	●	●	●	●		●		●
139	02.810 NUT; ANTI THEFT BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	0307-0609					●		●
139	02.810 NUT; ANTI THEFT BRKT C24SE ENG(LG1),4JA1-T ENG(LP0) IMMOBILIZER SYSTEM<7KC> 01.062 M6 FLANGE	0-91180-106-0	01	1	0610-	●		●	●		●	●	●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK 4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<AP5> EXC. MALAYSIA EQUIPMENT(B10), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPM ENT(B14),KENYA EQUIPMENT(CL1), SINGAPORE EQUIPMENT(2G0),IMMOBILIZER SYS TEM<7KC> (B)	8-98000-035-0	01	1	0710-		●	●	●		●		●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<AP5> AUSTRALIA EQUIPMENT(B13) (A)	8-90508-961-2	02	1	0307-0402	●	●	●	●		●	●	●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK (A)	8-90508-961-2	02	1	0307-0402					●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<AP5> AUSTRALIA EQUIPMENT(B13) (A)	8-97378-442-0	02	1	0403-0508	●	●	●	●		●	●	●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK (A)	8-97378-442-0	02	1	0403-0508					●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<AP5> (B)	8-98000-035-0	02	1	0509-0709	●	●	●	●		●	●	●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK (B)	8-98000-035-0	02	1	0509-0709					●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK C24SE ENG(LG1) REMOTE CONT DOOR LOCK<AP5> AUSTRALIA EQUIPMENT(B13) IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK W/ANTI T HEFT<7KY> (B)	8-98000-035-0	02	1	0710-			●			●	●	●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<AP5> EXC. AUSTRALIA EQUIPMENT(B13) (A)	8-90508-961-2	01	1	0307-0412	●	●	●	●		●		●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<AP5> EXC. AUSTRALIA EQUIPMENT(B13) (A)	8-97378-442-0	01	1	0501-0508	●	●	●	●		●		●
278	03.415 NUT; CONT UNIT HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) REMOTE CONT DOOR LOCK<AP5> 01.062 M6 FLANGE	0-91180-106-0	01	1	0710-0912	●	●	●	●	●	●	●	●
278	03.415 NUT; CONT UNIT HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) REMOTE CONT DOOR LOCK<AP5> 01.062 M6 FLANGE	0-91180-106-0	01	1	1001-	●	●	●	●	●	●	●	●
385	03.670 BOLT; CONT UNIT 16.085 (B) M5X16 TAPPING	9-09829-323-1	02	1	0307-0612	●	●	●	●	●	●	●	●
385	03.670 BOLT; CONT UNIT 08.083 (B) M5X16 TAPPING	8-98061-685-0	02	1	0701-1004	●	●	●	●	●	●	●	●
385	03.670 BOLT; CONT UNIT 08.083 (B) M5X16 TAPPING	8-98167-449-0	02	1	1005-	●	●	●	●	●	●	●	●
385	03.670 BOLT; CONT UNIT IMMOBILIZER SYSTEM<7KC> 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0307-0609	●	●	●	●	●	●	●	●
385	03.670 BOLT; CONT UNIT C24SE ENG(LG1) IMMOBILIZER SYSTEM<7KC> 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0610-			●			●	●	●
385	03.670 BOLT; CONT UNIT IMMOBILIZER SYSTEM<7KC> 02.819 (C) M4X12 W/LK&PL WASHER	9-03920-412-0	01	1	0307-0606	●	●	●	●	●	●	●	●
385	03.670 BOLT; CONT UNIT IMMOBILIZER SYSTEM<7KC> 02.510 (C) M4X12 W/LK&PL WASHER	0-36230-412-0	01	1	0607-0609	●	●	●	●	●	●	●	●
385	03.670 BOLT; CONT UNIT HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) IMMOBILIZER SYSTEM<7KC> 02.510 (C) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0610-0612	●	●	●	●	●	●	●	●
385	03.670 BOLT; CONT UNIT HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) IMMOBILIZER SYSTEM<7KC> 02.510 (C) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0701-0912	●	●	●	●	●	●	●	●
385	03.670 BOLT; CONT UNIT HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) IMMOBILIZER SYSTEM<7KC> 02.510 (C) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1001-	●	●	●	●	●	●	●	●
385	03.670 BOLT; CONT UNIT C24SE ENG(LG1) IMMOBILIZER SYSTEM<7KC> 02.510 (C) M4X12 W/LK&PL WASHER	0-36230-412-0	01	1	0610-			●			●	●	●
387	02.363 CLIP; BAND IMMOBILIZER SYSTEM<7KC> L=140	8-97920-656-0	01	1	0307-	●	●	●	●		●		●
387	02.363 CLIP; BAND L=140	8-97920-656-0	01	1	0307-					●		●
422	03.415 BRACKET; CONT UNIT	8-97316-473-1	01	1	0307-0404	●	●	●	●	●	●	●	●
422	03.415 BRACKET; CONT UNIT	8-97381-410-0	01	1	0405-	●	●	●	●	●	●	●	●
441	02.575 SCREW; CONT UNIT REMOTE CONT DOOR LOCK<AP5> 16.085 M5X16 TAPPING	9-09829-323-1	02	1	0307-0702	●	●	●	●		●	●	●
441	02.575 SCREW; CONT UNIT 16.085 M5X16 TAPPING	9-09829-323-1	02	1	0307-0702					●
441	02.575 SCREW; CONT UNIT REMOTE CONT DOOR LOCK<AP5> 08.083 M5X16 TAPPING	8-98061-685-0	02	1	0703-1003	●	●	●	●		●	●	●
441	02.575 SCREW; CONT UNIT 08.083 M5X16 TAPPING	8-98061-685-0	02	1	0703-1003					●
441	02.575 SCREW; CONT UNIT REMOTE CONT DOOR LOCK<AP5> 08.083 M5X16 TAPPING	8-98167-449-0	02	1	1004-	●	●	●	●		●	●	●
441	02.575 SCREW; CONT UNIT 08.083 M5X16 TAPPING	8-98167-449-0	02	1	1004-					●
676	07.450 CONTROL UNIT; KEYLESS ENTRY HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) REMOTE CONT DOOR LOCK<AP5> AUSTRALIA EQUIPMENT(B13) IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK W/ANTI T HEFT<7KY>	8-98053-167-0	01	1	0710-	●	●	●	●	●	●	●	●
676	07.450 CONTROL UNIT; KEYLESS ENTRY REMOTE CONT DOOR LOCK<AP5>	8-97361-705-0	01	1	0307-0508	●	●	●	●		●	●	●
676	07.450 CONTROL UNIT; KEYLESS ENTRY	8-97361-705-0	01	1	0307-0508					●
676	07.450 CONTROL UNIT; KEYLESS ENTRY REMOTE CONT DOOR LOCK<AP5>	8-98000-034-0	01	1	0509-0709	●	●	●	●		●	●	●
676	07.450 CONTROL UNIT; KEYLESS ENTRY	8-98000-034-0	01	1	0509-0709					●
676	07.450 CONTROL UNIT; KEYLESS ENTRY C24SE ENG(LG1) REMOTE CONT DOOR LOCK<AP5> AUSTRALIA EQUIPMENT(B13) IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK W/ANTI T HEFT<7KY>	8-98000-034-0	01	1	0710-	●	●	●	●	●	●	●	●
676	07.450 CONTROL UNIT; KEYLESS ENTRY 4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<AP5> EXC. MALAYSIA EQUIPMENT(B10), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPM ENT(B14),KENYA EQUIPMENT(CL1), SINGAPORE EQUIPMENT(2G0),IMMOBILIZER SYS TEM<7KC>	8-98000-034-0	01	1	0710-	●	●	●	●		●		●
703	09.778 TIMER; DEFOGGER REAR DEFOGGER<C49> 12V	8-97301-600-0	01	1	0307-	●		●	●	●			●
712	03.670 CONTROL UNIT; ANTI THEFT C24SE ENG(LG1),6VE1 ENG(LX5) IMMOBILIZER SYSTEM<7KC> 16.263 (A)	8-97244-759-0	01	1	0307-0404	●	●	●	●	●	●	●	●
712	03.670 CONTROL UNIT; ANTI THEFT C24SE ENG(LG1),6VE1 ENG(LX5) IMMOBILIZER SYSTEM<7KC> (A)	8-97377-323-0	01	1	0405-0508	●	●	●	●	●	●	●	●
712	03.670 CONTROL UNIT; ANTI THEFT HF V6 ENG(LCA),C24SE ENG(LG1),6VE1 ENG(LX5) IMMOBILIZER SYSTEM<7KC> (A)	8-97377-323-0	01	1	0509-0609	●	●	●	●	●	●	●	●
712	03.670 CONTROL UNIT; ANTI THEFT C24SE ENG(LG1) IMMOBILIZER SYSTEM<7KC> (A)	8-97377-323-0	01	1	0610-			●			●	●	●
712	03.670 CONTROL UNIT; ANTI THEFT HF V6 ENG(LCA) IMMOBILIZER SYSTEM<7KC> (C)	8-98046-628-0	01	1	0610-0706	●	●	●	●	●	●	●	●
712	03.670 CONTROL UNIT; ANTI THEFT HF V6 ENG(LCA) IMMOBILIZER SYSTEM<7KC> (C)	8-98091-388-0	01	1	0707-0803	●	●	●	●	●	●	●	●
712	03.670 CONTROL UNIT; ANTI THEFT HF V6 ENG(LCA) IMMOBILIZER SYSTEM<7KC> (C)	8-98114-768-0	01	1	0804-	●	●	●	●	●	●	●	●
712	03.670 CONTROL UNIT; ANTI THEFT IMMOBILIZER SYSTEM<7KC> 06.500 (B)	8-97251-755-0	01	1	0307-0609	●	●	●	●	●	●	●	●
712	03.670 CONTROL UNIT; ANTI THEFT C24SE ENG(LG1) IMMOBILIZER SYSTEM<7KC> 06.500 (B)	8-97251-755-0	01	1	0610-			●			●	●	●
712	03.670 CONTROL UNIT; ANTI THEFT 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AUSTRALIA EQUIPMENT(B13) IMMOBILIZER SYSTEM<7KC> (A)	8-97377-324-0	01	1	0404-0408	●	●	●	●	●	●	●	●
712	03.670 CONTROL UNIT; ANTI THEFT 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) IMMOBILIZER SYSTEM<7KC> (A)	8-97377-324-0	01	1	0409-0609	●	●	●	●	●	●	●	●
712	03.670 CONTROL UNIT; ANTI THEFT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) IMMOBILIZER SYSTEM<7KC> (C)	8-98008-412-0	01	1	0610-0612	●	●	●	●	●	●	●	●
712	03.670 CONTROL UNIT; ANTI THEFT 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) IMMOBILIZER SYSTEM<7KC> (C)	8-98008-412-0	01	1	0701-0912	●	●	●	●	●	●	●	●
712	03.670 CONTROL UNIT; ANTI THEFT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) IMMOBILIZER SYSTEM<7KC> (C)	8-98008-412-0	01	1	1001-	●	●	●	●	●	●	●	●
712	03.670 CONTROL UNIT; ANTI THEFT 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) IMMOBILIZER SYSTEM<7KC> 16.263 (A)	8-97234-671-0	01	1	0307-0403	●	●	●	●	●	●	●	●
712	03.670 CONTROL UNIT; ANTI THEFT 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) IMMOBILIZER SYSTEM<7KC> EXC. AUSTRALIA EQUIPMENT(B13) 16.263 (A)	8-97234-671-0	01	1	0404-0408	●		●	●		●		●
712	03.670 CONTROL UNIT; ANTI THEFT 4JA1-T ENG(LP0) IMMOBILIZER SYSTEM<7KC> (A)	8-97365-025-0	01	1	0307-0709	●		●	●		●		●
712	03.670 CONTROL UNIT; ANTI THEFT 4JA1-T ENG(LP0) IMMOBILIZER SYSTEM<7KC> EXC. AUSTRALIA EQUIPMENT(B13) (A)	8-97365-025-0	01	1	0710-	●		●	●		●		●
767	07.450 RECEIVER ASM; KEYLESS ENTRY REMOTE CONT DOOR LOCK<AP5> AUSTRALIA EQUIPMENT(B13)	8-98053-170-2	01	1	0710-0912	●	●	●	●	●	●	●	●
767	07.450 RECEIVER ASM; KEYLESS ENTRY REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13)	8-98053-170-2	01	1	1001-	●	●	●	●	●	●	●	●

25 123 123 25 25 25 25 551 123 123 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
25	02.100 RELAY; TAIL LAMP 02.485 12V YAZAKI	8-97309-292-0	01	1	0307-0609	●	●	●	●	●	●	●	●
25	02.100 RELAY; TAIL LAMP 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●	●	●	●	●
25	02.100 RELAY; TAIL LAMP 4JH1-TC ENG(RDM) EURO2 SPECIFICATION<NT2> EXC. COOLER WO/HEATER(C65) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●	●	●	●	●	●
25	02.100 RELAY; TAIL LAMP 6VE1 ENG(LX5) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508				●	●	●	●	●
25	02.100 RELAY; TAIL LAMP C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
25	02.100 RELAY; TAIL LAMP 6VE1 ENG(LX5) A/T AISIN(RMD) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●
25	02.100 RELAY; TAIL LAMP 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) IMMOBILIZER SYSTEM<7KC> 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●
25	02.100 RELAY; TAIL LAMP 4JH1-TC ENG(RDM) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512	●	●	●	●	●	●	●	●
25	02.100 RELAY; TAIL LAMP C24SE ENG(LG1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512		●	●	●	●	●	●	●
25	02.100 RELAY; TAIL LAMP 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TC ENG(L4Z) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512	●	●	●	●		●		●
25	02.100 RELAY; TAIL LAMP C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609	●	●	●	●	●	●	●	●
25	02.100 RELAY; TAIL LAMP 4JH1-TC ENG(RDM) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609	●	●	●	●	●	●	●	●
25	02.100 RELAY; TAIL LAMP 02.575 12V OMRON	8-98005-407-0	01	1	0610-	●	●	●	●	●	●	●	●
123	02.270 RELAY; HTR 03.670 12V YAZAKI	8-98146-834-0	01	1	0710-	●	●	●	●	●	●	●	●
123	02.270 RELAY; HTR 02.485 12V YAZAKI	8-97309-294-0	01	1	0307-0508	●	●	●	●	●	●	●	●
123	02.270 RELAY; HTR C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.485 12V YAZAKI	8-97309-294-0	01	1	0509-0609	●	●	●	●	●	●	●	●
123	02.270 RELAY; HTR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.485 12V YAZAKI	8-97309-294-0	01	1	1006-	●	●	●	●	●	●	●	●
123	02.270 RELAY; HTR 4JH1-TC ENG(RDM) EURO2 SPECIFICATION<NT2> EXC. COOLER WO/HEATER(C65) 02.510 12V OMRON	8-97125-441-1	01	1	0508-0508	●	●	●	●	●	●	●	●
123	02.270 RELAY; HTR 6VE1 ENG(LX5) 02.510 12V OMRON	8-97125-441-1	01	1	0508-0508				●	●	●	●	●
123	02.270 RELAY; HTR C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) 02.510 12V OMRON	8-97125-441-1	01	1	0508-0508						●	●	●
123	02.270 RELAY; HTR 6VE1 ENG(LX5) A/T AISIN(RMD) 02.510 12V OMRON	8-97125-441-1	01	1	0508-0508	●	●	●
123	02.270 RELAY; HTR 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) IMMOBILIZER SYSTEM<7KC> 02.510 12V OMRON	8-97125-441-1	01	1	0508-0508	●	●	●
123	02.270 RELAY; HTR HF V6 ENG(LCA),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z) 02.510 12V OMRON	8-97125-441-1	01	1	0509-0512	●	●	●	●	●	●	●	●
123	02.270 RELAY; HTR 4JH1-TC ENG(RDM) EMISSION SYSTEM R15-04<K75>,EURO3 SPECIFICATION<NT3> 02.510 12V OMRON	8-97125-441-1	01	1	0509-0512	●	●	●	●		●		●
123	02.270 RELAY; HTR 4JH1-TC ENG(RDM) EURO2 SPECIFICATION<NT2> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AUSTRALIA EQUIPMENT(B13) 02.510 12V OMRON	8-97125-441-1	01	1	0509-0512				●		●		●
123	02.270 RELAY; HTR C24SE ENG(LG1) EXC. AUSTRALIA EQUIPMENT(B13),4 WHEEL ANTI LOCK BRAKE<JE5> 02.510 12V OMRON	8-97125-441-1	01	1	0509-0512		●	●			●	●	●
123	02.270 RELAY; HTR 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13) 02.510 12V OMRON	8-97125-441-1	01	1	0509-0512								●
123	02.270 RELAY; HTR 4JH1-TC ENG(RDM) EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13) 02.510 12V OMRON	8-97125-441-1	01	1	0509-0512	●	●	●
123	02.270 RELAY; HTR HF V6 ENG(LCA),C24SE ENG(LG1), 4JA1-T ENG(LP0),6VE1 ENG(LX5),4JA1-TC ENG(L4Z) 02.510 12V OMRON	8-97125-441-1	01	1	0601-0609	●	●	●	●	●	●	●	●
123	02.270 RELAY; HTR 4JH1-TC ENG(RDM) EMISSION SYSTEM R15-04<K75>,EURO3 SPECIFICATION<NT3> EXC. AUSTRALIA EQUIPMENT(B13) 02.510 12V OMRON	8-97125-441-1	01	1	0601-0609				●		●		●
123	02.270 RELAY; HTR 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EURO2 SPECIFICATION<NT2> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AUSTRALIA EQUIPMENT(B13) 02.510 12V OMRON	8-97125-441-1	01	1	0601-0609				●		●		●
123	02.270 RELAY; HTR 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13) 02.510 12V OMRON	8-97125-441-1	01	1	0601-0609								●
123	02.270 RELAY; HTR 4JH1-TC ENG(RDM) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATI ON<NT3> EXC. AUSTRALIA EQUIPMENT(B13) 02.510 12V OMRON	8-97125-441-1	01	1	0601-0609	●	●	●
123	02.270 RELAY; HTR 02.510 12V OMRON	8-97125-441-1	01	1	0610-0709	●	●	●	●	●	●	●	●
123	02.270 RELAY; HTR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.510 12V OMRON	8-97125-441-1	01	1	0710-0912	●	●	●	●	●	●	●	●
123	02.270 RELAY; HTR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.510 12V OMRON	8-97125-441-1	01	1	1001-	●	●	●	●	●	●	●	●
123	02.270 RELAY; HTR 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 3-GROOVE W/DAMPER	8-97025-441-1	01	1	0509-0609				●		●		●
551	02.510 RELAY; TRANSMISSION 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.575 12V OMRON	8-98005-407-0	01	1	0610-0612	●	●	●	●	●	●	●	●
551	02.510 RELAY; TRANSMISSION 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) 02.575 12V OMRON	8-98005-407-0	01	1	0701-0912	●	●	●	●	●	●	●	●
551	02.510 RELAY; TRANSMISSION 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.575 12V OMRON	8-98005-407-0	01	1	1001-	●	●	●	●	●	●	●	●
551	02.510 RELAY; TRANSMISSION 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-0912	●	●	●	●	●	●	●	●
551	02.510 RELAY; TRANSMISSION 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 09.778 12V YAZAKI	8-97309-293-0	01	1	1001-	●	●	●	●	●	●	●	●

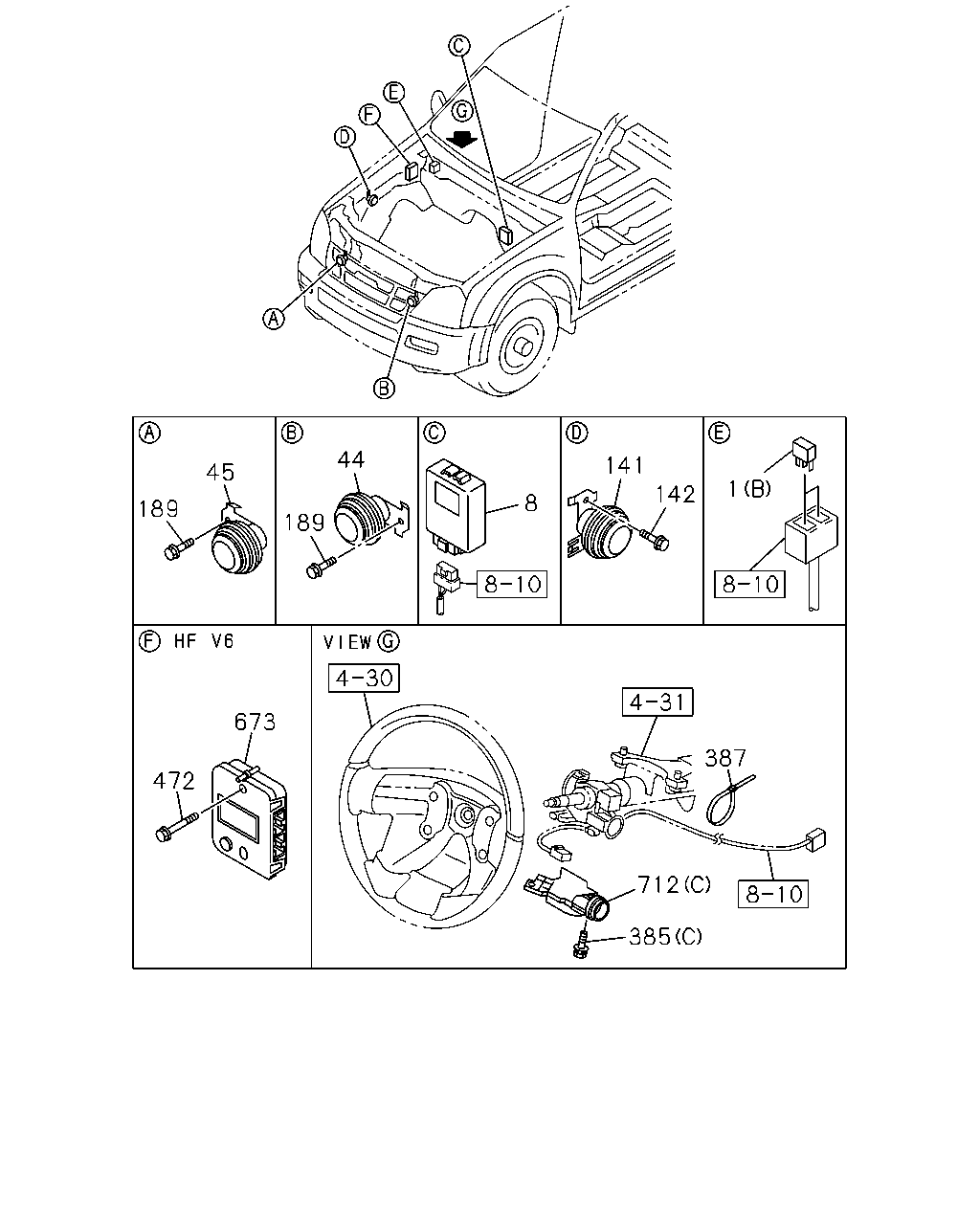

1 142 141 8 44 189 45 189 673 472 712 385 387

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	02.575 UNIT; FLASHER (A) 12V DENSO	8-97912-779-0	01	1	0307-0510	●	●	●	●	●	●	●	●
1	02.575 UNIT; FLASHER (A) 12V DENSO	8-98032-675-0	01	1	0511-	●	●	●	●	●	●	●	●
1	02.575 UNIT; FLASHER 6VE1 ENG(LX5),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI T HEFT<7KY> 09.778 (B) 12V YAZAKI	8-97309-293-0	02	1	0406-0502	●	●	●	●	●	●	●	●
1	02.575 UNIT; FLASHER 6VE1 ENG(LX5),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 09.778 (B) 12V YAZAKI	8-97309-293-0	02	1	0406-0502	●	●	●	●	●	●	●	●
1	02.575 UNIT; FLASHER 6VE1 ENG(LX5),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI T HEFT<7KY> (B) 12V OMRON	8-98005-407-0	02	1	0503-0508	●	●	●	●	●	●	●	●
1	02.575 UNIT; FLASHER 6VE1 ENG(LX5),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) 12V OMRON	8-98005-407-0	02	1	0503-0508	●	●	●	●	●	●	●	●
8	16.067 RELAY; WIPER INTERMITTENT WIPER<C13> 12V	8-97302-100-0	01	1	0307-0609	●	●	●	●		●	●	●
8	16.067 RELAY; WIPER 12V	8-97302-100-0	01	1	0307-0609					●
8	16.067 RELAY; WIPER INTERMITTENT WIPER<C13> 12V	8-97302-100-0	01	1	0610-	●	●	●	●	●	●	●	●
8	16.067 RELAY; WIPER VARIABLE INTERMITTENT WIPER<CD4> 12V	8-97302-101-0	01	1	0307-	●		●	●		●		●
44	02.810 HORN; HIGH NOTE DUAL TONE HORN<U05>	8-97237-046-0	01	1	0307-0308	●	●	●	●	●	●	●	●
44	02.810 HORN; HIGH NOTE DUAL TONE HORN<U05>	8-97237-046-0	01	1	0309-0402				●		●		●
44	02.810 HORN; HIGH NOTE 4X4 EXTEND CAB LONG(TFS*CF) DUAL TONE HORN<U05>	8-97237-046-0	01	1	0309-0402	●
44	02.810 HORN; HIGH NOTE 4X4 REGULAR CAB LONG(TFS*SF) DUAL TONE HORN<U05>	8-97237-046-0	01	1	0309-0402		●
44	02.810 HORN; HIGH NOTE 4X4 CREW CAB LONG(TFS*WF) DUAL TONE HORN<U05>	8-97237-046-0	01	1	0309-0402			●
44	02.810 HORN; HIGH NOTE DUAL TONE HORN<U05>	8-97237-046-0	01	1	0403-	●	●	●	●		●		●
45	02.810 HORN; LOW NOTE	8-97237-047-0	01	1	0307-	●	●	●	●	●	●	●	●
141	02.810 HORN; ANTI THEFT REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-97237-044-0	01	1	0307-0508	●	●	●	●		●		●
142	02.810 BOLT; HORN,ANTI THEFT REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 02.343 M6X16 FLANGE	0-28650-616-0	01	1	0307-0508	●	●	●	●		●		●
189	02.812 BOLT; HORN DUAL TONE HORN<U05> 02.559 M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	0307-0308	●	●	●	●	●	●	●	●
189	02.812 BOLT; HORN DUAL TONE HORN<U05> 02.559 M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	0309-0402				●		●		●
189	02.812 BOLT; HORN 4X4 EXTEND CAB LONG(TFS*CF) DUAL TONE HORN<U05> 02.559 M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	0309-0402	●
189	02.812 BOLT; HORN 4X4 REGULAR CAB LONG(TFS*SF) DUAL TONE HORN<U05> 02.559 M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	0309-0402		●
189	02.812 BOLT; HORN 4X4 CREW CAB LONG(TFS*WF) DUAL TONE HORN<U05> 02.559 M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	0309-0402			●
189	02.812 BOLT; HORN DUAL TONE HORN<U05> 02.559 M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	0403-	●	●	●	●		●		●
189	02.812 BOLT; HORN EXC. DUAL TONE HORN<U05> 02.559 M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	0307-	●	●	●	●	●	●	●	●
385	03.670 BOLT; CONT UNIT 16.085 (B) M5X16 TAPPING	9-09829-323-1	02	1	0307-0612	●	●	●	●	●	●	●	●
385	03.670 BOLT; CONT UNIT 08.083 (B) M5X16 TAPPING	8-98061-685-0	02	1	0701-1004	●	●	●	●	●	●	●	●
385	03.670 BOLT; CONT UNIT 08.083 (B) M5X16 TAPPING	8-98167-449-0	02	1	1005-	●	●	●	●	●	●	●	●
385	03.670 BOLT; CONT UNIT IMMOBILIZER SYSTEM<7KC> 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0307-0609	●	●	●	●	●	●	●	●
385	03.670 BOLT; CONT UNIT C24SE ENG(LG1) IMMOBILIZER SYSTEM<7KC> 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0610-			●			●	●	●
385	03.670 BOLT; CONT UNIT IMMOBILIZER SYSTEM<7KC> 02.819 (C) M4X12 W/LK&PL WASHER	9-03920-412-0	01	1	0307-0606	●	●	●	●	●	●	●	●
385	03.670 BOLT; CONT UNIT IMMOBILIZER SYSTEM<7KC> 02.510 (C) M4X12 W/LK&PL WASHER	0-36230-412-0	01	1	0607-0609	●	●	●	●	●	●	●	●
385	03.670 BOLT; CONT UNIT HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) IMMOBILIZER SYSTEM<7KC> 02.510 (C) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0610-0612	●	●	●	●	●	●	●	●
385	03.670 BOLT; CONT UNIT HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) IMMOBILIZER SYSTEM<7KC> 02.510 (C) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0701-0912	●	●	●	●	●	●	●	●
385	03.670 BOLT; CONT UNIT HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) IMMOBILIZER SYSTEM<7KC> 02.510 (C) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1001-	●	●	●	●	●	●	●	●
385	03.670 BOLT; CONT UNIT C24SE ENG(LG1) IMMOBILIZER SYSTEM<7KC> 02.510 (C) M4X12 W/LK&PL WASHER	0-36230-412-0	01	1	0610-			●			●	●	●
387	02.363 CLIP; BAND IMMOBILIZER SYSTEM<7KC> L=140	8-97920-656-0	01	1	0307-	●	●	●	●		●		●
387	02.363 CLIP; BAND L=140	8-97920-656-0	01	1	0307-					●		●
472	09.766 BOLT; PCM HF V6 ENG(LCA) 00.685 M6X40 FLANGE	0-28080-640-0	01	1	0509-0509	●	●	●	●	●	●	●	●
472	09.766 BOLT; PCM HF V6 ENG(LCA) 00.685 M6X40 FLANGE	0-28080-640-0	02	1	0509-0601	●	●	●	●	●	●	●	●
472	09.766 BOLT; PCM HF V6 ENG(LCA) 04.866 M6X40 FLANGE	0-28050-640-0	02	1	0602-	●	●	●	●	●	●	●	●
673	09.765 CONTROL UNIT; PCM HF V6 ENG(LCA)	8-92211-480-0	01	1	0509-0609	●	●	●	●	●	●	●	●
673	09.765 CONTROL UNIT; PCM HF V6 ENG(LCA)	8-98031-147-0	01	1	0610-	●	●	●	●	●	●	●	●
712	03.670 CONTROL UNIT; ANTI THEFT C24SE ENG(LG1),6VE1 ENG(LX5) IMMOBILIZER SYSTEM<7KC> 16.263 (A)	8-97244-759-0	01	1	0307-0404	●	●	●	●	●	●	●	●
712	03.670 CONTROL UNIT; ANTI THEFT C24SE ENG(LG1),6VE1 ENG(LX5) IMMOBILIZER SYSTEM<7KC> (A)	8-97377-323-0	01	1	0405-0508	●	●	●	●	●	●	●	●
712	03.670 CONTROL UNIT; ANTI THEFT HF V6 ENG(LCA),C24SE ENG(LG1),6VE1 ENG(LX5) IMMOBILIZER SYSTEM<7KC> (A)	8-97377-323-0	01	1	0509-0609	●	●	●	●	●	●	●	●
712	03.670 CONTROL UNIT; ANTI THEFT C24SE ENG(LG1) IMMOBILIZER SYSTEM<7KC> (A)	8-97377-323-0	01	1	0610-			●			●	●	●
712	03.670 CONTROL UNIT; ANTI THEFT HF V6 ENG(LCA) IMMOBILIZER SYSTEM<7KC> (C)	8-98046-628-0	01	1	0610-0706	●	●	●	●	●	●	●	●
712	03.670 CONTROL UNIT; ANTI THEFT HF V6 ENG(LCA) IMMOBILIZER SYSTEM<7KC> (C)	8-98091-388-0	01	1	0707-0803	●	●	●	●	●	●	●	●
712	03.670 CONTROL UNIT; ANTI THEFT HF V6 ENG(LCA) IMMOBILIZER SYSTEM<7KC> (C)	8-98114-768-0	01	1	0804-	●	●	●	●	●	●	●	●
712	03.670 CONTROL UNIT; ANTI THEFT IMMOBILIZER SYSTEM<7KC> 06.500 (B)	8-97251-755-0	01	1	0307-0609	●	●	●	●	●	●	●	●
712	03.670 CONTROL UNIT; ANTI THEFT C24SE ENG(LG1) IMMOBILIZER SYSTEM<7KC> 06.500 (B)	8-97251-755-0	01	1	0610-			●			●	●	●
712	03.670 CONTROL UNIT; ANTI THEFT 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AUSTRALIA EQUIPMENT(B13) IMMOBILIZER SYSTEM<7KC> (A)	8-97377-324-0	01	1	0404-0408	●	●	●	●	●	●	●	●
712	03.670 CONTROL UNIT; ANTI THEFT 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) IMMOBILIZER SYSTEM<7KC> (A)	8-97377-324-0	01	1	0409-0609	●	●	●	●	●	●	●	●
712	03.670 CONTROL UNIT; ANTI THEFT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) IMMOBILIZER SYSTEM<7KC> (C)	8-98008-412-0	01	1	0610-0612	●	●	●	●	●	●	●	●
712	03.670 CONTROL UNIT; ANTI THEFT 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) IMMOBILIZER SYSTEM<7KC> (C)	8-98008-412-0	01	1	0701-0912	●	●	●	●	●	●	●	●
712	03.670 CONTROL UNIT; ANTI THEFT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) IMMOBILIZER SYSTEM<7KC> (C)	8-98008-412-0	01	1	1001-	●	●	●	●	●	●	●	●
712	03.670 CONTROL UNIT; ANTI THEFT 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) IMMOBILIZER SYSTEM<7KC> 16.263 (A)	8-97234-671-0	01	1	0307-0403	●	●	●	●	●	●	●	●
712	03.670 CONTROL UNIT; ANTI THEFT 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) IMMOBILIZER SYSTEM<7KC> EXC. AUSTRALIA EQUIPMENT(B13) 16.263 (A)	8-97234-671-0	01	1	0404-0408	●		●	●		●		●
712	03.670 CONTROL UNIT; ANTI THEFT 4JA1-T ENG(LP0) IMMOBILIZER SYSTEM<7KC> (A)	8-97365-025-0	01	1	0307-0709	●		●	●		●		●
712	03.670 CONTROL UNIT; ANTI THEFT 4JA1-T ENG(LP0) IMMOBILIZER SYSTEM<7KC> EXC. AUSTRALIA EQUIPMENT(B13) (A)	8-97365-025-0	01	1	0710-	●		●	●		●		●

25 231 231 123 123 231 231 25 25 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
25	02.100 RELAY; TAIL LAMP 02.485 12V YAZAKI	8-97309-292-0	01	1	0307-0609	●	●	●	●	●	●	●	●
25	02.100 RELAY; TAIL LAMP 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●	●	●	●	●
25	02.100 RELAY; TAIL LAMP 4JH1-TC ENG(RDM) EURO2 SPECIFICATION<NT2> EXC. COOLER WO/HEATER(C65) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●	●	●	●	●	●
25	02.100 RELAY; TAIL LAMP 6VE1 ENG(LX5) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508				●	●	●	●	●
25	02.100 RELAY; TAIL LAMP C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
25	02.100 RELAY; TAIL LAMP 6VE1 ENG(LX5) A/T AISIN(RMD) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●
25	02.100 RELAY; TAIL LAMP 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) IMMOBILIZER SYSTEM<7KC> 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●
25	02.100 RELAY; TAIL LAMP 4JH1-TC ENG(RDM) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512	●	●	●	●	●	●	●	●
25	02.100 RELAY; TAIL LAMP C24SE ENG(LG1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512		●	●	●	●	●	●	●
25	02.100 RELAY; TAIL LAMP 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TC ENG(L4Z) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512	●	●	●	●		●		●
25	02.100 RELAY; TAIL LAMP C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609	●	●	●	●	●	●	●	●
25	02.100 RELAY; TAIL LAMP 4JH1-TC ENG(RDM) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609	●	●	●	●	●	●	●	●
25	02.100 RELAY; TAIL LAMP 02.575 12V OMRON	8-98005-407-0	01	1	0610-	●	●	●	●	●	●	●	●
123	02.270 RELAY; HTR 03.670 12V YAZAKI	8-98146-834-0	01	1	0710-	●	●	●	●	●	●	●	●
123	02.270 RELAY; HTR 02.485 12V YAZAKI	8-97309-294-0	01	1	0307-0508	●	●	●	●	●	●	●	●
123	02.270 RELAY; HTR C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.485 12V YAZAKI	8-97309-294-0	01	1	0509-0609	●	●	●	●	●	●	●	●
123	02.270 RELAY; HTR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.485 12V YAZAKI	8-97309-294-0	01	1	1006-	●	●	●	●	●	●	●	●
123	02.270 RELAY; HTR 4JH1-TC ENG(RDM) EURO2 SPECIFICATION<NT2> EXC. COOLER WO/HEATER(C65) 02.510 12V OMRON	8-97125-441-1	01	1	0508-0508	●	●	●	●	●	●	●	●
123	02.270 RELAY; HTR 6VE1 ENG(LX5) 02.510 12V OMRON	8-97125-441-1	01	1	0508-0508				●	●	●	●	●
123	02.270 RELAY; HTR C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) 02.510 12V OMRON	8-97125-441-1	01	1	0508-0508						●	●	●
123	02.270 RELAY; HTR 6VE1 ENG(LX5) A/T AISIN(RMD) 02.510 12V OMRON	8-97125-441-1	01	1	0508-0508	●	●	●
123	02.270 RELAY; HTR 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) IMMOBILIZER SYSTEM<7KC> 02.510 12V OMRON	8-97125-441-1	01	1	0508-0508	●	●	●
123	02.270 RELAY; HTR HF V6 ENG(LCA),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z) 02.510 12V OMRON	8-97125-441-1	01	1	0509-0512	●	●	●	●	●	●	●	●
123	02.270 RELAY; HTR 4JH1-TC ENG(RDM) EMISSION SYSTEM R15-04<K75>,EURO3 SPECIFICATION<NT3> 02.510 12V OMRON	8-97125-441-1	01	1	0509-0512	●	●	●	●		●		●
123	02.270 RELAY; HTR 4JH1-TC ENG(RDM) EURO2 SPECIFICATION<NT2> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AUSTRALIA EQUIPMENT(B13) 02.510 12V OMRON	8-97125-441-1	01	1	0509-0512				●		●		●
123	02.270 RELAY; HTR C24SE ENG(LG1) EXC. AUSTRALIA EQUIPMENT(B13),4 WHEEL ANTI LOCK BRAKE<JE5> 02.510 12V OMRON	8-97125-441-1	01	1	0509-0512		●	●			●	●	●
123	02.270 RELAY; HTR 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13) 02.510 12V OMRON	8-97125-441-1	01	1	0509-0512								●
123	02.270 RELAY; HTR 4JH1-TC ENG(RDM) EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13) 02.510 12V OMRON	8-97125-441-1	01	1	0509-0512	●	●	●
123	02.270 RELAY; HTR HF V6 ENG(LCA),C24SE ENG(LG1), 4JA1-T ENG(LP0),6VE1 ENG(LX5),4JA1-TC ENG(L4Z) 02.510 12V OMRON	8-97125-441-1	01	1	0601-0609	●	●	●	●	●	●	●	●
123	02.270 RELAY; HTR 4JH1-TC ENG(RDM) EMISSION SYSTEM R15-04<K75>,EURO3 SPECIFICATION<NT3> EXC. AUSTRALIA EQUIPMENT(B13) 02.510 12V OMRON	8-97125-441-1	01	1	0601-0609				●		●		●
123	02.270 RELAY; HTR 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EURO2 SPECIFICATION<NT2> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AUSTRALIA EQUIPMENT(B13) 02.510 12V OMRON	8-97125-441-1	01	1	0601-0609				●		●		●
123	02.270 RELAY; HTR 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13) 02.510 12V OMRON	8-97125-441-1	01	1	0601-0609								●
123	02.270 RELAY; HTR 4JH1-TC ENG(RDM) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATI ON<NT3> EXC. AUSTRALIA EQUIPMENT(B13) 02.510 12V OMRON	8-97125-441-1	01	1	0601-0609	●	●	●
123	02.270 RELAY; HTR 02.510 12V OMRON	8-97125-441-1	01	1	0610-0709	●	●	●	●	●	●	●	●
123	02.270 RELAY; HTR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.510 12V OMRON	8-97125-441-1	01	1	0710-0912	●	●	●	●	●	●	●	●
123	02.270 RELAY; HTR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.510 12V OMRON	8-97125-441-1	01	1	1001-	●	●	●	●	●	●	●	●
123	02.270 RELAY; HTR 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 3-GROOVE W/DAMPER	8-97025-441-1	01	1	0509-0609				●		●		●
231	02.270 RELAY; HAZARD 09.778 12V YAZAKI	8-97309-293-0	02	1	0307-0402	●	●	●	●	●	●	●	●
231	02.270 RELAY; HAZARD C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 09.778 12V YAZAKI	8-97309-293-0	02	1	0403-0411	●	●	●	●	●	●	●	●
231	02.270 RELAY; HAZARD 09.778 12V YAZAKI	8-97309-293-0	02	1	0412-0508	●	●	●	●	●	●	●	●
231	02.270 RELAY; HAZARD 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> 09.778 12V YAZAKI	8-97309-293-0	02	1	0509-0512	●	●	●	●		●		●
231	02.270 RELAY; HAZARD 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 09.778 12V YAZAKI	8-97309-293-0	02	1	0509-0512			●
231	02.270 RELAY; HAZARD 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> 09.778 12V YAZAKI	8-97309-293-0	02	1	0601-0609	●	●	●	●		●		●
231	02.270 RELAY; HAZARD C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) EURO3 SPECIFICATION<NT3> 09.778 12V YAZAKI	8-97309-293-0	02	1	0601-0609						●	●	●
231	02.270 RELAY; HAZARD 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 09.778 12V YAZAKI	8-97309-293-0	02	1	0601-0609			●
231	02.270 RELAY; HAZARD 4JH1-TC ENG(RDM) EURO2 SPECIFICATION<NT2> EXC. COOLER WO/HEATER(C65) 02.575 12V OMRON	8-98005-407-0	02	1	0508-0508	●	●	●	●	●	●	●	●
231	02.270 RELAY; HAZARD 6VE1 ENG(LX5) 02.575 12V OMRON	8-98005-407-0	02	1	0508-0508				●	●	●	●	●
231	02.270 RELAY; HAZARD 6VE1 ENG(LX5) A/T AISIN(RMD) 02.575 12V OMRON	8-98005-407-0	02	1	0508-0508	●	●	●
231	02.270 RELAY; HAZARD 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) IMMOBILIZER SYSTEM<7KC> 02.575 12V OMRON	8-98005-407-0	02	1	0508-0508	●	●	●
231	02.270 RELAY; HAZARD C24SE ENG(LG1) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AUSTRALIA EQUIPMENT(B13) EURO3 SPECIFICATION<NT3> 02.575 12V OMRON	8-98005-407-0	02	1	0601-0609						●		●
231	02.270 RELAY; HAZARD C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EURO3 SPECIFICATION<NT3> 02.575 12V OMRON	8-98005-407-0	02	1	0601-0609							●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
