◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50965 - TFR/TFS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-27 - SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM ▶
8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM (#42988) — 35 parça

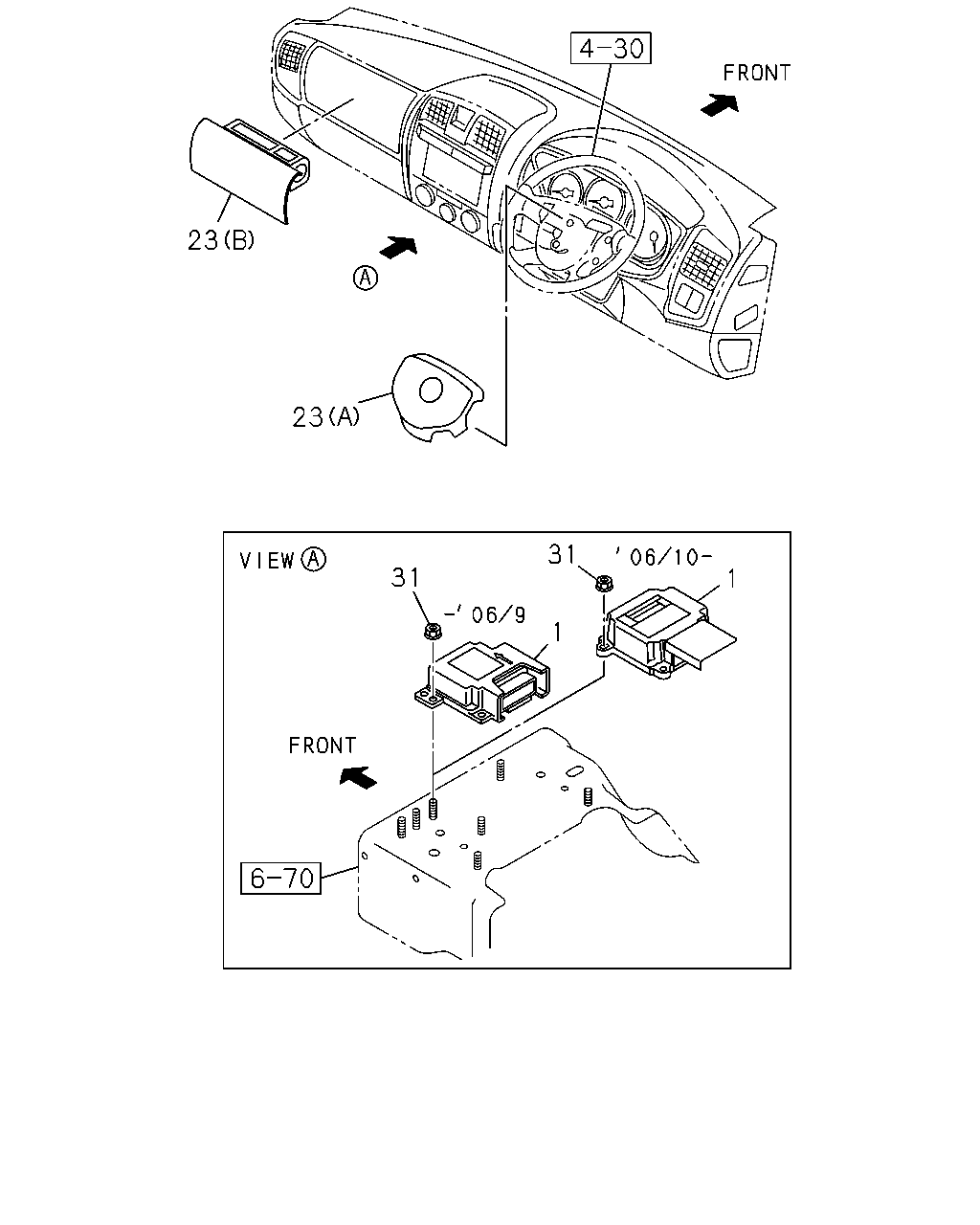

çizim 57200
23 23 31 1 31 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER(AK5) EXC. SEAT BELT TENSIONER FRT<A70> 		8-97360-407-0 01 1 0307-0510 ● ● ● ● ● ● ● ●
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER(AK5) EXC. SEAT BELT TENSIONER FRT<A70> 		8-98032-626-0 01 1 0511-0609 ● ● ● ● ● ● ● ●
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER(AK5) EXC. SEAT BELT TENSIONER FRT<A70> 		8-98039-724-0 01 1 0610-0905 ● ● ● ● ● ● ● ●
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER(AK5) EXC. SEAT BELT TENSIONER FRT<A70> 		8-98122-210-0 01 1 0906- ● ● ● ● ● ● ● ●
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER(AJ3) EXC. SEAT BELT TENSIONER FRT<A70> 		8-97360-406-0 01 1 0307-0508 ● ● ● ● ● ●
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER(AK5) SEAT BELT TENSIONER FRT<A70> 		8-97360-409-0 01 1 0307-0510 ● ● ● ●
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER(AK5) SEAT BELT TENSIONER FRT<A70> 		8-98032-628-0 01 1 0511-0609 ● ● ● ●
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER(AK5) SEAT BELT TENSIONER FRT<A70> 		8-98039-725-0 01 1 0610-0905 ● ● ● ●
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER(AK5) SEAT BELT TENSIONER FRT<A70> 		8-98122-211-0 01 1 0906- ● ● ● ●
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER(AJ3) SEAT BELT TENSIONER FRT<A70> 		8-97360-408-0 01 1 0307-0508 ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97396-840-1 01 1 0307-0609 ● ● ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97408-903-0 01 1 0610-0610 ● ● ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97408-901-1 01 1 0610-1007 ● ● ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) (B) BLACK 		8-97422-062-0 01 1 1008- ● ● ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> HOLDEN BRAND<8DU> (A) DARK GRAY 		8-97396-933-0 01 1 0307-0312 ● ● ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> HOLDEN BRAND<8DU> (A) DARK GRAY 		8-97397-847-0 01 1 0401-0508 ● ● ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> HOLDEN BRAND<8DU> (A) DARK GRAY 		8-97397-847-0 01 1 0509-0609 ● ● ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> HOLDEN BRAND<8DU> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY 		8-97408-899-0 01 1 0610-0904 ● ● ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> HOLDEN BRAND<8DU> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY 		8-97417-275-0 01 1 0905-0906 ● ● ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> HOLDEN BRAND<8DU> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY 		8-97418-297-0 01 1 0907- ● ● ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> ISUZU BRAND<7WL> (A) DARK GRAY 		8-97396-931-0 01 1 0307-0312 ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> ISUZU BRAND<7WL> (A) DARK GRAY 		8-97397-845-0 01 1 0401-0508 ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> ISUZU BRAND<7WL> (A) DARK GRAY 		8-97397-845-0 01 1 0509-0609 ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> ISUZU BRAND<7WL> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY 		8-97408-898-0 01 1 0610-0904 ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> ISUZU BRAND<7WL> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY 		8-97417-274-0 01 1 0905-0906 ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> ISUZU BRAND<7WL> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY 		8-97418-298-0 01 1 0907- ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> CHEVROLET BRAND<RWE> (A) DARK GRAY 		8-97396-932-0 01 1 0307-0312 ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> CHEVROLET BRAND<RWE> (A) DARK GRAY 		8-97397-846-0 01 1 0401-0508 ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> CHEVROLET BRAND<RWE> (A) DARK GRAY 		8-97397-846-0 01 1 0509-0609 ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> CHEVROLET BRAND<RWE> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY 		8-97408-900-0 01 1 0610-0904 ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> CHEVROLET BRAND<RWE> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY 		8-97417-276-0 01 1 0905-0906 ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> CHEVROLET BRAND<RWE> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY 		8-97418-296-0 01 1 0907- ● ● ● ● ● ●
31 14.865 NUT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 01.062 M6 FLANGE 		0-91150-206-0 03 1 0307-0402 ● ● ● ● ● ● ● ●
31 14.865 NUT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 01.540 M6 FLANGE 		0-91180-206-0 03 1 0403-0508 ● ● ● ● ● ● ● ●
31 14.865 NUT
AIR BAG DRIVER & PASSENGER(AK5) 01.540 M6 FLANGE 		0-91180-206-0 03 1 0509- ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
