8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#42987) — 129 parça

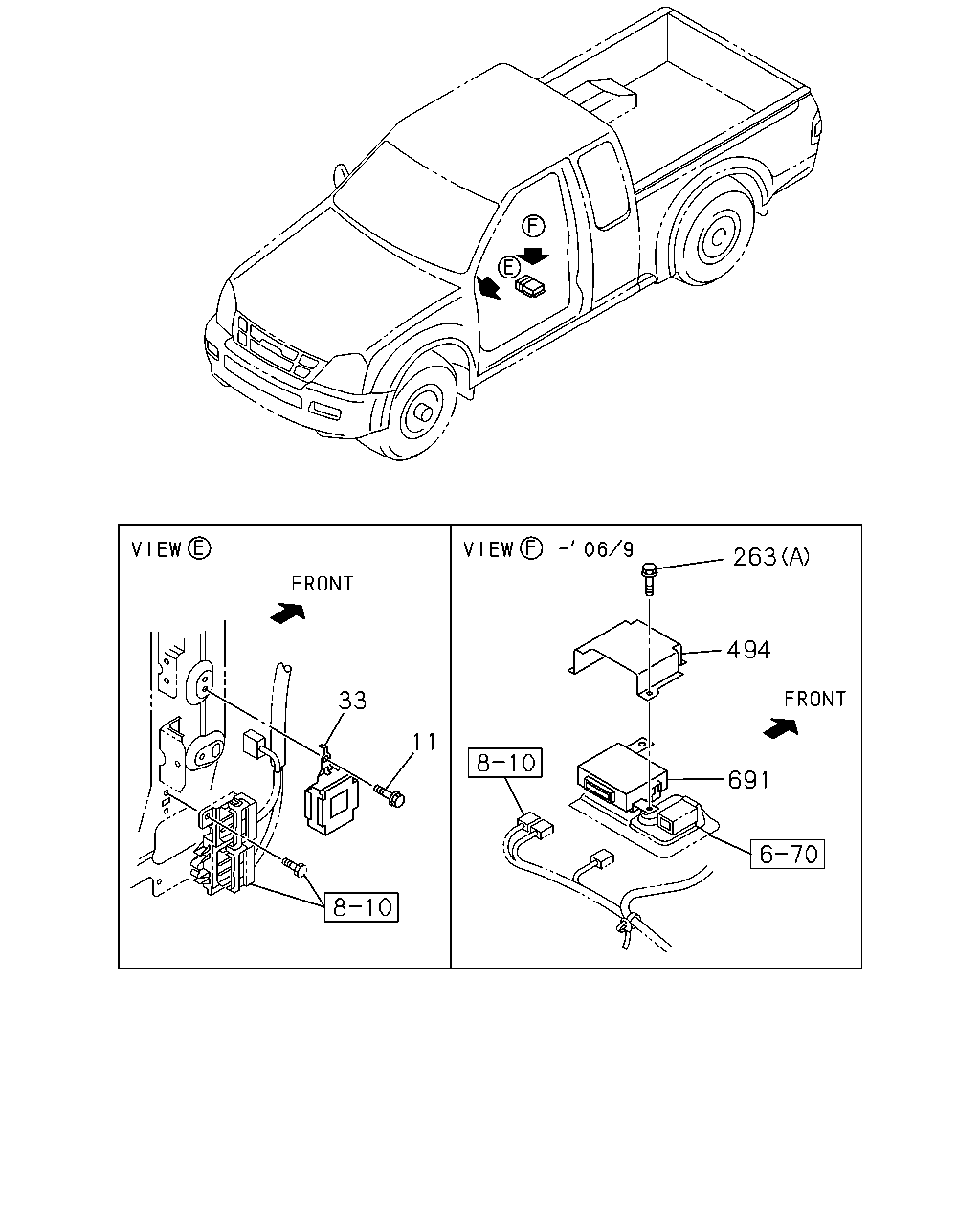

çizim 12876
263 494 691 11 33
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
11 03.880 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> 03.162 M6X20 FLANGE 		0-28650-620-0 01 1 0307-0508 ● ● ● ● ●
11 03.880 BOLT; CONTROLLER,CRUISE
4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(LX5) AUTO CRUISE CONT<K30> 03.162 M6X20 FLANGE 		0-28650-620-0 01 1 0509-0609 ●
33 02.510 CONTROL UNIT; AUTO CRUISE
AUTO CRUISE CONT<K30> 		8-97300-153-0 01 1 0307-0508 ● ● ● ● ●
33 02.510 CONTROL UNIT; AUTO CRUISE
4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(LX5) AUTO CRUISE CONT<K30> 		8-97300-153-0 01 1 0509-0609 ●
263 04.115 BOLT; CONT UNIT
A/T 4 SPEED-HMD,ELEC(M30) 02.334 (B) M6X25 FLANGE 		0-28680-625-0 04 1 0509-0601 ● ● ●
263 04.115 BOLT; CONT UNIT
4X4 CREW CAB LONG(TFS*WF) A/T 4 SPEED-HMD,ELEC,PTU(MK2) 02.334 (B) M6X25 FLANGE 		0-28680-625-0 04 1 0509-0601 ●
263 04.115 BOLT; CONT UNIT
A/T 4 SPEED-HMD,ELEC(M30) 00.685 (B) M6X25 FLANGE 		0-28650-625-0 04 1 0602-0609 ● ● ●
263 04.115 BOLT; CONT UNIT
4X4 CREW CAB LONG(TFS*WF) A/T 4 SPEED-HMD,ELEC,PTU(MK2) 00.685 (B) M6X25 FLANGE 		0-28650-625-0 04 1 0602-0609 ●
263 04.115 BOLT; CONT UNIT
A/T 4 SPEED-HMD,ELEC(M30) 00.685 (B) M6X25 FLANGE 		0-28650-625-0 04 1 0610- ● ● ● ●
263 04.115 BOLT; CONT UNIT
4X4 CREW CAB LONG(TFS*WF) A/T 4 SPEED-HMD,ELEC,PTU(MK2) 00.685 (B) M6X25 FLANGE 		0-28650-625-0 04 1 0610- ●
263 04.115 BOLT; CONT UNIT
04.439 (A) M6X16 FLANGE 		0-28680-616-0 02 1 0307-0601 ● ● ●
263 04.115 BOLT; CONT UNIT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 02 1 0602-0609 ● ● ●
494 04.115 COVER; ELEC BOX 8-97328-613-0 01 1 0307-0609 ● ● ●
691 04.115 CONTROLLER; TRANSFER
SHIFT ON THE FLY<NR4> 		8-97351-960-1 01 1 0307-0309 ● ● ●
691 04.115 CONTROLLER; TRANSFER
SHIFT ON THE FLY<NR4> 		8-97368-449-0 01 1 0310-0408 ● ● ●
691 04.115 CONTROLLER; TRANSFER
SHIFT ON THE FLY<NR4> 		8-97374-038-0 01 1 0409-0508 ● ● ●
691 04.115 CONTROLLER; TRANSFER
SHIFT ON THE FLY<NR4> 		8-97386-320-0 01 1 0509-0609 ● ● ●
691 04.115 CONTROLLER; TRANSFER
SHIFT ON THE FLY<NR4> 		8-98024-663-0 01 1 0610- ● ● ●
691 04.115 CONTROLLER; TRANSFER
EXC. SHIFT ON THE FLY<NR4> 		8-97369-965-0 01 1 0307-0412 ● ● ●
691 04.115 CONTROLLER; TRANSFER
EXC. SHIFT ON THE FLY<NR4> 		8-97374-039-0 01 1 0501-0508 ● ● ●
691 04.115 CONTROLLER; TRANSFER
EXC. SHIFT ON THE FLY<NR4> 		8-97386-321-0 01 1 0509-0609 ● ● ●
691 04.115 CONTROLLER; TRANSFER
EXC. SHIFT ON THE FLY<NR4> 		8-98024-664-0 01 1 0610- ● ● ●

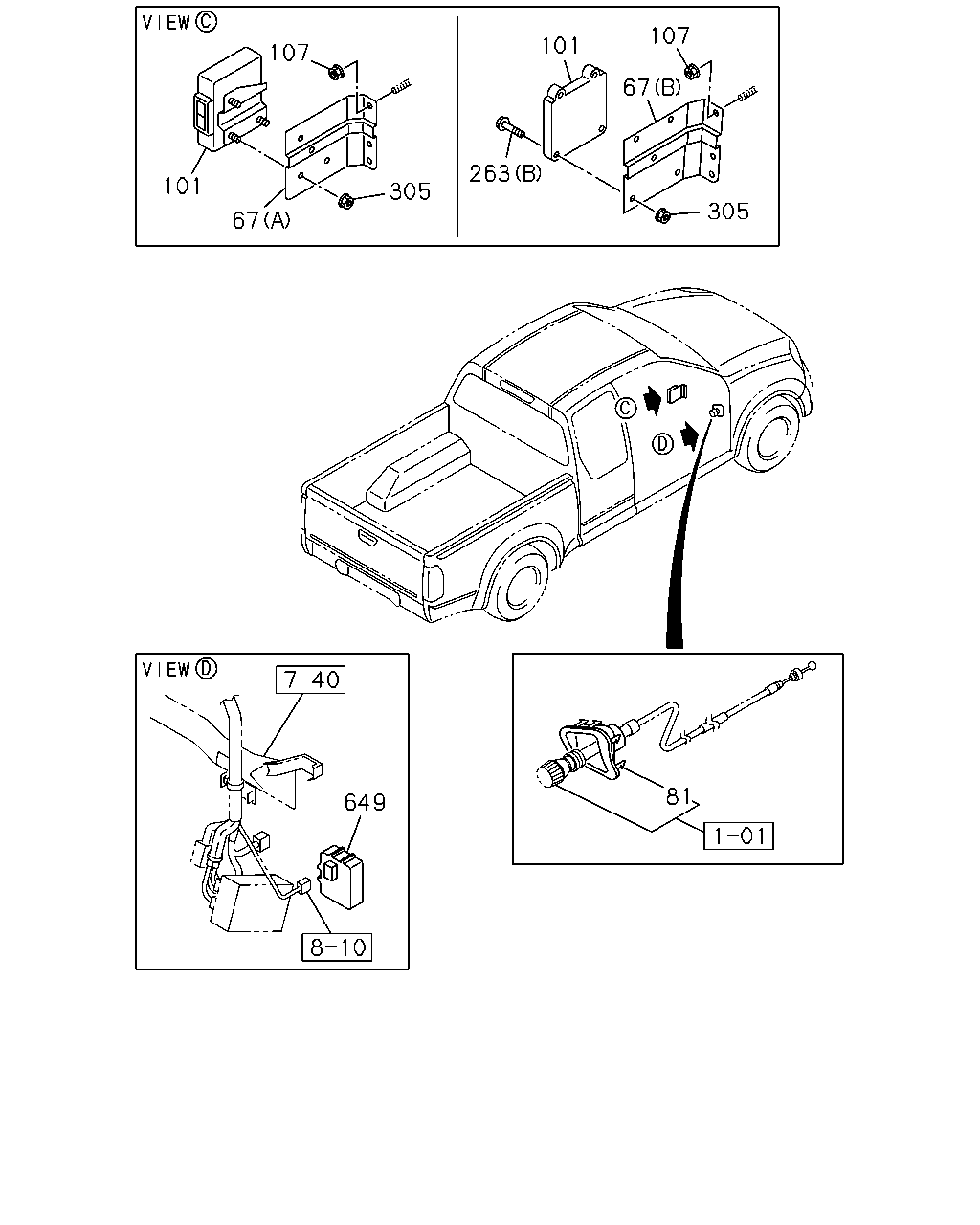

çizim 53905
107 67 101 263 305 305 67 101 107 649 81
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
67 03.887 BRACKET; CONT UNIT
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) (A) 		8-97306-829-0 01 1 0307-0508 ● ● ● ● ●
67 03.887 BRACKET; CONT UNIT
A/T 4 SPEED-JATCO(RMK) (A) 		8-97306-829-0 01 1 0509-0609 ●
67 03.887 BRACKET; CONT UNIT
4X4 CREW CAB LONG(TFS*WF) A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) (A) 		8-97306-829-0 01 1 0509-0609 ●
67 03.887 BRACKET; CONT UNIT
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) (A) 		8-97306-829-0 01 1 0610- ● ● ●
67 03.887 BRACKET; CONT UNIT
4X4 EXTEND CAB LONG(TFS*CF) A/T AISIN(RMD) (A) 		8-97306-829-0 01 1 0610- ●
67 03.887 BRACKET; CONT UNIT
4X4 CREW CAB LONG(TFS*WF) A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) (A) 		8-97306-829-0 01 1 0610- ●
67 03.887 BRACKET; CONT UNIT
A/T 4 SPEED-HMD,ELEC(M30) (B) 		8-98001-003-0 01 1 0509-0609 ● ● ●
67 03.887 BRACKET; CONT UNIT
4X4 CREW CAB LONG(TFS*WF) A/T 4 SPEED-HMD,ELEC,PTU(MK2) (B) 		8-98001-003-0 01 1 0509-0609 ●
67 03.887 BRACKET; CONT UNIT
A/T 4 SPEED-HMD,ELEC(M30) (B) 		8-98001-003-0 01 1 0610- ● ● ● ●
67 03.887 BRACKET; CONT UNIT
4X4 CREW CAB LONG(TFS*WF) A/T 4 SPEED-HMD,ELEC,PTU(MK2) (B) 		8-98001-003-0 01 1 0610- ●
81 03.451 BEZEL; IDLE CONT
4JA1-T ENG(LP0) DARK GRAY 		8-97390-736-0 01 1 0307-0609 ● ● ● ● ● ●
81 03.451 BEZEL; IDLE CONT
4JA1-T ENG(LP0) 		8-97403-935-0 01 1 0610- ● ● ● ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
6VE1 ENG(LX5) A/T AISIN(RMD) 		8-97355-189-0 01 1 0307-0508 ● ● ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(LX5) A/T AISIN(RMD) 		8-97355-189-0 01 1 0509-0609 ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> 		8-98043-640-0 01 1 0610- ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4X4 EXTEND CAB LONG(TFS*CF) 4JJ1-TCX ENG(LS0) A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> 		8-98043-640-0 01 1 0610- ●
101 04.115 CONTROL UNIT; ELEC,A/T
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCX ENG(LS0) A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> 		8-98043-640-0 01 1 0610- ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> 		8-98043-641-0 01 1 0610- ● ● ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) 		8-24236-194-0 01 1 0509-0609 ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2) 		8-24236-194-0 01 1 0509-0609 ●
101 04.115 CONTROL UNIT; ELEC,A/T
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) 		8-24236-194-0 01 1 0610- ● ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2) 		8-24236-194-0 01 1 0610- ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BSW) EXC. AUSTRALIA EQUIPMENT(B13) 		8-97367-247-0 01 1 0307-0411 ●
101 04.115 CONTROL UNIT; ELEC,A/T
4X4 CREW CAB LONG(TFS*WF) 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EXC. AUSTRALIA EQUIPMENT(B13) 		8-97367-247-0 01 1 0307-0411 ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BSW) EXC. AUSTRALIA EQUIPMENT(B13) 		8-97372-890-0 01 1 0412-0508 ●
101 04.115 CONTROL UNIT; ELEC,A/T
4X4 CREW CAB LONG(TFS*WF) 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EXC. AUSTRALIA EQUIPMENT(B13) 		8-97372-890-0 01 1 0412-0508 ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ) EXC. AUSTRALIA EQUIPMENT(B13) 		8-97372-890-0 01 1 0509-0609 ●
101 04.115 CONTROL UNIT; ELEC,A/T
4X4 CREW CAB LONG(TFS*WF) 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EXC. AUSTRALIA EQUIPMENT(B13) 		8-97372-890-0 01 1 0509-0609 ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75> 		8-98041-752-0 01 1 0610- ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 		8-98041-752-0 01 1 0610- ●
101 04.115 CONTROL UNIT; ELEC,A/T
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 		8-98041-752-0 01 1 0610- ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) 		8-97367-257-0 01 1 0307-0410 ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) 		8-97372-891-0 01 1 0411-0609 ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EURO3 SPECIFICATION<NT3> 		8-98049-042-0 01 1 0610- ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) AUSTRALIA EQUIPMENT(B13) 		8-97358-557-0 01 1 0307-0412 ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) AUSTRALIA EQUIPMENT(B13) 		8-97372-892-0 01 1 0501-0609 ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ) EURO3 SPECIFICATION<NT3> 		8-98041-750-0 01 1 0610- ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ) EURO3 SPECIFICATION<NT3> 		8-98041-750-0 01 1 0610- ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0307-0508 ● ● ● ● ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30),A/T AISIN(RMD) ,A/T 4 SPEED-JATCO(RMK) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0509-0609 ● ● ● ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30),A/T AISIN(RMD) ,A/T 4 SPEED-JATCO(RMK) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0610- ● ● ● ● ● ● ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0610- ● ● ●
263 04.115 BOLT; CONT UNIT
A/T 4 SPEED-HMD,ELEC(M30) 02.334 (B) M6X25 FLANGE 		0-28680-625-0 04 1 0509-0601 ● ● ●
263 04.115 BOLT; CONT UNIT
4X4 CREW CAB LONG(TFS*WF) A/T 4 SPEED-HMD,ELEC,PTU(MK2) 02.334 (B) M6X25 FLANGE 		0-28680-625-0 04 1 0509-0601 ●
263 04.115 BOLT; CONT UNIT
A/T 4 SPEED-HMD,ELEC(M30) 00.685 (B) M6X25 FLANGE 		0-28650-625-0 04 1 0602-0609 ● ● ●
263 04.115 BOLT; CONT UNIT
4X4 CREW CAB LONG(TFS*WF) A/T 4 SPEED-HMD,ELEC,PTU(MK2) 00.685 (B) M6X25 FLANGE 		0-28650-625-0 04 1 0602-0609 ●
263 04.115 BOLT; CONT UNIT
A/T 4 SPEED-HMD,ELEC(M30) 00.685 (B) M6X25 FLANGE 		0-28650-625-0 04 1 0610- ● ● ● ●
263 04.115 BOLT; CONT UNIT
4X4 CREW CAB LONG(TFS*WF) A/T 4 SPEED-HMD,ELEC,PTU(MK2) 00.685 (B) M6X25 FLANGE 		0-28650-625-0 04 1 0610- ●
263 04.115 BOLT; CONT UNIT
04.439 (A) M6X16 FLANGE 		0-28680-616-0 02 1 0307-0601 ● ● ●
263 04.115 BOLT; CONT UNIT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 02 1 0602-0609 ● ● ●
305 08.915 NUT; CONT UNIT
A/T AISIN(RMD) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0307-0508 ● ● ● ● ●
305 08.915 NUT; CONT UNIT
4X4 CREW CAB LONG(TFS*WF) A/T AISIN(RMD) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0509-0609 ●
305 08.915 NUT; CONT UNIT
A/T AISIN(RMD) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0610- ● ● ●
305 08.915 NUT; CONT UNIT
4X4 EXTEND CAB LONG(TFS*CF) A/T AISIN(RMD) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0610- ●
305 08.915 NUT; CONT UNIT
4X4 CREW CAB LONG(TFS*WF) A/T AISIN(RMD) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0610- ●
305 08.915 NUT; CONT UNIT
A/T 4 SPEED-HMD,ELEC(M30) 01.062 M6 FLANGE 		0-91180-106-0 04 1 0509-0609 ● ● ●
305 08.915 NUT; CONT UNIT
4X4 CREW CAB LONG(TFS*WF) A/T 4 SPEED-HMD,ELEC,PTU(MK2) 01.062 M6 FLANGE 		0-91180-106-0 04 1 0509-0609 ●
305 08.915 NUT; CONT UNIT
A/T 4 SPEED-HMD,ELEC(M30) 01.062 M6 FLANGE 		0-91180-106-0 04 1 0610- ● ● ● ●
305 08.915 NUT; CONT UNIT
4X4 CREW CAB LONG(TFS*WF) A/T 4 SPEED-HMD,ELEC,PTU(MK2) 01.062 M6 FLANGE 		0-91180-106-0 04 1 0610- ●
305 08.915 NUT; CONT UNIT
A/T 4 SPEED-JATCO(RMK) 01.062 M6 FLANGE 		0-91180-106-0 03 1 0307-0609 ● ●
305 08.915 NUT; CONT UNIT
A/T 4 SPEED-JATCO(RMK) 01.062 M6 FLANGE 		0-91180-106-0 03 1 0610- ● ● ●
305 08.915 NUT; CONT UNIT
4X4 CREW CAB LONG(TFS*WF) A/T 4 SPEED-JATCO(RMK) 01.062 M6 FLANGE 		0-91180-106-0 03 1 0610- ●
649 02.679 CONTROL UNIT; RR FOG LAMP
RR FOG LAMP<T79> 		8-97362-213-0 01 1 0307-0609 ● ● ● ●

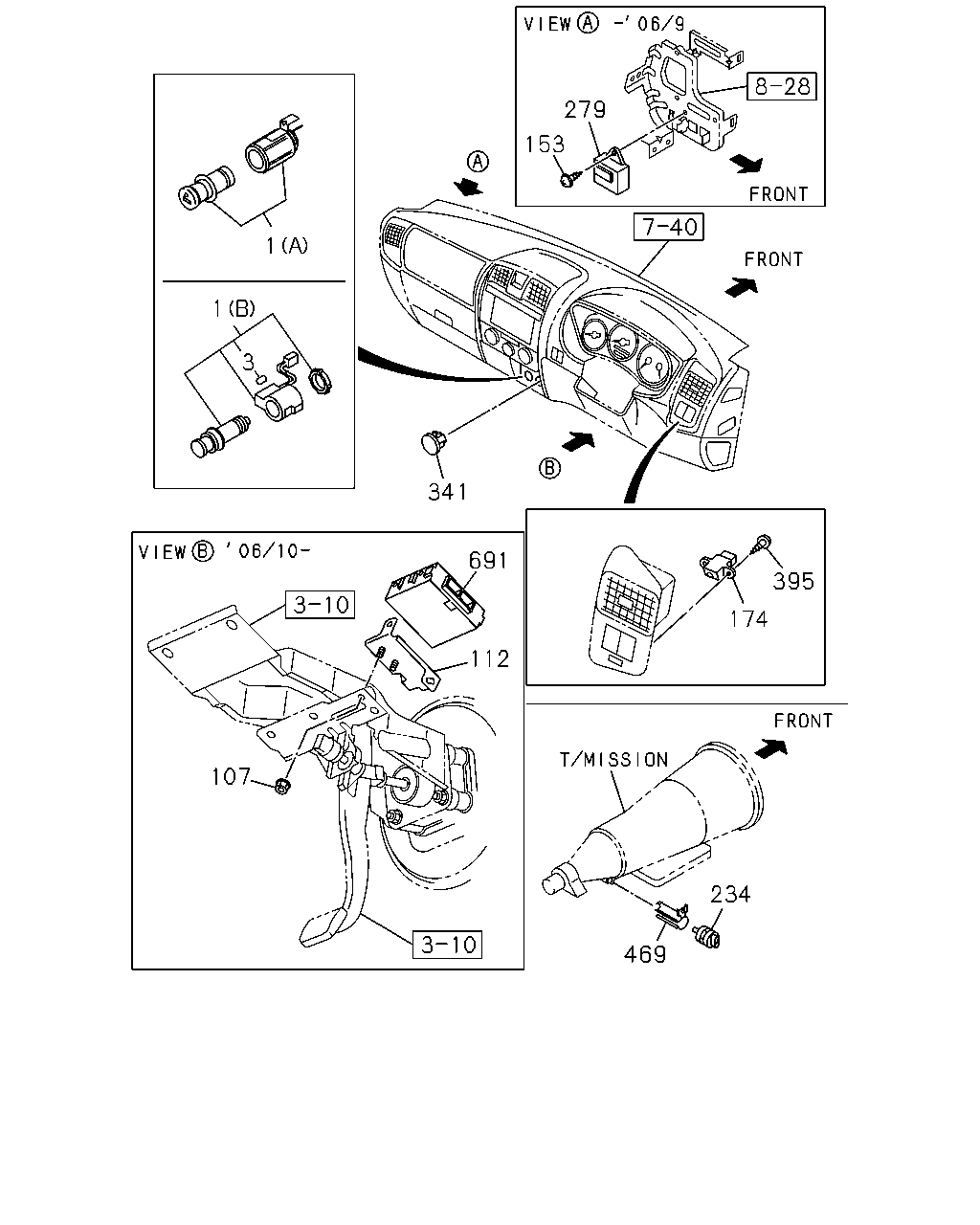

çizim 55154
279 153 1 1 341 112 691 174 395 234 469 107 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 09.709 LIGHTER; CIGAR
GRADE DX(RBA) (A) 		8-97314-003-0 01 1 0307- ● ● ● ● ● ● ●
1 09.709 LIGHTER; CIGAR
GRADE LX(RBB),GRADE LT/LS(RBD) (B) 		8-97329-641-0 01 1 0307- ● ● ● ● ● ● ●
1 09.709 LIGHTER; CIGAR
(B) 		8-97329-641-0 01 1 0307- ●
3 08.991 BULB; CIGAR LIGHTER
GRADE LX(RBB),GRADE LT/LS(RBD) 14V 1.4W 		8-97173-160-0 01 1 0307- ● ● ● ● ● ● ●
3 08.991 BULB; CIGAR LIGHTER
14V 1.4W 		8-97173-160-0 01 1 0307- ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0307-0508 ● ● ● ● ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30),A/T AISIN(RMD) ,A/T 4 SPEED-JATCO(RMK) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0509-0609 ● ● ● ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30),A/T AISIN(RMD) ,A/T 4 SPEED-JATCO(RMK) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0610- ● ● ● ● ● ● ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0610- ● ● ●
112 02.500 BRACKET; CONT UNIT 8-97945-256-0 01 1 0610- ● ● ●
153 16.085 BOLT; BUZZER FIX
HEAD LAMP REMINDER<T63> M5X16 TAPPING 		9-09829-323-1 01 1 0307-0609 ● ● ● ● ● ● ●
153 16.085 BOLT; BUZZER FIX
M5X16 TAPPING 		9-09829-323-1 01 1 0307-0609 ●
153 16.085 BOLT; BUZZER FIX
KEY REMINDER BUZZER<T48> EXC. HEAD LAMP REMINDER<T63> M5X16 TAPPING 		9-09829-323-1 01 1 0307-0609 ● ● ● ●
174 10.485 INDICATOR; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97248-972-0 01 1 0307-0508 ● ● ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 4 PULSE PPS RESIN BLACK 		8-97129-704-0 01 1 0307-0406 ● ● ● ● ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 0407-0508 ● ● ● ● ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 0509-0609 ● ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 0509-0609 ● ● ●
234 03.682 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75), M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SP EED 5S(RSQ) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 0610- ● ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 0610- ● ● ●
234 03.682 SENSOR; VEHICLE SPD
A/T AISIN(RMD) 		8-97129-705-0 01 1 0307-0508 ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
A/T AISIN(RMD) 4 PULSE PPS RESIN WHITE/BLACK 		8-98043-734-0 01 1 0610- ● ● ●
279 16.081 BUZZER ASM; SEAT BELT WARNING
HEAD LAMP REMINDER<T63> 		8-97135-562-0 01 1 0307-0609 ● ● ● ● ● ● ●
279 16.081 BUZZER ASM; SEAT BELT WARNING 8-97135-562-0 01 1 0307-0609 ●
279 16.081 BUZZER ASM; SEAT BELT WARNING
KEY REMINDER BUZZER<T48> EXC. HEAD LAMP REMINDER<T63> 		8-97135-562-0 01 1 0307-0609 ● ● ● ●
341 04.115 COVER ASM
EXC. ACCESSORY SOCKET FRT CONSOLE<KC5> 09.277 DARK GRAY 		8-97390-774-0 01 1 0307-0609 ● ● ● ● ● ●
341 04.115 COVER ASM
EXC. ACCESSORY SOCKET FRT CONSOLE<KC5> DARK GRAY 		8-97396-703-0 01 1 0610- ● ● ● ● ● ●
395 02.440 SCREW; INDICATOR
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 0307-0508 ● ● ● ● ● ●
469 03.682 PROTECTOR; SPEED SENSOR 8-97168-308-0 01 1 0307-0508 ● ● ● ●
469 03.682 PROTECTOR; SPEED SENSOR
M/T MSG 5 SPEED(M75),A/T AISIN(RMD) ,M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-97168-308-0 01 1 0307-0508 ●
469 03.682 PROTECTOR; SPEED SENSOR
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-97168-308-0 01 1 0509-0609 ● ● ● ● ●
469 03.682 PROTECTOR; SPEED SENSOR
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP), M/T MUA 5 SPEED 5S(RSQ) 		8-97168-308-0 01 1 0610-0809 ● ● ● ●
469 03.682 PROTECTOR; SPEED SENSOR
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP), M/T MUA 5 SPEED 5S(RSQ) 		8-98119-901-0 01 1 0810- ● ● ● ●
469 03.682 PROTECTOR; SPEED SENSOR
6VE1 ENG(LX5) 02.559 		8-97350-141-0 01 1 0307-0508 ● ● ●
469 03.682 PROTECTOR; SPEED SENSOR
6VE1 ENG(LX5) 02.559 		8-97350-141-0 01 1 0509-0609 ●
691 04.115 CONTROLLER; TRANSFER
SHIFT ON THE FLY<NR4> 		8-97351-960-1 01 1 0307-0309 ● ● ●
691 04.115 CONTROLLER; TRANSFER
SHIFT ON THE FLY<NR4> 		8-97368-449-0 01 1 0310-0408 ● ● ●
691 04.115 CONTROLLER; TRANSFER
SHIFT ON THE FLY<NR4> 		8-97374-038-0 01 1 0409-0508 ● ● ●
691 04.115 CONTROLLER; TRANSFER
SHIFT ON THE FLY<NR4> 		8-97386-320-0 01 1 0509-0609 ● ● ●
691 04.115 CONTROLLER; TRANSFER
SHIFT ON THE FLY<NR4> 		8-98024-663-0 01 1 0610- ● ● ●
691 04.115 CONTROLLER; TRANSFER
EXC. SHIFT ON THE FLY<NR4> 		8-97369-965-0 01 1 0307-0412 ● ● ●
691 04.115 CONTROLLER; TRANSFER
EXC. SHIFT ON THE FLY<NR4> 		8-97374-039-0 01 1 0501-0508 ● ● ●
691 04.115 CONTROLLER; TRANSFER
EXC. SHIFT ON THE FLY<NR4> 		8-97386-321-0 01 1 0509-0609 ● ● ●
691 04.115 CONTROLLER; TRANSFER
EXC. SHIFT ON THE FLY<NR4> 		8-98024-664-0 01 1 0610- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
