Sayfa 8-25 - Isuzu EPC

8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#42986) — 800 parça

1 620 600 3 573 12 140 39 312

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H

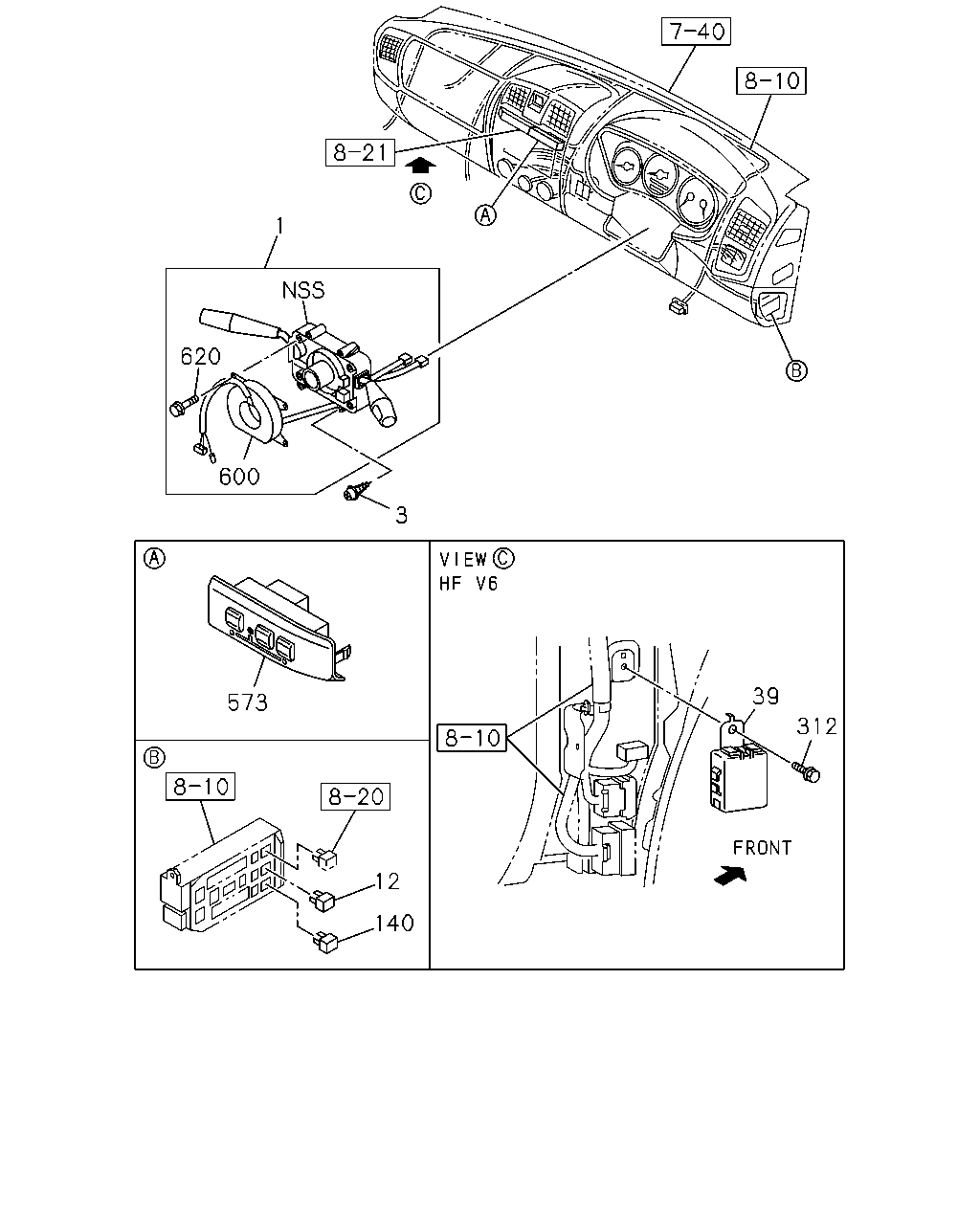

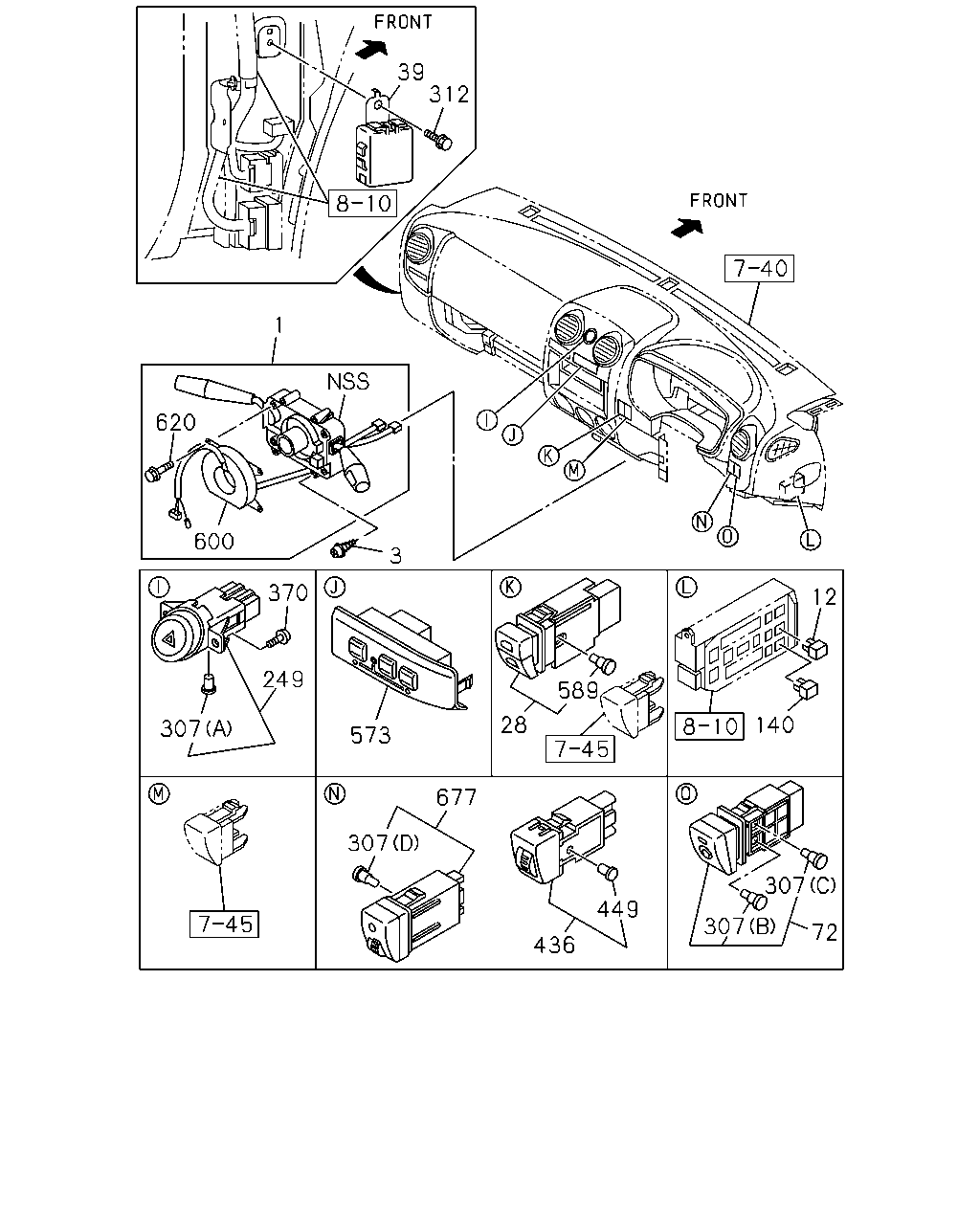

1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE(AK6) INTERMITTENT WIPER<C13> EXC. HONG KONG EQUIPMENT(B14),AUTO CRUISE CONT<K30>,FOG LAMP<T96>, SINGAPORE EQUIPMENT(2G0)	8-97360-680-0	01	1	0307-0609	●	●	●	●	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE(AK6) INTERMITTENT WIPER<C13> EXC. HONG KONG EQUIPMENT(B14),AUTO CRUISE CONT<K30>,FOG LAMP<T96>, SINGAPORE EQUIPMENT(2G0)	8-97363-411-0	01	1	0610-	●	●	●	●	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> EXC. HONG KONG EQUIPMENT(B14),AUTO CRUISE CONT<K30>,FOG LAMP<T96>, SINGAPORE EQUIPMENT(2G0)	8-97360-681-0	01	1	0307-0609	●	●	●	●	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> EXC. HONG KONG EQUIPMENT(B14),AUTO CRUISE CONT<K30>,FOG LAMP<T96>, SINGAPORE EQUIPMENT(2G0)	8-98007-706-0	01	1	0610-	●	●	●	●	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. HONG KONG EQUIPMENT(B14), VARIABLE INTERMITTENT WIPER<CD4>,INTERMI TTENT WIPER<C13>,AUTO CRUISE CONT<K30>,FOG LAMP<T96>,SINGAPORE EQUIPME NT(2G0)	8-97360-679-0	01	1	0307-0609	●		●	●	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. HONG KONG EQUIPMENT(B14), VARIABLE INTERMITTENT WIPER<CD4>,INTERMI TTENT WIPER<C13>,AUTO CRUISE CONT<K30>,FOG LAMP<T96>,SINGAPORE EQUIPME NT(2G0)	8-98007-705-0	01	1	0610-	●		●		●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE(AK6) FOG LAMP<T96> EXC. HONG KONG EQUIPMENT(B14), VARIABLE INTERMITTENT WIPER<CD4>,INTERMI TTENT WIPER<C13>,AUTO CRUISE CONT<K30>,SINGAPORE EQUIPMENT(2G0)	8-97360-684-0	01	1	0307-0609	●		●		●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE(AK6) FOG LAMP<T96> EXC. HONG KONG EQUIPMENT(B14), VARIABLE INTERMITTENT WIPER<CD4>,INTERMI TTENT WIPER<C13>,AUTO CRUISE CONT<K30>,SINGAPORE EQUIPMENT(2G0)	8-98007-708-0	01	1	0610-	●		●		●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE(AK6) INTERMITTENT WIPER<C13> FOG LAMP<T96> EXC. HONG KONG EQUIPMENT(B14),AUTO CRUISE CONT<K30>,SINGAPORE EQUIPMENT(2G0)	8-97360-685-0	01	1	0307-0609	●		●		●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE(AK6) INTERMITTENT WIPER<C13> FOG LAMP<T96> EXC. HONG KONG EQUIPMENT(B14),AUTO CRUISE CONT<K30>,SINGAPORE EQUIPMENT(2G0)	8-98007-709-0	01	1	0610-	●	●	●	●	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> FOG LAMP<T96> EXC. HONG KONG EQUIPMENT(B14),AUTO CRUISE CONT<K30>,SINGAPORE EQUIPMENT(2G0)	8-97360-690-0	01	1	0307-0609	●		●		●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> FOG LAMP<T96> EXC. HONG KONG EQUIPMENT(B14),AUTO CRUISE CONT<K30>,SINGAPORE EQUIPMENT(2G0)	8-98007-714-0	01	1	0610-	●	●	●	●	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE(AK6) VARIABLE INTERMITTENT WIPER<CD4> AUTO CRUISE CONT<K30> FOG LAMP<T96> EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0)	8-97360-688-0	01	1	0307-0609	●		●		●	●		●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE(AK6) VARIABLE INTERMITTENT WIPER<CD4> AUTO CRUISE CONT<K30> FOG LAMP<T96> EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0)	8-98007-712-0	01	1	0610-	●		●		●	●		●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE(AK6) VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> EXC. HONG KONG EQUIPMENT(B14),AUTO CRUISE CONT<K30>,SINGAPORE EQUIPMENT(2G0)	8-97360-686-0	01	1	0307-0609	●		●		●	●		●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE(AK6) VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> EXC. HONG KONG EQUIPMENT(B14),AUTO CRUISE CONT<K30>,SINGAPORE EQUIPMENT(2G0)	8-97363-414-0	01	1	0610-	●		●		●	●		●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE(AK6) VARIABLE INTERMITTENT WIPER<CD4> EXC. HONG KONG EQUIPMENT(B14),AUTO CRUISE CONT<K30>,FOG LAMP<T96>, SINGAPORE EQUIPMENT(2G0)	8-97360-682-0	01	1	0307-0609	●		●		●	●		●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE(AK6) VARIABLE INTERMITTENT WIPER<CD4> EXC. HONG KONG EQUIPMENT(B14),AUTO CRUISE CONT<K30>,FOG LAMP<T96>, SINGAPORE EQUIPMENT(2G0)	8-97363-412-0	01	1	0610-	●		●		●	●		●
1	02.895 SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VARIABLE INTERMITTENT WIPER<CD4> EXC. HONG KONG EQUIPMENT(B14),AUTO CRUISE CONT<K30>,FOG LAMP<T96>, SINGAPORE EQUIPMENT(2G0)	8-97360-683-0	01	1	0307-0609	●		●		●	●		●
1	02.895 SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VARIABLE INTERMITTENT WIPER<CD4> EXC. HONG KONG EQUIPMENT(B14),AUTO CRUISE CONT<K30>,FOG LAMP<T96>, SINGAPORE EQUIPMENT(2G0)	8-98007-707-0	01	1	0610-	●		●		●	●		●
1	02.895 SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> EXC. HONG KONG EQUIPMENT(B14),AUTO CRUISE CONT<K30>,SINGAPORE EQUIPMENT(2G0)	8-97360-687-0	01	1	0307-0609	●		●		●	●		●
1	02.895 SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> EXC. HONG KONG EQUIPMENT(B14),AUTO CRUISE CONT<K30>,SINGAPORE EQUIPMENT(2G0)	8-98007-711-0	01	1	0610-	●		●		●	●		●
1	02.895 SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VARIABLE INTERMITTENT WIPER<CD4> AUTO CRUISE CONT<K30> FOG LAMP<T96> EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0)	8-97360-689-0	01	1	0307-0609	●		●		●	●		●
1	02.895 SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VARIABLE INTERMITTENT WIPER<CD4> AUTO CRUISE CONT<K30> FOG LAMP<T96> EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0)	8-98007-713-0	01	1	0610-	●		●		●	●		●
1	02.895 SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30>	8-97360-695-0	01	1	0307-0609			●		●		●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30>	8-98007-721-0	01	1	0610-			●		●		●	●
3	02.897 SCREW; COMB SW 03.483 M5X14 W/LK&PL WASHER	9-03920-514-0	02	1	0307-0606	●	●	●	●	●	●	●	●
3	02.897 SCREW; COMB SW M5X14 W/LK&PL WASHER	0-36230-514-0	02	1	0607-	●	●	●	●	●	●	●	●
12	08.852 RELAY; POWER WINDOW M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) SEAT BELT TENSIONER FRT<A70> HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 09.778 12V YAZAKI	8-97309-293-0	02	1	0711-			●		●		●	●
12	08.852 RELAY; POWER WINDOW 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●	●	●	●	●
12	08.852 RELAY; POWER WINDOW 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-					●			●
12	08.852 RELAY; POWER WINDOW AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0709	●	●	●	●	●	●	●	●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0709	●	●	●	●	●	●	●	●
12	08.852 RELAY; POWER WINDOW 02.575 12V OMRON	8-98005-407-0	01	1	0710-	●	●	●	●	●	●	●	●
12	08.852 RELAY; POWER WINDOW 02.575 12V OMRON	8-98005-407-0	01	1	0710-					●			●
12	08.852 RELAY; POWER WINDOW REMOTE CONT DOOR LOCK<AP5> 09.778 12V YAZAKI	8-97309-293-0	01	1	0307-0504	●		●		●	●	●	●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 09.778 12V YAZAKI	8-97309-293-0	01	1	0307-0504	●		●		●	●	●	●
12	08.852 RELAY; POWER WINDOW AUSTRALIA EQUIPMENT(B13) 09.778 12V YAZAKI	8-97309-293-0	01	1	0505-0508	●	●	●	●	●	●	●	●
12	08.852 RELAY; POWER WINDOW REMOTE CONT DOOR LOCK<AP5> EXC. AUSTRALIA EQUIPMENT(B13) 09.778 12V YAZAKI	8-97309-293-0	01	1	0505-0508	●	●	●	●	●	●	●	●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5>, AUSTRALIA EQUIPMENT(B13) 09.778 12V YAZAKI	8-97309-293-0	01	1	0505-0508	●	●	●	●	●	●	●	●
12	08.852 RELAY; POWER WINDOW C24SE ENG(LG1),4JH1-TC ENG(RDM) AUSTRALIA EQUIPMENT(B13) 09.778 12V YAZAKI	8-97309-293-0	01	1	0509-0609	●	●	●	●	●	●	●	●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. AUSTRALIA EQUIPMENT(B13) 09.778 12V YAZAKI	8-97309-293-0	01	1	0509-0609	●	●	●	●	●	●	●	●
39	16.341 RELAY; DOOR LK REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-97385-923-0	01	1	0509-	●	●	●	●	●	●	●	●
140	09.778 RELAY; RR DEFOGGER 02.575 12V OMRON	8-98005-407-0	01	1	0711-	●	●	●	●	●	●	●	●
140	09.778 RELAY; RR DEFOGGER 02.575 12V OMRON	8-98005-407-0	01	1	0711-					●			●
140	09.778 RELAY; RR DEFOGGER 12V YAZAKI	8-97309-293-0	01	1	0307-0508	●	●	●	●	●	●	●	●
140	09.778 RELAY; RR DEFOGGER EXC. AUSTRALIA EQUIPMENT(B13) 12V YAZAKI	8-97309-293-0	01	1	0509-0609	●	●	●	●	●	●	●	●
140	09.778 RELAY; RR DEFOGGER C24SE ENG(LG1),4JH1-TC ENG(RDM) AUSTRALIA EQUIPMENT(B13) 12V YAZAKI	8-97309-293-0	01	1	0509-0609	●		●		●	●		●
140	09.778 RELAY; RR DEFOGGER 02.575 12V OMRON	8-98005-407-0	01	1	0509-0609	●	●	●	●	●	●	●	●
140	09.778 RELAY; RR DEFOGGER AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0610-0709	●	●	●	●	●	●	●	●
140	09.778 RELAY; RR DEFOGGER POWER WINDOW FRT&REAR DOOR<A31> EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0610-0709	●	●	●	●	●	●	●	●
140	09.778 RELAY; RR DEFOGGER 02.575 12V OMRON	8-98005-407-0	01	1	0710-0710	●	●	●	●	●	●	●	●
140	09.778 RELAY; RR DEFOGGER 02.575 12V OMRON	8-98005-407-0	01	1	0710-0710					●			●
140	09.778 RELAY; RR DEFOGGER M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) SEAT BELT TENSIONER FRT<A70> HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 02.575 12V OMRON	8-98005-407-0	02	1	0711-			●		●		●	●
140	09.778 RELAY; RR DEFOGGER 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●	●	●	●	●
140	09.778 RELAY; RR DEFOGGER 12V YAZAKI	8-97309-293-0	01	1	0710-					●			●
312	02.483 BOLT; RELAY REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) EXC. POWER WINDOW FRT&REAR DOOR<A31> 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0509-	●	●	●	●	●	●	●	●
573	09.755 SWITCH; 4WD GRADE DX(RBA),GRADE LX(RBB) DARK GRAY	8-97298-476-0	01	1	0307-0408						●	●	●
573	09.755 SWITCH; 4WD GRADE LT/LS(RBD) EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY	8-97298-476-0	01	1	0307-0408						●	●	●
573	09.755 SWITCH; 4WD EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY	8-97298-476-0	01	1	0409-0609						●	●	●
573	09.755 SWITCH; 4WD EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY	8-97407-364-0	01	1	0610-						●	●	●
573	09.755 SWITCH; 4WD GRADE LT/LS(RBD) AUSTRALIA EQUIPMENT(B13) LIGHT GRAY	8-97298-475-0	01	1	0307-0408						●		●
573	09.755 SWITCH; 4WD INTERIOR SILVER BEZEL<BY9> LIGHT GRAY	8-97298-475-0	01	1	0409-0409						●		●
573	09.755 SWITCH; 4WD INTERIOR SILVER BEZEL<BY9> LIGHT GRAY	8-97298-475-0	01	1	0410-0609						●	●	●
573	09.755 SWITCH; 4WD INTERIOR SILVER BEZEL<BY9> LIGHT GRAY	8-97407-362-0	01	1	0610-						●	●	●
600	02.895 COIL ASM; SIR AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-97308-028-1	01	1	0307-0609	●	●	●	●	●	●	●	●
600	02.895 COIL ASM; SIR AIR BAG DRIVER & PASSENGER(AK5)	8-98014-766-0	01	1	0610-	●	●	●	●	●	●	●	●
620	02.895 SCREW; COIL,COMB SW AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-97166-506-0	06	1	0307-0609	●	●	●	●	●	●	●	●
620	02.895 SCREW; COIL,COMB SW AIR BAG DRIVER & PASSENGER(AK5)	8-97166-506-0	06	1	0610-	●	●	●	●	●	●	●	●

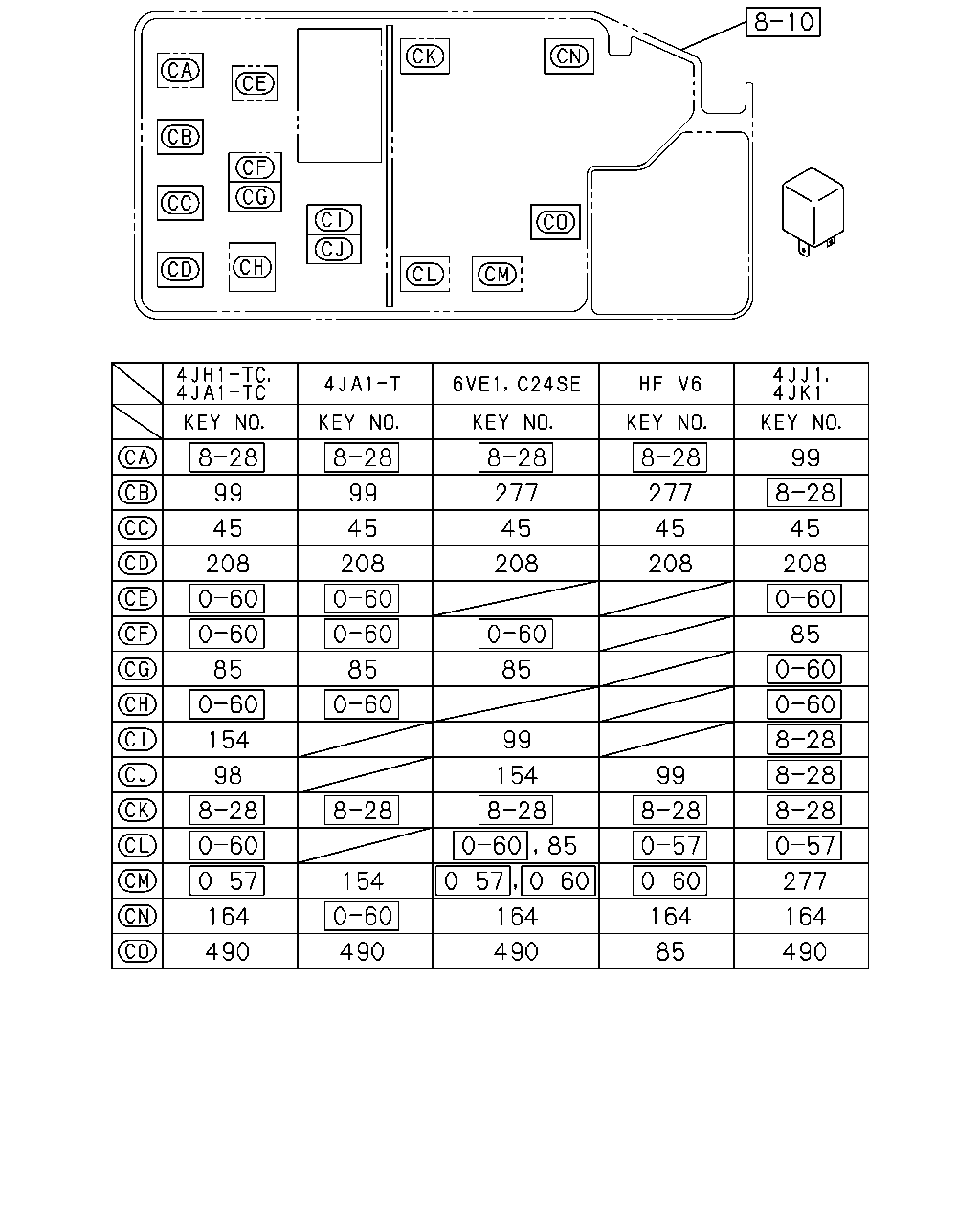

99 45 208 85 154 98 164 490 490 154 85 208 45 99 277 45 208 85 99 154 164 490 85 164 208 45 277 99 45 208 85 277 164 490 99 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
45	02.252 RELAY; HORN 02.485 12V YAZAKI	8-97309-292-0	01	1	0307-0609	●	●	●	●	●	●	●	●
45	02.252 RELAY; HORN 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●	●	●	●	●
45	02.252 RELAY; HORN 4JH1-TC ENG(RDM) EURO2 SPECIFICATION<NT2> EXC. COOLER WO/HEATER(C65) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●	●	●	●	●	●
45	02.252 RELAY; HORN 6VE1 ENG(LX5) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●	●	●
45	02.252 RELAY; HORN C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508			●	●	●
45	02.252 RELAY; HORN 6VE1 ENG(LX5) A/T AISIN(RMD) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
45	02.252 RELAY; HORN 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) IMMOBILIZER SYSTEM<7KC> 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
45	02.252 RELAY; HORN 4JH1-TC ENG(RDM) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512	●	●	●	●	●	●	●	●
45	02.252 RELAY; HORN C24SE ENG(LG1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512	●	●	●	●	●		●	●
45	02.252 RELAY; HORN 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TC ENG(L4Z) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512	●		●		●	●	●	●
45	02.252 RELAY; HORN C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609	●	●	●	●	●	●	●	●
45	02.252 RELAY; HORN 4JH1-TC ENG(RDM) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609	●	●	●	●	●	●	●	●
45	02.252 RELAY; HORN 02.575 12V OMRON	8-98005-407-0	01	1	0610-	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 12V YAZAKI	8-97309-294-0	01	1	0307-0507	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) EMISSION SYSTEM R15-04<K75>,EURO3 SPECIFICATION<NT3> 12V YAZAKI	8-97309-294-0	01	1	0508-0508	●		●		●	●	●	●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) EURO2 SPECIFICATION<NT2> COOLER WO/HEATER(C65) 12V YAZAKI	8-97309-294-0	01	1	0508-0508	●		●		●	●	●	●
85	02.485 RELAY; HEADLAMP 4JA1-T ENG(LP0) 12V YAZAKI	8-97309-294-0	01	1	0508-0508	●					●
85	02.485 RELAY; HEADLAMP C24SE ENG(LG1) EXC. AUSTRALIA EQUIPMENT(B13) 12V YAZAKI	8-97309-294-0	01	1	0508-0508			●		●
85	02.485 RELAY; HEADLAMP 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) 12V YAZAKI	8-97309-294-0	01	1	0508-0508			●		●
85	02.485 RELAY; HEADLAMP 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EXC. IMMOBILIZER SYSTEM<7KC> 12V YAZAKI	8-97309-294-0	01	1	0508-0508						●	●	●
85	02.485 RELAY; HEADLAMP C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z) 12V YAZAKI	8-97309-294-0	01	1	0508-0508							●	●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 12V YAZAKI	8-97309-294-0	01	1	0509-0609					●
85	02.485 RELAY; HEADLAMP 4X4 CREW CAB LONG(TFS*WF) 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 12V YAZAKI	8-97309-294-0	01	1	0509-0609								●
85	02.485 RELAY; HEADLAMP HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-0912	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 09.778 12V YAZAKI	8-97309-293-0	01	1	1001-	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) EURO2 SPECIFICATION<NT2> EXC. COOLER WO/HEATER(C65) 12V YAZAKI	8-97309-292-0	01	1	0508-0508	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 6VE1 ENG(LX5) 12V YAZAKI	8-97309-292-0	01	1	0508-0508	●	●	●	●	●
85	02.485 RELAY; HEADLAMP C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) 12V YAZAKI	8-97309-292-0	01	1	0508-0508			●	●	●
85	02.485 RELAY; HEADLAMP 6VE1 ENG(LX5) A/T AISIN(RMD) 12V YAZAKI	8-97309-292-0	01	1	0508-0508						●	●	●
85	02.485 RELAY; HEADLAMP 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) IMMOBILIZER SYSTEM<7KC> 12V YAZAKI	8-97309-292-0	01	1	0508-0508						●	●	●
85	02.485 RELAY; HEADLAMP HF V6 ENG(LCA),C24SE ENG(LG1), 4JA1-T ENG(LP0),6VE1 ENG(LX5),4JA1-TC ENG(L4Z) 12V YAZAKI	8-97309-292-0	01	1	0509-0609	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 12V YAZAKI	8-97309-292-0	01	1	0509-0609	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75> 12V YAZAKI	8-97309-292-0	01	1	0509-0609					●			●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) AUSTRALIA EQUIPMENT(B13) 12V YAZAKI	8-97309-292-0	01	1	0509-0609					●			●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 12V YAZAKI	8-97309-292-0	01	1	0509-0609								●
85	02.485 RELAY; HEADLAMP C24SE ENG(LG1) 12V YAZAKI	8-97309-292-0	01	1	0610-1003			●	●	●		●	●
85	02.485 RELAY; HEADLAMP 12V YAZAKI	8-97309-292-0	01	1	1004-	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) EURO2 SPECIFICATION<NT2> EXC. COOLER WO/HEATER(C65) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 6VE1 ENG(LX5) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●	●	●
85	02.485 RELAY; HEADLAMP C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508			●	●	●
85	02.485 RELAY; HEADLAMP 6VE1 ENG(LX5) A/T AISIN(RMD) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
85	02.485 RELAY; HEADLAMP 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) IMMOBILIZER SYSTEM<7KC> 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 02.575 12V OMRON	8-98005-407-0	02	1	0509-0609					●
85	02.485 RELAY; HEADLAMP HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.575 12V OMRON	8-98005-407-0	01	1	0610-0612	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.575 12V OMRON	8-98005-407-0	01	1	0701-0912	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.575 12V OMRON	8-98005-407-0	01	1	1001-	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TC ENG(L4Z) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512	●		●		●	●
85	02.485 RELAY; HEADLAMP C24SE ENG(LG1) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512			●	●	●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75> 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512					●			●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13),4 WHEEL ANTI LOCK BRAKE<JE5> 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512					●
85	02.485 RELAY; HEADLAMP C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512							●	●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512								●
85	02.485 RELAY; HEADLAMP C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609	●		●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609	●		●		●	●	●	●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609	●		●		●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75> 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609	●		●		●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609						●	●	●
98	02.485 RELAY; RR FOG LAMP 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EURO3 SPECIFICATION<NT3> 12V YAZAKI	8-97309-292-0	01	1	0403-0609			●		●
98	02.485 RELAY; RR FOG LAMP 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 12V YAZAKI	8-97309-292-0	01	1	0403-0609							●	●
98	02.485 RELAY; RR FOG LAMP 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EURO3 SPECIFICATION<NT3> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 12V YAZAKI	8-97309-292-0	01	1	0403-0609							●	●
98	02.485 RELAY; RR FOG LAMP 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EURO3 SPECIFICATION<NT3> 02.575 12V OMRON	8-98005-407-0	01	1	0509-0609			●		●
98	02.485 RELAY; RR FOG LAMP 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0609							●	●
98	02.485 RELAY; RR FOG LAMP 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EURO3 SPECIFICATION<NT3> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.575 12V OMRON	8-98005-407-0	01	1	0509-0609							●	●
99	02.485 RELAY; FOG LAMP 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●	●	●	●	●
99	02.485 RELAY; FOG LAMP C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JH1-TC ENG(RDM) 12V YAZAKI	8-97309-292-0	01	1	0307-0402	●	●	●	●	●	●	●	●
99	02.485 RELAY; FOG LAMP C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 12V YAZAKI	8-97309-292-0	01	1	0403-0505	●	●	●	●	●	●	●	●
99	02.485 RELAY; FOG LAMP 12V YAZAKI	8-97309-292-0	01	1	0506-0507	●	●	●	●	●	●	●	●
99	02.485 RELAY; FOG LAMP C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 12V YAZAKI	8-97309-292-0	01	1	0508-0508	●	●	●	●	●	●	●	●
99	02.485 RELAY; FOG LAMP 12V YAZAKI	8-97309-292-0	01	1	0509-0609	●	●				●	●	●
99	02.485 RELAY; FOG LAMP HF V6 ENG(LCA),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 12V YAZAKI	8-97309-292-0	01	1	0509-0609			●	●	●
99	02.485 RELAY; FOG LAMP C24SE ENG(LG1) EXC. AUSTRALIA EQUIPMENT(B13) 12V YAZAKI	8-97309-292-0	01	1	0509-0609			●	●	●
99	02.485 RELAY; FOG LAMP 4JH1-TC ENG(RDM) EURO2 SPECIFICATION<NT2> EXC. COOLER WO/HEATER(C65) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●	●	●	●	●	●
99	02.485 RELAY; FOG LAMP 6VE1 ENG(LX5) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●	●	●
99	02.485 RELAY; FOG LAMP 6VE1 ENG(LX5) A/T AISIN(RMD) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
99	02.485 RELAY; FOG LAMP 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) IMMOBILIZER SYSTEM<7KC> 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
99	02.485 RELAY; FOG LAMP 4JH1-TC ENG(RDM) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0609	●	●	●	●	●	●	●	●
99	02.485 RELAY; FOG LAMP C24SE ENG(LG1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.575 12V OMRON	8-98005-407-0	01	1	0509-0609	●	●	●	●	●		●	●
99	02.485 RELAY; FOG LAMP 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TC ENG(L4Z) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0609	●		●		●	●	●	●
99	02.485 RELAY; FOG LAMP 02.575 12V OMRON	8-98005-407-0	01	1	0610-	●	●	●	●	●	●	●	●
99	02.485 RELAY; FOG LAMP 4JA1-TC ENG(L4Z) 12V YAZAKI	8-97309-292-0	02	1	0307-0402			●		●		●	●
154	09.277 RELAY; CONDENSER FAN 09.778 12V YAZAKI	8-97309-293-0	01	1	0307-0508	●	●	●	●	●	●	●	●
154	09.277 RELAY; CONDENSER FAN C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 09.778 12V YAZAKI	8-97309-293-0	01	1	0509-0609	●	●	●	●	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-0912	●	●	●	●	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 09.778 12V YAZAKI	8-97309-293-0	01	1	1001-	●	●	●	●	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 4JH1-TC ENG(RDM) EURO2 SPECIFICATION<NT2> EXC. COOLER WO/HEATER(C65) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●	●	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 6VE1 ENG(LX5) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●	●	●
154	09.277 RELAY; CONDENSER FAN C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508			●	●	●
154	09.277 RELAY; CONDENSER FAN 6VE1 ENG(LX5) A/T AISIN(RMD) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
154	09.277 RELAY; CONDENSER FAN 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) IMMOBILIZER SYSTEM<7KC> 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
154	09.277 RELAY; CONDENSER FAN 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> 02.575 12V OMRON	8-98005-407-0	02	1	0509-0609						●	●	●
154	09.277 RELAY; CONDENSER FAN 02.575 12V OMRON	8-98005-407-0	01	1	0610-0709	●	●	●	●	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.575 12V OMRON	8-98005-407-0	01	1	0710-0912	●	●	●	●	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.575 12V OMRON	8-98005-407-0	01	1	1001-	●	●	●	●	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TC ENG(L4Z) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512	●		●		●	●	●	●
154	09.277 RELAY; CONDENSER FAN 4JH1-TC ENG(RDM) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512	●		●		●
154	09.277 RELAY; CONDENSER FAN C24SE ENG(LG1) EXC. AUSTRALIA EQUIPMENT(B13),4 WHEEL ANTI LOCK BRAKE<JE5> 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512			●	●	●		●	●
154	09.277 RELAY; CONDENSER FAN 4JH1-TC ENG(RDM) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512						●	●	●
154	09.277 RELAY; CONDENSER FAN 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512						●	●	●
154	09.277 RELAY; CONDENSER FAN 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75> 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512								●
154	09.277 RELAY; CONDENSER FAN C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609	●		●	●	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 4JH1-TC ENG(RDM) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609	●		●		●
154	09.277 RELAY; CONDENSER FAN 4JH1-TC ENG(RDM) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609						●	●	●
154	09.277 RELAY; CONDENSER FAN 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609						●	●	●
154	09.277 RELAY; CONDENSER FAN 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75> 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609								●
164	02.510 RELAY; A/C COMPRESSOR 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●	●	●	●	●
164	02.510 RELAY; A/C COMPRESSOR C24SE ENG(LG1),6VE1 ENG(LX5), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 09.778 12V YAZAKI	8-97309-293-0	01	1	0307-0609	●	●	●	●	●	●	●	●
164	02.510 RELAY; A/C COMPRESSOR 4JH1-TC ENG(RDM) EURO2 SPECIFICATION<NT2> EXC. COOLER WO/HEATER(C65) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●	●	●	●	●	●
164	02.510 RELAY; A/C COMPRESSOR 6VE1 ENG(LX5) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●	●	●
164	02.510 RELAY; A/C COMPRESSOR C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508			●	●	●
164	02.510 RELAY; A/C COMPRESSOR 6VE1 ENG(LX5) A/T AISIN(RMD) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
164	02.510 RELAY; A/C COMPRESSOR 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) IMMOBILIZER SYSTEM<7KC> 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
164	02.510 RELAY; A/C COMPRESSOR HF V6 ENG(LCA),6VE1 ENG(LX5), 4JA1-TC ENG(L4Z) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512	●	●	●	●	●	●	●	●
164	02.510 RELAY; A/C COMPRESSOR 4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512	●		●		●	●	●
164	02.510 RELAY; A/C COMPRESSOR C24SE ENG(LG1) EXC. AUSTRALIA EQUIPMENT(B13),4 WHEEL ANTI LOCK BRAKE<JE5> 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512			●	●	●		●	●
164	02.510 RELAY; A/C COMPRESSOR 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),4 WHEEL ANTI LOCK BRAKE<JE5>,SINGAPORE EQUIPMENT(2G0) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512					●
164	02.510 RELAY; A/C COMPRESSOR 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75> 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512					●
164	02.510 RELAY; A/C COMPRESSOR 4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP),M/ T MUA 5 SPEED 5S(RSQ) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512								●
164	02.510 RELAY; A/C COMPRESSOR HF V6 ENG(LCA),C24SE ENG(LG1),6VE1 ENG(LX5),4JA1-TC ENG(L4Z) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609	●	●	●	●	●	●	●	●
164	02.510 RELAY; A/C COMPRESSOR 4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609	●		●		●	●	●
164	02.510 RELAY; A/C COMPRESSOR 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),4 WHEEL ANTI LOCK BRAKE<JE5>,SINGAPORE EQUIPMENT(2G0) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609					●
164	02.510 RELAY; A/C COMPRESSOR 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75> 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609					●
164	02.510 RELAY; A/C COMPRESSOR 4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP),M/ T MUA 5 SPEED 5S(RSQ) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609								●
164	02.510 RELAY; A/C COMPRESSOR 02.575 12V OMRON	8-98005-407-0	01	1	0610-	●	●	●	●	●	●	●	●
208	02.485 RELAY; DIMMER & PASSING 12V YAZAKI	8-97309-292-0	01	1	0307-	●	●	●	●	●	●	●	●
277	03.900 RELAY; FUEL PUMP 6VE1 ENG(LX5) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●	●	●
277	03.900 RELAY; FUEL PUMP C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508			●	●	●
277	03.900 RELAY; FUEL PUMP 6VE1 ENG(LX5) A/T AISIN(RMD) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
277	03.900 RELAY; FUEL PUMP 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) IMMOBILIZER SYSTEM<7KC> 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
277	03.900 RELAY; FUEL PUMP C24SE ENG(LG1) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512			●		●
277	03.900 RELAY; FUEL PUMP C24SE ENG(LG1) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512							●
277	03.900 RELAY; FUEL PUMP C24SE ENG(LG1),6VE1 ENG(LX5) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512								●
277	03.900 RELAY; FUEL PUMP C24SE ENG(LG1),6VE1 ENG(LX5) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609			●		●		●	●
277	03.900 RELAY; FUEL PUMP 02.575 12V OMRON	8-98005-407-0	01	1	0610-	●	●	●	●	●	●	●	●
277	03.900 RELAY; FUEL PUMP 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●	●	●	●	●
277	03.900 RELAY; FUEL PUMP C24SE ENG(LG1),6VE1 ENG(LX5) 02.485 12V YAZAKI	8-97309-292-0	01	1	0307-0508	●	●	●	●	●	●	●	●
277	03.900 RELAY; FUEL PUMP HF V6 ENG(LCA),C24SE ENG(LG1),6VE1 ENG(LX5) 02.485 12V YAZAKI	8-97309-292-0	01	1	0509-0609	●	●	●	●	●	●	●	●
490	09.277 RELAY; THERMO 09.778 12V YAZAKI	8-97309-293-0	01	1	0307-0508	●	●	●	●	●	●	●	●
490	09.277 RELAY; THERMO C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 09.778 12V YAZAKI	8-97309-293-0	01	1	0509-0609	●	●	●	●	●	●	●	●
490	09.277 RELAY; THERMO 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-0912	●	●	●	●	●	●	●	●
490	09.277 RELAY; THERMO 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 09.778 12V YAZAKI	8-97309-293-0	01	1	1001-	●	●	●	●	●	●	●	●
490	09.277 RELAY; THERMO 4JH1-TC ENG(RDM) EURO2 SPECIFICATION<NT2> EXC. COOLER WO/HEATER(C65) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●	●	●	●	●	●
490	09.277 RELAY; THERMO 6VE1 ENG(LX5) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●	●	●
490	09.277 RELAY; THERMO C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508			●	●	●
490	09.277 RELAY; THERMO 6VE1 ENG(LX5) A/T AISIN(RMD) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
490	09.277 RELAY; THERMO 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) IMMOBILIZER SYSTEM<7KC> 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
490	09.277 RELAY; THERMO 4JH1-TC ENG(RDM) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512	●	●	●	●	●	●	●	●
490	09.277 RELAY; THERMO C24SE ENG(LG1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512	●	●	●	●	●		●	●
490	09.277 RELAY; THERMO 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TC ENG(L4Z) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512	●		●		●	●	●	●
490	09.277 RELAY; THERMO C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609	●	●	●	●	●	●	●	●
490	09.277 RELAY; THERMO 4JH1-TC ENG(RDM) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609	●	●	●	●	●	●	●	●
490	09.277 RELAY; THERMO 02.575 12V OMRON	8-98005-407-0	01	1	0610-0709	●	●	●	●	●	●	●	●
490	09.277 RELAY; THERMO 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.575 12V OMRON	8-98005-407-0	01	1	0710-0912	●	●	●	●	●	●	●	●
490	09.277 RELAY; THERMO 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.575 12V OMRON	8-98005-407-0	01	1	1001-	●	●	●	●	●	●	●	●

19 8 11 8 11 19 8 11 11 8 30 29 11 8 308 281

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H

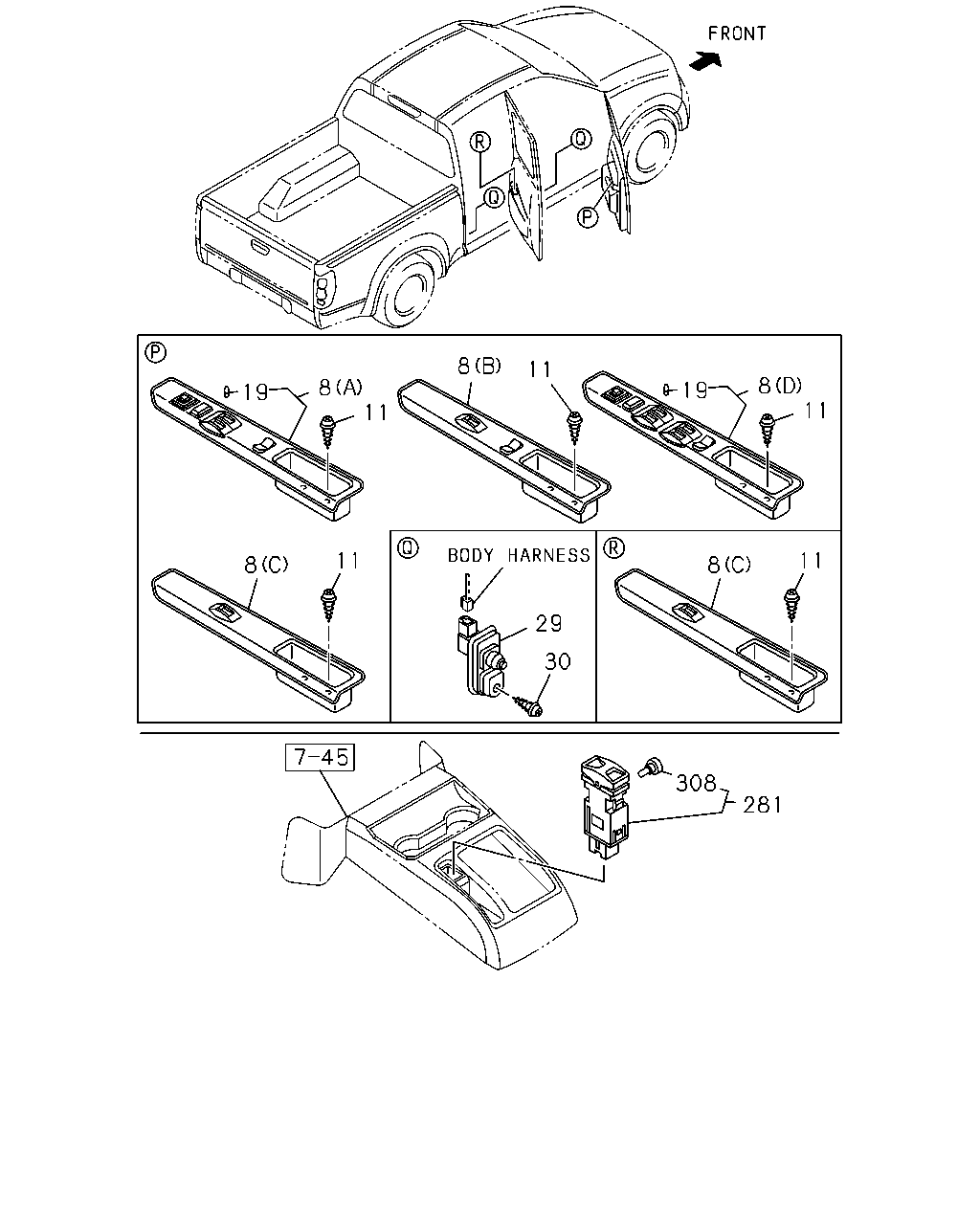

8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> AUSTRALIA EQUIPMENT(B13) DOOR MIR ELEC FOLDING COLOR TURN SI G,BRIGHT<DE3>,DOOR MIR ELEC FOLDINGCOLOR TURN SIG IND<DE4> EXC. INTERIOR SILVER BEZEL<BY9> (D) DRIVER DARK GRAY	8-97408-583-0	01	1	0710-					●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC FOLDING COLOR TURN SI G,BRIGHT<DE3>,DOOR MIR ELEC FOLDINGCOLOR TURN SIG IND<DE4> EXC. INTERIOR SILVER BEZEL<BY9>, AUSTRALIA EQUIPMENT(B13) (D) DRIVER DARK GRAY	8-97408-584-0	01	1	0710-					●			●
8	16.263 SWITCH; POWER WINDOW GRADE DX(RBA),GRADE LX(RBB) POWER WINDOW FRT&REAR DOOR<A31> (B) PASSENGER DARK GRAY	8-97396-105-0	01	1	0307-0408	●		●		●	●	●	●
8	16.263 SWITCH; POWER WINDOW GRADE LT/LS(RBD) POWER WINDOW FRT&REAR DOOR<A31> EXC. AUSTRALIA EQUIPMENT(B13) (B) PASSENGER DARK GRAY	8-97396-105-0	01	1	0307-0408	●		●		●	●	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (B) PASSENGER DARK GRAY	8-97396-105-0	01	1	0409-0504	●		●		●	●	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (B) PASSENGER DARK GRAY	8-97396-105-0	01	1	0505-0508	●	●	●	●	●	●	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (C) PASSENGER DARK GRAY	8-97400-384-0	01	1	0509-0609	●	●	●	●	●	●	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (C) PASSENGER DARK GRAY	8-97400-752-0	01	1	0610-	●	●	●	●	●	●	●	●
8	16.263 SWITCH; POWER WINDOW GRADE LT/LS(RBD) POWER WINDOW FRT&REAR DOOR<A31> AUSTRALIA EQUIPMENT(B13) (B) PASSENGER LIGHT GRAY	8-97396-102-0	01	1	0307-0408	●		●		●	●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (B) PASSENGER LIGHT GRAY	8-97396-102-0	01	1	0409-0409	●		●		●	●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (B) PASSENGER LIGHT GRAY	8-97396-102-0	01	1	0410-0508	●		●		●	●	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (C) PASSENGER LIGHT GRAY	8-97400-385-0	01	1	0509-0609	●		●		●	●	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (C) PASSENGER LIGHT GRAY	8-97403-893-0	01	1	0610-	●		●		●	●	●	●
8	16.263 SWITCH; POWER WINDOW GRADE LT/LS(RBD) POWER WINDOW FRT&REAR DOOR<A31> AUSTRALIA EQUIPMENT(B13) DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (A) DRIVER LIGHT GRAY	8-97396-101-0	01	1	0307-0408	●		●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> AUSTRALIA EQUIPMENT(B13) DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (A) DRIVER LIGHT GRAY	8-97396-101-0	01	1	0409-0508	●		●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> AUSTRALIA EQUIPMENT(B13) DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>,DOOR MIR ELEC DUAL FOLDING CHROME TURN S IGNAL<8JH> (A) DRIVER LIGHT GRAY	8-97399-707-0	01	1	0509-0609	●		●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> AUSTRALIA EQUIPMENT(B13) DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>,DOOR MIR ELEC DUAL FOLDING CHROME TURN S IGNAL<8JH> (A) DRIVER LIGHT GRAY	8-97403-625-0	01	1	0610-0709	●		●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> AUSTRALIA EQUIPMENT(B13) DOOR MIR ELEC FOLDING COLOR TURN SI G,BRIGHT<DE3>,DOOR MIR ELEC FOLDINGCOLOR TURN SIG IND<DE4> (A) DRIVER LIGHT GRAY	8-97408-577-0	01	1	0710-	●		●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. AUSTRALIA EQUIPMENT(B13),DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (A) DRIVER LIGHT GRAY	8-97400-740-0	01	1	0409-0409	●		●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. AUSTRALIA EQUIPMENT(B13),DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (A) DRIVER LIGHT GRAY	8-97400-740-0	01	1	0410-0508	●		●			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. AUSTRALIA EQUIPMENT(B13),DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>,DOOR MIR E LEC DUAL FOLDING CHROME TURN SIGNAL <8JH> (A) DRIVER LIGHT GRAY	8-97400-740-0	01	1	0509-0609	●		●			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. AUSTRALIA EQUIPMENT(B13),DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>,DOOR MIR E LEC DUAL FOLDING CHROME TURN SIGNAL <8JH> (A) DRIVER LIGHT GRAY	8-97403-623-0	01	1	0610-0709	●		●			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. AUSTRALIA EQUIPMENT(B13),DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC FOLDING COLO R TURN SIG IND<DE4>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (A) DRIVER LIGHT GRAY	8-97403-623-0	01	1	0710-	●		●			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> EXC. AUSTRALIA EQUIPMENT(B13) (A) DRIVER LIGHT GRAY	8-97400-741-0	01	1	0409-0409	●		●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> EXC. AUSTRALIA EQUIPMENT(B13) (A) DRIVER LIGHT GRAY	8-97400-741-0	01	1	0410-0508	●		●			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>,DOOR MIR ELEC DUAL FOLDING CHROME TURN S IGNAL<8JH> EXC. AUSTRALIA EQUIPMENT(B13) (A) DRIVER LIGHT GRAY	8-97400-743-0	01	1	0509-0609	●		●			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>,DOOR MIR ELEC DUAL FOLDING CHROME TURN S IGNAL<8JH> EXC. AUSTRALIA EQUIPMENT(B13) (A) DRIVER LIGHT GRAY	8-97403-628-0	01	1	0610-0709	●		●			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIR ELEC FOLDING COLOR TURN SI G,BRIGHT<DE3>,DOOR MIR ELEC FOLDINGCOLOR TURN SIG IND<DE4> EXC. AUSTRALIA EQUIPMENT(B13) (A) DRIVER LIGHT GRAY	8-97408-578-0	01	1	0710-	●		●			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. AUSTRALIA EQUIPMENT(B13),DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 13.263 (A) DRIVER DARK GRAY	8-97396-532-0	01	1	0307-0408	●		●			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9>, AUSTRALIA EQUIPMENT(B13),DOOR MIRROR E LEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 13.263 (A) DRIVER DARK GRAY	8-97396-532-0	01	1	0409-0508	●		●			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9>, AUSTRALIA EQUIPMENT(B13),DOOR MIRROR E LEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>,DOOR MIR ELEC DUALFOLDING CHROME TURN SIGNAL<8JH> 13.263 (A) DRIVER DARK GRAY	8-97396-532-0	01	1	0509-0609	●		●			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9>, AUSTRALIA EQUIPMENT(B13),DOOR MIRROR E LEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>,DOOR MIR ELEC DUALFOLDING CHROME TURN SIGNAL<8JH> (A) DRIVER DARK GRAY	8-97403-617-0	01	1	0610-0709	●		●			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9>, AUSTRALIA EQUIPMENT(B13),DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> ,DOOR MIR ELEC FOLDING COLOR TURN SIG IND<DE4> (A) DRIVER DARK GRAY	8-97403-617-0	01	1	0710-	●		●			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> EXC. AUSTRALIA EQUIPMENT(B13) (A) DRIVER DARK GRAY	8-97396-533-0	01	1	0307-0408	●		●			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> EXC. INTERIOR SILVER BEZEL<BY9>, AUSTRALIA EQUIPMENT(B13) (A) DRIVER DARK GRAY	8-97396-533-0	01	1	0409-0507	●		●			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> EXC. INTERIOR SILVER BEZEL<BY9> (A) DRIVER DARK GRAY	8-97396-533-0	01	1	0508-0508	●	●	●	●		●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>,DOOR MIR ELEC DUAL FOLDING CHROME TURN S IGNAL<8JH> EXC. INTERIOR SILVER BEZEL<BY9> (A) DRIVER DARK GRAY	8-97400-742-0	01	1	0509-0609	●	●	●	●		●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>,DOOR MIR ELEC DUAL FOLDING CHROME TURN S IGNAL<8JH> EXC. INTERIOR SILVER BEZEL<BY9> (A) DRIVER DARK GRAY	8-97403-627-0	01	1	0610-0709	●	●	●	●		●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> AUSTRALIA EQUIPMENT(B13) DOOR MIR ELEC FOLDING COLOR TURN SI G,BRIGHT<DE3>,DOOR MIR ELEC FOLDINGCOLOR TURN SIG IND<DE4> EXC. INTERIOR SILVER BEZEL<BY9> (A) DRIVER DARK GRAY	8-97408-579-0	01	1	0710-	●	●	●	●		●	●
8	16.263 SWITCH; POWER WINDOW GRADE DX(RBA),GRADE LX(RBB) POWER WINDOW FRT&REAR DOOR<A31> (C) REAR DARK GRAY	8-97392-410-0	01	1	0307-0408					●			●
8	16.263 SWITCH; POWER WINDOW GRADE LT/LS(RBD) POWER WINDOW FRT&REAR DOOR<A31> EXC. AUSTRALIA EQUIPMENT(B13) (C) REAR DARK GRAY	8-97392-410-0	01	1	0307-0408					●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (C) REAR DARK GRAY	8-97392-410-0	01	1	0409-0502					●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (C) REAR DARK GRAY	8-97400-390-0	01	1	0503-0609					●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (C) REAR DARK GRAY	8-97400-753-0	01	1	0610-					●			●
8	16.263 SWITCH; POWER WINDOW GRADE DX(RBA),GRADE LX(RBB) POWER WINDOW FRT&REAR DOOR<A31> (C) REAR DARK GRAY	8-97392-411-0	01	1	0307-0408					●			●
8	16.263 SWITCH; POWER WINDOW GRADE LT/LS(RBD) POWER WINDOW FRT&REAR DOOR<A31> EXC. AUSTRALIA EQUIPMENT(B13) (C) REAR DARK GRAY	8-97392-411-0	01	1	0307-0408					●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (C) REAR DARK GRAY	8-97392-411-0	01	1	0409-0502					●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (C) REAR DARK GRAY	8-97400-391-0	01	1	0503-0609					●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (C) REAR DARK GRAY	8-97400-754-0	01	1	0610-					●			●
8	16.263 SWITCH; POWER WINDOW GRADE LT/LS(RBD) POWER WINDOW FRT&REAR DOOR<A31> AUSTRALIA EQUIPMENT(B13) (C) REAR LIGHT GRAY	8-97298-473-0	01	1	0307-0408					●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (C) REAR LIGHT GRAY	8-97298-473-0	01	1	0409-0502					●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (C) REAR LIGHT GRAY	8-97400-392-0	01	1	0503-0609					●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (C) REAR LIGHT GRAY	8-97403-896-0	01	1	0610-					●			●
8	16.263 SWITCH; POWER WINDOW GRADE LT/LS(RBD) POWER WINDOW FRT&REAR DOOR<A31> AUSTRALIA EQUIPMENT(B13) (C) REAR LIGHT GRAY	8-97298-474-0	01	1	0307-0408					●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (C) REAR LIGHT GRAY	8-97298-474-0	01	1	0409-0502					●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (C) REAR LIGHT GRAY	8-97400-394-0	01	1	0503-0609					●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (C) REAR LIGHT GRAY	8-97403-897-0	01	1	0610-					●			●
8	16.263 SWITCH; POWER WINDOW GRADE LT/LS(RBD) POWER WINDOW FRT&REAR DOOR<A31> AUSTRALIA EQUIPMENT(B13) DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (D) DRIVER LIGHT GRAY	8-97396-103-0	01	1	0307-0408					●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> AUSTRALIA EQUIPMENT(B13) DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (D) DRIVER LIGHT GRAY	8-97396-103-0	01	1	0409-0508					●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> AUSTRALIA EQUIPMENT(B13) DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>,DOOR MIR ELEC DUAL FOLDING CHROME TURN S IGNAL<8JH> (D) DRIVER LIGHT GRAY	8-97399-709-0	01	1	0509-0609					●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> AUSTRALIA EQUIPMENT(B13) DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>,DOOR MIR ELEC DUAL FOLDING CHROME TURN S IGNAL<8JH> (D) DRIVER LIGHT GRAY	8-97403-626-0	01	1	0610-0709					●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> AUSTRALIA EQUIPMENT(B13) DOOR MIR ELEC FOLDING COLOR TURN SI G,BRIGHT<DE3>,DOOR MIR ELEC FOLDINGCOLOR TURN SIG IND<DE4> (D) DRIVER LIGHT GRAY	8-97408-581-0	01	1	0710-					●			●
8	16.263 SWITCH; POWER WINDOW GRADE LX(RBB) POWER WINDOW FRT&REAR DOOR<A31> AUSTRALIA EQUIPMENT(B13) EXC. DOOR MIRROR ELEC CONT<DG2>, DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (D) DRIVER DARK GRAY	8-97396-104-0	01	1	0307-0408					●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> AUSTRALIA EQUIPMENT(B13) EXC. INTERIOR SILVER BEZEL<BY9>, DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (D) DRIVER DARK GRAY	8-97396-104-0	01	1	0409-0508					●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> AUSTRALIA EQUIPMENT(B13) EXC. INTERIOR SILVER BEZEL<BY9>, DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGN AL<8JH> (D) DRIVER DARK GRAY	8-97396-104-0	01	1	0509-0609					●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> AUSTRALIA EQUIPMENT(B13) EXC. INTERIOR SILVER BEZEL<BY9>, DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGN AL<8JH> (D) DRIVER DARK GRAY	8-97398-502-0	01	1	0610-0709					●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> AUSTRALIA EQUIPMENT(B13) EXC. INTERIOR SILVER BEZEL<BY9>, DOOR MIR ELEC FOLDING COLOR TURN SIG,B RIGHT<DE3>,DOOR MIR ELEC FOLDING COLOR TURN SIG IND<DE4> (D) DRIVER DARK GRAY	8-97398-502-0	01	1	0710-					●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. AUSTRALIA EQUIPMENT(B13),DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (D) DRIVER DARK GRAY	8-97396-534-0	01	1	0307-0408					●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9>, AUSTRALIA EQUIPMENT(B13),DOOR MIRROR E LEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (D) DRIVER DARK GRAY	8-97396-534-0	01	1	0409-0508					●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9>, AUSTRALIA EQUIPMENT(B13),DOOR MIRROR E LEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>,DOOR MIR ELEC DUALFOLDING CHROME TURN SIGNAL<8JH> (D) DRIVER DARK GRAY	8-97396-534-0	01	1	0509-0609					●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9>, AUSTRALIA EQUIPMENT(B13),DOOR MIRROR E LEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>,DOOR MIR ELEC DUALFOLDING CHROME TURN SIGNAL<8JH> (D) DRIVER DARK GRAY	8-97403-618-0	01	1	0610-0709					●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9>, AUSTRALIA EQUIPMENT(B13),DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> ,DOOR MIR ELEC FOLDING COLOR TURN SIG IND<DE4> (D) DRIVER DARK GRAY	8-97403-618-0	01	1	0710-					●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> EXC. AUSTRALIA EQUIPMENT(B13) (D) DRIVER DARK GRAY	8-97396-535-0	01	1	0307-0408					●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> EXC. INTERIOR SILVER BEZEL<BY9>, AUSTRALIA EQUIPMENT(B13) (D) DRIVER DARK GRAY	8-97396-535-0	01	1	0409-0507					●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> EXC. INTERIOR SILVER BEZEL<BY9> (D) DRIVER DARK GRAY	8-97396-535-0	01	1	0508-0508					●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>,DOOR MIR ELEC DUAL FOLDING CHROME TURN S IGNAL<8JH> EXC. INTERIOR SILVER BEZEL<BY9> (D) DRIVER DARK GRAY	8-97400-745-0	01	1	0509-0609					●
8	16.263 SWITCH; POWER WINDOW 4X4 CREW CAB LONG(TFS*WF) POWER WINDOW FRT&REAR DOOR<A31> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>,DOOR MIR ELEC DUAL FOLDING CHROME TURN S IGNAL<8JH> EXC. INTERIOR SILVER BEZEL<BY9> (D) DRIVER DARK GRAY	8-97400-745-0	01	1	0509-0609								●
8	16.263 SWITCH; POWER WINDOW CREW CAB EXTRA LONG(TF**WK) POWER WINDOW FRT&REAR DOOR<A31> DOOR MIRROR ELEC CONT<DG2> (D) DRIVER DARK GRAY	8-97400-745-0	01	1	0509-0609								●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>,DOOR MIR ELEC DUAL FOLDING CHROME TURN S IGNAL<8JH> EXC. INTERIOR SILVER BEZEL<BY9> (D) DRIVER DARK GRAY	8-97403-629-0	01	1	0610-0709					●
8	16.263 SWITCH; POWER WINDOW 4X4 CREW CAB LONG(TFS*WF) POWER WINDOW FRT&REAR DOOR<A31> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>,DOOR MIR ELEC DUAL FOLDING CHROME TURN S IGNAL<8JH> EXC. INTERIOR SILVER BEZEL<BY9> (D) DRIVER DARK GRAY	8-97403-629-0	01	1	0610-0709								●
8	16.263 SWITCH; POWER WINDOW CREW CAB EXTRA LONG(TF**WK) POWER WINDOW FRT&REAR DOOR<A31> DOOR MIRROR ELEC CONT<DG2> (D) DRIVER DARK GRAY	8-97403-629-0	01	1	0610-0709								●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC FOLDING COLOR TURN SI G,BRIGHT<DE3>,DOOR MIR ELEC FOLDINGCOLOR TURN SIG IND<DE4> EXC. INTERIOR SILVER BEZEL<BY9>, AUSTRALIA EQUIPMENT(B13) (A) DRIVER DARK GRAY	8-97408-580-0	01	1	0710-	●		●			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. AUSTRALIA EQUIPMENT(B13),DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (D) DRIVER LIGHT GRAY	8-97400-744-0	01	1	0409-0508					●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. AUSTRALIA EQUIPMENT(B13),DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>,DOOR MIR E LEC DUAL FOLDING CHROME TURN SIGNAL <8JH> (D) DRIVER LIGHT GRAY	8-97400-744-0	01	1	0509-0609					●
8	16.263 SWITCH; POWER WINDOW 4X4 CREW CAB LONG(TFS*WF) POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. AUSTRALIA EQUIPMENT(B13),DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>,DOOR MIR E LEC DUAL FOLDING CHROME TURN SIGNAL <8JH> (D) DRIVER LIGHT GRAY	8-97400-744-0	01	1	0509-0609								●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. AUSTRALIA EQUIPMENT(B13),DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>,DOOR MIR E LEC DUAL FOLDING CHROME TURN SIGNAL <8JH> (D) DRIVER LIGHT GRAY	8-97403-624-0	01	1	0610-0709					●
8	16.263 SWITCH; POWER WINDOW 4X4 CREW CAB LONG(TFS*WF) POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. AUSTRALIA EQUIPMENT(B13),DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>,DOOR MIR E LEC DUAL FOLDING CHROME TURN SIGNAL <8JH> (D) DRIVER LIGHT GRAY	8-97403-624-0	01	1	0610-0709								●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. AUSTRALIA EQUIPMENT(B13),DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC FOLDING COLO R TURN SIG IND<DE4> (D) DRIVER LIGHT GRAY	8-97403-624-0	01	1	0710-					●
8	16.263 SWITCH; POWER WINDOW 4X4 CREW CAB LONG(TFS*WF) POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. AUSTRALIA EQUIPMENT(B13),DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC FOLDING COLO R TURN SIG IND<DE4> (D) DRIVER LIGHT GRAY	8-97403-624-0	01	1	0710-								●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> EXC. AUSTRALIA EQUIPMENT(B13) (D) DRIVER LIGHT GRAY	8-97400-380-0	01	1	0409-0508					●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>,DOOR MIR ELEC DUAL FOLDING CHROME TURN S IGNAL<8JH> EXC. AUSTRALIA EQUIPMENT(B13) (D) DRIVER LIGHT GRAY	8-97400-746-0	01	1	0509-0609					●
8	16.263 SWITCH; POWER WINDOW 4X4 CREW CAB LONG(TFS*WF) POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>,DOOR MIR ELEC DUAL FOLDING CHROME TURN S IGNAL<8JH> EXC. AUSTRALIA EQUIPMENT(B13) (D) DRIVER LIGHT GRAY	8-97400-746-0	01	1	0509-0609								●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>,DOOR MIR ELEC DUAL FOLDING CHROME TURN S IGNAL<8JH> EXC. AUSTRALIA EQUIPMENT(B13) (D) DRIVER LIGHT GRAY	8-97403-690-0	01	1	0610-0709					●
8	16.263 SWITCH; POWER WINDOW 4X4 CREW CAB LONG(TFS*WF) POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>,DOOR MIR ELEC DUAL FOLDING CHROME TURN S IGNAL<8JH> EXC. AUSTRALIA EQUIPMENT(B13) (D) DRIVER LIGHT GRAY	8-97403-690-0	01	1	0610-0709								●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIR ELEC FOLDING COLOR TURN SI G,BRIGHT<DE3>,DOOR MIR ELEC FOLDINGCOLOR TURN SIG IND<DE4> EXC. AUSTRALIA EQUIPMENT(B13) (D) DRIVER LIGHT GRAY	8-97408-582-0	01	1	0710-					●			●
11	03.885 BOLT; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 12.182 M5X14	8-94152-495-0	04	1	0307-0504	●		●		●			●
11	03.885 BOLT; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 12.182 M5X14	8-94152-495-0	04	1	0307-0504					●			●
11	03.885 BOLT; POWER WINDOW 4X4 EXTEND CAB LONG(TFS*CF) POWER WINDOW FRT&REAR DOOR<A31> 12.182 M5X14	8-94152-495-0	04	1	0307-0504						●
11	03.885 BOLT; POWER WINDOW 4X4 REGULAR CAB LONG(TFS*SF) POWER WINDOW FRT&REAR DOOR<A31> 12.182 M5X14	8-94152-495-0	04	1	0307-0504							●
11	03.885 BOLT; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 12.182 M5X14	8-94152-495-0	04	1	0505-	●	●	●	●	●	●	●	●
11	03.885 BOLT; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 12.182 M5X14	8-94152-495-0	04	1	0505-					●			●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> EXC. AUSTRALIA EQUIPMENT(B13),DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>	8-97327-881-0	01	1	0307-0408	●		●		●	●	●	●
19	08.991 BULB; POWER WINDOW SW GRADE LX(RBB) POWER WINDOW FRT&REAR DOOR<A31> AUSTRALIA EQUIPMENT(B13) EXC. DOOR MIRROR ELEC CONT<DG2>, DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>	8-97327-881-0	01	1	0307-0408					●			●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> EXC. AUSTRALIA EQUIPMENT(B13),DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>	8-97327-881-0	01	1	0409-0504	●		●			●	●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIRROR ELEC CONT<DG2>, DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>	8-97327-881-0	01	1	0409-0504					●			●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9>, DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>	8-97327-881-0	01	1	0505-0508	●		●			●	●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> AUSTRALIA EQUIPMENT(B13) EXC. INTERIOR SILVER BEZEL<BY9>, DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>	8-97327-881-0	01	1	0505-0508					●			●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> EXC. AUSTRALIA EQUIPMENT(B13),DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>	8-97327-881-0	01	1	0505-0508					●			●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31>	8-97327-881-0	01	1	0509-	●	●	●	●	●	●	●	●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> EXC. AUSTRALIA EQUIPMENT(B13)	8-97327-881-0	02	1	0307-0408	●		●		●	●	●	●
19	08.991 BULB; POWER WINDOW SW GRADE LT/LS(RBD) POWER WINDOW FRT&REAR DOOR<A31> AUSTRALIA EQUIPMENT(B13) DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>	8-97327-881-0	02	1	0307-0408	●		●		●	●		●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> AUSTRALIA EQUIPMENT(B13) DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>	8-97327-881-0	02	1	0409-0507	●		●			●	●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> EXC. AUSTRALIA EQUIPMENT(B13)	8-97327-881-0	02	1	0409-0507	●		●			●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>	8-97327-881-0	02	1	0409-0507					●			●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>	8-97327-881-0	02	1	0508-0508	●	●	●	●	●	●	●	●
29	16.263 SWITCH; DOOR	8-97313-208-0	02	1	0307-0307	●	●	●	●		●	●
29	16.263 SWITCH; DOOR	8-97313-208-0	02	1	0308-	●	●	●	●	●	●	●	●
29	16.263 SWITCH; DOOR	8-97313-208-0	02	1	0308-					●			●
29	16.263 SWITCH; DOOR	8-97313-208-0	04	1	0307-0307					●			●
30	16.263 SCREW; DOOR SW 10.240 M5X14	8-94120-095-0	02	1	0307-0307	●	●	●	●		●	●
30	16.263 SCREW; DOOR SW 10.240 M5X14	8-94120-095-0	02	1	0308-	●	●	●	●	●	●	●	●
30	16.263 SCREW; DOOR SW 10.240 M5X14	8-94120-095-0	02	1	0308-					●			●
30	16.263 SCREW; DOOR SW 10.240 M5X14	8-94120-095-0	04	1	0307-0307					●			●
281	04.057 SWITCH; SELECT,TRANS CONT A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 16.283 DARK GRAY	8-97300-364-0	01	1	0307-0508	●	●		●	●			●
281	04.057 SWITCH; SELECT,TRANS CONT A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30),A/T AISIN(RMD) ,A/T 4 SPEED-JATCO(RMK) 16.283 DARK GRAY	8-97300-364-0	01	1	0509-0609	●			●	●			●
281	04.057 SWITCH; SELECT,TRANS CONT A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30),A/T AISIN(RMD) ,A/T 4 SPEED-JATCO(RMK) DARK GRAY	8-97396-692-0	01	1	0610-	●	●	●	●	●	●		●
308	08.991 BULB; SELECT SW A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 14V 0.84W	8-97329-092-0	01	1	0307-0508	●	●		●	●			●
308	08.991 BULB; SELECT SW A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30),A/T AISIN(RMD) ,A/T 4 SPEED-JATCO(RMK) 14V 0.84W	8-97329-092-0	01	1	0509-0609	●			●	●			●
308	08.991 BULB; SELECT SW A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30),A/T AISIN(RMD) ,A/T 4 SPEED-JATCO(RMK) 14V 0.84W	8-97329-092-0	01	1	0610-	●	●	●	●	●	●		●

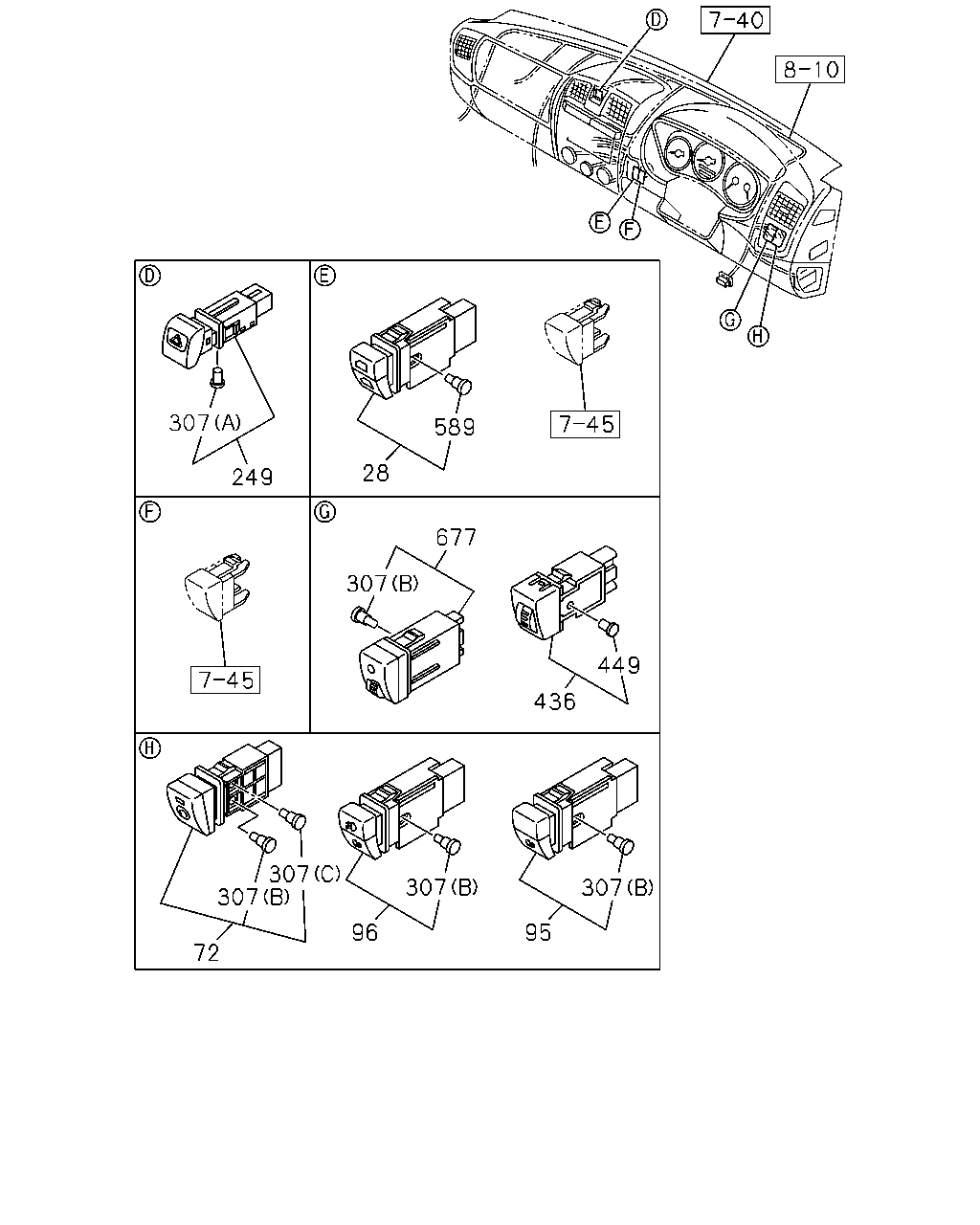

589 28 249 307 677 307 436 449 307 95 307 96 307 307 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
28	16.341 SWITCH ASM; DOOR LOCK REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-97321-870-0	01	1	0307-0411	●		●	●	●	●	●	●
28	16.341 SWITCH ASM; DOOR LOCK	8-97321-870-0	01	1	0307-0411		●
28	16.341 SWITCH ASM; DOOR LOCK REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98000-499-0	01	1	0412-0504	●		●	●	●	●	●	●
28	16.341 SWITCH ASM; DOOR LOCK	8-98000-499-0	01	1	0412-0504		●
28	16.341 SWITCH ASM; DOOR LOCK REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98000-499-0	01	1	0505-0609	●	●	●	●	●	●	●	●
28	16.341 SWITCH ASM; DOOR LOCK REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97403-695-0	01	1	0610-0709	●	●	●	●	●	●	●	●
28	16.341 SWITCH ASM; DOOR LOCK REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97403-695-0	01	1	0710-	●		●	●	●	●	●	●
72	02.485 SWITCH; CRUISE CONT AUTO CRUISE CONT<K30>	8-97238-509-0	01	1	0307-0609	●		●		●	●		●
72	02.485 SWITCH; CRUISE CONT AUTO CRUISE CONT<K30> DARK GRAY	8-97403-884-0	01	1	0610-	●		●		●	●		●
95	02.575 SWITCH; RR FOG LAMP RR FOG LAMP<T79> EXC. FOG LAMP<T96>	8-97313-981-0	01	1	0307-0411			●		●		●	●
95	02.575 SWITCH; RR FOG LAMP RR FOG LAMP<T79> EXC. FOG LAMP<T96>	8-98000-500-0	01	1	0412-0609			●		●		●	●
96	02.485 SWITCH; FOG LAMP RR FOG LAMP<T79> FOG LAMP<T96>	8-97313-982-0	01	1	0307-0411			●		●		●	●
96	02.485 SWITCH; FOG LAMP RR FOG LAMP<T79> FOG LAMP<T96>	8-98000-501-0	01	1	0412-0609			●		●		●	●
249	02.485 SWITCH; HAZARD DARK GRAY	8-97238-511-0	01	1	0307-0609	●	●	●	●	●	●	●	●
249	02.485 SWITCH; HAZARD	8-98046-194-0	01	1	0610-	●	●	●	●	●	●	●	●
307	08.991 BULB ASM; SW (A) 14V 0.91W	8-97327-526-0	01	1	0307-0609	●	●	●	●	●	●	●	●
307	08.991 BULB ASM; SW (A)	8-98057-959-0	01	1	0610-	●	●	●	●	●	●	●	●
307	08.991 BULB ASM; SW AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (B) 14V 0.84W	8-97327-317-0	01	1	0307-0609	●		●		●	●	●	●
307	08.991 BULB ASM; SW AUTO CRUISE CONT<K30> (B) 14V 0.84W	8-97327-317-0	01	1	0307-0609	●		●		●	●		●
307	08.991 BULB ASM; SW (B) 14V 0.84W	8-97327-317-0	01	1	0307-0609		●		●
307	08.991 BULB ASM; SW RR FOG LAMP<T79> (B) 14V 0.84W	8-97327-317-0	01	1	0307-0609			●		●		●	●
307	08.991 BULB ASM; SW AUTO CRUISE CONT<K30> (B) 14V 0.84W	8-97327-317-0	01	1	0610-	●		●		●	●		●
307	08.991 BULB ASM; SW AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (D) 14V 0.84W	8-97329-092-0	01	1	0610-	●		●		●	●	●	●
307	08.991 BULB ASM; SW (D) 14V 0.84W	8-97329-092-0	01	1	0610-		●		●
307	08.991 BULB ASM; SW AUTO CRUISE CONT<K30> (C) 14V 0.91W	8-97355-451-0	01	1	0307-	●		●		●	●		●
436	02.485 SWITCH; HEADLAMP LEVELING HEAD LAMP LEVELING MANUAL<T92>	8-97288-784-0	01	1	0307-0609			●		●		●	●
436	02.485 SWITCH; HEADLAMP LEVELING HEAD LAMP LEVELING MANUAL<T92> DARK GRAY	8-97403-901-0	01	1	0610-			●		●		●	●
449	08.991 BULB ASM; HEADLAMP LEVELING SW HEAD LAMP LEVELING MANUAL<T92> 14V 0.84W	8-97327-317-0	01	1	0307-			●		●		●	●
589	08.991 BULB; DOOR LOCK REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) EXC. POWER WINDOW FRT&REAR DOOR<A31> 14V 0.84W	8-97327-317-0	01	1	0307-0504	●		●	●	●	●	●	●
589	08.991 BULB; DOOR LOCK 14V 0.84W	8-97327-317-0	01	1	0307-0504		●
589	08.991 BULB; DOOR LOCK REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) EXC. POWER WINDOW FRT&REAR DOOR<A31> 14V 0.84W	8-97327-317-0	01	1	0505-0709	●	●	●	●	●	●	●	●
589	08.991 BULB; DOOR LOCK REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) EXC. POWER WINDOW FRT&REAR DOOR<A31> 14V 0.84W	8-97327-317-0	01	1	0710-	●		●	●	●	●	●	●
677	02.485 SWITCH; ILLUMINATION AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-97238-512-0	01	1	0307-0609	●		●		●	●	●	●
677	02.485 SWITCH; ILLUMINATION	8-97238-512-0	01	1	0307-0609		●		●
677	02.485 SWITCH; ILLUMINATION AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) DARK GRAY	8-97403-903-0	01	1	0610-	●		●		●	●	●	●
677	02.485 SWITCH; ILLUMINATION DARK GRAY	8-97403-903-0	01	1	0610-		●		●

99 45 208 98 154 85 164 490 490 154 85 208 45 99 277 45 208 99 154 99 85 164 490

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
45	02.252 RELAY; HORN 02.485 12V YAZAKI	8-97309-292-0	01	1	0307-0609	●	●	●	●	●	●	●	●
45	02.252 RELAY; HORN 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●	●	●	●	●
45	02.252 RELAY; HORN 4JH1-TC ENG(RDM) EURO2 SPECIFICATION<NT2> EXC. COOLER WO/HEATER(C65) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●	●	●	●	●	●
45	02.252 RELAY; HORN 6VE1 ENG(LX5) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●	●	●
45	02.252 RELAY; HORN C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508			●	●	●
45	02.252 RELAY; HORN 6VE1 ENG(LX5) A/T AISIN(RMD) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
45	02.252 RELAY; HORN 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) IMMOBILIZER SYSTEM<7KC> 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
45	02.252 RELAY; HORN 4JH1-TC ENG(RDM) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512	●	●	●	●	●	●	●	●
45	02.252 RELAY; HORN C24SE ENG(LG1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512	●	●	●	●	●		●	●
45	02.252 RELAY; HORN 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TC ENG(L4Z) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512	●		●		●	●	●	●
45	02.252 RELAY; HORN C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609	●	●	●	●	●	●	●	●
45	02.252 RELAY; HORN 4JH1-TC ENG(RDM) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609	●	●	●	●	●	●	●	●
45	02.252 RELAY; HORN 02.575 12V OMRON	8-98005-407-0	01	1	0610-	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 12V YAZAKI	8-97309-294-0	01	1	0307-0507	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) EMISSION SYSTEM R15-04<K75>,EURO3 SPECIFICATION<NT3> 12V YAZAKI	8-97309-294-0	01	1	0508-0508	●		●		●	●	●	●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) EURO2 SPECIFICATION<NT2> COOLER WO/HEATER(C65) 12V YAZAKI	8-97309-294-0	01	1	0508-0508	●		●		●	●	●	●
85	02.485 RELAY; HEADLAMP 4JA1-T ENG(LP0) 12V YAZAKI	8-97309-294-0	01	1	0508-0508	●					●
85	02.485 RELAY; HEADLAMP C24SE ENG(LG1) EXC. AUSTRALIA EQUIPMENT(B13) 12V YAZAKI	8-97309-294-0	01	1	0508-0508			●		●
85	02.485 RELAY; HEADLAMP 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) 12V YAZAKI	8-97309-294-0	01	1	0508-0508			●		●
85	02.485 RELAY; HEADLAMP 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EXC. IMMOBILIZER SYSTEM<7KC> 12V YAZAKI	8-97309-294-0	01	1	0508-0508						●	●	●
85	02.485 RELAY; HEADLAMP C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z) 12V YAZAKI	8-97309-294-0	01	1	0508-0508							●	●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 12V YAZAKI	8-97309-294-0	01	1	0509-0609					●
85	02.485 RELAY; HEADLAMP 4X4 CREW CAB LONG(TFS*WF) 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 12V YAZAKI	8-97309-294-0	01	1	0509-0609								●
85	02.485 RELAY; HEADLAMP HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-0912	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 09.778 12V YAZAKI	8-97309-293-0	01	1	1001-	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) EURO2 SPECIFICATION<NT2> EXC. COOLER WO/HEATER(C65) 12V YAZAKI	8-97309-292-0	01	1	0508-0508	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 6VE1 ENG(LX5) 12V YAZAKI	8-97309-292-0	01	1	0508-0508	●	●	●	●	●
85	02.485 RELAY; HEADLAMP C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) 12V YAZAKI	8-97309-292-0	01	1	0508-0508			●	●	●
85	02.485 RELAY; HEADLAMP 6VE1 ENG(LX5) A/T AISIN(RMD) 12V YAZAKI	8-97309-292-0	01	1	0508-0508						●	●	●
85	02.485 RELAY; HEADLAMP 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) IMMOBILIZER SYSTEM<7KC> 12V YAZAKI	8-97309-292-0	01	1	0508-0508						●	●	●
85	02.485 RELAY; HEADLAMP HF V6 ENG(LCA),C24SE ENG(LG1), 4JA1-T ENG(LP0),6VE1 ENG(LX5),4JA1-TC ENG(L4Z) 12V YAZAKI	8-97309-292-0	01	1	0509-0609	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 12V YAZAKI	8-97309-292-0	01	1	0509-0609	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75> 12V YAZAKI	8-97309-292-0	01	1	0509-0609					●			●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) AUSTRALIA EQUIPMENT(B13) 12V YAZAKI	8-97309-292-0	01	1	0509-0609					●			●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 12V YAZAKI	8-97309-292-0	01	1	0509-0609								●
85	02.485 RELAY; HEADLAMP C24SE ENG(LG1) 12V YAZAKI	8-97309-292-0	01	1	0610-1003			●	●	●		●	●
85	02.485 RELAY; HEADLAMP 12V YAZAKI	8-97309-292-0	01	1	1004-	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) EURO2 SPECIFICATION<NT2> EXC. COOLER WO/HEATER(C65) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 6VE1 ENG(LX5) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●	●	●
85	02.485 RELAY; HEADLAMP C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508			●	●	●
85	02.485 RELAY; HEADLAMP 6VE1 ENG(LX5) A/T AISIN(RMD) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
85	02.485 RELAY; HEADLAMP 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) IMMOBILIZER SYSTEM<7KC> 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 02.575 12V OMRON	8-98005-407-0	02	1	0509-0609					●
85	02.485 RELAY; HEADLAMP HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.575 12V OMRON	8-98005-407-0	01	1	0610-0612	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.575 12V OMRON	8-98005-407-0	01	1	0701-0912	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.575 12V OMRON	8-98005-407-0	01	1	1001-	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TC ENG(L4Z) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512	●		●		●	●
85	02.485 RELAY; HEADLAMP C24SE ENG(LG1) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512			●	●	●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75> 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512					●			●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13),4 WHEEL ANTI LOCK BRAKE<JE5> 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512					●
85	02.485 RELAY; HEADLAMP C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512							●	●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512								●
85	02.485 RELAY; HEADLAMP C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609	●		●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609	●		●		●	●	●	●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609	●		●		●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75> 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609	●		●		●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609						●	●	●
98	02.485 RELAY; RR FOG LAMP 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EURO3 SPECIFICATION<NT3> 12V YAZAKI	8-97309-292-0	01	1	0403-0609			●		●
98	02.485 RELAY; RR FOG LAMP 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 12V YAZAKI	8-97309-292-0	01	1	0403-0609							●	●
98	02.485 RELAY; RR FOG LAMP 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EURO3 SPECIFICATION<NT3> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 12V YAZAKI	8-97309-292-0	01	1	0403-0609							●	●
98	02.485 RELAY; RR FOG LAMP 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EURO3 SPECIFICATION<NT3> 02.575 12V OMRON	8-98005-407-0	01	1	0509-0609			●		●
98	02.485 RELAY; RR FOG LAMP 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0609							●	●
98	02.485 RELAY; RR FOG LAMP 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EURO3 SPECIFICATION<NT3> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.575 12V OMRON	8-98005-407-0	01	1	0509-0609							●	●
99	02.485 RELAY; FOG LAMP 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●	●	●	●	●
99	02.485 RELAY; FOG LAMP C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JH1-TC ENG(RDM) 12V YAZAKI	8-97309-292-0	01	1	0307-0402	●	●	●	●	●	●	●	●
99	02.485 RELAY; FOG LAMP C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 12V YAZAKI	8-97309-292-0	01	1	0403-0505	●	●	●	●	●	●	●	●
99	02.485 RELAY; FOG LAMP 12V YAZAKI	8-97309-292-0	01	1	0506-0507	●	●	●	●	●	●	●	●
99	02.485 RELAY; FOG LAMP C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 12V YAZAKI	8-97309-292-0	01	1	0508-0508	●	●	●	●	●	●	●	●
99	02.485 RELAY; FOG LAMP 12V YAZAKI	8-97309-292-0	01	1	0509-0609	●	●				●	●	●
99	02.485 RELAY; FOG LAMP HF V6 ENG(LCA),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 12V YAZAKI	8-97309-292-0	01	1	0509-0609			●	●	●
99	02.485 RELAY; FOG LAMP C24SE ENG(LG1) EXC. AUSTRALIA EQUIPMENT(B13) 12V YAZAKI	8-97309-292-0	01	1	0509-0609			●	●	●
99	02.485 RELAY; FOG LAMP 4JH1-TC ENG(RDM) EURO2 SPECIFICATION<NT2> EXC. COOLER WO/HEATER(C65) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●	●	●	●	●	●
99	02.485 RELAY; FOG LAMP 6VE1 ENG(LX5) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●	●	●
99	02.485 RELAY; FOG LAMP 6VE1 ENG(LX5) A/T AISIN(RMD) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
99	02.485 RELAY; FOG LAMP 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) IMMOBILIZER SYSTEM<7KC> 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
99	02.485 RELAY; FOG LAMP 4JH1-TC ENG(RDM) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0609	●	●	●	●	●	●	●	●
99	02.485 RELAY; FOG LAMP C24SE ENG(LG1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.575 12V OMRON	8-98005-407-0	01	1	0509-0609	●	●	●	●	●		●	●
99	02.485 RELAY; FOG LAMP 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TC ENG(L4Z) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0609	●		●		●	●	●	●
99	02.485 RELAY; FOG LAMP 02.575 12V OMRON	8-98005-407-0	01	1	0610-	●	●	●	●	●	●	●	●
99	02.485 RELAY; FOG LAMP 4JA1-TC ENG(L4Z) 12V YAZAKI	8-97309-292-0	02	1	0307-0402			●		●		●	●
154	09.277 RELAY; CONDENSER FAN 09.778 12V YAZAKI	8-97309-293-0	01	1	0307-0508	●	●	●	●	●	●	●	●
154	09.277 RELAY; CONDENSER FAN C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 09.778 12V YAZAKI	8-97309-293-0	01	1	0509-0609	●	●	●	●	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-0912	●	●	●	●	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 09.778 12V YAZAKI	8-97309-293-0	01	1	1001-	●	●	●	●	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 4JH1-TC ENG(RDM) EURO2 SPECIFICATION<NT2> EXC. COOLER WO/HEATER(C65) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●	●	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 6VE1 ENG(LX5) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●	●	●
154	09.277 RELAY; CONDENSER FAN C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508			●	●	●
154	09.277 RELAY; CONDENSER FAN 6VE1 ENG(LX5) A/T AISIN(RMD) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
154	09.277 RELAY; CONDENSER FAN 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) IMMOBILIZER SYSTEM<7KC> 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
154	09.277 RELAY; CONDENSER FAN 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> 02.575 12V OMRON	8-98005-407-0	02	1	0509-0609						●	●	●
154	09.277 RELAY; CONDENSER FAN 02.575 12V OMRON	8-98005-407-0	01	1	0610-0709	●	●	●	●	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.575 12V OMRON	8-98005-407-0	01	1	0710-0912	●	●	●	●	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.575 12V OMRON	8-98005-407-0	01	1	1001-	●	●	●	●	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TC ENG(L4Z) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512	●		●		●	●	●	●
154	09.277 RELAY; CONDENSER FAN 4JH1-TC ENG(RDM) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512	●		●		●
154	09.277 RELAY; CONDENSER FAN C24SE ENG(LG1) EXC. AUSTRALIA EQUIPMENT(B13),4 WHEEL ANTI LOCK BRAKE<JE5> 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512			●	●	●		●	●
154	09.277 RELAY; CONDENSER FAN 4JH1-TC ENG(RDM) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512						●	●	●
154	09.277 RELAY; CONDENSER FAN 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512						●	●	●
154	09.277 RELAY; CONDENSER FAN 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75> 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512								●
154	09.277 RELAY; CONDENSER FAN C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609	●		●	●	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 4JH1-TC ENG(RDM) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609	●		●		●
154	09.277 RELAY; CONDENSER FAN 4JH1-TC ENG(RDM) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609						●	●	●
154	09.277 RELAY; CONDENSER FAN 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609						●	●	●
154	09.277 RELAY; CONDENSER FAN 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75> 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609								●
164	02.510 RELAY; A/C COMPRESSOR 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●	●	●	●	●
164	02.510 RELAY; A/C COMPRESSOR C24SE ENG(LG1),6VE1 ENG(LX5), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 09.778 12V YAZAKI	8-97309-293-0	01	1	0307-0609	●	●	●	●	●	●	●	●
164	02.510 RELAY; A/C COMPRESSOR 4JH1-TC ENG(RDM) EURO2 SPECIFICATION<NT2> EXC. COOLER WO/HEATER(C65) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●	●	●	●	●	●
164	02.510 RELAY; A/C COMPRESSOR 6VE1 ENG(LX5) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●	●	●
164	02.510 RELAY; A/C COMPRESSOR C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508			●	●	●
164	02.510 RELAY; A/C COMPRESSOR 6VE1 ENG(LX5) A/T AISIN(RMD) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
164	02.510 RELAY; A/C COMPRESSOR 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) IMMOBILIZER SYSTEM<7KC> 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
164	02.510 RELAY; A/C COMPRESSOR HF V6 ENG(LCA),6VE1 ENG(LX5), 4JA1-TC ENG(L4Z) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512	●	●	●	●	●	●	●	●
164	02.510 RELAY; A/C COMPRESSOR 4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512	●		●		●	●	●
164	02.510 RELAY; A/C COMPRESSOR C24SE ENG(LG1) EXC. AUSTRALIA EQUIPMENT(B13),4 WHEEL ANTI LOCK BRAKE<JE5> 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512			●	●	●		●	●
164	02.510 RELAY; A/C COMPRESSOR 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),4 WHEEL ANTI LOCK BRAKE<JE5>,SINGAPORE EQUIPMENT(2G0) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512					●
164	02.510 RELAY; A/C COMPRESSOR 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75> 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512					●
164	02.510 RELAY; A/C COMPRESSOR 4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP),M/ T MUA 5 SPEED 5S(RSQ) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512								●
164	02.510 RELAY; A/C COMPRESSOR HF V6 ENG(LCA),C24SE ENG(LG1),6VE1 ENG(LX5),4JA1-TC ENG(L4Z) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609	●	●	●	●	●	●	●	●
164	02.510 RELAY; A/C COMPRESSOR 4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609	●		●		●	●	●
164	02.510 RELAY; A/C COMPRESSOR 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),4 WHEEL ANTI LOCK BRAKE<JE5>,SINGAPORE EQUIPMENT(2G0) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609					●
164	02.510 RELAY; A/C COMPRESSOR 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75> 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609					●
164	02.510 RELAY; A/C COMPRESSOR 4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP),M/ T MUA 5 SPEED 5S(RSQ) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609								●
164	02.510 RELAY; A/C COMPRESSOR 02.575 12V OMRON	8-98005-407-0	01	1	0610-	●	●	●	●	●	●	●	●
208	02.485 RELAY; DIMMER & PASSING 12V YAZAKI	8-97309-292-0	01	1	0307-	●	●	●	●	●	●	●	●
277	03.900 RELAY; FUEL PUMP 6VE1 ENG(LX5) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●	●	●
277	03.900 RELAY; FUEL PUMP C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508			●	●	●
277	03.900 RELAY; FUEL PUMP 6VE1 ENG(LX5) A/T AISIN(RMD) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
277	03.900 RELAY; FUEL PUMP 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) IMMOBILIZER SYSTEM<7KC> 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
277	03.900 RELAY; FUEL PUMP C24SE ENG(LG1) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512			●		●
277	03.900 RELAY; FUEL PUMP C24SE ENG(LG1) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512							●
277	03.900 RELAY; FUEL PUMP C24SE ENG(LG1),6VE1 ENG(LX5) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512								●
277	03.900 RELAY; FUEL PUMP C24SE ENG(LG1),6VE1 ENG(LX5) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609			●		●		●	●
277	03.900 RELAY; FUEL PUMP 02.575 12V OMRON	8-98005-407-0	01	1	0610-	●	●	●	●	●	●	●	●
277	03.900 RELAY; FUEL PUMP 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●	●	●	●	●
277	03.900 RELAY; FUEL PUMP C24SE ENG(LG1),6VE1 ENG(LX5) 02.485 12V YAZAKI	8-97309-292-0	01	1	0307-0508	●	●	●	●	●	●	●	●
277	03.900 RELAY; FUEL PUMP HF V6 ENG(LCA),C24SE ENG(LG1),6VE1 ENG(LX5) 02.485 12V YAZAKI	8-97309-292-0	01	1	0509-0609	●	●	●	●	●	●	●	●
490	09.277 RELAY; THERMO 09.778 12V YAZAKI	8-97309-293-0	01	1	0307-0508	●	●	●	●	●	●	●	●
490	09.277 RELAY; THERMO C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 09.778 12V YAZAKI	8-97309-293-0	01	1	0509-0609	●	●	●	●	●	●	●	●
490	09.277 RELAY; THERMO 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-0912	●	●	●	●	●	●	●	●
490	09.277 RELAY; THERMO 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 09.778 12V YAZAKI	8-97309-293-0	01	1	1001-	●	●	●	●	●	●	●	●
490	09.277 RELAY; THERMO 4JH1-TC ENG(RDM) EURO2 SPECIFICATION<NT2> EXC. COOLER WO/HEATER(C65) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●	●	●	●	●	●
490	09.277 RELAY; THERMO 6VE1 ENG(LX5) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●	●	●
490	09.277 RELAY; THERMO C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508			●	●	●
490	09.277 RELAY; THERMO 6VE1 ENG(LX5) A/T AISIN(RMD) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
490	09.277 RELAY; THERMO 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) IMMOBILIZER SYSTEM<7KC> 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
490	09.277 RELAY; THERMO 4JH1-TC ENG(RDM) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512	●	●	●	●	●	●	●	●
490	09.277 RELAY; THERMO C24SE ENG(LG1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512	●	●	●	●	●		●	●
490	09.277 RELAY; THERMO 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TC ENG(L4Z) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512	●		●		●	●	●	●
490	09.277 RELAY; THERMO C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609	●	●	●	●	●	●	●	●
490	09.277 RELAY; THERMO 4JH1-TC ENG(RDM) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609	●	●	●	●	●	●	●	●
490	09.277 RELAY; THERMO 02.575 12V OMRON	8-98005-407-0	01	1	0610-0709	●	●	●	●	●	●	●	●
490	09.277 RELAY; THERMO 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.575 12V OMRON	8-98005-407-0	01	1	0710-0912	●	●	●	●	●	●	●	●
490	09.277 RELAY; THERMO 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.575 12V OMRON	8-98005-407-0	01	1	1001-	●	●	●	●	●	●	●	●

99 45 208 154 98 99 85 164 490 490 154 85 208 45 99 277 45 208 99 154 85 164 490

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
45	02.252 RELAY; HORN 02.485 12V YAZAKI	8-97309-292-0	01	1	0307-0609	●	●	●	●	●	●	●	●
45	02.252 RELAY; HORN 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●	●	●	●	●
45	02.252 RELAY; HORN 4JH1-TC ENG(RDM) EURO2 SPECIFICATION<NT2> EXC. COOLER WO/HEATER(C65) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●	●	●	●	●	●
45	02.252 RELAY; HORN 6VE1 ENG(LX5) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●	●	●
45	02.252 RELAY; HORN C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508			●	●	●
45	02.252 RELAY; HORN 6VE1 ENG(LX5) A/T AISIN(RMD) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
45	02.252 RELAY; HORN 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) IMMOBILIZER SYSTEM<7KC> 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
45	02.252 RELAY; HORN 4JH1-TC ENG(RDM) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512	●	●	●	●	●	●	●	●
45	02.252 RELAY; HORN C24SE ENG(LG1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512	●	●	●	●	●		●	●
45	02.252 RELAY; HORN 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TC ENG(L4Z) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512	●		●		●	●	●	●
45	02.252 RELAY; HORN C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609	●	●	●	●	●	●	●	●
45	02.252 RELAY; HORN 4JH1-TC ENG(RDM) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609	●	●	●	●	●	●	●	●
45	02.252 RELAY; HORN 02.575 12V OMRON	8-98005-407-0	01	1	0610-	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 12V YAZAKI	8-97309-294-0	01	1	0307-0507	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) EMISSION SYSTEM R15-04<K75>,EURO3 SPECIFICATION<NT3> 12V YAZAKI	8-97309-294-0	01	1	0508-0508	●		●		●	●	●	●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) EURO2 SPECIFICATION<NT2> COOLER WO/HEATER(C65) 12V YAZAKI	8-97309-294-0	01	1	0508-0508	●		●		●	●	●	●
85	02.485 RELAY; HEADLAMP 4JA1-T ENG(LP0) 12V YAZAKI	8-97309-294-0	01	1	0508-0508	●					●
85	02.485 RELAY; HEADLAMP C24SE ENG(LG1) EXC. AUSTRALIA EQUIPMENT(B13) 12V YAZAKI	8-97309-294-0	01	1	0508-0508			●		●
85	02.485 RELAY; HEADLAMP 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) 12V YAZAKI	8-97309-294-0	01	1	0508-0508			●		●
85	02.485 RELAY; HEADLAMP 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EXC. IMMOBILIZER SYSTEM<7KC> 12V YAZAKI	8-97309-294-0	01	1	0508-0508						●	●	●
85	02.485 RELAY; HEADLAMP C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z) 12V YAZAKI	8-97309-294-0	01	1	0508-0508							●	●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 12V YAZAKI	8-97309-294-0	01	1	0509-0609					●
85	02.485 RELAY; HEADLAMP 4X4 CREW CAB LONG(TFS*WF) 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 12V YAZAKI	8-97309-294-0	01	1	0509-0609								●
85	02.485 RELAY; HEADLAMP HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-0912	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 09.778 12V YAZAKI	8-97309-293-0	01	1	1001-	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) EURO2 SPECIFICATION<NT2> EXC. COOLER WO/HEATER(C65) 12V YAZAKI	8-97309-292-0	01	1	0508-0508	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 6VE1 ENG(LX5) 12V YAZAKI	8-97309-292-0	01	1	0508-0508	●	●	●	●	●
85	02.485 RELAY; HEADLAMP C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) 12V YAZAKI	8-97309-292-0	01	1	0508-0508			●	●	●
85	02.485 RELAY; HEADLAMP 6VE1 ENG(LX5) A/T AISIN(RMD) 12V YAZAKI	8-97309-292-0	01	1	0508-0508						●	●	●
85	02.485 RELAY; HEADLAMP 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) IMMOBILIZER SYSTEM<7KC> 12V YAZAKI	8-97309-292-0	01	1	0508-0508						●	●	●
85	02.485 RELAY; HEADLAMP HF V6 ENG(LCA),C24SE ENG(LG1), 4JA1-T ENG(LP0),6VE1 ENG(LX5),4JA1-TC ENG(L4Z) 12V YAZAKI	8-97309-292-0	01	1	0509-0609	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 12V YAZAKI	8-97309-292-0	01	1	0509-0609	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75> 12V YAZAKI	8-97309-292-0	01	1	0509-0609					●			●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) AUSTRALIA EQUIPMENT(B13) 12V YAZAKI	8-97309-292-0	01	1	0509-0609					●			●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 12V YAZAKI	8-97309-292-0	01	1	0509-0609								●
85	02.485 RELAY; HEADLAMP C24SE ENG(LG1) 12V YAZAKI	8-97309-292-0	01	1	0610-1003			●	●	●		●	●
85	02.485 RELAY; HEADLAMP 12V YAZAKI	8-97309-292-0	01	1	1004-	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) EURO2 SPECIFICATION<NT2> EXC. COOLER WO/HEATER(C65) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 6VE1 ENG(LX5) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●	●	●
85	02.485 RELAY; HEADLAMP C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508			●	●	●
85	02.485 RELAY; HEADLAMP 6VE1 ENG(LX5) A/T AISIN(RMD) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
85	02.485 RELAY; HEADLAMP 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) IMMOBILIZER SYSTEM<7KC> 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 02.575 12V OMRON	8-98005-407-0	02	1	0509-0609					●
85	02.485 RELAY; HEADLAMP HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.575 12V OMRON	8-98005-407-0	01	1	0610-0612	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.575 12V OMRON	8-98005-407-0	01	1	0701-0912	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.575 12V OMRON	8-98005-407-0	01	1	1001-	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TC ENG(L4Z) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512	●		●		●	●
85	02.485 RELAY; HEADLAMP C24SE ENG(LG1) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512			●	●	●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75> 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512					●			●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13),4 WHEEL ANTI LOCK BRAKE<JE5> 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512					●
85	02.485 RELAY; HEADLAMP C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512							●	●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512								●
85	02.485 RELAY; HEADLAMP C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609	●		●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609	●		●		●	●	●	●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609	●		●		●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75> 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609	●		●		●
85	02.485 RELAY; HEADLAMP 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609						●	●	●
98	02.485 RELAY; RR FOG LAMP 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EURO3 SPECIFICATION<NT3> 12V YAZAKI	8-97309-292-0	01	1	0403-0609			●		●
98	02.485 RELAY; RR FOG LAMP 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 12V YAZAKI	8-97309-292-0	01	1	0403-0609							●	●
98	02.485 RELAY; RR FOG LAMP 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EURO3 SPECIFICATION<NT3> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 12V YAZAKI	8-97309-292-0	01	1	0403-0609							●	●
98	02.485 RELAY; RR FOG LAMP 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EURO3 SPECIFICATION<NT3> 02.575 12V OMRON	8-98005-407-0	01	1	0509-0609			●		●
98	02.485 RELAY; RR FOG LAMP 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0609							●	●
98	02.485 RELAY; RR FOG LAMP 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EURO3 SPECIFICATION<NT3> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.575 12V OMRON	8-98005-407-0	01	1	0509-0609							●	●
99	02.485 RELAY; FOG LAMP 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●	●	●	●	●
99	02.485 RELAY; FOG LAMP C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JH1-TC ENG(RDM) 12V YAZAKI	8-97309-292-0	01	1	0307-0402	●	●	●	●	●	●	●	●
99	02.485 RELAY; FOG LAMP C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 12V YAZAKI	8-97309-292-0	01	1	0403-0505	●	●	●	●	●	●	●	●
99	02.485 RELAY; FOG LAMP 12V YAZAKI	8-97309-292-0	01	1	0506-0507	●	●	●	●	●	●	●	●
99	02.485 RELAY; FOG LAMP C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 12V YAZAKI	8-97309-292-0	01	1	0508-0508	●	●	●	●	●	●	●	●
99	02.485 RELAY; FOG LAMP 12V YAZAKI	8-97309-292-0	01	1	0509-0609	●	●				●	●	●
99	02.485 RELAY; FOG LAMP HF V6 ENG(LCA),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 12V YAZAKI	8-97309-292-0	01	1	0509-0609			●	●	●
99	02.485 RELAY; FOG LAMP C24SE ENG(LG1) EXC. AUSTRALIA EQUIPMENT(B13) 12V YAZAKI	8-97309-292-0	01	1	0509-0609			●	●	●
99	02.485 RELAY; FOG LAMP 4JH1-TC ENG(RDM) EURO2 SPECIFICATION<NT2> EXC. COOLER WO/HEATER(C65) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●	●	●	●	●	●
99	02.485 RELAY; FOG LAMP 6VE1 ENG(LX5) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●	●	●
99	02.485 RELAY; FOG LAMP 6VE1 ENG(LX5) A/T AISIN(RMD) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
99	02.485 RELAY; FOG LAMP 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) IMMOBILIZER SYSTEM<7KC> 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
99	02.485 RELAY; FOG LAMP 4JH1-TC ENG(RDM) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0609	●	●	●	●	●	●	●	●
99	02.485 RELAY; FOG LAMP C24SE ENG(LG1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.575 12V OMRON	8-98005-407-0	01	1	0509-0609	●	●	●	●	●		●	●
99	02.485 RELAY; FOG LAMP 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TC ENG(L4Z) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0609	●		●		●	●	●	●
99	02.485 RELAY; FOG LAMP 02.575 12V OMRON	8-98005-407-0	01	1	0610-	●	●	●	●	●	●	●	●
99	02.485 RELAY; FOG LAMP 4JA1-TC ENG(L4Z) 12V YAZAKI	8-97309-292-0	02	1	0307-0402			●		●		●	●
154	09.277 RELAY; CONDENSER FAN 09.778 12V YAZAKI	8-97309-293-0	01	1	0307-0508	●	●	●	●	●	●	●	●
154	09.277 RELAY; CONDENSER FAN C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 09.778 12V YAZAKI	8-97309-293-0	01	1	0509-0609	●	●	●	●	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-0912	●	●	●	●	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 09.778 12V YAZAKI	8-97309-293-0	01	1	1001-	●	●	●	●	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 4JH1-TC ENG(RDM) EURO2 SPECIFICATION<NT2> EXC. COOLER WO/HEATER(C65) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●	●	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 6VE1 ENG(LX5) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●	●	●
154	09.277 RELAY; CONDENSER FAN C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508			●	●	●
154	09.277 RELAY; CONDENSER FAN 6VE1 ENG(LX5) A/T AISIN(RMD) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
154	09.277 RELAY; CONDENSER FAN 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) IMMOBILIZER SYSTEM<7KC> 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
154	09.277 RELAY; CONDENSER FAN 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> 02.575 12V OMRON	8-98005-407-0	02	1	0509-0609						●	●	●
154	09.277 RELAY; CONDENSER FAN 02.575 12V OMRON	8-98005-407-0	01	1	0610-0709	●	●	●	●	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.575 12V OMRON	8-98005-407-0	01	1	0710-0912	●	●	●	●	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.575 12V OMRON	8-98005-407-0	01	1	1001-	●	●	●	●	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TC ENG(L4Z) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512	●		●		●	●	●	●
154	09.277 RELAY; CONDENSER FAN 4JH1-TC ENG(RDM) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512	●		●		●
154	09.277 RELAY; CONDENSER FAN C24SE ENG(LG1) EXC. AUSTRALIA EQUIPMENT(B13),4 WHEEL ANTI LOCK BRAKE<JE5> 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512			●	●	●		●	●
154	09.277 RELAY; CONDENSER FAN 4JH1-TC ENG(RDM) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512						●	●	●
154	09.277 RELAY; CONDENSER FAN 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512						●	●	●
154	09.277 RELAY; CONDENSER FAN 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75> 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512								●
154	09.277 RELAY; CONDENSER FAN C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609	●		●	●	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 4JH1-TC ENG(RDM) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609	●		●		●
154	09.277 RELAY; CONDENSER FAN 4JH1-TC ENG(RDM) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609						●	●	●
154	09.277 RELAY; CONDENSER FAN 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609						●	●	●
154	09.277 RELAY; CONDENSER FAN 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75> 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609								●
164	02.510 RELAY; A/C COMPRESSOR 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●	●	●	●	●
164	02.510 RELAY; A/C COMPRESSOR C24SE ENG(LG1),6VE1 ENG(LX5), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 09.778 12V YAZAKI	8-97309-293-0	01	1	0307-0609	●	●	●	●	●	●	●	●
164	02.510 RELAY; A/C COMPRESSOR 4JH1-TC ENG(RDM) EURO2 SPECIFICATION<NT2> EXC. COOLER WO/HEATER(C65) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●	●	●	●	●	●
164	02.510 RELAY; A/C COMPRESSOR 6VE1 ENG(LX5) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●	●	●
164	02.510 RELAY; A/C COMPRESSOR C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508			●	●	●
164	02.510 RELAY; A/C COMPRESSOR 6VE1 ENG(LX5) A/T AISIN(RMD) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
164	02.510 RELAY; A/C COMPRESSOR 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) IMMOBILIZER SYSTEM<7KC> 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
164	02.510 RELAY; A/C COMPRESSOR HF V6 ENG(LCA),6VE1 ENG(LX5), 4JA1-TC ENG(L4Z) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512	●	●	●	●	●	●	●	●
164	02.510 RELAY; A/C COMPRESSOR 4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512	●		●		●	●	●
164	02.510 RELAY; A/C COMPRESSOR C24SE ENG(LG1) EXC. AUSTRALIA EQUIPMENT(B13),4 WHEEL ANTI LOCK BRAKE<JE5> 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512			●	●	●		●	●
164	02.510 RELAY; A/C COMPRESSOR 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),4 WHEEL ANTI LOCK BRAKE<JE5>,SINGAPORE EQUIPMENT(2G0) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512					●
164	02.510 RELAY; A/C COMPRESSOR 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75> 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512					●
164	02.510 RELAY; A/C COMPRESSOR 4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP),M/ T MUA 5 SPEED 5S(RSQ) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512								●
164	02.510 RELAY; A/C COMPRESSOR HF V6 ENG(LCA),C24SE ENG(LG1),6VE1 ENG(LX5),4JA1-TC ENG(L4Z) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609	●	●	●	●	●	●	●	●
164	02.510 RELAY; A/C COMPRESSOR 4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609	●		●		●	●	●
164	02.510 RELAY; A/C COMPRESSOR 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),4 WHEEL ANTI LOCK BRAKE<JE5>,SINGAPORE EQUIPMENT(2G0) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609					●
164	02.510 RELAY; A/C COMPRESSOR 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75> 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609					●
164	02.510 RELAY; A/C COMPRESSOR 4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP),M/ T MUA 5 SPEED 5S(RSQ) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609								●
164	02.510 RELAY; A/C COMPRESSOR 02.575 12V OMRON	8-98005-407-0	01	1	0610-	●	●	●	●	●	●	●	●
208	02.485 RELAY; DIMMER & PASSING 12V YAZAKI	8-97309-292-0	01	1	0307-	●	●	●	●	●	●	●	●
277	03.900 RELAY; FUEL PUMP 6VE1 ENG(LX5) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●	●	●
277	03.900 RELAY; FUEL PUMP C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508			●	●	●
277	03.900 RELAY; FUEL PUMP 6VE1 ENG(LX5) A/T AISIN(RMD) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
277	03.900 RELAY; FUEL PUMP 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) IMMOBILIZER SYSTEM<7KC> 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
277	03.900 RELAY; FUEL PUMP C24SE ENG(LG1) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512			●		●
277	03.900 RELAY; FUEL PUMP C24SE ENG(LG1) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512							●
277	03.900 RELAY; FUEL PUMP C24SE ENG(LG1),6VE1 ENG(LX5) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512								●
277	03.900 RELAY; FUEL PUMP C24SE ENG(LG1),6VE1 ENG(LX5) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609			●		●		●	●
277	03.900 RELAY; FUEL PUMP 02.575 12V OMRON	8-98005-407-0	01	1	0610-	●	●	●	●	●	●	●	●
277	03.900 RELAY; FUEL PUMP 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●	●	●	●	●
277	03.900 RELAY; FUEL PUMP C24SE ENG(LG1),6VE1 ENG(LX5) 02.485 12V YAZAKI	8-97309-292-0	01	1	0307-0508	●	●	●	●	●	●	●	●
277	03.900 RELAY; FUEL PUMP HF V6 ENG(LCA),C24SE ENG(LG1),6VE1 ENG(LX5) 02.485 12V YAZAKI	8-97309-292-0	01	1	0509-0609	●	●	●	●	●	●	●	●
490	09.277 RELAY; THERMO 09.778 12V YAZAKI	8-97309-293-0	01	1	0307-0508	●	●	●	●	●	●	●	●
490	09.277 RELAY; THERMO C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 09.778 12V YAZAKI	8-97309-293-0	01	1	0509-0609	●	●	●	●	●	●	●	●
490	09.277 RELAY; THERMO 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-0912	●	●	●	●	●	●	●	●
490	09.277 RELAY; THERMO 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 09.778 12V YAZAKI	8-97309-293-0	01	1	1001-	●	●	●	●	●	●	●	●
490	09.277 RELAY; THERMO 4JH1-TC ENG(RDM) EURO2 SPECIFICATION<NT2> EXC. COOLER WO/HEATER(C65) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●	●	●	●	●	●
490	09.277 RELAY; THERMO 6VE1 ENG(LX5) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508	●	●	●	●	●
490	09.277 RELAY; THERMO C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508			●	●	●
490	09.277 RELAY; THERMO 6VE1 ENG(LX5) A/T AISIN(RMD) 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
490	09.277 RELAY; THERMO 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) IMMOBILIZER SYSTEM<7KC> 02.575 12V OMRON	8-98005-407-0	01	1	0508-0508						●	●	●
490	09.277 RELAY; THERMO 4JH1-TC ENG(RDM) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512	●	●	●	●	●	●	●	●
490	09.277 RELAY; THERMO C24SE ENG(LG1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512	●	●	●	●	●		●	●
490	09.277 RELAY; THERMO 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TC ENG(L4Z) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0512	●		●		●	●	●	●
490	09.277 RELAY; THERMO C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609	●	●	●	●	●	●	●	●
490	09.277 RELAY; THERMO 4JH1-TC ENG(RDM) EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0601-0609	●	●	●	●	●	●	●	●
490	09.277 RELAY; THERMO 02.575 12V OMRON	8-98005-407-0	01	1	0610-0709	●	●	●	●	●	●	●	●
490	09.277 RELAY; THERMO 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.575 12V OMRON	8-98005-407-0	01	1	0710-0912	●	●	●	●	●	●	●	●
490	09.277 RELAY; THERMO 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.575 12V OMRON	8-98005-407-0	01	1	1001-	●	●	●	●	●	●	●	●

39 312 1 620 600 3 370 249 307 573 28 589 140 12 307 72 307 449 436 677 307

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE(AK6) INTERMITTENT WIPER<C13> EXC. HONG KONG EQUIPMENT(B14),AUTO CRUISE CONT<K30>,FOG LAMP<T96>, SINGAPORE EQUIPMENT(2G0)	8-97360-680-0	01	1	0307-0609	●	●	●	●	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE(AK6) INTERMITTENT WIPER<C13> EXC. HONG KONG EQUIPMENT(B14),AUTO CRUISE CONT<K30>,FOG LAMP<T96>, SINGAPORE EQUIPMENT(2G0)	8-97363-411-0	01	1	0610-	●	●	●	●	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> EXC. HONG KONG EQUIPMENT(B14),AUTO CRUISE CONT<K30>,FOG LAMP<T96>, SINGAPORE EQUIPMENT(2G0)	8-97360-681-0	01	1	0307-0609	●	●	●	●	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> EXC. HONG KONG EQUIPMENT(B14),AUTO CRUISE CONT<K30>,FOG LAMP<T96>, SINGAPORE EQUIPMENT(2G0)	8-98007-706-0	01	1	0610-	●	●	●	●	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. HONG KONG EQUIPMENT(B14), VARIABLE INTERMITTENT WIPER<CD4>,INTERMI TTENT WIPER<C13>,AUTO CRUISE CONT<K30>,FOG LAMP<T96>,SINGAPORE EQUIPME NT(2G0)	8-97360-679-0	01	1	0307-0609	●		●	●	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. HONG KONG EQUIPMENT(B14), VARIABLE INTERMITTENT WIPER<CD4>,INTERMI TTENT WIPER<C13>,AUTO CRUISE CONT<K30>,FOG LAMP<T96>,SINGAPORE EQUIPME NT(2G0)	8-98007-705-0	01	1	0610-	●		●		●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE(AK6) FOG LAMP<T96> EXC. HONG KONG EQUIPMENT(B14), VARIABLE INTERMITTENT WIPER<CD4>,INTERMI TTENT WIPER<C13>,AUTO CRUISE CONT<K30>,SINGAPORE EQUIPMENT(2G0)	8-97360-684-0	01	1	0307-0609	●		●		●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE(AK6) FOG LAMP<T96> EXC. HONG KONG EQUIPMENT(B14), VARIABLE INTERMITTENT WIPER<CD4>,INTERMI TTENT WIPER<C13>,AUTO CRUISE CONT<K30>,SINGAPORE EQUIPMENT(2G0)	8-98007-708-0	01	1	0610-	●		●		●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE(AK6) INTERMITTENT WIPER<C13> FOG LAMP<T96> EXC. HONG KONG EQUIPMENT(B14),AUTO CRUISE CONT<K30>,SINGAPORE EQUIPMENT(2G0)	8-97360-685-0	01	1	0307-0609	●		●		●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE(AK6) INTERMITTENT WIPER<C13> FOG LAMP<T96> EXC. HONG KONG EQUIPMENT(B14),AUTO CRUISE CONT<K30>,SINGAPORE EQUIPMENT(2G0)	8-98007-709-0	01	1	0610-	●	●	●	●	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> FOG LAMP<T96> EXC. HONG KONG EQUIPMENT(B14),AUTO CRUISE CONT<K30>,SINGAPORE EQUIPMENT(2G0)	8-97360-690-0	01	1	0307-0609	●		●		●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> FOG LAMP<T96> EXC. HONG KONG EQUIPMENT(B14),AUTO CRUISE CONT<K30>,SINGAPORE EQUIPMENT(2G0)	8-98007-714-0	01	1	0610-	●	●	●	●	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE(AK6) VARIABLE INTERMITTENT WIPER<CD4> AUTO CRUISE CONT<K30> FOG LAMP<T96> EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0)	8-97360-688-0	01	1	0307-0609	●		●		●	●		●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE(AK6) VARIABLE INTERMITTENT WIPER<CD4> AUTO CRUISE CONT<K30> FOG LAMP<T96> EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0)	8-98007-712-0	01	1	0610-	●		●		●	●		●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE(AK6) VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> EXC. HONG KONG EQUIPMENT(B14),AUTO CRUISE CONT<K30>,SINGAPORE EQUIPMENT(2G0)	8-97360-686-0	01	1	0307-0609	●		●		●	●		●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE(AK6) VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> EXC. HONG KONG EQUIPMENT(B14),AUTO CRUISE CONT<K30>,SINGAPORE EQUIPMENT(2G0)	8-97363-414-0	01	1	0610-	●		●		●	●		●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE(AK6) VARIABLE INTERMITTENT WIPER<CD4> EXC. HONG KONG EQUIPMENT(B14),AUTO CRUISE CONT<K30>,FOG LAMP<T96>, SINGAPORE EQUIPMENT(2G0)	8-97360-682-0	01	1	0307-0609	●		●		●	●		●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE(AK6) VARIABLE INTERMITTENT WIPER<CD4> EXC. HONG KONG EQUIPMENT(B14),AUTO CRUISE CONT<K30>,FOG LAMP<T96>, SINGAPORE EQUIPMENT(2G0)	8-97363-412-0	01	1	0610-	●		●		●	●		●
1	02.895 SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VARIABLE INTERMITTENT WIPER<CD4> EXC. HONG KONG EQUIPMENT(B14),AUTO CRUISE CONT<K30>,FOG LAMP<T96>, SINGAPORE EQUIPMENT(2G0)	8-97360-683-0	01	1	0307-0609	●		●		●	●		●
1	02.895 SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VARIABLE INTERMITTENT WIPER<CD4> EXC. HONG KONG EQUIPMENT(B14),AUTO CRUISE CONT<K30>,FOG LAMP<T96>, SINGAPORE EQUIPMENT(2G0)	8-98007-707-0	01	1	0610-	●		●		●	●		●
1	02.895 SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> EXC. HONG KONG EQUIPMENT(B14),AUTO CRUISE CONT<K30>,SINGAPORE EQUIPMENT(2G0)	8-97360-687-0	01	1	0307-0609	●		●		●	●		●
1	02.895 SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> EXC. HONG KONG EQUIPMENT(B14),AUTO CRUISE CONT<K30>,SINGAPORE EQUIPMENT(2G0)	8-98007-711-0	01	1	0610-	●		●		●	●		●
1	02.895 SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VARIABLE INTERMITTENT WIPER<CD4> AUTO CRUISE CONT<K30> FOG LAMP<T96> EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0)	8-97360-689-0	01	1	0307-0609	●		●		●	●		●
1	02.895 SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VARIABLE INTERMITTENT WIPER<CD4> AUTO CRUISE CONT<K30> FOG LAMP<T96> EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0)	8-98007-713-0	01	1	0610-	●		●		●	●		●
1	02.895 SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30>	8-97360-695-0	01	1	0307-0609			●		●		●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30>	8-98007-721-0	01	1	0610-			●		●		●	●
3	02.897 SCREW; COMB SW 03.483 M5X14 W/LK&PL WASHER	9-03920-514-0	02	1	0307-0606	●	●	●	●	●	●	●	●
3	02.897 SCREW; COMB SW M5X14 W/LK&PL WASHER	0-36230-514-0	02	1	0607-	●	●	●	●	●	●	●	●
12	08.852 RELAY; POWER WINDOW M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) SEAT BELT TENSIONER FRT<A70> HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 09.778 12V YAZAKI	8-97309-293-0	02	1	0711-			●		●		●	●
12	08.852 RELAY; POWER WINDOW 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●	●	●	●	●
12	08.852 RELAY; POWER WINDOW 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-					●			●
12	08.852 RELAY; POWER WINDOW AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0709	●	●	●	●	●	●	●	●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0509-0709	●	●	●	●	●	●	●	●
12	08.852 RELAY; POWER WINDOW 02.575 12V OMRON	8-98005-407-0	01	1	0710-	●	●	●	●	●	●	●	●
12	08.852 RELAY; POWER WINDOW 02.575 12V OMRON	8-98005-407-0	01	1	0710-					●			●
12	08.852 RELAY; POWER WINDOW REMOTE CONT DOOR LOCK<AP5> 09.778 12V YAZAKI	8-97309-293-0	01	1	0307-0504	●		●		●	●	●	●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 09.778 12V YAZAKI	8-97309-293-0	01	1	0307-0504	●		●		●	●	●	●
12	08.852 RELAY; POWER WINDOW AUSTRALIA EQUIPMENT(B13) 09.778 12V YAZAKI	8-97309-293-0	01	1	0505-0508	●	●	●	●	●	●	●	●
12	08.852 RELAY; POWER WINDOW REMOTE CONT DOOR LOCK<AP5> EXC. AUSTRALIA EQUIPMENT(B13) 09.778 12V YAZAKI	8-97309-293-0	01	1	0505-0508	●	●	●	●	●	●	●	●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5>, AUSTRALIA EQUIPMENT(B13) 09.778 12V YAZAKI	8-97309-293-0	01	1	0505-0508	●	●	●	●	●	●	●	●
12	08.852 RELAY; POWER WINDOW C24SE ENG(LG1),4JH1-TC ENG(RDM) AUSTRALIA EQUIPMENT(B13) 09.778 12V YAZAKI	8-97309-293-0	01	1	0509-0609	●	●	●	●	●	●	●	●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. AUSTRALIA EQUIPMENT(B13) 09.778 12V YAZAKI	8-97309-293-0	01	1	0509-0609	●	●	●	●	●	●	●	●
28	16.341 SWITCH ASM; DOOR LOCK REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-97321-870-0	01	1	0307-0411	●		●	●	●	●	●	●
28	16.341 SWITCH ASM; DOOR LOCK	8-97321-870-0	01	1	0307-0411		●
28	16.341 SWITCH ASM; DOOR LOCK REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98000-499-0	01	1	0412-0504	●		●	●	●	●	●	●
28	16.341 SWITCH ASM; DOOR LOCK	8-98000-499-0	01	1	0412-0504		●
28	16.341 SWITCH ASM; DOOR LOCK REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98000-499-0	01	1	0505-0609	●	●	●	●	●	●	●	●
28	16.341 SWITCH ASM; DOOR LOCK REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97403-695-0	01	1	0610-0709	●	●	●	●	●	●	●	●
28	16.341 SWITCH ASM; DOOR LOCK REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97403-695-0	01	1	0710-	●		●	●	●	●	●	●
39	16.341 RELAY; DOOR LK REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-97385-923-0	01	1	0509-	●	●	●	●	●	●	●	●
72	02.485 SWITCH; CRUISE CONT AUTO CRUISE CONT<K30>	8-97238-509-0	01	1	0307-0609	●		●		●	●		●
72	02.485 SWITCH; CRUISE CONT AUTO CRUISE CONT<K30> DARK GRAY	8-97403-884-0	01	1	0610-	●		●		●	●		●
140	09.778 RELAY; RR DEFOGGER 02.575 12V OMRON	8-98005-407-0	01	1	0711-	●	●	●	●	●	●	●	●
140	09.778 RELAY; RR DEFOGGER 02.575 12V OMRON	8-98005-407-0	01	1	0711-					●			●
140	09.778 RELAY; RR DEFOGGER 12V YAZAKI	8-97309-293-0	01	1	0307-0508	●	●	●	●	●	●	●	●
140	09.778 RELAY; RR DEFOGGER EXC. AUSTRALIA EQUIPMENT(B13) 12V YAZAKI	8-97309-293-0	01	1	0509-0609	●	●	●	●	●	●	●	●
140	09.778 RELAY; RR DEFOGGER C24SE ENG(LG1),4JH1-TC ENG(RDM) AUSTRALIA EQUIPMENT(B13) 12V YAZAKI	8-97309-293-0	01	1	0509-0609	●		●		●	●		●
140	09.778 RELAY; RR DEFOGGER 02.575 12V OMRON	8-98005-407-0	01	1	0509-0609	●	●	●	●	●	●	●	●
140	09.778 RELAY; RR DEFOGGER AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0610-0709	●	●	●	●	●	●	●	●
140	09.778 RELAY; RR DEFOGGER POWER WINDOW FRT&REAR DOOR<A31> EXC. AUSTRALIA EQUIPMENT(B13) 02.575 12V OMRON	8-98005-407-0	01	1	0610-0709	●	●	●	●	●	●	●	●
140	09.778 RELAY; RR DEFOGGER 02.575 12V OMRON	8-98005-407-0	01	1	0710-0710	●	●	●	●	●	●	●	●
140	09.778 RELAY; RR DEFOGGER 02.575 12V OMRON	8-98005-407-0	01	1	0710-0710					●			●
140	09.778 RELAY; RR DEFOGGER M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) SEAT BELT TENSIONER FRT<A70> HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 02.575 12V OMRON	8-98005-407-0	02	1	0711-			●		●		●	●
140	09.778 RELAY; RR DEFOGGER 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●	●	●	●	●
140	09.778 RELAY; RR DEFOGGER 12V YAZAKI	8-97309-293-0	01	1	0710-					●			●
249	02.485 SWITCH; HAZARD DARK GRAY	8-97238-511-0	01	1	0307-0609	●	●	●	●	●	●	●	●
249	02.485 SWITCH; HAZARD	8-98046-194-0	01	1	0610-	●	●	●	●	●	●	●	●
307	08.991 BULB ASM; SW (A) 14V 0.91W	8-97327-526-0	01	1	0307-0609	●	●	●	●	●	●	●	●
307	08.991 BULB ASM; SW (A)	8-98057-959-0	01	1	0610-	●	●	●	●	●	●	●	●
307	08.991 BULB ASM; SW AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (B) 14V 0.84W	8-97327-317-0	01	1	0307-0609	●		●		●	●	●	●
307	08.991 BULB ASM; SW AUTO CRUISE CONT<K30> (B) 14V 0.84W	8-97327-317-0	01	1	0307-0609	●		●		●	●		●
307	08.991 BULB ASM; SW (B) 14V 0.84W	8-97327-317-0	01	1	0307-0609		●		●
307	08.991 BULB ASM; SW RR FOG LAMP<T79> (B) 14V 0.84W	8-97327-317-0	01	1	0307-0609			●		●		●	●
307	08.991 BULB ASM; SW AUTO CRUISE CONT<K30> (B) 14V 0.84W	8-97327-317-0	01	1	0610-	●		●		●	●		●
307	08.991 BULB ASM; SW AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (D) 14V 0.84W	8-97329-092-0	01	1	0610-	●		●		●	●	●	●
307	08.991 BULB ASM; SW (D) 14V 0.84W	8-97329-092-0	01	1	0610-		●		●
307	08.991 BULB ASM; SW AUTO CRUISE CONT<K30> (C) 14V 0.91W	8-97355-451-0	01	1	0307-	●		●		●	●		●
312	02.483 BOLT; RELAY REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) EXC. POWER WINDOW FRT&REAR DOOR<A31> 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0509-	●	●	●	●	●	●	●	●
370	16.495 BOLT; SW 16.085 M5X16 TAPPING	9-09829-323-1	02	1	0610-0612	●	●	●	●	●	●	●	●
370	16.495 BOLT; SW 08.083 M5X16 TAPPING	8-98061-685-0	02	1	0701-1004	●	●	●	●	●	●	●	●
370	16.495 BOLT; SW 08.083 M5X16 TAPPING	8-98167-449-0	02	1	1005-	●	●	●	●	●	●	●	●
436	02.485 SWITCH; HEADLAMP LEVELING HEAD LAMP LEVELING MANUAL<T92>	8-97288-784-0	01	1	0307-0609			●		●		●	●
436	02.485 SWITCH; HEADLAMP LEVELING HEAD LAMP LEVELING MANUAL<T92> DARK GRAY	8-97403-901-0	01	1	0610-			●		●		●	●
449	08.991 BULB ASM; HEADLAMP LEVELING SW HEAD LAMP LEVELING MANUAL<T92> 14V 0.84W	8-97327-317-0	01	1	0307-			●		●		●	●
573	09.755 SWITCH; 4WD GRADE DX(RBA),GRADE LX(RBB) DARK GRAY	8-97298-476-0	01	1	0307-0408						●	●	●
573	09.755 SWITCH; 4WD GRADE LT/LS(RBD) EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY	8-97298-476-0	01	1	0307-0408						●	●	●
573	09.755 SWITCH; 4WD EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY	8-97298-476-0	01	1	0409-0609						●	●	●
573	09.755 SWITCH; 4WD EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY	8-97407-364-0	01	1	0610-						●	●	●
573	09.755 SWITCH; 4WD GRADE LT/LS(RBD) AUSTRALIA EQUIPMENT(B13) LIGHT GRAY	8-97298-475-0	01	1	0307-0408						●		●
573	09.755 SWITCH; 4WD INTERIOR SILVER BEZEL<BY9> LIGHT GRAY	8-97298-475-0	01	1	0409-0409						●		●
573	09.755 SWITCH; 4WD INTERIOR SILVER BEZEL<BY9> LIGHT GRAY	8-97298-475-0	01	1	0410-0609						●	●	●
573	09.755 SWITCH; 4WD INTERIOR SILVER BEZEL<BY9> LIGHT GRAY	8-97407-362-0	01	1	0610-						●	●	●
589	08.991 BULB; DOOR LOCK REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) EXC. POWER WINDOW FRT&REAR DOOR<A31> 14V 0.84W	8-97327-317-0	01	1	0307-0504	●		●	●	●	●	●	●
589	08.991 BULB; DOOR LOCK 14V 0.84W	8-97327-317-0	01	1	0307-0504		●
589	08.991 BULB; DOOR LOCK REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) EXC. POWER WINDOW FRT&REAR DOOR<A31> 14V 0.84W	8-97327-317-0	01	1	0505-0709	●	●	●	●	●	●	●	●
589	08.991 BULB; DOOR LOCK REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) EXC. POWER WINDOW FRT&REAR DOOR<A31> 14V 0.84W	8-97327-317-0	01	1	0710-	●		●	●	●	●	●	●
600	02.895 COIL ASM; SIR AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-97308-028-1	01	1	0307-0609	●	●	●	●	●	●	●	●
600	02.895 COIL ASM; SIR AIR BAG DRIVER & PASSENGER(AK5)	8-98014-766-0	01	1	0610-	●	●	●	●	●	●	●	●
620	02.895 SCREW; COIL,COMB SW AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-97166-506-0	06	1	0307-0609	●	●	●	●	●	●	●	●
620	02.895 SCREW; COIL,COMB SW AIR BAG DRIVER & PASSENGER(AK5)	8-97166-506-0	06	1	0610-	●	●	●	●	●	●	●	●
677	02.485 SWITCH; ILLUMINATION AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-97238-512-0	01	1	0307-0609	●		●		●	●	●	●
677	02.485 SWITCH; ILLUMINATION	8-97238-512-0	01	1	0307-0609		●		●
677	02.485 SWITCH; ILLUMINATION AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) DARK GRAY	8-97403-903-0	01	1	0610-	●		●		●	●	●	●
677	02.485 SWITCH; ILLUMINATION DARK GRAY	8-97403-903-0	01	1	0610-		●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
