Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#42983) — 733 parça

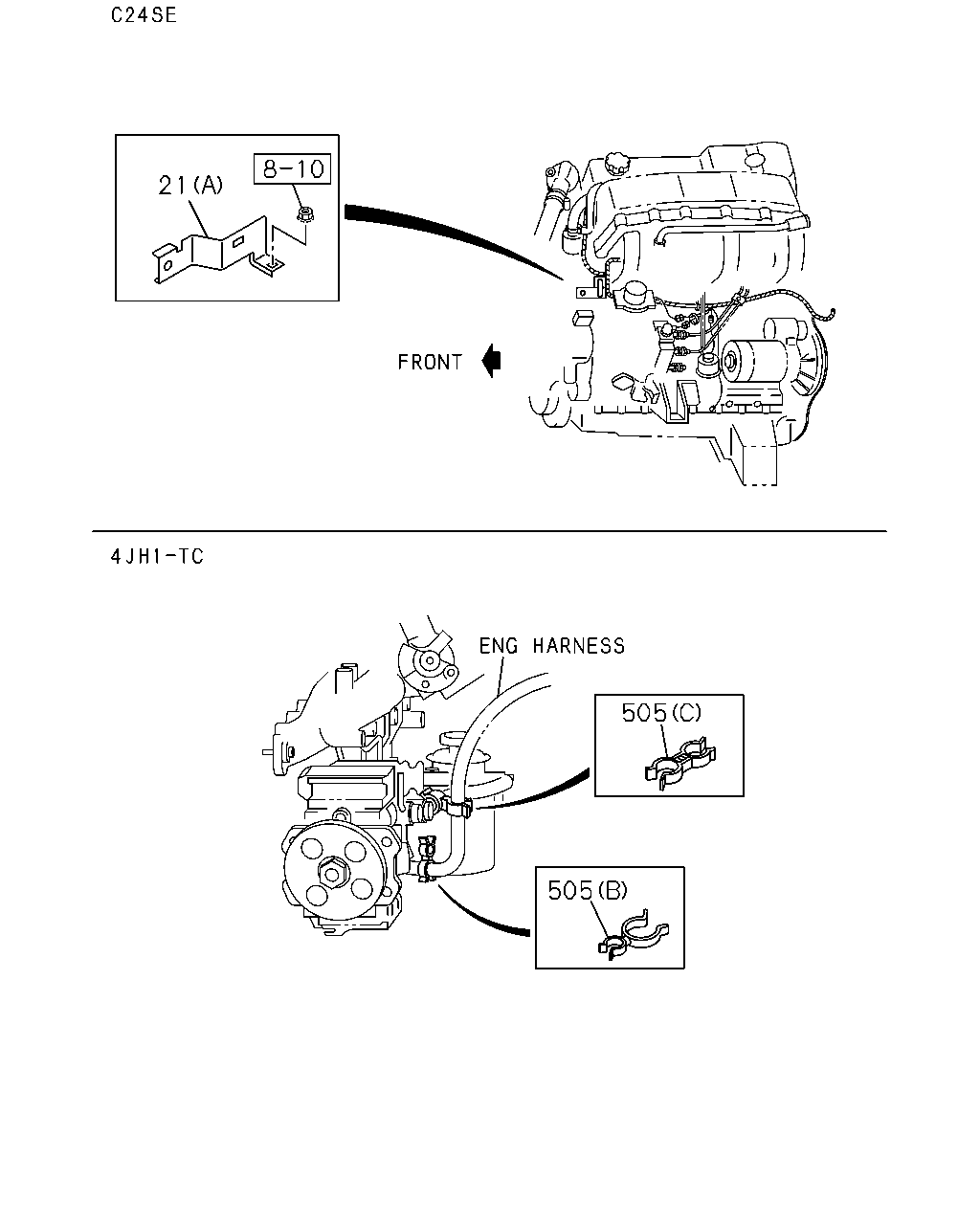

21 505 505

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
21	02.483 BRACKET; ENG HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) (C)	8-97943-788-0	01	1	0307-0609	●	●	●	●	●	●	●	●
21	02.483 BRACKET; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) (D)	8-97373-034-0	01	1	0710-0912	●	●	●	●	●	●	●	●
21	02.483 BRACKET; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (D)	8-97373-034-0	01	1	1001-	●	●	●	●	●	●	●	●
21	02.483 BRACKET; ENG HARNESS 4JA1-T ENG(LP0) (B)	8-97249-918-1	01	1	0307-0609	●		●		●	●	●	●
21	02.483 BRACKET; ENG HARNESS 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> (B)	8-97249-918-1	01	1	0610-	●		●		●	●	●	●
21	02.483 BRACKET; ENG HARNESS C24SE ENG(LG1) (A)	8-97307-432-2	01	1	0307-0605			●	●	●		●	●
21	02.483 BRACKET; ENG HARNESS C24SE ENG(LG1) EMISSION SYSTEM R15-04<K75>, EMISSION SYSTEM FEDERAL,TIER 1<NF2>,EURO2 SPECIFICATION<NT2> (A)	8-97307-432-2	01	1	0606-0608			●	●	●		●	●
21	02.483 BRACKET; ENG HARNESS C24SE ENG(LG1) EMISSION SYSTEM R15-04<K75>, EMISSION SYSTEM FEDERAL,TIER 1<NF2>,EURO2 SPECIFICATION<NT2> (A)	8-98050-842-0	01	1	0609-0609			●	●	●		●	●
21	02.483 BRACKET; ENG HARNESS C24SE ENG(LG1) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (A)	8-98050-842-0	01	1	0610-			●		●		●	●
21	02.483 BRACKET; ENG HARNESS HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (D)	8-97373-034-0	01	1	0610-0709			●		●		●	●
505	02.559 RETAINER; HARNESS 02.679 (A) D=7.9X7.9 L=20 M5	8-94441-539-0	02	1	0307-	●	●	●	●	●	●	●	●
505	02.559 RETAINER; HARNESS 4JH1-TC ENG(RDM) AUSTRALIA EQUIPMENT(B13) EURO2 SPECIFICATION<NT2> (B) ID=13 & 21	8-94417-626-0	01	1	0307-0505	●	●	●	●	●	●	●	●
505	02.559 RETAINER; HARNESS 4JH1-TC ENG(RDM) AUSTRALIA EQUIPMENT(B13) EURO2 SPECIFICATION<NT2> 06.672 (C) ID=20.2X2	8-94480-371-0	01	1	0307-0505	●	●	●	●	●	●	●	●

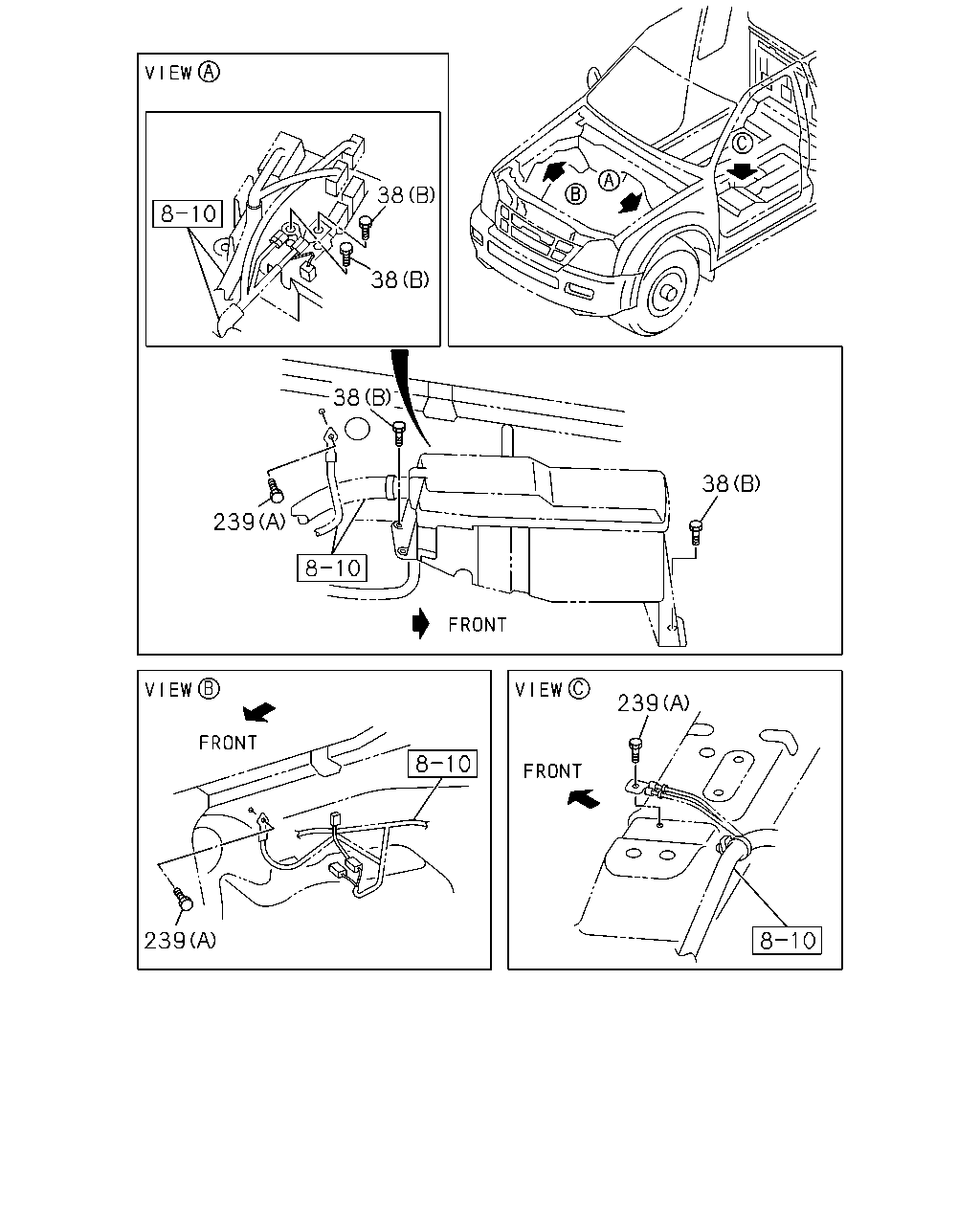

358 16 239

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	06	1	0509-0709	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	06	1	0710-	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS HF V6 ENG(LCA) 03.483 (G) ID=6 & 11	8-97368-292-0	01	1	0509-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> EXC. AUSTRALIA EQUIPMENT(B13), REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=135	8-94473-399-0	01	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=135	8-94473-399-0	01	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> AUSTRALIA EQUIPMENT(B13) (B) L=135	8-94473-399-0	01	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	01	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	01	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI T HEFT<7KY> (B) L=135	8-94473-399-0	01	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (B) L=135	8-94473-399-0	01	1	0307-0504	●		●		●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (B) L=135	8-94473-399-0	01	1	0307-0504	●		●		●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI T HEFT<7KY> (B) L=135	8-94473-399-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (B) L=135	8-94473-399-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> AUSTRALIA EQUIPMENT(B13) (B) L=135	8-94473-399-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=135	8-94473-399-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> EXC. AUSTRALIA EQUIPMENT(B13), REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=135	8-94473-399-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (B) L=135	8-94473-399-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS (B) L=135	8-94473-399-0	01	1	0505-0508		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	02	1	0509-0709	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (D) L=135	8-94473-399-0	02	1	0710-	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> EXC. AUSTRALIA EQUIPMENT(B13), REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9	8-97128-114-0	01	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9	8-97128-114-0	01	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> AUSTRALIA EQUIPMENT(B13) (C) L=60 H=10.9	8-97128-114-0	01	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) EXC. POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI T HEFT<7KY> (C) L=60 H=10.9	8-97128-114-0	01	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (C) L=60 H=10.9	8-97128-114-0	01	1	0307-0504	●		●		●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (C) L=60 H=10.9	8-97128-114-0	01	1	0307-0504	●		●		●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI T HEFT<7KY> (C) L=60 H=10.9	8-97128-114-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (C) L=60 H=10.9	8-97128-114-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> AUSTRALIA EQUIPMENT(B13) (C) L=60 H=10.9	8-97128-114-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) EXC. POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9	8-97128-114-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> EXC. AUSTRALIA EQUIPMENT(B13), REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9	8-97128-114-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (C) L=60 H=10.9	8-97128-114-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS (C) L=60 H=10.9	8-97128-114-0	01	1	0505-0508		●
16	02.559 CLIP; HARNESS EXC. POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	02	1	0509-0609	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	02	1	0610-0709	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	02	1	0710-	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> EXC. AUSTRALIA EQUIPMENT(B13), REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=155	8-97173-307-0	03	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=155	8-97173-307-0	03	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> AUSTRALIA EQUIPMENT(B13) (D) L=155	8-97173-307-0	03	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) EXC. POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI T HEFT<7KY> (D) L=155	8-97173-307-0	03	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (D) L=155	8-97173-307-0	03	1	0307-0504	●		●		●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (D) L=155	8-97173-307-0	03	1	0307-0504	●		●		●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI T HEFT<7KY> (D) L=155	8-97173-307-0	03	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (D) L=155	8-97173-307-0	03	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> AUSTRALIA EQUIPMENT(B13) (D) L=155	8-97173-307-0	03	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) EXC. POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=155	8-97173-307-0	03	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> EXC. AUSTRALIA EQUIPMENT(B13), REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=155	8-97173-307-0	03	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (D) L=155	8-97173-307-0	03	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS (D) L=155	8-97173-307-0	03	1	0505-0508		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0509-0609	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0509-0609	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0610-0709	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0610-0709	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0610-0709	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.313 (E) ID=18 L=44	8-97367-985-0	03	1	0307-0609	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	02	1	0307-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	01	1	0509-0709	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	01	1	0509-0709	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	01	1	0509-0709	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	01	1	0710-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	01	1	0710-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	01	1	0710-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	01	1	0710-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	02	1	0307-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0509-0609	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0509-0609	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0610-0709	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0610-0709	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0610-0709	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0610-0709	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0710-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0710-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0710-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0710-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	06	1	0307-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	05	1	0509-0609	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	02	1	0610-0709	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0710-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0710-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0710-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0710-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 4JA1-T ENG(LP0) 02.313 (E) ID=18 L=44	8-97367-985-0	02	1	0307-0609	●		●		●	●	●	●
16	02.559 CLIP; HARNESS 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 02.313 (E) ID=18 L=44	8-97367-985-1	02	1	0610-	●		●		●	●	●	●
16	02.559 CLIP; HARNESS 4JA1-T ENG(LP0) 03.162 (F) L=140	5-09707-031-1	01	1	0506-0609	●		●		●	●	●	●
16	02.559 CLIP; HARNESS 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 03.162 (F) L=140	5-09707-031-1	01	1	0610-	●		●		●	●	●	●
16	02.559 CLIP; HARNESS 4JA1-T ENG(LP0) EURO2 SPECIFICATION<NT2> (A) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0307-0609	●		●		●	●		●
16	02.559 CLIP; HARNESS 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EURO2 SPECIFICATION<NT2> (A) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0610-1103					●			●
239	02.559 BOLT; GRAND (A) M6X14 W/LK&PL WASHER	8-97086-822-0	03	1	0307-	●	●	●	●	●	●	●	●
239	02.559 BOLT; GRAND HF V6 ENG(LCA) (B)	8-11610-066-0	01	1	0509-	●	●	●	●	●	●	●	●

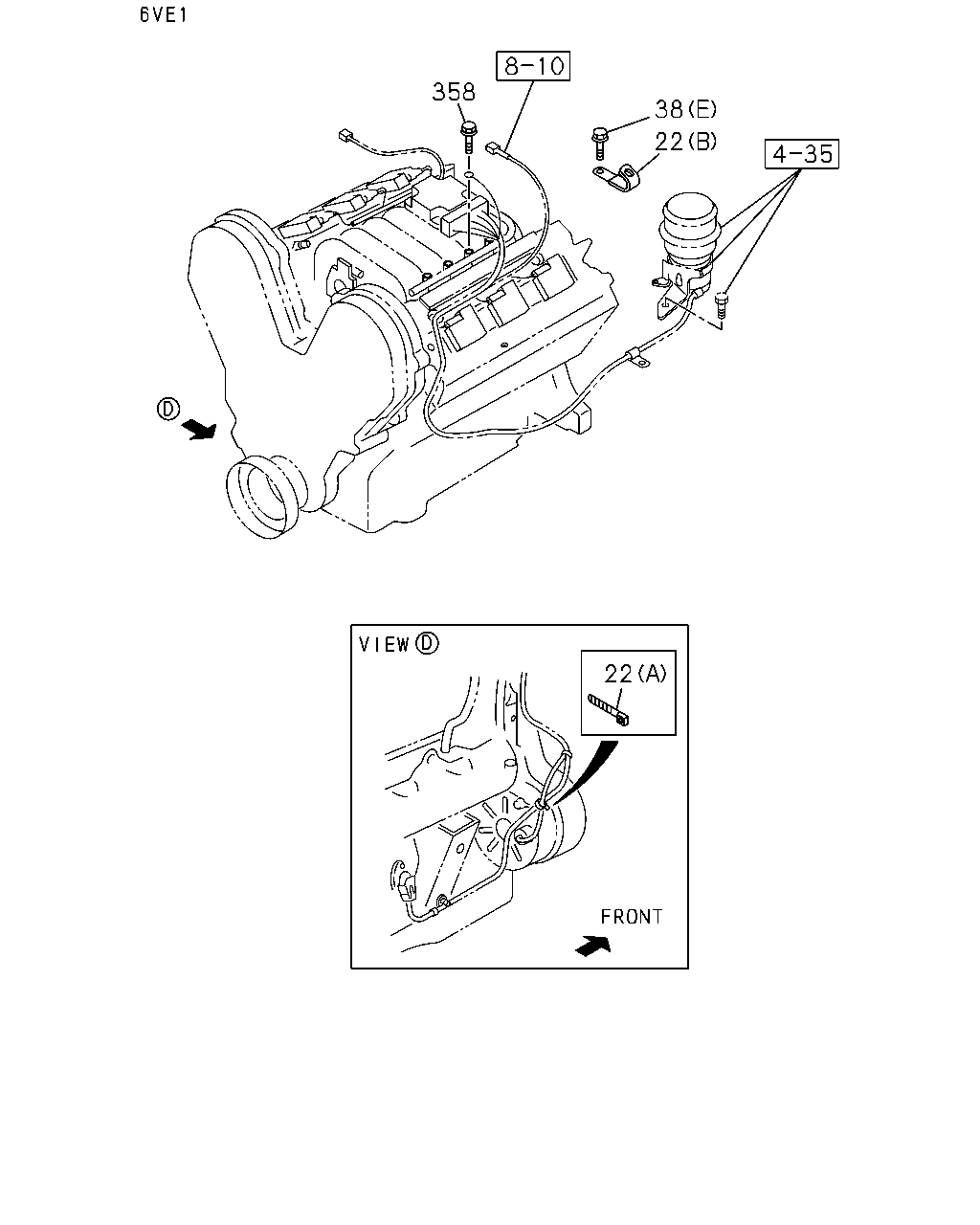

358	02.480 BOLT; EARTH 6VE1 ENG(LX5) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0307-0508	●	●	●	●	●	●	●	●
358	02.480 BOLT; EARTH 6VE1 ENG(LX5) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0509-0512								●
358	02.480 BOLT; EARTH 6VE1 ENG(LX5) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0601-0609								●
358	02.480 BOLT; EARTH 4JA1-T ENG(LP0) 02.559 M10X16 FLANGE	0-28081-016-0	01	1	0307-0512	●		●		●	●	●	●
358	02.480 BOLT; EARTH 4JA1-T ENG(LP0) 02.483 M10X16 FLANGE	0-28051-016-0	01	1	0601-0609	●		●		●	●	●	●
358	02.480 BOLT; EARTH 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 02.483 M10X16 FLANGE	0-28051-016-0	01	1	0610-	●		●		●	●	●	●

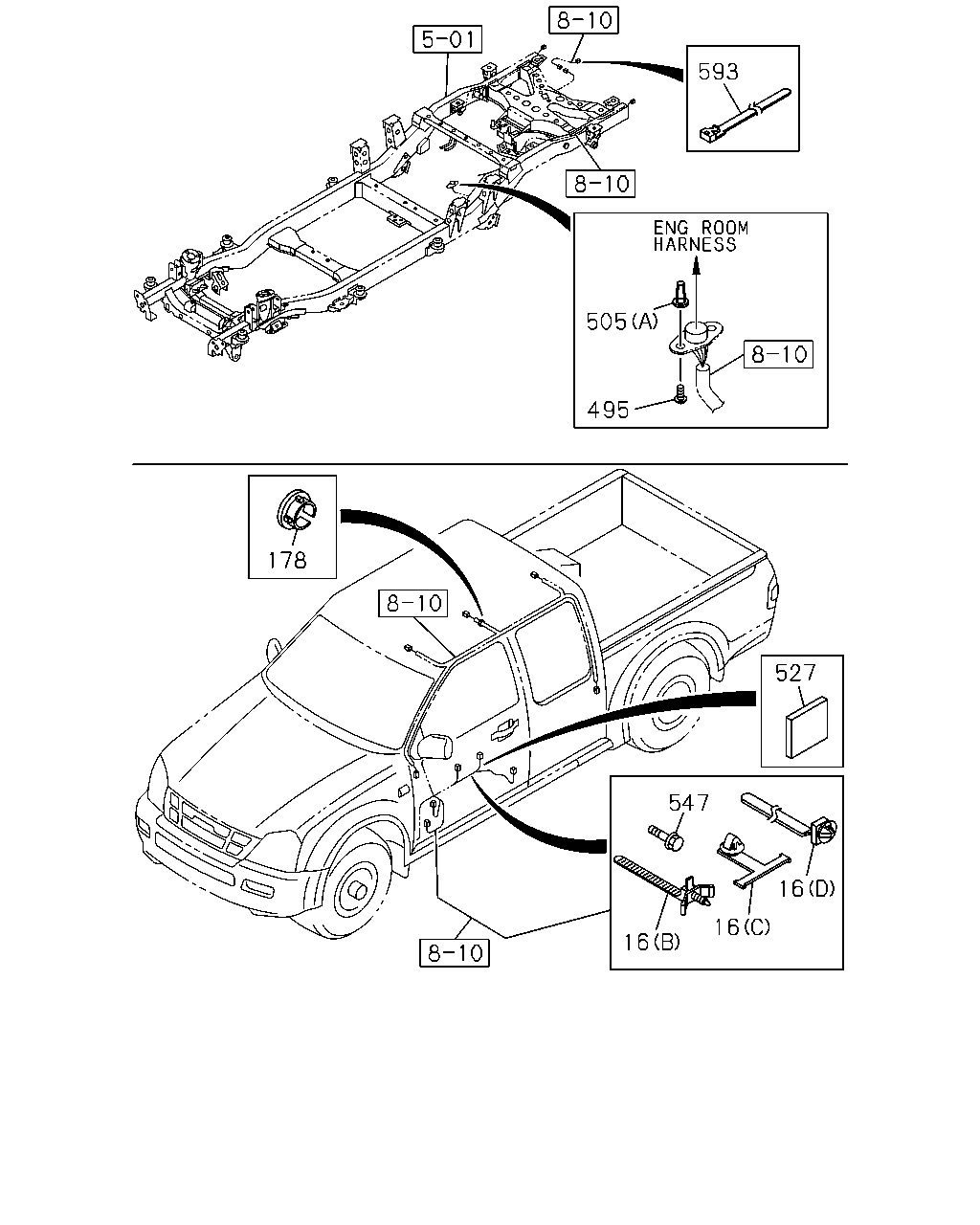

593 505 495 527 547 16 16 16 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	06	1	0509-0709	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	06	1	0710-	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS HF V6 ENG(LCA) 03.483 (G) ID=6 & 11	8-97368-292-0	01	1	0509-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> EXC. AUSTRALIA EQUIPMENT(B13), REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=135	8-94473-399-0	01	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=135	8-94473-399-0	01	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> AUSTRALIA EQUIPMENT(B13) (B) L=135	8-94473-399-0	01	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	01	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	01	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI T HEFT<7KY> (B) L=135	8-94473-399-0	01	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (B) L=135	8-94473-399-0	01	1	0307-0504	●		●		●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (B) L=135	8-94473-399-0	01	1	0307-0504	●		●		●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI T HEFT<7KY> (B) L=135	8-94473-399-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (B) L=135	8-94473-399-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> AUSTRALIA EQUIPMENT(B13) (B) L=135	8-94473-399-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=135	8-94473-399-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> EXC. AUSTRALIA EQUIPMENT(B13), REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=135	8-94473-399-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (B) L=135	8-94473-399-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS (B) L=135	8-94473-399-0	01	1	0505-0508		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	02	1	0509-0709	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (D) L=135	8-94473-399-0	02	1	0710-	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> EXC. AUSTRALIA EQUIPMENT(B13), REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9	8-97128-114-0	01	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9	8-97128-114-0	01	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> AUSTRALIA EQUIPMENT(B13) (C) L=60 H=10.9	8-97128-114-0	01	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) EXC. POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI T HEFT<7KY> (C) L=60 H=10.9	8-97128-114-0	01	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (C) L=60 H=10.9	8-97128-114-0	01	1	0307-0504	●		●		●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (C) L=60 H=10.9	8-97128-114-0	01	1	0307-0504	●		●		●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI T HEFT<7KY> (C) L=60 H=10.9	8-97128-114-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (C) L=60 H=10.9	8-97128-114-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> AUSTRALIA EQUIPMENT(B13) (C) L=60 H=10.9	8-97128-114-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) EXC. POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9	8-97128-114-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> EXC. AUSTRALIA EQUIPMENT(B13), REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9	8-97128-114-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (C) L=60 H=10.9	8-97128-114-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS (C) L=60 H=10.9	8-97128-114-0	01	1	0505-0508		●

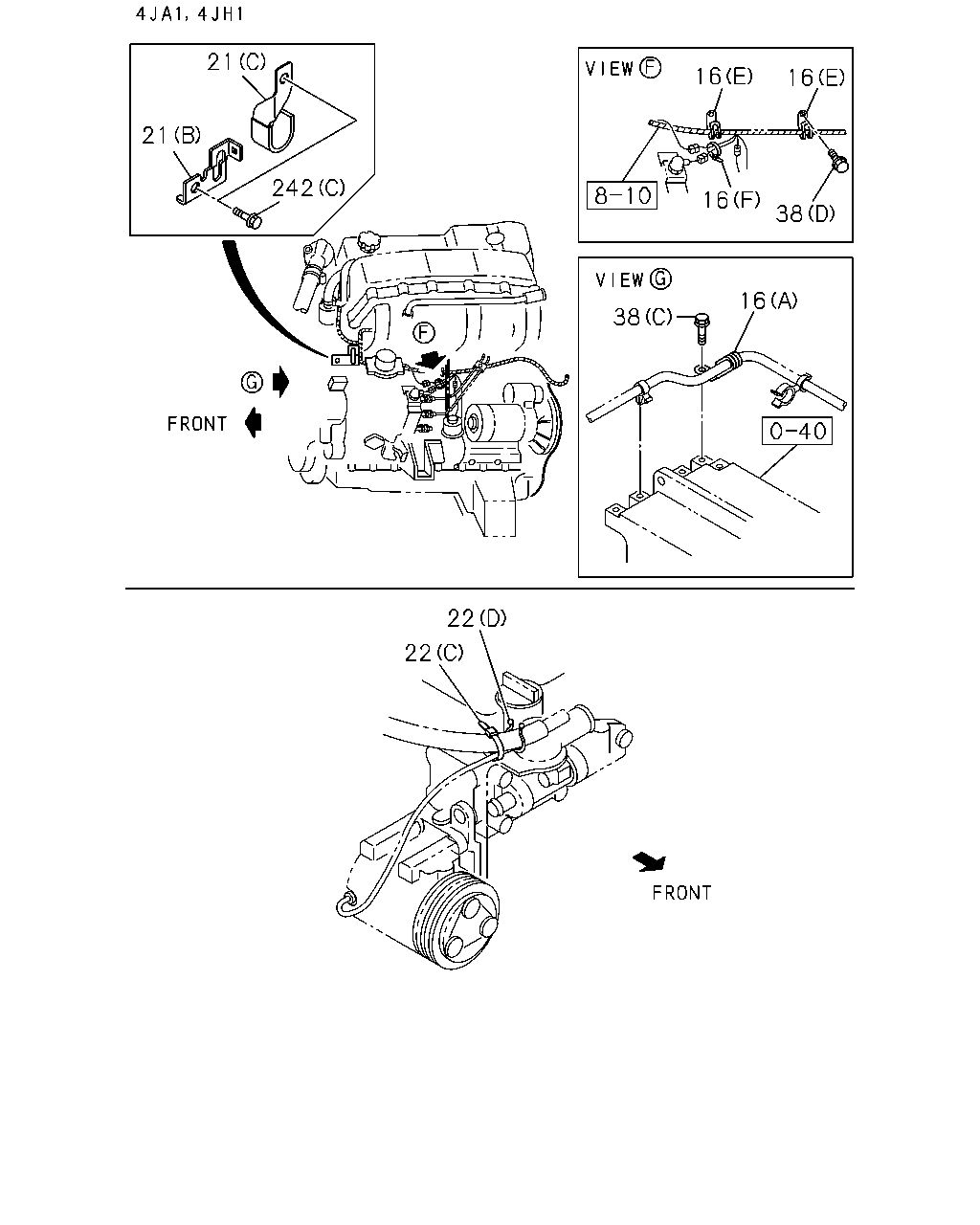

16	02.559 CLIP; HARNESS EXC. POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	02	1	0509-0609	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	02	1	0610-0709	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	02	1	0710-	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> EXC. AUSTRALIA EQUIPMENT(B13), REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=155	8-97173-307-0	03	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=155	8-97173-307-0	03	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> AUSTRALIA EQUIPMENT(B13) (D) L=155	8-97173-307-0	03	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) EXC. POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI T HEFT<7KY> (D) L=155	8-97173-307-0	03	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (D) L=155	8-97173-307-0	03	1	0307-0504	●		●		●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (D) L=155	8-97173-307-0	03	1	0307-0504	●		●		●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI T HEFT<7KY> (D) L=155	8-97173-307-0	03	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (D) L=155	8-97173-307-0	03	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> AUSTRALIA EQUIPMENT(B13) (D) L=155	8-97173-307-0	03	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) EXC. POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=155	8-97173-307-0	03	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> EXC. AUSTRALIA EQUIPMENT(B13), REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=155	8-97173-307-0	03	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (D) L=155	8-97173-307-0	03	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS (D) L=155	8-97173-307-0	03	1	0505-0508		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0509-0609	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0509-0609	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0610-0709	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0610-0709	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0610-0709	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.313 (E) ID=18 L=44	8-97367-985-0	03	1	0307-0609	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	02	1	0307-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	01	1	0509-0709	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	01	1	0509-0709	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	01	1	0509-0709	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	01	1	0710-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	01	1	0710-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	01	1	0710-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	01	1	0710-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	02	1	0307-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0509-0609	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0509-0609	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0610-0709	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0610-0709	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0610-0709	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0610-0709	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0710-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0710-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0710-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0710-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	06	1	0307-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	05	1	0509-0609	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	02	1	0610-0709	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0710-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0710-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0710-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0710-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 4JA1-T ENG(LP0) 02.313 (E) ID=18 L=44	8-97367-985-0	02	1	0307-0609	●		●		●	●	●	●
16	02.559 CLIP; HARNESS 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 02.313 (E) ID=18 L=44	8-97367-985-1	02	1	0610-	●		●		●	●	●	●
16	02.559 CLIP; HARNESS 4JA1-T ENG(LP0) 03.162 (F) L=140	5-09707-031-1	01	1	0506-0609	●		●		●	●	●	●
16	02.559 CLIP; HARNESS 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 03.162 (F) L=140	5-09707-031-1	01	1	0610-	●		●		●	●	●	●
16	02.559 CLIP; HARNESS 4JA1-T ENG(LP0) EURO2 SPECIFICATION<NT2> (A) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0307-0609	●		●		●	●		●
16	02.559 CLIP; HARNESS 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EURO2 SPECIFICATION<NT2> (A) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0610-1103					●			●
178	02.559 GROMMET; HARNESS 09.647	8-97027-381-0	01	1	0307-	●	●			●	●		●
495	00.685 BOLT; CABLE TO BODY 10.240 M5X14	8-94120-095-0	02	1	0307-	●	●	●	●	●	●	●	●
505	02.559 RETAINER; HARNESS 02.679 (A) D=7.9X7.9 L=20 M5	8-94441-539-0	02	1	0307-	●	●	●	●	●	●	●	●
505	02.559 RETAINER; HARNESS 4JH1-TC ENG(RDM) AUSTRALIA EQUIPMENT(B13) EURO2 SPECIFICATION<NT2> (B) ID=13 & 21	8-94417-626-0	01	1	0307-0505	●	●	●	●	●	●	●	●
505	02.559 RETAINER; HARNESS 4JH1-TC ENG(RDM) AUSTRALIA EQUIPMENT(B13) EURO2 SPECIFICATION<NT2> 06.672 (C) ID=20.2X2	8-94480-371-0	01	1	0307-0505	●	●	●	●	●	●	●	●
527	02.559 TAPE; SOFT,CONNECTOR POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIRROR ELEC CONT<DG2>, DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 70X45	8-97304-372-0	01	1	0307-0504	●		●		●	●	●	●
527	02.559 TAPE; SOFT,CONNECTOR POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIRROR ELEC CONT<DG2>, DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 70X45	8-97304-372-0	01	1	0505-0508	●	●	●	●	●	●	●	●
527	02.559 TAPE; SOFT,CONNECTOR POWER WINDOW FRT&REAR DOOR<A31> AUSTRALIA EQUIPMENT(B13) EXC. DOOR MIRROR ELEC CONT<DG2>, DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>, DOOR MIR ELEC DUAL FOLDING CHROME T URN SIGNAL<8JH> 70X45	8-97304-372-0	01	1	0509-0709	●	●	●	●	●	●	●	●
547	02.559 BOLT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	0307-0508	●	●	●	●	●	●	●	●
547	02.559 BOLT AIR BAG DRIVER & PASSENGER(AK5) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	0509-	●	●	●	●	●	●	●	●
593	02.559 CLIP REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) L=250	5-09707-030-1	01	1	0307-	●	●	●	●	●	●	●	●

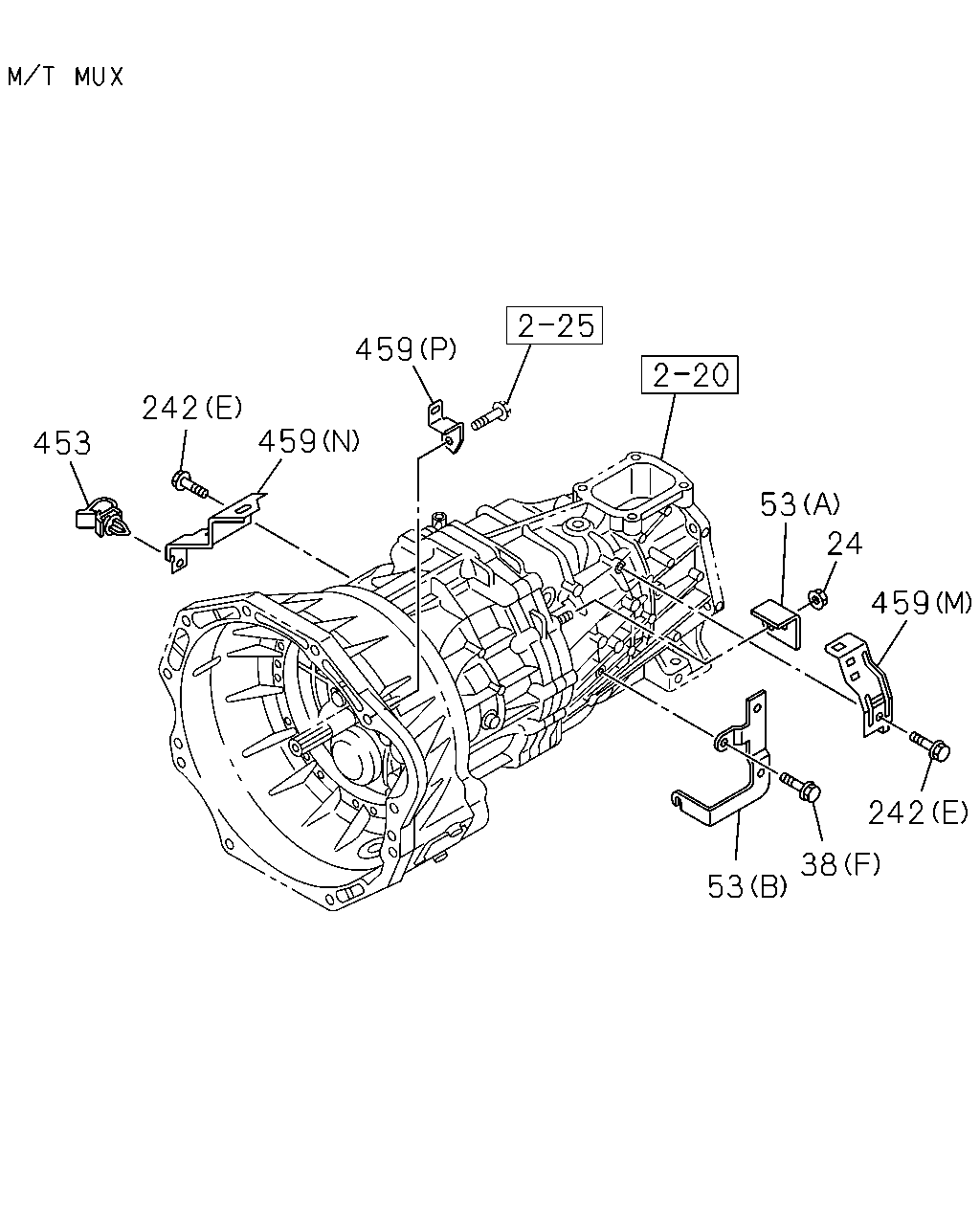

453 242 459 459 53 24 459 242 38 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
24	02.559 NUT; HARNESS M/T MUX 5 SPEED 5S(MZJ) 01.540 M6 FLANGE	0-91180-206-0	01	1	0610-	●	●	●	●	●	●	●	●
24	02.559 NUT; HARNESS HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) 04.594 M6 FLANGE	0-91150-106-0	01	1	0509-0603	●			●	●
24	02.559 NUT; HARNESS 4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2) 04.594 M6 FLANGE	0-91150-106-0	01	1	0509-0603								●
24	02.559 NUT; HARNESS HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) 01.062 M6 FLANGE	0-91180-106-0	01	1	0604-0609	●			●	●
24	02.559 NUT; HARNESS 4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2) 01.062 M6 FLANGE	0-91180-106-0	01	1	0604-0609								●
24	02.559 NUT; HARNESS HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) 01.062 M6 FLANGE	0-91180-106-0	01	1	0610-	●	●		●	●
24	02.559 NUT; HARNESS 4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2) 01.062 M6 FLANGE	0-91180-106-0	01	1	0610-								●
38	02.559 BOLT; CLIP,HARNESS 02.343 (B) M6X16 FLANGE	0-28650-616-0	05	1	0307-	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0307-0512	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0601-0609	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0610-0612	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0701-0912	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1001-	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 6VE1 ENG(LX5) HEATER & DEFROSTER(C42) 00.029 (E) M10X16 FLANGE	0-28151-016-0	01	1	0307-0508	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(LX5) HEATER & DEFROSTER(C42) 00.029 (E) M10X16 FLANGE	0-28151-016-0	01	1	0509-0609								●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (F) M8X16 FLANGE	0-28050-816-0	02	1	0610-0612	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (F) M8X16 FLANGE	0-28050-816-0	02	1	0701-0912	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (F) M8X16 FLANGE	0-28050-816-0	02	1	1001-	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) 08.900 (D) M8X12 FLANGE	0-28080-812-0	02	1	0307-0512	●		●		●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) 02.343 (D) M8X12 FLANGE	0-28050-812-0	02	1	0601-0609	●		●		●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 02.343 (D) M8X12 FLANGE	0-28050-812-0	02	1	0610-	●		●		●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) EURO2 SPECIFICATION<NT2> 02.500 (C) M6X10 FLANGE	0-28080-610-0	01	1	0307-0512	●		●		●	●		●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) EURO2 SPECIFICATION<NT2> 03.671 (C) M6X10 FLANGE	0-28050-610-0	01	1	0601-0609	●		●		●	●		●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EURO2 SPECIFICATION<NT2> 03.671 (C) M6X10 FLANGE	0-28050-610-0	01	1	0610-1103					●			●
53	02.483 BRACKET; HARNESS M/T MUX 5 SPEED 5S(MZJ) (A)	8-97944-510-1	01	1	0610-	●	●	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS M/T MUX 5 SPEED 5S(MZJ) (B)	8-97944-511-1	01	1	0610-	●	●	●	●	●	●	●	●
242	02.483 BOLT; BRKT,HARNESS HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) (D) M10X16 FLANGE	0-28051-016-0	01	1	0509-	●	●	●	●	●	●	●	●
242	02.483 BOLT; BRKT,HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	0307-0508	●	●	●	●	●	●	●	●
242	02.483 BOLT; BRKT,HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	0509-0512	●	●	●	●	●	●	●	●
242	02.483 BOLT; BRKT,HARNESS HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	0509-0512	●			●	●			●
242	02.483 BOLT; BRKT,HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	0601-	●	●	●	●	●	●	●	●
242	02.483 BOLT; BRKT,HARNESS 4JA1-T ENG(LP0) EXC. IMMOBILIZER SYSTEM<7KC> 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	0601-	●		●		●	●	●	●
242	02.483 BOLT; BRKT,HARNESS HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	0601-	●			●	●			●
242	02.483 BOLT; BRKT,HARNESS 6VE1 ENG(LX5) A/T AISIN(RMD) 03.671 (A) M6X10 FLANGE	0-28050-610-0	01	1	0307-0508	●	●		●	●			●
242	02.483 BOLT; BRKT,HARNESS 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(LX5) A/T AISIN(RMD) 03.671 (A) M6X10 FLANGE	0-28050-610-0	01	1	0509-0609								●
242	02.483 BOLT; BRKT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 02.343 (E) M8X16 FLANGE	0-28050-816-0	02	1	0610-	●	●	●	●	●	●	●	●
242	02.483 BOLT; BRKT,HARNESS 6VE1 ENG(LX5) A/T AISIN(RMD) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0307-0508	●	●		●	●			●
242	02.483 BOLT; BRKT,HARNESS 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(LX5) A/T AISIN(RMD) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0509-0609								●
242	02.483 BOLT; BRKT,HARNESS 4JA1-T ENG(LP0) 08.900 (C) M8X12 FLANGE	0-28080-812-0	01	1	0307-0512	●		●		●	●	●	●

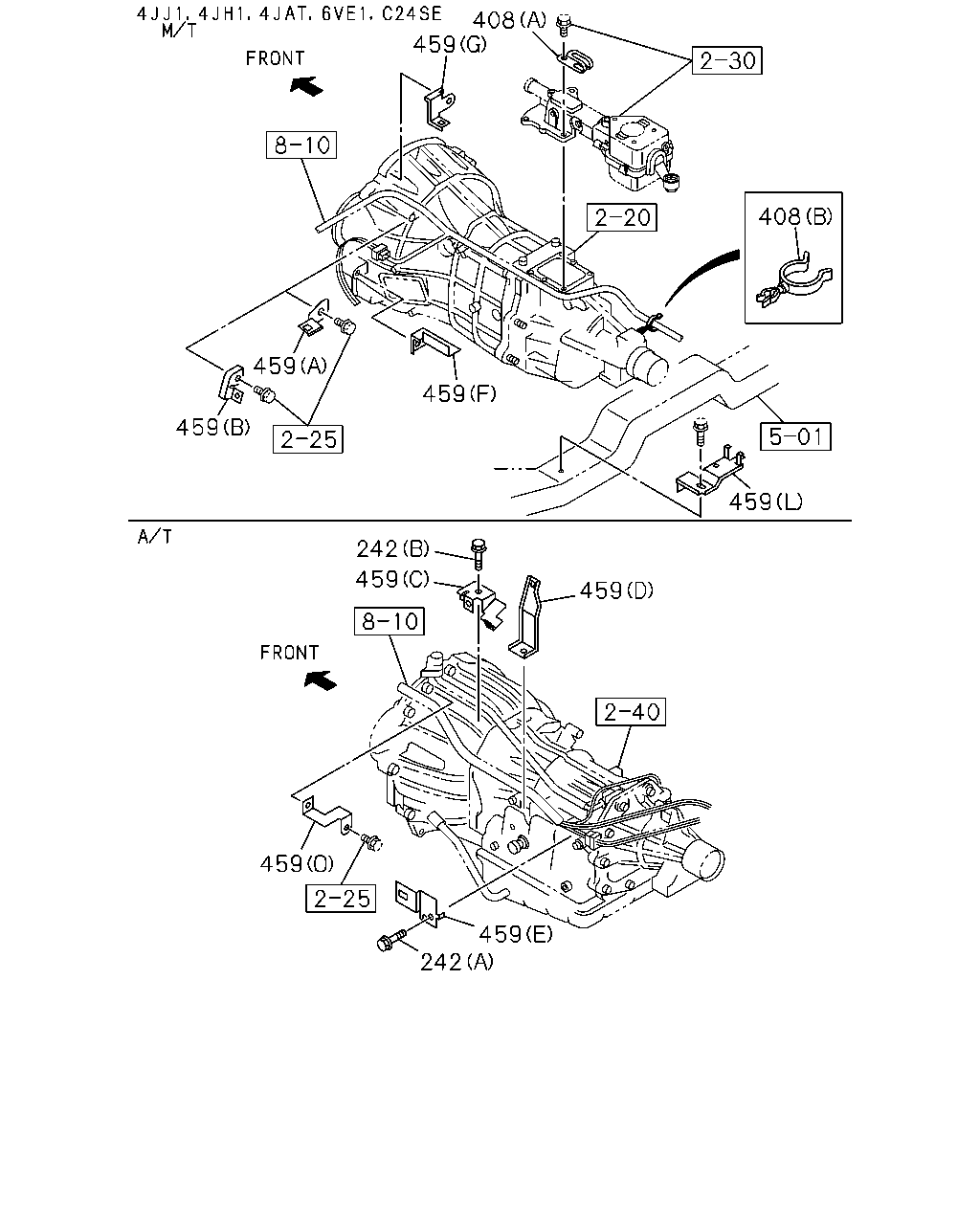

453	02.559 CLIP; CABLE HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 04.342 ID=6.5	5-09709-117-0	01	1	0610-	●	●	●	●	●	●	●	●

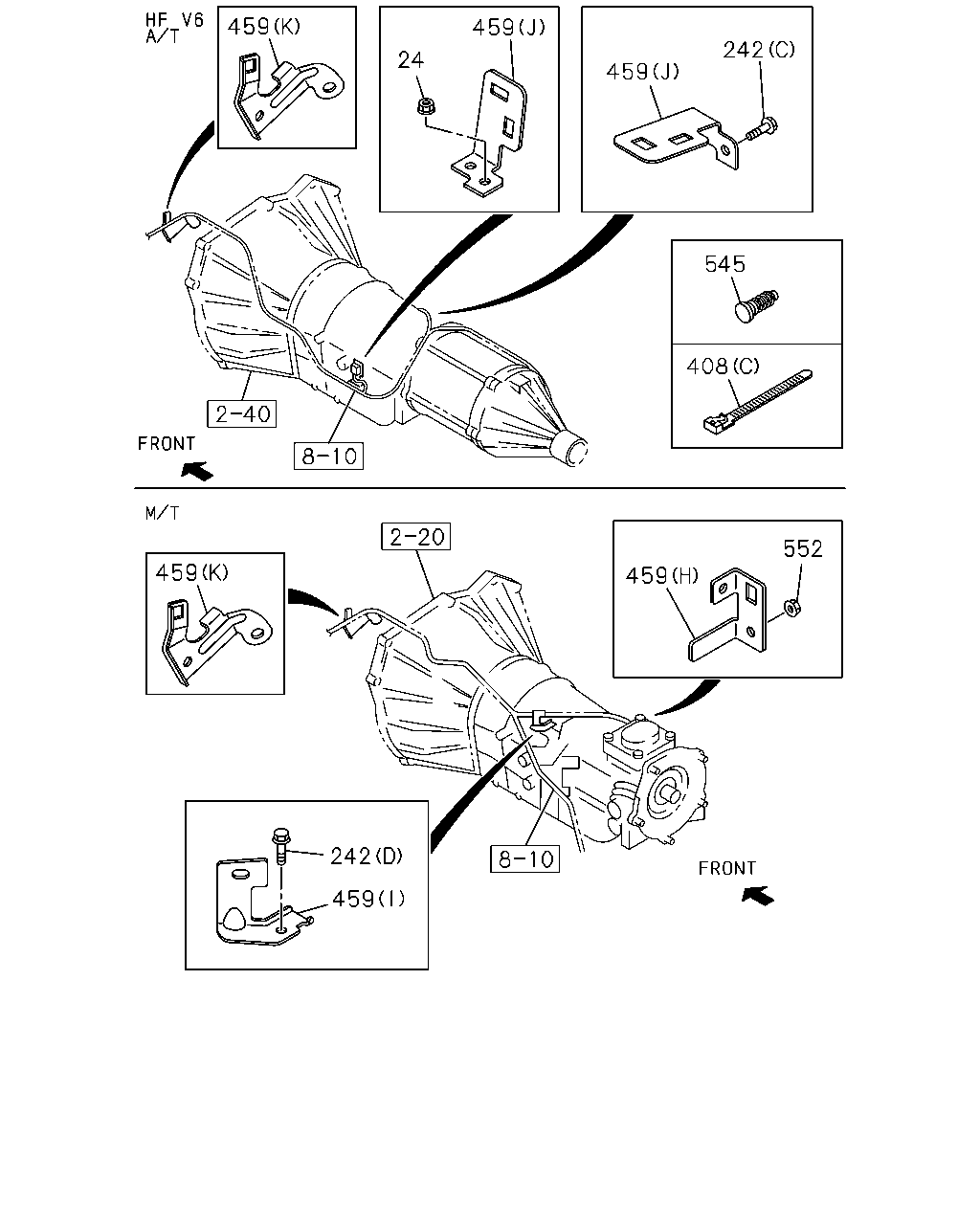

459	02.483 BRACKET; SUPPORT,HARNESS HF V6 ENG(LCA) (K)	8-98025-426-0	01	1	0509-	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) (H)	8-92177-951-0	01	1	0509-	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) (I)	8-98004-147-0	01	1	0509-	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) (A)	8-94315-284-0	01	1	0307-0508	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) (A)	8-94315-284-0	01	1	0307-0508	●		●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) (A)	8-94315-284-0	01	1	0509-0608	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) (A)	8-94315-284-0	01	1	0509-0608	●		●		●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) (A)	8-98050-882-0	01	1	0609-0609	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) (A)	8-98050-882-0	01	1	0609-0609	●		●		●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M /T MUA 5 SPEED 5S(RSQ) (A)	8-98050-882-0	01	1	0610-0612	●		●		●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M /T MUA 5 SPEED 5S(RSQ) (A)	8-98050-882-0	01	1	0701-0709	●		●		●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M /T MUA 5 SPEED 5S(RSQ) (A)	8-98050-882-0	01	1	0710-0912	●		●		●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M /T MUA 5 SPEED 5S(RSQ) (A)	8-98050-882-0	01	1	1001-	●		●		●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (M)	8-98035-741-0	01	1	0610-	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP) (B)	8-97237-379-0	01	1	0307-0508	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (B)	8-97237-379-0	01	1	0509-0609								●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (N)	8-98035-740-0	01	1	0610-	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 6VE1 ENG(LX5) A/T AISIN(RMD) (C)	8-97249-919-1	01	1	0307-0508	●	●		●	●			●
459	02.483 BRACKET; SUPPORT,HARNESS 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(LX5) A/T AISIN(RMD) (C)	8-97249-919-1	01	1	0509-0609								●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) (O)	8-97307-524-1	01	1	0610-	●		●		●
459	02.483 BRACKET; SUPPORT,HARNESS 4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) (O)	8-97307-524-1	01	1	0610-								●
459	02.483 BRACKET; SUPPORT,HARNESS 6VE1 ENG(LX5) A/T AISIN(RMD) (D)	8-97249-920-0	01	1	0307-0508	●	●		●	●			●
459	02.483 BRACKET; SUPPORT,HARNESS 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(LX5) A/T AISIN(RMD) (D)	8-97249-920-0	01	1	0509-0608								●
459	02.483 BRACKET; SUPPORT,HARNESS 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(LX5) A/T AISIN(RMD) (D)	8-98050-720-0	01	1	0609-0609								●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG(LS0) A/T AISIN(RMD) (D)	8-98050-720-0	01	1	0610-	●		●		●	●		●
459	02.483 BRACKET; SUPPORT,HARNESS 6VE1 ENG(LX5) A/T AISIN(RMD) (E)	8-97317-620-0	01	1	0307-0508	●	●		●	●			●
459	02.483 BRACKET; SUPPORT,HARNESS 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(LX5) A/T AISIN(RMD) (E)	8-97317-620-0	01	1	0509-0609								●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (P)	8-97382-804-0	01	1	0610-	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) (J)	8-92177-953-1	02	1	0509-0609	●			●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2) (J)	8-92177-953-1	02	1	0509-0609								●
459	02.483 BRACKET; SUPPORT,HARNESS HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) (J)	8-92177-953-1	02	1	0610-	●	●		●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2) (J)	8-92177-953-1	02	1	0610-								●
459	02.483 BRACKET; SUPPORT,HARNESS C24SE ENG(LG1) EURO3 SPECIFICATION<NT3> (L)	8-98035-653-0	01	1	0601-			●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS C24SE ENG(LG1) (G)	8-97323-436-0	01	1	0307-0609			●	●	●		●	●
459	02.483 BRACKET; SUPPORT,HARNESS C24SE ENG(LG1) (G)	8-98050-883-0	01	1	0610-			●	●	●		●	●
459	02.483 BRACKET; SUPPORT,HARNESS C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) (F)	8-97237-168-0	01	1	0307-0512			●	●	●			●
459	02.483 BRACKET; SUPPORT,HARNESS C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EMISSION SYSTEM FEDERAL,TIER 1<NF2> ,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (F)	8-97237-168-0	01	1	0601-0609			●	●	●		●	●
459	02.483 BRACKET; SUPPORT,HARNESS C24SE ENG(LG1) M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (F)	8-97237-168-0	01	1	0610-			●	●	●			●

38 399 21 516

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
21	02.483 BRACKET; ENG HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) (C)	8-97943-788-0	01	1	0307-0609	●	●	●	●	●	●	●	●
21	02.483 BRACKET; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) (D)	8-97373-034-0	01	1	0710-0912	●	●	●	●	●	●	●	●
21	02.483 BRACKET; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (D)	8-97373-034-0	01	1	1001-	●	●	●	●	●	●	●	●
21	02.483 BRACKET; ENG HARNESS 4JA1-T ENG(LP0) (B)	8-97249-918-1	01	1	0307-0609	●		●		●	●	●	●
21	02.483 BRACKET; ENG HARNESS 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> (B)	8-97249-918-1	01	1	0610-	●		●		●	●	●	●
21	02.483 BRACKET; ENG HARNESS C24SE ENG(LG1) (A)	8-97307-432-2	01	1	0307-0605			●	●	●		●	●
21	02.483 BRACKET; ENG HARNESS C24SE ENG(LG1) EMISSION SYSTEM R15-04<K75>, EMISSION SYSTEM FEDERAL,TIER 1<NF2>,EURO2 SPECIFICATION<NT2> (A)	8-97307-432-2	01	1	0606-0608			●	●	●		●	●
21	02.483 BRACKET; ENG HARNESS C24SE ENG(LG1) EMISSION SYSTEM R15-04<K75>, EMISSION SYSTEM FEDERAL,TIER 1<NF2>,EURO2 SPECIFICATION<NT2> (A)	8-98050-842-0	01	1	0609-0609			●	●	●		●	●
21	02.483 BRACKET; ENG HARNESS C24SE ENG(LG1) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (A)	8-98050-842-0	01	1	0610-			●		●		●	●
21	02.483 BRACKET; ENG HARNESS HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (D)	8-97373-034-0	01	1	0610-0709			●		●		●	●
38	02.559 BOLT; CLIP,HARNESS 02.343 (B) M6X16 FLANGE	0-28650-616-0	05	1	0307-	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0307-0512	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0601-0609	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0610-0612	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0701-0912	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1001-	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 6VE1 ENG(LX5) HEATER & DEFROSTER(C42) 00.029 (E) M10X16 FLANGE	0-28151-016-0	01	1	0307-0508	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(LX5) HEATER & DEFROSTER(C42) 00.029 (E) M10X16 FLANGE	0-28151-016-0	01	1	0509-0609								●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (F) M8X16 FLANGE	0-28050-816-0	02	1	0610-0612	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (F) M8X16 FLANGE	0-28050-816-0	02	1	0701-0912	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (F) M8X16 FLANGE	0-28050-816-0	02	1	1001-	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) 08.900 (D) M8X12 FLANGE	0-28080-812-0	02	1	0307-0512	●		●		●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) 02.343 (D) M8X12 FLANGE	0-28050-812-0	02	1	0601-0609	●		●		●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 02.343 (D) M8X12 FLANGE	0-28050-812-0	02	1	0610-	●		●		●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) EURO2 SPECIFICATION<NT2> 02.500 (C) M6X10 FLANGE	0-28080-610-0	01	1	0307-0512	●		●		●	●		●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) EURO2 SPECIFICATION<NT2> 03.671 (C) M6X10 FLANGE	0-28050-610-0	01	1	0601-0609	●		●		●	●		●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EURO2 SPECIFICATION<NT2> 03.671 (C) M6X10 FLANGE	0-28050-610-0	01	1	0610-1103					●			●
399	02.559 COVER; HOLE,HARNESS,RR DOOR EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31>,4-SPEAKER SYSTEM BASE<UQ4> 16.165 OD=50 T=0.08 BLACK	8-94111-754-0	02	1	0307-0709					●			●
399	02.559 COVER; HOLE,HARNESS,RR DOOR EXC. POWER WINDOW FRT&REAR DOOR<A31>,4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5> 16.165 OD=50 T=0.08 BLACK	8-94111-754-0	02	1	0710-					●			●
516	02.559 BOLT; HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0710-0912	●	●	●	●	●	●	●	●
516	02.559 BOLT; HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1001-	●	●	●	●	●	●	●	●
516	02.559 BOLT; HARNESS HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0610-0709			●		●		●	●

242 459 459 24 459 545 408 552 459 242 459 459

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
24	02.559 NUT; HARNESS M/T MUX 5 SPEED 5S(MZJ) 01.540 M6 FLANGE	0-91180-206-0	01	1	0610-	●	●	●	●	●	●	●	●
24	02.559 NUT; HARNESS HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) 04.594 M6 FLANGE	0-91150-106-0	01	1	0509-0603	●			●	●
24	02.559 NUT; HARNESS 4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2) 04.594 M6 FLANGE	0-91150-106-0	01	1	0509-0603								●
24	02.559 NUT; HARNESS HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) 01.062 M6 FLANGE	0-91180-106-0	01	1	0604-0609	●			●	●
24	02.559 NUT; HARNESS 4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2) 01.062 M6 FLANGE	0-91180-106-0	01	1	0604-0609								●
24	02.559 NUT; HARNESS HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) 01.062 M6 FLANGE	0-91180-106-0	01	1	0610-	●	●		●	●
24	02.559 NUT; HARNESS 4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2) 01.062 M6 FLANGE	0-91180-106-0	01	1	0610-								●
242	02.483 BOLT; BRKT,HARNESS HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) (D) M10X16 FLANGE	0-28051-016-0	01	1	0509-	●	●	●	●	●	●	●	●
242	02.483 BOLT; BRKT,HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	0307-0508	●	●	●	●	●	●	●	●
242	02.483 BOLT; BRKT,HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	0509-0512	●	●	●	●	●	●	●	●
242	02.483 BOLT; BRKT,HARNESS HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	0509-0512	●			●	●			●
242	02.483 BOLT; BRKT,HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	0601-	●	●	●	●	●	●	●	●
242	02.483 BOLT; BRKT,HARNESS 4JA1-T ENG(LP0) EXC. IMMOBILIZER SYSTEM<7KC> 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	0601-	●		●		●	●	●	●
242	02.483 BOLT; BRKT,HARNESS HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	0601-	●			●	●			●
242	02.483 BOLT; BRKT,HARNESS 6VE1 ENG(LX5) A/T AISIN(RMD) 03.671 (A) M6X10 FLANGE	0-28050-610-0	01	1	0307-0508	●	●		●	●			●
242	02.483 BOLT; BRKT,HARNESS 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(LX5) A/T AISIN(RMD) 03.671 (A) M6X10 FLANGE	0-28050-610-0	01	1	0509-0609								●
242	02.483 BOLT; BRKT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 02.343 (E) M8X16 FLANGE	0-28050-816-0	02	1	0610-	●	●	●	●	●	●	●	●
242	02.483 BOLT; BRKT,HARNESS 6VE1 ENG(LX5) A/T AISIN(RMD) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0307-0508	●	●		●	●			●
242	02.483 BOLT; BRKT,HARNESS 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(LX5) A/T AISIN(RMD) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0509-0609								●
242	02.483 BOLT; BRKT,HARNESS 4JA1-T ENG(LP0) 08.900 (C) M8X12 FLANGE	0-28080-812-0	01	1	0307-0512	●		●		●	●	●	●
408	02.559 CLIP; TRANS HARNESS M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	04	1	0307-0604	●	●	●	●	●	●	●	●
408	02.559 CLIP; TRANS HARNESS M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-0	04	1	0605-0609	●	●	●	●	●	●	●	●
408	02.559 CLIP; TRANS HARNESS M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	04	1	0610-	●		●	●	●	●	●	●
408	02.559 CLIP; TRANS HARNESS HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) 02.363 (C) L=140	8-97920-656-0	01	1	0509-0609	●			●	●
408	02.559 CLIP; TRANS HARNESS 4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2) 02.363 (C) L=140	8-97920-656-0	01	1	0509-0609								●
408	02.559 CLIP; TRANS HARNESS HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) 02.363 (C) L=140	8-97920-656-0	01	1	0610-	●	●		●	●
408	02.559 CLIP; TRANS HARNESS 4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2) 02.363 (C) L=140	8-97920-656-0	01	1	0610-								●
408	02.559 CLIP; TRANS HARNESS C24SE ENG(LG1) 03.163 (B) ID=13 & 4.75	8-94447-856-0	01	1	0307-0609			●	●	●		●	●
408	02.559 CLIP; TRANS HARNESS C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 03.163 (B) ID=13 & 4.75	8-94447-856-0	01	1	0610-			●	●	●		●	●
459	02.483 BRACKET; SUPPORT,HARNESS HF V6 ENG(LCA) (K)	8-98025-426-0	01	1	0509-	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) (H)	8-92177-951-0	01	1	0509-	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) (I)	8-98004-147-0	01	1	0509-	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) (A)	8-94315-284-0	01	1	0307-0508	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) (A)	8-94315-284-0	01	1	0307-0508	●		●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) (A)	8-94315-284-0	01	1	0509-0608	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) (A)	8-94315-284-0	01	1	0509-0608	●		●		●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) (A)	8-98050-882-0	01	1	0609-0609	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) (A)	8-98050-882-0	01	1	0609-0609	●		●		●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M /T MUA 5 SPEED 5S(RSQ) (A)	8-98050-882-0	01	1	0610-0612	●		●		●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M /T MUA 5 SPEED 5S(RSQ) (A)	8-98050-882-0	01	1	0701-0709	●		●		●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M /T MUA 5 SPEED 5S(RSQ) (A)	8-98050-882-0	01	1	0710-0912	●		●		●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M /T MUA 5 SPEED 5S(RSQ) (A)	8-98050-882-0	01	1	1001-	●		●		●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (M)	8-98035-741-0	01	1	0610-	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP) (B)	8-97237-379-0	01	1	0307-0508	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (B)	8-97237-379-0	01	1	0509-0609								●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (N)	8-98035-740-0	01	1	0610-	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 6VE1 ENG(LX5) A/T AISIN(RMD) (C)	8-97249-919-1	01	1	0307-0508	●	●		●	●			●
459	02.483 BRACKET; SUPPORT,HARNESS 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(LX5) A/T AISIN(RMD) (C)	8-97249-919-1	01	1	0509-0609								●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) (O)	8-97307-524-1	01	1	0610-	●		●		●
459	02.483 BRACKET; SUPPORT,HARNESS 4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) (O)	8-97307-524-1	01	1	0610-								●
459	02.483 BRACKET; SUPPORT,HARNESS 6VE1 ENG(LX5) A/T AISIN(RMD) (D)	8-97249-920-0	01	1	0307-0508	●	●		●	●			●
459	02.483 BRACKET; SUPPORT,HARNESS 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(LX5) A/T AISIN(RMD) (D)	8-97249-920-0	01	1	0509-0608								●
459	02.483 BRACKET; SUPPORT,HARNESS 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(LX5) A/T AISIN(RMD) (D)	8-98050-720-0	01	1	0609-0609								●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG(LS0) A/T AISIN(RMD) (D)	8-98050-720-0	01	1	0610-	●		●		●	●		●
459	02.483 BRACKET; SUPPORT,HARNESS 6VE1 ENG(LX5) A/T AISIN(RMD) (E)	8-97317-620-0	01	1	0307-0508	●	●		●	●			●
459	02.483 BRACKET; SUPPORT,HARNESS 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(LX5) A/T AISIN(RMD) (E)	8-97317-620-0	01	1	0509-0609								●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (P)	8-97382-804-0	01	1	0610-	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) (J)	8-92177-953-1	02	1	0509-0609	●			●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2) (J)	8-92177-953-1	02	1	0509-0609								●
459	02.483 BRACKET; SUPPORT,HARNESS HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) (J)	8-92177-953-1	02	1	0610-	●	●		●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2) (J)	8-92177-953-1	02	1	0610-								●
459	02.483 BRACKET; SUPPORT,HARNESS C24SE ENG(LG1) EURO3 SPECIFICATION<NT3> (L)	8-98035-653-0	01	1	0601-			●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS C24SE ENG(LG1) (G)	8-97323-436-0	01	1	0307-0609			●	●	●		●	●
459	02.483 BRACKET; SUPPORT,HARNESS C24SE ENG(LG1) (G)	8-98050-883-0	01	1	0610-			●	●	●		●	●
459	02.483 BRACKET; SUPPORT,HARNESS C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) (F)	8-97237-168-0	01	1	0307-0512			●	●	●			●
459	02.483 BRACKET; SUPPORT,HARNESS C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EMISSION SYSTEM FEDERAL,TIER 1<NF2> ,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (F)	8-97237-168-0	01	1	0601-0609			●	●	●		●	●
459	02.483 BRACKET; SUPPORT,HARNESS C24SE ENG(LG1) M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (F)	8-97237-168-0	01	1	0610-			●	●	●			●
545	02.559 STUD; HARNESS HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) DRIVER SIDE FOOT REST<7NU>	8-94441-806-0	01	1	0509-0609	●			●	●			●
545	02.559 STUD; HARNESS HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) DRIVER SIDE FOOT REST<7NU> EXC. SHIPPING EQUIPMENT SPECIAL VAR 1<VK5>	8-94441-806-0	01	1	0610-0611	●	●		●	●			●
545	02.559 STUD; HARNESS HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) DRIVER SIDE FOOT REST<7NU> EXC. SHIPPING EQUIPMENT SPECIAL VAR 1<VK5> 15.280	8-98056-307-0	01	1	0612-	●	●		●	●			●
552	02.483 NUT; BRKT,HARNESS HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) 04.309 M8 W/LK WASHER	8-94413-537-0	01	1	0509-	●	●	●	●	●	●	●	●

38 38 38 239 38 239 239

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
38	02.559 BOLT; CLIP,HARNESS 02.343 (B) M6X16 FLANGE	0-28650-616-0	05	1	0307-	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0307-0512	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0601-0609	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0610-0612	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0701-0912	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1001-	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 6VE1 ENG(LX5) HEATER & DEFROSTER(C42) 00.029 (E) M10X16 FLANGE	0-28151-016-0	01	1	0307-0508	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(LX5) HEATER & DEFROSTER(C42) 00.029 (E) M10X16 FLANGE	0-28151-016-0	01	1	0509-0609								●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (F) M8X16 FLANGE	0-28050-816-0	02	1	0610-0612	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (F) M8X16 FLANGE	0-28050-816-0	02	1	0701-0912	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (F) M8X16 FLANGE	0-28050-816-0	02	1	1001-	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) 08.900 (D) M8X12 FLANGE	0-28080-812-0	02	1	0307-0512	●		●		●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) 02.343 (D) M8X12 FLANGE	0-28050-812-0	02	1	0601-0609	●		●		●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 02.343 (D) M8X12 FLANGE	0-28050-812-0	02	1	0610-	●		●		●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) EURO2 SPECIFICATION<NT2> 02.500 (C) M6X10 FLANGE	0-28080-610-0	01	1	0307-0512	●		●		●	●		●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) EURO2 SPECIFICATION<NT2> 03.671 (C) M6X10 FLANGE	0-28050-610-0	01	1	0601-0609	●		●		●	●		●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EURO2 SPECIFICATION<NT2> 03.671 (C) M6X10 FLANGE	0-28050-610-0	01	1	0610-1103					●			●
239	02.559 BOLT; GRAND (A) M6X14 W/LK&PL WASHER	8-97086-822-0	03	1	0307-	●	●	●	●	●	●	●	●
239	02.559 BOLT; GRAND HF V6 ENG(LCA) (B)	8-11610-066-0	01	1	0509-	●	●	●	●	●	●	●	●

16 16 38 16 16 38 22 22 242 21 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	06	1	0509-0709	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	06	1	0710-	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS HF V6 ENG(LCA) 03.483 (G) ID=6 & 11	8-97368-292-0	01	1	0509-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> EXC. AUSTRALIA EQUIPMENT(B13), REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=135	8-94473-399-0	01	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=135	8-94473-399-0	01	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> AUSTRALIA EQUIPMENT(B13) (B) L=135	8-94473-399-0	01	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	01	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	01	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI T HEFT<7KY> (B) L=135	8-94473-399-0	01	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (B) L=135	8-94473-399-0	01	1	0307-0504	●		●		●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (B) L=135	8-94473-399-0	01	1	0307-0504	●		●		●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI T HEFT<7KY> (B) L=135	8-94473-399-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (B) L=135	8-94473-399-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> AUSTRALIA EQUIPMENT(B13) (B) L=135	8-94473-399-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=135	8-94473-399-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> EXC. AUSTRALIA EQUIPMENT(B13), REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=135	8-94473-399-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (B) L=135	8-94473-399-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS (B) L=135	8-94473-399-0	01	1	0505-0508		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	02	1	0509-0709	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (D) L=135	8-94473-399-0	02	1	0710-	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> EXC. AUSTRALIA EQUIPMENT(B13), REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9	8-97128-114-0	01	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9	8-97128-114-0	01	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> AUSTRALIA EQUIPMENT(B13) (C) L=60 H=10.9	8-97128-114-0	01	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) EXC. POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI T HEFT<7KY> (C) L=60 H=10.9	8-97128-114-0	01	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (C) L=60 H=10.9	8-97128-114-0	01	1	0307-0504	●		●		●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (C) L=60 H=10.9	8-97128-114-0	01	1	0307-0504	●		●		●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI T HEFT<7KY> (C) L=60 H=10.9	8-97128-114-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (C) L=60 H=10.9	8-97128-114-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> AUSTRALIA EQUIPMENT(B13) (C) L=60 H=10.9	8-97128-114-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) EXC. POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9	8-97128-114-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> EXC. AUSTRALIA EQUIPMENT(B13), REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9	8-97128-114-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (C) L=60 H=10.9	8-97128-114-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS (C) L=60 H=10.9	8-97128-114-0	01	1	0505-0508		●
16	02.559 CLIP; HARNESS EXC. POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	02	1	0509-0609	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	02	1	0610-0709	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	02	1	0710-	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> EXC. AUSTRALIA EQUIPMENT(B13), REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=155	8-97173-307-0	03	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=155	8-97173-307-0	03	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> AUSTRALIA EQUIPMENT(B13) (D) L=155	8-97173-307-0	03	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) EXC. POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI T HEFT<7KY> (D) L=155	8-97173-307-0	03	1	0307-0504	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (D) L=155	8-97173-307-0	03	1	0307-0504	●		●		●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (D) L=155	8-97173-307-0	03	1	0307-0504	●		●		●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI T HEFT<7KY> (D) L=155	8-97173-307-0	03	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (D) L=155	8-97173-307-0	03	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> AUSTRALIA EQUIPMENT(B13) (D) L=155	8-97173-307-0	03	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) EXC. POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=155	8-97173-307-0	03	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> EXC. AUSTRALIA EQUIPMENT(B13), REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=155	8-97173-307-0	03	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (D) L=155	8-97173-307-0	03	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0505-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS (D) L=155	8-97173-307-0	03	1	0505-0508		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0509-0609	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0509-0609	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0610-0709	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0610-0709	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0610-0709	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.313 (E) ID=18 L=44	8-97367-985-0	03	1	0307-0609	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	02	1	0307-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	01	1	0509-0709	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	01	1	0509-0709	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	01	1	0509-0709	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	01	1	0710-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	01	1	0710-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	01	1	0710-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	01	1	0710-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	02	1	0307-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0509-0609	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0509-0609	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0610-0709	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0610-0709	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0610-0709	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0610-0709	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0710-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0710-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0710-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0710-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	06	1	0307-0508	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	05	1	0509-0609	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	02	1	0610-0709	●		●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0710-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0710-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0710-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0710-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 4JA1-T ENG(LP0) 02.313 (E) ID=18 L=44	8-97367-985-0	02	1	0307-0609	●		●		●	●	●	●
16	02.559 CLIP; HARNESS 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 02.313 (E) ID=18 L=44	8-97367-985-1	02	1	0610-	●		●		●	●	●	●
16	02.559 CLIP; HARNESS 4JA1-T ENG(LP0) 03.162 (F) L=140	5-09707-031-1	01	1	0506-0609	●		●		●	●	●	●
16	02.559 CLIP; HARNESS 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 03.162 (F) L=140	5-09707-031-1	01	1	0610-	●		●		●	●	●	●
16	02.559 CLIP; HARNESS 4JA1-T ENG(LP0) EURO2 SPECIFICATION<NT2> (A) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0307-0609	●		●		●	●		●
16	02.559 CLIP; HARNESS 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EURO2 SPECIFICATION<NT2> (A) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0610-1103					●			●
21	02.483 BRACKET; ENG HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) (C)	8-97943-788-0	01	1	0307-0609	●	●	●	●	●	●	●	●
21	02.483 BRACKET; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) (D)	8-97373-034-0	01	1	0710-0912	●	●	●	●	●	●	●	●
21	02.483 BRACKET; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (D)	8-97373-034-0	01	1	1001-	●	●	●	●	●	●	●	●
21	02.483 BRACKET; ENG HARNESS 4JA1-T ENG(LP0) (B)	8-97249-918-1	01	1	0307-0609	●		●		●	●	●	●
21	02.483 BRACKET; ENG HARNESS 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> (B)	8-97249-918-1	01	1	0610-	●		●		●	●	●	●
21	02.483 BRACKET; ENG HARNESS C24SE ENG(LG1) (A)	8-97307-432-2	01	1	0307-0605			●	●	●		●	●
21	02.483 BRACKET; ENG HARNESS C24SE ENG(LG1) EMISSION SYSTEM R15-04<K75>, EMISSION SYSTEM FEDERAL,TIER 1<NF2>,EURO2 SPECIFICATION<NT2> (A)	8-97307-432-2	01	1	0606-0608			●	●	●		●	●
21	02.483 BRACKET; ENG HARNESS C24SE ENG(LG1) EMISSION SYSTEM R15-04<K75>, EMISSION SYSTEM FEDERAL,TIER 1<NF2>,EURO2 SPECIFICATION<NT2> (A)	8-98050-842-0	01	1	0609-0609			●	●	●		●	●
21	02.483 BRACKET; ENG HARNESS C24SE ENG(LG1) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (A)	8-98050-842-0	01	1	0610-			●		●		●	●
21	02.483 BRACKET; ENG HARNESS HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (D)	8-97373-034-0	01	1	0610-0709			●		●		●	●
22	02.559 CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 02.363 (C) L=140	8-97920-656-0	01	1	0307-0609	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 02.363 (C) L=140	8-97920-656-0	01	1	0610-	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 03.483 (G) ID=6 & 10	8-94154-844-0	01	1	0610-0612	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) POWER STEERING<N40> 03.483 (G) ID=6 & 10	8-94154-844-0	01	1	0701-0912	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 03.483 (G) ID=6 & 10	8-94154-844-0	01	1	1001-	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> (E) ID=10 & 11	8-94438-996-0	01	1	0610-0612	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) POWER STEERING<N40> (E) ID=10 & 11	8-94438-996-0	01	1	0701-0912	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> (E) ID=10 & 11	8-94438-996-0	01	1	1001-	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 6VE1 ENG(LX5) 04.594 (A) L=100	5-09707-036-1	01	1	0307-0508	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS HF V6 ENG(LCA),6VE1 ENG(LX5) 04.594 (A) L=100	5-09707-036-1	01	1	0509-0609	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS HF V6 ENG(LCA) 04.594 (A) L=100	5-09707-036-1	01	1	0610-0701	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 6VE1 ENG(LX5) HEATER & DEFROSTER(C42) (B) L=22 ID=10.5	8-94327-574-0	01	1	0307-0508	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS HF V6 ENG(LCA),6VE1 ENG(LX5) HEATER & DEFROSTER(C42) (B) L=22 ID=10.5	8-94327-574-0	01	1	0509-0607	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(LX5) HEATER & DEFROSTER(C42) (B) L=22 ID=10.5	8-94327-574-0	01	1	0608-0609								●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) KENYA EQUIPMENT(CL1) 03.162 (H) L=140	5-09707-031-1	01	1	0610-	●		●		●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0) 09.663 (F) ID=15	1-09709-003-0	01	1	0610-0612	●		●		●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) 09.663 (F) ID=15	1-09709-003-0	01	1	0701-0912	●		●		●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42) 09.663 (F) ID=15	1-09709-003-0	01	1	1001-1005	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEA TER(C65) 09.663 (F) ID=15	1-09709-003-0	01	1	1006-	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JA1-T ENG(LP0) EURO2 SPECIFICATION<NT2> 01.540 (D) ID=30	8-94315-423-0	01	1	0307-0609	●		●		●	●		●
22	02.559 CLIP; ENG HARNESS 4JA1-T ENG(LP0) EURO2 SPECIFICATION<NT2> 01.540 (D) ID=30	8-94315-423-0	01	1	0610-					●
22	02.559 CLIP; ENG HARNESS 4X4 CREW CAB LONG(TFS*WF) 4JA1-T ENG(LP0) EURO2 SPECIFICATION<NT2> 01.540 (D) ID=30	8-94315-423-0	01	1	0610-								●
38	02.559 BOLT; CLIP,HARNESS 02.343 (B) M6X16 FLANGE	0-28650-616-0	05	1	0307-	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0307-0512	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0601-0609	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0610-0612	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0701-0912	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1001-	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 6VE1 ENG(LX5) HEATER & DEFROSTER(C42) 00.029 (E) M10X16 FLANGE	0-28151-016-0	01	1	0307-0508	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(LX5) HEATER & DEFROSTER(C42) 00.029 (E) M10X16 FLANGE	0-28151-016-0	01	1	0509-0609								●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (F) M8X16 FLANGE	0-28050-816-0	02	1	0610-0612	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (F) M8X16 FLANGE	0-28050-816-0	02	1	0701-0912	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (F) M8X16 FLANGE	0-28050-816-0	02	1	1001-	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) 08.900 (D) M8X12 FLANGE	0-28080-812-0	02	1	0307-0512	●		●		●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) 02.343 (D) M8X12 FLANGE	0-28050-812-0	02	1	0601-0609	●		●		●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 02.343 (D) M8X12 FLANGE	0-28050-812-0	02	1	0610-	●		●		●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) EURO2 SPECIFICATION<NT2> 02.500 (C) M6X10 FLANGE	0-28080-610-0	01	1	0307-0512	●		●		●	●		●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) EURO2 SPECIFICATION<NT2> 03.671 (C) M6X10 FLANGE	0-28050-610-0	01	1	0601-0609	●		●		●	●		●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EURO2 SPECIFICATION<NT2> 03.671 (C) M6X10 FLANGE	0-28050-610-0	01	1	0610-1103					●			●
242	02.483 BOLT; BRKT,HARNESS HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) (D) M10X16 FLANGE	0-28051-016-0	01	1	0509-	●	●	●	●	●	●	●	●
242	02.483 BOLT; BRKT,HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	0307-0508	●	●	●	●	●	●	●	●
242	02.483 BOLT; BRKT,HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	0509-0512	●	●	●	●	●	●	●	●
242	02.483 BOLT; BRKT,HARNESS HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	0509-0512	●			●	●			●
242	02.483 BOLT; BRKT,HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	0601-	●	●	●	●	●	●	●	●
242	02.483 BOLT; BRKT,HARNESS 4JA1-T ENG(LP0) EXC. IMMOBILIZER SYSTEM<7KC> 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	0601-	●		●		●	●	●	●
242	02.483 BOLT; BRKT,HARNESS HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	0601-	●			●	●			●
242	02.483 BOLT; BRKT,HARNESS 6VE1 ENG(LX5) A/T AISIN(RMD) 03.671 (A) M6X10 FLANGE	0-28050-610-0	01	1	0307-0508	●	●		●	●			●
242	02.483 BOLT; BRKT,HARNESS 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(LX5) A/T AISIN(RMD) 03.671 (A) M6X10 FLANGE	0-28050-610-0	01	1	0509-0609								●
242	02.483 BOLT; BRKT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 02.343 (E) M8X16 FLANGE	0-28050-816-0	02	1	0610-	●	●	●	●	●	●	●	●
242	02.483 BOLT; BRKT,HARNESS 6VE1 ENG(LX5) A/T AISIN(RMD) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0307-0508	●	●		●	●			●
242	02.483 BOLT; BRKT,HARNESS 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(LX5) A/T AISIN(RMD) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0509-0609								●
242	02.483 BOLT; BRKT,HARNESS 4JA1-T ENG(LP0) 08.900 (C) M8X12 FLANGE	0-28080-812-0	01	1	0307-0512	●		●		●	●	●	●

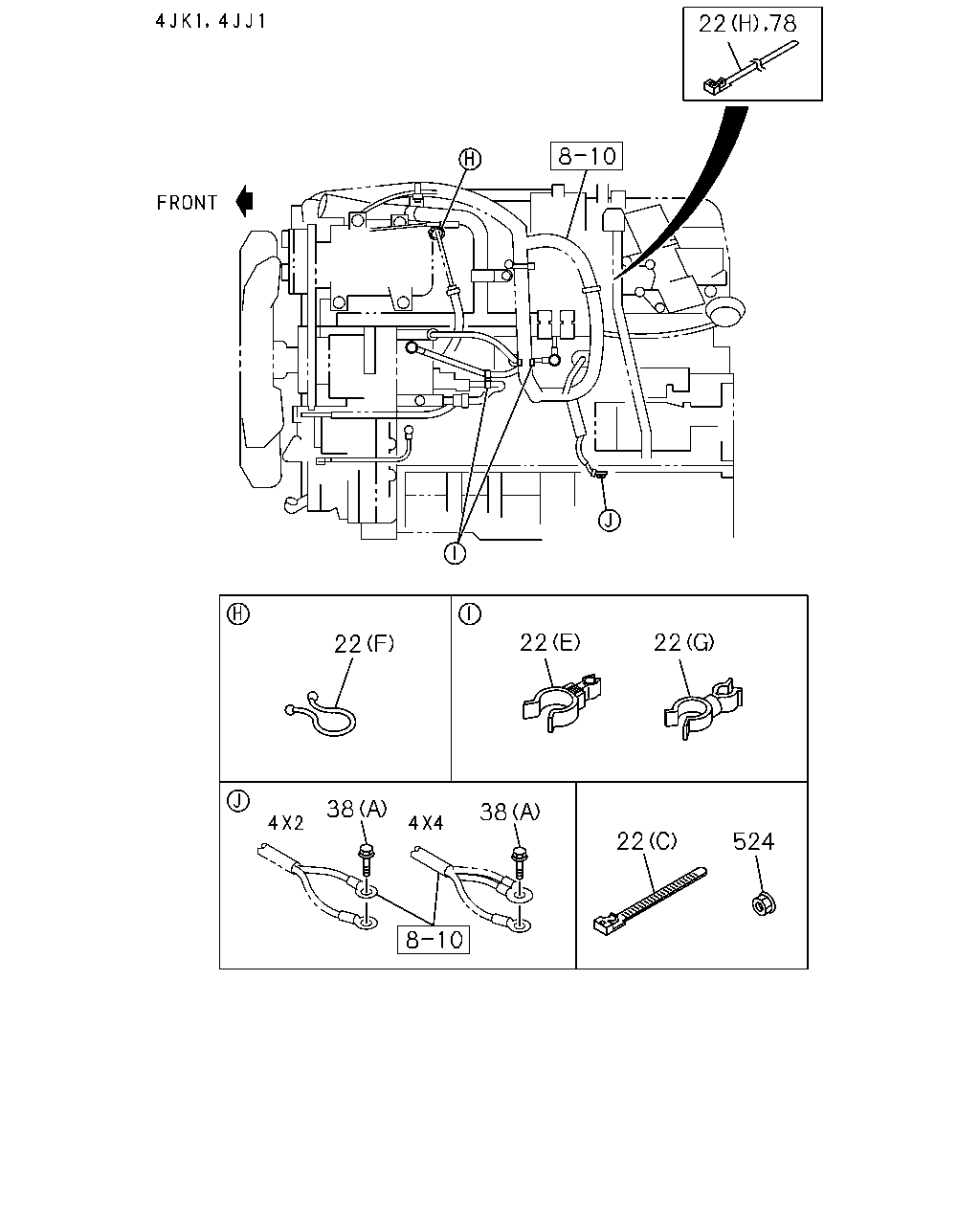

22 22 22 524 22 38 38 22 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
22	02.559 CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 02.363 (C) L=140	8-97920-656-0	01	1	0307-0609	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 02.363 (C) L=140	8-97920-656-0	01	1	0610-	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 03.483 (G) ID=6 & 10	8-94154-844-0	01	1	0610-0612	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) POWER STEERING<N40> 03.483 (G) ID=6 & 10	8-94154-844-0	01	1	0701-0912	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 03.483 (G) ID=6 & 10	8-94154-844-0	01	1	1001-	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> (E) ID=10 & 11	8-94438-996-0	01	1	0610-0612	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) POWER STEERING<N40> (E) ID=10 & 11	8-94438-996-0	01	1	0701-0912	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> (E) ID=10 & 11	8-94438-996-0	01	1	1001-	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 6VE1 ENG(LX5) 04.594 (A) L=100	5-09707-036-1	01	1	0307-0508	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS HF V6 ENG(LCA),6VE1 ENG(LX5) 04.594 (A) L=100	5-09707-036-1	01	1	0509-0609	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS HF V6 ENG(LCA) 04.594 (A) L=100	5-09707-036-1	01	1	0610-0701	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 6VE1 ENG(LX5) HEATER & DEFROSTER(C42) (B) L=22 ID=10.5	8-94327-574-0	01	1	0307-0508	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS HF V6 ENG(LCA),6VE1 ENG(LX5) HEATER & DEFROSTER(C42) (B) L=22 ID=10.5	8-94327-574-0	01	1	0509-0607	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(LX5) HEATER & DEFROSTER(C42) (B) L=22 ID=10.5	8-94327-574-0	01	1	0608-0609								●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) KENYA EQUIPMENT(CL1) 03.162 (H) L=140	5-09707-031-1	01	1	0610-	●		●		●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0) 09.663 (F) ID=15	1-09709-003-0	01	1	0610-0612	●		●		●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) 09.663 (F) ID=15	1-09709-003-0	01	1	0701-0912	●		●		●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42) 09.663 (F) ID=15	1-09709-003-0	01	1	1001-1005	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEA TER(C65) 09.663 (F) ID=15	1-09709-003-0	01	1	1006-	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JA1-T ENG(LP0) EURO2 SPECIFICATION<NT2> 01.540 (D) ID=30	8-94315-423-0	01	1	0307-0609	●		●		●	●		●
22	02.559 CLIP; ENG HARNESS 4JA1-T ENG(LP0) EURO2 SPECIFICATION<NT2> 01.540 (D) ID=30	8-94315-423-0	01	1	0610-					●
22	02.559 CLIP; ENG HARNESS 4X4 CREW CAB LONG(TFS*WF) 4JA1-T ENG(LP0) EURO2 SPECIFICATION<NT2> 01.540 (D) ID=30	8-94315-423-0	01	1	0610-								●
38	02.559 BOLT; CLIP,HARNESS 02.343 (B) M6X16 FLANGE	0-28650-616-0	05	1	0307-	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0307-0512	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0601-0609	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0610-0612	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0701-0912	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1001-	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 6VE1 ENG(LX5) HEATER & DEFROSTER(C42) 00.029 (E) M10X16 FLANGE	0-28151-016-0	01	1	0307-0508	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(LX5) HEATER & DEFROSTER(C42) 00.029 (E) M10X16 FLANGE	0-28151-016-0	01	1	0509-0609								●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (F) M8X16 FLANGE	0-28050-816-0	02	1	0610-0612	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (F) M8X16 FLANGE	0-28050-816-0	02	1	0701-0912	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (F) M8X16 FLANGE	0-28050-816-0	02	1	1001-	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) 08.900 (D) M8X12 FLANGE	0-28080-812-0	02	1	0307-0512	●		●		●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) 02.343 (D) M8X12 FLANGE	0-28050-812-0	02	1	0601-0609	●		●		●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 02.343 (D) M8X12 FLANGE	0-28050-812-0	02	1	0610-	●		●		●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) EURO2 SPECIFICATION<NT2> 02.500 (C) M6X10 FLANGE	0-28080-610-0	01	1	0307-0512	●		●		●	●		●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) EURO2 SPECIFICATION<NT2> 03.671 (C) M6X10 FLANGE	0-28050-610-0	01	1	0601-0609	●		●		●	●		●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EURO2 SPECIFICATION<NT2> 03.671 (C) M6X10 FLANGE	0-28050-610-0	01	1	0610-1103					●			●
78	02.559 CLIP; INST HARNESS HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 02.363 L=140	8-97920-656-0	01	1	0612-0709			●		●		●	●
524	02.559 NUT; HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 01.062 M8 FLANGE	0-91180-108-0	01	1	0610-0612	●	●	●	●	●	●	●	●
524	02.559 NUT; HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) POWER STEERING<N40> 01.062 M8 FLANGE	0-91180-108-0	01	1	0701-0912	●	●	●	●	●	●	●	●
524	02.559 NUT; HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 01.062 M8 FLANGE	0-91180-108-0	01	1	1001-	●	●	●	●	●	●	●	●

459 459 459 459 408 459 459 242 459 459 242 459

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
242	02.483 BOLT; BRKT,HARNESS HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) (D) M10X16 FLANGE	0-28051-016-0	01	1	0509-	●	●	●	●	●	●	●	●
242	02.483 BOLT; BRKT,HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	0307-0508	●	●	●	●	●	●	●	●
242	02.483 BOLT; BRKT,HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	0509-0512	●	●	●	●	●	●	●	●
242	02.483 BOLT; BRKT,HARNESS HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	0509-0512	●			●	●			●
242	02.483 BOLT; BRKT,HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	0601-	●	●	●	●	●	●	●	●
242	02.483 BOLT; BRKT,HARNESS 4JA1-T ENG(LP0) EXC. IMMOBILIZER SYSTEM<7KC> 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	0601-	●		●		●	●	●	●
242	02.483 BOLT; BRKT,HARNESS HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	0601-	●			●	●			●
242	02.483 BOLT; BRKT,HARNESS 6VE1 ENG(LX5) A/T AISIN(RMD) 03.671 (A) M6X10 FLANGE	0-28050-610-0	01	1	0307-0508	●	●		●	●			●
242	02.483 BOLT; BRKT,HARNESS 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(LX5) A/T AISIN(RMD) 03.671 (A) M6X10 FLANGE	0-28050-610-0	01	1	0509-0609								●
242	02.483 BOLT; BRKT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 02.343 (E) M8X16 FLANGE	0-28050-816-0	02	1	0610-	●	●	●	●	●	●	●	●
242	02.483 BOLT; BRKT,HARNESS 6VE1 ENG(LX5) A/T AISIN(RMD) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0307-0508	●	●		●	●			●
242	02.483 BOLT; BRKT,HARNESS 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(LX5) A/T AISIN(RMD) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0509-0609								●
242	02.483 BOLT; BRKT,HARNESS 4JA1-T ENG(LP0) 08.900 (C) M8X12 FLANGE	0-28080-812-0	01	1	0307-0512	●		●		●	●	●	●
408	02.559 CLIP; TRANS HARNESS M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	04	1	0307-0604	●	●	●	●	●	●	●	●
408	02.559 CLIP; TRANS HARNESS M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-0	04	1	0605-0609	●	●	●	●	●	●	●	●
408	02.559 CLIP; TRANS HARNESS M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	04	1	0610-	●		●	●	●	●	●	●
408	02.559 CLIP; TRANS HARNESS HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) 02.363 (C) L=140	8-97920-656-0	01	1	0509-0609	●			●	●
408	02.559 CLIP; TRANS HARNESS 4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2) 02.363 (C) L=140	8-97920-656-0	01	1	0509-0609								●
408	02.559 CLIP; TRANS HARNESS HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) 02.363 (C) L=140	8-97920-656-0	01	1	0610-	●	●		●	●
408	02.559 CLIP; TRANS HARNESS 4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2) 02.363 (C) L=140	8-97920-656-0	01	1	0610-								●
408	02.559 CLIP; TRANS HARNESS C24SE ENG(LG1) 03.163 (B) ID=13 & 4.75	8-94447-856-0	01	1	0307-0609			●	●	●		●	●
408	02.559 CLIP; TRANS HARNESS C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 03.163 (B) ID=13 & 4.75	8-94447-856-0	01	1	0610-			●	●	●		●	●
459	02.483 BRACKET; SUPPORT,HARNESS HF V6 ENG(LCA) (K)	8-98025-426-0	01	1	0509-	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) (H)	8-92177-951-0	01	1	0509-	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) (I)	8-98004-147-0	01	1	0509-	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) (A)	8-94315-284-0	01	1	0307-0508	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) (A)	8-94315-284-0	01	1	0307-0508	●		●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) (A)	8-94315-284-0	01	1	0509-0608	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) (A)	8-94315-284-0	01	1	0509-0608	●		●		●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) (A)	8-98050-882-0	01	1	0609-0609	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) (A)	8-98050-882-0	01	1	0609-0609	●		●		●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M /T MUA 5 SPEED 5S(RSQ) (A)	8-98050-882-0	01	1	0610-0612	●		●		●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M /T MUA 5 SPEED 5S(RSQ) (A)	8-98050-882-0	01	1	0701-0709	●		●		●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M /T MUA 5 SPEED 5S(RSQ) (A)	8-98050-882-0	01	1	0710-0912	●		●		●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M /T MUA 5 SPEED 5S(RSQ) (A)	8-98050-882-0	01	1	1001-	●		●		●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (M)	8-98035-741-0	01	1	0610-	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP) (B)	8-97237-379-0	01	1	0307-0508	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (B)	8-97237-379-0	01	1	0509-0609								●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (N)	8-98035-740-0	01	1	0610-	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 6VE1 ENG(LX5) A/T AISIN(RMD) (C)	8-97249-919-1	01	1	0307-0508	●	●		●	●			●
459	02.483 BRACKET; SUPPORT,HARNESS 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(LX5) A/T AISIN(RMD) (C)	8-97249-919-1	01	1	0509-0609								●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) (O)	8-97307-524-1	01	1	0610-	●		●		●
459	02.483 BRACKET; SUPPORT,HARNESS 4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) (O)	8-97307-524-1	01	1	0610-								●
459	02.483 BRACKET; SUPPORT,HARNESS 6VE1 ENG(LX5) A/T AISIN(RMD) (D)	8-97249-920-0	01	1	0307-0508	●	●		●	●			●
459	02.483 BRACKET; SUPPORT,HARNESS 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(LX5) A/T AISIN(RMD) (D)	8-97249-920-0	01	1	0509-0608								●
459	02.483 BRACKET; SUPPORT,HARNESS 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(LX5) A/T AISIN(RMD) (D)	8-98050-720-0	01	1	0609-0609								●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG(LS0) A/T AISIN(RMD) (D)	8-98050-720-0	01	1	0610-	●		●		●	●		●
459	02.483 BRACKET; SUPPORT,HARNESS 6VE1 ENG(LX5) A/T AISIN(RMD) (E)	8-97317-620-0	01	1	0307-0508	●	●		●	●			●
459	02.483 BRACKET; SUPPORT,HARNESS 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(LX5) A/T AISIN(RMD) (E)	8-97317-620-0	01	1	0509-0609								●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (P)	8-97382-804-0	01	1	0610-	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) (J)	8-92177-953-1	02	1	0509-0609	●			●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2) (J)	8-92177-953-1	02	1	0509-0609								●
459	02.483 BRACKET; SUPPORT,HARNESS HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) (J)	8-92177-953-1	02	1	0610-	●	●		●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2) (J)	8-92177-953-1	02	1	0610-								●
459	02.483 BRACKET; SUPPORT,HARNESS C24SE ENG(LG1) EURO3 SPECIFICATION<NT3> (L)	8-98035-653-0	01	1	0601-			●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS C24SE ENG(LG1) (G)	8-97323-436-0	01	1	0307-0609			●	●	●		●	●
459	02.483 BRACKET; SUPPORT,HARNESS C24SE ENG(LG1) (G)	8-98050-883-0	01	1	0610-			●	●	●		●	●
459	02.483 BRACKET; SUPPORT,HARNESS C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) (F)	8-97237-168-0	01	1	0307-0512			●	●	●			●
459	02.483 BRACKET; SUPPORT,HARNESS C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EMISSION SYSTEM FEDERAL,TIER 1<NF2> ,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (F)	8-97237-168-0	01	1	0601-0609			●	●	●		●	●
459	02.483 BRACKET; SUPPORT,HARNESS C24SE ENG(LG1) M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (F)	8-97237-168-0	01	1	0610-			●	●	●			●

358 38 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
22	02.559 CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 02.363 (C) L=140	8-97920-656-0	01	1	0307-0609	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 02.363 (C) L=140	8-97920-656-0	01	1	0610-	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 03.483 (G) ID=6 & 10	8-94154-844-0	01	1	0610-0612	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) POWER STEERING<N40> 03.483 (G) ID=6 & 10	8-94154-844-0	01	1	0701-0912	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 03.483 (G) ID=6 & 10	8-94154-844-0	01	1	1001-	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> (E) ID=10 & 11	8-94438-996-0	01	1	0610-0612	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) POWER STEERING<N40> (E) ID=10 & 11	8-94438-996-0	01	1	0701-0912	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> (E) ID=10 & 11	8-94438-996-0	01	1	1001-	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 6VE1 ENG(LX5) 04.594 (A) L=100	5-09707-036-1	01	1	0307-0508	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS HF V6 ENG(LCA),6VE1 ENG(LX5) 04.594 (A) L=100	5-09707-036-1	01	1	0509-0609	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS HF V6 ENG(LCA) 04.594 (A) L=100	5-09707-036-1	01	1	0610-0701	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 6VE1 ENG(LX5) HEATER & DEFROSTER(C42) (B) L=22 ID=10.5	8-94327-574-0	01	1	0307-0508	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS HF V6 ENG(LCA),6VE1 ENG(LX5) HEATER & DEFROSTER(C42) (B) L=22 ID=10.5	8-94327-574-0	01	1	0509-0607	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(LX5) HEATER & DEFROSTER(C42) (B) L=22 ID=10.5	8-94327-574-0	01	1	0608-0609								●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) KENYA EQUIPMENT(CL1) 03.162 (H) L=140	5-09707-031-1	01	1	0610-	●		●		●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0) 09.663 (F) ID=15	1-09709-003-0	01	1	0610-0612	●		●		●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) 09.663 (F) ID=15	1-09709-003-0	01	1	0701-0912	●		●		●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42) 09.663 (F) ID=15	1-09709-003-0	01	1	1001-1005	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEA TER(C65) 09.663 (F) ID=15	1-09709-003-0	01	1	1006-	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JA1-T ENG(LP0) EURO2 SPECIFICATION<NT2> 01.540 (D) ID=30	8-94315-423-0	01	1	0307-0609	●		●		●	●		●
22	02.559 CLIP; ENG HARNESS 4JA1-T ENG(LP0) EURO2 SPECIFICATION<NT2> 01.540 (D) ID=30	8-94315-423-0	01	1	0610-					●
22	02.559 CLIP; ENG HARNESS 4X4 CREW CAB LONG(TFS*WF) 4JA1-T ENG(LP0) EURO2 SPECIFICATION<NT2> 01.540 (D) ID=30	8-94315-423-0	01	1	0610-								●
38	02.559 BOLT; CLIP,HARNESS 02.343 (B) M6X16 FLANGE	0-28650-616-0	05	1	0307-	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0307-0512	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0601-0609	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0610-0612	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0701-0912	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1001-	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 6VE1 ENG(LX5) HEATER & DEFROSTER(C42) 00.029 (E) M10X16 FLANGE	0-28151-016-0	01	1	0307-0508	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(LX5) HEATER & DEFROSTER(C42) 00.029 (E) M10X16 FLANGE	0-28151-016-0	01	1	0509-0609								●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (F) M8X16 FLANGE	0-28050-816-0	02	1	0610-0612	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (F) M8X16 FLANGE	0-28050-816-0	02	1	0701-0912	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (F) M8X16 FLANGE	0-28050-816-0	02	1	1001-	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) 08.900 (D) M8X12 FLANGE	0-28080-812-0	02	1	0307-0512	●		●		●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) 02.343 (D) M8X12 FLANGE	0-28050-812-0	02	1	0601-0609	●		●		●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 02.343 (D) M8X12 FLANGE	0-28050-812-0	02	1	0610-	●		●		●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) EURO2 SPECIFICATION<NT2> 02.500 (C) M6X10 FLANGE	0-28080-610-0	01	1	0307-0512	●		●		●	●		●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) EURO2 SPECIFICATION<NT2> 03.671 (C) M6X10 FLANGE	0-28050-610-0	01	1	0601-0609	●		●		●	●		●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EURO2 SPECIFICATION<NT2> 03.671 (C) M6X10 FLANGE	0-28050-610-0	01	1	0610-1103					●			●
358	02.480 BOLT; EARTH 6VE1 ENG(LX5) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0307-0508	●	●	●	●	●	●	●	●
358	02.480 BOLT; EARTH 6VE1 ENG(LX5) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0509-0512								●
358	02.480 BOLT; EARTH 6VE1 ENG(LX5) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0601-0609								●
358	02.480 BOLT; EARTH 4JA1-T ENG(LP0) 02.559 M10X16 FLANGE	0-28081-016-0	01	1	0307-0512	●		●		●	●	●	●
358	02.480 BOLT; EARTH 4JA1-T ENG(LP0) 02.483 M10X16 FLANGE	0-28051-016-0	01	1	0601-0609	●		●		●	●	●	●
358	02.480 BOLT; EARTH 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 02.483 M10X16 FLANGE	0-28051-016-0	01	1	0610-	●		●		●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
