◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50965 - TFR/TFS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#42979) — 339 parça

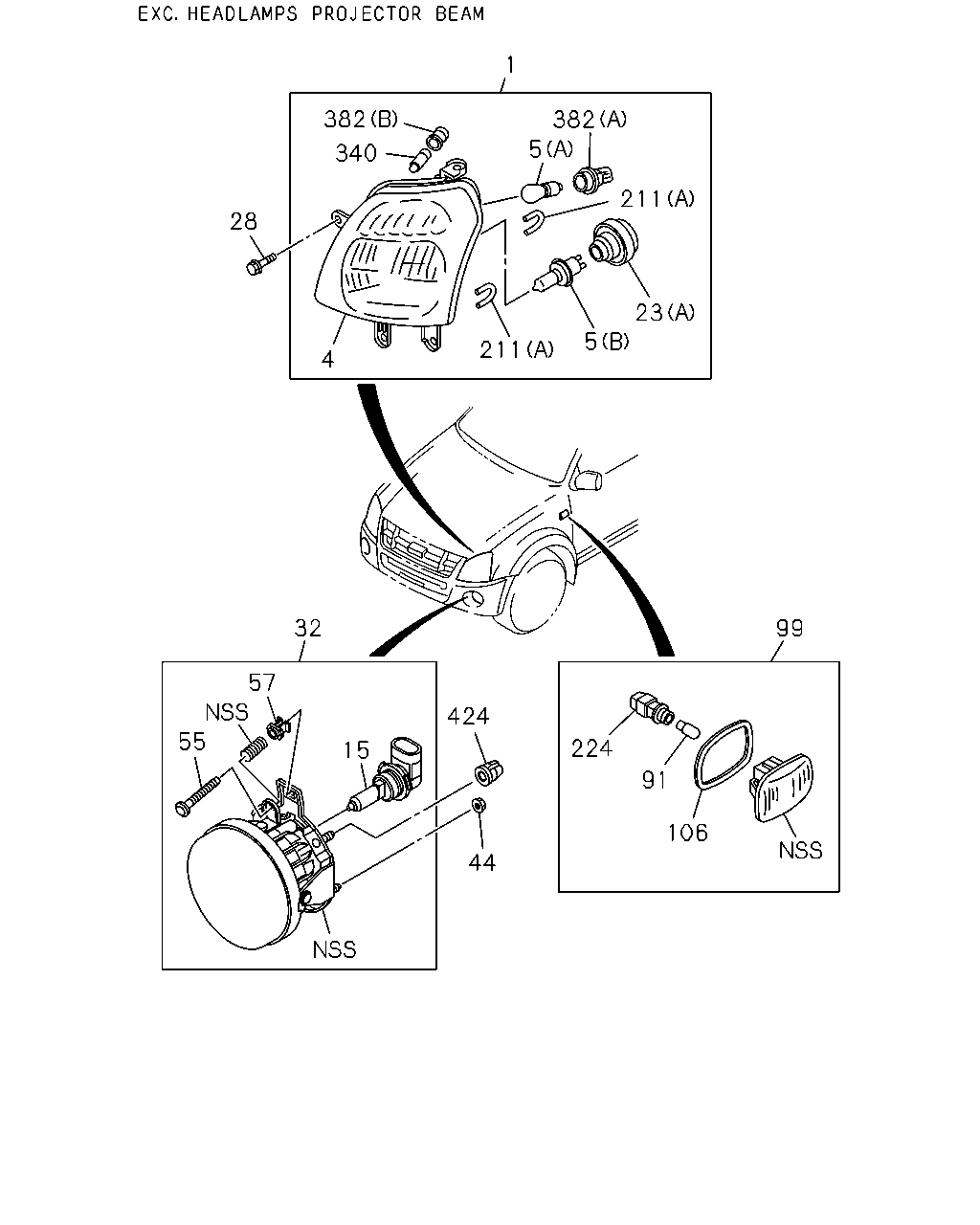

çizim 55750
106 91 224 424 15 44 32 57 55 99 23 5 211 211 5 382 1 382 340 28 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> ,HEADLAMPS PROJECTOR BEAM<8LH> 		8-97374-647-2 01 1 0610-0704 ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> ,HEADLAMPS PROJECTOR BEAM<8LH> 		8-98079-996-0 01 1 0705- ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> ,HEADLAMPS PROJECTOR BEAM<8LH> 		8-97374-646-2 01 1 0610-0704 ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> ,HEADLAMPS PROJECTOR BEAM<8LH> 		8-98079-995-0 01 1 0705- ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97237-500-3 01 1 0307-0307 ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-97237-500-3 01 1 0307-0307 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97367-728-0 01 1 0308-0312 ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-97367-728-0 01 1 0308-0312 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97374-214-0 01 1 0401-0411 ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-97374-214-0 01 1 0401-0411 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98004-312-0 01 1 0412-0506 ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98004-312-0 01 1 0412-0506 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98023-834-0 01 1 0507-0609 ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98023-834-0 01 1 0507-0609 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-97388-665-2 01 1 0610-0704 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98080-006-0 01 1 0705- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97237-499-3 01 1 0307-0307 ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-97237-499-3 01 1 0307-0307 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97367-727-0 01 1 0308-0312 ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-97367-727-0 01 1 0308-0312 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97374-213-0 01 1 0401-0411 ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-97374-213-0 01 1 0401-0411 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98004-311-0 01 1 0412-0506 ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98004-311-0 01 1 0412-0506 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98023-833-0 01 1 0507-0609 ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98023-833-0 01 1 0507-0609 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-97388-664-2 01 1 0610-0704 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98080-005-0 01 1 0705- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> 		8-97357-327-0 01 1 0307-0307 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> 		8-97367-732-0 01 1 0308-0312 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> 		8-97374-218-0 01 1 0401-0411 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> 		8-98004-316-0 01 1 0412-0506 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> 		8-98023-838-0 01 1 0507-0609 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 		8-97388-667-2 01 1 0610-0704 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98080-008-0 01 1 0705- ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> 		8-97237-504-3 01 1 0307-0307 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> 		8-97367-731-0 01 1 0308-0312 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> 		8-97374-217-0 01 1 0401-0411 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> 		8-98004-315-0 01 1 0412-0506 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> 		8-98023-837-0 01 1 0507-0609 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 		8-97388-666-2 01 1 0610-0704 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98080-007-0 01 1 0705- ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-97374-649-2 01 1 0610-0704 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98079-998-0 01 1 0705- ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-97374-648-2 01 1 0610-0704 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98079-997-0 01 1 0705- ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. HEAD LAMP LEVELING MANUAL<T92> ,HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-758-0 01 1 0610- ● ● ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. HEAD LAMP LEVELING MANUAL<T92> ,HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-757-0 01 1 0610- ● ● ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-97332-439-0 01 1 0307-0411 ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-97332-439-0 01 1 0307-0411 ● ● ● ●
4 02.727 HEADLAMP UNIT 8-97379-813-0 01 1 0412-0609 ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-97379-813-0 01 1 0412-0609 ● ● ● ●
4 02.727 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98011-846-0 01 1 0610- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-97332-438-0 01 1 0307-0411 ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-97332-438-0 01 1 0307-0411 ● ● ● ●
4 02.727 HEADLAMP UNIT 8-97379-812-0 01 1 0412-0609 ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-97379-812-0 01 1 0412-0609 ● ● ● ●
4 02.727 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98011-845-0 01 1 0610- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
HEAD LAMP LEVELING MANUAL<T92> 		8-97332-443-0 01 1 0307-0411 ● ● ● ●
4 02.727 HEADLAMP UNIT
HEAD LAMP LEVELING MANUAL<T92> 		8-97379-809-0 01 1 0412-0609 ● ● ● ●
4 02.727 HEADLAMP UNIT
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-848-0 01 1 0610- ● ● ● ●
4 02.727 HEADLAMP UNIT
HEAD LAMP LEVELING MANUAL<T92> 		8-97332-442-0 01 1 0307-0411 ● ● ● ●
4 02.727 HEADLAMP UNIT
HEAD LAMP LEVELING MANUAL<T92> 		8-97379-808-0 01 1 0412-0609 ● ● ● ●
4 02.727 HEADLAMP UNIT
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-847-0 01 1 0610- ● ● ● ●
4 02.727 HEADLAMP UNIT
HEAD LAMP LEVELING MANUAL<T92> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-762-0 01 1 0610- ● ● ● ●
4 02.727 HEADLAMP UNIT
HEAD LAMP LEVELING MANUAL<T92> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-761-0 01 1 0610- ● ● ● ●
5 02.727 BULB; HEADLAMP
08.991 (A) 12V 21W 		8-97179-967-0 02 1 0307-0609 ● ● ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 08.991 (A) 12V 21W 		8-97179-967-0 02 1 0610- ● ● ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
(B) 12V 60/55W 		8-97914-323-0 02 1 0307-0609 ● ● ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) 12V 55W 		8-98011-475-0 02 1 0610- ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (B) 12V 60/55W 		8-98032-732-0 02 1 0610- ● ● ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (D) 12V 60W 		8-97289-997-0 02 1 0610- ● ● ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W 		8-97333-416-0 02 1 0307-0508 ● ● ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W 		8-98024-386-0 02 1 0509-0609 ● ● ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 02.727 12V 51W 		8-97286-998-0 02 1 0610- ● ● ● ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
(A) 		8-97332-448-0 02 1 0307-0609 ● ● ● ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) 		8-97332-448-0 02 1 0610- ● ● ● ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (B) 		8-97675-961-0 02 1 0610- ● ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) 		8-98011-477-0 02 1 0610- ● ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
02.726 M6X18 TAPPING W/LK&PL WASHER 		8-94372-359-0 08 1 0307-0611 ● ● ● ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER 		8-98062-140-0 08 1 0612- ● ● ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97363-012-0 01 1 0307-0509 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98030-125-0 01 1 0510-0609 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97363-011-0 01 1 0307-0509 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98030-124-0 01 1 0510-0609 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97374-661-1 02 1 0610-0904 ● ● ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98144-229-0 02 1 0905-1101 ● ● ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98169-680-0 02 1 1102- ● ● ● ● ● ● ● ●
44 02.737 NUT; FOG LAMP
FOG LAMP<T96> 01.062 M6 FLANGE 		0-91180-106-0 04 1 0307-0609 ● ● ● ● ● ●
44 02.737 NUT; FOG LAMP
FOG LAMP<T96> 08.915 M6 FLANGE 		8-98055-704-0 04 1 0610- ● ● ● ● ● ● ● ●
55 02.737 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> 		8-98017-834-0 02 1 0610- ● ● ● ● ● ● ● ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> 		8-98017-835-0 02 1 0610- ● ● ● ● ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
12V 5W 		8-97310-952-0 02 1 0307-0508 ● ● ● ● ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC DUAL FOLDING CHR OME TURN SIGNAL<8JH> 12V 5W 		8-97310-952-0 02 1 0509-0709 ● ● ● ● ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC FOLDING COLOR TU RN SIG,BRIGHT<DE3>,DOOR MIR ELEC FOLDING COLOR TURN SIG IND<DE4> 12V 5W 		8-97310-952-0 02 1 0710- ● ● ● ● ● ● ●
99 02.585 LAMP; SIDE FLASHER 8-97237-378-1 02 1 0307-0508 ● ● ● ● ● ● ● ●
99 02.585 LAMP; SIDE FLASHER
EXC. DOOR MIR ELEC DUAL FOLDING CHR OME TURN SIGNAL<8JH> 		8-97237-378-1 02 1 0509-0709 ● ● ● ● ● ● ● ●
99 02.585 LAMP; SIDE FLASHER
EXC. DOOR MIR ELEC FOLDING COLOR TU RN SIG,BRIGHT<DE3>,DOOR MIR ELEC FOLDING COLOR TURN SIG IND<DE4> 		8-97237-378-1 02 1 0710- ● ● ● ● ● ● ●
106 02.590 GASKET; SIDE TURN SIGNAL 8-97333-420-0 02 1 0307-0508 ● ● ● ● ● ● ● ●
106 02.590 GASKET; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC DUAL FOLDING CHR OME TURN SIGNAL<8JH> 		8-97333-420-0 02 1 0509-0709 ● ● ● ● ● ● ● ●
106 02.590 GASKET; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC FOLDING COLOR TU RN SIG,BRIGHT<DE3>,DOOR MIR ELEC FOLDING COLOR TURN SIG IND<DE4> 		8-97333-420-0 02 1 0710- ● ● ● ● ● ● ●
211 02.728 TUBE; HEADLAMP
(A) 		8-97333-983-0 04 1 0307-0411 ● ● ● ● ● ● ● ●
211 02.728 TUBE; HEADLAMP
(A) 		8-97333-983-0 02 1 0412-0506 ● ● ● ● ● ● ● ●
211 02.728 TUBE; HEADLAMP
(A) 		8-97333-983-0 04 1 0507-0609 ● ● ● ● ● ● ● ●
211 02.728 TUBE; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) 		8-97333-983-0 04 1 0610- ● ● ● ● ● ● ● ●
211 02.728 TUBE; HEADLAMP
FOG LAMP<T96> 02.722 (B) 		8-94451-175-0 02 1 0307-0609 ● ● ● ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP 8-97310-953-0 02 1 0307-0508 ● ● ● ● ● ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP
EXC. DOOR MIR ELEC DUAL FOLDING CHR OME TURN SIGNAL<8JH> 		8-97310-953-0 02 1 0509-0709 ● ● ● ● ● ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP
EXC. DOOR MIR ELEC FOLDING COLOR TU RN SIG,BRIGHT<DE3>,DOOR MIR ELEC FOLDING COLOR TURN SIG IND<DE4> 		8-97310-953-0 02 1 0710- ● ● ● ● ● ● ●
340 08.991 BULB; POSITION
12V 5W 		8-94124-595-0 02 1 0307- ● ● ● ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(A) 		8-97332-446-0 02 1 0307-0609 ● ● ● ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) 		8-97332-446-0 02 1 0610- ● ● ● ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(B) 		8-97332-447-0 02 1 0307-0609 ● ● ● ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (B) 		8-97332-447-0 02 1 0610- ● ● ● ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) 		8-98012-762-0 02 1 0610- ● ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (D) 		8-98012-788-0 02 1 0610- ● ● ● ● ● ●
424 02.727 RETAINER; FOG LAMP
FOG LAMP<T96> 16.494 		8-97372-854-0 02 1 0610- ● ● ● ● ● ● ● ●

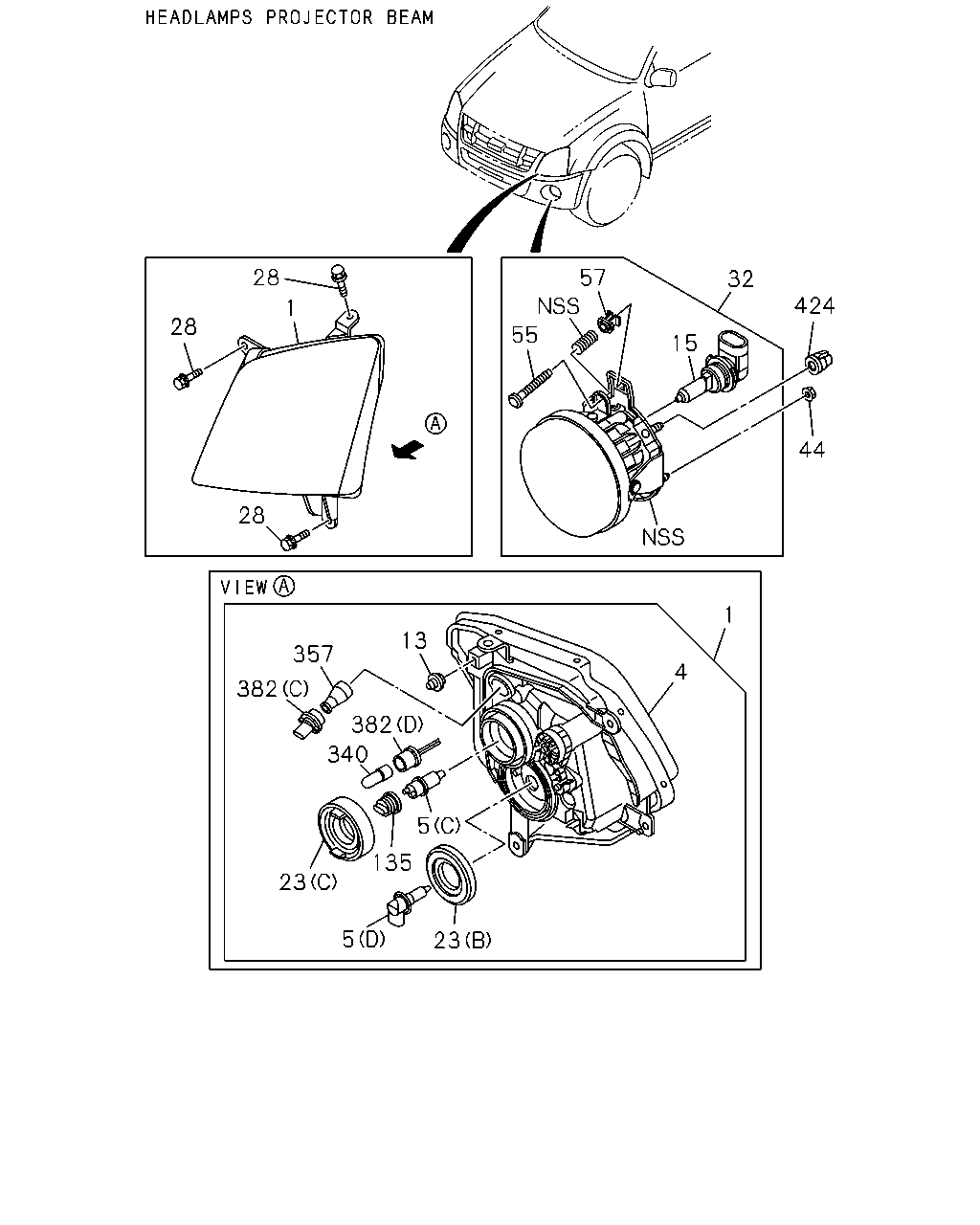

çizim 55930
424 32 15 44 57 55 1 28 28 28 357 382 13 382 340 23 135 5 23 5 4 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> ,HEADLAMPS PROJECTOR BEAM<8LH> 		8-97374-647-2 01 1 0610-0704 ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> ,HEADLAMPS PROJECTOR BEAM<8LH> 		8-98079-996-0 01 1 0705- ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> ,HEADLAMPS PROJECTOR BEAM<8LH> 		8-97374-646-2 01 1 0610-0704 ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> ,HEADLAMPS PROJECTOR BEAM<8LH> 		8-98079-995-0 01 1 0705- ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97237-500-3 01 1 0307-0307 ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-97237-500-3 01 1 0307-0307 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97367-728-0 01 1 0308-0312 ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-97367-728-0 01 1 0308-0312 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97374-214-0 01 1 0401-0411 ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-97374-214-0 01 1 0401-0411 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98004-312-0 01 1 0412-0506 ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98004-312-0 01 1 0412-0506 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98023-834-0 01 1 0507-0609 ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98023-834-0 01 1 0507-0609 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-97388-665-2 01 1 0610-0704 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98080-006-0 01 1 0705- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97237-499-3 01 1 0307-0307 ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-97237-499-3 01 1 0307-0307 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97367-727-0 01 1 0308-0312 ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-97367-727-0 01 1 0308-0312 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97374-213-0 01 1 0401-0411 ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-97374-213-0 01 1 0401-0411 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98004-311-0 01 1 0412-0506 ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98004-311-0 01 1 0412-0506 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98023-833-0 01 1 0507-0609 ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98023-833-0 01 1 0507-0609 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-97388-664-2 01 1 0610-0704 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98080-005-0 01 1 0705- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> 		8-97357-327-0 01 1 0307-0307 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> 		8-97367-732-0 01 1 0308-0312 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> 		8-97374-218-0 01 1 0401-0411 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> 		8-98004-316-0 01 1 0412-0506 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> 		8-98023-838-0 01 1 0507-0609 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 		8-97388-667-2 01 1 0610-0704 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98080-008-0 01 1 0705- ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> 		8-97237-504-3 01 1 0307-0307 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> 		8-97367-731-0 01 1 0308-0312 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> 		8-97374-217-0 01 1 0401-0411 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> 		8-98004-315-0 01 1 0412-0506 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> 		8-98023-837-0 01 1 0507-0609 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 		8-97388-666-2 01 1 0610-0704 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98080-007-0 01 1 0705- ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-97374-649-2 01 1 0610-0704 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98079-998-0 01 1 0705- ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-97374-648-2 01 1 0610-0704 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98079-997-0 01 1 0705- ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. HEAD LAMP LEVELING MANUAL<T92> ,HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-758-0 01 1 0610- ● ● ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. HEAD LAMP LEVELING MANUAL<T92> ,HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-757-0 01 1 0610- ● ● ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-97332-439-0 01 1 0307-0411 ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-97332-439-0 01 1 0307-0411 ● ● ● ●
4 02.727 HEADLAMP UNIT 8-97379-813-0 01 1 0412-0609 ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-97379-813-0 01 1 0412-0609 ● ● ● ●
4 02.727 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98011-846-0 01 1 0610- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-97332-438-0 01 1 0307-0411 ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-97332-438-0 01 1 0307-0411 ● ● ● ●
4 02.727 HEADLAMP UNIT 8-97379-812-0 01 1 0412-0609 ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-97379-812-0 01 1 0412-0609 ● ● ● ●
4 02.727 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98011-845-0 01 1 0610- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
HEAD LAMP LEVELING MANUAL<T92> 		8-97332-443-0 01 1 0307-0411 ● ● ● ●
4 02.727 HEADLAMP UNIT
HEAD LAMP LEVELING MANUAL<T92> 		8-97379-809-0 01 1 0412-0609 ● ● ● ●
4 02.727 HEADLAMP UNIT
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-848-0 01 1 0610- ● ● ● ●
4 02.727 HEADLAMP UNIT
HEAD LAMP LEVELING MANUAL<T92> 		8-97332-442-0 01 1 0307-0411 ● ● ● ●
4 02.727 HEADLAMP UNIT
HEAD LAMP LEVELING MANUAL<T92> 		8-97379-808-0 01 1 0412-0609 ● ● ● ●
4 02.727 HEADLAMP UNIT
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-847-0 01 1 0610- ● ● ● ●
4 02.727 HEADLAMP UNIT
HEAD LAMP LEVELING MANUAL<T92> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-762-0 01 1 0610- ● ● ● ●
4 02.727 HEADLAMP UNIT
HEAD LAMP LEVELING MANUAL<T92> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-761-0 01 1 0610- ● ● ● ●
5 02.727 BULB; HEADLAMP
08.991 (A) 12V 21W 		8-97179-967-0 02 1 0307-0609 ● ● ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 08.991 (A) 12V 21W 		8-97179-967-0 02 1 0610- ● ● ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
(B) 12V 60/55W 		8-97914-323-0 02 1 0307-0609 ● ● ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) 12V 55W 		8-98011-475-0 02 1 0610- ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (B) 12V 60/55W 		8-98032-732-0 02 1 0610- ● ● ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (D) 12V 60W 		8-97289-997-0 02 1 0610- ● ● ● ● ● ●
13 02.736 CLIP; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> 		8-97378-145-0 02 1 0610- ● ● ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W 		8-97333-416-0 02 1 0307-0508 ● ● ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W 		8-98024-386-0 02 1 0509-0609 ● ● ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 02.727 12V 51W 		8-97286-998-0 02 1 0610- ● ● ● ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
(A) 		8-97332-448-0 02 1 0307-0609 ● ● ● ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) 		8-97332-448-0 02 1 0610- ● ● ● ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (B) 		8-97675-961-0 02 1 0610- ● ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) 		8-98011-477-0 02 1 0610- ● ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
02.726 M6X18 TAPPING W/LK&PL WASHER 		8-94372-359-0 08 1 0307-0611 ● ● ● ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER 		8-98062-140-0 08 1 0612- ● ● ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97363-012-0 01 1 0307-0509 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98030-125-0 01 1 0510-0609 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97363-011-0 01 1 0307-0509 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98030-124-0 01 1 0510-0609 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97374-661-1 02 1 0610-0904 ● ● ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98144-229-0 02 1 0905-1101 ● ● ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98169-680-0 02 1 1102- ● ● ● ● ● ● ● ●
44 02.737 NUT; FOG LAMP
FOG LAMP<T96> 01.062 M6 FLANGE 		0-91180-106-0 04 1 0307-0609 ● ● ● ● ● ●
44 02.737 NUT; FOG LAMP
FOG LAMP<T96> 08.915 M6 FLANGE 		8-98055-704-0 04 1 0610- ● ● ● ● ● ● ● ●
55 02.737 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> 		8-98017-834-0 02 1 0610- ● ● ● ● ● ● ● ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> 		8-98017-835-0 02 1 0610- ● ● ● ● ● ● ● ●
135 02.725 ADAPTER; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-476-0 02 1 0610- ● ● ● ● ● ●
340 08.991 BULB; POSITION
12V 5W 		8-94124-595-0 02 1 0307- ● ● ● ● ● ● ● ●
357 08.991 BULB; TURN SIGNAL
HEADLAMPS PROJECTOR BEAM<8LH> 12V 21W 		8-94124-074-0 02 1 0610- ● ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(A) 		8-97332-446-0 02 1 0307-0609 ● ● ● ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) 		8-97332-446-0 02 1 0610- ● ● ● ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(B) 		8-97332-447-0 02 1 0307-0609 ● ● ● ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (B) 		8-97332-447-0 02 1 0610- ● ● ● ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) 		8-98012-762-0 02 1 0610- ● ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (D) 		8-98012-788-0 02 1 0610- ● ● ● ● ● ●
424 02.727 RETAINER; FOG LAMP
FOG LAMP<T96> 16.494 		8-97372-854-0 02 1 0610- ● ● ● ● ● ● ● ●

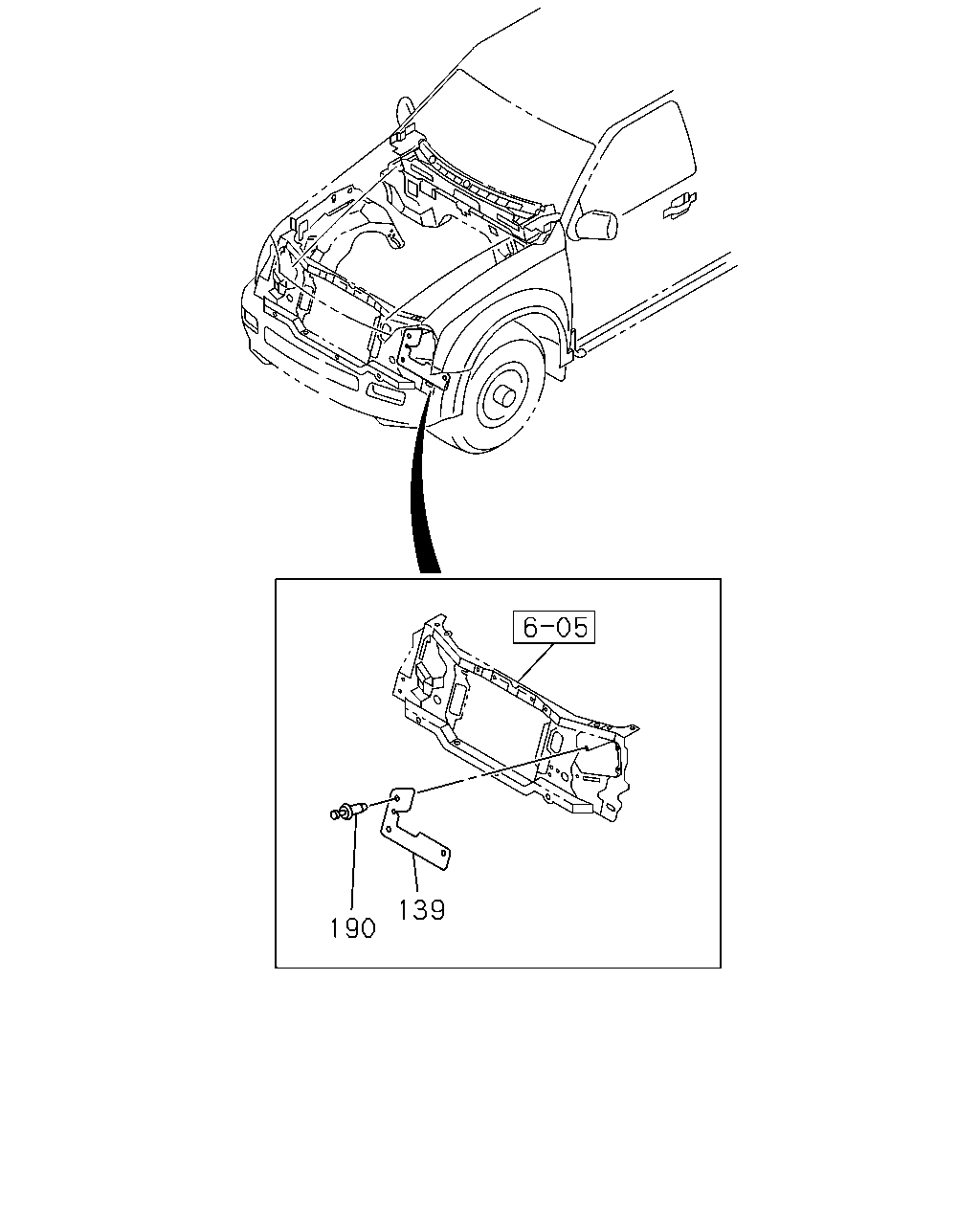

çizim 56137
190 139
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
139 02.726 COVER; HEADLAMP
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97333-394-0 02 1 0307-0609 ● ● ● ● ● ● ● ●
190 02.727 RETAINER; HEADLAMP
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 16.150 		8-94279-954-0 06 1 0307-0609 ● ● ● ● ● ● ● ●

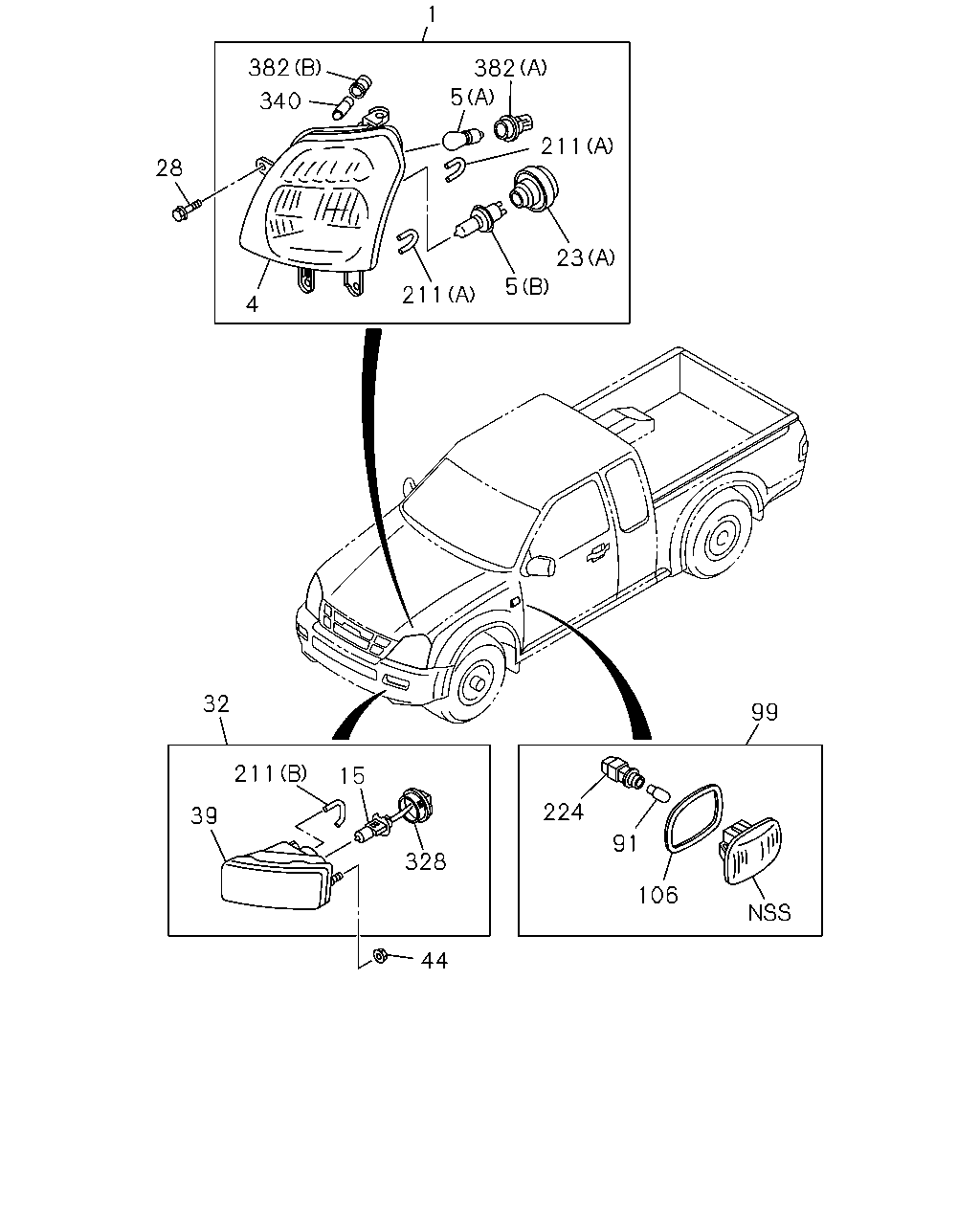

çizim 56298
1 382 340 28 4 211 23 211 5 382 99 106 91 224 328 15 211 32 39 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> ,HEADLAMPS PROJECTOR BEAM<8LH> 		8-97374-647-2 01 1 0610-0704 ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> ,HEADLAMPS PROJECTOR BEAM<8LH> 		8-98079-996-0 01 1 0705- ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> ,HEADLAMPS PROJECTOR BEAM<8LH> 		8-97374-646-2 01 1 0610-0704 ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> ,HEADLAMPS PROJECTOR BEAM<8LH> 		8-98079-995-0 01 1 0705- ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97237-500-3 01 1 0307-0307 ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-97237-500-3 01 1 0307-0307 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97367-728-0 01 1 0308-0312 ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-97367-728-0 01 1 0308-0312 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97374-214-0 01 1 0401-0411 ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-97374-214-0 01 1 0401-0411 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98004-312-0 01 1 0412-0506 ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98004-312-0 01 1 0412-0506 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98023-834-0 01 1 0507-0609 ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98023-834-0 01 1 0507-0609 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-97388-665-2 01 1 0610-0704 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98080-006-0 01 1 0705- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97237-499-3 01 1 0307-0307 ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-97237-499-3 01 1 0307-0307 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97367-727-0 01 1 0308-0312 ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-97367-727-0 01 1 0308-0312 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97374-213-0 01 1 0401-0411 ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-97374-213-0 01 1 0401-0411 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98004-311-0 01 1 0412-0506 ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98004-311-0 01 1 0412-0506 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98023-833-0 01 1 0507-0609 ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98023-833-0 01 1 0507-0609 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-97388-664-2 01 1 0610-0704 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98080-005-0 01 1 0705- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> 		8-97357-327-0 01 1 0307-0307 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> 		8-97367-732-0 01 1 0308-0312 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> 		8-97374-218-0 01 1 0401-0411 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> 		8-98004-316-0 01 1 0412-0506 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> 		8-98023-838-0 01 1 0507-0609 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 		8-97388-667-2 01 1 0610-0704 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98080-008-0 01 1 0705- ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> 		8-97237-504-3 01 1 0307-0307 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> 		8-97367-731-0 01 1 0308-0312 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> 		8-97374-217-0 01 1 0401-0411 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> 		8-98004-315-0 01 1 0412-0506 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> 		8-98023-837-0 01 1 0507-0609 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 		8-97388-666-2 01 1 0610-0704 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98080-007-0 01 1 0705- ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-97374-649-2 01 1 0610-0704 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98079-998-0 01 1 0705- ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-97374-648-2 01 1 0610-0704 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98079-997-0 01 1 0705- ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. HEAD LAMP LEVELING MANUAL<T92> ,HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-758-0 01 1 0610- ● ● ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. HEAD LAMP LEVELING MANUAL<T92> ,HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-757-0 01 1 0610- ● ● ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-97332-439-0 01 1 0307-0411 ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-97332-439-0 01 1 0307-0411 ● ● ● ●
4 02.727 HEADLAMP UNIT 8-97379-813-0 01 1 0412-0609 ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-97379-813-0 01 1 0412-0609 ● ● ● ●
4 02.727 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98011-846-0 01 1 0610- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-97332-438-0 01 1 0307-0411 ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-97332-438-0 01 1 0307-0411 ● ● ● ●
4 02.727 HEADLAMP UNIT 8-97379-812-0 01 1 0412-0609 ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-97379-812-0 01 1 0412-0609 ● ● ● ●
4 02.727 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98011-845-0 01 1 0610- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
HEAD LAMP LEVELING MANUAL<T92> 		8-97332-443-0 01 1 0307-0411 ● ● ● ●
4 02.727 HEADLAMP UNIT
HEAD LAMP LEVELING MANUAL<T92> 		8-97379-809-0 01 1 0412-0609 ● ● ● ●
4 02.727 HEADLAMP UNIT
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-848-0 01 1 0610- ● ● ● ●
4 02.727 HEADLAMP UNIT
HEAD LAMP LEVELING MANUAL<T92> 		8-97332-442-0 01 1 0307-0411 ● ● ● ●
4 02.727 HEADLAMP UNIT
HEAD LAMP LEVELING MANUAL<T92> 		8-97379-808-0 01 1 0412-0609 ● ● ● ●
4 02.727 HEADLAMP UNIT
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-847-0 01 1 0610- ● ● ● ●
4 02.727 HEADLAMP UNIT
HEAD LAMP LEVELING MANUAL<T92> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-762-0 01 1 0610- ● ● ● ●
4 02.727 HEADLAMP UNIT
HEAD LAMP LEVELING MANUAL<T92> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-761-0 01 1 0610- ● ● ● ●
5 02.727 BULB; HEADLAMP
08.991 (A) 12V 21W 		8-97179-967-0 02 1 0307-0609 ● ● ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 08.991 (A) 12V 21W 		8-97179-967-0 02 1 0610- ● ● ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
(B) 12V 60/55W 		8-97914-323-0 02 1 0307-0609 ● ● ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) 12V 55W 		8-98011-475-0 02 1 0610- ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (B) 12V 60/55W 		8-98032-732-0 02 1 0610- ● ● ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (D) 12V 60W 		8-97289-997-0 02 1 0610- ● ● ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W 		8-97333-416-0 02 1 0307-0508 ● ● ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W 		8-98024-386-0 02 1 0509-0609 ● ● ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 02.727 12V 51W 		8-97286-998-0 02 1 0610- ● ● ● ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
(A) 		8-97332-448-0 02 1 0307-0609 ● ● ● ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) 		8-97332-448-0 02 1 0610- ● ● ● ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (B) 		8-97675-961-0 02 1 0610- ● ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) 		8-98011-477-0 02 1 0610- ● ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
02.726 M6X18 TAPPING W/LK&PL WASHER 		8-94372-359-0 08 1 0307-0611 ● ● ● ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER 		8-98062-140-0 08 1 0612- ● ● ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97363-012-0 01 1 0307-0509 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98030-125-0 01 1 0510-0609 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97363-011-0 01 1 0307-0509 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98030-124-0 01 1 0510-0609 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97374-661-1 02 1 0610-0904 ● ● ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98144-229-0 02 1 0905-1101 ● ● ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98169-680-0 02 1 1102- ● ● ● ● ● ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> 		8-97333-415-0 01 1 0307-0609 ● ● ● ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> 		8-97333-414-0 01 1 0307-0609 ● ● ● ● ● ●
44 02.737 NUT; FOG LAMP
FOG LAMP<T96> 01.062 M6 FLANGE 		0-91180-106-0 04 1 0307-0609 ● ● ● ● ● ●
44 02.737 NUT; FOG LAMP
FOG LAMP<T96> 08.915 M6 FLANGE 		8-98055-704-0 04 1 0610- ● ● ● ● ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
12V 5W 		8-97310-952-0 02 1 0307-0508 ● ● ● ● ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC DUAL FOLDING CHR OME TURN SIGNAL<8JH> 12V 5W 		8-97310-952-0 02 1 0509-0709 ● ● ● ● ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC FOLDING COLOR TU RN SIG,BRIGHT<DE3>,DOOR MIR ELEC FOLDING COLOR TURN SIG IND<DE4> 12V 5W 		8-97310-952-0 02 1 0710- ● ● ● ● ● ● ●
99 02.585 LAMP; SIDE FLASHER 8-97237-378-1 02 1 0307-0508 ● ● ● ● ● ● ● ●
99 02.585 LAMP; SIDE FLASHER
EXC. DOOR MIR ELEC DUAL FOLDING CHR OME TURN SIGNAL<8JH> 		8-97237-378-1 02 1 0509-0709 ● ● ● ● ● ● ● ●
99 02.585 LAMP; SIDE FLASHER
EXC. DOOR MIR ELEC FOLDING COLOR TU RN SIG,BRIGHT<DE3>,DOOR MIR ELEC FOLDING COLOR TURN SIG IND<DE4> 		8-97237-378-1 02 1 0710- ● ● ● ● ● ● ●
106 02.590 GASKET; SIDE TURN SIGNAL 8-97333-420-0 02 1 0307-0508 ● ● ● ● ● ● ● ●
106 02.590 GASKET; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC DUAL FOLDING CHR OME TURN SIGNAL<8JH> 		8-97333-420-0 02 1 0509-0709 ● ● ● ● ● ● ● ●
106 02.590 GASKET; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC FOLDING COLOR TU RN SIG,BRIGHT<DE3>,DOOR MIR ELEC FOLDING COLOR TURN SIG IND<DE4> 		8-97333-420-0 02 1 0710- ● ● ● ● ● ● ●
211 02.728 TUBE; HEADLAMP
(A) 		8-97333-983-0 04 1 0307-0411 ● ● ● ● ● ● ● ●
211 02.728 TUBE; HEADLAMP
(A) 		8-97333-983-0 02 1 0412-0506 ● ● ● ● ● ● ● ●
211 02.728 TUBE; HEADLAMP
(A) 		8-97333-983-0 04 1 0507-0609 ● ● ● ● ● ● ● ●
211 02.728 TUBE; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) 		8-97333-983-0 04 1 0610- ● ● ● ● ● ● ● ●
211 02.728 TUBE; HEADLAMP
FOG LAMP<T96> 02.722 (B) 		8-94451-175-0 02 1 0307-0609 ● ● ● ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP 8-97310-953-0 02 1 0307-0508 ● ● ● ● ● ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP
EXC. DOOR MIR ELEC DUAL FOLDING CHR OME TURN SIGNAL<8JH> 		8-97310-953-0 02 1 0509-0709 ● ● ● ● ● ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP
EXC. DOOR MIR ELEC FOLDING COLOR TU RN SIG,BRIGHT<DE3>,DOOR MIR ELEC FOLDING COLOR TURN SIG IND<DE4> 		8-97310-953-0 02 1 0710- ● ● ● ● ● ● ●
328 02.725 COVER; LAMP
FOG LAMP<T96> 		8-97333-417-0 02 1 0307-0609 ● ● ● ● ● ●
340 08.991 BULB; POSITION
12V 5W 		8-94124-595-0 02 1 0307- ● ● ● ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(A) 		8-97332-446-0 02 1 0307-0609 ● ● ● ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) 		8-97332-446-0 02 1 0610- ● ● ● ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(B) 		8-97332-447-0 02 1 0307-0609 ● ● ● ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (B) 		8-97332-447-0 02 1 0610- ● ● ● ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) 		8-98012-762-0 02 1 0610- ● ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (D) 		8-98012-788-0 02 1 0610- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
