7-60 — SEAT BELT (#42978) — 242 parça

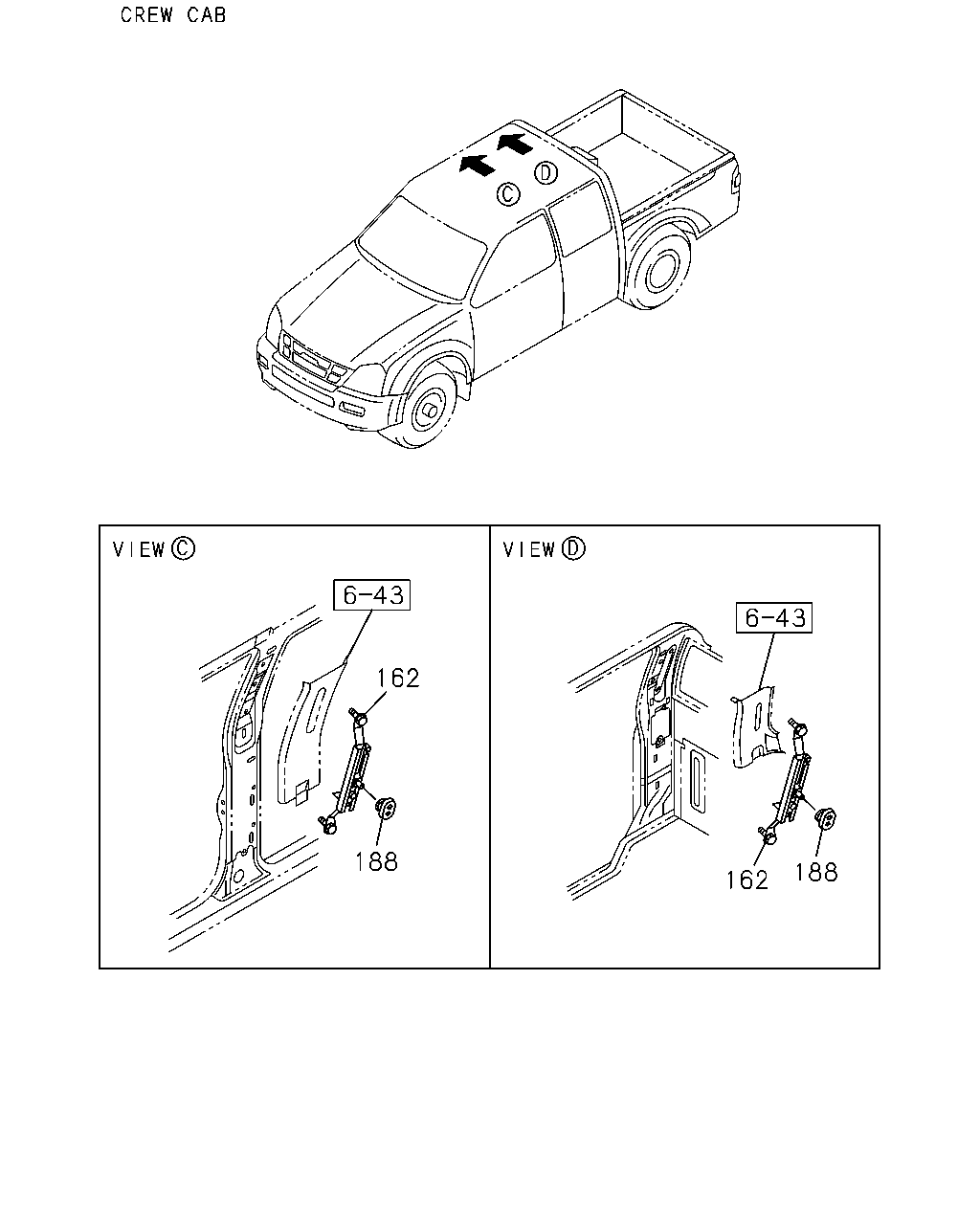

çizim 13002
162 188 162 188
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
162 16.714 ADJUSTER; SEAT BELT 8-97232-956-0 02 1 0307- ● ● ● ● ● ● ● ●
162 16.714 ADJUSTER; SEAT BELT 8-97232-956-0 02 1 0307- ● ●
188 16.714 KNOB; LEVER
DARK GRAY 		8-97392-647-0 02 1 0307-0609 ● ● ● ● ● ● ● ●
188 16.714 KNOB; LEVER
DARK GRAY 		8-97392-647-0 02 1 0307-0609 ● ●
188 16.714 KNOB; LEVER
LIGHT GRAY 		8-97403-338-0 02 1 0610- ● ● ● ● ● ● ● ●
188 16.714 KNOB; LEVER
LIGHT GRAY 		8-97403-338-0 02 1 0610- ● ●

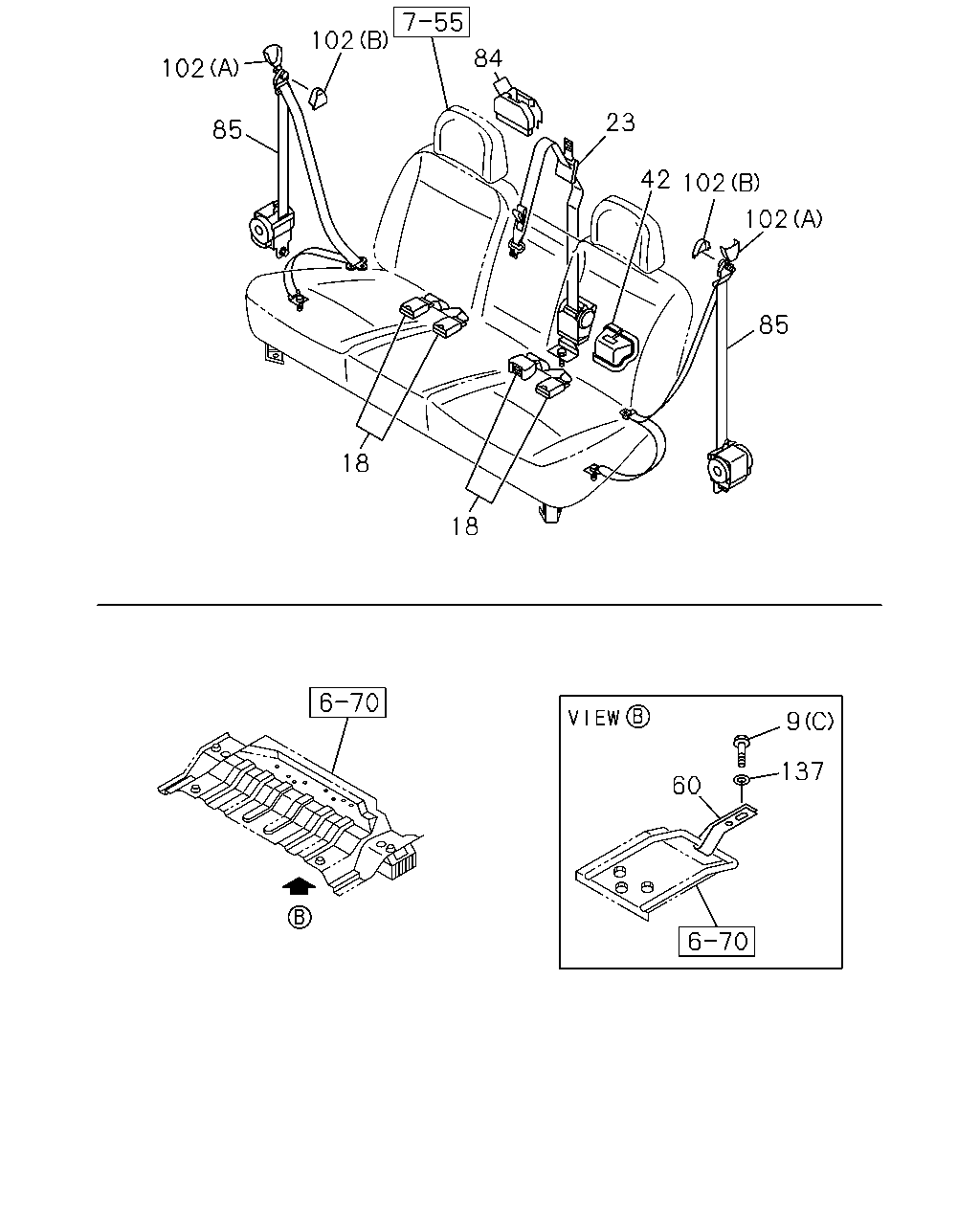

çizim 54428
102 102 85 18 18 85 102 102 42 23 84 60 137 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. JUMP SEAT<AJ2> (B) 		8-97248-987-0 02 1 0307-0609 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
(B) 		8-97248-987-0 02 1 0307-0609 ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. JUMP SEAT<AJ2> 16.682 (B) M12X27.5 W/PL WASHER 		8-98050-319-0 02 1 0610-0709 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
16.682 (B) M12X27.5 W/PL WASHER 		8-98050-319-0 02 1 0610-0709 ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. JUMP SEAT<AJ2> 16.682 (B) M12X27.5 W/PL WASHER 		8-98050-319-0 02 1 0710- ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
BENCH SEAT<A52> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 04 1 0307-0609 ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 04 1 0610- ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
BENCH SEAT<A52> SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 02 1 0307-0402 ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-665-0 02 1 0307-0508 ● ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 01 1 0509-0609 ● ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 01 1 0509-0609 ● ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 01 1 0610- ● ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 01 1 0610- ● ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70>, FRONT SEAT BACK POCKET(E91) (A) 		8-97332-665-0 01 1 0610- ● ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70>, FRONT SEAT BACK POCKET(E91) (A) 		8-97332-665-0 01 1 0610- ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70>, FRONT SEAT BACK POCKET(E91) (A) 		8-97332-665-0 02 1 0610- ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
BENCH SEAT<A52> SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 02 1 0403-0609 ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 02 1 0610- ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
07.039 (C) M12X35 FLANGE 		0-28691-235-0 02 1 0307-0601 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
00.004 (C) M12X35 FLANGE 		0-28661-235-0 02 1 0602- ● ●
18 16.714 BELT; SEAT,RR
DARK GRAY 		8-97396-204-0 01 1 0307-0609 ● ●
18 16.714 BELT; SEAT,RR
DARK GRAY 		8-97407-564-0 01 1 0610- ● ●
18 16.714 BELT; SEAT,RR
DARK GRAY 		8-97298-691-0 01 1 0307-0609 ● ●
18 16.714 BELT; SEAT,RR
DARK GRAY 		8-97407-563-0 01 1 0610- ● ●
23 16.714 BELT; SEAT,CENTER
AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97396-203-1 01 1 0307-0609 ● ●
23 16.714 BELT; SEAT,CENTER
AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97406-886-1 01 1 0610-0802 ● ●
23 16.714 BELT; SEAT,CENTER
AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97413-173-0 01 1 0803-0811 ● ●
23 16.714 BELT; SEAT,CENTER
AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97417-023-0 01 1 0812- ● ●
23 16.714 BELT; SEAT,CENTER
EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97396-202-1 01 1 0307-0609 ● ●
23 16.714 BELT; SEAT,CENTER
EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97406-885-1 01 1 0610-0809 ● ●
23 16.714 BELT; SEAT,CENTER
EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97413-171-0 01 1 0810-0811 ● ●
23 16.714 BELT; SEAT,CENTER
EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97417-021-0 01 1 0812- ● ●
42 16.578 COVER; SEAT BELT
GRADE DX(RBA) DARK GRAY 		8-97293-970-1 01 1 0307-0609 ● ●
42 16.578 COVER; SEAT BELT
GRADE DX(RBA) DARK GRAY 		8-97403-352-1 01 1 0610- ● ●
60 16.714 BRACKET; SHOULDER RETRACTOR 8-97324-174-1 01 1 0307- ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
DARK GRAY 		8-97396-474-0 01 1 0307-0609 ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
DARK GRAY 		8-97403-355-0 01 1 0610- ● ●
85 16.714 BELT; SEAT,RR OUTER
JUMP SEAT<AJ2> AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97395-943-0 02 1 0307-0402 ● ●
85 16.714 BELT; SEAT,RR OUTER
JUMP SEAT<AJ2> AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97399-427-1 02 1 0403-0609 ● ●
85 16.714 BELT; SEAT,RR OUTER
JUMP SEAT<AJ2> AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97405-874-1 02 1 0610-0709 ● ●
85 16.714 BELT; SEAT,RR OUTER
JUMP SEAT<AJ2> AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97405-874-1 02 1 0710-0802 ● ● ●
85 16.714 BELT; SEAT,RR OUTER
JUMP SEAT<AJ2> AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97413-187-0 02 1 0803-0811 ● ● ●
85 16.714 BELT; SEAT,RR OUTER
JUMP SEAT<AJ2> AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97417-038-0 02 1 0812- ● ● ●
85 16.714 BELT; SEAT,RR OUTER
JUMP SEAT<AJ2> EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97395-944-0 02 1 0307-0402 ● ●
85 16.714 BELT; SEAT,RR OUTER
JUMP SEAT<AJ2> EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97399-426-1 02 1 0403-0609 ● ●
85 16.714 BELT; SEAT,RR OUTER
JUMP SEAT<AJ2> EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97405-873-1 02 1 0610-0809 ● ●
85 16.714 BELT; SEAT,RR OUTER
JUMP SEAT<AJ2> EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97413-185-0 02 1 0810-0811 ● ●
85 16.714 BELT; SEAT,RR OUTER
JUMP SEAT<AJ2> EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97417-036-0 02 1 0812- ● ●
85 16.714 BELT; SEAT,RR OUTER
AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97299-317-3 02 1 0307-0402 ● ●
85 16.714 BELT; SEAT,RR OUTER
AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97399-425-1 02 1 0403-0609 ● ●
85 16.714 BELT; SEAT,RR OUTER
AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97405-872-1 02 1 0610-0802 ● ●
85 16.714 BELT; SEAT,RR OUTER
AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97413-183-0 02 1 0803-0811 ● ●
85 16.714 BELT; SEAT,RR OUTER
AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97417-034-0 02 1 0812- ● ●
85 16.714 BELT; SEAT,RR OUTER
EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97294-003-4 02 1 0307-0402 ● ●
85 16.714 BELT; SEAT,RR OUTER
EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97399-424-1 02 1 0403-0609 ● ●
85 16.714 BELT; SEAT,RR OUTER
EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97403-348-1 02 1 0610-0809 ● ●
85 16.714 BELT; SEAT,RR OUTER
EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97413-180-0 02 1 0810-0811 ● ●
85 16.714 BELT; SEAT,RR OUTER
EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97417-031-0 02 1 0812- ● ●
102 16.714 COVER; SHOULDER ANCHOR
(A) DARK GRAY 		8-97395-750-0 01 1 0307-0402 ● ● ● ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
(A) DARK GRAY 		8-97395-750-0 01 1 0307-0402 ● ● ● ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
JUMP SEAT<AJ2> (A) DARK GRAY 		8-97395-750-0 02 1 0307-0402 ● ●
102 16.714 COVER; SHOULDER ANCHOR
(A) DARK GRAY 		8-97395-750-0 02 1 0307-0402 ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) DARK GRAY 		8-97399-431-0 02 1 0403-0609 ● ● ● ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
JUMP SEAT<AJ2> (B) DARK GRAY 		8-97399-431-0 02 1 0403-0609 ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) DARK GRAY 		8-97399-431-0 02 1 0403-0609 ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) LIGHT GRAY 		8-97403-340-0 02 1 0610-0709 ● ● ● ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
JUMP SEAT<AJ2> (B) LIGHT GRAY 		8-97403-340-0 02 1 0610-0709 ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) LIGHT GRAY 		8-97403-340-0 02 1 0610-0709 ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) LIGHT GRAY 		8-97403-340-0 02 1 0710- ● ● ● ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
JUMP SEAT<AJ2> (B) LIGHT GRAY 		8-97403-340-0 02 1 0710- ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) LIGHT GRAY 		8-97403-340-0 02 1 0710- ● ●
137 16.714 WASHER; PL,SEAT BELT
09.011 ID=12.5 OD=26 		9-09164-612-0 02 1 0307-0701 ● ●
137 16.714 WASHER; PL,SEAT BELT
02.812 ID=12.5 OD=26 		0-91610-612-0 02 1 0702- ● ●

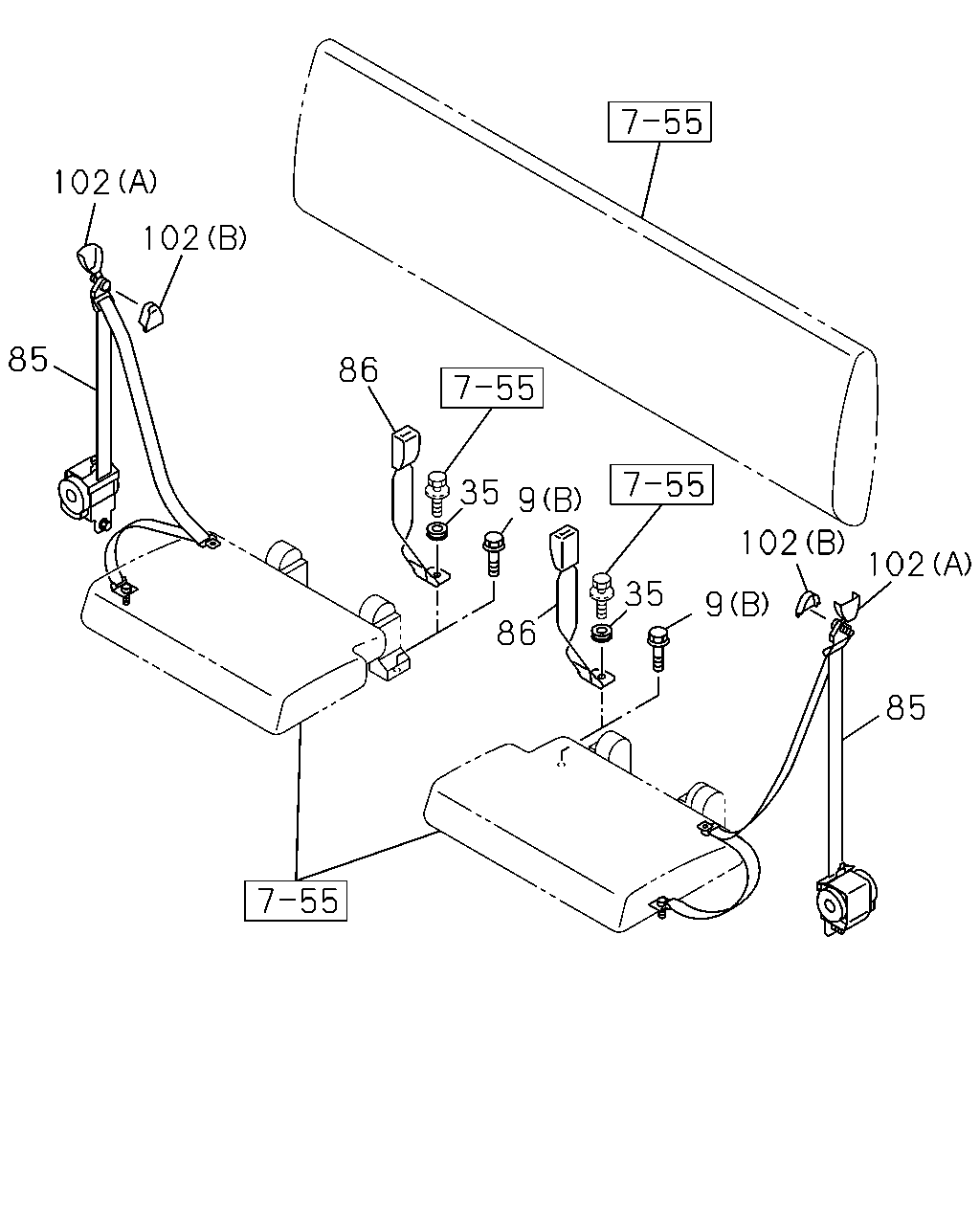

çizim 54678
102 85 102 86 35 9 86 35 9 102 102 85
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. JUMP SEAT<AJ2> (B) 		8-97248-987-0 02 1 0307-0609 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
(B) 		8-97248-987-0 02 1 0307-0609 ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. JUMP SEAT<AJ2> 16.682 (B) M12X27.5 W/PL WASHER 		8-98050-319-0 02 1 0610-0709 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
16.682 (B) M12X27.5 W/PL WASHER 		8-98050-319-0 02 1 0610-0709 ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. JUMP SEAT<AJ2> 16.682 (B) M12X27.5 W/PL WASHER 		8-98050-319-0 02 1 0710- ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
BENCH SEAT<A52> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 04 1 0307-0609 ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 04 1 0610- ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
BENCH SEAT<A52> SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 02 1 0307-0402 ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-665-0 02 1 0307-0508 ● ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 01 1 0509-0609 ● ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 01 1 0509-0609 ● ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 01 1 0610- ● ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 01 1 0610- ● ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70>, FRONT SEAT BACK POCKET(E91) (A) 		8-97332-665-0 01 1 0610- ● ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70>, FRONT SEAT BACK POCKET(E91) (A) 		8-97332-665-0 01 1 0610- ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70>, FRONT SEAT BACK POCKET(E91) (A) 		8-97332-665-0 02 1 0610- ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
BENCH SEAT<A52> SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 02 1 0403-0609 ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 02 1 0610- ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
07.039 (C) M12X35 FLANGE 		0-28691-235-0 02 1 0307-0601 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
00.004 (C) M12X35 FLANGE 		0-28661-235-0 02 1 0602- ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
JUMP SEAT<AJ2> SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> 		8-97370-311-0 02 1 0307-0609 ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2> 		8-97370-311-0 02 1 0610-0709 ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2> 		8-97370-311-0 02 1 0710- ● ● ●
85 16.714 BELT; SEAT,RR OUTER
JUMP SEAT<AJ2> AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97395-943-0 02 1 0307-0402 ● ●
85 16.714 BELT; SEAT,RR OUTER
JUMP SEAT<AJ2> AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97399-427-1 02 1 0403-0609 ● ●
85 16.714 BELT; SEAT,RR OUTER
JUMP SEAT<AJ2> AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97405-874-1 02 1 0610-0709 ● ●
85 16.714 BELT; SEAT,RR OUTER
JUMP SEAT<AJ2> AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97405-874-1 02 1 0710-0802 ● ● ●
85 16.714 BELT; SEAT,RR OUTER
JUMP SEAT<AJ2> AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97413-187-0 02 1 0803-0811 ● ● ●
85 16.714 BELT; SEAT,RR OUTER
JUMP SEAT<AJ2> AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97417-038-0 02 1 0812- ● ● ●
85 16.714 BELT; SEAT,RR OUTER
JUMP SEAT<AJ2> EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97395-944-0 02 1 0307-0402 ● ●
85 16.714 BELT; SEAT,RR OUTER
JUMP SEAT<AJ2> EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97399-426-1 02 1 0403-0609 ● ●
85 16.714 BELT; SEAT,RR OUTER
JUMP SEAT<AJ2> EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97405-873-1 02 1 0610-0809 ● ●
85 16.714 BELT; SEAT,RR OUTER
JUMP SEAT<AJ2> EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97413-185-0 02 1 0810-0811 ● ●
85 16.714 BELT; SEAT,RR OUTER
JUMP SEAT<AJ2> EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97417-036-0 02 1 0812- ● ●
85 16.714 BELT; SEAT,RR OUTER
AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97299-317-3 02 1 0307-0402 ● ●
85 16.714 BELT; SEAT,RR OUTER
AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97399-425-1 02 1 0403-0609 ● ●
85 16.714 BELT; SEAT,RR OUTER
AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97405-872-1 02 1 0610-0802 ● ●
85 16.714 BELT; SEAT,RR OUTER
AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97413-183-0 02 1 0803-0811 ● ●
85 16.714 BELT; SEAT,RR OUTER
AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97417-034-0 02 1 0812- ● ●
85 16.714 BELT; SEAT,RR OUTER
EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97294-003-4 02 1 0307-0402 ● ●
85 16.714 BELT; SEAT,RR OUTER
EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97399-424-1 02 1 0403-0609 ● ●
85 16.714 BELT; SEAT,RR OUTER
EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97403-348-1 02 1 0610-0809 ● ●
85 16.714 BELT; SEAT,RR OUTER
EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97413-180-0 02 1 0810-0811 ● ●
85 16.714 BELT; SEAT,RR OUTER
EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97417-031-0 02 1 0812- ● ●
86 16.714 BELT; SEAT,RR INNER
JUMP SEAT<AJ2> SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> DARK GRAY 		8-97391-106-0 02 1 0307-0609 ● ●
86 16.714 BELT; SEAT,RR INNER
CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2> DARK GRAY 		8-97404-957-0 02 1 0610-0709 ● ●
86 16.714 BELT; SEAT,RR INNER
CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2> DARK GRAY 		8-97404-957-0 02 1 0710- ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
(A) DARK GRAY 		8-97395-750-0 01 1 0307-0402 ● ● ● ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
(A) DARK GRAY 		8-97395-750-0 01 1 0307-0402 ● ● ● ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
JUMP SEAT<AJ2> (A) DARK GRAY 		8-97395-750-0 02 1 0307-0402 ● ●
102 16.714 COVER; SHOULDER ANCHOR
(A) DARK GRAY 		8-97395-750-0 02 1 0307-0402 ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) DARK GRAY 		8-97399-431-0 02 1 0403-0609 ● ● ● ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
JUMP SEAT<AJ2> (B) DARK GRAY 		8-97399-431-0 02 1 0403-0609 ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) DARK GRAY 		8-97399-431-0 02 1 0403-0609 ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) LIGHT GRAY 		8-97403-340-0 02 1 0610-0709 ● ● ● ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
JUMP SEAT<AJ2> (B) LIGHT GRAY 		8-97403-340-0 02 1 0610-0709 ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) LIGHT GRAY 		8-97403-340-0 02 1 0610-0709 ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) LIGHT GRAY 		8-97403-340-0 02 1 0710- ● ● ● ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
JUMP SEAT<AJ2> (B) LIGHT GRAY 		8-97403-340-0 02 1 0710- ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) LIGHT GRAY 		8-97403-340-0 02 1 0710- ● ●

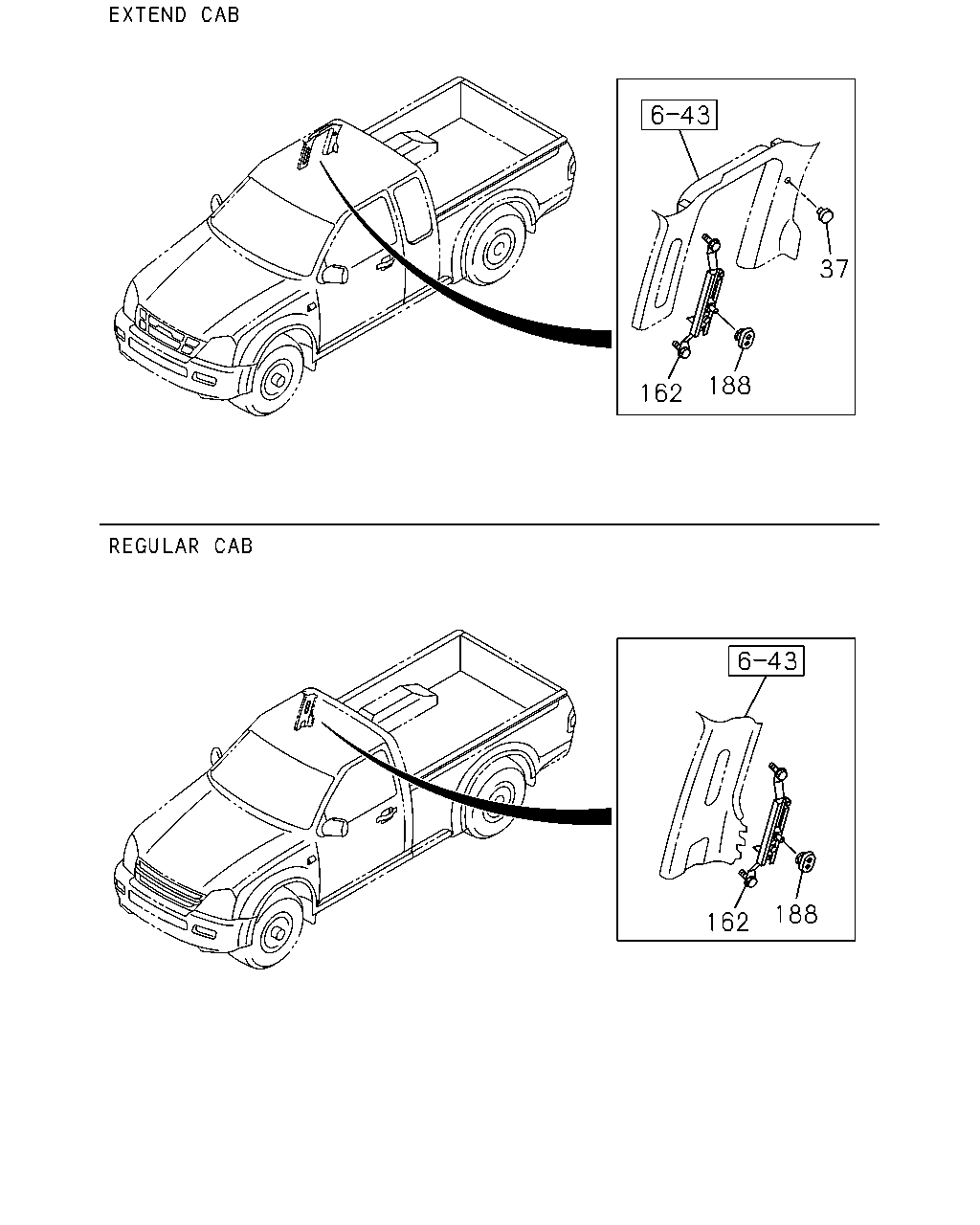

çizim 56294
37 188 162 162 188
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. JUMP SEAT<AJ2> DARK GRAY 		8-97360-231-0 02 1 0307-0312 ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
DARK GRAY 		8-97360-231-0 02 1 0307-0312 ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. JUMP SEAT<AJ2> DARK GRAY 		8-97399-694-0 02 1 0401-0609 ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
DARK GRAY 		8-97399-694-0 02 1 0401-0609 ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. JUMP SEAT<AJ2> LIGHT GRAY 		8-97403-353-0 02 1 0610-0709 ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
LIGHT GRAY 		8-97403-353-0 02 1 0610-0709 ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. JUMP SEAT<AJ2> LIGHT GRAY 		8-97403-353-0 02 1 0710- ● ● ●
162 16.714 ADJUSTER; SEAT BELT 8-97232-956-0 02 1 0307- ● ● ● ● ● ● ● ●
162 16.714 ADJUSTER; SEAT BELT 8-97232-956-0 02 1 0307- ● ●
188 16.714 KNOB; LEVER
DARK GRAY 		8-97392-647-0 02 1 0307-0609 ● ● ● ● ● ● ● ●
188 16.714 KNOB; LEVER
DARK GRAY 		8-97392-647-0 02 1 0307-0609 ● ●
188 16.714 KNOB; LEVER
LIGHT GRAY 		8-97403-338-0 02 1 0610- ● ● ● ● ● ● ● ●
188 16.714 KNOB; LEVER
LIGHT GRAY 		8-97403-338-0 02 1 0610- ● ●

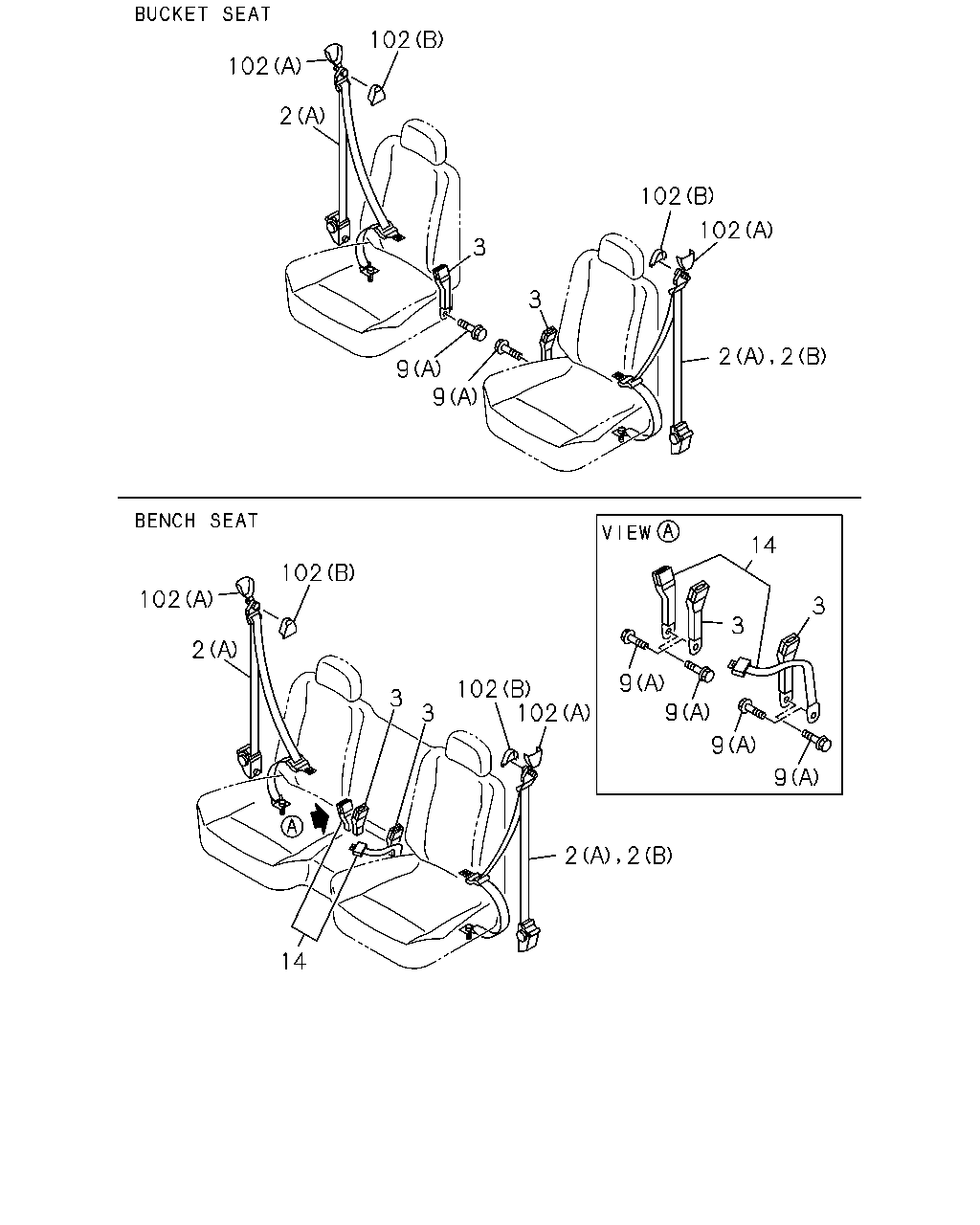

çizim 56425
2 2 102 102 3 3 102 102 2 9 9 102 102 2 3 3 102 102 2 2 14 9 9 9 14 3 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 16.714 BELT; SEAT,TONGUE SIDE
(A) DARK GRAY 		8-97294-002-5 01 1 0307-0402 ● ● ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. AUSTRALIA EQUIPMENT(B13) (A) DARK GRAY 		8-97294-002-5 01 1 0307-0402 ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
(A) DARK GRAY 		8-97399-422-1 01 1 0403-0609 ● ● ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. AUSTRALIA EQUIPMENT(B13) (A) DARK GRAY 		8-97399-422-1 01 1 0403-0609 ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. AUSTRALIA EQUIPMENT(B13) (A) PASSENGER SIDE DARK GRAY 		8-97403-336-1 01 1 0610-0809 ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. AUSTRALIA EQUIPMENT(B13) (A) PASSENGER SIDE DARK GRAY 		8-97413-190-0 01 1 0810-0811 ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. AUSTRALIA EQUIPMENT(B13) (A) PASSENGER SIDE DARK GRAY 		8-97417-025-0 01 1 0812- ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
(A) DRIVER SIDE DARK GRAY 		8-97407-845-0 01 1 0610-0809 ● ● ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
(A) DRIVER SIDE DARK GRAY 		8-97413-176-0 01 1 0810-0811 ● ● ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
(A) DRIVER SIDE DARK GRAY 		8-97417-018-0 01 1 0812- ● ● ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AUSTRALIA EQUIPMENT(B13) (B) DARK GRAY 		8-97394-149-3 01 1 0307-0402 ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
(B) DARK GRAY 		8-97394-149-3 01 1 0307-0402 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AUSTRALIA EQUIPMENT(B13) (B) DARK GRAY 		8-97399-423-1 01 1 0403-0609 ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
(B) DARK GRAY 		8-97399-423-1 01 1 0403-0609 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AUSTRALIA EQUIPMENT(B13) (B) DARK GRAY 		8-97405-871-1 01 1 0610-0802 ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
(B) DARK GRAY 		8-97405-871-1 01 1 0610-0802 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AUSTRALIA EQUIPMENT(B13) (B) DARK GRAY 		8-97413-178-0 01 1 0803-0811 ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
(B) DARK GRAY 		8-97413-178-0 01 1 0803-0811 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AUSTRALIA EQUIPMENT(B13) (B) DARK GRAY 		8-97417-028-0 01 1 0812- ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
(B) DARK GRAY 		8-97417-028-0 01 1 0812- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97298-690-1 01 1 0403-0609 ● ● ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97298-690-1 01 1 0403-0609 ● ● ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97408-866-0 01 1 0610-0808 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97416-317-1 01 1 0809- ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97398-481-1 01 1 0610- ● ● ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97398-481-1 01 1 0610- ● ● ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70>, FRONT SEAT BACK POCKET(E91) DARK GRAY 		8-97398-481-1 01 1 0610- ● ● ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70>, FRONT SEAT BACK POCKET(E91) DARK GRAY 		8-97398-481-1 01 1 0610- ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BENCH SEAT<A52> EXC. SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97298-688-0 02 1 0307-0609 ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> EXC. SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97405-237-0 02 1 0610-1009 ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> EXC. SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97405-237-0 02 1 1010-1010 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> EXC. SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97405-237-0 02 1 1011- ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97408-867-0 01 1 0610-0808 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97416-318-1 01 1 0809- ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97408-869-0 01 1 0610-0808 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97416-329-1 01 1 0809- ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
FRONT SEAT BUCKET TYPE<A50> SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97396-200-0 01 1 0307-0307 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
FRONT SEAT BUCKET TYPE<A50> SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97398-498-0 01 1 0308-0609 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97408-868-0 01 1 0610-0808 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> SEAT BELT TENSIONER FRT<A70> FRONT SEAT BACK POCKET(E91) DARK GRAY 		8-97408-868-0 01 1 0610-0808 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97416-330-1 01 1 0809- ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> SEAT BELT TENSIONER FRT<A70> FRONT SEAT BACK POCKET(E91) DARK GRAY 		8-97416-330-1 01 1 0809- ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
FRONT SEAT BUCKET TYPE<A50> SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97396-201-0 01 1 0307-0307 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
FRONT SEAT BUCKET TYPE<A50> SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97398-499-0 01 1 0308-0609 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> SEAT BELT TENSIONER FRT<A70> EXC. FRONT SEAT BACK POCKET(E91) DARK GRAY 		8-97408-868-0 01 1 0610-0808 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> SEAT BELT TENSIONER FRT<A70> EXC. FRONT SEAT BACK POCKET(E91) DARK GRAY 		8-97416-330-1 01 1 0809- ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> EXC. SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97405-237-0 01 1 1010-1010 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> EXC. SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97405-237-0 01 1 1010-1010 ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. JUMP SEAT<AJ2> (B) 		8-97248-987-0 02 1 0307-0609 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
(B) 		8-97248-987-0 02 1 0307-0609 ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. JUMP SEAT<AJ2> 16.682 (B) M12X27.5 W/PL WASHER 		8-98050-319-0 02 1 0610-0709 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
16.682 (B) M12X27.5 W/PL WASHER 		8-98050-319-0 02 1 0610-0709 ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. JUMP SEAT<AJ2> 16.682 (B) M12X27.5 W/PL WASHER 		8-98050-319-0 02 1 0710- ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
BENCH SEAT<A52> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 04 1 0307-0609 ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 04 1 0610- ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
BENCH SEAT<A52> SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 02 1 0307-0402 ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-665-0 02 1 0307-0508 ● ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 01 1 0509-0609 ● ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 01 1 0509-0609 ● ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 01 1 0610- ● ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 01 1 0610- ● ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70>, FRONT SEAT BACK POCKET(E91) (A) 		8-97332-665-0 01 1 0610- ● ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70>, FRONT SEAT BACK POCKET(E91) (A) 		8-97332-665-0 01 1 0610- ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70>, FRONT SEAT BACK POCKET(E91) (A) 		8-97332-665-0 02 1 0610- ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
BENCH SEAT<A52> SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 02 1 0403-0609 ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 02 1 0610- ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
07.039 (C) M12X35 FLANGE 		0-28691-235-0 02 1 0307-0601 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
00.004 (C) M12X35 FLANGE 		0-28661-235-0 02 1 0602- ● ●
14 16.714 BELT; SEAT,CENTER
BENCH SEAT<A52> DARK GRAY 		8-97298-689-1 01 1 0307-0609 ● ● ● ● ●
14 16.714 BELT; SEAT,CENTER
VINYL TRIM<8LJ> BENCH SEAT<A52> EXC. SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97405-239-1 01 1 0610-1009 ● ● ● ● ●
14 16.714 BELT; SEAT,CENTER
CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> DARK GRAY 		8-97405-239-1 01 1 0610-1009 ● ● ● ●
14 16.714 BELT; SEAT,CENTER
CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97405-239-1 01 1 1010-1010 ● ●
14 16.714 BELT; SEAT,CENTER
VINYL TRIM<8LJ> BENCH SEAT<A52> EXC. SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97405-239-1 01 1 1010-1010 ● ●
14 16.714 BELT; SEAT,CENTER
CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> DARK GRAY 		8-97405-239-1 01 1 1010-1010 ● ●
14 16.714 BELT; SEAT,CENTER
VINYL TRIM<8LJ> BENCH SEAT<A52> EXC. SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97405-239-1 01 1 1011- ● ● ● ● ●
14 16.714 BELT; SEAT,CENTER
CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> DARK GRAY 		8-97405-239-1 01 1 1011- ● ● ● ●
14 16.714 BELT; SEAT,CENTER
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> EXC. SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97405-239-1 01 1 1010-1010 ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
(A) DARK GRAY 		8-97395-750-0 01 1 0307-0402 ● ● ● ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
(A) DARK GRAY 		8-97395-750-0 01 1 0307-0402 ● ● ● ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
JUMP SEAT<AJ2> (A) DARK GRAY 		8-97395-750-0 02 1 0307-0402 ● ●
102 16.714 COVER; SHOULDER ANCHOR
(A) DARK GRAY 		8-97395-750-0 02 1 0307-0402 ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) DARK GRAY 		8-97399-431-0 02 1 0403-0609 ● ● ● ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
JUMP SEAT<AJ2> (B) DARK GRAY 		8-97399-431-0 02 1 0403-0609 ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) DARK GRAY 		8-97399-431-0 02 1 0403-0609 ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) LIGHT GRAY 		8-97403-340-0 02 1 0610-0709 ● ● ● ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
JUMP SEAT<AJ2> (B) LIGHT GRAY 		8-97403-340-0 02 1 0610-0709 ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) LIGHT GRAY 		8-97403-340-0 02 1 0610-0709 ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) LIGHT GRAY 		8-97403-340-0 02 1 0710- ● ● ● ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
JUMP SEAT<AJ2> (B) LIGHT GRAY 		8-97403-340-0 02 1 0710- ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) LIGHT GRAY 		8-97403-340-0 02 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
