Sayfa 7-55 - Isuzu EPC

7-55 — REAR SEAT (#42977) — 195 parça

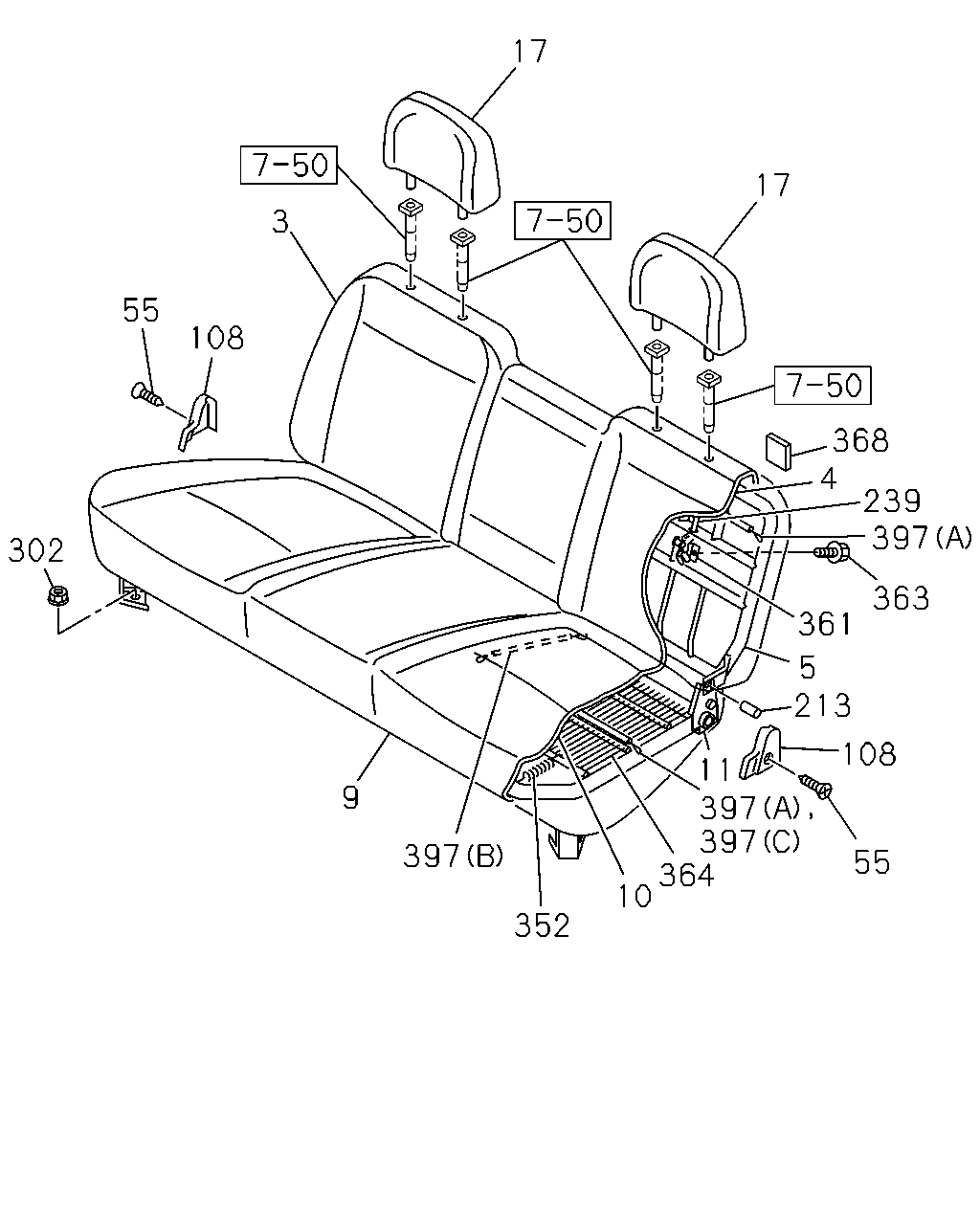

9 397 352 10 364 397 397 11 55 108 213 5 361 363 397 239 4 368 17 17 3 108 55 302

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
3	16.714 COVER; TRIM,RR SEAT BACK CLOTH SEAT MOQUETTE<8EP>	8-97332-783-0	01	1	0307-0508	●	●
3	16.714 COVER; TRIM,RR SEAT BACK CLOTH SEAT MOQUETTE<8EP> GRAY	8-97402-761-0	01	1	0509-0609	●	●
3	16.714 COVER; TRIM,RR SEAT BACK CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2> DARK GRAY	8-97407-079-0	01	1	0610-	●	●
3	16.714 COVER; TRIM,RR SEAT BACK SEAT CLOTH<7FL>	8-97332-782-0	01	1	0307-0508	●	●
3	16.714 COVER; TRIM,RR SEAT BACK	8-97332-782-0	01	1	0307-0508			●
3	16.714 COVER; TRIM,RR SEAT BACK SEAT CLOTH<7FL> GRAY	8-97402-760-0	01	1	0509-0609	●	●
3	16.714 COVER; TRIM,RR SEAT BACK GRAY	8-97402-760-0	01	1	0509-0609			●
3	16.714 COVER; TRIM,RR SEAT BACK CLOTH TRIM STANDARD, VAR 1<8LK> JUMP SEAT<AJ2> GRAY	8-97404-954-0	01	1	0610-0709	●	●
3	16.714 COVER; TRIM,RR SEAT BACK CLOTH TRIM STANDARD, VAR 1<8LK> JUMP SEAT<AJ2> GRAY	8-97404-954-0	01	1	0710-	●	●	●
3	16.714 COVER; TRIM,RR SEAT BACK CLOTH SEAT MOQUETTE<8EP>	8-97332-798-0	01	1	0307-0508				●	●
3	16.714 COVER; TRIM,RR SEAT BACK CLOTH SEAT MOQUETTE<8EP> GRAY	8-97402-766-0	01	1	0509-0609				●	●
3	16.714 COVER; TRIM,RR SEAT BACK CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY	8-97407-570-0	01	1	0610-				●	●
3	16.714 COVER; TRIM,RR SEAT BACK SEAT CLOTH<7FL>	8-97332-797-0	01	1	0307-0508				●	●
3	16.714 COVER; TRIM,RR SEAT BACK SEAT CLOTH<7FL> GRAY	8-97402-765-0	01	1	0509-0609				●	●
3	16.714 COVER; TRIM,RR SEAT BACK CLOTH TRIM STANDARD, VAR 1<8LK> GRAY	8-97407-569-0	01	1	0610-				●	●
3	16.714 COVER; TRIM,RR SEAT BACK VINYL SEAT W/RECLINING<A83>	8-97332-796-0	01	1	0307-0508				●	●
3	16.714 COVER; TRIM,RR SEAT BACK VINYL SEAT W/RECLINING<A83> GRAY	8-97402-767-0	01	1	0509-0609				●	●
3	16.714 COVER; TRIM,RR SEAT BACK VINYL TRIM<8LJ> GRAY	8-97407-571-0	01	1	0610-				●	●
4	16.720 PAD; RR,SEAT BACK	8-97332-784-0	01	1	0307-0609				●	●
4	16.720 PAD; RR,SEAT BACK	8-98028-774-0	01	1	0610-				●	●
5	16.720 FRAME ASM; RR SEAT BACK	8-97332-834-1	01	1	0307-0609				●	●
5	16.720 FRAME ASM; RR SEAT BACK	8-98028-772-0	01	1	0610-				●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION JUMP SEAT<AJ2> CLOTH SEAT MOQUETTE<8EP>	8-97353-254-0	01	1	0307-0508	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION JUMP SEAT<AJ2> CLOTH SEAT MOQUETTE<8EP> GRAY	8-97402-753-0	01	1	0509-0609	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2> DARK GRAY	8-97404-953-0	01	1	0610-	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION JUMP SEAT<AJ2> CLOTH SEAT MOQUETTE<8EP>	8-97353-251-0	01	1	0307-0508	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION JUMP SEAT<AJ2> CLOTH SEAT MOQUETTE<8EP> GRAY	8-97402-751-0	01	1	0509-0609	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2> DARK GRAY	8-97404-949-0	01	1	0610-	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION JUMP SEAT<AJ2> SEAT CLOTH<7FL>	8-97353-253-0	01	1	0307-0508	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION JUMP SEAT<AJ2> SEAT CLOTH<7FL> GRAY	8-97402-752-0	01	1	0509-0609	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION CLOTH TRIM STANDARD, VAR 1<8LK> JUMP SEAT<AJ2> GRAY	8-97404-952-0	01	1	0610-0709	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION CLOTH TRIM STANDARD, VAR 1<8LK> JUMP SEAT<AJ2> GRAY	8-97404-952-0	01	1	0710-	●	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION JUMP SEAT<AJ2> SEAT CLOTH<7FL>	8-97353-250-0	01	1	0307-0508	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION JUMP SEAT<AJ2> SEAT CLOTH<7FL> GRAY	8-97402-750-0	01	1	0509-0609	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION CLOTH TRIM STANDARD, VAR 1<8LK> JUMP SEAT<AJ2> GRAY	8-97404-948-0	01	1	0610-0709	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION CLOTH TRIM STANDARD, VAR 1<8LK> JUMP SEAT<AJ2> GRAY	8-97404-948-0	01	1	0710-	●	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION CLOTH SEAT MOQUETTE<8EP>	8-97332-869-0	01	1	0307-0508				●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION CLOTH SEAT MOQUETTE<8EP> GRAY	8-97402-747-0	01	1	0509-0609				●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY	8-97407-560-0	01	1	0610-				●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT CLOTH<7FL>	8-97332-868-0	01	1	0307-0508				●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT CLOTH<7FL> GRAY	8-97402-746-0	01	1	0509-0609				●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION CLOTH TRIM STANDARD, VAR 1<8LK> GRAY	8-97407-559-0	01	1	0610-				●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION VINYL SEAT W/RECLINING<A83>	8-97332-867-0	01	1	0307-0508				●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION VINYL SEAT W/RECLINING<A83> GRAY	8-97402-745-0	01	1	0509-0609				●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION VINYL TRIM<8LJ> GRAY	8-97407-558-0	01	1	0610-				●	●
10	16.716 PAD; CUSHION,RR SEAT	8-97332-862-0	01	1	0307-0609				●	●
10	16.716 PAD; CUSHION,RR SEAT	8-98028-694-0	01	1	0610-				●	●
11	16.716 FRAME ASM; CUSHION,RR SEAT	8-97332-856-0	01	1	0307-0609				●	●
11	16.716 FRAME ASM; CUSHION,RR SEAT	8-98028-686-0	01	1	0610-				●	●
17	16.718 REST; HD,RR SEAT CLOTH SEAT MOQUETTE<8EP>	8-97332-842-0	02	1	0307-0508				●	●
17	16.718 REST; HD,RR SEAT CLOTH SEAT MOQUETTE<8EP> GRAY	8-97402-755-0	02	1	0509-0609				●	●
17	16.718 REST; HD,RR SEAT CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY	8-97406-971-0	02	1	0610-				●	●
17	16.718 REST; HD,RR SEAT SEAT CLOTH<7FL>	8-97332-841-0	02	1	0307-0508				●	●
17	16.718 REST; HD,RR SEAT SEAT CLOTH<7FL> GRAY	8-97402-754-0	02	1	0509-0609				●	●
17	16.718 REST; HD,RR SEAT CLOTH TRIM STANDARD, VAR 1<8LK> GRAY	8-97406-974-0	02	1	0610-				●	●
17	16.718 REST; HD,RR SEAT VINYL SEAT W/RECLINING<A83>	8-97332-840-0	02	1	0307-0508				●	●
17	16.718 REST; HD,RR SEAT VINYL SEAT W/RECLINING<A83> GRAY	8-97402-756-0	02	1	0509-0609				●	●
17	16.718 REST; HD,RR SEAT VINYL TRIM<8LJ> GRAY	8-97407-580-0	02	1	0610-				●	●
55	16.716 BOLT; HINGE,RR SEAT JUMP SEAT<AJ2> SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP>	8-97353-257-0	04	1	0307-0609	●	●
55	16.716 BOLT; HINGE,RR SEAT CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2>	8-97353-257-0	04	1	0610-0709	●	●
55	16.716 BOLT; HINGE,RR SEAT CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2>	8-97353-257-0	04	1	0710-	●	●	●
55	16.716 BOLT; HINGE,RR SEAT	8-97332-881-0	02	1	0307-0506				●	●
55	16.716 BOLT; HINGE,RR SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL>	8-97332-881-0	02	1	0507-0508				●	●
55	16.716 BOLT; HINGE,RR SEAT	8-97332-881-0	02	1	0509-0512				●	●
55	16.716 BOLT; HINGE,RR SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL>	8-97332-881-0	02	1	0601-0609				●	●
55	16.716 BOLT; HINGE,RR SEAT CLOTH SEAT MOQUETTE<8EP> 16.682	8-97332-815-0	02	1	0507-0508				●	●
55	16.716 BOLT; HINGE,RR SEAT CLOTH SEAT MOQUETTE<8EP> 16.682	8-97332-815-0	02	1	0601-0609				●	●
55	16.716 BOLT; HINGE,RR SEAT 16.682	8-97332-815-0	02	1	0610-				●	●
108	16.714 COVER; HINGE BRKT DARK GRAY	8-97394-208-0	01	1	0307-0609				●	●
108	16.714 COVER; HINGE BRKT DARK GRAY	8-97407-577-0	01	1	0610-				●	●
108	16.714 COVER; HINGE BRKT DARK GRAY	8-97394-207-0	01	1	0307-0609				●	●
108	16.714 COVER; HINGE BRKT DARK GRAY	8-97407-576-0	01	1	0610-				●	●
213	16.716 BUSHING; RR SEAT HINGE	8-97354-675-0	02	1	0307-				●	●
239	16.682 CABLE; CONT,LEVER	8-97332-828-0	01	1	0307-				●	●
302	16.715 NUT; RR SEAT 07.243 M12 FLANGE	0-91150-212-0	04	1	0307-0603				●	●
302	16.715 NUT; RR SEAT 05.816 M12 FLANGE	0-91180-212-0	04	1	0604-				●	●
352	16.717 SPRING; RR CUSHION	8-97332-877-0	11	1	0307-0609				●	●
361	16.682 LATCH; REAR SEAT	8-97332-811-0	02	1	0307-0609				●	●
361	16.682 LATCH; REAR SEAT	8-98004-027-0	02	1	0610-				●	●
363	16.682 BOLT; REAR SEAT LATCH	8-97332-815-0	04	1	0307-0506				●	●
363	16.682 BOLT; REAR SEAT LATCH VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL>	8-97332-815-0	04	1	0507-0508				●	●
363	16.682 BOLT; REAR SEAT LATCH	8-97332-815-0	04	1	0509-0512				●	●
363	16.682 BOLT; REAR SEAT LATCH VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL>	8-97332-815-0	04	1	0601-0609				●	●
363	16.682 BOLT; REAR SEAT LATCH	8-97332-815-0	08	1	0610-				●	●
363	16.682 BOLT; REAR SEAT LATCH CLOTH SEAT MOQUETTE<8EP>	8-97332-815-0	08	1	0507-0508				●	●
363	16.682 BOLT; REAR SEAT LATCH CLOTH SEAT MOQUETTE<8EP>	8-97332-815-0	08	1	0601-0609				●	●
364	16.682 MAT; SUSPENSION,REAR SEAT	8-97332-874-0	01	1	0307-0609				●	●
368	16.720 PAD; BACK FORM	8-97369-254-0	02	1	0307-0609				●	●
368	16.720 PAD; BACK FORM	8-98028-775-0	02	1	0610-				●	●
397	16.686 CABLE; SEAT (A)	8-98028-782-0	02	1	0610-				●	●
397	16.686 CABLE; SEAT CLOTH SEAT MOQUETTE<8EP> (A)	8-98020-331-0	04	1	0307-0609				●	●
397	16.686 CABLE; SEAT (B)	8-98028-780-0	04	1	0610-				●	●
397	16.686 CABLE; SEAT CLOTH SEAT MOQUETTE<8EP> (B)	8-98020-338-0	04	1	0307-0609				●	●
397	16.686 CABLE; SEAT (C)	8-98028-781-0	02	1	0610-				●	●

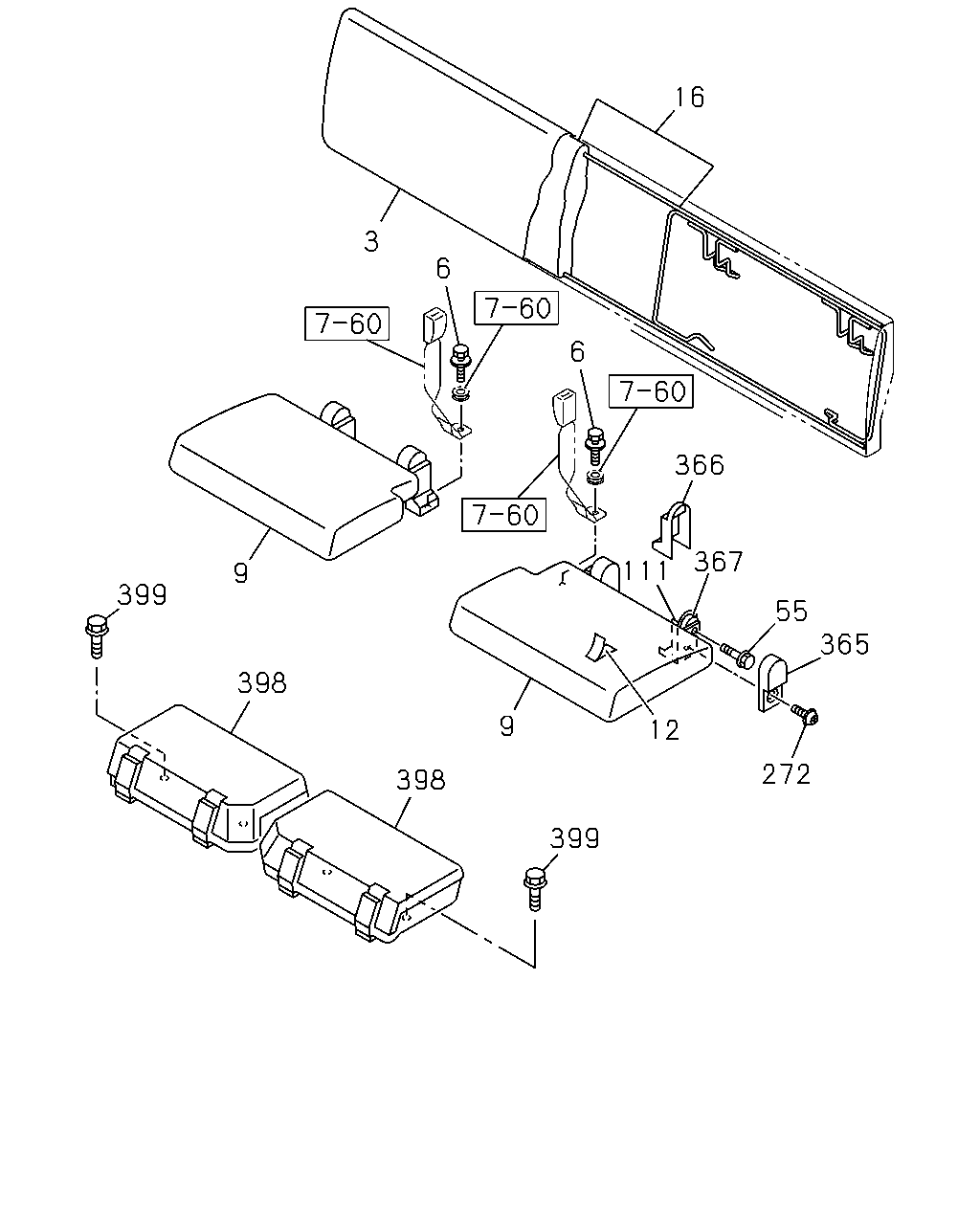

16 3 6 6 366 111 367 55 365 272 12 9 9 399 398 398 399

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
3	16.714 COVER; TRIM,RR SEAT BACK CLOTH SEAT MOQUETTE<8EP>	8-97332-783-0	01	1	0307-0508	●	●
3	16.714 COVER; TRIM,RR SEAT BACK CLOTH SEAT MOQUETTE<8EP> GRAY	8-97402-761-0	01	1	0509-0609	●	●
3	16.714 COVER; TRIM,RR SEAT BACK CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2> DARK GRAY	8-97407-079-0	01	1	0610-	●	●
3	16.714 COVER; TRIM,RR SEAT BACK SEAT CLOTH<7FL>	8-97332-782-0	01	1	0307-0508	●	●
3	16.714 COVER; TRIM,RR SEAT BACK	8-97332-782-0	01	1	0307-0508			●
3	16.714 COVER; TRIM,RR SEAT BACK SEAT CLOTH<7FL> GRAY	8-97402-760-0	01	1	0509-0609	●	●
3	16.714 COVER; TRIM,RR SEAT BACK GRAY	8-97402-760-0	01	1	0509-0609			●
3	16.714 COVER; TRIM,RR SEAT BACK CLOTH TRIM STANDARD, VAR 1<8LK> JUMP SEAT<AJ2> GRAY	8-97404-954-0	01	1	0610-0709	●	●
3	16.714 COVER; TRIM,RR SEAT BACK CLOTH TRIM STANDARD, VAR 1<8LK> JUMP SEAT<AJ2> GRAY	8-97404-954-0	01	1	0710-	●	●	●
3	16.714 COVER; TRIM,RR SEAT BACK CLOTH SEAT MOQUETTE<8EP>	8-97332-798-0	01	1	0307-0508				●	●
3	16.714 COVER; TRIM,RR SEAT BACK CLOTH SEAT MOQUETTE<8EP> GRAY	8-97402-766-0	01	1	0509-0609				●	●
3	16.714 COVER; TRIM,RR SEAT BACK CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY	8-97407-570-0	01	1	0610-				●	●
3	16.714 COVER; TRIM,RR SEAT BACK SEAT CLOTH<7FL>	8-97332-797-0	01	1	0307-0508				●	●
3	16.714 COVER; TRIM,RR SEAT BACK SEAT CLOTH<7FL> GRAY	8-97402-765-0	01	1	0509-0609				●	●
3	16.714 COVER; TRIM,RR SEAT BACK CLOTH TRIM STANDARD, VAR 1<8LK> GRAY	8-97407-569-0	01	1	0610-				●	●
3	16.714 COVER; TRIM,RR SEAT BACK VINYL SEAT W/RECLINING<A83>	8-97332-796-0	01	1	0307-0508				●	●
3	16.714 COVER; TRIM,RR SEAT BACK VINYL SEAT W/RECLINING<A83> GRAY	8-97402-767-0	01	1	0509-0609				●	●
3	16.714 COVER; TRIM,RR SEAT BACK VINYL TRIM<8LJ> GRAY	8-97407-571-0	01	1	0610-				●	●
6	16.679 BOLT; RR SEAT 16.714	8-97248-987-0	04	1	0307-0609	●	●	●
6	16.679 BOLT; RR SEAT JUMP SEAT<AJ2> 16.682 M12X27.5 W/PL WASHER	8-98050-319-0	04	1	0610-0702	●	●
6	16.679 BOLT; RR SEAT 16.682 M12X27.5 W/PL WASHER	8-98050-319-0	04	1	0703-	●	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION JUMP SEAT<AJ2> CLOTH SEAT MOQUETTE<8EP>	8-97353-254-0	01	1	0307-0508	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION JUMP SEAT<AJ2> CLOTH SEAT MOQUETTE<8EP> GRAY	8-97402-753-0	01	1	0509-0609	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2> DARK GRAY	8-97404-953-0	01	1	0610-	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION JUMP SEAT<AJ2> CLOTH SEAT MOQUETTE<8EP>	8-97353-251-0	01	1	0307-0508	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION JUMP SEAT<AJ2> CLOTH SEAT MOQUETTE<8EP> GRAY	8-97402-751-0	01	1	0509-0609	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2> DARK GRAY	8-97404-949-0	01	1	0610-	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION JUMP SEAT<AJ2> SEAT CLOTH<7FL>	8-97353-253-0	01	1	0307-0508	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION JUMP SEAT<AJ2> SEAT CLOTH<7FL> GRAY	8-97402-752-0	01	1	0509-0609	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION CLOTH TRIM STANDARD, VAR 1<8LK> JUMP SEAT<AJ2> GRAY	8-97404-952-0	01	1	0610-0709	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION CLOTH TRIM STANDARD, VAR 1<8LK> JUMP SEAT<AJ2> GRAY	8-97404-952-0	01	1	0710-	●	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION JUMP SEAT<AJ2> SEAT CLOTH<7FL>	8-97353-250-0	01	1	0307-0508	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION JUMP SEAT<AJ2> SEAT CLOTH<7FL> GRAY	8-97402-750-0	01	1	0509-0609	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION CLOTH TRIM STANDARD, VAR 1<8LK> JUMP SEAT<AJ2> GRAY	8-97404-948-0	01	1	0610-0709	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION CLOTH TRIM STANDARD, VAR 1<8LK> JUMP SEAT<AJ2> GRAY	8-97404-948-0	01	1	0710-	●	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION CLOTH SEAT MOQUETTE<8EP>	8-97332-869-0	01	1	0307-0508				●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION CLOTH SEAT MOQUETTE<8EP> GRAY	8-97402-747-0	01	1	0509-0609				●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY	8-97407-560-0	01	1	0610-				●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT CLOTH<7FL>	8-97332-868-0	01	1	0307-0508				●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT CLOTH<7FL> GRAY	8-97402-746-0	01	1	0509-0609				●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION CLOTH TRIM STANDARD, VAR 1<8LK> GRAY	8-97407-559-0	01	1	0610-				●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION VINYL SEAT W/RECLINING<A83>	8-97332-867-0	01	1	0307-0508				●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION VINYL SEAT W/RECLINING<A83> GRAY	8-97402-745-0	01	1	0509-0609				●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION VINYL TRIM<8LJ> GRAY	8-97407-558-0	01	1	0610-				●	●
12	16.717 PAD & FRAME ASM; RR CUSHION JUMP SEAT<AJ2> SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP>	8-97353-256-0	01	1	0307-0609	●	●
12	16.717 PAD & FRAME ASM; RR CUSHION CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2>	8-97353-256-0	01	1	0610-0709	●	●
12	16.717 PAD & FRAME ASM; RR CUSHION CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2>	8-97353-256-0	01	1	0710-	●	●	●
12	16.717 PAD & FRAME ASM; RR CUSHION JUMP SEAT<AJ2> SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP>	8-97353-255-0	01	1	0307-0609	●	●
12	16.717 PAD & FRAME ASM; RR CUSHION CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2>	8-97353-255-0	01	1	0610-0709	●	●
12	16.717 PAD & FRAME ASM; RR CUSHION CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2>	8-97353-255-0	01	1	0710-	●	●	●
16	16.720 PAD & FRAME ASM; RR BACK SIDE SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP>	8-97332-775-0	01	1	0307-0609	●	●
16	16.720 PAD & FRAME ASM; RR BACK SIDE	8-97332-775-0	01	1	0307-0609			●
16	16.720 PAD & FRAME ASM; RR BACK SIDE CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2>	8-97332-775-0	01	1	0610-0709	●	●
16	16.720 PAD & FRAME ASM; RR BACK SIDE CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2>	8-97332-775-0	01	1	0710-	●	●	●
55	16.716 BOLT; HINGE,RR SEAT JUMP SEAT<AJ2> SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP>	8-97353-257-0	04	1	0307-0609	●	●
55	16.716 BOLT; HINGE,RR SEAT CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2>	8-97353-257-0	04	1	0610-0709	●	●
55	16.716 BOLT; HINGE,RR SEAT CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2>	8-97353-257-0	04	1	0710-	●	●	●
55	16.716 BOLT; HINGE,RR SEAT	8-97332-881-0	02	1	0307-0506				●	●
55	16.716 BOLT; HINGE,RR SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL>	8-97332-881-0	02	1	0507-0508				●	●
55	16.716 BOLT; HINGE,RR SEAT	8-97332-881-0	02	1	0509-0512				●	●
55	16.716 BOLT; HINGE,RR SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL>	8-97332-881-0	02	1	0601-0609				●	●
55	16.716 BOLT; HINGE,RR SEAT CLOTH SEAT MOQUETTE<8EP> 16.682	8-97332-815-0	02	1	0507-0508				●	●
55	16.716 BOLT; HINGE,RR SEAT CLOTH SEAT MOQUETTE<8EP> 16.682	8-97332-815-0	02	1	0601-0609				●	●
55	16.716 BOLT; HINGE,RR SEAT 16.682	8-97332-815-0	02	1	0610-				●	●
111	16.716 BRACKET; HINGE,JUMP SEAT JUMP SEAT<AJ2> SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP>	8-97355-211-0	02	1	0307-0609	●	●
111	16.716 BRACKET; HINGE,JUMP SEAT CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2>	8-97355-211-0	02	1	0610-0709	●	●
111	16.716 BRACKET; HINGE,JUMP SEAT CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2>	8-97355-211-0	02	1	0710-	●	●	●
111	16.716 BRACKET; HINGE,JUMP SEAT JUMP SEAT<AJ2> SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP>	8-97355-210-0	02	1	0307-0609	●	●
111	16.716 BRACKET; HINGE,JUMP SEAT CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2>	8-97355-210-0	02	1	0610-0709	●	●
111	16.716 BRACKET; HINGE,JUMP SEAT CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2>	8-97355-210-0	02	1	0710-	●	●	●
272	16.720 SCREW; COVER JUMP SEAT<AJ2> SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP>	8-97354-993-0	04	1	0307-0609	●	●
272	16.720 SCREW; COVER CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2>	8-97354-993-0	04	1	0610-0709	●	●
272	16.720 SCREW; COVER CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2>	8-97354-993-0	04	1	0710-	●	●	●
365	16.717 COVER; PIVOT JUMP SEAT<AJ2> SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> INNER DARK GRAY	8-97395-353-0	01	1	0307-0609	●	●
365	16.717 COVER; PIVOT CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2> OUTER DARK GRAY	8-97404-947-0	01	1	0610-0709	●	●
365	16.717 COVER; PIVOT CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2> OUTER DARK GRAY	8-97404-947-0	01	1	0710-	●	●	●
365	16.717 COVER; PIVOT JUMP SEAT<AJ2> SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> OUTER DARK GRAY	8-97395-355-0	01	1	0307-0609	●	●
365	16.717 COVER; PIVOT CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2> OUTER DARK GRAY	8-97404-951-0	01	1	0610-0709	●	●
365	16.717 COVER; PIVOT CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2> OUTER DARK GRAY	8-97404-951-0	01	1	0710-	●	●	●
365	16.717 COVER; PIVOT JUMP SEAT<AJ2> SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> INNER DARK GRAY	8-97395-352-0	01	1	0307-0609	●	●
365	16.717 COVER; PIVOT CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2> INNER DARK GRAY	8-97404-946-0	01	1	0610-0709	●	●
365	16.717 COVER; PIVOT CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2> INNER DARK GRAY	8-97404-946-0	01	1	0710-	●	●	●
365	16.717 COVER; PIVOT JUMP SEAT<AJ2> SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> OUTER DARK GRAY	8-97395-354-0	01	1	0307-0609	●	●
365	16.717 COVER; PIVOT CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2> INNER DARK GRAY	8-97404-950-0	01	1	0610-0709	●	●
365	16.717 COVER; PIVOT CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2> INNER DARK GRAY	8-97404-950-0	01	1	0710-	●	●	●
366	16.717 LID; PIVOT JUMP SEAT<AJ2> SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> DARK GRAY	8-97395-356-0	04	1	0307-0609	●	●
366	16.717 LID; PIVOT CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2> DARK GRAY	8-97404-955-0	04	1	0610-0709	●	●
366	16.717 LID; PIVOT CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2> DARK GRAY	8-97404-955-0	04	1	0710-	●	●	●
367	16.717 DETENT; RR JUMP PIVOT JUMP SEAT<AJ2> SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP>	8-97355-209-0	02	1	0307-0609	●	●
367	16.717 DETENT; RR JUMP PIVOT CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2>	8-97355-209-0	02	1	0610-0709	●	●
367	16.717 DETENT; RR JUMP PIVOT CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2>	8-97355-209-0	02	1	0710-	●	●	●
367	16.717 DETENT; RR JUMP PIVOT JUMP SEAT<AJ2> SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP>	8-97355-208-0	02	1	0307-0609	●	●
367	16.717 DETENT; RR JUMP PIVOT CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2>	8-97355-208-0	02	1	0610-0709	●	●
367	16.717 DETENT; RR JUMP PIVOT CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2>	8-97355-208-0	02	1	0710-	●	●	●
398	16.650 COMPARTMENT; FLOOR JUMP SEAT<AJ2> 16.545	8-97360-813-0	01	1	0307-0709	●	●
398	16.650 COMPARTMENT; FLOOR JUMP SEAT<AJ2> 16.545	8-97360-813-0	01	1	0710-	●	●	●
398	16.650 COMPARTMENT; FLOOR JUMP SEAT<AJ2> 16.545	8-97360-814-0	01	1	0307-0709	●	●
398	16.650 COMPARTMENT; FLOOR JUMP SEAT<AJ2> 16.545	8-97360-814-0	01	1	0710-	●	●	●
399	16.650 BOLT; COMPARTMENT JUMP SEAT<AJ2> 02.762 M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0307-0701	●	●
399	16.650 BOLT; COMPARTMENT JUMP SEAT<AJ2> M6X18 W/LK&PL WASHER	8-98061-682-0	04	1	0702-0709	●	●
399	16.650 BOLT; COMPARTMENT JUMP SEAT<AJ2> M6X18 W/LK&PL WASHER	8-98061-682-0	04	1	0710-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
