7-42 — ASH TRAY (#42973) — 40 parça

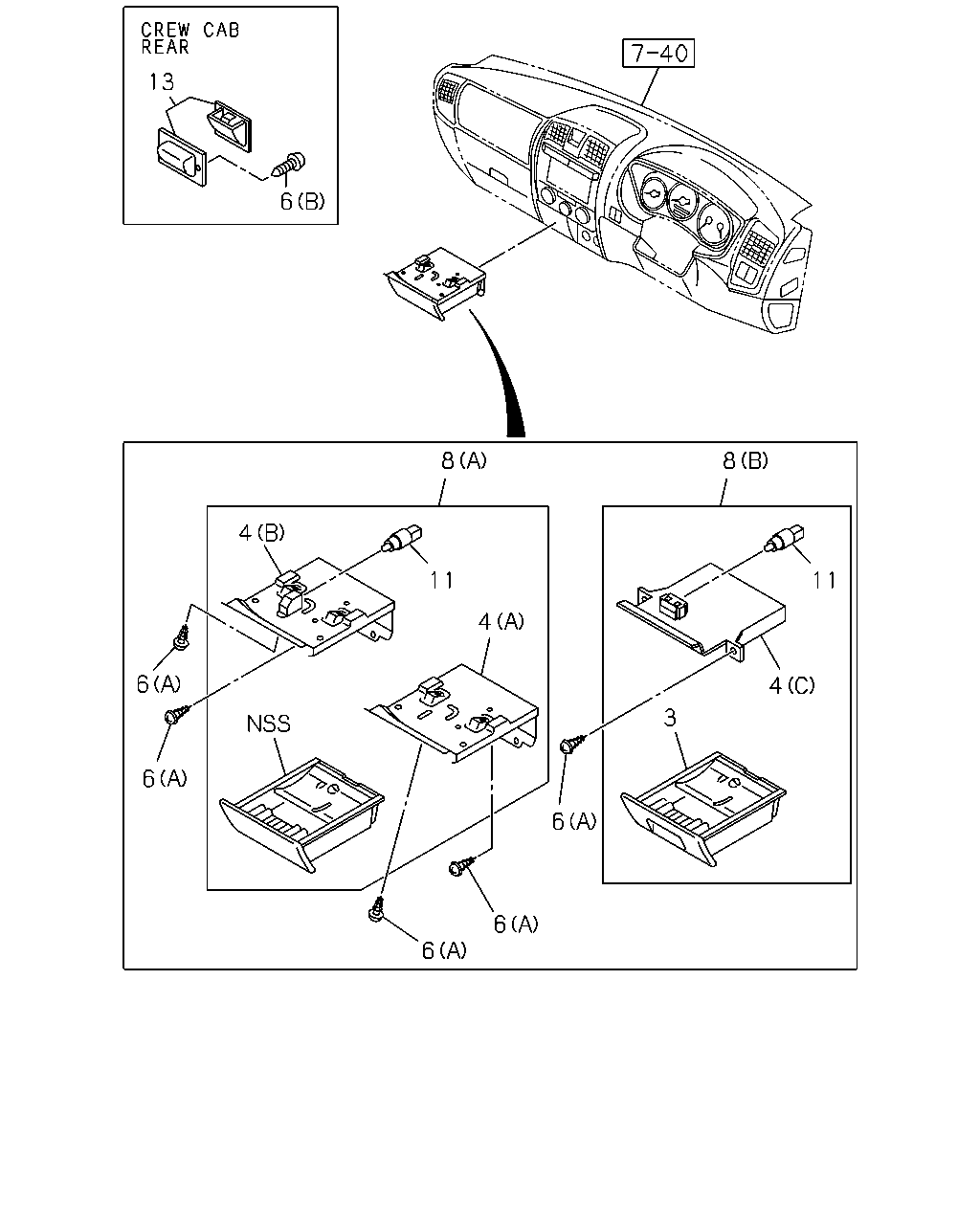

çizim 53880
8 11 4 3 6 6 6 4 11 8 4 6 6 6 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
3 16.120 CASE ASM; ASH TRAY INNER
GRADE DX(RBA),GRADE LX(RBB) EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97407-836-0 01 1 0610- ● ● ● ● ● ● ● ●
3 16.120 CASE ASM; ASH TRAY INNER
GRADE LT/LS(RBD) EXC. INTERIOR SILVER BEZEL<BY9>, AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97407-836-0 01 1 0610- ● ● ● ● ● ● ●
3 16.120 CASE ASM; ASH TRAY INNER
GRADE LT/LS(RBD) INTERIOR SILVER BEZEL<BY9> LIGHT GRAY 		8-97407-837-0 01 1 0610- ● ● ● ● ● ●
4 16.120 CASE ASM; ASH TRAY OUTER
GRADE DX(RBA) (A) 		8-97308-648-0 01 1 0307-0408 ● ● ● ● ● ●
4 16.120 CASE ASM; ASH TRAY OUTER
GRADE LX(RBB),GRADE LT/LS(RBD) AUSTRALIA EQUIPMENT(B13) (A) 		8-97308-648-0 01 1 0307-0408 ● ● ● ● ● ●
4 16.120 CASE ASM; ASH TRAY OUTER
(A) 		8-97308-648-0 01 1 0307-0408 ● ●
4 16.120 CASE ASM; ASH TRAY OUTER
GRADE DX(RBA) EXC. INTERIOR SILVER BEZEL<BY9> (A) 		8-97308-648-0 01 1 0409-0609 ● ● ● ● ● ●
4 16.120 CASE ASM; ASH TRAY OUTER
GRADE LX(RBB),GRADE LT/LS(RBD) AUSTRALIA EQUIPMENT(B13) (A) 		8-97308-648-0 01 1 0409-0609 ● ● ● ● ● ●
4 16.120 CASE ASM; ASH TRAY OUTER
(A) 		8-97308-648-0 01 1 0409-0609 ● ●
4 16.120 CASE ASM; ASH TRAY OUTER
GRADE LX(RBB),GRADE LT/LS(RBD) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		8-97308-647-0 01 1 0307-0609 ● ● ● ● ● ●
4 16.120 CASE ASM; ASH TRAY OUTER
GRADE LT/LS(RBD) INTERIOR SILVER BEZEL<BY9> (C) 		8-98044-027-0 01 1 0610- ● ● ● ● ● ● ● ●
4 16.120 CASE ASM; ASH TRAY OUTER
GRADE DX(RBA),GRADE LX(RBB) EXC. INTERIOR SILVER BEZEL<BY9> (C) 		8-98044-027-0 01 1 0610- ● ● ● ● ● ● ● ●
4 16.120 CASE ASM; ASH TRAY OUTER
GRADE LT/LS(RBD) EXC. INTERIOR SILVER BEZEL<BY9>, AUSTRALIA EQUIPMENT(B13) (C) 		8-98044-027-0 01 1 0610- ● ● ● ● ● ● ● ●
6 16.120 SCREW; ASH TRAY
16.085 (A) M5X16 TAPPING 		9-09829-323-1 03 1 0307-0609 ● ● ● ● ● ● ● ●
6 16.120 SCREW; ASH TRAY
16.085 (A) M5X16 TAPPING 		9-09829-323-1 02 1 0610-0612 ● ● ● ● ● ● ● ●
6 16.120 SCREW; ASH TRAY
08.083 (A) M5X16 TAPPING 		8-98061-685-0 02 1 0701-1003 ● ● ● ● ● ● ● ●
6 16.120 SCREW; ASH TRAY
08.083 (A) M5X16 TAPPING 		8-98167-449-0 02 1 1004- ● ● ● ● ● ● ● ●
6 16.120 SCREW; ASH TRAY
16.850 (B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 04 1 0307-0609 ● ●
6 16.120 SCREW; ASH TRAY
16.742 (B) M4X16 TAPPING OVAL-HEAD 		0-70540-416-0 04 1 0610- ● ●
8 16.120 TRAY ASM; ASH
GRADE DX(RBA) (A) DARK GRAY 		8-97293-901-0 01 1 0307-0408 ● ● ● ● ● ●
8 16.120 TRAY ASM; ASH
GRADE LX(RBB) AUSTRALIA EQUIPMENT(B13) (A) DARK GRAY 		8-97293-901-0 01 1 0307-0408 ● ● ● ● ● ●
8 16.120 TRAY ASM; ASH
(A) DARK GRAY 		8-97293-901-0 01 1 0307-0408 ● ●
8 16.120 TRAY ASM; ASH
GRADE DX(RBA) EXC. INTERIOR SILVER BEZEL<BY9> (A) DARK GRAY 		8-97293-901-0 01 1 0409-0609 ● ● ● ● ● ●
8 16.120 TRAY ASM; ASH
GRADE LX(RBB) AUSTRALIA EQUIPMENT(B13) EXC. INTERIOR SILVER BEZEL<BY9> (A) DARK GRAY 		8-97293-901-0 01 1 0409-0609 ● ● ● ● ● ●
8 16.120 TRAY ASM; ASH
(A) DARK GRAY 		8-97293-901-0 01 1 0409-0609 ● ●
8 16.120 TRAY ASM; ASH
GRADE DX(RBA) EXC. INTERIOR SILVER BEZEL<BY9> (B) DARK GRAY 		8-97403-296-0 01 1 0610- ● ● ● ● ● ●
8 16.120 TRAY ASM; ASH
GRADE LX(RBB) AUSTRALIA EQUIPMENT(B13) EXC. INTERIOR SILVER BEZEL<BY9> (B) DARK GRAY 		8-97403-296-0 01 1 0610- ● ● ● ● ● ●
8 16.120 TRAY ASM; ASH
(B) DARK GRAY 		8-97403-296-0 01 1 0610- ● ●
8 16.120 TRAY ASM; ASH
GRADE LX(RBB),GRADE LT/LS(RBD) EXC. AUSTRALIA EQUIPMENT(B13) (A) DARK GRAY 		8-97392-978-0 01 1 0307-0408 ● ● ● ● ● ●
8 16.120 TRAY ASM; ASH
GRADE LX(RBB),GRADE LT/LS(RBD) EXC. INTERIOR SILVER BEZEL<BY9>, AUSTRALIA EQUIPMENT(B13) (A) DARK GRAY 		8-97392-978-0 01 1 0409-0609 ● ● ● ● ● ●
8 16.120 TRAY ASM; ASH
GRADE LX(RBB),GRADE LT/LS(RBD) EXC. INTERIOR SILVER BEZEL<BY9>, AUSTRALIA EQUIPMENT(B13) (B) DARK GRAY 		8-97403-297-0 01 1 0610- ● ● ● ● ● ●
8 16.120 TRAY ASM; ASH
GRADE LT/LS(RBD) AUSTRALIA EQUIPMENT(B13) (A) LIGHT GRAY 		8-97392-385-0 01 1 0307-0408 ● ● ● ● ●
8 16.120 TRAY ASM; ASH
GRADE LT/LS(RBD) INTERIOR SILVER BEZEL<BY9> AUSTRALIA EQUIPMENT(B13) (A) LIGHT GRAY 		8-97392-385-0 01 1 0409-0609 ● ● ● ● ●
8 16.120 TRAY ASM; ASH
GRADE LT/LS(RBD) INTERIOR SILVER BEZEL<BY9> AUSTRALIA EQUIPMENT(B13) (B) LIGHT GRAY 		8-97403-298-0 01 1 0610- ● ● ● ● ●
8 16.120 TRAY ASM; ASH
GRADE LT/LS(RBD) INTERIOR SILVER BEZEL<BY9> EXC. AUSTRALIA EQUIPMENT(B13) (A) LIGHT GRAY 		8-97392-979-0 01 1 0409-0409 ● ● ● ● ●
8 16.120 TRAY ASM; ASH
GRADE LT/LS(RBD) INTERIOR SILVER BEZEL<BY9> EXC. AUSTRALIA EQUIPMENT(B13) (A) LIGHT GRAY 		8-97392-979-0 01 1 0410-0609 ● ● ● ● ● ●
8 16.120 TRAY ASM; ASH
GRADE LT/LS(RBD) INTERIOR SILVER BEZEL<BY9> EXC. AUSTRALIA EQUIPMENT(B13) (B) LIGHT GRAY 		8-97403-299-0 01 1 0610- ● ● ● ● ● ●
11 08.991 BULB; ASH TRAY
GRADE LX(RBB),GRADE LT/LS(RBD) EXC. AUSTRALIA EQUIPMENT(B13) 		8-97308-651-0 01 1 0307- ● ● ● ● ● ●
13 16.120 TRAY ASM; ASH,RR
DARK GRAY 		8-97393-945-1 02 1 0307-0609 ● ●
13 16.120 TRAY ASM; ASH,RR
DARK GRAY 		8-97409-355-0 02 1 0610- ● ●
