7-40 — INSTRUMENT PANEL AND BOX (#42972) — 252 parça

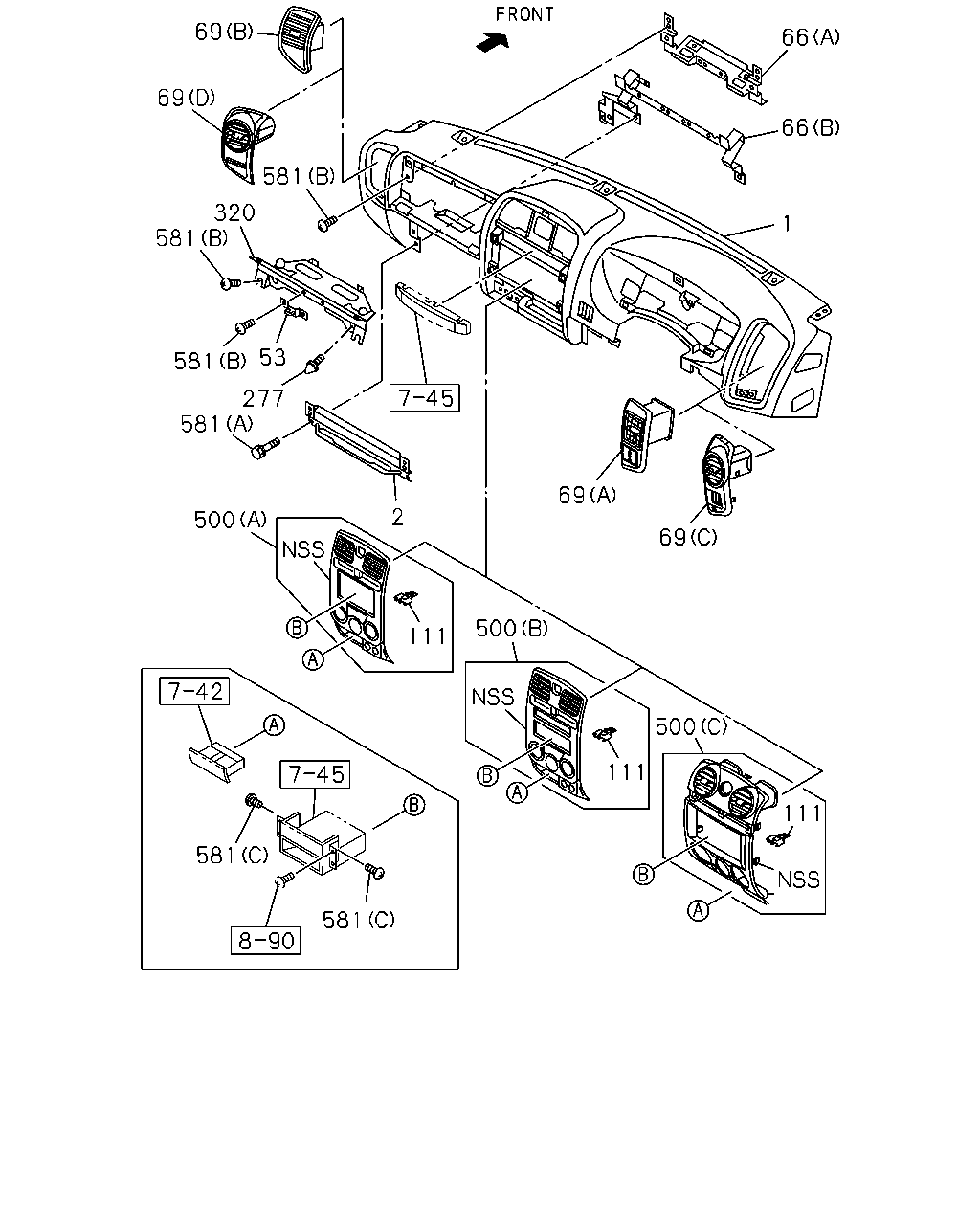

çizim 53901
111 500 500 69 69 1 66 66 69 69 581 320 581 581 53 277 581 500 2 581 581 111 111
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 16.080 PANEL; INST
DARK GRAY 		8-97299-326-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
1 16.080 PANEL; INST
INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97405-969-0 01 1 0610-0709 ● ● ● ● ● ● ● ●
1 16.080 PANEL; INST
INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97405-969-0 01 1 0710-1103 ● ● ● ● ● ●
1 16.080 PANEL; INST
DARK GRAY 		8-97405-969-1 01 1 1104- ● ● ● ● ● ● ● ●
1 16.080 PANEL; INST
EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97405-962-0 01 1 0610-0709 ● ● ● ● ● ● ● ●
1 16.080 PANEL; INST
EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97405-962-0 01 1 0710-1103 ● ● ● ● ● ●
1 16.080 PANEL; INST
DARK GRAY 		8-97405-962-0 01 1 0710-1103 ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR 8-97308-645-0 01 1 0307- ● ● ● ● ● ● ● ●
53 16.115 STRIKER; GLOVE BOX 8-97308-646-0 01 1 0307- ● ● ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
(B) 		8-97308-643-0 01 1 0307- ● ● ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-97308-641-0 01 1 0307-0709 ● ● ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (A) 		8-97308-641-0 01 1 0710- ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) DARK GRAY 		8-97396-253-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR SILVER BEZEL<BY9> (D) LIGHT GRAY 		8-97405-970-3 01 1 0610-0709 ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR SILVER BEZEL<BY9> (D) LIGHT GRAY 		8-97405-970-3 01 1 0710- ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
EXC. INTERIOR SILVER BEZEL<BY9> (D) DARK GRAY 		8-97405-963-3 01 1 0610-0709 ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
EXC. INTERIOR SILVER BEZEL<BY9> (D) DARK GRAY 		8-97405-963-3 01 1 0710- ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(D) DARK GRAY 		8-97405-963-3 01 1 0710- ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
EXC. REMOTE CONT DOOR LOCK W/ANTI T HEFT<7KY> (A) DARK GRAY 		8-97396-252-0 01 1 0307-0508 ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) DARK GRAY 		8-97396-252-0 01 1 0509-0609 ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR SILVER BEZEL<BY9> (C) LIGHT GRAY 		8-97403-331-3 01 1 0610- ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY 		8-97403-327-3 01 1 0610- ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(C) DARK GRAY 		8-97403-327-3 01 1 0610- ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) DARK GRAY 		8-97396-251-0 01 1 0307-0508 ● ● ● ● ● ●
111 09.744 CLIP; CLUSTER PANEL,GRILLE
RADIO DELETE(UL5),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ASIA/OCEANIA BAND W/CASSETTE FULL LOGIC(UX5), AM/FM ASIA/OCEANIA BAND W/CASSETTE SEM I LOGIC(7AU),INST PANEL FOR DIN E SIZE AUDIO(7QL) 16.100 T=0.5 		8-97137-828-0 06 1 0307-0508 ● ● ● ● ● ● ● ●
111 09.744 CLIP; CLUSTER PANEL,GRILLE
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS(UU1),INST PA NEL FOR DIN E SIZE AUDIO(7QL) 16.100 T=0.5 		8-97137-828-0 06 1 0509-0609 ● ● ● ● ● ● ● ●
111 09.744 CLIP; CLUSTER PANEL,GRILLE
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) 16.100 T=0.5 		8-97137-828-0 06 1 0610-0612 ● ● ● ● ● ● ● ●
111 09.744 CLIP; CLUSTER PANEL,GRILLE
INTERIOR SILVER BEZEL<BY9> RADIO AM/FM W/CD,W/MP3(ULA) 16.100 T=0.5 		8-97137-828-0 06 1 0610-0612 ● ● ● ● ● ●
111 09.744 CLIP; CLUSTER PANEL,GRILLE
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) T=0.5 		8-98061-356-0 06 1 0701- ● ● ● ● ● ● ● ●
111 09.744 CLIP; CLUSTER PANEL,GRILLE
INTERIOR SILVER BEZEL<BY9> RADIO AM/FM W/CD,W/MP3(ULA) T=0.5 		8-98061-356-0 06 1 0701- ● ● ● ● ● ●
277 16.081 RUBBER; STOPPER GLOVE LID 8-97308-650-0 03 1 0307- ● ● ● ● ● ● ● ●
320 16.081 COVER; GLOVE BOX
DARK GRAY 		8-97299-328-1 01 1 0307-0609 ● ● ● ● ● ● ● ●
320 16.081 COVER; GLOVE BOX
DARK GRAY 		8-97405-960-2 01 1 0610- ● ● ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
GRADE DX(RBA),GRADE LX(RBB) (A) DARK GRAY 		8-97396-250-0 01 1 0307-0408 ● ● ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
RADIO DELETE(UL5),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ASIA/OCEANIA BAND W/CASSETTE FULL LOGIC(UX5), AM/FM ASIA/OCEANIA BAND W/CASSETTE SEM I LOGIC(7AU) EXC. INTERIOR SILVER BEZEL<BY9> (A) DARK GRAY 		8-97396-250-0 01 1 0409-0508 ● ● ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS(UU1) EXC. INTERIOR SILVER BEZEL<BY9> (A) DARK GRAY 		8-97396-250-0 01 1 0509-0609 ● ● ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY 		8-97403-315-4 01 1 0610-0612 ● ● ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY 		8-97409-173-0 01 1 0701- ● ● ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) (C) LIGHT GRAY 		8-97403-316-4 01 1 0610-0612 ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) (C) LIGHT GRAY 		8-97409-174-0 01 1 0701- ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
GRADE LT/LS(RBD) (A) LIGHT GRAY 		8-97398-208-0 01 1 0307-0408 ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> RADIO DELETE(UL5),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS(UU1),AM/FM A SIA/OCEANIA BAND W/CASSETTE FULL LO GIC(UX5),AM/FM ASIA/OCEANIA BAND W/CASSETTE SEMI LOGIC(7AU) (A) LIGHT GRAY 		8-97398-208-0 01 1 0409-0409 ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> RADIO DELETE(UL5),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS(UU1),AM/FM A SIA/OCEANIA BAND W/CASSETTE FULL LO GIC(UX5),AM/FM ASIA/OCEANIA BAND W/CASSETTE SEMI LOGIC(7AU) (A) LIGHT GRAY 		8-97398-208-0 01 1 0410-0508 ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> RADIO DELETE(UL5),AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS(UU1) (A) LIGHT GRAY 		8-97398-208-0 01 1 0509-0609 ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> RADIO AM/FM W/CD,W/MP3(ULA) (C) LIGHT GRAY 		8-97403-319-4 01 1 0610-0612 ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> RADIO AM/FM W/CD,W/MP3(ULA) (C) LIGHT GRAY 		8-97409-176-0 01 1 0701- ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) DARK GRAY 		8-97391-529-1 01 1 0307-0408 ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. INTERIOR SILVER BEZEL<BY9> (B) DARK GRAY 		8-97391-529-1 01 1 0409-0609 ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY 		8-97403-318-4 01 1 0610-0612 ● ● ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY 		8-97409-171-0 01 1 0701- ● ● ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) LIGHT GRAY 		8-97401-257-0 01 1 0409-0409 ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) LIGHT GRAY 		8-97401-257-0 01 1 0410-0609 ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> INST PANEL FOR DIN E SIZE AUDIO(7QL) (C) LIGHT GRAY 		8-97403-317-4 01 1 0610-0612 ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> INST PANEL FOR DIN E SIZE AUDIO(7QL) (C) LIGHT GRAY 		8-97409-172-0 01 1 0701- ● ● ● ●
581 09.744 SCREW
08.015 (A) M6X20 W/WASHER 		8-94112-987-1 03 1 0307-0609 ● ● ● ● ● ● ● ●
581 09.744 SCREW
(A) M6X20 W/WASHER 		8-98056-282-0 03 1 0610- ● ● ● ● ● ● ● ●
581 09.744 SCREW
16.115 (B) M5X16 		8-94279-312-0 13 1 0307-0411 ● ● ● ● ● ● ● ●
581 09.744 SCREW
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER DELETE(AK6) 16.115 (B) M5X16 		8-94279-312-0 15 1 0412-0508 ● ● ● ● ● ● ● ●
581 09.744 SCREW
AIR BAG DRIVER & PASSENGER DELETE(AK6) 16.115 (B) M5X16 		8-94279-312-0 15 1 0509-0609 ● ● ● ● ● ● ● ●
581 09.744 SCREW
AIR BAG DRIVER & PASSENGER DELETE(AK6) (B) M5X16 TAPPING 		8-98061-683-0 15 1 0610- ● ● ● ● ● ● ● ●
581 09.744 SCREW
AIR BAG DRIVER & PASSENGER(AK5) 16.115 (B) M5X16 		8-94279-312-0 11 1 0412-0609 ● ● ● ● ● ● ● ●
581 09.744 SCREW
AIR BAG DRIVER & PASSENGER(AK5) (B) M5X16 TAPPING 		8-98061-683-0 11 1 0610-0709 ● ● ● ● ● ● ● ●
581 09.744 SCREW
AIR BAG DRIVER & PASSENGER(AK5) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) M5X16 TAPPING 		8-98061-683-0 11 1 0710- ● ● ● ● ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5) 16.085 (C) M5X16 TAPPING 		9-09829-323-1 02 1 0307-0508 ● ● ● ● ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ASIA/OCEANIA BAND W/CASSETTE FULL LOGIC(UX5), AM/FM ASIA/OCEANIA BAND W/CASSETTE SEM I LOGIC(7AU) EXC. MULTI CD PLAYER<U1S> 16.085 (C) M5X16 TAPPING 		9-09829-323-1 02 1 0307-0508 ● ● ● ● ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5) 16.085 (C) M5X16 TAPPING 		9-09829-323-1 02 1 0509-0609 ● ● ● ● ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS(UU1) 16.085 (C) M5X16 TAPPING 		9-09829-323-1 02 1 0509-0609 ● ● ● ● ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5) 16.085 (C) M5X16 TAPPING 		9-09829-323-1 02 1 0610-0612 ● ● ● ● ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) 16.085 (C) M5X16 TAPPING 		9-09829-323-1 02 1 0610-0612 ● ● ● ● ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) 08.083 (C) M5X16 TAPPING 		8-98061-685-0 02 1 0701-1003 ● ● ● ● ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5) 08.083 (C) M5X16 TAPPING 		8-98061-685-0 02 1 0701-1003 ● ● ● ● ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) 08.083 (C) M5X16 TAPPING 		8-98167-449-0 02 1 1004- ● ● ● ● ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5) 08.083 (C) M5X16 TAPPING 		8-98167-449-0 02 1 1004- ● ● ● ● ● ● ● ●

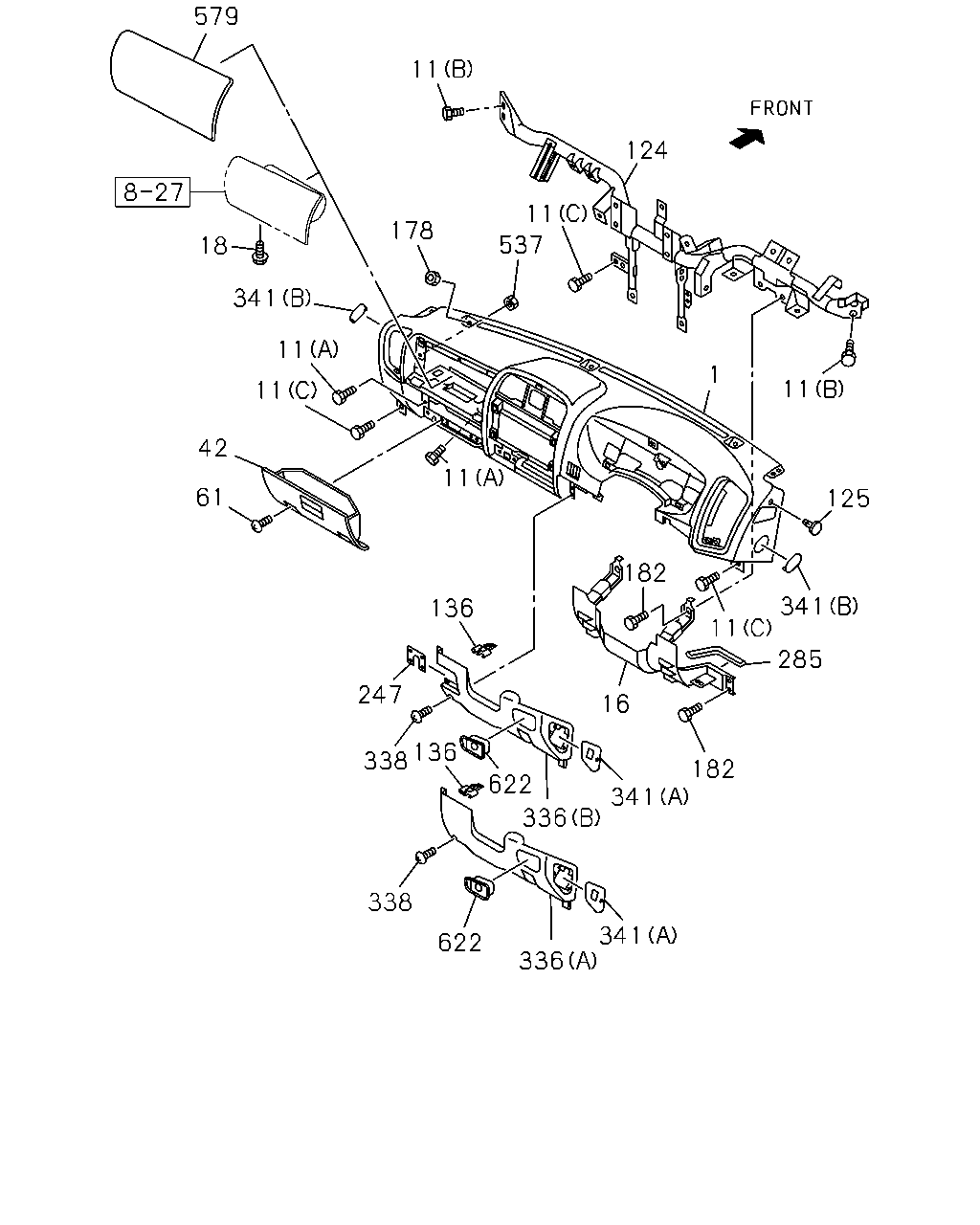

çizim 54677
579 11 124 11 537 178 18 341 11 11 42 61 11 136 247 338 136 622 336 341 16 182 285 341 11 182 125 11 1 341 336 622 338
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 16.080 PANEL; INST
DARK GRAY 		8-97299-326-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
1 16.080 PANEL; INST
INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97405-969-0 01 1 0610-0709 ● ● ● ● ● ● ● ●
1 16.080 PANEL; INST
INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97405-969-0 01 1 0710-1103 ● ● ● ● ● ●
1 16.080 PANEL; INST
DARK GRAY 		8-97405-969-1 01 1 1104- ● ● ● ● ● ● ● ●
1 16.080 PANEL; INST
EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97405-962-0 01 1 0610-0709 ● ● ● ● ● ● ● ●
1 16.080 PANEL; INST
EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97405-962-0 01 1 0710-1103 ● ● ● ● ● ●
1 16.080 PANEL; INST
DARK GRAY 		8-97405-962-0 01 1 0710-1103 ● ●
11 16.090 BOLT; INST PNL
04.570 (B) M8X25 W/LK&PL WASHER 		8-94411-977-0 04 1 0307-0609 ● ● ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
(B) M8X30 W/LK&PL WASHER 		8-98057-964-0 04 1 0610- ● ● ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
01.287 (C) M6X25 W/LK&PL WASHER 		8-94416-136-0 04 1 0307-0609 ● ● ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
(C) M6X30 W/LK&PL WASHER 		8-98057-965-0 04 1 0610- ● ● ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
AIR BAG DRIVER & PASSENGER(AK5) 08.015 (A) M6X20 W/WASHER 		8-94112-987-1 06 1 0307-0611 ● ● ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
AIR BAG DRIVER & PASSENGER(AK5) 09.744 (A) M6X20 W/WASHER 		8-98056-282-0 06 1 0612- ● ● ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER DELETE(AK6) 08.015 (A) M6X20 W/WASHER 		8-94112-987-1 04 1 0307-0508 ● ● ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
AIR BAG DRIVER & PASSENGER DELETE(AK6) 08.015 (A) M6X20 W/WASHER 		8-94112-987-1 04 1 0509-0611 ● ● ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
AIR BAG DRIVER & PASSENGER DELETE(AK6) 09.744 (A) M6X20 W/WASHER 		8-98056-282-0 04 1 0612- ● ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL 8-97302-051-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL 8-98043-124-0 01 1 0610- ● ● ● ● ● ● ● ●
18 16.085 BOLT; BRKT
AIR BAG DRIVER & PASSENGER(AK5) M6X18 W/LK&PL WASHER 		8-97353-832-0 02 1 0307- ● ● ● ● ● ● ● ●
42 16.100 BOX; GLOVE,INST PNL
LOCK GLOVE BOX<A99> DARK GRAY 		8-97396-878-0 01 1 0307-0404 ● ● ● ● ● ● ●
42 16.100 BOX; GLOVE,INST PNL
DARK GRAY 		8-97396-878-0 01 1 0307-0404 ●
42 16.100 BOX; GLOVE,INST PNL
LOCK GLOVE BOX<A99> DARK GRAY 		8-97293-941-2 01 1 0405-0609 ● ● ● ● ● ● ●
42 16.100 BOX; GLOVE,INST PNL
DARK GRAY 		8-97293-941-2 01 1 0405-0609 ●
42 16.100 BOX; GLOVE,INST PNL
LOCK GLOVE BOX<A99> DARK GRAY 		8-97403-321-2 01 1 0610-0612 ● ● ● ● ● ● ●
42 16.100 BOX; GLOVE,INST PNL
DARK GRAY 		8-97403-321-2 01 1 0610-0612 ●
42 16.100 BOX; GLOVE,INST PNL
LOCK GLOVE BOX<A99> DARK GRAY 		8-97409-179-0 01 1 0701-0805 ● ● ● ● ● ● ●
42 16.100 BOX; GLOVE,INST PNL
DARK GRAY 		8-97409-179-0 01 1 0701-0805 ●
42 16.100 BOX; GLOVE,INST PNL
LOCK GLOVE BOX<A99> DARK GRAY 		8-97415-658-0 01 1 0806- ● ● ● ● ● ● ●
42 16.100 BOX; GLOVE,INST PNL
DARK GRAY 		8-97415-658-0 01 1 0806- ●
42 16.100 BOX; GLOVE,INST PNL
EXC. LOCK GLOVE BOX<A99> DARK GRAY 		8-97396-879-0 01 1 0307-0404 ● ● ● ● ● ● ●
42 16.100 BOX; GLOVE,INST PNL
EXC. LOCK GLOVE BOX<A99> DARK GRAY 		8-97294-638-2 01 1 0405-0609 ● ● ● ● ● ● ●
42 16.100 BOX; GLOVE,INST PNL
EXC. LOCK GLOVE BOX<A99> DARK GRAY 		8-97403-323-2 01 1 0610-0612 ● ● ● ● ● ● ●
42 16.100 BOX; GLOVE,INST PNL
EXC. LOCK GLOVE BOX<A99> DARK GRAY 		8-97409-181-0 01 1 0701-0805 ● ● ● ● ● ● ●
42 16.100 BOX; GLOVE,INST PNL
EXC. LOCK GLOVE BOX<A99> DARK GRAY 		8-97415-660-0 01 1 0806- ● ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.115 M5X16 		8-94279-312-0 02 1 0307-0612 ● ● ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
09.744 M5X16 TAPPING 		8-98061-683-0 02 1 0701-1003 ● ● ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
M5X16 TAPPING 		8-98167-214-0 02 1 1004- ● ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO DELETE(UL5),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ASIA/OCEANIA BAND W/CASSETTE FULL LOGIC(UX5), AM/FM ASIA/OCEANIA BAND W/CASSETTE SEM I LOGIC(7AU) IMMOBILIZER SYSTEM<7KC> PARKING BRAKE FLOOR<7XW> 		8-97362-195-0 01 1 0307-0508 ● ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS(UU1) IMMOBILIZER SYSTEM<7KC> PARKING BRAKE FLOOR<7XW> 		8-98023-068-0 01 1 0509-0609 ● ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
HF V6 ENG(LCA),C24SE ENG(LG1), 4JA1-T ENG(LP0) AIR BAG DRIVER & PASSENGER(AK5) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> PARKING BRAKE FLOOR<7XW> EXC. RR FOG LAMP<T79> 		8-98023-068-0 01 1 0610-0709 ● ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER(AK5) RR FOG LAMP<T79> RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) PARKING BRAKE FLOOR<7XW> 		8-98023-068-0 01 1 0610-0709 ● ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> PARKING BRAKE FLOOR<7XW> 		8-98023-068-0 01 1 0710-0809 ● ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
C24SE ENG(LG1),4JA1-T ENG(LP0) AIR BAG DRIVER & PASSENGER(AK5) IMMOBILIZER SYSTEM<7KC> PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98023-068-0 01 1 0710-0809 ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> PARKING BRAKE FLOOR<7XW> 		8-98110-168-0 01 1 0810-0912 ● ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
C24SE ENG(LG1),4JA1-T ENG(LP0) AIR BAG DRIVER & PASSENGER(AK5) IMMOBILIZER SYSTEM<7KC> PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98110-168-0 01 1 0810-0912 ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), C24SE ENG(LG1),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1- TCX ENG(LS0) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) PARKING BRAKE FLOOR<7XW> 		8-98110-168-0 01 1 1001- ● ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
C24SE ENG(LG1),4JA1-T ENG(LP0) AIR BAG DRIVER & PASSENGER(AK5) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98110-168-0 01 1 1001- ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. RR FOG LAMP<T79>,PARKING BRAKEFLOOR<7XW> 		8-98023-082-0 01 1 0610-0612 ● ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. RR FOG LAMP<T79>,PARKING BRAKEFLOOR<7XW> 		8-98023-082-0 01 1 0701-0709 ● ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>, PARKING BRAKE FLOOR<7XW> 		8-98023-082-0 01 1 0710-0809 ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. REMOTE CONT DOOR LOCK<AP5>, IMMOBILIZER SYSTEM<7KC>,PARKING BRAKE FLOOR<7XW> 		8-98023-082-0 01 1 0710-0809 ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>, PARKING BRAKE FLOOR<7XW> 		8-98110-178-0 01 1 0810-0912 ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. REMOTE CONT DOOR LOCK<AP5>, IMMOBILIZER SYSTEM<7KC>,PARKING BRAKE FLOOR<7XW> 		8-98110-178-0 01 1 0810-0912 ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), C24SE ENG(LG1),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1- TCX ENG(LS0) AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. REMOTE CONT DOOR LOCK<AP5>, IMMOBILIZER SYSTEM<7KC>,PARKING BRAKE FLOOR<7XW> 		8-98110-178-0 01 1 1001- ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>, PARKING BRAKE FLOOR<7XW> 		8-98110-178-0 01 1 1001- ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) PARKING BRAKE FLOOR<7XW> EXC. RR FOG LAMP<T79> 		8-98023-083-0 01 1 0610-0612 ● ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) PARKING BRAKE FLOOR<7XW> EXC. RR FOG LAMP<T79> 		8-98023-083-0 01 1 0701-0709 ● ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98023-083-0 01 1 0710-0809 ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5>, IMMOBILIZER SYSTEM<7KC> 		8-98023-083-0 01 1 0710-0809 ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98110-179-0 01 1 0810-0912 ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5>, IMMOBILIZER SYSTEM<7KC> 		8-98110-179-0 01 1 0810-0912 ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98110-179-0 01 1 1001- ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), C24SE ENG(LG1),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1- TCX ENG(LS0) AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5>, IMMOBILIZER SYSTEM<7KC> 		8-98110-179-0 01 1 1001- ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO DELETE(UL5),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ASIA/OCEANIA BAND W/CASSETTE FULL LOGIC(UX5), AM/FM ASIA/OCEANIA BAND W/CASSETTE SEM I LOGIC(7AU) IMMOBILIZER SYSTEM<7KC> EXC. PARKING BRAKE FLOOR<7XW> 		8-97362-196-0 01 1 0307-0508 ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS(UU1) IMMOBILIZER SYSTEM<7KC> EXC. PARKING BRAKE FLOOR<7XW> 		8-98023-069-0 01 1 0509-0609 ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
HF V6 ENG(LCA),C24SE ENG(LG1), 4JA1-T ENG(LP0) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> EXC. RR FOG LAMP<T79>,PARKING BRAKEFLOOR<7XW> 		8-98023-069-0 01 1 0610-0709 ● ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RR FOG LAMP<T79> RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. PARKING BRAKE FLOOR<7XW> 		8-98023-069-0 01 1 0610-0709 ● ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
REMOTE CONT DOOR LOCK<AP5> RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. PARKING BRAKE FLOOR<7XW> 		8-98023-069-0 01 1 0710-0809 ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
C24SE ENG(LG1),4JA1-T ENG(LP0) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>, PARKING BRAKE FLOOR<7XW> 		8-98023-069-0 01 1 0710-0809 ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
REMOTE CONT DOOR LOCK<AP5> RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. PARKING BRAKE FLOOR<7XW> 		8-98110-170-0 01 1 0810-0912 ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
C24SE ENG(LG1),4JA1-T ENG(LP0) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>, PARKING BRAKE FLOOR<7XW> 		8-98110-170-0 01 1 0810-0912 ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), C24SE ENG(LG1),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1- TCX ENG(LS0) AIR BAG DRIVER & PASSENGER(AK5), AIRBAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. PARKING BRAKE FLOOR<7XW> 		8-98110-170-0 01 1 1001- ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
C24SE ENG(LG1),4JA1-T ENG(LP0) AIR BAG DRIVER & PASSENGER(AK5), AIRBAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>, PARKING BRAKE FLOOR<7XW> 		8-98110-170-0 01 1 1001- ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO DELETE(UL5),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ASIA/OCEANIA BAND W/CASSETTE FULL LOGIC(UX5), AM/FM ASIA/OCEANIA BAND W/CASSETTE SEM I LOGIC(7AU) EXC. IMMOBILIZER SYSTEM<7KC>, PARKING BRAKE FLOOR<7XW> 		8-97237-250-1 01 1 0307-0508 ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS(UU1) EXC. IMMOBILIZER SYSTEM<7KC>, PARKING BRAKE FLOOR<7XW> 		8-98023-080-0 01 1 0509-0609 ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER(AK5) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> EXC. RR FOG LAMP<T79>,PARKING BRAKEFLOOR<7XW> 		8-98023-080-0 01 1 0610-0612 ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER(AK5) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. RR FOG LAMP<T79>,IMMOBILIZER SYSTEM<7KC>,PARKING BRAKE FLOOR<7XW> 		8-98023-080-0 01 1 0610-0612 ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER(AK5) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. RR FOG LAMP<T79>,PARKING BRAKEFLOOR<7XW> 		8-98023-080-0 01 1 0701-0709 ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER(AK5) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>, PARKING BRAKE FLOOR<7XW> 		8-98023-080-0 01 1 0710-0809 ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER(AK5) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>, PARKING BRAKE FLOOR<7XW> 		8-98110-176-0 01 1 0810-0912 ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER(AK5) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>, PARKING BRAKE FLOOR<7XW> 		8-98110-176-0 01 1 1001- ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO DELETE(UL5),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ASIA/OCEANIA BAND W/CASSETTE FULL LOGIC(UX5), AM/FM ASIA/OCEANIA BAND W/CASSETTE SEM I LOGIC(7AU) PARKING BRAKE FLOOR<7XW> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97237-252-1 01 1 0307-0508 ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS(UU1) PARKING BRAKE FLOOR<7XW> EXC. IMMOBILIZER SYSTEM<7KC> 		8-98023-081-0 01 1 0509-0609 ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER(AK5) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) PARKING BRAKE FLOOR<7XW> 		8-98023-081-0 01 1 0610-0709 ● ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER(AK5) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98023-081-0 01 1 0710-0809 ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER(AK5) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5>, IMMOBILIZER SYSTEM<7KC> 		8-98023-081-0 01 1 0710-0809 ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER(AK5) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98110-177-0 01 1 0810-0912 ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER(AK5) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5>, IMMOBILIZER SYSTEM<7KC> 		8-98110-177-0 01 1 0810-0912 ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER(AK5) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98110-177-0 01 1 1001- ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), C24SE ENG(LG1),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1- TCX ENG(LS0) AIR BAG DRIVER & PASSENGER(AK5) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5>, IMMOBILIZER SYSTEM<7KC> 		8-98110-177-0 01 1 1001- ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. IMMOBILIZER SYSTEM<7KC>, PARKING BRAKE FLOOR<7XW> 		8-97362-204-0 01 1 0307-0401 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. SINGAPORE EQUIPMENT(2G0), IMMOBILIZER SYSTEM<7KC>,PARKING BRAKE FL OOR<7XW> 		8-97362-204-0 01 1 0402-0508 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. SINGAPORE EQUIPMENT(2G0), IMMOBILIZER SYSTEM<7KC>,PARKING BRAKE FL OOR<7XW> 		8-98023-077-0 01 1 0509-0609 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER(AK5) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) PARKING BRAKE FLOOR<7XW> EXC. RR FOG LAMP<T79> 		8-98023-089-0 01 1 0610-0612 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER(AK5) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) PARKING BRAKE FLOOR<7XW> EXC. RR FOG LAMP<T79> 		8-98023-089-0 01 1 0701-0709 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER(AK5), AIRBAG DRIVER & PASSENGER DELETE(AK6) IMMOBILIZER SYSTEM<7KC> INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98023-089-0 01 1 0710-0809 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5>, IMMOBILIZER SYSTEM<7KC> 		8-98023-089-0 01 1 0710-0809 ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER(AK5), AIRBAG DRIVER & PASSENGER DELETE(AK6) IMMOBILIZER SYSTEM<7KC> INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98110-195-0 01 1 0810-0912 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5>, IMMOBILIZER SYSTEM<7KC> 		8-98110-195-0 01 1 0810-0912 ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), C24SE ENG(LG1),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1- TCX ENG(LS0) AIR BAG DRIVER & PASSENGER(AK5), AIRBAG DRIVER & PASSENGER DELETE(AK6) INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5>, IMMOBILIZER SYSTEM<7KC> 		8-98110-195-0 01 1 1001- ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER(AK5), AIRBAG DRIVER & PASSENGER DELETE(AK6) IMMOBILIZER SYSTEM<7KC> INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98110-195-0 01 1 1001- ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97362-203-0 01 1 0307-0401 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> EXC. SINGAPORE EQUIPMENT(2G0), IMMOBILIZER SYSTEM<7KC> 		8-97362-203-0 01 1 0402-0508 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> EXC. SINGAPORE EQUIPMENT(2G0), IMMOBILIZER SYSTEM<7KC> 		8-98023-076-0 01 1 0509-0609 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
HF V6 ENG(LCA),C24SE ENG(LG1), 4JA1-T ENG(LP0) IMMOBILIZER SYSTEM<7KC> INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. PARKING BRAKE FLOOR<7XW> 		8-98023-085-0 01 1 0610-0709 ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
C24SE ENG(LG1),4JA1-T ENG(LP0) AIR BAG DRIVER & PASSENGER(AK5), AIRBAG DRIVER & PASSENGER DELETE(AK6) IMMOBILIZER SYSTEM<7KC> INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. REMOTE CONT DOOR LOCK<AP5>, PARKING BRAKE FLOOR<7XW> 		8-98023-085-0 01 1 0710-0809 ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
C24SE ENG(LG1),4JA1-T ENG(LP0) AIR BAG DRIVER & PASSENGER(AK5), AIRBAG DRIVER & PASSENGER DELETE(AK6) IMMOBILIZER SYSTEM<7KC> INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. REMOTE CONT DOOR LOCK<AP5>, PARKING BRAKE FLOOR<7XW> 		8-98110-190-0 01 1 0810- ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. RR FOG LAMP<T79>,IMMOBILIZER SYSTEM<7KC>,PARKING BRAKE FLOOR<7XW> 		8-98023-090-0 01 1 0610-0612 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) IMMOBILIZER SYSTEM<7KC> INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. RR FOG LAMP<T79>,PARKING BRAKEFLOOR<7XW> 		8-98023-090-0 01 1 0610-0612 ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. RR FOG LAMP<T79>,IMMOBILIZER SYSTEM<7KC>,PARKING BRAKE FLOOR<7XW> 		8-98023-090-0 01 1 0701-0709 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) IMMOBILIZER SYSTEM<7KC> INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. RR FOG LAMP<T79>,PARKING BRAKEFLOOR<7XW> 		8-98023-090-0 01 1 0701-0709 ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER DELETE(AK6) IMMOBILIZER SYSTEM<7KC> INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. REMOTE CONT DOOR LOCK<AP5>, PARKING BRAKE FLOOR<7XW> 		8-98023-090-0 01 1 0710-0809 ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER DELETE(AK6) IMMOBILIZER SYSTEM<7KC> INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. REMOTE CONT DOOR LOCK<AP5>, PARKING BRAKE FLOOR<7XW> 		8-98110-196-0 01 1 0810-0912 ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER DELETE(AK6) IMMOBILIZER SYSTEM<7KC> INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. REMOTE CONT DOOR LOCK<AP5>, PARKING BRAKE FLOOR<7XW> 		8-98110-196-0 01 1 1001- ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
IMMOBILIZER SYSTEM<7KC> INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> 		8-97362-194-0 01 1 0307-0401 ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
SINGAPORE EQUIPMENT(2G0) INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97362-194-0 01 1 0402-0508 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
IMMOBILIZER SYSTEM<7KC> INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> 		8-97362-194-0 01 1 0402-0508 ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
SINGAPORE EQUIPMENT(2G0) INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> EXC. IMMOBILIZER SYSTEM<7KC> 		8-98023-067-0 01 1 0509-0609 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
IMMOBILIZER SYSTEM<7KC> INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> 		8-98023-067-0 01 1 0509-0609 ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
HF V6 ENG(LCA),C24SE ENG(LG1), 4JA1-T ENG(LP0) AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> PARKING BRAKE FLOOR<7XW> EXC. RR FOG LAMP<T79> 		8-98023-084-0 01 1 0610-0709 ● ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) PARKING BRAKE FLOOR<7XW> 		8-98023-084-0 01 1 0710-0809 ● ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
C24SE ENG(LG1),4JA1-T ENG(LP0) AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98023-084-0 01 1 0710-0809 ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) PARKING BRAKE FLOOR<7XW> 		8-98110-189-0 01 1 0810-0912 ● ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
C24SE ENG(LG1),4JA1-T ENG(LP0) AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98110-189-0 01 1 0810-0912 ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
C24SE ENG(LG1),4JA1-T ENG(LP0) AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98110-189-0 01 1 1001- ● ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), C24SE ENG(LG1),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1- TCX ENG(LS0) AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAK ERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) PARKING BRAKE FLOOR<7XW> 		8-98110-189-0 01 1 1001- ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
IMMOBILIZER SYSTEM<7KC> INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. PARKING BRAKE FLOOR<7XW> 		8-97362-193-0 01 1 0307-0401 ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
SINGAPORE EQUIPMENT(2G0) INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97362-193-0 01 1 0402-0508 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
IMMOBILIZER SYSTEM<7KC> INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> 		8-97362-193-0 01 1 0402-0508 ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
SINGAPORE EQUIPMENT(2G0) INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> EXC. IMMOBILIZER SYSTEM<7KC> 		8-98023-066-0 01 1 0509-0609 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
IMMOBILIZER SYSTEM<7KC> INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> 		8-98023-066-0 01 1 0509-0609 ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
HF V6 ENG(LCA),C24SE ENG(LG1), 4JA1-T ENG(LP0) IMMOBILIZER SYSTEM<7KC> INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> EXC. RR FOG LAMP<T79> 		8-98023-086-0 01 1 0610-0709 ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
REMOTE CONT DOOR LOCK<AP5> INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> 		8-98023-086-0 01 1 0710-0809 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
C24SE ENG(LG1),4JA1-T ENG(LP0) IMMOBILIZER SYSTEM<7KC> INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98023-086-0 01 1 0710-0809 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
REMOTE CONT DOOR LOCK<AP5> INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> 		8-98110-191-0 01 1 0810-0912 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
C24SE ENG(LG1),4JA1-T ENG(LP0) IMMOBILIZER SYSTEM<7KC> INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98110-191-0 01 1 0810-0912 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), C24SE ENG(LG1),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1- TCX ENG(LS0) AIR BAG DRIVER & PASSENGER(AK5), AIRBAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> 		8-98110-191-0 01 1 1001- ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
C24SE ENG(LG1),4JA1-T ENG(LP0) AIR BAG DRIVER & PASSENGER(AK5), AIRBAG DRIVER & PASSENGER DELETE(AK6) IMMOBILIZER SYSTEM<7KC> INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98110-191-0 01 1 1001- ● ● ● ●
125 16.085 CLIP; INST PANEL 8-97310-401-0 01 1 0307- ● ● ● ● ● ● ● ●
136 16.085 CLIP; INST COVER
16.100 T=0.5 		8-97137-828-0 04 1 0307-0612 ● ● ● ● ● ● ● ●
136 16.085 CLIP; INST COVER
09.744 T=0.5 		8-98061-356-0 04 1 0701- ● ● ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
07.833 M6 FLANGE 		8-97063-399-0 03 1 0307-0609 ● ● ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
08.915 M6 FLANGE 		8-98055-704-0 03 1 0610- ● ● ● ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
08.015 M6X20 W/WASHER 		8-94112-987-1 04 1 0307-0611 ● ● ● ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
09.744 M6X20 W/WASHER 		8-98056-282-0 04 1 0612- ● ● ● ● ● ● ● ●
247 16.080 COVER; HAND BRAKE LEVER,INST PAN
EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97393-916-0 01 1 0307-0609 ● ● ● ● ● ● ●
247 16.080 COVER; HAND BRAKE LEVER,INST PAN
EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-950-0 01 1 0610-1103 ● ● ● ● ● ● ●
247 16.080 COVER; HAND BRAKE LEVER,INST PAN
EXC. PARKING BRAKE FLOOR<7XW> BLACK 		8-97422-831-0 01 1 1104- ● ● ● ● ● ● ●
285 16.085 FINISHER; INST PANEL
16.550 L=175 SERVICED BY L=2040 		1-71997-513-1 01 1 0307- ● ● ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
PARKING BRAKE FLOOR<7XW> (A) DARK GRAY 		8-97393-913-0 01 1 0307-0609 ● ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
(A) DARK GRAY 		8-97393-913-0 01 1 0307-0609 ●
336 16.081 COVER; INST PANEL SIDE
PARKING BRAKE FLOOR<7XW> (A) DARK GRAY 		8-97403-940-0 01 1 0610-1103 ● ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
(A) DARK GRAY 		8-97403-940-0 01 1 0610-1103 ●
336 16.081 COVER; INST PANEL SIDE
PARKING BRAKE FLOOR<7XW> (A) BLACK 		8-97422-814-0 01 1 1104- ● ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
(A) BLACK 		8-97422-814-0 01 1 1104- ●
336 16.081 COVER; INST PANEL SIDE
EXC. PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97393-912-0 01 1 0307-0609 ● ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
EXC. PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97403-942-0 01 1 0610-1103 ● ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
EXC. PARKING BRAKE FLOOR<7XW> (B) BLACK 		8-97422-822-0 01 1 1104- ● ● ● ● ● ● ●
338 16.081 SCREW; COVER
16.115 M5X16 		8-94279-312-0 01 1 0307-0612 ● ● ● ● ● ● ● ●
338 16.081 SCREW; COVER
09.744 M5X16 TAPPING 		8-98061-683-0 01 1 0701-1003 ● ● ● ● ● ● ● ●
338 16.081 SCREW; COVER
16.100 M5X16 TAPPING 		8-98167-214-0 01 1 1004- ● ● ● ● ● ● ● ●
341 16.110 LID; FUSE BOX
(A) DARK GRAY 		8-97393-914-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
341 16.110 LID; FUSE BOX
(A) DARK GRAY 		8-97403-945-0 01 1 0610-1103 ● ● ● ● ● ● ● ●
341 16.110 LID; FUSE BOX
(A) BLACK 		8-97422-818-0 01 1 1104- ● ● ● ● ● ● ● ●
341 16.110 LID; FUSE BOX
(B) DARK GRAY 		8-97396-877-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
341 16.110 LID; FUSE BOX
(B) DARK GRAY 		8-97408-049-1 01 1 0610- ● ● ● ● ● ● ● ●
341 16.110 LID; FUSE BOX
(B) DARK GRAY 		8-97396-876-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
341 16.110 LID; FUSE BOX
(B) DARK GRAY 		8-97408-048-1 01 1 0610- ● ● ● ● ● ● ● ●
537 16.085 NUT; BRKT
AIR BAG DRIVER & PASSENGER(AK5) 16.547 M6 W/DISHED WASHER 		8-97018-399-1 02 1 0307-0612 ● ● ● ● ● ● ● ●
537 16.085 NUT; BRKT
AIR BAG DRIVER & PASSENGER(AK5) M6 W/DISHED WASHER 		8-98073-372-0 02 1 0701- ● ● ● ● ● ● ● ●
579 16.080 COVER; INST PNL
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER DELETE(AK6) DARK GRAY 		8-97299-329-0 01 1 0307-0508 ● ● ● ● ● ● ● ●
579 16.080 COVER; INST PNL
AIR BAG DRIVER & PASSENGER DELETE(AK6) DARK GRAY 		8-97299-329-0 01 1 0509-0609 ● ● ● ● ● ● ● ●
579 16.080 COVER; INST PNL
AIR BAG DRIVER & PASSENGER DELETE(AK6) DARK GRAY 		8-97405-961-1 01 1 0610- ● ● ● ● ● ● ● ●
622 16.100 BOX; IDLE CONT
C24SE ENG(LG1),6VE1 ENG(LX5), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) DARK GRAY 		8-97393-915-0 01 1 0307-0508 ● ● ● ● ● ● ● ●
622 16.100 BOX; IDLE CONT
HF V6 ENG(LCA),C24SE ENG(LG1),6VE1 ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) DARK GRAY 		8-97393-915-0 01 1 0509-0609 ● ● ● ● ● ● ● ●
622 16.100 BOX; IDLE CONT
HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), C24SE ENG(LG1),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) DARK GRAY 		8-97403-947-0 01 1 0610-0612 ● ● ● ● ● ● ● ●
622 16.100 BOX; IDLE CONT
HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), C24SE ENG(LG1),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) DARK GRAY 		8-97403-947-0 01 1 0701-0912 ● ● ● ● ● ● ● ●
622 16.100 BOX; IDLE CONT
HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), C24SE ENG(LG1),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) DARK GRAY 		8-97403-947-0 01 1 1001-1103 ● ● ● ● ● ● ● ●
622 16.100 BOX; IDLE CONT
HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), C24SE ENG(LG1),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BLACK 		8-97422-820-0 01 1 1104- ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
