Sayfa 7-01 - Isuzu EPC

7-01 — EMBLEM AND NAME PLATE (#42968) — 176 parça

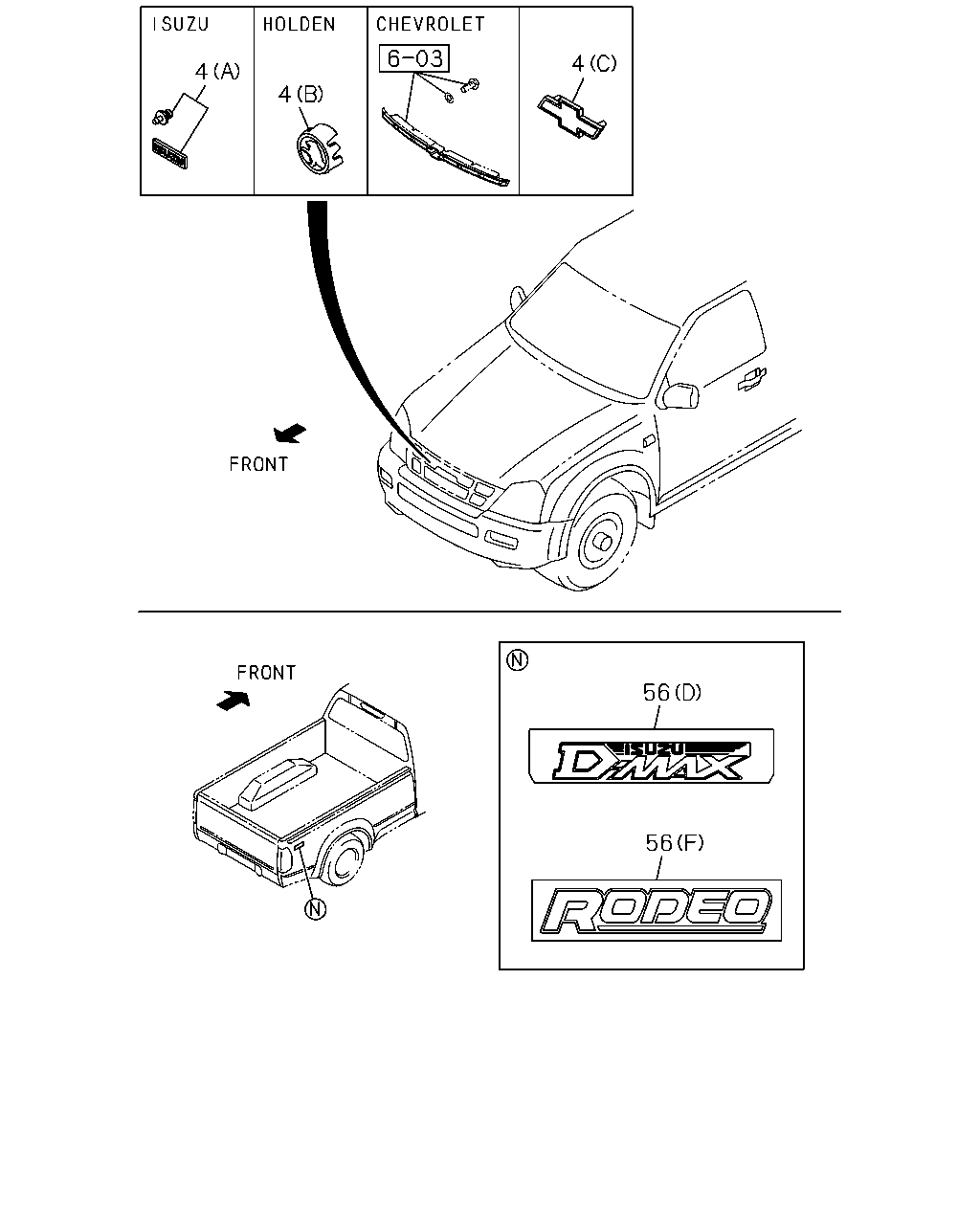

4 4 4 56 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
4	01.303 EMBLEM; RAD GRILLE CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> (C)	8-98040-606-0	01	1	0709-	●	●	●	●	●	●
4	01.303 EMBLEM; RAD GRILLE BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> HOLDEN BRAND<8DU> (B)	8-97331-857-1	01	1	0307-0405	●	●	●	●	●	●	●	●
4	01.303 EMBLEM; RAD GRILLE BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> HOLDEN BRAND<8DU> (B)	8-97331-857-1	01	1	0406-0406	●	●	●	●		●
4	01.303 EMBLEM; RAD GRILLE (B)	8-97331-857-1	01	1	0406-0406							●
4	01.303 EMBLEM; RAD GRILLE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) (B)	8-97331-857-1	01	1	0406-0406					●
4	01.303 EMBLEM; RAD GRILLE BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> HOLDEN BRAND<8DU> (B)	8-97331-857-1	01	1	0407-0508	●	●	●	●				●
4	01.303 EMBLEM; RAD GRILLE (B)	8-97331-857-1	01	1	0407-0508						●	●
4	01.303 EMBLEM; RAD GRILLE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> HOLDEN BRAND<8DU> (B)	8-97331-857-1	01	1	0407-0508					●
4	01.303 EMBLEM; RAD GRILLE BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> HOLDEN BRAND<8DU> EXC. FACE LIFT MODEL<TX7> (B)	8-97331-857-1	01	1	0509-0609	●	●	●	●	●	●	●	●
4	01.303 EMBLEM; RAD GRILLE BASE VEHICLE GRILLE<VWX> HOLDEN BRAND<8DU> (B)	8-98012-653-0	01	1	0610-	●	●	●	●	●	●	●	●
4	01.303 EMBLEM; RAD GRILLE BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (A)	8-97331-459-0	01	1	0307-0405	●	●	●	●	●	●
4	01.303 EMBLEM; RAD GRILLE BRIGHT RAD GRILLE<V22> (A)	8-97331-459-0	01	1	0307-0405	●	●	●	●	●	●
4	01.303 EMBLEM; RAD GRILLE ISUZU BRAND<7WL> (A)	8-97331-459-0	01	1	0406-0609	●	●	●	●	●	●
4	01.303 EMBLEM; RAD GRILLE BASE VEHICLE GRILLE<VWX>,BRIGHT RADGRILLE<V22> ISUZU BRAND<7WL> (A)	8-97331-459-0	01	1	0610-	●	●	●	●	●	●
56	08.147 DECAL; BODY SIDE REAR BODY DBL WALL CTR PULL(E63) DECAL ISUZU D-MAX<V2K> ISUZU BRAND<7WL> (D)	8-97372-869-0	02	1	0309-0609	●	●	●	●	●	●
56	08.147 DECAL; BODY SIDE REAR BODY DBL WALL CTR PULL(E63) DECAL ISUZU D-MAX<V2K> (D)	8-97372-869-0	02	1	0610-	●	●	●	●	●	●
56	08.147 DECAL; BODY SIDE REAR BODY DBL WALL CTR PULL(E63) DECAL RODEO<Y4I> ISUZU BRAND<7WL> (F)	8-98009-342-0	02	1	0502-0609	●	●	●	●	●	●
56	08.147 DECAL; BODY SIDE REAR BODY DBL WALL CTR PULL(E63) DECAL RODEO<Y4I> (F)	8-98009-342-0	02	1	0610-	●	●	●	●	●	●
56	08.147 DECAL; BODY SIDE 4JA1-T ENG(LP0) GRADE DX(RBA) CHEVROLET BRAND<RWE> (A)	8-97368-022-0	02	1	0307-0609	●	●	●	●	●	●
56	08.147 DECAL; BODY SIDE 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) GRADE DX(RBA) CHEVROLET BRAND<RWE> (A)	8-97368-022-0	02	1	0610-	●	●	●	●	●	●
56	08.147 DECAL; BODY SIDE 4JH1-TC ENG(RDM) GRADE DX(RBA) CHEVROLET BRAND<RWE> (B)	8-97368-024-0	02	1	0307-0609	●	●	●	●	●	●
56	08.147 DECAL; BODY SIDE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) ,4JH1-TC ENG(RDM) GRADE DX(RBA) CHEVROLET BRAND<RWE> (B)	8-97368-024-0	02	1	0610-	●	●	●	●	●	●
56	08.147 DECAL; BODY SIDE C24SE ENG(LG1) GRADE DX(RBA) CHEVROLET BRAND<RWE> (C)	8-97368-021-0	02	1	0307-		●	●		●	●
56	08.147 DECAL; BODY SIDE 4JA1-TC ENG(L4Z) GRADE DX(RBA) CHEVROLET BRAND<RWE> (E)	8-97368-023-0	02	1	0310-0609		●	●		●	●

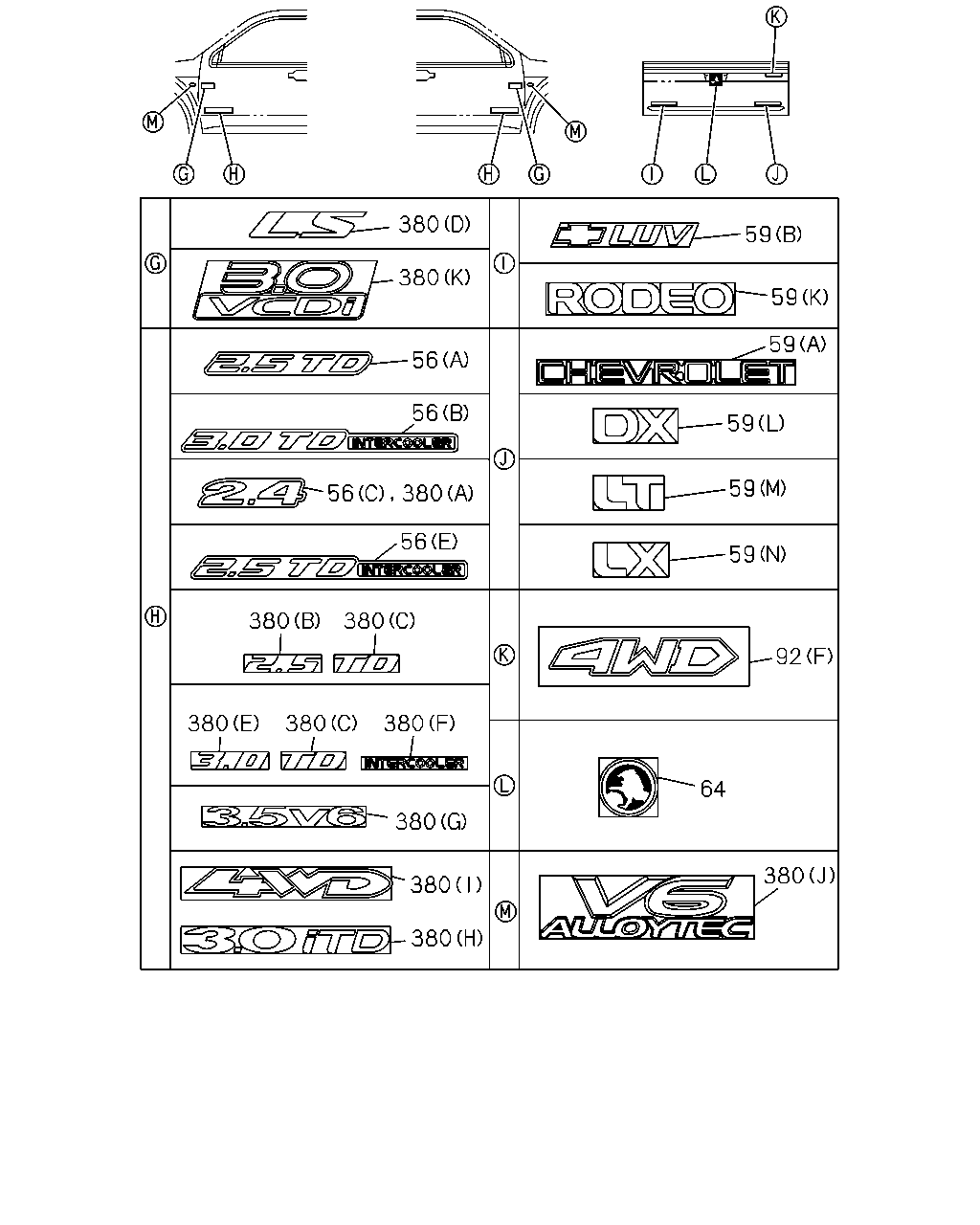

59 59 92 92 59 59 380 59 92 59 59 59 92 92 59 59 59 92 59 59 380

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
59	01.303 DECAL; TAIL GATE 4JK1-TCS ENG(LKZ) GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (E)	8-98027-488-0	01	1	1006-			●			●
59	01.303 DECAL; TAIL GATE GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) NAME PLATE ISUZU KB<6PU> (J)	8-97301-853-1	01	1	0307-	●	●	●	●	●	●
59	01.303 DECAL; TAIL GATE GRADE LX(RBB),GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (J)	8-97301-853-1	01	1	0307-	●	●	●	●	●	●
59	01.303 DECAL; TAIL GATE NAME PLATE ISUZU KB<6PU> (C)	8-97352-487-0	01	1	0307-	●	●	●	●	●	●
59	01.303 DECAL; TAIL GATE REAR BODY DBL WALL CTR PULL(E63) CHEVROLET BRAND<RWE> (A)	8-97352-488-0	01	1	0307-	●	●	●	●	●	●
59	01.303 DECAL; TAIL GATE REAR BODY DBL WALL CTR PULL(E63) CHEVROLET BRAND<RWE> (B)	8-97352-489-0	01	1	0307-	●	●	●	●	●	●
59	01.303 DECAL; TAIL GATE 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) GRADE LX(RBB),GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (E)	8-97301-857-1	01	1	0307-0609	●	●	●	●	●	●
59	01.303 DECAL; TAIL GATE 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) GRADE LX(RBB),GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (E)	8-97301-857-1	01	1	0610-	●	●	●	●	●	●
59	01.303 DECAL; TAIL GATE 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) GRADE LX(RBB),GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (F)	8-97352-836-0	01	1	0307-0609	●	●	●	●	●	●
59	01.303 DECAL; TAIL GATE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) GRADE LX(RBB),GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (F)	8-97352-836-0	01	1	0610-	●	●	●	●	●	●
59	01.303 DECAL; TAIL GATE 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) GRADE LX(RBB),GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (G)	8-97361-279-0	01	1	0307-0609	●	●	●	●	●	●
59	01.303 DECAL; TAIL GATE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) GRADE LX(RBB),GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (G)	8-97361-279-0	01	1	0610-0707	●	●	●	●	●	●
59	01.303 DECAL; TAIL GATE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) GRADE LX(RBB),GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> EXC. MALAYSIA EQUIPMENT(B10) (G)	8-97361-279-0	01	1	0708-	●	●	●	●	●	●
59	01.303 DECAL; TAIL GATE 4JH1-TC ENG(RDM) GRADE LX(RBB),GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (H)	8-97301-855-1	01	1	0307-0609	●	●	●	●	●	●
59	01.303 DECAL; TAIL GATE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) GRADE LX(RBB),GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (H)	8-97301-855-1	01	1	0610-0707	●	●	●	●	●	●
59	01.303 DECAL; TAIL GATE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) GRADE LX(RBB),GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> EXC. MALAYSIA EQUIPMENT(B10) (H)	8-97301-855-1	01	1	0708-	●	●	●	●	●	●
59	01.303 DECAL; TAIL GATE GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) HOLDEN BRAND<8DU> (L)	8-97324-677-0	01	1	0307-	●	●	●	●		●
59	01.303 DECAL; TAIL GATE GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) HOLDEN BRAND<8DU> (M)	8-97324-675-1	01	1	0307-	●	●	●	●		●
59	01.303 DECAL; TAIL GATE GRADE LX(RBB) REAR BODY DBL WALL CTR PULL(E63) HOLDEN BRAND<8DU> (N)	8-97324-676-0	01	1	0307-	●	●	●	●		●
59	01.303 DECAL; TAIL GATE HF V6 ENG(LCA) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> 17.215 (Q)	8-98028-214-0	01	1	0704-	●	●	●	●		●
59	01.303 DECAL; TAIL GATE REAR BODY DBL WALL CTR PULL(E63) HOLDEN BRAND<8DU> (K)	8-97324-674-0	01	1	0307-	●	●	●	●		●
59	01.303 DECAL; TAIL GATE 6VE1 ENG(LX5) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (I)	8-97324-672-1	01	1	0307-0508	●	●	●	●		●
59	01.303 DECAL; TAIL GATE 6VE1 ENG(LX5) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (I)	8-97324-672-1	01	1	0509-0609						●
59	01.303 DECAL; TAIL GATE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (P)	8-98030-389-0	01	1	0610-0612			●			●
59	01.303 DECAL; TAIL GATE 4JJ1-TCS ENG(LFB) GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (P)	8-98030-389-0	01	1	0701-			●			●
59	01.303 DECAL; TAIL GATE C24SE ENG(LG1) GRADE LX(RBB),GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (D)	8-97324-673-1	01	1	0307-		●	●		●	●
59	01.303 DECAL; TAIL GATE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (H)	8-98027-487-0	01	1	0610-			●			●
59	01.303 DECAL; TAIL GATE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (O)	8-98030-390-0	01	1	0610-0612			●			●
59	01.303 DECAL; TAIL GATE 4JJ1-TCS ENG(LFB) GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (O)	8-98030-390-0	01	1	0701-			●			●
59	01.303 DECAL; TAIL GATE 4JK1-TCS ENG(LKZ) GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (E)	8-98027-488-0	01	1	0610-0612			●			●
92	08.147 DECAL; RR END GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> EXC. NAME PLATE ISUZU KB<6PU> (A)	8-97301-854-2	01	1	0307-0402	●	●	●	●	●	●
92	08.147 DECAL; RR END GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> EXC. NAME PLATE ISUZU KB<6PU> (A)	8-97378-485-0	01	1	0403-	●	●	●	●	●	●
92	08.147 DECAL; RR END 4JA1-T ENG(LP0) GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (B)	8-97368-022-0	01	1	0307-	●	●	●	●	●	●
92	08.147 DECAL; RR END 4JH1-TC ENG(RDM) GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (C)	8-97368-024-0	01	1	0307-0609	●	●	●	●	●	●
92	08.147 DECAL; RR END 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (C)	8-97368-024-0	01	1	0610-	●	●	●	●	●	●
92	08.147 DECAL; RR END C24SE ENG(LG1) GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (D)	8-97368-021-0	01	1	0307-		●	●		●	●
92	08.147 DECAL; RR END 4JA1-TC ENG(L4Z) GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (E)	8-97368-023-0	01	1	0307-0609		●	●		●	●
92	08.147 DECAL; RR END 4JK1-TCX ENG(LR0) GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (D)	8-97368-023-0	01	1	0610-		●	●		●	●
92	08.147 DECAL; RR END REAR BODY DBL WALL CTR PULL(E63) CHEVROLET BRAND<RWE>,ISUZU BRAND<7WL> (F)	8-97301-860-0	01	1	0307-0609				●	●	●
92	08.147 DECAL; RR END REAR BODY DBL WALL CTR PULL(E63) CHEVROLET BRAND<RWE>,ISUZU BRAND<7WL> (F)	8-98032-796-0	01	1	0610-				●	●	●
380	17.215 PLATE; SIDE HF V6 ENG(LCA) (J)	8-92162-907-0	02	1	0509-0609	●	●	●	●	●	●	●	●
380	17.215 PLATE; SIDE HF V6 ENG(LCA) HOLDEN BRAND<8DU> (J)	8-92162-907-0	02	1	0610-	●	●	●	●	●	●	●	●
380	17.215 PLATE; SIDE 4JH1-TC ENG(RDM) HOLDEN BRAND<8DU> 01.303 (H)	8-97324-671-1	02	1	0307-0609	●	●	●	●	●	●	●	●
380	17.215 PLATE; SIDE 4JJ1-TCX ENG(LS0) HOLDEN BRAND<8DU> (K)	8-98028-079-0	02	1	0610-	●	●	●	●	●	●	●	●
380	17.215 PLATE; SIDE 6VE1 ENG(LX5) CHEVROLET BRAND<RWE>,HOLDEN BRAND<8DU> 01.303 (G)	8-97324-672-1	02	1	0307-0508	●	●	●	●	●	●	●	●
380	17.215 PLATE; SIDE 6VE1 ENG(LX5) CHEVROLET BRAND<RWE>,HOLDEN BRAND<8DU> 01.303 (G)	8-97324-672-1	02	1	0509-0609						●
380	17.215 PLATE; SIDE HF V6 ENG(LCA) CHEVROLET BRAND<RWE>,ISUZU BRAND<7WL> (L)	8-98028-214-0	02	1	0610-0703	●	●	●	●		●
380	17.215 PLATE; SIDE HF V6 ENG(LCA) ISUZU BRAND<7WL> (L)	8-98028-214-0	02	1	0704-	●	●	●	●		●
380	17.215 PLATE; SIDE GRADE LT/LS(RBD) CHEVROLET BRAND<RWE>,ISUZU BRAND<7WL> 01.303 (D)	8-97301-844-1	02	1	0307-0609	●	●	●	●	●	●
380	17.215 PLATE; SIDE GRADE LT/LS(RBD) CHEVROLET BRAND<RWE>,ISUZU BRAND<7WL> (D)	8-98027-490-0	02	1	0610-	●	●	●	●	●	●
380	17.215 PLATE; SIDE 4JA1-T ENG(LP0) GRADE LX(RBB),GRADE LT/LS(RBD) CHEVROLET BRAND<RWE> 01.303 (B)	8-97301-857-1	02	1	0307-0309	●	●	●	●	●	●
380	17.215 PLATE; SIDE 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) GRADE LX(RBB),GRADE LT/LS(RBD) CHEVROLET BRAND<RWE> 01.303 (B)	8-97301-857-1	02	1	0310-0402	●	●	●	●	●	●
380	17.215 PLATE; SIDE 4JA1-T ENG(LP0) GRADE LX(RBB),GRADE LT/LS(RBD) CHEVROLET BRAND<RWE> 01.303 (B)	8-97301-857-1	02	1	0403-0508	●	●	●	●	●	●
380	17.215 PLATE; SIDE 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) GRADE LX(RBB),GRADE LT/LS(RBD) CHEVROLET BRAND<RWE> 01.303 (B)	8-97301-857-1	02	1	0403-0508	●	●	●	●	●	●
380	17.215 PLATE; SIDE 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) GRADE LX(RBB),GRADE LT/LS(RBD) CHEVROLET BRAND<RWE> 01.303 (B)	8-97301-857-1	02	1	0509-0609	●	●	●	●	●	●
380	17.215 PLATE; SIDE 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) GRADE LX(RBB),GRADE LT/LS(RBD) CHEVROLET BRAND<RWE> 01.303 (B)	8-97301-857-1	02	1	0610-	●	●	●	●	●	●
380	17.215 PLATE; SIDE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) GRADE LX(RBB),GRADE LT/LS(RBD) CHEVROLET BRAND<RWE> 01.303 (C)	8-97352-836-0	02	1	0307-0309	●	●	●	●	●	●
380	17.215 PLATE; SIDE 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) GRADE LX(RBB),GRADE LT/LS(RBD) CHEVROLET BRAND<RWE> 01.303 (C)	8-97352-836-0	02	1	0310-0609	●	●	●	●	●	●
380	17.215 PLATE; SIDE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) GRADE LX(RBB),GRADE LT/LS(RBD) CHEVROLET BRAND<RWE> 01.303 (C)	8-97352-836-0	02	1	0610-	●	●	●	●	●	●
380	17.215 PLATE; SIDE 4JH1-TC ENG(RDM) GRADE LX(RBB),GRADE LT/LS(RBD) CHEVROLET BRAND<RWE> 01.303 (E)	8-97301-855-1	02	1	0307-0609	●	●	●	●	●	●
380	17.215 PLATE; SIDE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) GRADE LX(RBB),GRADE LT/LS(RBD) CHEVROLET BRAND<RWE> 01.303 (E)	8-97301-855-1	02	1	0610-	●	●	●	●	●	●
380	17.215 PLATE; SIDE 4JH1-TC ENG(RDM) GRADE LX(RBB),GRADE LT/LS(RBD) CHEVROLET BRAND<RWE> 01.303 (F)	8-97361-279-0	02	1	0307-0309	●	●	●	●	●	●
380	17.215 PLATE; SIDE 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) GRADE LX(RBB),GRADE LT/LS(RBD) CHEVROLET BRAND<RWE> 01.303 (F)	8-97361-279-0	02	1	0310-0609	●	●	●	●	●	●
380	17.215 PLATE; SIDE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) GRADE LX(RBB),GRADE LT/LS(RBD) CHEVROLET BRAND<RWE> 01.303 (F)	8-97361-279-0	02	1	0610-	●	●	●	●	●	●
380	17.215 PLATE; SIDE C24SE ENG(LG1) HOLDEN BRAND<8DU> 01.303 (A)	8-97324-673-1	02	1	0307-0609		●	●			●		●
380	17.215 PLATE; SIDE C24SE ENG(LG1) GRADE LX(RBB),GRADE LT/LS(RBD) CHEVROLET BRAND<RWE> 01.303 (A)	8-97324-673-1	02	1	0307-0609		●	●		●	●
380	17.215 PLATE; SIDE C24SE ENG(LG1) GRADE LX(RBB),GRADE LT/LS(RBD) CHEVROLET BRAND<RWE> 01.303 (A)	8-97324-673-1	02	1	0610-		●	●		●	●		●
380	17.215 PLATE; SIDE C24SE ENG(LG1) HOLDEN BRAND<8DU> 01.303 (A)	8-97324-673-1	02	1	0610-		●	●
380	17.215 PLATE; SIDE HOLDEN BRAND<8DU> 01.303 (I)	8-97324-670-0	02	1	0307-				●	●	●

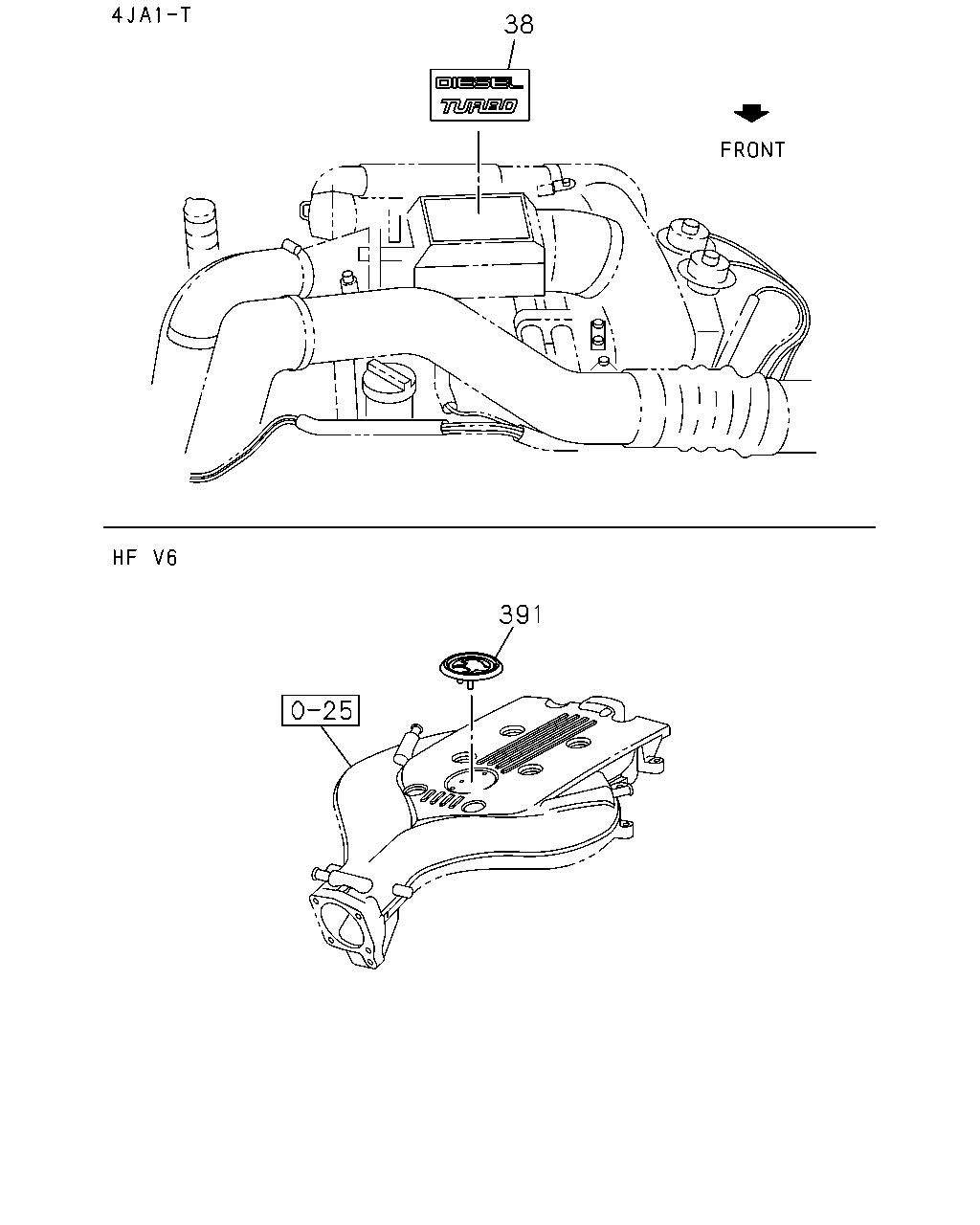

38 391

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
38	01.303 PLATE; NAME 4JA1-T ENG(LP0)	8-97115-470-0	01	1	0307-0609	●	●	●	●	●	●
38	01.303 PLATE; NAME 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC>	8-97115-470-0	01	1	0610-	●	●	●	●	●	●
391	16.507 EMBLEM; INT MANIF HF V6 ENG(LCA)	8-92164-480-0	01	1	0509-0609	●	●	●	●	●	●	●	●

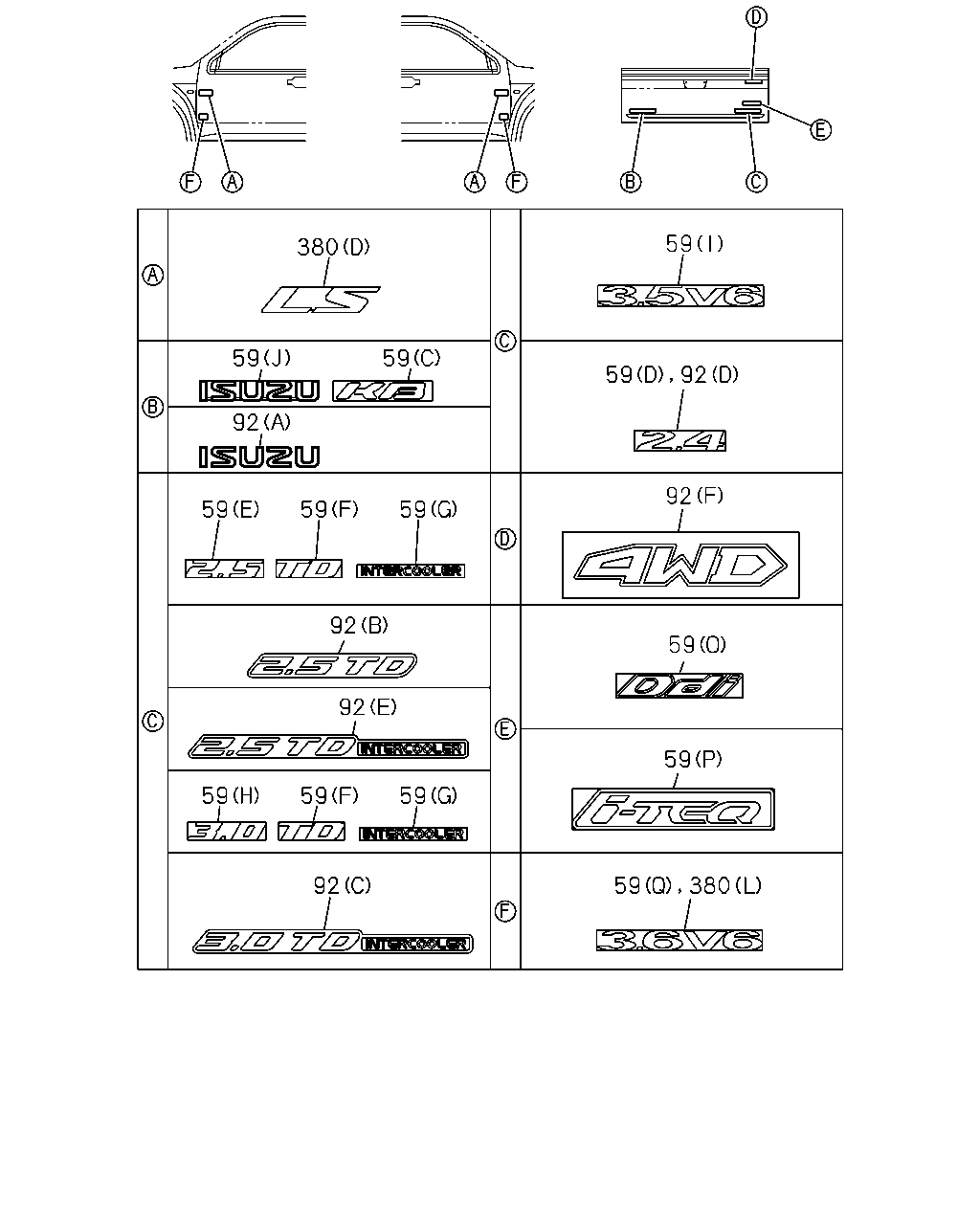

380 380 56 56 56 380 56 380 380 380 380 380 380 380 380 64 380 92 59 59 59 59 59 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
56	08.147 DECAL; BODY SIDE REAR BODY DBL WALL CTR PULL(E63) DECAL ISUZU D-MAX<V2K> ISUZU BRAND<7WL> (D)	8-97372-869-0	02	1	0309-0609	●	●	●	●	●	●
56	08.147 DECAL; BODY SIDE REAR BODY DBL WALL CTR PULL(E63) DECAL ISUZU D-MAX<V2K> (D)	8-97372-869-0	02	1	0610-	●	●	●	●	●	●
56	08.147 DECAL; BODY SIDE REAR BODY DBL WALL CTR PULL(E63) DECAL RODEO<Y4I> ISUZU BRAND<7WL> (F)	8-98009-342-0	02	1	0502-0609	●	●	●	●	●	●
56	08.147 DECAL; BODY SIDE REAR BODY DBL WALL CTR PULL(E63) DECAL RODEO<Y4I> (F)	8-98009-342-0	02	1	0610-	●	●	●	●	●	●
56	08.147 DECAL; BODY SIDE 4JA1-T ENG(LP0) GRADE DX(RBA) CHEVROLET BRAND<RWE> (A)	8-97368-022-0	02	1	0307-0609	●	●	●	●	●	●
56	08.147 DECAL; BODY SIDE 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) GRADE DX(RBA) CHEVROLET BRAND<RWE> (A)	8-97368-022-0	02	1	0610-	●	●	●	●	●	●
56	08.147 DECAL; BODY SIDE 4JH1-TC ENG(RDM) GRADE DX(RBA) CHEVROLET BRAND<RWE> (B)	8-97368-024-0	02	1	0307-0609	●	●	●	●	●	●
56	08.147 DECAL; BODY SIDE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) ,4JH1-TC ENG(RDM) GRADE DX(RBA) CHEVROLET BRAND<RWE> (B)	8-97368-024-0	02	1	0610-	●	●	●	●	●	●
56	08.147 DECAL; BODY SIDE C24SE ENG(LG1) GRADE DX(RBA) CHEVROLET BRAND<RWE> (C)	8-97368-021-0	02	1	0307-		●	●		●	●
56	08.147 DECAL; BODY SIDE 4JA1-TC ENG(L4Z) GRADE DX(RBA) CHEVROLET BRAND<RWE> (E)	8-97368-023-0	02	1	0310-0609		●	●		●	●
59	01.303 DECAL; TAIL GATE 4JK1-TCS ENG(LKZ) GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (E)	8-98027-488-0	01	1	1006-			●			●
59	01.303 DECAL; TAIL GATE GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) NAME PLATE ISUZU KB<6PU> (J)	8-97301-853-1	01	1	0307-	●	●	●	●	●	●
59	01.303 DECAL; TAIL GATE GRADE LX(RBB),GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (J)	8-97301-853-1	01	1	0307-	●	●	●	●	●	●
59	01.303 DECAL; TAIL GATE NAME PLATE ISUZU KB<6PU> (C)	8-97352-487-0	01	1	0307-	●	●	●	●	●	●
59	01.303 DECAL; TAIL GATE REAR BODY DBL WALL CTR PULL(E63) CHEVROLET BRAND<RWE> (A)	8-97352-488-0	01	1	0307-	●	●	●	●	●	●
59	01.303 DECAL; TAIL GATE REAR BODY DBL WALL CTR PULL(E63) CHEVROLET BRAND<RWE> (B)	8-97352-489-0	01	1	0307-	●	●	●	●	●	●
59	01.303 DECAL; TAIL GATE 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) GRADE LX(RBB),GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (E)	8-97301-857-1	01	1	0307-0609	●	●	●	●	●	●
59	01.303 DECAL; TAIL GATE 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) GRADE LX(RBB),GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (E)	8-97301-857-1	01	1	0610-	●	●	●	●	●	●
59	01.303 DECAL; TAIL GATE 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) GRADE LX(RBB),GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (F)	8-97352-836-0	01	1	0307-0609	●	●	●	●	●	●
59	01.303 DECAL; TAIL GATE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) GRADE LX(RBB),GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (F)	8-97352-836-0	01	1	0610-	●	●	●	●	●	●
59	01.303 DECAL; TAIL GATE 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) GRADE LX(RBB),GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (G)	8-97361-279-0	01	1	0307-0609	●	●	●	●	●	●
59	01.303 DECAL; TAIL GATE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) GRADE LX(RBB),GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (G)	8-97361-279-0	01	1	0610-0707	●	●	●	●	●	●
59	01.303 DECAL; TAIL GATE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) GRADE LX(RBB),GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> EXC. MALAYSIA EQUIPMENT(B10) (G)	8-97361-279-0	01	1	0708-	●	●	●	●	●	●
59	01.303 DECAL; TAIL GATE 4JH1-TC ENG(RDM) GRADE LX(RBB),GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (H)	8-97301-855-1	01	1	0307-0609	●	●	●	●	●	●
59	01.303 DECAL; TAIL GATE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) GRADE LX(RBB),GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (H)	8-97301-855-1	01	1	0610-0707	●	●	●	●	●	●
59	01.303 DECAL; TAIL GATE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) GRADE LX(RBB),GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> EXC. MALAYSIA EQUIPMENT(B10) (H)	8-97301-855-1	01	1	0708-	●	●	●	●	●	●
59	01.303 DECAL; TAIL GATE GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) HOLDEN BRAND<8DU> (L)	8-97324-677-0	01	1	0307-	●	●	●	●		●
59	01.303 DECAL; TAIL GATE GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) HOLDEN BRAND<8DU> (M)	8-97324-675-1	01	1	0307-	●	●	●	●		●
59	01.303 DECAL; TAIL GATE GRADE LX(RBB) REAR BODY DBL WALL CTR PULL(E63) HOLDEN BRAND<8DU> (N)	8-97324-676-0	01	1	0307-	●	●	●	●		●
59	01.303 DECAL; TAIL GATE HF V6 ENG(LCA) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> 17.215 (Q)	8-98028-214-0	01	1	0704-	●	●	●	●		●
59	01.303 DECAL; TAIL GATE REAR BODY DBL WALL CTR PULL(E63) HOLDEN BRAND<8DU> (K)	8-97324-674-0	01	1	0307-	●	●	●	●		●
59	01.303 DECAL; TAIL GATE 6VE1 ENG(LX5) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (I)	8-97324-672-1	01	1	0307-0508	●	●	●	●		●
59	01.303 DECAL; TAIL GATE 6VE1 ENG(LX5) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (I)	8-97324-672-1	01	1	0509-0609						●
59	01.303 DECAL; TAIL GATE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (P)	8-98030-389-0	01	1	0610-0612			●			●
59	01.303 DECAL; TAIL GATE 4JJ1-TCS ENG(LFB) GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (P)	8-98030-389-0	01	1	0701-			●			●
59	01.303 DECAL; TAIL GATE C24SE ENG(LG1) GRADE LX(RBB),GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (D)	8-97324-673-1	01	1	0307-		●	●		●	●
59	01.303 DECAL; TAIL GATE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (H)	8-98027-487-0	01	1	0610-			●			●
59	01.303 DECAL; TAIL GATE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (O)	8-98030-390-0	01	1	0610-0612			●			●
59	01.303 DECAL; TAIL GATE 4JJ1-TCS ENG(LFB) GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (O)	8-98030-390-0	01	1	0701-			●			●
59	01.303 DECAL; TAIL GATE 4JK1-TCS ENG(LKZ) GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (E)	8-98027-488-0	01	1	0610-0612			●			●
64	16.507 EMBLEM; TAIL GATE REAR BODY DBL WALL CTR PULL(E63) HOLDEN BRAND<8DU>	8-97324-678-0	01	1	0307-	●	●	●	●		●
92	08.147 DECAL; RR END GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> EXC. NAME PLATE ISUZU KB<6PU> (A)	8-97301-854-2	01	1	0307-0402	●	●	●	●	●	●
92	08.147 DECAL; RR END GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> EXC. NAME PLATE ISUZU KB<6PU> (A)	8-97378-485-0	01	1	0403-	●	●	●	●	●	●
92	08.147 DECAL; RR END 4JA1-T ENG(LP0) GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (B)	8-97368-022-0	01	1	0307-	●	●	●	●	●	●
92	08.147 DECAL; RR END 4JH1-TC ENG(RDM) GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (C)	8-97368-024-0	01	1	0307-0609	●	●	●	●	●	●
92	08.147 DECAL; RR END 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (C)	8-97368-024-0	01	1	0610-	●	●	●	●	●	●
92	08.147 DECAL; RR END C24SE ENG(LG1) GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (D)	8-97368-021-0	01	1	0307-		●	●		●	●
92	08.147 DECAL; RR END 4JA1-TC ENG(L4Z) GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (E)	8-97368-023-0	01	1	0307-0609		●	●		●	●
92	08.147 DECAL; RR END 4JK1-TCX ENG(LR0) GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (D)	8-97368-023-0	01	1	0610-		●	●		●	●
92	08.147 DECAL; RR END REAR BODY DBL WALL CTR PULL(E63) CHEVROLET BRAND<RWE>,ISUZU BRAND<7WL> (F)	8-97301-860-0	01	1	0307-0609				●	●	●
92	08.147 DECAL; RR END REAR BODY DBL WALL CTR PULL(E63) CHEVROLET BRAND<RWE>,ISUZU BRAND<7WL> (F)	8-98032-796-0	01	1	0610-				●	●	●
380	17.215 PLATE; SIDE HF V6 ENG(LCA) (J)	8-92162-907-0	02	1	0509-0609	●	●	●	●	●	●	●	●
380	17.215 PLATE; SIDE HF V6 ENG(LCA) HOLDEN BRAND<8DU> (J)	8-92162-907-0	02	1	0610-	●	●	●	●	●	●	●	●
380	17.215 PLATE; SIDE 4JH1-TC ENG(RDM) HOLDEN BRAND<8DU> 01.303 (H)	8-97324-671-1	02	1	0307-0609	●	●	●	●	●	●	●	●
380	17.215 PLATE; SIDE 4JJ1-TCX ENG(LS0) HOLDEN BRAND<8DU> (K)	8-98028-079-0	02	1	0610-	●	●	●	●	●	●	●	●
380	17.215 PLATE; SIDE 6VE1 ENG(LX5) CHEVROLET BRAND<RWE>,HOLDEN BRAND<8DU> 01.303 (G)	8-97324-672-1	02	1	0307-0508	●	●	●	●	●	●	●	●
380	17.215 PLATE; SIDE 6VE1 ENG(LX5) CHEVROLET BRAND<RWE>,HOLDEN BRAND<8DU> 01.303 (G)	8-97324-672-1	02	1	0509-0609						●
380	17.215 PLATE; SIDE HF V6 ENG(LCA) CHEVROLET BRAND<RWE>,ISUZU BRAND<7WL> (L)	8-98028-214-0	02	1	0610-0703	●	●	●	●		●
380	17.215 PLATE; SIDE HF V6 ENG(LCA) ISUZU BRAND<7WL> (L)	8-98028-214-0	02	1	0704-	●	●	●	●		●
380	17.215 PLATE; SIDE GRADE LT/LS(RBD) CHEVROLET BRAND<RWE>,ISUZU BRAND<7WL> 01.303 (D)	8-97301-844-1	02	1	0307-0609	●	●	●	●	●	●
380	17.215 PLATE; SIDE GRADE LT/LS(RBD) CHEVROLET BRAND<RWE>,ISUZU BRAND<7WL> (D)	8-98027-490-0	02	1	0610-	●	●	●	●	●	●
380	17.215 PLATE; SIDE 4JA1-T ENG(LP0) GRADE LX(RBB),GRADE LT/LS(RBD) CHEVROLET BRAND<RWE> 01.303 (B)	8-97301-857-1	02	1	0307-0309	●	●	●	●	●	●
380	17.215 PLATE; SIDE 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) GRADE LX(RBB),GRADE LT/LS(RBD) CHEVROLET BRAND<RWE> 01.303 (B)	8-97301-857-1	02	1	0310-0402	●	●	●	●	●	●
380	17.215 PLATE; SIDE 4JA1-T ENG(LP0) GRADE LX(RBB),GRADE LT/LS(RBD) CHEVROLET BRAND<RWE> 01.303 (B)	8-97301-857-1	02	1	0403-0508	●	●	●	●	●	●
380	17.215 PLATE; SIDE 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) GRADE LX(RBB),GRADE LT/LS(RBD) CHEVROLET BRAND<RWE> 01.303 (B)	8-97301-857-1	02	1	0403-0508	●	●	●	●	●	●
380	17.215 PLATE; SIDE 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) GRADE LX(RBB),GRADE LT/LS(RBD) CHEVROLET BRAND<RWE> 01.303 (B)	8-97301-857-1	02	1	0509-0609	●	●	●	●	●	●
380	17.215 PLATE; SIDE 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) GRADE LX(RBB),GRADE LT/LS(RBD) CHEVROLET BRAND<RWE> 01.303 (B)	8-97301-857-1	02	1	0610-	●	●	●	●	●	●
380	17.215 PLATE; SIDE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) GRADE LX(RBB),GRADE LT/LS(RBD) CHEVROLET BRAND<RWE> 01.303 (C)	8-97352-836-0	02	1	0307-0309	●	●	●	●	●	●
380	17.215 PLATE; SIDE 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) GRADE LX(RBB),GRADE LT/LS(RBD) CHEVROLET BRAND<RWE> 01.303 (C)	8-97352-836-0	02	1	0310-0609	●	●	●	●	●	●
380	17.215 PLATE; SIDE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) GRADE LX(RBB),GRADE LT/LS(RBD) CHEVROLET BRAND<RWE> 01.303 (C)	8-97352-836-0	02	1	0610-	●	●	●	●	●	●
380	17.215 PLATE; SIDE 4JH1-TC ENG(RDM) GRADE LX(RBB),GRADE LT/LS(RBD) CHEVROLET BRAND<RWE> 01.303 (E)	8-97301-855-1	02	1	0307-0609	●	●	●	●	●	●
380	17.215 PLATE; SIDE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) GRADE LX(RBB),GRADE LT/LS(RBD) CHEVROLET BRAND<RWE> 01.303 (E)	8-97301-855-1	02	1	0610-	●	●	●	●	●	●
380	17.215 PLATE; SIDE 4JH1-TC ENG(RDM) GRADE LX(RBB),GRADE LT/LS(RBD) CHEVROLET BRAND<RWE> 01.303 (F)	8-97361-279-0	02	1	0307-0309	●	●	●	●	●	●
380	17.215 PLATE; SIDE 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) GRADE LX(RBB),GRADE LT/LS(RBD) CHEVROLET BRAND<RWE> 01.303 (F)	8-97361-279-0	02	1	0310-0609	●	●	●	●	●	●
380	17.215 PLATE; SIDE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) GRADE LX(RBB),GRADE LT/LS(RBD) CHEVROLET BRAND<RWE> 01.303 (F)	8-97361-279-0	02	1	0610-	●	●	●	●	●	●
380	17.215 PLATE; SIDE C24SE ENG(LG1) HOLDEN BRAND<8DU> 01.303 (A)	8-97324-673-1	02	1	0307-0609		●	●			●		●
380	17.215 PLATE; SIDE C24SE ENG(LG1) GRADE LX(RBB),GRADE LT/LS(RBD) CHEVROLET BRAND<RWE> 01.303 (A)	8-97324-673-1	02	1	0307-0609		●	●		●	●
380	17.215 PLATE; SIDE C24SE ENG(LG1) GRADE LX(RBB),GRADE LT/LS(RBD) CHEVROLET BRAND<RWE> 01.303 (A)	8-97324-673-1	02	1	0610-		●	●		●	●		●
380	17.215 PLATE; SIDE C24SE ENG(LG1) HOLDEN BRAND<8DU> 01.303 (A)	8-97324-673-1	02	1	0610-		●	●
380	17.215 PLATE; SIDE HOLDEN BRAND<8DU> 01.303 (I)	8-97324-670-0	02	1	0307-				●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
