◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50965 - TFR/TFS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-90 - REAR BUMPER ▶
6-90 — REAR BUMPER (#42967) — 138 parça

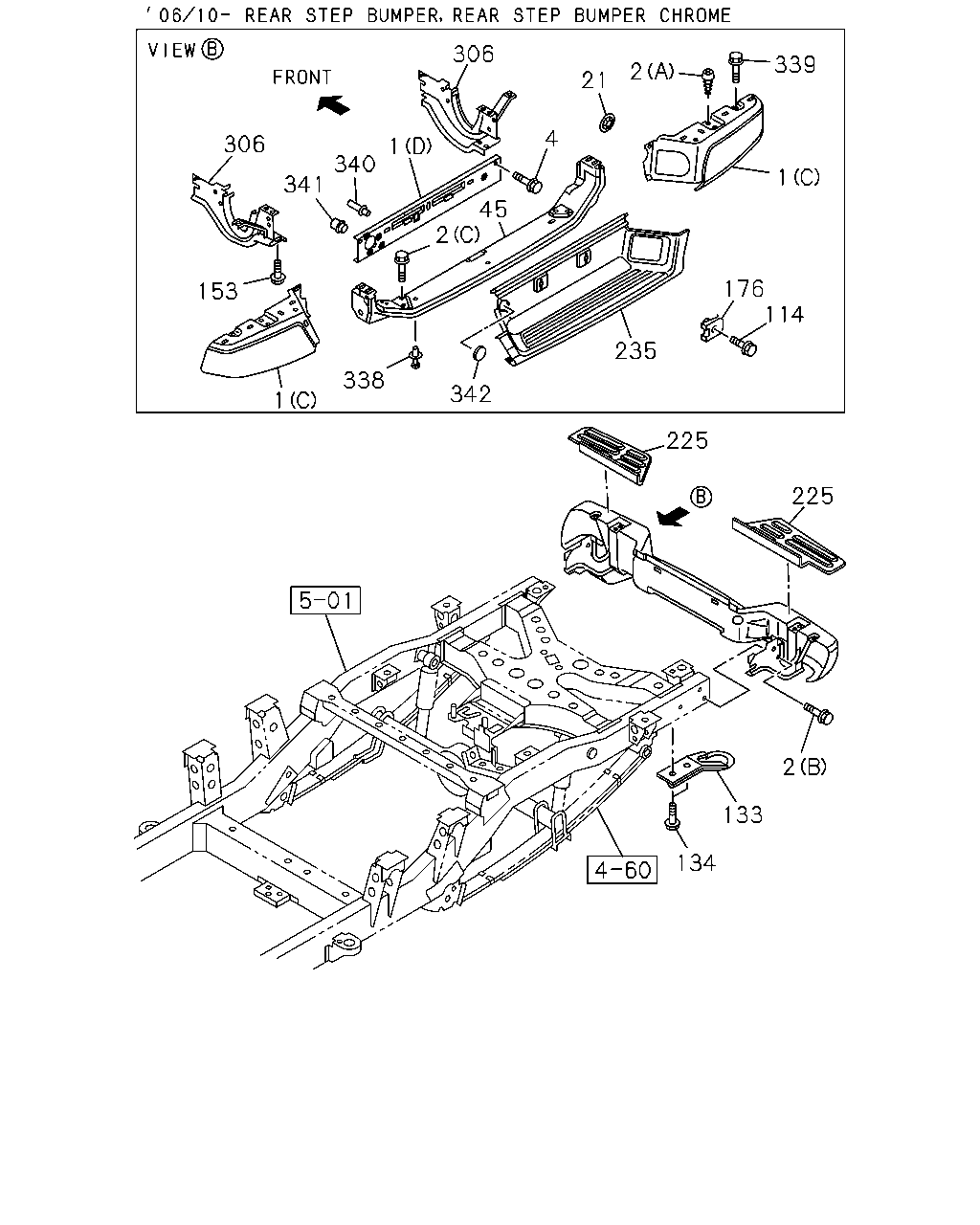

çizim 53639
134 133 2 225 225 114 176 235 342 338 1 153 306 341 340 1 2 45 306 21 4 2 339 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 07.070 BUMPER; RR
REAR BUMPER BLACK(EY1) (B) 		8-97351-556-2 01 1 0307- ● ● ● ● ● ● ● ●
1 07.070 BUMPER; RR
REAR BUMPER CHROME(VF1) (B) 		8-97351-557-2 01 1 0307- ● ● ● ● ● ● ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER CHROME(V42) (A) 		8-97352-581-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER CHROME(V42) (C) 		8-98030-167-1 01 1 0610- ● ● ● ● ● ● ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER CHROME(V42) (C) 		8-98030-181-1 01 1 0610- ● ● ● ● ● ● ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER(VF6) (A) 		8-97352-582-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER(VF6) (C) 		8-98030-168-1 01 1 0610- ● ● ● ● ● ● ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER(VF6) (C) 		8-98030-182-1 01 1 0610- ● ● ● ● ● ● ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (D) 		8-98030-185-3 01 1 0610- ● ● ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (B) M12X30 FLANGE 		8-97161-815-1 04 1 0307-0611 ● ● ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (B) M12X30 		8-98062-142-0 04 1 0612- ● ● ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-97368-956-0 04 1 0307-0610 ● ● ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-98062-087-0 04 1 0611- ● ● ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (B) M12X30 FLANGE 		8-97161-815-1 06 1 0307-0611 ● ● ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (B) M12X30 		8-98062-142-0 06 1 0612- ● ● ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) M10X22 HEX SOCKET 		8-97352-591-0 08 1 0307-0609 ● ● ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) M10X22 HEX SOCKET 		8-97352-591-0 04 1 0610- ● ● ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 00.029 (C) M10X20 FLANGE 		0-28051-020-0 04 1 0610- ● ● ● ● ● ● ● ●
4 07.070 BOLT; BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0610- ● ● ● ● ● ● ● ●
21 07.070 WASHER; LK,BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 01.269 		8-97182-223-0 02 1 0610- ● ● ● ● ● ● ● ●
45 07.831 REINFORCEMENT; RR BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97244-951-1 01 1 0307-0603 ● ● ● ● ● ● ● ●
45 07.831 REINFORCEMENT; RR BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98023-415-0 01 1 0604-0609 ● ● ● ● ● ● ● ●
45 07.831 REINFORCEMENT; RR BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-170-0 01 1 0610- ● ● ● ● ● ● ● ●
114 07.800 BOLT; BRKT,LICENSE PLATE
AUSTRALIA EQUIPMENT(B13) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 00.738 M6X16 FLANGE 		0-28080-616-0 02 1 0307-0601 ● ● ● ● ● ● ● ●
114 07.800 BOLT; BRKT,LICENSE PLATE
AUSTRALIA EQUIPMENT(B13) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 09.242 M6X16 FLANGE 		0-28050-616-0 02 1 0602- ● ● ● ● ● ● ● ●
133 07.112 HOOK
TOW HOOK RR ONLY<7TK> 		8-97942-766-0 01 1 0307- ● ● ● ● ● ● ● ●
134 07.068 BOLT; HOOK
TOW HOOK RR ONLY<7TK> M10X30 FLANGE 		0-28661-030-0 02 1 0307- ● ● ● ● ● ● ● ●
153 07.800 BOLT; BRKT
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-592-0 04 1 0307- ● ● ● ● ● ● ● ●
176 07.068 NUT
AUSTRALIA EQUIPMENT(B13) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 07.829 		8-94342-576-1 02 1 0307-0612 ● ● ● ● ● ● ● ●
176 07.068 NUT
AUSTRALIA EQUIPMENT(B13) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 07.831 		8-98054-813-0 02 1 0701- ● ● ● ● ● ● ● ●
225 07.828 PAD; STEP,RR BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97357-925-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
225 07.828 PAD; STEP,RR BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-416-0 01 1 0610- ● ● ● ● ● ● ● ●
225 07.828 PAD; STEP,RR BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97357-924-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
225 07.828 PAD; STEP,RR BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-415-0 01 1 0610- ● ● ● ● ● ● ● ●
235 07.875 PAD; CENTER,BUMPER RR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97240-604-1 01 1 0307-0609 ● ● ● ● ● ● ● ●
235 07.875 PAD; CENTER,BUMPER RR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-174-1 01 1 0610- ● ● ● ● ● ● ● ●
306 07.836 BAR; BACK,RR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97240-603-1 01 1 0307-0609 ● ● ● ● ● ● ● ●
306 07.836 BAR; BACK,RR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-173-1 01 1 0610- ● ● ● ● ● ● ● ●
306 07.836 BAR; BACK,RR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97240-602-1 01 1 0307-0609 ● ● ● ● ● ● ● ●
306 07.836 BAR; BACK,RR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-172-1 01 1 0610- ● ● ● ● ● ● ● ●
338 07.875 PIN; PUSH
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-595-0 02 1 0307- ● ● ● ● ● ● ● ●
339 07.875 BOLT; BRACE
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-593-0 04 1 0307-0609 ● ● ● ● ● ● ● ●
339 07.875 BOLT; BRACE
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-593-0 02 1 0610- ● ● ● ● ● ● ● ●
340 07.875 RIVET
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-594-0 03 1 0307-0609 ● ● ● ● ● ● ● ●
340 07.875 RIVET
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-594-0 05 1 0610- ● ● ● ● ● ● ● ●
341 07.875 CASE; LOCK CYLINDER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-584-1 01 1 0307- ● ● ● ● ● ● ● ●
342 07.875 CAP; LOCK CYLINDER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-585-2 01 1 0307-0609 ● ● ● ● ● ● ● ●
342 07.875 CAP; LOCK CYLINDER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-190-0 01 1 0610- ● ● ● ● ● ● ● ●

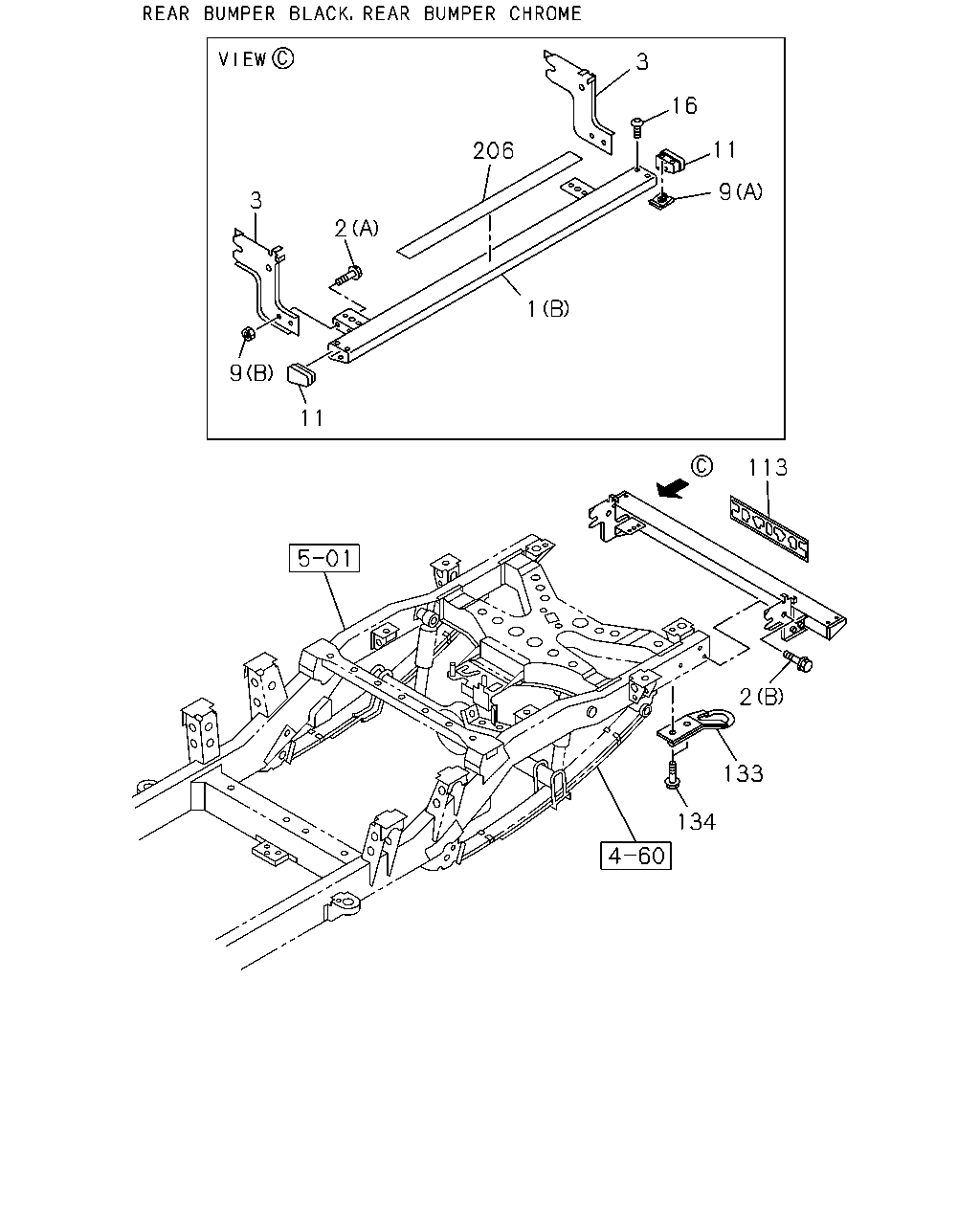

çizim 53879
3 16 11 9 206 2 3 9 11 1 113 2 133 134
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 07.070 BUMPER; RR
REAR BUMPER BLACK(EY1) (B) 		8-97351-556-2 01 1 0307- ● ● ● ● ● ● ● ●
1 07.070 BUMPER; RR
REAR BUMPER CHROME(VF1) (B) 		8-97351-557-2 01 1 0307- ● ● ● ● ● ● ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER CHROME(V42) (A) 		8-97352-581-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER CHROME(V42) (C) 		8-98030-167-1 01 1 0610- ● ● ● ● ● ● ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER CHROME(V42) (C) 		8-98030-181-1 01 1 0610- ● ● ● ● ● ● ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER(VF6) (A) 		8-97352-582-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER(VF6) (C) 		8-98030-168-1 01 1 0610- ● ● ● ● ● ● ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER(VF6) (C) 		8-98030-182-1 01 1 0610- ● ● ● ● ● ● ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (D) 		8-98030-185-3 01 1 0610- ● ● ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (B) M12X30 FLANGE 		8-97161-815-1 04 1 0307-0611 ● ● ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (B) M12X30 		8-98062-142-0 04 1 0612- ● ● ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-97368-956-0 04 1 0307-0610 ● ● ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-98062-087-0 04 1 0611- ● ● ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (B) M12X30 FLANGE 		8-97161-815-1 06 1 0307-0611 ● ● ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (B) M12X30 		8-98062-142-0 06 1 0612- ● ● ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) M10X22 HEX SOCKET 		8-97352-591-0 08 1 0307-0609 ● ● ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) M10X22 HEX SOCKET 		8-97352-591-0 04 1 0610- ● ● ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 00.029 (C) M10X20 FLANGE 		0-28051-020-0 04 1 0610- ● ● ● ● ● ● ● ●
3 07.875 BRACKET; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-97351-552-1 01 1 0307- ● ● ● ● ● ● ● ●
3 07.875 BRACKET; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-97351-551-1 01 1 0307- ● ● ● ● ● ● ● ●
9 07.070 NUT; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-97368-918-0 06 1 0307-0610 ● ● ● ● ● ● ● ●
9 07.070 NUT; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-98062-088-0 04 1 0611- ● ● ● ● ● ● ● ●
9 07.070 NUT; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (B) 		8-97368-955-0 04 1 0307-0610 ● ● ● ● ● ● ● ●
9 07.070 NUT; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (B) 		8-98062-089-0 06 1 0611- ● ● ● ● ● ● ● ●
11 07.829 CAP; RR BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-97351-555-0 01 1 0307- ● ● ● ● ● ● ● ●
11 07.829 CAP; RR BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-97351-554-0 01 1 0307- ● ● ● ● ● ● ● ●
16 07.070 SCREW; RR BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-97368-927-0 06 1 0307-0610 ● ● ● ● ● ● ● ●
16 07.070 SCREW; RR BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-98062-091-0 06 1 0611- ● ● ● ● ● ● ● ●
113 07.800 BRACKET; LICENSE PLATE
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6), SHIPPINGEQUIPMENT SPECIAL VAR1<VK5>,REAR S TEP BUMPER CHROME(V42) 		8-98011-434-0 01 1 0710- ● ● ● ●
113 07.800 BRACKET; LICENSE PLATE
REAR BODY DBL WALL CTR PULL(E63) EXC. SHIPPING EQUIPMENT SPECIAL VAR 1<VK5> 		8-97362-574-0 01 1 0307-0402 ● ● ● ●
113 07.800 BRACKET; LICENSE PLATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97362-574-0 01 1 0403-0503 ● ● ● ●
113 07.800 BRACKET; LICENSE PLATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98011-434-0 01 1 0504-0609 ● ● ● ●
113 07.800 BRACKET; LICENSE PLATE
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6), SHIPPINGEQUIPMENT SPECIAL VAR1<VK5>,REAR S TEP BUMPER CHROME(V42) 		8-98011-434-0 01 1 0610-0709 ● ● ● ●
113 07.800 BRACKET; LICENSE PLATE
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98011-434-0 01 1 0710- ● ● ● ●
133 07.112 HOOK
TOW HOOK RR ONLY<7TK> 		8-97942-766-0 01 1 0307- ● ● ● ● ● ● ● ●
134 07.068 BOLT; HOOK
TOW HOOK RR ONLY<7TK> M10X30 FLANGE 		0-28661-030-0 02 1 0307- ● ● ● ● ● ● ● ●
206 07.831 SHEET; NON SLIP,RR BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-97364-097-0 01 1 0307- ● ● ● ● ● ● ● ●

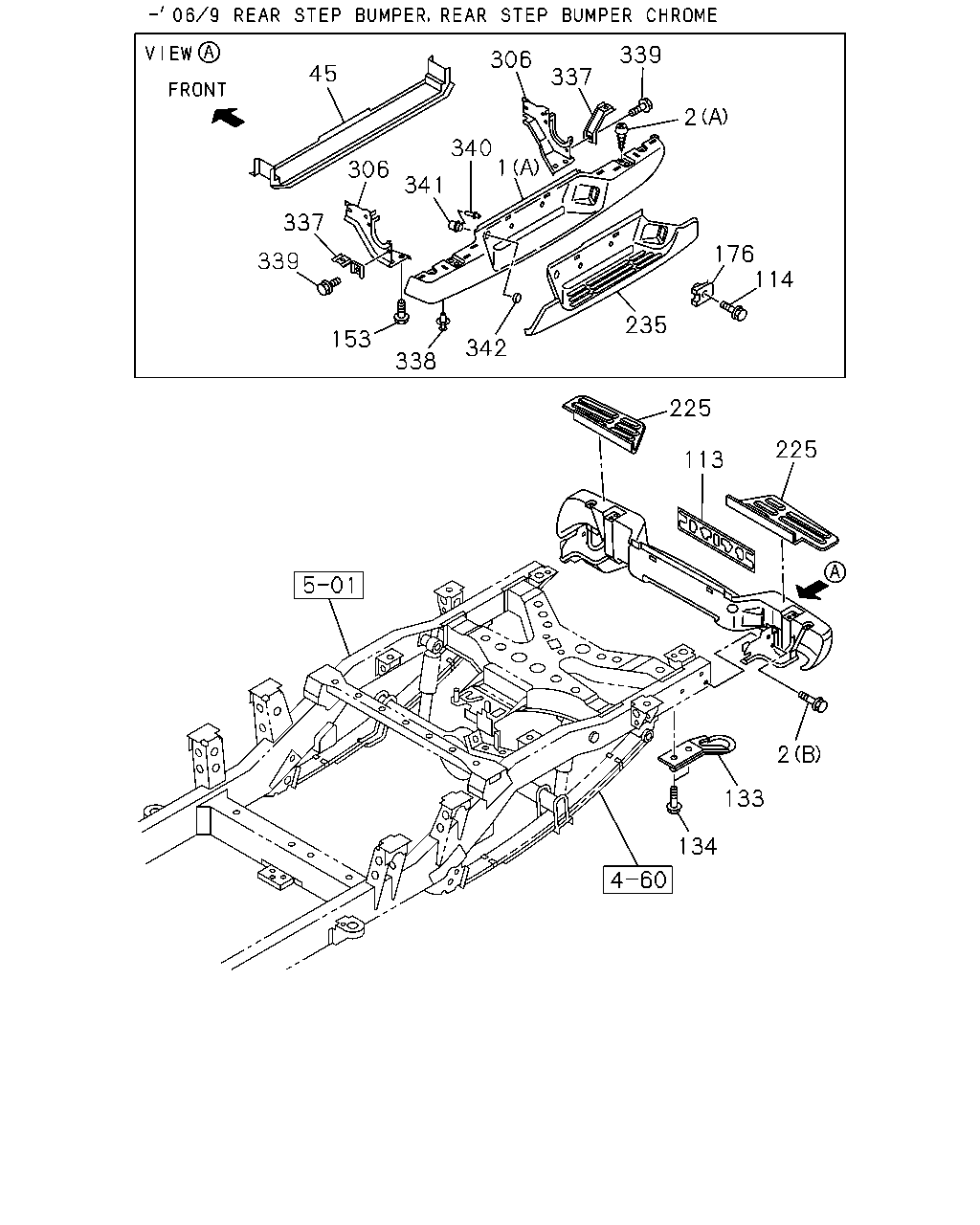

çizim 56122
339 337 306 1 340 341 306 45 337 339 153 338 342 235 176 114 2 225 113 225 2 133 134
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 07.070 BUMPER; RR
REAR BUMPER BLACK(EY1) (B) 		8-97351-556-2 01 1 0307- ● ● ● ● ● ● ● ●
1 07.070 BUMPER; RR
REAR BUMPER CHROME(VF1) (B) 		8-97351-557-2 01 1 0307- ● ● ● ● ● ● ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER CHROME(V42) (A) 		8-97352-581-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER CHROME(V42) (C) 		8-98030-167-1 01 1 0610- ● ● ● ● ● ● ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER CHROME(V42) (C) 		8-98030-181-1 01 1 0610- ● ● ● ● ● ● ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER(VF6) (A) 		8-97352-582-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER(VF6) (C) 		8-98030-168-1 01 1 0610- ● ● ● ● ● ● ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER(VF6) (C) 		8-98030-182-1 01 1 0610- ● ● ● ● ● ● ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (D) 		8-98030-185-3 01 1 0610- ● ● ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (B) M12X30 FLANGE 		8-97161-815-1 04 1 0307-0611 ● ● ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (B) M12X30 		8-98062-142-0 04 1 0612- ● ● ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-97368-956-0 04 1 0307-0610 ● ● ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-98062-087-0 04 1 0611- ● ● ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (B) M12X30 FLANGE 		8-97161-815-1 06 1 0307-0611 ● ● ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (B) M12X30 		8-98062-142-0 06 1 0612- ● ● ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) M10X22 HEX SOCKET 		8-97352-591-0 08 1 0307-0609 ● ● ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) M10X22 HEX SOCKET 		8-97352-591-0 04 1 0610- ● ● ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 00.029 (C) M10X20 FLANGE 		0-28051-020-0 04 1 0610- ● ● ● ● ● ● ● ●
45 07.831 REINFORCEMENT; RR BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97244-951-1 01 1 0307-0603 ● ● ● ● ● ● ● ●
45 07.831 REINFORCEMENT; RR BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98023-415-0 01 1 0604-0609 ● ● ● ● ● ● ● ●
45 07.831 REINFORCEMENT; RR BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-170-0 01 1 0610- ● ● ● ● ● ● ● ●
113 07.800 BRACKET; LICENSE PLATE
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6), SHIPPINGEQUIPMENT SPECIAL VAR1<VK5>,REAR S TEP BUMPER CHROME(V42) 		8-98011-434-0 01 1 0710- ● ● ● ●
113 07.800 BRACKET; LICENSE PLATE
REAR BODY DBL WALL CTR PULL(E63) EXC. SHIPPING EQUIPMENT SPECIAL VAR 1<VK5> 		8-97362-574-0 01 1 0307-0402 ● ● ● ●
113 07.800 BRACKET; LICENSE PLATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97362-574-0 01 1 0403-0503 ● ● ● ●
113 07.800 BRACKET; LICENSE PLATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98011-434-0 01 1 0504-0609 ● ● ● ●
113 07.800 BRACKET; LICENSE PLATE
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6), SHIPPINGEQUIPMENT SPECIAL VAR1<VK5>,REAR S TEP BUMPER CHROME(V42) 		8-98011-434-0 01 1 0610-0709 ● ● ● ●
113 07.800 BRACKET; LICENSE PLATE
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98011-434-0 01 1 0710- ● ● ● ●
114 07.800 BOLT; BRKT,LICENSE PLATE
AUSTRALIA EQUIPMENT(B13) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 00.738 M6X16 FLANGE 		0-28080-616-0 02 1 0307-0601 ● ● ● ● ● ● ● ●
114 07.800 BOLT; BRKT,LICENSE PLATE
AUSTRALIA EQUIPMENT(B13) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 09.242 M6X16 FLANGE 		0-28050-616-0 02 1 0602- ● ● ● ● ● ● ● ●
133 07.112 HOOK
TOW HOOK RR ONLY<7TK> 		8-97942-766-0 01 1 0307- ● ● ● ● ● ● ● ●
134 07.068 BOLT; HOOK
TOW HOOK RR ONLY<7TK> M10X30 FLANGE 		0-28661-030-0 02 1 0307- ● ● ● ● ● ● ● ●
153 07.800 BOLT; BRKT
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-592-0 04 1 0307- ● ● ● ● ● ● ● ●
176 07.068 NUT
AUSTRALIA EQUIPMENT(B13) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 07.829 		8-94342-576-1 02 1 0307-0612 ● ● ● ● ● ● ● ●
176 07.068 NUT
AUSTRALIA EQUIPMENT(B13) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 07.831 		8-98054-813-0 02 1 0701- ● ● ● ● ● ● ● ●
225 07.828 PAD; STEP,RR BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97357-925-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
225 07.828 PAD; STEP,RR BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-416-0 01 1 0610- ● ● ● ● ● ● ● ●
225 07.828 PAD; STEP,RR BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97357-924-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
225 07.828 PAD; STEP,RR BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-415-0 01 1 0610- ● ● ● ● ● ● ● ●
235 07.875 PAD; CENTER,BUMPER RR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97240-604-1 01 1 0307-0609 ● ● ● ● ● ● ● ●
235 07.875 PAD; CENTER,BUMPER RR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-174-1 01 1 0610- ● ● ● ● ● ● ● ●
306 07.836 BAR; BACK,RR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97240-603-1 01 1 0307-0609 ● ● ● ● ● ● ● ●
306 07.836 BAR; BACK,RR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-173-1 01 1 0610- ● ● ● ● ● ● ● ●
306 07.836 BAR; BACK,RR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97240-602-1 01 1 0307-0609 ● ● ● ● ● ● ● ●
306 07.836 BAR; BACK,RR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-172-1 01 1 0610- ● ● ● ● ● ● ● ●
337 07.875 BRACE; RR BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-583-0 02 1 0307-0609 ● ● ● ● ● ● ● ●
338 07.875 PIN; PUSH
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-595-0 02 1 0307- ● ● ● ● ● ● ● ●
339 07.875 BOLT; BRACE
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-593-0 04 1 0307-0609 ● ● ● ● ● ● ● ●
339 07.875 BOLT; BRACE
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-593-0 02 1 0610- ● ● ● ● ● ● ● ●
340 07.875 RIVET
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-594-0 03 1 0307-0609 ● ● ● ● ● ● ● ●
340 07.875 RIVET
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-594-0 05 1 0610- ● ● ● ● ● ● ● ●
341 07.875 CASE; LOCK CYLINDER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-584-1 01 1 0307- ● ● ● ● ● ● ● ●
342 07.875 CAP; LOCK CYLINDER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-585-2 01 1 0307-0609 ● ● ● ● ● ● ● ●
342 07.875 CAP; LOCK CYLINDER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-190-0 01 1 0610- ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
