6-32 — FRONT DOOR LOCK AND HANDLE (#42965) — 44 parça

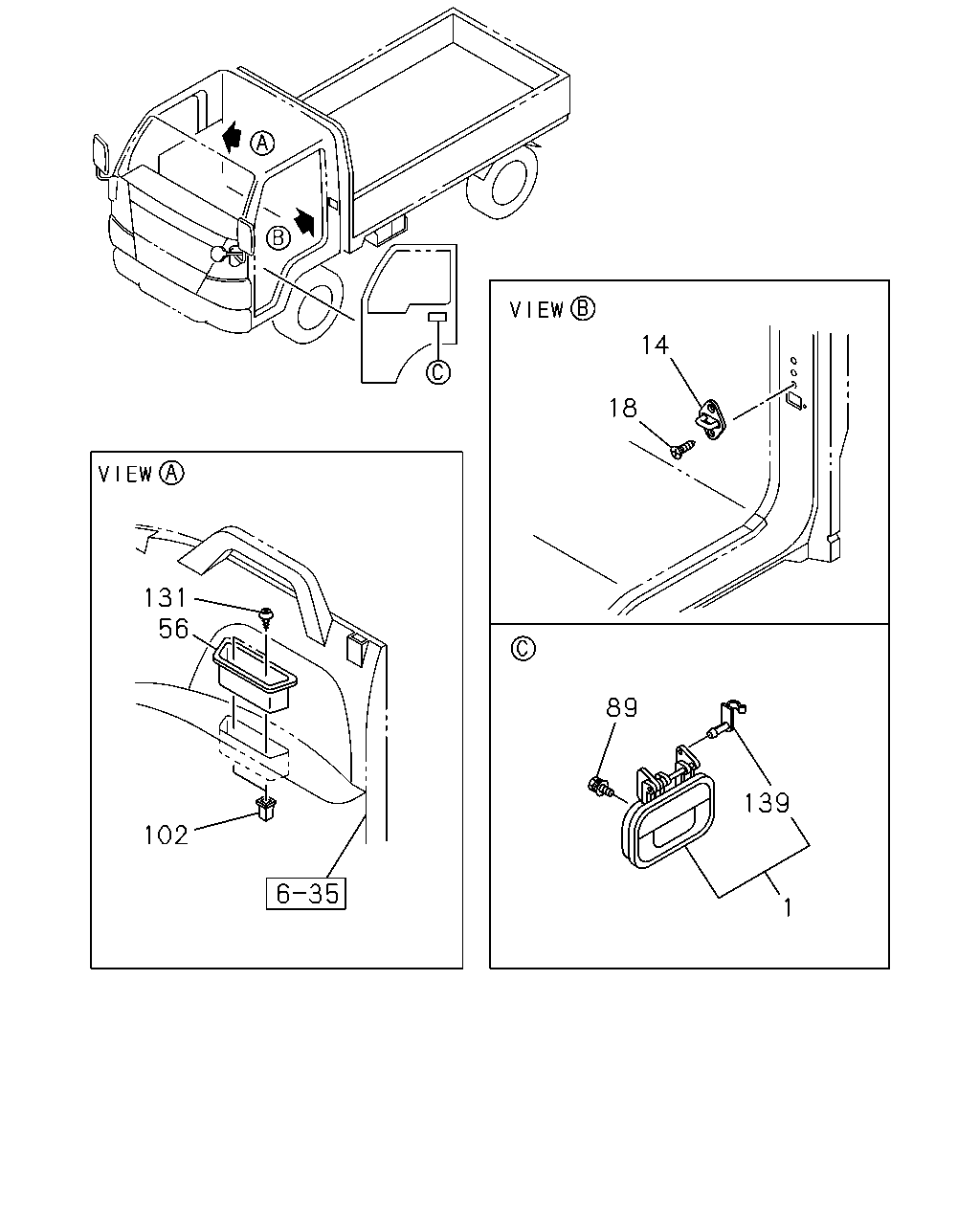

çizim 119090
14 18 131 56 89 139 102 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HANDLE; OUTSIDE,FRT DOOR 8-97867-721-1 01 1 0508- ● ● ●
1 HANDLE; OUTSIDE,FRT DOOR 8-97867-722-1 01 1 0508- ● ● ●
14 STRIKER; FRT DOOR
THA 		8-97915-061-0 02 1 0508- ● ● ●
18 SCREW; DOOR STRIKER
M8X23 W/LK WASHER 		8-97221-701-0 04 1 0508- ● ● ●
56 ESCUTCHEON; LOCK KNOB
THA 		8-97922-865-0 02 1 0508- ● ● ●
89 BOLT; DOOR OUTSIDE HANDLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 0508- ● ● ●
102 GROMMET; SCREW,ESCUTCHEON,DOOR PULL
D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0508- ● ● ●
131 SCREW; ESCUTCHEON,DOOR PULL
M5X12 TAPPING W/PL WASHER 		0-74110-512-0 06 1 0508-0604 ● ● ●
131 SCREW; ESCUTCHEON,DOOR PULL
AUTO DOOR LOCK<AU4> M5X12 TAPPING W/PL WASHER 		0-74160-512-0 06 1 0605- ● ● ●
139 HOLDER; ROD,DOOR HANDLE 8-97852-651-1 01 1 0508- ● ● ●
139 HOLDER; ROD,DOOR HANDLE 8-97852-652-1 01 1 0508- ● ● ●

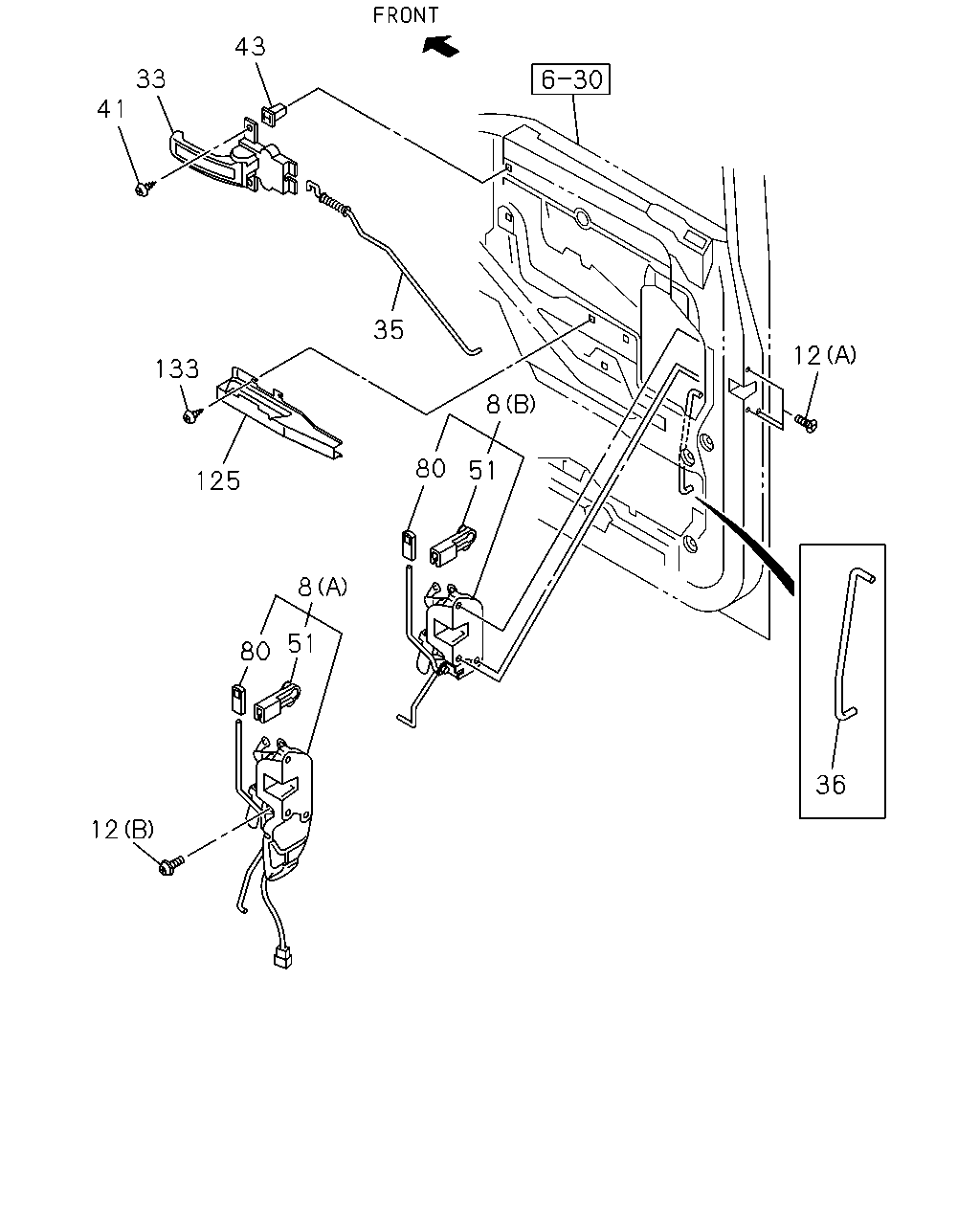

çizim 119092
43 33 41 12 8 35 133 125 80 51 8 51 80 12 36
BalonParca AdiParca NoAdetTipApplied Date A B C
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) GRAY 		8-97582-299-2 01 1 0508-0610 ● ● ●
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) GRAY 		8-97406-311-2 01 1 0611- ● ● ●
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) GRAY 		8-97582-300-2 01 1 0508-0610 ● ● ●
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) GRAY 		8-97406-312-2 01 1 0611-1009 ● ● ●
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) GRAY 		8-97421-007-0 01 1 1010-1405 ● ● ●
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) GRAY 		8-97428-935-0 01 1 1406- ● ● ●
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) THA 		8-97922-872-0 01 1 0508- ● ● ●
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) THA 		8-97922-873-0 01 1 0508- ● ● ●
12 SCREW; DOOR LK
AUTO DOOR LOCK<AU4> (B) M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 01 1 1406- ● ● ●
12 SCREW; DOOR LK
(A) M6X20 		1-09981-494-0 06 1 0508- ● ● ●
33 LEVER ASM; INSIDE,FRT DOOR
GRAY 		8-97582-304-1 01 1 0508-0611 ● ● ●
33 LEVER ASM; INSIDE,FRT DOOR
AUTO DOOR LOCK<AU4> GRAY 		8-97409-388-0 01 1 0612- ● ● ●
33 LEVER ASM; INSIDE,FRT DOOR
GRAY 		8-97582-305-1 01 1 0508-0611 ● ● ●
33 LEVER ASM; INSIDE,FRT DOOR
AUTO DOOR LOCK<AU4> GRAY 		8-97409-389-0 01 1 0612- ● ● ●
35 LINK; DOOR LOCK,INSIDE
THA 		8-97915-059-0 01 1 0508- ● ● ●
35 LINK; DOOR LOCK,INSIDE
THA 		8-97915-060-0 01 1 0508- ● ● ●
36 LINK; DOOR LOCK,OUTSIDE
THA 		8-97919-159-0 01 1 0508- ● ● ●
36 LINK; DOOR LOCK,OUTSIDE
THA 		8-97919-160-0 01 1 0508- ● ● ●
41 SCREW; INSIDE HANDLE
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 0508-0604 ● ● ●
41 SCREW; INSIDE HANDLE
AUTO DOOR LOCK<AU4> M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0605- ● ● ●
43 GROMMET; SCREW,INSIDE LEVER,DOOR
D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 0508- ● ● ●
51 SNAP; FRT DOOR LOCK CONT ROD
AUTO DOOR LOCK<AU4> THA 		8-97852-643-0 01 1 0508- ● ● ●
51 SNAP; FRT DOOR LOCK CONT ROD
AUTO DOOR LOCK<AU4> THA 		8-97859-069-0 01 1 0508- ● ● ●
51 SNAP; FRT DOOR LOCK CONT ROD
EXC. AUTO DOOR LOCK<AU4> THA 		8-97918-979-0 01 1 0508- ● ● ●
51 SNAP; FRT DOOR LOCK CONT ROD
EXC. AUTO DOOR LOCK<AU4> THA 		8-97918-980-0 01 1 0508- ● ● ●
80 KNOB; DOOR LOCK
AUTO DOOR LOCK<AU4> GRAY 		8-97582-706-0 01 1 0508-0610 ● ● ●
80 KNOB; DOOR LOCK
AUTO DOOR LOCK<AU4> GRAY 		8-97582-706-0 01 1 0508-0610 ● ● ●
80 KNOB; DOOR LOCK
AUTO DOOR LOCK<AU4> GRAY 		8-97406-876-0 01 1 0611- ● ● ●
80 KNOB; DOOR LOCK
AUTO DOOR LOCK<AU4> GRAY 		8-97406-876-0 01 1 0611- ● ● ●
80 KNOB; DOOR LOCK
EXC. AUTO DOOR LOCK<AU4> THA 		8-97922-864-0 02 1 0508- ● ● ●
125 BRACKET; DOOR PULL
THA 		8-97914-947-0 02 1 0508- ● ● ●
133 SCREW; DOOR PULL STAY
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0508-0604 ● ● ●
133 SCREW; DOOR PULL STAY
AUTO DOOR LOCK<AU4> M5X16 TAPPING W/PL WASHER 		0-74360-516-0 06 1 0605- ● ● ●
