Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10720 - CXZ RHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-35A - CHARGE AIR COOLER
▶

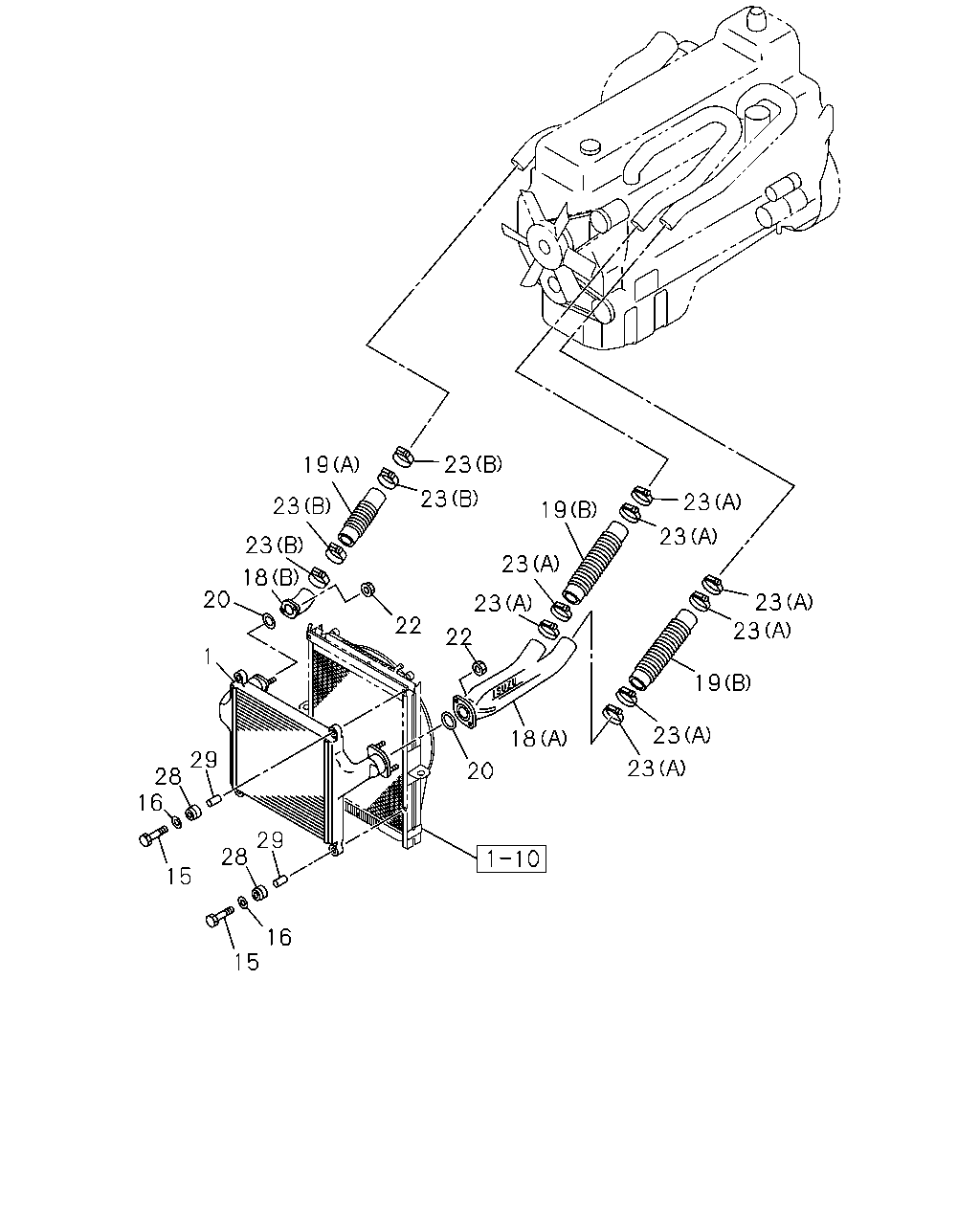

1-35A — CHARGE AIR COOLER
(#4296) — 41 parça
Tümü
A - 6WA1 TC-S
B - 6WA1 TC-N
C - 6WA1 TC-C
D - 6WG1 TC-N
E - 6WG1 TC-C
23
19
23
23
23
19
23
23
23
18
20
23
23
22
23
22
1
19
23
18
29
28
16
23
20
29
28
15
16
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
1
COOLER; CHARGE AIR
1-14431-039-0
01
1
9603-9904
●
1
COOLER; CHARGE AIR
1-14431-039-0
01
1
9905-
●
●
●
1
COOLER; CHARGE AIR
1-14431-048-0
01
1
9707-9904
●
1
COOLER; CHARGE AIR
1-14431-047-0
01
1
9905-
●
15
BOLT; CHARGE AIR COOLER
M8X35 FLANGE
0-28080-835-0
04
1
9603-9706
●
15
BOLT; CHARGE AIR COOLER
M8X35 FLANGE
0-28080-835-0
04
1
9707-9904
●
●
15
BOLT; CHARGE AIR COOLER
M8X35 FLANGE
0-28080-835-0
04
1
9905-
●
●
●
●
16
WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32
9-09164-810-0
04
1
9603-9706
●
16
WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32
9-09164-810-0
04
1
9707-9904
●
●
16
WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32
9-09164-810-0
04
1
9905-
●
●
●
●
18
ADAPTER
(A)
1-14112-491-1
01
1
9603-9706
●
18
ADAPTER
(A)
1-14112-491-1
01
1
9707-9904
●
●
18
ADAPTER
(A)
1-14112-491-1
01
1
9905-
●
●
●
●
18
ADAPTER
(B)
1-14112-567-0
01
1
9603-9904
●
18
ADAPTER
(B)
1-14112-567-0
01
1
9905-
●
●
●
●
18
ADAPTER
(B)
1-14112-566-0
01
1
9707-9904
●
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(A) L=280
1-09360-757-2
01
1
9603-9706
●
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(A) L=280
1-09360-757-2
01
1
9707-9904
●
●
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(A) L=280
1-09360-757-3
01
1
9905-
●
●
●
●
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(B) L=270
1-09360-914-2
02
1
9603-9904
●
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(B) L=270
1-09360-914-2
02
1
9905-
●
●
●
●
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(B) L=250
1-09360-956-0
02
1
9707-9904
●
20
GASKET
ID=84.6
1-09623-431-0
02
1
9603-9706
●
20
GASKET
ID=84.6
1-09623-431-0
02
1
9707-9904
●
●
20
GASKET
ID=84.6
1-09623-431-0
02
1
9905-
●
●
●
●
22
NUT
M10 FLANGE
0-91150-110-0
04
1
9603-9608
●
22
NUT
M10 FLANGE
0-91150-210-0
04
1
9609-9706
●
22
NUT
M10 FLANGE
0-91150-210-0
04
1
9707-9904
●
●
22
NUT
M10 FLANGE
0-91150-210-0
04
1
9905-
●
●
●
●
23
CLIP; HOSE
(B) ID=77-95
1-09707-114-0
04
1
9603-9706
●
23
CLIP; HOSE
(B) ID=77-95
1-09707-114-0
04
1
9707-9904
●
●
23
CLIP; HOSE
(B) ID=77-95
1-09707-114-0
04
1
9905-
●
●
●
●
23
CLIP; HOSE
(A) ID=68-85
8-94320-428-0
08
1
9603-9706
●
23
CLIP; HOSE
(A) ID=68-85
8-94320-428-0
08
1
9707-9904
●
●
23
CLIP; HOSE
(A) ID=68-85
8-94320-428-0
08
1
9905-
●
●
●
●
28
RUBBER; MTG,CHARGE AIR COOLER
1-21467-015-1
04
1
9603-9706
●
28
RUBBER; MTG,CHARGE AIR COOLER
1-21467-015-1
04
1
9707-9904
●
●
28
RUBBER; MTG,CHARGE AIR COOLER
1-21467-015-1
04
1
9905-
●
●
●
●
29
COLLAR; MTG RUBBER,CAC BRKT
1-21469-100-0
04
1
9603-9706
●
29
COLLAR; MTG RUBBER,CAC BRKT
1-21469-100-0
04
1
9707-9904
●
●
29
COLLAR; MTG RUBBER,CAC BRKT
1-21469-100-0
04
1
9905-
●
●
●
●
