3-05 — REAR WHEEL BRAKE (#42958) — 83 parça

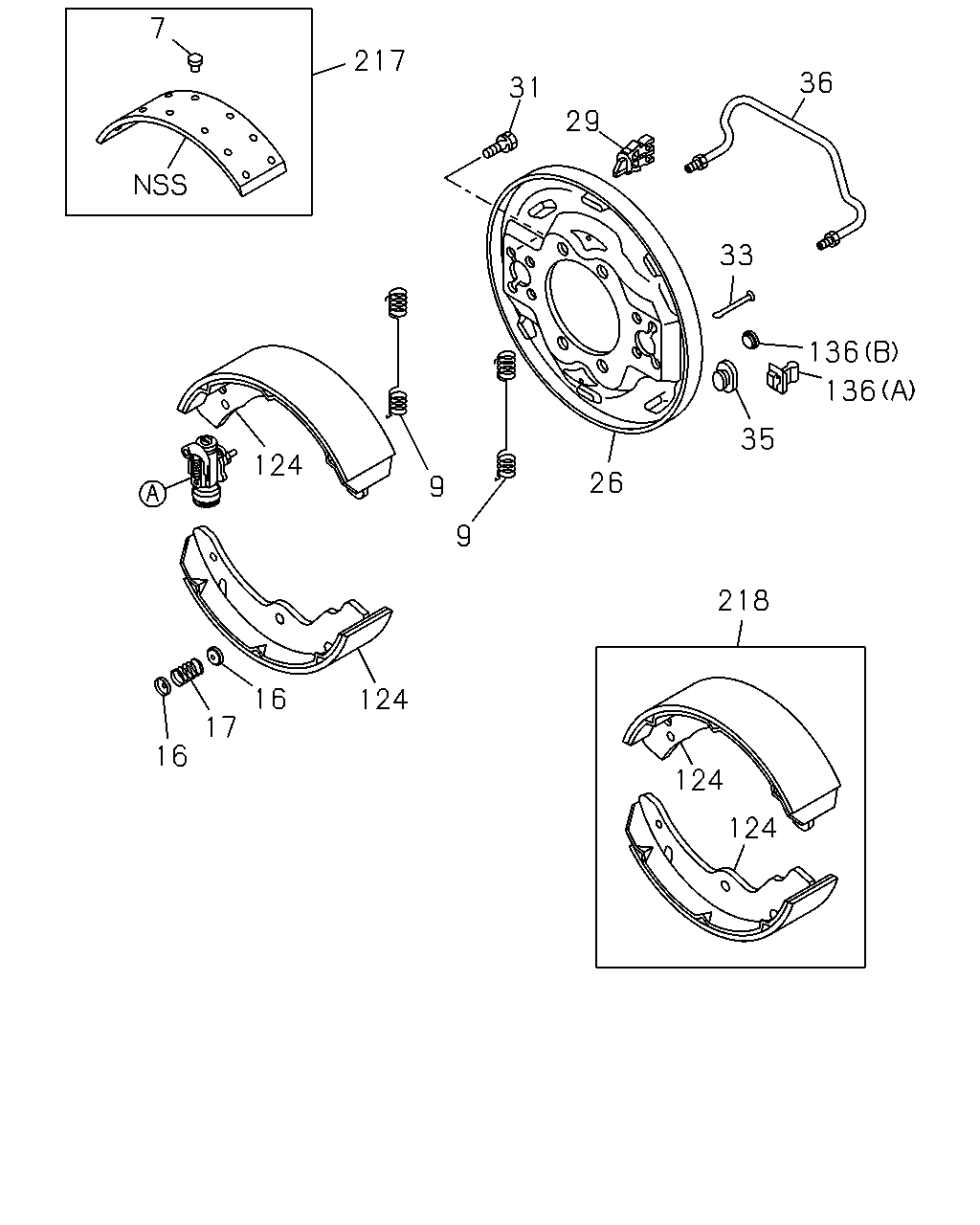

7 217 36 31 29 33 136 136 35 124 26 9 9 218 16 124 17 16 124 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	RIVET; LINING,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	1-09732-029-0	64	1	0911-
7	RIVET; LINING,RR BRK	1-09732-029-0	48	1	0401-0910
7	RIVET; LINING,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	1-09732-029-0	48	1	0911-
9	SPRING; RETURN,BRK SHOE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97122-869-0	04	1	0911-
9	SPRING; RETURN,BRK SHOE	8-97022-087-0	04	1	0401-0910
9	SPRING; RETURN,BRK SHOE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97022-087-0	04	1	0911-
16	CUP; SHOE HOLDING	9-47165-096-0	08	1	0401-
17	SPRING; SHOE HOLD DOWN	5-09580-101-1	04	1	0401-
26	PLATE; BACK,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97207-157-0	01	1	0911-
26	PLATE; BACK,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97207-158-0	01	1	0911-
26	PLATE; BACK,RR BRK	8-97223-574-0	01	1	0401-0910
26	PLATE; BACK,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97223-574-0	01	1	0911-
26	PLATE; BACK,RR BRK	8-97223-573-0	01	1	0401-0910
26	PLATE; BACK,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97223-573-0	01	1	0911-
29	CLIP; PIPE,BRK	8-97022-086-0	02	1	0401-
31	BOLT; RR WHEEL CYL	8-97022-088-0	16	1	0401-0502
31	BOLT; RR WHEEL CYL	8-97081-305-0	16	1	0503-
33	PIN; SHOE HOLD DOWN 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97122-870-0	04	1	0911-
33	PIN; SHOE HOLD DOWN	8-97022-089-0	04	1	0401-0910
33	PIN; SHOE HOLD DOWN EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97022-089-0	04	1	0911-
35	GROMMET; CHECK HOLE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97017-507-0	06	1	0911-
35	GROMMET; CHECK HOLE	8-97017-507-0	02	1	0401-0910
35	GROMMET; CHECK HOLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97017-507-0	02	1	0911-
36	PIPE; OIL,RR BRK	8-97192-215-0	02	1	0401-
124	SHOE ASM; BRK,RR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97188-455-0	04	1	0911-
124	SHOE ASM; BRK,RR	8-97201-061-0	04	1	0401-0910
124	SHOE ASM; BRK,RR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97201-061-0	04	1	0911-
136	GROMMET 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	1-47154-008-0	04	1	0911-
136	GROMMET (A)	8-97044-742-1	04	1	0401-0910
136	GROMMET EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97044-742-1	04	1	0911-
217	LINING KIT; RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87831-692-0	01	1	0911-
217	LINING KIT; RR BRK	5-87831-774-0	01	1	0401-0910
217	LINING KIT; RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87831-774-0	01	1	0911-
217	LINING KIT; RR BRK BEST VALUE PARTS	5-87610-120-0	01	1	0608-0910
217	LINING KIT; RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> BEST VALUE PARTS	5-87610-120-0	01	1	0911-
217	LINING KIT; RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BEST VALUE PARTS	5-87610-119-0	01	1	0911-
218	SHOE KIT; BRK,RR 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87831-693-0	01	1	0911-
218	SHOE KIT; BRK,RR	5-87831-775-0	01	1	0401-0910
218	SHOE KIT; BRK,RR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87831-775-0	01	1	0911-

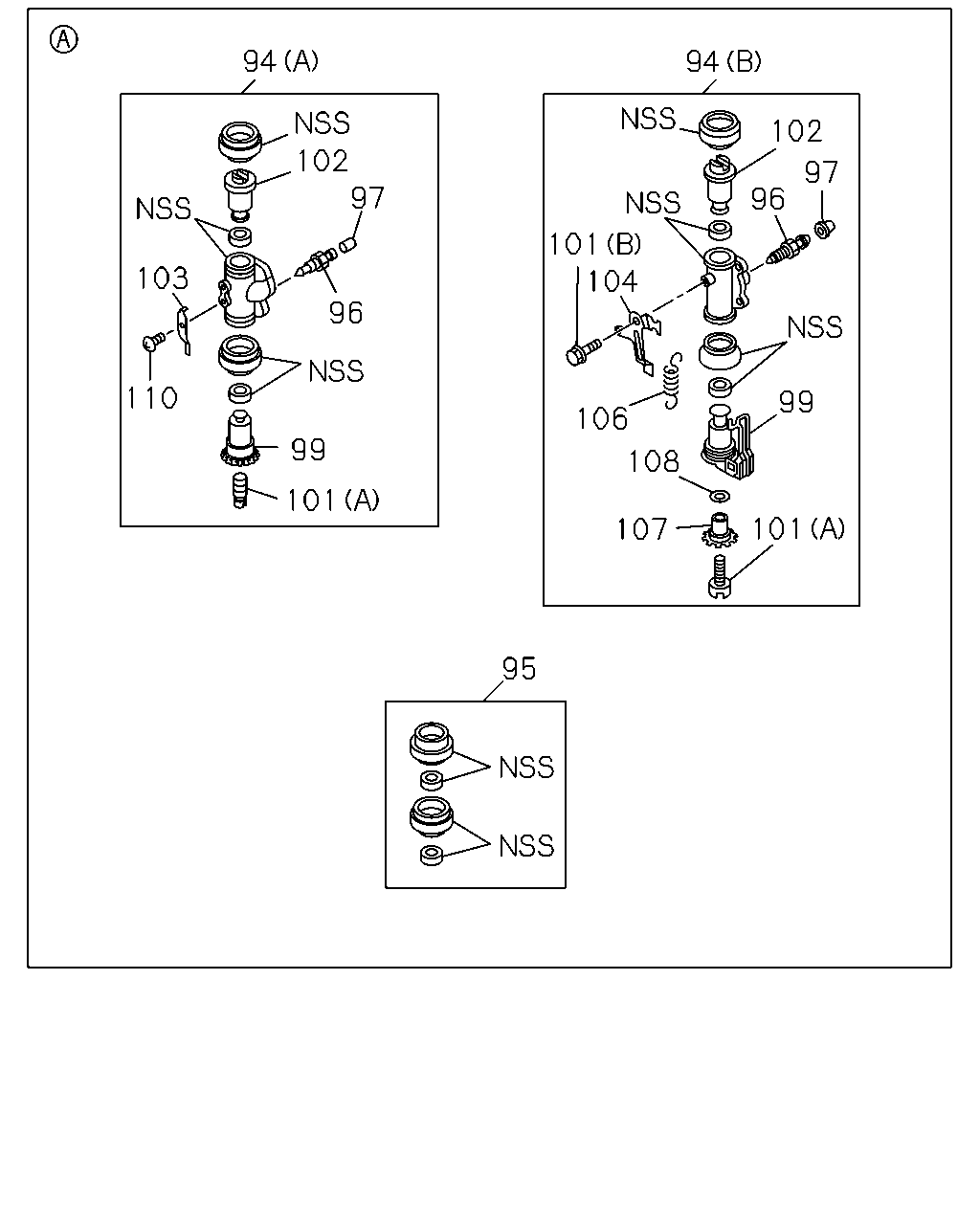

94 94 102 102 97 97 96 101 104 103 96 110 99 106 99 108 101 101 107 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
94	CYLINDER; WHEEL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR	8-97358-878-0	01	1	0911-
94	CYLINDER; WHEEL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR	8-97358-879-0	01	1	0911-
94	CYLINDER; WHEEL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (B) FRONT	8-97358-880-0	01	1	0911-
94	CYLINDER; WHEEL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (B) FRONT	8-97358-881-0	01	1	0911-
94	CYLINDER; WHEEL,RR BRK (A)	8-97139-825-0	02	1	0401-0910
94	CYLINDER; WHEEL,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97139-825-0	02	1	0911-
94	CYLINDER; WHEEL,RR BRK (A) FRONT	8-97139-822-0	01	1	0401-0910
94	CYLINDER; WHEEL,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) FRONT	8-97139-822-0	01	1	0911-
94	CYLINDER; WHEEL,RR BRK (A) REAR	8-97139-824-0	01	1	0401-0910
94	CYLINDER; WHEEL,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) REAR	8-97139-824-0	01	1	0911-
95	CUP SET; RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87832-051-0	02	1	0911-
95	CUP SET; RR WHEEL CYL	5-87831-598-0	02	1	0401-0910
95	CUP SET; RR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87831-598-0	02	1	0911-
96	SCREW; BLEEDER,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98050-477-0	02	1	0911-
96	SCREW; BLEEDER,RR BRK	9-47615-027-0	01	1	0401-0711
96	SCREW; BLEEDER,RR BRK	8-98050-476-0	01	1	0712-0910
96	SCREW; BLEEDER,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98050-476-0	01	1	0911-
97	CAP; BLEEDER,RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98050-479-0	02	1	0911-
97	CAP; BLEEDER,RR WHEEL CYL	1-47619-009-0	01	1	0401-0711
97	CAP; BLEEDER,RR WHEEL CYL	8-98050-479-0	01	1	0712-0910
97	CAP; BLEEDER,RR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98050-479-0	01	1	0911-
99	PISTON; RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97349-731-0	02	1	0911-
99	PISTON; RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97349-732-0	02	1	0911-
99	PISTON; RR WHEEL CYL	8-94414-700-1	04	1	0401-0910
99	PISTON; RR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94414-700-1	04	1	0911-
101	SCREW; ADJ,RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97349-741-0	02	1	0911-
101	SCREW; ADJ,RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97349-742-0	02	1	0911-
101	SCREW; ADJ,RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97349-747-0	04	1	0911-
101	SCREW; ADJ,RR WHEEL CYL (A)	8-94414-702-0	04	1	0401-0910
101	SCREW; ADJ,RR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-94414-702-0	04	1	0911-
102	PISTON; REAR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97332-043-0	04	1	0911-
102	PISTON; REAR WHEEL CYL D=30.16	8-94414-701-1	04	1	0401-0810
102	PISTON; REAR WHEEL CYL	8-97078-045-0	04	1	0811-0910
102	PISTON; REAR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97078-045-0	04	1	0911-
103	SPRING; LK,RR WHEEL CYL,ADJ	8-94128-486-0	04	1	0401-0910
103	SPRING; LK,RR WHEEL CYL,ADJ EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94128-486-0	04	1	0911-
104	LEVER; ADJ 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97349-743-0	02	1	0911-
104	LEVER; ADJ 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97349-744-0	02	1	0911-
106	SPRING; ADJ LEVER 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97349-745-0	04	1	0911-
107	GEAR; ADJ,RR W/CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97358-894-0	02	1	0911-
107	GEAR; ADJ,RR W/CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97358-895-0	02	1	0911-
108	WASHER; THRUST,GEAR ADJ 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97349-736-0	04	1	0911-
110	SCREW; LOCK SPRING,RR WHEEL CYL	8-94128-727-0	04	1	0401-0910
110	SCREW; LOCK SPRING,RR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94128-727-0	04	1	0911-
