3-01 — FRONT WHEEL BRAKE (#42957) — 103 parça

15 15 17 16 17 16 255 302 18 19 254 253 24 24 25 252 25 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	CYLINDER; WHEEL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (B) FRONT	8-97358-874-0	01	1	0911-1108
15	CYLINDER; WHEEL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (B) FRONT	8-98081-290-0	01	1	1109-
15	CYLINDER; WHEEL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (B) FRONT	8-97358-875-0	01	1	0911-1108
15	CYLINDER; WHEEL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (B) FRONT	8-98081-291-0	01	1	1109-
15	CYLINDER; WHEEL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR	8-97358-876-0	01	1	0911-1108
15	CYLINDER; WHEEL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR	8-98081-292-0	01	1	1109-
15	CYLINDER; WHEEL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR	8-97358-877-0	01	1	0911-1108
15	CYLINDER; WHEEL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR	8-98081-293-0	01	1	1109-
15	CYLINDER; WHEEL,FRT BRK (A) REAR	8-97139-819-0	01	1	0401-0910
15	CYLINDER; WHEEL,FRT BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) REAR	8-97139-819-0	01	1	0911-
15	CYLINDER; WHEEL,FRT BRK (A) FRONT	8-97139-821-0	01	1	0401-0910
15	CYLINDER; WHEEL,FRT BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) FRONT	8-97139-821-0	01	1	0911-
15	CYLINDER; WHEEL,FRT BRK (A) REAR	8-97139-818-0	01	1	0401-0910
15	CYLINDER; WHEEL,FRT BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) REAR	8-97139-818-0	01	1	0911-
15	CYLINDER; WHEEL,FRT BRK (A) FRONT	8-97139-820-0	01	1	0401-0910
15	CYLINDER; WHEEL,FRT BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) FRONT	8-97139-820-0	01	1	0911-
16	SCREW; BLEEDER,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98050-477-0	02	1	0911-
16	SCREW; BLEEDER,FRT BRK	9-47615-027-0	02	1	0401-0711
16	SCREW; BLEEDER,FRT BRK	8-98050-476-0	02	1	0712-0910
16	SCREW; BLEEDER,FRT BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98050-476-0	02	1	0911-
17	CAP; BLEEDER,FRT WHEEL CYL	1-47619-009-0	02	1	0401-0711
17	CAP; BLEEDER,FRT WHEEL CYL	8-98050-479-0	02	1	0712-
18	STOPPER; ADJ SCREW	8-94128-486-0	04	1	0401-0910
18	STOPPER; ADJ SCREW EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94128-486-0	04	1	0911-
19	SCREW; STOPPER SETTING	8-94128-727-0	04	1	0401-0910
19	SCREW; STOPPER SETTING EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94128-727-0	04	1	0911-
24	PISTON; FRT WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97349-729-0	02	1	0911-1108
24	PISTON; FRT WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97349-731-0	02	1	1109-
24	PISTON; FRT WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97349-730-0	02	1	0911-1108
24	PISTON; FRT WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97349-732-0	02	1	1109-
24	PISTON; FRT WHEEL CYL	8-94414-700-1	04	1	0401-0910
24	PISTON; FRT WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94414-700-1	04	1	0911-
25	SCREW; ADJ,FRT WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97349-741-0	02	1	0911-
25	SCREW; ADJ,FRT WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97349-742-0	02	1	0911-
25	SCREW; ADJ,FRT WHEEL CYL	8-94414-702-0	04	1	0401-0910
25	SCREW; ADJ,FRT WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94414-702-0	04	1	0911-
26	CUP SET; FRT WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87832-069-0	01	1	0911-1108
26	CUP SET; FRT WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87832-051-0	01	1	1109-
26	CUP SET; FRT WHEEL CYL	5-87831-598-0	01	1	0401-0910
26	CUP SET; FRT WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87831-598-0	01	1	0911-
252	GEAR; ADJ,FRT WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97358-894-0	02	1	0911-
252	GEAR; ADJ,FRT WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97358-895-0	02	1	0911-
253	WASHER; THRUST 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97349-736-0	04	1	0911-
254	SPRING; ADJ LEVER 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97349-745-0	04	1	0911-
255	LEVER; ADJ 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97349-743-0	02	1	0911-
255	LEVER; ADJ 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97349-744-0	02	1	0911-
302	SCREW; ADJ LEVER 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97349-747-0	04	1	0911-

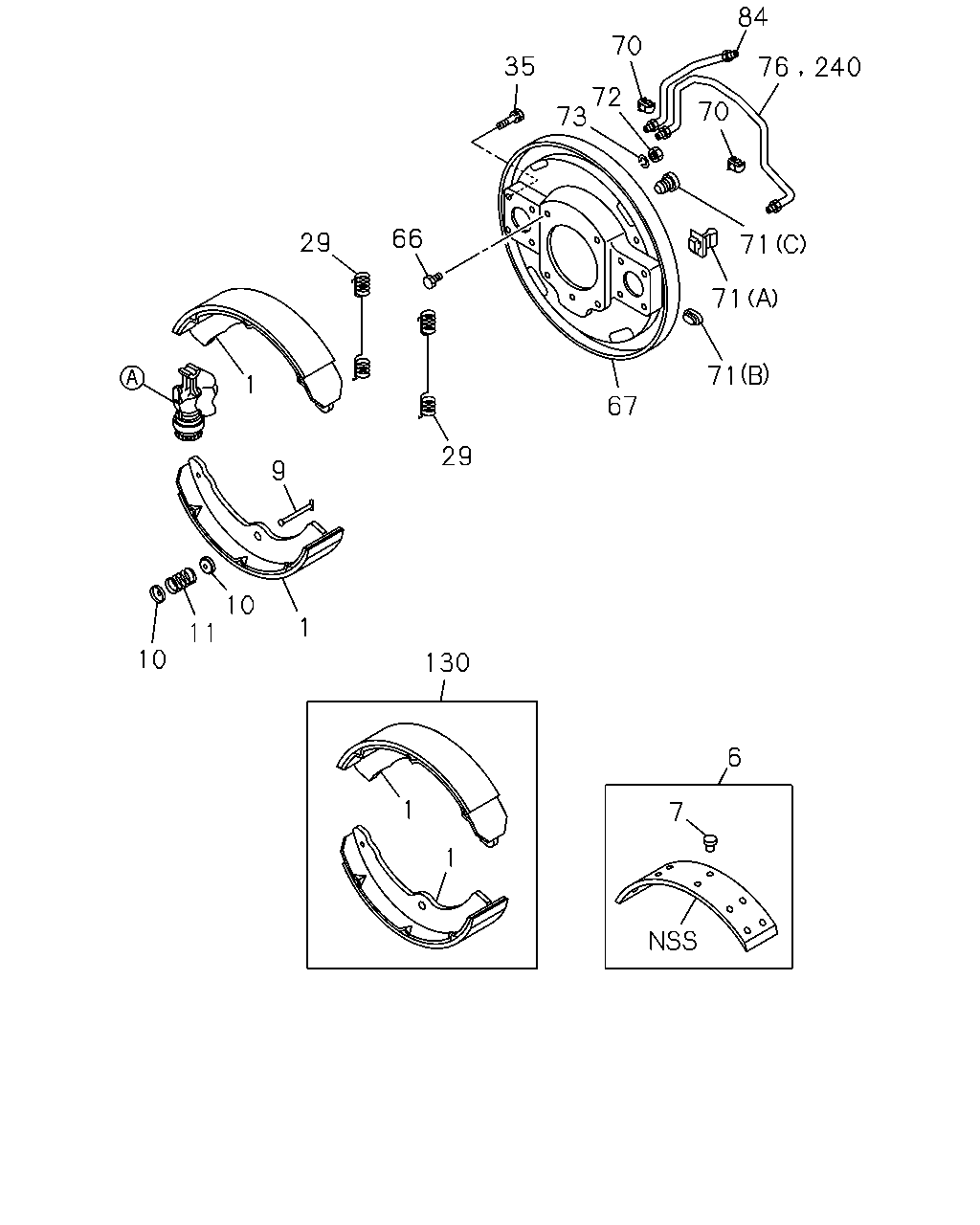

84 70 35 72 73 70 66 29 71 71 71 1 67 29 9 10 1 11 10 130 6 1 7 1 76 240

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97188-455-0	04	1	0911-
1	SHOE; BRK,FRT	8-97201-061-0	04	1	0401-0910
1	SHOE; BRK,FRT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97201-061-0	04	1	0911-
6	LINING KIT; FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87831-692-0	01	1	0911-
6	LINING KIT; FRT BRK	5-87831-774-0	01	1	0401-0910
6	LINING KIT; FRT BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87831-774-0	01	1	0911-
6	LINING KIT; FRT BRK BEST VALUE PARTS	5-87610-120-0	01	1	0608-0910
6	LINING KIT; FRT BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> BEST VALUE PARTS	5-87610-120-0	01	1	0911-
6	LINING KIT; FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BEST VALUE PARTS	5-87610-119-0	01	1	0911-
7	RIVET; LINING,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	1-09732-029-0	64	1	0911-
7	RIVET; LINING,FRT BRK	1-09732-029-0	48	1	0401-0910
7	RIVET; LINING,FRT BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	1-09732-029-0	48	1	0911-
9	PIN; SHOE HOLDER 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97122-870-0	04	1	0911-
9	PIN; SHOE HOLDER	8-97022-089-0	04	1	0401-0910
9	PIN; SHOE HOLDER EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97022-089-0	04	1	0911-
10	CUP; SHOE HOLDING	9-47165-096-0	08	1	0401-
11	SPRING; SHOE HOLDING	5-09580-101-1	04	1	0401-
29	SPRING; RETURN,FRT BRK SHOE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97122-869-0	04	1	0911-
29	SPRING; RETURN,FRT BRK SHOE	8-97022-087-0	04	1	0401-0910
29	SPRING; RETURN,FRT BRK SHOE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97022-087-0	04	1	0911-
35	BOLT; FRT WHEEL CYL	8-97022-088-0	16	1	0401-0502
35	BOLT; FRT WHEEL CYL	8-97081-305-0	16	1	0503-
66	BOLT; OIL SHIELD COVER 4 WHEEL ANTI LOCK BRAKE<JE5> M14X40	8-98007-879-0	08	1	0911-
66	BOLT; OIL SHIELD COVER M12X33	9-09600-043-3	08	1	0401-0611
66	BOLT; OIL SHIELD COVER M12X33	8-98009-493-2	08	1	0612-0910
66	BOLT; OIL SHIELD COVER EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M12X33	8-98009-493-2	08	1	0911-
67	PLATE; BACK,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97358-868-0	01	1	0911-
67	PLATE; BACK,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97358-869-0	01	1	0911-
67	PLATE; BACK,FRT BRK	8-97302-597-0	01	1	0401-0910
67	PLATE; BACK,FRT BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97302-597-0	01	1	0911-
67	PLATE; BACK,FRT BRK	8-97302-596-0	01	1	0401-0910
67	PLATE; BACK,FRT BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97302-596-0	01	1	0911-
70	CLIP; PIPE HOLD	8-97022-086-0	04	1	0401-
71	GROMMET; CHECK HOLE 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	1-47154-008-0	04	1	0911-
71	GROMMET; CHECK HOLE 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97017-507-0	06	1	0911-
71	GROMMET; CHECK HOLE (B)	8-97017-507-0	02	1	0401-0910
71	GROMMET; CHECK HOLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97017-507-0	02	1	0911-
71	GROMMET; CHECK HOLE (A)	8-97044-742-1	02	1	0401-0910
71	GROMMET; CHECK HOLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97044-742-1	02	1	0911-
72	NUT; OIL SHIELD COVER 4 WHEEL ANTI LOCK BRAKE<JE5> M14	0-91110-514-0	08	1	0911-
72	NUT; OIL SHIELD COVER M12	9-99110-512-0	08	1	0401-0512
72	NUT; OIL SHIELD COVER M12	0-91110-512-0	08	1	0601-0910
72	NUT; OIL SHIELD COVER EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M12	0-91110-512-0	08	1	0911-
73	WASHER; LK,OIL SHIELD COVER 4 WHEEL ANTI LOCK BRAKE<JE5> ID=14.2	0-91510-814-0	08	1	0911-
73	WASHER; LK,OIL SHIELD COVER ID=12.2	9-09150-612-0	08	1	0401-0603
73	WASHER; LK,OIL SHIELD COVER ID=12.2	0-91510-612-0	08	1	0604-0611
73	WASHER; LK,OIL SHIELD COVER ID=12.2	0-91510-812-0	08	1	0612-0910
73	WASHER; LK,OIL SHIELD COVER EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=12.2	0-91510-812-0	08	1	0911-
76	PIPE; OIL,BACKWARD,FRT BRK	8-97079-847-0	02	1	0401-0910
76	PIPE; OIL,BACKWARD,FRT BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97079-847-0	02	1	0911-
84	PIPE; BRK,WHEEL CYL TO HOSE	8-97039-677-0	01	1	0401-
84	PIPE; BRK,WHEEL CYL TO HOSE	8-97039-676-0	01	1	0401-
130	SHOE KIT; BRK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87831-693-0	01	1	0911-
130	SHOE KIT; BRK,FRT	5-87831-775-0	01	1	0401-0910
130	SHOE KIT; BRK,FRT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87831-775-0	01	1	0911-
240	PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97079-847-0	02	1	0911-
