2-85 — POWER TAKE OFF CONTROL (#42956) — 76 parça

24 173 172 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) L=3057	8-97352-390-1	01	1	0401-
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) M8X25 FLANGE	0-28680-825-0	01	1	0401-0512
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) M8X25 FLANGE	0-28650-825-0	01	1	0601-
173	NUT; BRKT PTO TRANSMISSION SIDE(V66) M8 FLANGE	0-91150-108-0	01	1	0401-0602
173	NUT; BRKT PTO TRANSMISSION SIDE(V66) M8 FLANGE	0-91180-108-0	01	1	0603-
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66)	8-97229-563-0	01	1	0401-

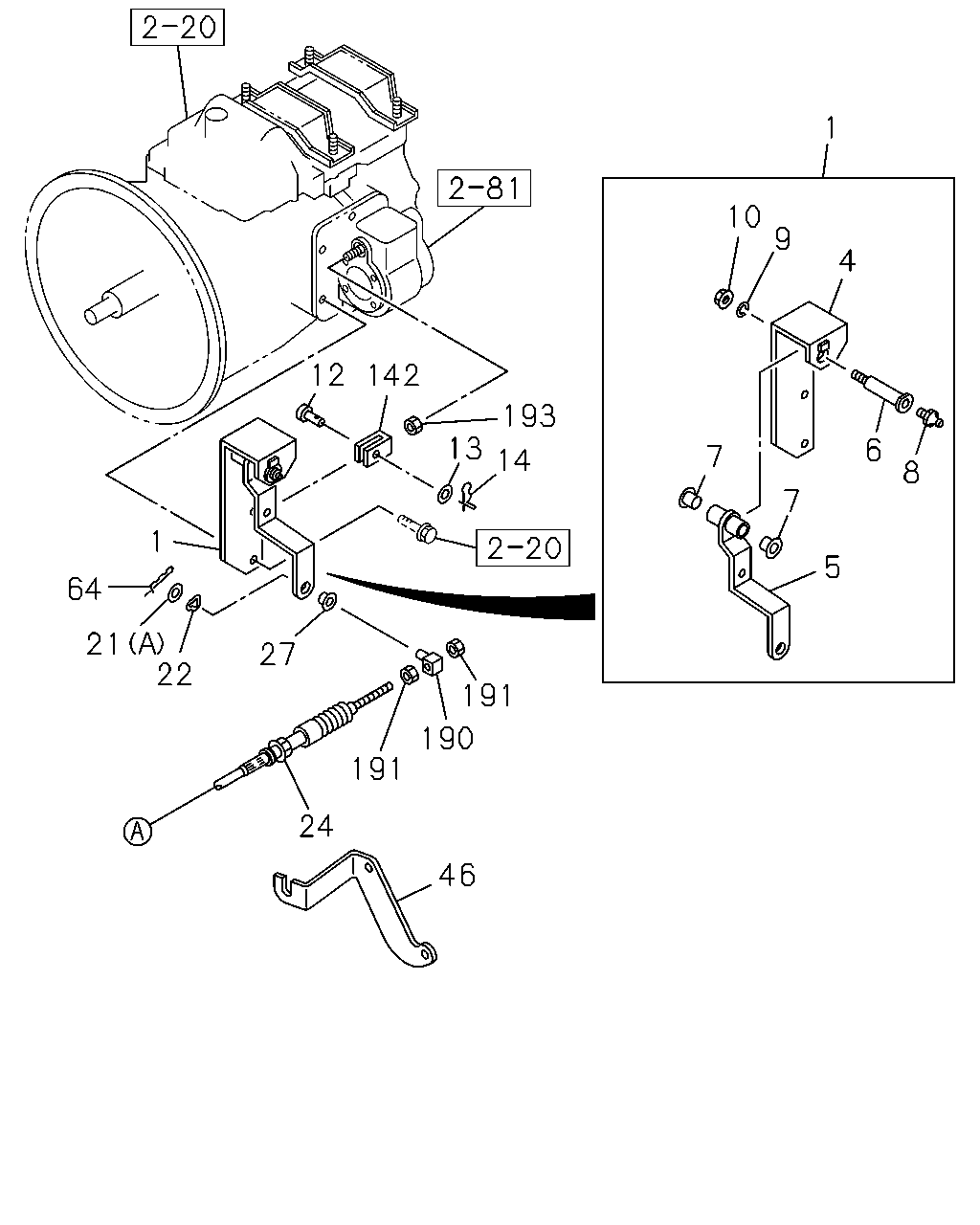

1 10 9 4 12 142 193 13 6 7 14 8 7 1 5 64 21 22 27 191 190 191 24 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LEVER ASM; PTO & DUMP CONT 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66)	8-97310-741-0	01	1	0401-0607
1	LEVER ASM; PTO & DUMP CONT 4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66)	8-97310-741-0	01	1	0608-
4	BRACKET; PTO CONT 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66)	8-97310-740-0	01	1	0401-0607
4	BRACKET; PTO CONT 4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66)	8-97310-740-0	01	1	0608-
5	LEVER; PTO SHIFT CONT 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66)	8-97310-747-0	01	1	0401-0607
5	LEVER; PTO SHIFT CONT 4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66)	8-97310-747-0	01	1	0608-
6	SHAFT; PTO CONT 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66)	8-97204-596-0	01	1	0401-0607
6	SHAFT; PTO CONT 4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66)	8-97204-596-0	01	1	0608-
7	BUSHING; LEVER,PTO 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	0401-0607
7	BUSHING; LEVER,PTO 4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	0608-
8	NIPPLE; GREASE 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) M6 STRAIGHT	9-09031-006-0	01	1	0401-0607
8	NIPPLE; GREASE 4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) M6 STRAIGHT	9-09031-006-0	01	1	0608-0608
8	NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) M6 STRAIGHT	0-90301-406-0	01	1	0608-
9	WASHER; LK,SHAFT,PTO 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) ID=8.2	9-09150-508-0	01	1	0401-0603
9	WASHER; LK,SHAFT,PTO 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) ID=8.2	0-91510-508-0	01	1	0604-0607
9	WASHER; LK,SHAFT,PTO 4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) ID=8.2	0-91510-508-0	01	1	0608-
10	NUT; SHAFT,PTO 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) M8	9-09110-408-0	01	1	0401-0512
10	NUT; SHAFT,PTO 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) M8	0-91110-508-0	01	1	0601-0607
10	NUT; SHAFT,PTO 4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) M8	0-91110-508-0	01	1	0608-
12	JOINT; PIN,YOKE 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66)	8-94174-099-0	01	1	0401-0607
12	JOINT; PIN,YOKE 4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66)	8-94174-099-0	01	1	0608-0610
12	JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-98031-692-0	01	1	0611-
13	WASHER; PL,YOKE 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) ID=12.5	9-09160-512-0	01	1	0401-0605
13	WASHER; PL,YOKE 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) ID=12.5 OD=22	0-91610-512-0	01	1	0606-0607
13	WASHER; PL,YOKE 4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) ID=12.5 OD=22	0-91610-512-0	01	1	0608-
14	PIN; SPLIT,YOKE 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66)	1-09987-158-1	01	1	0401-0607
14	PIN; SPLIT,YOKE 4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66)	1-09987-158-1	01	1	0608-0805
14	PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66)	8-97581-216-0	01	1	0806-
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) (B) ID=8.4 OD=22	9-09160-708-0	01	1	0401-0605
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) (B) ID=8.4 OD=22	0-91610-708-0	01	1	0606-
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) (A) ID=8.4 OD=22	9-09164-708-0	01	1	0401-0605
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) (A) ID=8.4 OD=22	0-91614-708-0	01	1	0606-
22	WASHER; LK,LEVER PTO TRANSMISSION SIDE(V66) ID=8.5 T=0.3	5-09509-001-0	01	1	0401-
24	CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) L=3057	8-97352-390-1	01	1	0401-
27	BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	8-94367-367-0	01	1	0401-
46	BRACKET; PTO,TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-97264-954-1	01	1	0401-
64	PIN; SNAP,CONT CABLE JOINT PTO TRANSMISSION SIDE(V66) L=27.7	8-94111-137-0	01	1	0401-0607
64	PIN; SNAP,CONT CABLE JOINT PTO TRANSMISSION SIDE(V66) L=27.7	8-94111-137-0	01	1	0608-
142	CLEVIS; CONT BOX 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66)	8-97327-588-0	01	1	0401-0607
142	CLEVIS; CONT BOX 4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66)	8-97327-588-0	01	1	0608-
190	BOSS; LEVER,PTO PTO TRANSMISSION SIDE(V66)	8-94366-842-2	01	1	0401-
191	NUT; BOSS PTO TRANSMISSION SIDE(V66) M6	9-09110-506-0	02	1	0401-0512
191	NUT; BOSS PTO TRANSMISSION SIDE(V66) M6	0-91110-506-0	02	1	0601-
193	NUT 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) M12	9-99111-412-0	01	1	0401-0512
193	NUT 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) M12	0-91111-512-0	01	1	0601-0607
193	NUT 4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) M12	0-91111-512-0	01	1	0608-

70 15 71 79 245 256 79 121 18 19 83 16 21 222 256 192 24 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	LEVER ASM; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97143-217-1	01	1	0401-0708
16	CLIP; CABLE,PTO PTO TRANSMISSION SIDE(V66)	8-94152-900-0	01	1	0401-
18	PIN; SNAP,PTO CABLE PTO TRANSMISSION SIDE(V66) L=27.7	8-94111-137-0	01	1	0401-
19	WASHER; PL,PTO CABLE PTO TRANSMISSION SIDE(V66) ID=8.4	9-09160-508-0	01	1	0401-0605
19	WASHER; PL,PTO CABLE PTO TRANSMISSION SIDE(V66) ID=8.4 OD=16	0-91610-508-0	01	1	0606-
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) (B) ID=8.4 OD=22	9-09160-708-0	01	1	0401-0605
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) (B) ID=8.4 OD=22	0-91610-708-0	01	1	0606-
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) (A) ID=8.4 OD=22	9-09164-708-0	01	1	0401-0605
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) (A) ID=8.4 OD=22	0-91614-708-0	01	1	0606-
24	CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) L=3057	8-97352-390-1	01	1	0401-
31	CLIP; BAND,CABLE PTO TRANSMISSION SIDE(V66) L=250	5-09707-030-1	01	1	0401-
70	KNOB; DUMP CONT PTO TRANSMISSION SIDE(V66)	8-94147-332-1	01	1	0401-0708
71	LEVER; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97143-218-0	01	1	0401-0708
79	BUSHING; CONT LEVER PTO TRANSMISSION SIDE(V66)	8-94238-596-0	02	1	0401-0708
83	BRACKET; CONT LEVER PTO TRANSMISSION SIDE(V66)	8-97118-977-0	01	1	0401-0708
121	RING; SNAP PTO TRANSMISSION SIDE(V66) ID=10	9-09185-410-0	01	1	0401-0604
121	RING; SNAP PTO TRANSMISSION SIDE(V66) ID=10	0-91805-510-0	01	1	0605-0708
192	BOLT; PTO BRKT PTO TRANSMISSION SIDE(V66) M6X16 FLANGE	0-28680-616-0	01	1	0401-0512
192	BOLT; PTO BRKT PTO TRANSMISSION SIDE(V66) M6X16 FLANGE	0-28650-616-0	01	1	0601-0708
222	BOLT; LEVER PTO TRANSMISSION SIDE(V66) M8X14 FLANGE	0-28080-814-0	02	1	0401-
245	SCREW; COVER,CONT LEVER BRKT PTO TRANSMISSION SIDE(V66) M4X10 W/LK&PL WASHER	9-03920-410-0	01	1	0401-0604
245	SCREW; COVER,CONT LEVER BRKT PTO TRANSMISSION SIDE(V66) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	0605-0708
256	PLATE; LOCK PTO TRANSMISSION SIDE(V66) (B)	8-97118-983-0	01	1	0401-0708
256	PLATE; LOCK PTO TRANSMISSION SIDE(V66) (A)	8-97142-947-0	01	1	0401-0708
