2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#42955) — 89 parça

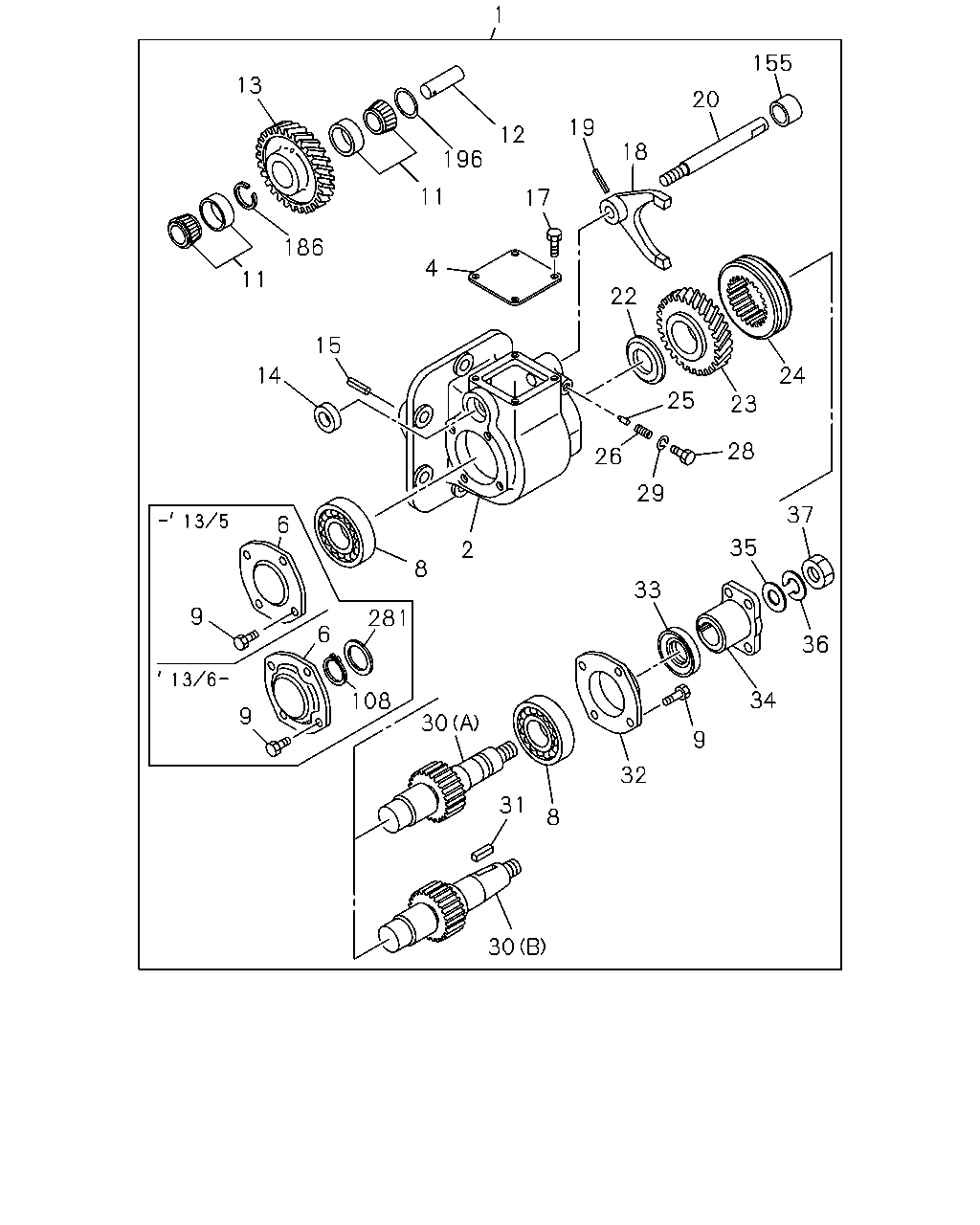

çizim 100614
1 13 11 186 15 14 4 11 196 12 17 19 18 20 155 22 25 23 24 28 29 26 2 8 9 6 6 281 108 9 30 31 8 32 9 34 36 37 35 33 30
BalonParca AdiParca NoAdetTipApplied Date
1 POWER TAKE OFF ASM; TRANS SIDE
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) IDENTIFICATION=YG 		8-97286-908-5 01 1 0401-0607
1 POWER TAKE OFF ASM; TRANS SIDE
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) IDENTIFICATION=YG 		8-97286-908-7 01 1 0608-1210
1 POWER TAKE OFF ASM; TRANS SIDE
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) IDENTIFICATION=YG 		8-98223-523-0 01 1 1211-1305
1 POWER TAKE OFF ASM; TRANS SIDE
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) IDENTIFICATION=YG 		8-98233-783-1 01 1 1306-
2 CASE; GEAR,TRANS SIDE PTO
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 		8-97308-689-2 01 1 0401-0607
2 CASE; GEAR,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) 		8-97308-689-2 01 1 0608-1409
2 CASE; GEAR,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) 		8-98282-381-0 01 1 1410-
4 COVER; UPR,TRANS SIDE PTO
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 		8-97106-718-1 01 1 0401-0607
4 COVER; UPR,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) 		8-98046-613-0 01 1 0608-
6 COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 		9-38151-604-0 01 1 0401-0402
6 COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 		8-97333-347-0 01 1 0403-0607
6 COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) 		8-98046-612-0 01 1 0608-1305
6 COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) 		8-98233-778-0 01 1 1306-
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) ID=25 OD=62 		8-94343-031-1 02 1 0401-0607
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) ID=25 OD=62 		8-94343-031-1 02 1 0608-
9 BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) OR M8X25 FLANGE 		0-28680-825-0 08 1 0401-0607
9 BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) M8X20 FLANGE 		0-28050-820-0 08 1 0608-
11 BEARING; IDLE GEAR,TRANS SIDE PTO
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) NSK 		8-97106-734-0 02 1 0401-0607
11 BEARING; IDLE GEAR,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) NSK 		8-97106-734-0 02 1 0608-
12 SHAFT; IDLE GEAR,TRANS SIDE PTO
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 		9-38211-606-0 01 1 0401-0607
12 SHAFT; IDLE GEAR,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) 		9-38211-606-0 01 1 0608-
13 GEAR; IDLE,TRANS SIDE PTO
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) Z=31 		8-97308-700-0 01 1 0401-0607
13 GEAR; IDLE,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) Z=31 		8-97308-700-0 01 1 0608-
14 SEAL; OIL,GEAR CASE,TRANS SIDE PTO
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 		9-09724-015-0 01 1 0401-0509
14 SEAL; OIL,GEAR CASE,TRANS SIDE PTO
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 		8-98028-789-0 01 1 0510-0607
14 SEAL; OIL,GEAR CASE,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) 		8-98028-789-0 01 1 0608-
15 PIN; SPR,TRANS SIDE PTO
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) L=16 		9-09878-613-0 01 1 0401-0607
15 PIN; SPR,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) L=16 		9-09878-613-0 01 1 0608-
17 BOLT; UPR COVER,TRANS SIDE PTO
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) OR M8X25 FLANGE 		0-28680-825-0 04 1 0401-0607
17 BOLT; UPR COVER,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) M8X20 FLANGE 		0-28050-820-0 04 1 0608-
18 ARM; GEAR SHIFT,TRANS SIDE PTO
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 		8-97224-702-0 01 1 0401-0607
18 ARM; GEAR SHIFT,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) 		8-97224-702-0 01 1 0608-
19 PIN; SPR,SHIFT ARM,TRANS SIDE PTO
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) L=25 OD=5 		8-94135-771-0 01 1 0401-0607
19 PIN; SPR,SHIFT ARM,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) L=25 OD=5 		8-94135-771-0 01 1 0608-
20 ROD; GEAR SHIFTER,TRANS SIDE PTO
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 		8-97308-707-0 01 1 0401-0607
20 ROD; GEAR SHIFTER,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) 		8-98046-623-0 01 1 0608-
22 COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 		9-38245-603-1 01 1 0401-0607
22 COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) 		9-38245-603-1 01 1 0608-
23 GEAR; OUTPUT,TRANS SIDE PTO
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) Z=27 		8-97308-714-0 01 1 0401-0607
23 GEAR; OUTPUT,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) Z=27 		8-97308-714-0 01 1 0608-0805
23 GEAR; OUTPUT,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) Z=27 		8-98120-609-0 01 1 0806-
24 SLEEVE; DOG CLU,TRANS SIDE PTO
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 		8-97231-316-0 01 1 0401-0607
24 SLEEVE; DOG CLU,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) 		8-97231-316-1 01 1 0608-
25 PIN; LK,SIDE PTO
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 		8-94169-071-0 01 1 0401-0607
25 PIN; LK,SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) 		8-94169-071-0 01 1 0608-
26 SPRING; SHIFTER ROD,TRANS SIDE PTO
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 		9-09940-380-0 01 1 0401-0607
26 SPRING; SHIFTER ROD,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) 		9-09940-380-0 01 1 0608-
28 BOLT; SPRING,SIDE PTO
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 		8-97318-428-0 01 1 0401-0607
28 BOLT; SPRING,SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) M8 		8-98038-424-0 01 1 0608-
29 WASHER; LK,SPRING,SIDE PTO
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) ID=8.2 		9-09150-508-0 01 1 0401-0607
29 WASHER; LK,SPRING,SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) ID=8.2 		0-91510-808-0 01 1 0608-
30 SHAFT; OUTPUT,TRANS SIDE PTO
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) (A) 		8-97118-183-1 01 1 0401-0607
30 SHAFT; OUTPUT,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) (A) 		8-97118-183-1 01 1 0608-1210
30 SHAFT; OUTPUT,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) (B) 		8-98223-518-0 01 1 1211-1305
30 SHAFT; OUTPUT,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) (B) 		8-98233-777-0 01 1 1306-
31 KEY; OUTPUT SHAFT,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) L=25 		8-98068-088-0 01 1 1211-
32 COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 		8-97350-757-3 01 1 0401-0511
32 COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 		8-97305-794-0 01 1 0512-0607
32 COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) 		8-97305-794-0 01 1 0608-
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 		1-38159-007-0 01 1 0401-0607
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) 		1-38159-007-0 01 1 0608-
34 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 		8-97350-755-0 01 1 0401-0607
34 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) 		8-98046-624-0 01 1 0608-1210
34 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) 		8-98223-519-0 01 1 1211-
35 WASHER; PL,FLANGE FIX,TRANS SIDE PTO
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) ID=15 		9-09160-514-0 01 1 0401-0607
35 WASHER; PL,FLANGE FIX,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) ID=15 		0-91610-514-0 01 1 0608-
36 WASHER; LK,FLANGE FIX,TRANS SIDE PTO
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) ID=14.2 		9-09150-514-0 01 1 0401-0607
36 WASHER; LK,FLANGE FIX,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) ID=14.2 		0-91510-814-0 01 1 0608-
37 NUT; FLANGE FIX,TRANS SIDE PTO
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) M14 		9-99111-414-0 01 1 0401-0607
37 NUT; FLANGE FIX,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) M14 		0-91111-514-0 01 1 0608-
108 RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) ID=23.2 		9-09180-025-0 01 1 1306-
155 PLUG; SHIFTER ROD
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) OD=24 L=31 		9-33545-011-0 01 1 0401-0402
155 PLUG; SHIFTER ROD
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 		8-97374-349-0 01 1 0403-0607
155 PLUG; SHIFTER ROD
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) 		8-98037-770-0 01 1 0608-
186 RING; SNAP,IDLE GEAR,TRANS SIDE PTO
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 		8-97106-730-0 01 1 0401-0607
186 RING; SNAP,IDLE GEAR,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) 		8-97106-730-0 01 1 0608-
196 PIECE; THRUST
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) T=1.50 		8-97106-724-0 02 1 0401-0607
196 PIECE; THRUST
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) T=1.50 		8-97106-724-0 02 1 0608-
196 PIECE; THRUST
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) T=1.60 		8-97106-725-0 02 1 0401-0607
196 PIECE; THRUST
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) T=1.60 		8-97106-725-0 02 1 0608-
196 PIECE; THRUST
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) T=1.65 		8-97106-726-0 02 1 0401-0607
196 PIECE; THRUST
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) T=1.65 		8-97106-726-0 02 1 0608-
196 PIECE; THRUST
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) T=1.70 		8-97106-727-0 02 1 0401-0607
196 PIECE; THRUST
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) T=1.70 		8-97106-727-0 02 1 0608-
196 PIECE; THRUST
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) T=1.80 		8-97106-728-0 02 1 0401-0607
196 PIECE; THRUST
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) T=1.80 		8-97106-728-0 02 1 0608-
196 PIECE; THRUST
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) T=1.85 		8-97106-729-0 02 1 0401-0607
196 PIECE; THRUST
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) T=1.85 		8-97106-729-0 02 1 0608-
281 SHIM; OUTPUT SHAFT
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) T=1.85 		8-97106-729-0 01 1 1306-
