2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#42952) — 32 parça

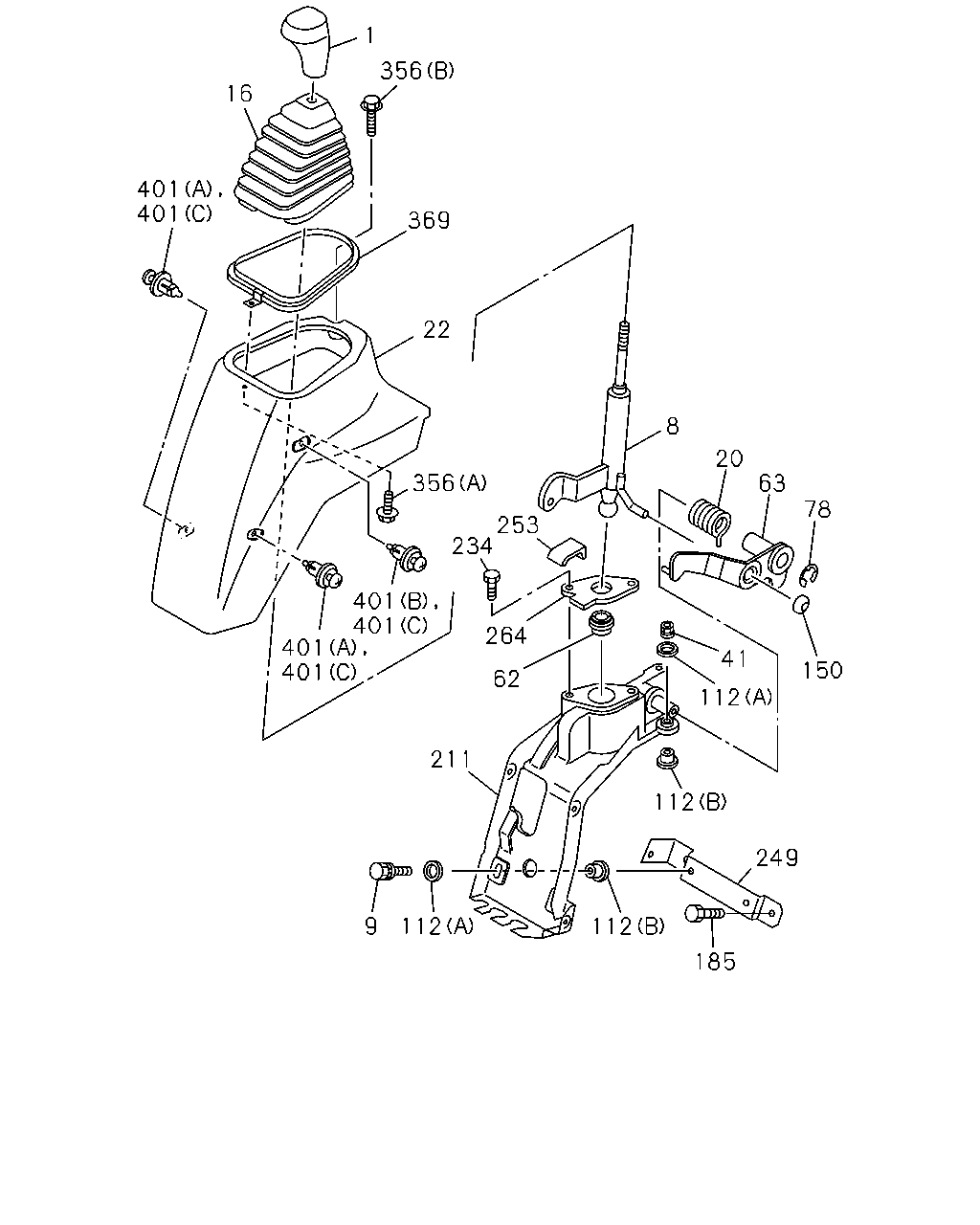

çizim 55420
1 356 16 401 401 369 22 8 20 356 63 253 234 78 401 401 401 401 264 41 150 62 112 211 112 249 9 112 112 185
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER
BLACK 		8-97196-286-1 01 1 0401-
8 LEVER; CHANGE 8-97204-506-0 01 1 0401-
9 BOLT; CHANGE LEVER
M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 0401-
16 BOOT; CHANGE LEVER 8-97066-287-2 01 1 0401-
20 SPRING; CHANGE LEVER 8-97204-514-1 01 1 0401-
22 COVER; DUST,CHANGE LEVER
DARK GRAY 		8-97098-666-3 01 1 0401-0607
22 COVER; DUST,CHANGE LEVER
GRAY 		8-97585-447-3 01 1 0608-
41 NUT; CHANGE LEVER
M8 FLANGE 		8-97046-127-0 02 1 0401-0610
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 0611-
62 SEAT; BALL,CHANGE LEVER 8-97011-895-1 01 1 0401-
63 LEVER; RELAY,SELECT 8-97143-199-0 01 1 0401-
78 RING; SNAP,CHANGE LEVER
ID=10 		9-09185-410-0 01 1 0401-0604
78 RING; SNAP,CHANGE LEVER
ID=10 		0-91805-510-0 01 1 0605-
112 RUBBER; CUSHION
(A) 		8-97091-426-0 04 1 0401-
112 RUBBER; CUSHION
(B) 		8-97091-427-0 04 1 0401-
150 BALL; DETENT,CONT LEVER 8-97049-147-0 01 1 0401-
185 BOLT; BRKT,COVER
M8X20 FLANGE 		0-28680-820-0 02 1 0401-0512
185 BOLT; BRKT,COVER
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
211 BRACKET; CHANGE LEVER 8-97204-505-1 01 1 0401-
234 BOLT; BRKT
M6X12 FLANGE 		1-33739-842-0 02 1 0401-
249 BRACKET; COVER 8-97091-820-3 01 1 0401-
253 STOPPER; CHANGE LEVER 8-97204-510-0 01 1 0401-
264 PLATE; COVER 8-97204-511-0 01 1 0401-
356 SCREW; COVER
(A) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 0401-0604
356 SCREW; COVER
(A) M5X14 TAPPING W/PL WASHER 		0-74160-514-0 01 1 0605-
356 SCREW; COVER
(B) M6X12 		8-97094-854-0 01 1 0401-0612
356 SCREW; COVER
(B) T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 01 1 0701-
369 RETAINER; REINF 8-97066-288-1 01 1 0401-
401 CLIP; COVER
(A) DARK GRAY 		8-97098-523-0 02 1 0401-0602
401 CLIP; COVER
(C) DARK GRAY 		8-97098-523-0 03 1 0603-0607
401 CLIP; COVER
(C) GRAY 		8-97582-240-0 03 1 0608-
401 CLIP; COVER
(B) DARK GRAY 		8-97098-524-0 01 1 0401-0602
