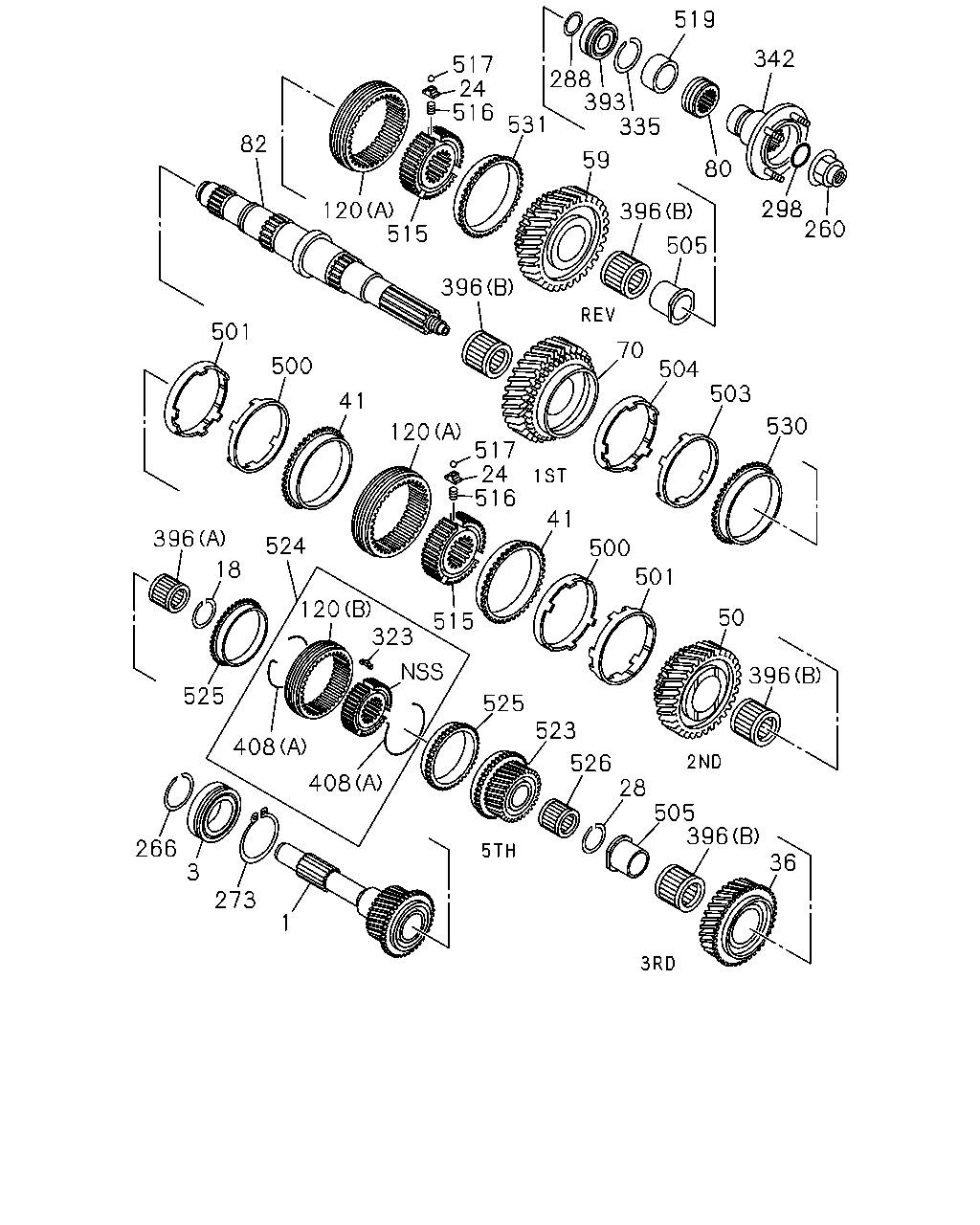

2-26 — MANUAL TRANSMISSION GEAR (#42950) — 152 parça

268 408 510 93 108 507 511 507 325 135 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
93	RING; SNAP,COUNTER FRT BRG 4HE1 ENG(RLY) ID=30.7 T=1.9	8-97254-734-0	01	1	0401-0607
93	RING; SNAP,COUNTER FRT BRG 4HE1-TCN ENG(RDR) ID=30.7 T=1.9	8-97254-734-0	01	1	0608-
93	RING; SNAP,COUNTER FRT BRG 4HE1 ENG(RLY) ID=30.7 T=2.1	8-97254-740-0	01	1	0401-0607
93	RING; SNAP,COUNTER FRT BRG 4HE1-TCN ENG(RDR) ID=30.7 T=2.1	8-97254-740-0	01	1	0608-
93	RING; SNAP,COUNTER FRT BRG 4HE1 ENG(RLY) ID=30.7 T=2.3	8-97254-742-0	01	1	0401-0607
93	RING; SNAP,COUNTER FRT BRG 4HE1-TCN ENG(RDR) ID=30.7 T=2.3	8-97254-742-0	01	1	0608-
108	SHAFT; COUNTER 4HE1 ENG(RLY) Z=45-49-33-20	8-97326-590-0	01	1	0401-0404
108	SHAFT; COUNTER 4HE1 ENG(RLY) Z=45-49-33-20	8-97380-630-1	01	1	0405-0607
108	SHAFT; COUNTER 4HE1-TCN ENG(RDR) Z=45-49-33-20	8-97380-630-1	01	1	0608-
132	SHAFT; REV 4HE1 ENG(RLY)	8-97252-655-0	01	1	0401-0607
132	SHAFT; REV 4HE1-TCN ENG(RDR)	8-97252-655-0	01	1	0608-
135	GEAR; REV IDLER 4HE1 ENG(RLY) Z=25	8-97241-293-0	01	1	0401-0512
135	GEAR; REV IDLER 4HE1 ENG(RLY) Z=25	8-98031-869-0	01	1	0601-0607
135	GEAR; REV IDLER 4HE1-TCN ENG(RDR) Z=25	8-98031-869-1	01	1	0608-
268	PLATE; ANTI LASH,COUNTER 4HE1 ENG(RLY)	8-97257-300-1	01	1	0401-0607
268	PLATE; ANTI LASH,COUNTER 4HE1-TCN ENG(RDR)	8-97257-300-1	01	1	0608-
314	BEARING; NEEDLE,REV GEAR 4HE1 ENG(RLY) NSK	8-97253-114-0	01	1	0401-0607
314	BEARING; NEEDLE,REV GEAR 4HE1-TCN ENG(RDR) NSK	8-97253-114-0	01	1	0608-
325	SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=62.7 T=2.41	8-97252-668-0	01	1	0401-0607
325	SHIM; COUNTER SHAFT BRG 4HE1-TCN ENG(RDR) ID=62.7 T=2.41	8-97252-668-0	01	1	0608-
325	SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=62.7 T=2.47	8-97252-669-0	01	1	0401-0607
325	SHIM; COUNTER SHAFT BRG 4HE1-TCN ENG(RDR) ID=62.7 T=2.47	8-97252-669-0	01	1	0608-
325	SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=62.7 T=2.53	8-97252-670-0	01	1	0401-0607
325	SHIM; COUNTER SHAFT BRG 4HE1-TCN ENG(RDR) ID=62.7 T=2.53	8-97252-670-0	01	1	0608-
325	SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=62.7 T=2.59	8-97252-671-0	01	1	0401-0607
325	SHIM; COUNTER SHAFT BRG 4HE1-TCN ENG(RDR) ID=62.7 T=2.59	8-97252-671-0	01	1	0608-
325	SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=62.7 T=2.65	8-97252-672-0	01	1	0401-0607
325	SHIM; COUNTER SHAFT BRG 4HE1-TCN ENG(RDR) ID=62.7 T=2.65	8-97252-672-0	01	1	0608-
325	SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=62.7 T=2.71	8-97252-673-0	01	1	0401-0607
325	SHIM; COUNTER SHAFT BRG 4HE1-TCN ENG(RDR) ID=62.7 T=2.71	8-97252-673-0	01	1	0608-
325	SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=62.7 T=2.77	8-97252-674-0	01	1	0401-0607
325	SHIM; COUNTER SHAFT BRG 4HE1-TCN ENG(RDR) ID=62.7 T=2.77	8-97252-674-0	01	1	0608-
325	SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=62.7 T=2.83	8-97252-675-0	01	1	0401-0607
325	SHIM; COUNTER SHAFT BRG 4HE1-TCN ENG(RDR) ID=62.7 T=2.83	8-97252-675-0	01	1	0608-
325	SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=62.7 T=2.89	8-97257-622-0	01	1	0401-0607
325	SHIM; COUNTER SHAFT BRG 4HE1-TCN ENG(RDR) ID=62.7 T=2.89	8-97257-622-0	01	1	0608-
325	SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=62.7 T=2.95	8-97320-549-0	01	1	0401-0404
325	SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=62.7 T=2.29	8-97252-666-0	01	1	0405-0607
325	SHIM; COUNTER SHAFT BRG 4HE1-TCN ENG(RDR) ID=62.7 T=2.29	8-97252-666-0	01	1	0608-
325	SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=62.7 T=3.01	8-97320-550-0	01	1	0401-0404
325	SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=62.7 T=2.35	8-97252-667-0	01	1	0405-0607
325	SHIM; COUNTER SHAFT BRG 4HE1-TCN ENG(RDR) ID=62.7 T=2.35	8-97252-667-0	01	1	0608-
325	SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=62.7 T=3.07	8-97320-551-0	01	1	0401-0404
325	SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=62.7 T=2.11	8-97306-188-0	01	1	0405-0607
325	SHIM; COUNTER SHAFT BRG 4HE1-TCN ENG(RDR) ID=62.7 T=2.11	8-97306-188-0	01	1	0608-
325	SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=62.7 T=3.13	8-97320-552-0	01	1	0401-0404
325	SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=62.7 T=2.17	8-97306-189-0	01	1	0405-0607
325	SHIM; COUNTER SHAFT BRG 4HE1-TCN ENG(RDR) ID=62.7 T=2.17	8-97306-189-0	01	1	0608-
325	SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=62.7 T=3.19	8-97320-553-0	01	1	0401-0404
325	SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=62.7 T=2.23	8-97306-190-0	01	1	0405-0607
325	SHIM; COUNTER SHAFT BRG 4HE1-TCN ENG(RDR) ID=62.7 T=2.23	8-97306-190-0	01	1	0608-
408	SPRING 4HE1 ENG(RLY) (B)	8-94148-196-0	03	1	0401-0607
408	SPRING 4HE1-TCN ENG(RDR) (B)	8-94148-196-0	03	1	0608-
408	SPRING 4HE1 ENG(RLY) (A)	8-94422-075-0	02	1	0401-0404
408	SPRING 4HE1 ENG(RLY) (A)	8-97366-040-1	02	1	0405-0607
408	SPRING 4HE1-TCN ENG(RDR) (A)	8-97366-040-1	02	1	0608-
507	BEARING; COUNTER SHAFT,FRT & RR 4HE1 ENG(RLY)	8-97253-107-0	02	1	0401-0607
507	BEARING; COUNTER SHAFT,FRT & RR 4HE1-TCN ENG(RDR)	8-97253-107-0	02	1	0608-
510	PIN; STRAIGHT,ANTI LASH 4HE1 ENG(RLY)	9-08160-825-0	03	1	0401-0607
510	PIN; STRAIGHT,ANTI LASH 4HE1-TCN ENG(RDR)	9-08160-825-0	03	1	0608-
511	RING; SNAP,ANTI LASH PLATE 4HE1 ENG(RLY)	8-97254-767-0	01	1	0401-0607
511	RING; SNAP,ANTI LASH PLATE 4HE1-TCN ENG(RDR)	8-97254-767-0	01	1	0608-

519 342 517 24 516 288 393 335 531 82 59 80 298 260 120 515 396 505 396 501 70 500 504 503 41 530 120 517 24 516 41 396 524 500 18 501 120 323 50 515 396 525 525 523 408 526 28 505 396 36 408 266 3 273 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; TOP GEAR,TRANS 4HE1 ENG(RLY) Z=28	8-97252-924-1	01	1	0401-0607
1	SHAFT; TOP GEAR,TRANS 4HE1-TCN ENG(RDR) Z=28	8-97252-924-1	01	1	0608-
3	BEARING; TOP GEAR SHAFT 4HE1 ENG(RLY) NSK	8-97253-098-1	01	1	0401-0607
3	BEARING; TOP GEAR SHAFT 4HE1-TCN ENG(RDR) NSK	8-97253-098-1	01	1	0608-
18	RING; SNAP,CLU HUB 4HE1 ENG(RLY) ID=30.7 T=1.8	8-97254-728-0	01	1	0401-0607
18	RING; SNAP,CLU HUB 4HE1-TCN ENG(RDR) ID=30.7 T=1.8	8-97254-728-0	01	1	0608-
24	BLOCK; INDEX,SYN 4HE1 ENG(RLY)	8-97241-313-1	06	1	0401-0607
24	BLOCK; INDEX,SYN 4HE1-TCN ENG(RDR)	8-97241-313-1	06	1	0608-
28	RING; SNAP,3RD GEAR 4HE1 ENG(RLY) ID=46.5 T=1.8	8-97254-743-0	01	1	0401-0607
28	RING; SNAP,3RD GEAR 4HE1-TCN ENG(RDR) ID=46.5 T=1.8	8-97254-743-0	01	1	0608-
36	GEAR; 3RD,MAINSHAFT 4HE1 ENG(RLY) Z=34	8-97241-234-0	01	1	0401-0607
36	GEAR; 3RD,MAINSHAFT 4HE1-TCN ENG(RDR) Z=34	8-97241-234-0	01	1	0608-
41	RING; BLOCK,2ND & 3RD 4HE1 ENG(RLY) Z=45	8-97241-306-1	02	1	0401-0607
41	RING; BLOCK,2ND & 3RD 4HE1-TCN ENG(RDR) Z=45	8-97241-306-1	02	1	0608-
50	GEAR; 2ND,MAINSHAFT 4HE1 ENG(RLY) Z=38	8-97241-237-1	01	1	0401-0607
50	GEAR; 2ND,MAINSHAFT 4HE1-TCN ENG(RDR) Z=38	8-97241-237-1	01	1	0608-
59	GEAR; REV MAINSHAFT 4HE1 ENG(RLY) Z=41	8-97241-244-0	01	1	0401-0607
59	GEAR; REV MAINSHAFT 4HE1-TCN ENG(RDR) Z=41	8-97241-244-0	01	1	0608-
70	GEAR; 1ST,MAINSHAFT 4HE1 ENG(RLY) Z=43	8-97241-242-1	01	1	0401-0404
70	GEAR; 1ST,MAINSHAFT 4HE1 ENG(RLY) Z=43	8-97350-010-0	01	1	0405-0607
70	GEAR; 1ST,MAINSHAFT 4HE1-TCN ENG(RDR) Z=43	8-97350-010-0	01	1	0608-
80	GEAR; SPD DRIVE 4HE1 ENG(RLY) Z=4	8-97253-556-0	01	1	0401-0607
80	GEAR; SPD DRIVE 4HE1-TCN ENG(RDR) Z=4	8-97253-556-0	01	1	0608-
82	SHAFT; MAIN,TRANS 4HE1 ENG(RLY) Z=28-42-42-21	8-97253-117-3	01	1	0401-0607
82	SHAFT; MAIN,TRANS 4HE1-TCN ENG(RDR) Z=28-42-42-21	8-97253-117-3	01	1	0608-
120	SLEEVE 4HE1-TCN ENG(RDR) (B) Z=45	8-94421-871-1	01	1	0401-
120	SLEEVE 4HE1 ENG(RLY) (A) Z=45	8-97241-296-1	02	1	0401-0607
120	SLEEVE 4HE1-TCN ENG(RDR) (A) Z=45	8-97241-296-1	02	1	0608-1311
120	SLEEVE 4HE1-TCN ENG(RDR) (A) Z=45	8-98258-279-0	02	1	1312-
260	NUT; MAINSHAFT END 4HE1 ENG(RLY) M27 H=25	8-97253-126-0	01	1	0401-0604
260	NUT; MAINSHAFT END 4HE1 ENG(RLY) M27 H=25	8-97360-410-0	01	1	0605-0607
260	NUT; MAINSHAFT END 4HE1-TCN ENG(RDR) M27 H=25	8-97360-410-0	01	1	0608-
266	RING; SNAP,BRG INNER 4HE1 ENG(RLY)	8-97286-916-0	01	1	0401-0607
266	RING; SNAP,BRG INNER 4HE1-TCN ENG(RDR)	8-97286-916-0	01	1	0608-
273	RING; SNAP,BRG OUTER 4HE1 ENG(RLY)	8-97254-610-0	01	1	0401-0607
273	RING; SNAP,BRG OUTER 4HE1-TCN ENG(RDR)	8-97254-610-0	01	1	0608-
288	SPACER; BRG,MAINSHAFT 4HE1 ENG(RLY)	8-97252-942-0	01	1	0401-0607
288	SPACER; BRG,MAINSHAFT 4HE1-TCN ENG(RDR)	8-97252-942-0	01	1	0608-
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ID=30.6 T=5.7	8-94481-411-0	01	1	0401-0507
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ID=30.6 T=5.7	8-98028-226-0	01	1	0508-0607
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCN ENG(RDR) ID=30.6 T=5.7	8-98028-226-0	01	1	0608-
323	INSERT 4HE1 ENG(RLY)	8-94448-202-2	03	1	0401-0607
323	INSERT 4HE1-TCN ENG(RDR)	8-94448-202-2	03	1	0608-
335	RING; SNAP,BEARING 4HE1 ENG(RLY)	8-97254-722-0	01	1	0401-0607
335	RING; SNAP,BEARING 4HE1-TCN ENG(RDR)	8-97254-722-0	01	1	0608-
342	FLANGE; OUTPUT 4HE1 ENG(RLY)	8-97252-814-1	01	1	0401-0604
342	FLANGE; OUTPUT 4HE1 ENG(RLY)	8-98031-640-0	01	1	0605-0607
342	FLANGE; OUTPUT 4HE1-TCN ENG(RDR)	8-98031-640-0	01	1	0608-
393	BEARING; MAINSHAFT END 4HE1 ENG(RLY)	8-97253-105-1	01	1	0401-0607
393	BEARING; MAINSHAFT END 4HE1-TCN ENG(RDR)	8-97253-105-1	01	1	0608-
396	BEARING; NEEDLE,MAINSHAFT 4HE1 ENG(RLY) (A)	8-97253-102-1	01	1	0401-0607
396	BEARING; NEEDLE,MAINSHAFT 4HE1-TCN ENG(RDR) (A)	8-97253-102-1	01	1	0608-
396	BEARING; NEEDLE,MAINSHAFT 4HE1 ENG(RLY) (B)	8-97253-110-0	04	1	0401-0607
396	BEARING; NEEDLE,MAINSHAFT 4HE1-TCN ENG(RDR) (B)	8-97253-110-0	04	1	0608-
408	SPRING 4HE1 ENG(RLY) (B)	8-94148-196-0	03	1	0401-0607
408	SPRING 4HE1-TCN ENG(RDR) (B)	8-94148-196-0	03	1	0608-
408	SPRING 4HE1 ENG(RLY) (A)	8-94422-075-0	02	1	0401-0404
408	SPRING 4HE1 ENG(RLY) (A)	8-97366-040-1	02	1	0405-0607
408	SPRING 4HE1-TCN ENG(RDR) (A)	8-97366-040-1	02	1	0608-
500	RING; OUTSIDE,3RD & 2ND 4HE1 ENG(RLY)	8-97241-309-1	02	1	0401-0607
500	RING; OUTSIDE,3RD & 2ND 4HE1-TCN ENG(RDR)	8-97241-309-1	02	1	0608-
501	RING; INSIDE,3RD & 2ND 4HE1 ENG(RLY)	8-97241-312-1	02	1	0401-0607
501	RING; INSIDE,3RD & 2ND 4HE1-TCN ENG(RDR)	8-97241-312-1	02	1	0608-
503	RING; OUTSIDE,LOW & REV 4HE1 ENG(RLY)	8-97241-309-1	01	1	0401-0607
503	RING; OUTSIDE,LOW & REV 4HE1-TCN ENG(RDR)	8-97241-309-1	01	1	0608-
504	RING; INSIDE,LOW & REV 4HE1 ENG(RLY)	8-97241-312-1	01	1	0401-0607
504	RING; INSIDE,LOW & REV 4HE1-TCN ENG(RDR)	8-97241-312-1	01	1	0608-
505	COLLAR; 3RD & REV 4HE1 ENG(RLY)	8-97253-119-2	02	1	0401-0607
505	COLLAR; 3RD & REV 4HE1-TCN ENG(RDR)	8-97253-119-2	02	1	0608-
515	HUB; CLU,1ST & REV,2ND & 3RD 4HE1 ENG(RLY)	8-97241-298-2	02	1	0401-0607
515	HUB; CLU,1ST & REV,2ND & 3RD 4HE1-TCN ENG(RDR)	8-97241-298-3	02	1	0608-
516	SPRING; SYNCHRO,INDEX 4HE1 ENG(RLY)	8-97254-835-0	06	1	0401-0607
516	SPRING; SYNCHRO,INDEX 4HE1-TCN ENG(RDR)	8-97254-835-0	06	1	0608-
517	BALL; SYNCHRO,INDEX 4HE1 ENG(RLY)	8-97252-935-0	06	1	0401-0607
517	BALL; SYNCHRO,INDEX 4HE1-TCN ENG(RDR)	8-97252-935-0	06	1	0608-
519	COLLAR; MAINSHAFT END,5TH 4HE1 ENG(RLY)	8-97252-940-0	01	1	0401-0607
519	COLLAR; MAINSHAFT END,5TH 4HE1-TCN ENG(RDR)	8-97252-940-0	01	1	0608-
523	GEAR; OD,MAINSHAFT 4HE1 ENG(RLY) Z=22	8-97241-231-0	01	1	0401-0607
523	GEAR; OD,MAINSHAFT 4HE1-TCN ENG(RDR) Z=22	8-97241-231-0	01	1	0608-
524	SLEEVE & HUB ASM; TOP-4TH,OD 4HE1 ENG(RLY)	8-97300-195-0	01	1	0401-0404
524	SLEEVE & HUB ASM; TOP-4TH,OD 4HE1 ENG(RLY)	8-97366-526-0	01	1	0405-0607
524	SLEEVE & HUB ASM; TOP-4TH,OD 4HE1-TCN ENG(RDR)	8-97366-526-0	01	1	0608-
525	RING; BLOCK,TOP & 4TH,OD 4HE1 ENG(RLY) Z=45	8-97309-532-0	02	1	0401-0607
525	RING; BLOCK,TOP & 4TH,OD 4HE1-TCN ENG(RDR) Z=45	8-97309-532-0	02	1	0608-
526	BEARING; NEEDLE,4TH & 5TH 4HE1 ENG(RLY)	8-97253-112-0	01	1	0401-0607
526	BEARING; NEEDLE,4TH & 5TH 4HE1-TCN ENG(RDR)	8-97253-112-0	01	1	0608-
530	RING; BLOCK,LOW 4HE1 ENG(RLY) Z=45	8-97241-306-1	01	1	0401-0607
530	RING; BLOCK,LOW 4HE1-TCN ENG(RDR) Z=45	8-97241-306-1	01	1	0608-
531	RING; BLOCK,REV 4HE1 ENG(RLY) Z=45	8-97368-343-0	01	1	0401-0607
531	RING; BLOCK,REV 4HE1-TCN ENG(RDR) Z=45	8-97368-343-0	01	1	0608-
