2-25 — SPEEDOMETER DRIVEN GEAR (#42949) — 19 parça

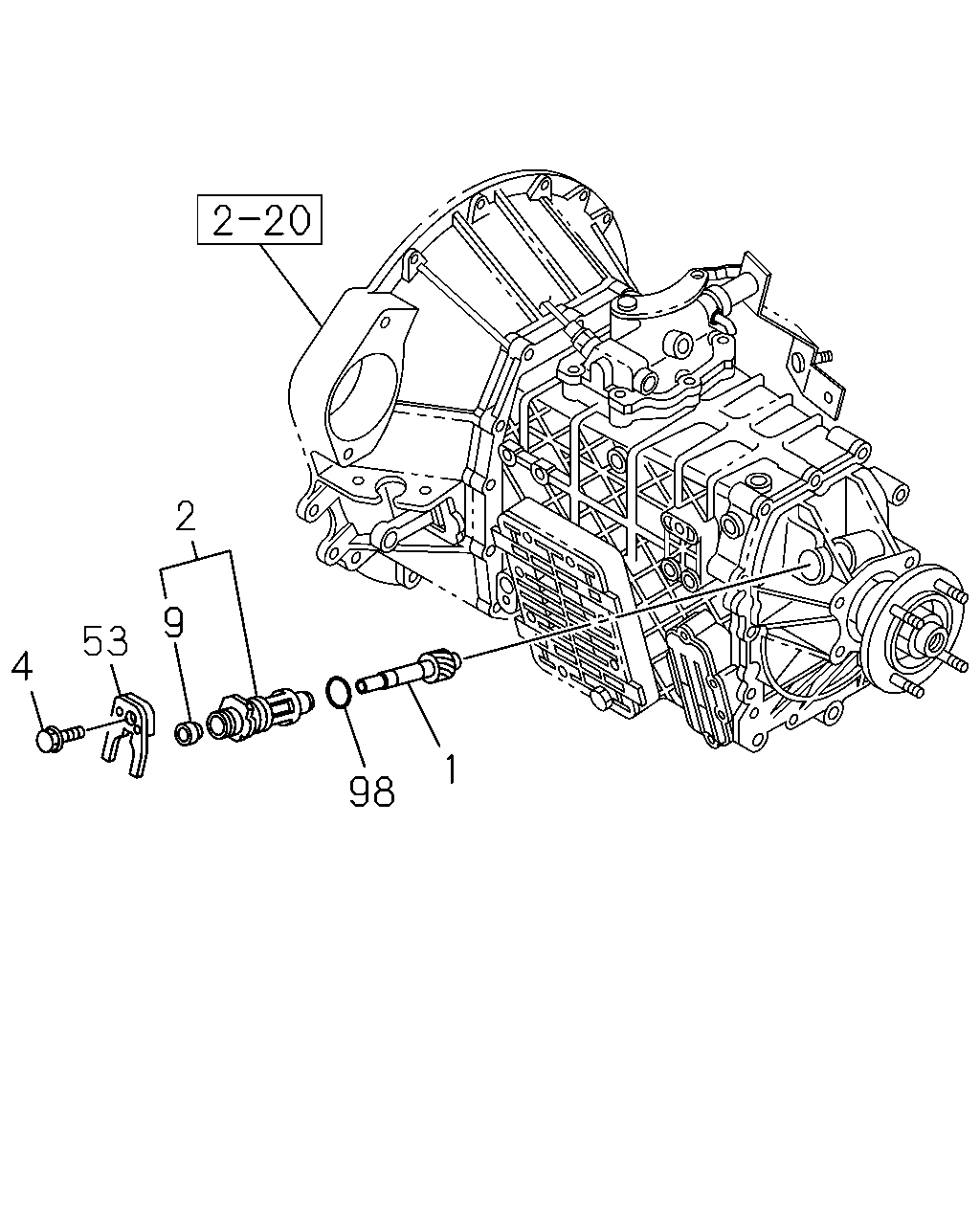

çizim 100635
2 9 53 4 1 98
BalonParca AdiParca NoAdetTipApplied Date
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/7(GV1) Z=14 		8-97253-561-1 01 1 0401-0607
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/7(GV1) FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUTDYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUTDYNAMIC(97V) Z=14 		8-97253-561-1 01 1 0608-0811
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/7(GV1) Z=14 		8-97253-561-1 01 1 0812-
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42) Z=15 		8-97253-560-1 01 1 0401-0607
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42) FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUTDYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUTDYNAMIC(97V) Z=15 		8-97253-560-1 01 1 0608-0811
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42) Z=15 		8-97253-560-1 01 1 0812-
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
MARK "12,13,14,15" 		8-97253-125-0 01 1 0401-0607
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUTDYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUTDYNAMIC(97V) MARK "12,13,14,15" 		8-97253-125-0 01 1 0608-0811
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
MARK "12,13,14,15" 		8-97253-125-0 01 1 0812-
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE 		0-28680-820-0 01 1 0401-0512
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
9 SEAL; OIL,DRIVEN GEAR
NOK 		8-97131-328-1 01 1 0401-0607
9 SEAL; OIL,DRIVEN GEAR
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUTDYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUTDYNAMIC(97V) NOK 		8-97131-328-1 01 1 0608-0811
9 SEAL; OIL,DRIVEN GEAR
NOK 		8-97131-328-1 01 1 0812-
53 PLATE; LOCK,DRIVEN GEAR 8-97252-679-2 01 1 0401-0604
53 PLATE; LOCK,DRIVEN GEAR 8-98046-217-0 01 1 0605-
98 SEAL; OIL,BUSH 9-09561-324-0 01 1 0401-0607
98 SEAL; OIL,BUSH
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUTDYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUTDYNAMIC(97V) 		9-09561-324-0 01 1 0608-0811
98 SEAL; OIL,BUSH 9-09561-324-0 01 1 0812-
