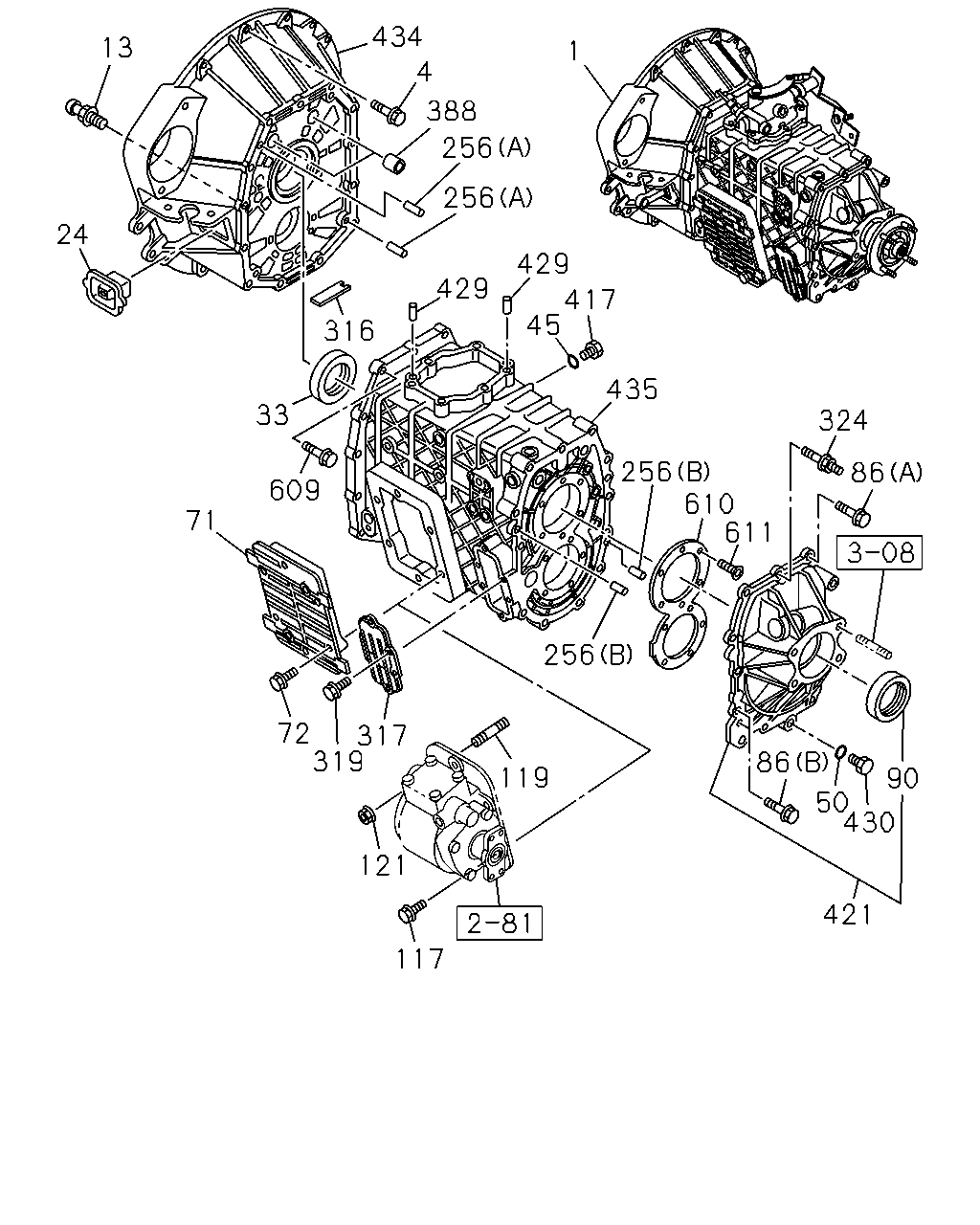

2-20 — MANUAL TRANSMISSION ASM AND CASE (#42948) — 92 parça

434 13 1 4 388 256 256 24 429 429 417 45 316 435 33 324 256 610 611 86 609 71 256 86 72 317 319 119 90 50 430 121 421 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66)	8-97350-619-0	01	1	0401-0404
1	TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66)	8-97373-917-0	01	1	0405-0607
1	TRANSMISSION ASM; MANUAL 4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66)	8-97373-917-0	01	1	0608-
1	TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66)	8-97350-619-0	01	1	0401-0404
1	TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66)	8-97373-917-0	01	1	0405-0607
1	TRANSMISSION ASM; MANUAL 4HE1-TCN ENG(RDR) EXC. PTO TRANSMISSION SIDE(V66)	8-97373-917-0	01	1	0608-
4	BOLT; FLYWHEEL HSG 4HE1 ENG(RLY) M10X35 FLANGE	0-28181-035-0	03	1	0401-0512
4	BOLT; FLYWHEEL HSG 4HE1 ENG(RLY) M10X35 FLANGE	0-28151-035-0	03	1	0601-0607
4	BOLT; FLYWHEEL HSG 4HE1-TCN ENG(RDR) M10X35 FLANGE	0-28151-035-0	03	1	0608-
4	BOLT; FLYWHEEL HSG 4HE1 ENG(RLY) M10X55 FLANGE	8-94399-863-1	02	1	0401-0607
4	BOLT; FLYWHEEL HSG 4HE1-TCN ENG(RDR) M10X55 FLANGE	8-94399-863-1	02	1	0608-0611
4	BOLT; FLYWHEEL HSG 4HE1-TCN ENG(RDR) M10X55 FLANGE	8-97365-449-0	02	1	0612-
4	BOLT; FLYWHEEL HSG 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) M10X35 FLANGE	0-28181-035-0	02	1	0401-0512
4	BOLT; FLYWHEEL HSG 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) M10X35 FLANGE	0-28151-035-0	02	1	0601-0607
4	BOLT; FLYWHEEL HSG 4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) M10X35 FLANGE	0-28151-035-0	02	1	0608-
4	BOLT; FLYWHEEL HSG 4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) M10X30 FLANGE	0-28181-030-0	02	1	0401-0512
4	BOLT; FLYWHEEL HSG 4HE1 ENG(RLY) M10X30 FLANGE	0-28181-030-0	02	1	0401-0512
4	BOLT; FLYWHEEL HSG 4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) M10X30 FLANGE	0-28151-030-0	02	1	0601-0607
4	BOLT; FLYWHEEL HSG 4HE1 ENG(RLY) M10X30 FLANGE	0-28151-030-0	02	1	0601-0607
4	BOLT; FLYWHEEL HSG 4HE1-TCN ENG(RDR) EXC. PTO TRANSMISSION SIDE(V66) M10X30 FLANGE	0-28151-030-0	02	1	0608-
4	BOLT; FLYWHEEL HSG 4HE1-TCN ENG(RDR) M10X30 FLANGE	0-28151-030-0	02	1	0608-
13	SUPPORT; SHIFT FORK 4HE1 ENG(RLY)	8-97255-384-1	01	1	0401-0607
13	SUPPORT; SHIFT FORK 4HE1-TCN ENG(RDR)	8-97255-384-1	01	1	0608-
24	COVER; CHECK HOLE,DUST 4HE1 ENG(RLY)	8-97255-201-0	01	1	0401-0607
24	COVER; CHECK HOLE,DUST 4HE1-TCN ENG(RDR)	8-97255-201-0	01	1	0608-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY)	8-97253-550-0	01	1	0401-0607
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCN ENG(RDR)	8-97253-550-0	01	1	0608-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ID=17	8-97115-712-0	01	1	0401-0607
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCN ENG(RDR) ID=17	8-97115-712-0	01	1	0608-
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ID=17	8-97115-712-0	01	1	0401-0607
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCN ENG(RDR) ID=17	8-97115-712-0	01	1	0608-
71	COVER; SIDE,TRANS CASE 4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66)	8-97252-625-0	01	1	0401-0607
71	COVER; SIDE,TRANS CASE 4HE1-TCN ENG(RDR) EXC. PTO TRANSMISSION SIDE(V66)	8-97252-625-0	01	1	0608-
72	BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66) M10X20 FLANGE	8-97254-833-0	06	1	0401-0604
72	BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66) M10X20 FLANGE	8-98014-142-0	06	1	0605-
86	BOLT; RR COVER 4HE1 ENG(RLY) (A) M10X40 FLANGE	0-28181-040-0	10	1	0401-0512
86	BOLT; RR COVER 4HE1 ENG(RLY) (A) M10X40 FLANGE	0-28151-040-0	10	1	0601-0607
86	BOLT; RR COVER 4HE1-TCN ENG(RDR) (A) M10X40 FLANGE	0-28151-040-0	10	1	0608-
86	BOLT; RR COVER 4HE1 ENG(RLY) (B) M10X40 FLANGE	8-97305-392-0	02	1	0401-0604
86	BOLT; RR COVER 4HE1 ENG(RLY) (B) M10X40 FLANGE	8-97365-377-0	02	1	0605-0607
86	BOLT; RR COVER 4HE1-TCN ENG(RDR) (B) M10X40 FLANGE	8-97365-377-0	02	1	0608-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) NOK	8-97253-552-1	01	1	0401-0607
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCN ENG(RDR) NOK	8-97253-552-1	01	1	0608-
117	BOLT; PTO FIX 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) M10X30 FLANGE	0-28781-030-0	03	1	0401-0512
117	BOLT; PTO FIX 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) M10X30 FLANGE	0-28751-030-0	03	1	0601-0607
117	BOLT; PTO FIX 4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) M10X30 FLANGE	0-28751-030-0	03	1	0608-
119	STUD; PTO FIX 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) M10X25 L=40	9-04411-025-0	03	1	0401-0604
119	STUD; PTO FIX 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) M10X25 L=40	0-44011-025-0	03	1	0605-0607
119	STUD; PTO FIX 4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) M10X25 L=40	0-44011-025-0	03	1	0608-
121	NUT; PTO FIX 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) M10 FLANGE	0-91150-210-0	03	1	0401-0602
121	NUT; PTO FIX 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) M10 FLANGE	0-91180-210-0	03	1	0603-0607
121	NUT; PTO FIX 4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) M10 FLANGE	0-91180-210-0	03	1	0608-
256	PIN; KNOCK 4HE1 ENG(RLY) (A) OD=10 L=20	8-97135-423-0	02	1	0401-0607
256	PIN; KNOCK 4HE1-TCN ENG(RDR) (A) OD=10 L=20	8-97135-423-0	02	1	0608-
256	PIN; KNOCK 4HE1 ENG(RLY) (B) ID=6 L=12	9-08160-612-0	02	1	0401-0607
256	PIN; KNOCK 4HE1-TCN ENG(RDR) (B) ID=6 L=12	9-08160-612-0	02	1	0608-
316	MAGNET; TRANS CASE 4HE1 ENG(RLY)	8-94249-524-2	01	1	0401-0607
316	MAGNET; TRANS CASE 4HE1-TCN ENG(RDR)	8-94249-524-2	01	1	0608-
317	COVER; CASE 4HE1 ENG(RLY)	8-97252-626-0	01	1	0401-0607
317	COVER; CASE 4HE1-TCN ENG(RDR)	8-97252-626-0	01	1	0608-
319	BOLT; COVER 4HE1 ENG(RLY) M8X20 FLANGE	0-28080-820-0	06	1	0401-0512
319	BOLT; COVER 4HE1 ENG(RLY) M8X20 FLANGE	0-28050-820-0	06	1	0601-0607
319	BOLT; COVER 4HE1-TCN ENG(RDR) M8X20 FLANGE	0-28050-820-0	06	1	0608-
324	STUD; RR COVER 4HE1 ENG(RLY) M10X15,M10X40 L=65	8-97309-013-0	01	1	0401-0604
324	STUD; RR COVER 4HE1 ENG(RLY) M10X15,M10X40 L=65	8-97365-379-0	01	1	0605-0607
324	STUD; RR COVER 4HE1-TCN ENG(RDR) M10X15,M10X40 L=65	8-97365-379-0	01	1	0608-
388	BUSHING; CLU HSG 4HE1 ENG(RLY)	8-97241-326-2	02	1	0401-0607
388	BUSHING; CLU HSG 4HE1-TCN ENG(RDR)	8-97241-326-2	02	1	0608-
417	PLUG; OIL FILLER,TRANS 4HE1 ENG(RLY)	8-94310-917-0	01	1	0401-0604
417	PLUG; OIL FILLER,TRANS 4HE1 ENG(RLY)	8-97365-373-0	01	1	0605-0607
417	PLUG; OIL FILLER,TRANS 4HE1-TCN ENG(RDR)	8-97365-373-0	01	1	0608-
421	COVER; RR,TRANS 4HE1 ENG(RLY)	8-97252-621-0	01	1	0401-0507
421	COVER; RR,TRANS 4HE1 ENG(RLY)	8-98020-029-0	01	1	0508-0607
421	COVER; RR,TRANS 4HE1-TCN ENG(RDR)	8-98020-029-0	01	1	0608-
429	PIN; STRAIGHT 4HE1 ENG(RLY) OD=10 L=20	8-97135-423-0	02	1	0401-0607
429	PIN; STRAIGHT 4HE1-TCN ENG(RDR) OD=10 L=20	8-97135-423-0	02	1	0608-
430	PLUG; OIL DRAIN 4HE1 ENG(RLY)	9-09662-004-0	01	1	0401-0604
430	PLUG; OIL DRAIN 4HE1 ENG(RLY)	8-97365-374-0	01	1	0605-0607
430	PLUG; OIL DRAIN 4HE1-TCN ENG(RDR)	8-97365-374-0	01	1	0608-
434	HOUSING; CLU 4HE1 ENG(RLY)	8-97237-099-5	01	1	0401-0607
434	HOUSING; CLU 4HE1-TCN ENG(RDR)	8-97237-099-5	01	1	0608-
435	CASE; TRANS 4HE1 ENG(RLY)	8-97252-623-7	01	1	0401-0403
435	CASE; TRANS 4HE1 ENG(RLY)	8-97379-375-0	01	1	0404-0607
435	CASE; TRANS 4HE1-TCN ENG(RDR)	8-97379-375-0	01	1	0608-
609	BOLT; HSG TO CASE 4HE1 ENG(RLY) M10X40 FLANGE	0-28181-040-0	13	1	0401-0512
609	BOLT; HSG TO CASE 4HE1 ENG(RLY) M10X40 FLANGE	0-28151-040-0	13	1	0601-0607
609	BOLT; HSG TO CASE 4HE1-TCN ENG(RDR) M10X40 FLANGE	0-28151-040-0	13	1	0608-
610	RETAINER; BRG 4HE1 ENG(RLY)	8-97241-315-1	01	1	0401-0607
610	RETAINER; BRG 4HE1-TCN ENG(RDR)	8-97241-315-1	01	1	0608-
611	SCREW 4HE1 ENG(RLY) M10X27	8-97254-834-2	11	1	0401-0604
611	SCREW 4HE1 ENG(RLY) M10X27 TORQUES	8-97365-354-0	11	1	0605-0607
611	SCREW 4HE1-TCN ENG(RDR) M10X27 TORQUES	8-97365-354-0	11	1	0608-
