◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50980 - NPR(IRAN) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#42946) — 105 parça
çizim 54717
8 1 9 64 7 2 7
BalonParca AdiParca NoAdetTipApplied Date
1 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> 		8-98097-765-0 01 1 0710-
1 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-97210-748-1 01 1 0401-0704
1 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-98083-061-0 01 1 0705-0709
1 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98097-694-0 01 1 0710-
1 CYLINDER ASM; CLUTCH MASTER
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-406-0 01 1 0401-0607
1 CYLINDER ASM; CLUTCH MASTER
4HE1-TCN ENG(RDR) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-406-0 01 1 0608-0803
1 CYLINDER ASM; CLUTCH MASTER
4HE1-TCN ENG(RDR) EXC. POWER ASSIST CLUTCH(S2T) 		8-98117-644-0 01 1 0804-
2 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87831-617-0 01 1 0401-0709
2 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87832-221-0 01 1 0710-
2 REPAIR KIT; CLU M/CYL
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		5-87831-597-0 01 1 0401-0607
2 REPAIR KIT; CLU M/CYL
4HE1-TCN ENG(RDR) EXC. POWER ASSIST CLUTCH(S2T) 		5-87831-597-0 01 1 0608-0803
2 REPAIR KIT; CLU M/CYL
4HE1-TCN ENG(RDR) EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 0804-
7 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-148-0 01 1 0401-0709
7 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-784-0 01 1 0710-
7 SPRING ASM; CLU M/CYL
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0401-0607
7 SPRING ASM; CLU M/CYL
4HE1-TCN ENG(RDR) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0608-
8 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-190-0 01 1 0401-0709
8 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-789-0 01 1 0710-0801
8 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98077-789-0 01 1 0802-1006
8 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-789-0 01 1 1007-
8 CONNECTOR; PIPE,CLU M/CYL
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-766-0 01 1 0401-0607
8 CONNECTOR; PIPE,CLU M/CYL
4HE1-TCN ENG(RDR) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-766-0 01 1 0608-
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-143-0 01 1 0401-0704
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98061-352-0 01 1 0705-0709
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0401-0607
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
4HE1-TCN ENG(RDR) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0608-0709
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
4HE1-TCN ENG(RDR) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0710-
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0710-
64 GASKET; CONNECTOR
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-767-0 01 1 0401-0607
64 GASKET; CONNECTOR
4HE1-TCN ENG(RDR) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-767-0 01 1 0608-0709
64 GASKET; CONNECTOR
4HE1-TCN ENG(RDR) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-767-0 01 1 0710-
64 GASKET; CONNECTOR
POWER ASSIST CLUTCH(S2T) 		8-97167-767-0 01 1 0710-

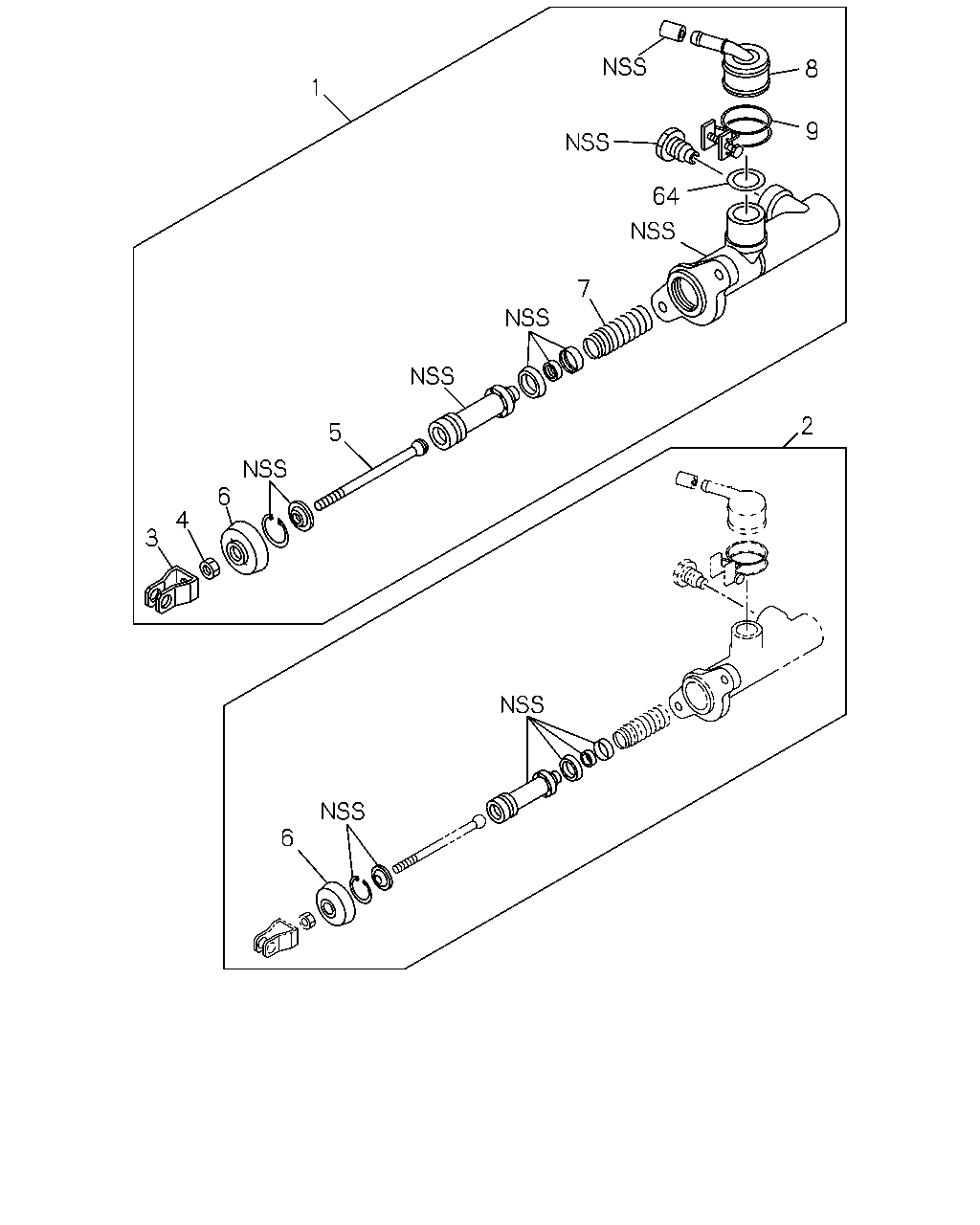

çizim 55111
8 1 9 64 7 2 5 6 4 3 6
BalonParca AdiParca NoAdetTipApplied Date
1 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> 		8-98097-765-0 01 1 0710-
1 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-97210-748-1 01 1 0401-0704
1 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-98083-061-0 01 1 0705-0709
1 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98097-694-0 01 1 0710-
1 CYLINDER ASM; CLUTCH MASTER
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-406-0 01 1 0401-0607
1 CYLINDER ASM; CLUTCH MASTER
4HE1-TCN ENG(RDR) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-406-0 01 1 0608-0803
1 CYLINDER ASM; CLUTCH MASTER
4HE1-TCN ENG(RDR) EXC. POWER ASSIST CLUTCH(S2T) 		8-98117-644-0 01 1 0804-
2 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87831-617-0 01 1 0401-0709
2 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87832-221-0 01 1 0710-
2 REPAIR KIT; CLU M/CYL
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		5-87831-597-0 01 1 0401-0607
2 REPAIR KIT; CLU M/CYL
4HE1-TCN ENG(RDR) EXC. POWER ASSIST CLUTCH(S2T) 		5-87831-597-0 01 1 0608-0803
2 REPAIR KIT; CLU M/CYL
4HE1-TCN ENG(RDR) EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 0804-
3 JOINT; JAW,CLU M/CYL
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-770-0 01 1 0401-0607
3 JOINT; JAW,CLU M/CYL
4HE1-TCN ENG(RDR) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-770-0 01 1 0608-
4 NUT; JAW JOINT
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) M8 		9-09111-408-0 01 1 0401-0511
4 NUT; JAW JOINT
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) M8 		0-91111-508-0 01 1 0512-0607
4 NUT; JAW JOINT
4HE1-TCN ENG(RDR) EXC. POWER ASSIST CLUTCH(S2T) M8 		0-91111-508-0 01 1 0608-
5 ROD; PUSH,CLU M/CYL
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-768-0 01 1 0401-0607
5 ROD; PUSH,CLU M/CYL
4HE1-TCN ENG(RDR) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-768-0 01 1 0608-
6 BOOT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-153-0 01 1 0401-0709
6 BOOT; CLU M/CYL
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 0401-0607
6 BOOT; CLU M/CYL
4HE1-TCN ENG(RDR) EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 0608-
7 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-148-0 01 1 0401-0709
7 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-784-0 01 1 0710-
7 SPRING ASM; CLU M/CYL
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0401-0607
7 SPRING ASM; CLU M/CYL
4HE1-TCN ENG(RDR) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0608-
8 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-190-0 01 1 0401-0709
8 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-789-0 01 1 0710-0801
8 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98077-789-0 01 1 0802-1006
8 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-789-0 01 1 1007-
8 CONNECTOR; PIPE,CLU M/CYL
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-766-0 01 1 0401-0607
8 CONNECTOR; PIPE,CLU M/CYL
4HE1-TCN ENG(RDR) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-766-0 01 1 0608-
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-143-0 01 1 0401-0704
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98061-352-0 01 1 0705-0709
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0401-0607
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
4HE1-TCN ENG(RDR) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0608-0709
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
4HE1-TCN ENG(RDR) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0710-
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0710-
64 GASKET; CONNECTOR
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-767-0 01 1 0401-0607
64 GASKET; CONNECTOR
4HE1-TCN ENG(RDR) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-767-0 01 1 0608-0709
64 GASKET; CONNECTOR
4HE1-TCN ENG(RDR) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-767-0 01 1 0710-
64 GASKET; CONNECTOR
POWER ASSIST CLUTCH(S2T) 		8-97167-767-0 01 1 0710-

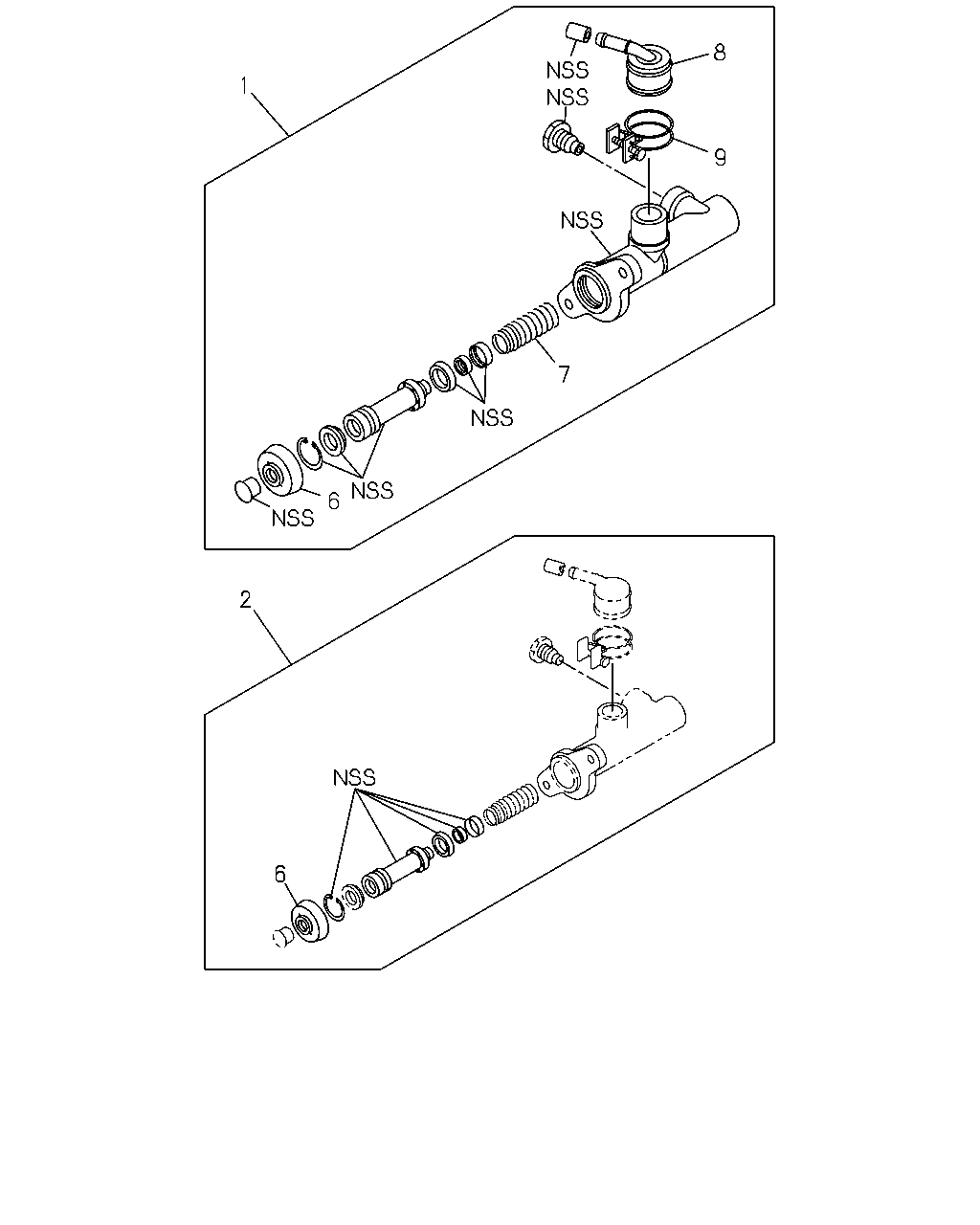

çizim 55114
8 1 9 7 6 2 6
BalonParca AdiParca NoAdetTipApplied Date
1 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> 		8-98097-765-0 01 1 0710-
1 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-97210-748-1 01 1 0401-0704
1 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-98083-061-0 01 1 0705-0709
1 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98097-694-0 01 1 0710-
1 CYLINDER ASM; CLUTCH MASTER
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-406-0 01 1 0401-0607
1 CYLINDER ASM; CLUTCH MASTER
4HE1-TCN ENG(RDR) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-406-0 01 1 0608-0803
1 CYLINDER ASM; CLUTCH MASTER
4HE1-TCN ENG(RDR) EXC. POWER ASSIST CLUTCH(S2T) 		8-98117-644-0 01 1 0804-
2 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87831-617-0 01 1 0401-0709
2 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87832-221-0 01 1 0710-
2 REPAIR KIT; CLU M/CYL
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		5-87831-597-0 01 1 0401-0607
2 REPAIR KIT; CLU M/CYL
4HE1-TCN ENG(RDR) EXC. POWER ASSIST CLUTCH(S2T) 		5-87831-597-0 01 1 0608-0803
2 REPAIR KIT; CLU M/CYL
4HE1-TCN ENG(RDR) EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 0804-
6 BOOT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-153-0 01 1 0401-0709
6 BOOT; CLU M/CYL
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 0401-0607
6 BOOT; CLU M/CYL
4HE1-TCN ENG(RDR) EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 0608-
7 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-148-0 01 1 0401-0709
7 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-784-0 01 1 0710-
7 SPRING ASM; CLU M/CYL
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0401-0607
7 SPRING ASM; CLU M/CYL
4HE1-TCN ENG(RDR) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0608-
8 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-190-0 01 1 0401-0709
8 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-789-0 01 1 0710-0801
8 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98077-789-0 01 1 0802-1006
8 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-789-0 01 1 1007-
8 CONNECTOR; PIPE,CLU M/CYL
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-766-0 01 1 0401-0607
8 CONNECTOR; PIPE,CLU M/CYL
4HE1-TCN ENG(RDR) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-766-0 01 1 0608-
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-143-0 01 1 0401-0704
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98061-352-0 01 1 0705-0709
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0401-0607
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
4HE1-TCN ENG(RDR) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0608-0709
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
4HE1-TCN ENG(RDR) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0710-
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0710-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
