Isuzu WW
▶
TRUCKS
▶
NPR
▶
50980 - NPR(IRAN)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-05 - CLUTCH PIPING
▶

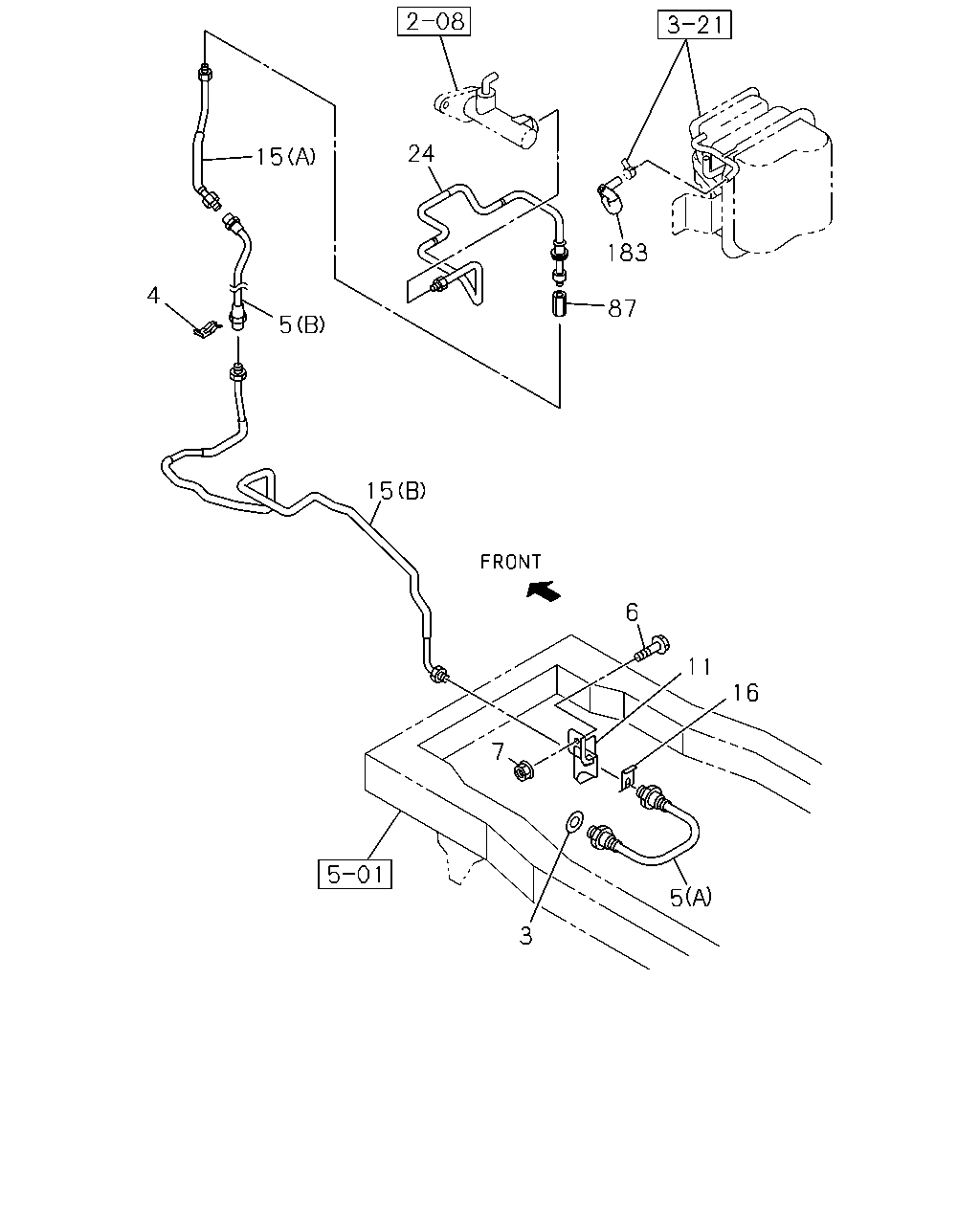

2-05 — CLUTCH PIPING
(#42943) — 28 parça
24
15
183
4
87
5
15
6
11
16
7
5
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
GASKET; FLEX HOSE,CLU
4HE1 ENG(RLY)
9-09920-873-1
01
1
0401-0607
3
GASKET; FLEX HOSE,CLU
4HE1-TCN ENG(RDR)
9-09920-873-1
01
1
0608-
4
CLIP; FLEX HOSE,CLU CONT
8-94167-006-0
02
1
0401-0610
4
CLIP; FLEX HOSE,CLU CONT
8-97365-304-0
02
1
0611-
5
HOSE; FLEX,CLU PIPE
(B)
8-94248-702-2
01
1
0401-0609
5
HOSE; FLEX,CLU PIPE
(B)
8-98004-775-0
01
1
0610-0706
5
HOSE; FLEX,CLU PIPE
(B)
8-98090-655-0
01
1
0707-
5
HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) (A)
8-97148-640-0
01
1
0401-0607
5
HOSE; FLEX,CLU PIPE
4HE1-TCN ENG(RDR) (A)
8-97148-640-0
01
1
0608-
6
BOLT; BRKT,FLEX HOSE
4HE1 ENG(RLY) M8X25 FLANGE
0-28680-825-0
01
1
0401-0512
6
BOLT; BRKT,FLEX HOSE
4HE1 ENG(RLY) M8X25 FLANGE
0-28650-825-0
01
1
0601-0607
6
BOLT; BRKT,FLEX HOSE
4HE1-TCN ENG(RDR) M8X25 FLANGE
0-28650-825-0
01
1
0608-
7
NUT; FLEX HOSE,CLU CONT
4HE1 ENG(RLY) M8 FLANGE
0-91150-108-0
01
1
0401-0602
7
NUT; FLEX HOSE,CLU CONT
4HE1 ENG(RLY) M8 FLANGE
0-91180-108-0
01
1
0603-0607
7
NUT; FLEX HOSE,CLU CONT
4HE1-TCN ENG(RDR) M8 FLANGE
0-91180-108-0
01
1
0608-
11
BRACKET; FLEX HOSE,CLU
4HE1 ENG(RLY)
8-97365-305-0
01
1
0401-0607
11
BRACKET; FLEX HOSE,CLU
4HE1-TCN ENG(RDR)
8-97365-305-0
01
1
0608-
15
PIPE; CLU,FLEX HOSE
(B)
8-97187-578-1
01
1
0401-
15
PIPE; CLU,FLEX HOSE
(A)
8-97328-482-0
01
1
0401-
16
CLIP; FLEX HOSE
4HE1 ENG(RLY)
8-94167-006-0
01
1
0401-0607
16
CLIP; FLEX HOSE
4HE1-TCN ENG(RDR)
8-94167-006-0
01
1
0608-0610
16
CLIP; FLEX HOSE
4HE1-TCN ENG(RDR)
8-97365-304-0
01
1
0611-
24
PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T)
8-97118-570-0
01
1
0401-
24
PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T)
8-97070-293-3
01
1
0401-
87
UNION; OIL PIPE
M12 STRAIGHT
9-99227-006-0
01
1
0401-0607
87
UNION; OIL PIPE
M12 STRAIGHT
0-92107-006-0
01
1
0608-
183
HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T)
8-97093-993-1
01
1
0401-0607
183
HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T)
8-98009-419-0
01
1
0608-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
