◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10720 - CXZ RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31A - AIR DUCT ▶
1-31A — AIR DUCT (#4294) — 816 parça

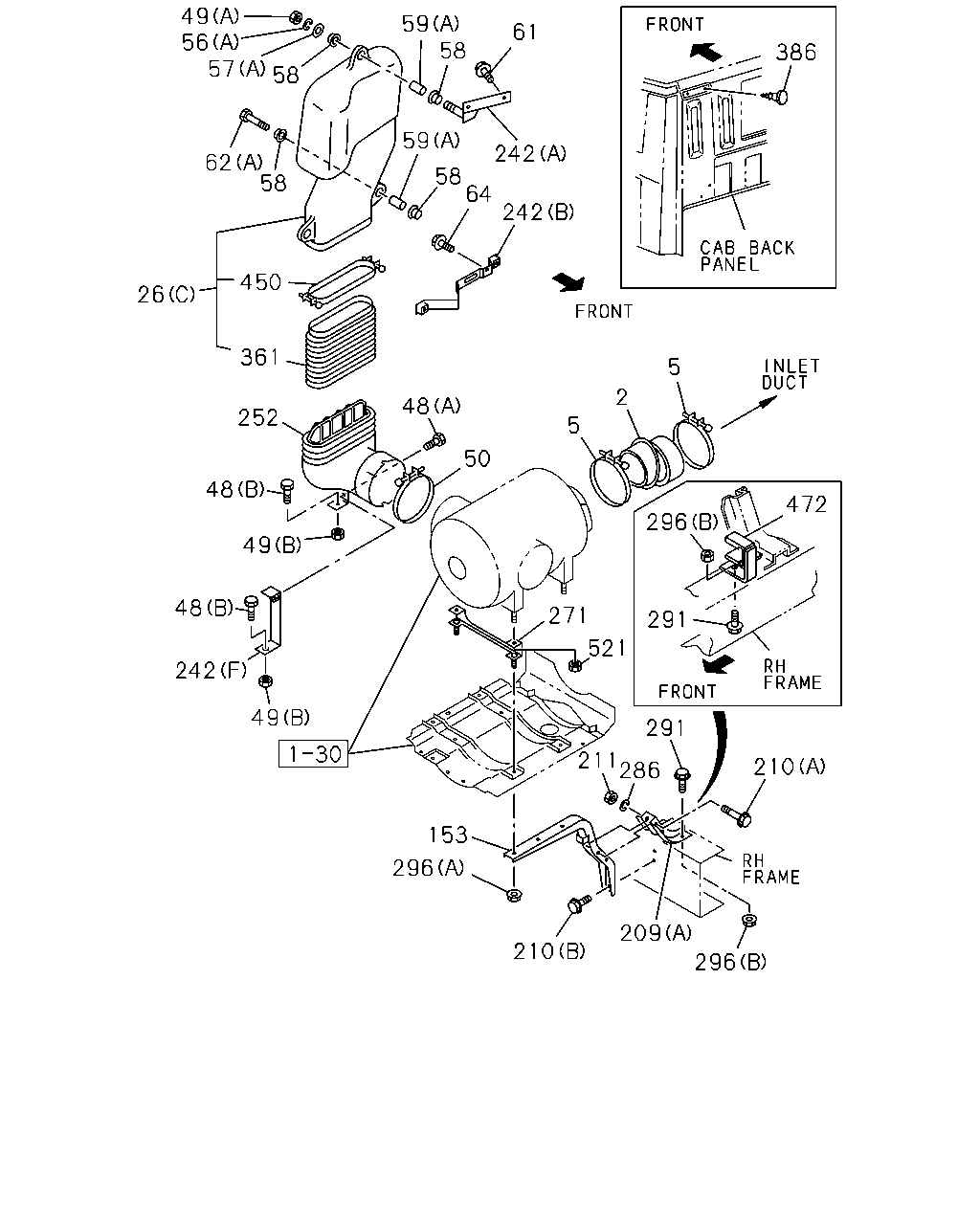

çizim 6307
49 56 57 59 58 61 386 58 59 242 62 58 58 64 242 450 26 361 5 2 48 252 5 50 48 472 296 49 48 271 291 521 242 49 291 211 286 210 153 296 209 210 296
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 HOSE; ACL 1-14231-871-0 01 1 9603-9606 ●
2 HOSE; ACL 1-14231-871-0 01 1 9607-9904 ● ●
2 HOSE; ACL 1-14231-871-0 01 1 9905- ● ●
2 HOSE; ACL
EXC. CAB UP +110MM<TGG> 		1-14231-871-0 01 1 9905- ●
2 HOSE; ACL
CAB UP +110MM<TGG> 		1-14231-955-0 01 1 9905- ●
2 HOSE; ACL 1-14231-955-0 01 1 9905- ●
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 9603-9606 ●
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 9607-9904 ● ●
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 9905- ● ● ● ●
26 DUCT; AIR INT
PRE CLEANER<W17> (A) 		1-14231-938-0 01 1 9603-9904 ●
26 DUCT; AIR INT
PRE CLEANER<W17> (B) 		1-14219-258-0 01 1 9905-0011 ●
26 DUCT; AIR INT
PRE CLEANER<W17> EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		1-14219-258-0 01 1 0012- ●
26 DUCT; AIR INT
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-14219-258-0 01 1 0012- ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (C) 		1-14230-135-0 01 1 9603-9705 ● ● ● ● ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (C) 		1-14230-152-0 01 1 9706-9904 ● ● ● ● ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (C) 		1-14230-152-0 01 1 9905-0011 ● ● ● ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (C) 		1-14230-152-0 01 1 0012- ● ● ●
26 DUCT; AIR INT
EXC. NEW ZEALAND EQUIPMENT(PK5),PRE CLEANER<W17> (C) 		1-14230-152-0 01 1 0012- ●
26 DUCT; AIR INT
PRE CLEANER<W17> (A) 		1-14231-938-0 01 1 9905- ● ● ●
26 DUCT; AIR INT
NEW ZEALAND EQUIPMENT(PK5) EXC. PRE CLEANER<W17> (B) 		1-14230-168-0 01 1 0012- ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28081-025-0 01 1 9603-9606 ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28681-025-0 01 1 9607-9904 ● ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28681-025-0 01 1 9905-0011 ● ● ● ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28681-025-0 01 1 0012- ● ● ●
48 BOLT; AIR DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) M10X25 FLANGE 		0-28681-025-0 01 1 0012- ●
48 BOLT; AIR DUCT
CAB UP +110MM<TGG> (A) M8X25 FLANGE 		0-28680-825-0 01 1 9905-0011 ●
48 BOLT; AIR DUCT
(A) M8X25 FLANGE 		0-28680-825-0 01 1 9905-0011 ●
48 BOLT; AIR DUCT
CAB UP +110MM<TGG> (A) M8X25 FLANGE 		0-28680-825-0 01 1 0012- ●
48 BOLT; AIR DUCT
CAB UP +110MM<TGG> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) M8X25 FLANGE 		0-28680-825-0 01 1 0012- ●
48 BOLT; AIR DUCT
NEW ZEALAND EQUIPMENT(PK5) (A) M8X25 FLANGE 		0-28680-825-0 01 1 0012- ●
48 BOLT; AIR DUCT
PRE CLEANER<W17> (C) M10X26 		1-09030-044-1 02 1 9905-0011 ●
48 BOLT; AIR DUCT
PRE CLEANER<W17> EXC. NEW ZEALAND EQUIPMENT(PK5) (C) M10X26 		1-09030-044-1 02 1 0012- ●
48 BOLT; AIR DUCT
NEW ZEALAND EQUIPMENT(PK5) (C) M10X26 		1-09030-044-1 02 1 0012- ●
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91150-110-0 01 1 9603-9606 ●
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91150-210-0 01 1 9607-9904 ● ●
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91150-210-0 01 1 9905-0011 ● ● ● ●
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91150-210-0 01 1 0012- ● ● ●
49 NUT; AIR DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) M10 FLANGE 		0-91150-210-0 01 1 0012- ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (A) M10 		1-09984-145-0 02 1 9603-9904 ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (C) M8 FLANGE 		1-09984-126-0 04 1 9905-0011 ●
49 NUT; AIR DUCT
PRE CLEANER<W17> EXC. NEW ZEALAND EQUIPMENT(PK5) (C) M8 FLANGE 		1-09984-126-0 04 1 0012- ●
49 NUT; AIR DUCT
NEW ZEALAND EQUIPMENT(PK5) (C) M8 FLANGE 		1-09984-126-0 04 1 0012- ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (A) M10 		1-09984-145-0 01 1 9603-9904 ● ● ● ● ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (A) M10 		1-09984-145-0 01 1 9905-0011 ● ● ● ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (A) M10 		1-09984-145-0 01 1 0012- ● ● ●
49 NUT; AIR DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5),PRE CLEANER<W17> (A) M10 		1-09984-145-0 01 1 0012- ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (A) M10 		1-09984-145-0 02 1 9905- ● ● ●
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 9603-9606 ●
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 9607-9904 ● ●
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 9905- ● ● ● ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 02 1 9603-9904 ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> (B) ID=8.2 		1-09985-177-0 04 1 9905-0011 ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> EXC. NEW ZEALAND EQUIPMENT(PK5) (B) ID=8.2 		1-09985-177-0 04 1 0012- ●
56 WASHER; LK,AIR INT DUCT
NEW ZEALAND EQUIPMENT(PK5) (B) ID=8.2 		1-09985-177-0 04 1 0012- ●
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 01 1 9603-9904 ● ● ● ● ●
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 01 1 9905-0011 ● ● ● ●
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 01 1 0012- ● ● ●
56 WASHER; LK,AIR INT DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5),PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 01 1 0012- ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 02 1 9905- ● ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 02 1 9603-9904 ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (C) ID=8.4 OD=22 		1-09985-188-0 04 1 9905-0011 ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> EXC. NEW ZEALAND EQUIPMENT(PK5) (C) ID=8.4 OD=22 		1-09985-188-0 04 1 0012- ●
57 WASHER; PL,AIR INT DUCT
NEW ZEALAND EQUIPMENT(PK5) (C) ID=8.4 OD=22 		1-09985-188-0 04 1 0012- ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (B) ID=10.5 OD=26 		9-09160-710-0 02 1 9603-9904 ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (B) ID=10.5 OD=26 		9-09160-710-0 02 1 9905- ● ● ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 01 1 9603-9904 ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 02 1 9905- ● ● ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 01 1 9905- ● ● ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=11 OD=54 		1-09503-154-1 01 1 9707-9904 ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=11 OD=54 		1-09503-154-1 01 1 9905-0011 ●
57 WASHER; PL,AIR INT DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5),PRE CLEANER<W17> (A) ID=11 OD=54 		1-09503-154-1 01 1 0012- ●
58 SUPPORT; AIR INL DUCT
PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 08 1 9603-9904 ●
58 SUPPORT; AIR INL DUCT
PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 08 1 9905- ● ● ●
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 06 1 9603-9904 ●
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 06 1 9905- ● ● ●
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 04 1 9707-9904 ●
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 04 1 9905-0011 ●
58 SUPPORT; AIR INL DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5),PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 04 1 0012- ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (A) 		1-79998-228-0 04 1 9603-9904 ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (A) 		1-79998-228-0 04 1 9905- ● ● ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (B) L=22 		9-22159-024-0 01 1 9603-9904 ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (B) L=22 		9-22159-024-0 01 1 9905- ● ● ●
59 TUBE; DIST,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) 		1-79998-228-0 03 1 9603-9904 ●
59 TUBE; DIST,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) 		1-79998-228-0 03 1 9905- ● ● ●
59 TUBE; DIST,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) 		1-79998-228-0 02 1 9707-9904 ●
59 TUBE; DIST,AIR INT DUCT
(A) 		1-79998-228-0 02 1 9905- ●
61 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9603-9904 ● ●
61 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9905- ● ● ● ●
62 BOLT; AIR INT DUCT
PRE CLEANER<W17> (A) M10X80 FLANGE 		0-28081-080-0 01 1 9603-9904 ●
62 BOLT; AIR INT DUCT
PRE CLEANER<W17> (A) M10X80 FLANGE 		0-28081-080-0 01 1 9905- ● ● ●
62 BOLT; AIR INT DUCT
PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 01 1 9603-9904 ●
62 BOLT; AIR INT DUCT
PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 01 1 9905- ● ● ●
62 BOLT; AIR INT DUCT
EXC. PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 02 1 9603-0011 ● ● ● ● ●
62 BOLT; AIR INT DUCT
EXC. PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 02 1 0012- ● ● ● ●
62 BOLT; AIR INT DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5),PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 02 1 0012- ●
62 BOLT; AIR INT DUCT
EXC. PRE CLEANER<W17> (B) M10X35 FLANGE 		0-28681-035-0 01 1 9707-9904 ●
62 BOLT; AIR INT DUCT
EXC. PRE CLEANER<W17> (B) M10X35 FLANGE 		0-28681-035-0 01 1 9905-0011 ●
62 BOLT; AIR INT DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5),PRE CLEANER<W17> (B) M10X35 FLANGE 		0-28681-035-0 01 1 0012- ●
64 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9603-9904 ● ●
64 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9905- ● ● ● ●
153 BRACKET; ACL,FRT 1-53419-265-1 01 1 9603-9904 ●
153 BRACKET; ACL,FRT 1-53419-265-1 01 1 9905- ● ● ●
153 BRACKET; ACL,FRT 1-53419-299-0 01 1 9707-9904 ●
153 BRACKET; ACL,FRT 1-53419-299-0 01 1 9905- ●
209 BRACKET; ACL
(A) 		1-53419-276-0 01 1 9603-9606 ●
209 BRACKET; ACL
(A) 		1-53419-276-0 01 1 9607-9904 ● ●
209 BRACKET; ACL
(A) 		1-53419-276-0 01 1 9905- ● ● ● ●
209 BRACKET; ACL
PRE CLEANER<W17> (B) 		1-14239-247-0 01 1 9603-9904 ●
209 BRACKET; ACL
PRE CLEANER<W17> EXC. HIGH ROOF<S2F> (B) 		1-14239-247-0 01 1 9905- ● ● ●
209 BRACKET; ACL
HIGH ROOF<S2F> PRE CLEANER<W17> (B) 		1-14239-257-0 01 1 9905- ● ● ●
210 BOLT; ACL BRKT
(A) M8X65 		0-10805-865-0 02 1 9603-9606 ●
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28080-870-0 02 1 9607-9904 ● ●
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28080-870-0 02 1 9905- ● ● ● ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28081-230-0 01 1 9603-9606 ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28681-230-0 01 1 9607-9904 ● ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28681-230-0 01 1 9905- ● ● ● ●
211 NUT; BRKT
M8 		9-09110-408-0 02 1 9603-9606 ●
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-9904 ● ●
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9905- ● ● ● ●
242 BRACKET; AIR DUCT
(B) 		1-79997-326-1 01 1 9603-9708 ●
242 BRACKET; AIR DUCT
(B) 		1-79997-326-1 01 1 9709-9804 ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (C) 		1-79996-119-0 01 1 9603-9612 ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> GRIP OUT SIDE<W52> (C) 		1-79996-361-0 01 1 9805-9904 ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> GRIP OUT SIDE<W52> (C) 		1-79996-361-0 01 1 9905- ● ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C) 		1-79996-119-0 01 1 9805-9904 ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C) 		1-79996-119-0 01 1 9905- ● ● ●
242 BRACKET; AIR DUCT
LONG CHASSIS(CXZ5MF) EXC. PRE CLEANER<W17> (A) 		1-79997-322-0 01 1 9603-9606 ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (A) 		1-79997-322-0 01 1 9607-9708 ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (A) 		1-79997-322-0 01 1 9709-9804 ● ●
242 BRACKET; AIR DUCT
(B) 		1-79997-326-1 01 1 9805-9904 ● ●
242 BRACKET; AIR DUCT
(B) 		1-79997-326-1 01 1 9905-0011 ● ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (B) 		1-79997-326-1 01 1 9905-0011 ●
242 BRACKET; AIR DUCT
(B) 		1-79997-326-1 01 1 0012- ● ● ●
242 BRACKET; AIR DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5),PRE CLEANER<W17> (B) 		1-79997-326-1 01 1 0012- ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> GRIP OUT SIDE<W52> (C) 		1-79996-361-0 01 1 9701-9711 ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> GRIP OUT SIDE<W52> (C) 		1-79996-361-0 01 1 9712-9804 ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C) 		1-79996-119-0 01 1 9701-9711 ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C) 		1-79996-119-0 01 1 9712-9804 ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (A) 		1-79997-322-1 01 1 9805-9904 ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (A) 		1-79997-322-1 01 1 9905- ● ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (D) 		1-47477-674-0 01 1 9707-9904 ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (D) 		1-47477-674-0 01 1 9905-0011 ●
242 BRACKET; AIR DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5),PRE CLEANER<W17> (D) 		1-47477-674-0 01 1 0012- ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (E) 		1-47477-675-0 01 1 9707-9904 ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (E) 		1-47477-675-0 01 1 9905-0011 ●
242 BRACKET; AIR DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5),PRE CLEANER<W17> (E) 		1-47477-675-0 01 1 0012- ●
242 BRACKET; AIR DUCT
CAB UP +110MM<TGG> (F) 		1-23957-006-0 01 1 9905-0011 ●
242 BRACKET; AIR DUCT
(F) 		1-23957-006-0 01 1 9905-0011 ●
242 BRACKET; AIR DUCT
CAB UP +110MM<TGG> (F) 		1-23957-006-0 01 1 0012- ●
242 BRACKET; AIR DUCT
CAB UP +110MM<TGG> EXC. NEW ZEALAND EQUIPMENT(PK5) (F) 		1-23957-006-0 01 1 0012- ●
242 BRACKET; AIR DUCT
NEW ZEALAND EQUIPMENT(PK5) (F) 		1-23957-006-0 01 1 0012- ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (G) 		1-79990-041-0 01 1 9905-0011 ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> EXC. NEW ZEALAND EQUIPMENT(PK5) (G) 		1-79990-041-0 01 1 0012- ●
242 BRACKET; AIR DUCT
NEW ZEALAND EQUIPMENT(PK5) (G) 		1-79990-041-0 01 1 0012- ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (H) 		1-79990-045-1 01 1 9905-0011 ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> EXC. NEW ZEALAND EQUIPMENT(PK5) (H) 		1-79990-045-1 01 1 0012- ●
242 BRACKET; AIR DUCT
NEW ZEALAND EQUIPMENT(PK5) (H) 		1-79990-045-1 01 1 0012- ●
252 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		1-14230-121-1 01 1 9603-9610 ●
252 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		1-14230-158-0 01 1 9611-9611 ●
252 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		1-14230-157-0 01 1 9612-9812 ●
252 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		1-14230-191-0 01 1 9901-9904 ●
252 DUCT; AIR INT
EXC. CAB UP +110MM<TGG>,PRE CLEANER<W17> 		1-14230-191-0 01 1 9905- ● ● ●
252 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		1-14230-159-1 01 1 9707-9812 ●
252 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		1-14230-193-0 01 1 9901-9904 ●
252 DUCT; AIR INT
CAB UP +110MM<TGG> EXC. PRE CLEANER<W17> 		1-14230-194-0 01 1 9905-0011 ●
252 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		1-14230-194-0 01 1 9905-0011 ●
252 DUCT; AIR INT
CAB UP +110MM<TGG> EXC. PRE CLEANER<W17> 		1-14230-194-0 01 1 0012- ●
252 DUCT; AIR INT
EXC. NEW ZEALAND EQUIPMENT(PK5),PRE CLEANER<W17> 		1-14230-194-0 01 1 0012- ●
271 SPACER; BRKT,ACL
CAB UP +110MM<TGG> 		1-53419-343-0 02 1 9905- ●
271 SPACER; BRKT,ACL 1-53419-343-0 02 1 9905- ●
286 WASHER; LK,BRKT
ID=8.2 		9-09150-508-0 02 1 9603-9606 ●
291 BOLT; ACL
M12X30 FLANGE 		0-28081-230-0 02 1 9603-9606 ●
291 BOLT; ACL
M12X30 FLANGE 		0-28681-230-0 02 1 9607-9904 ● ●
291 BOLT; ACL
M12X30 FLANGE 		0-28681-230-0 02 1 9905- ● ● ● ●
296 NUT; ACL
(B) M12 		9-99110-512-0 02 1 9603-9606 ●
296 NUT; ACL
(B) M12 FLANGE 		0-91150-212-0 02 1 9607-9904 ● ●
296 NUT; ACL
(B) M12 FLANGE 		0-91150-212-0 02 1 9905- ● ● ● ●
296 NUT; ACL
(A) M8 FLANGE 		0-91150-108-0 04 1 9603-9904 ● ●
296 NUT; ACL
(A) M8 FLANGE 		0-91150-108-0 04 1 9905- ● ● ● ●
361 RUBBER; CUSHION,AIR DUCT
EXC. PRE CLEANER<W17> 		1-14230-124-0 01 1 9603-9606 ●
361 RUBBER; CUSHION,AIR DUCT
EXC. PRE CLEANER<W17> 		1-14230-124-0 01 1 9607-9904 ● ●
361 RUBBER; CUSHION,AIR DUCT
EXC. PRE CLEANER<W17> 		1-14230-124-0 01 1 9905-0011 ● ● ● ●
361 RUBBER; CUSHION,AIR DUCT
EXC. PRE CLEANER<W17> 		1-14230-124-0 01 1 0012- ● ● ●
361 RUBBER; CUSHION,AIR DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5),PRE CLEANER<W17> 		1-14230-124-0 01 1 0012- ●
361 RUBBER; CUSHION,AIR DUCT
NEW ZEALAND EQUIPMENT(PK5) EXC. PRE CLEANER<W17> 		1-14230-149-1 01 1 0012- ●
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 01 1 9603-9708 ●
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 01 1 9709-9904 ● ●
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 01 1 9905-0002 ● ● ● ●
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 04 1 0003- ● ● ● ●
450 CLAMP; HOSE
EXC. PRE CLEANER<W17> 		1-14239-237-0 01 1 9603-9606 ●
450 CLAMP; HOSE
EXC. PRE CLEANER<W17> 		1-14239-237-0 01 1 9607-9904 ● ●
450 CLAMP; HOSE
EXC. PRE CLEANER<W17> 		1-14239-237-0 01 1 9905- ● ● ● ●
472 STOPPER; LINK ROD 1-33659-173-1 01 1 9603-9706 ●
472 STOPPER; LINK ROD 1-33659-173-1 01 1 9707-9904 ● ●
472 STOPPER; LINK ROD 1-33659-173-1 01 1 9905- ● ●
472 STOPPER; LINK ROD
EXC. CAB UP +110MM<TGG> 		1-33659-173-1 01 1 9905- ●
472 STOPPER; LINK ROD
CAB UP +110MM<TGG> 		1-33659-196-0 01 1 9905- ●
472 STOPPER; LINK ROD 1-33659-196-0 01 1 9905- ●
521 NUT; SPACER
CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 04 1 0103- ●
521 NUT; SPACER
M8 FLANGE 		0-91150-108-0 04 1 0103- ●

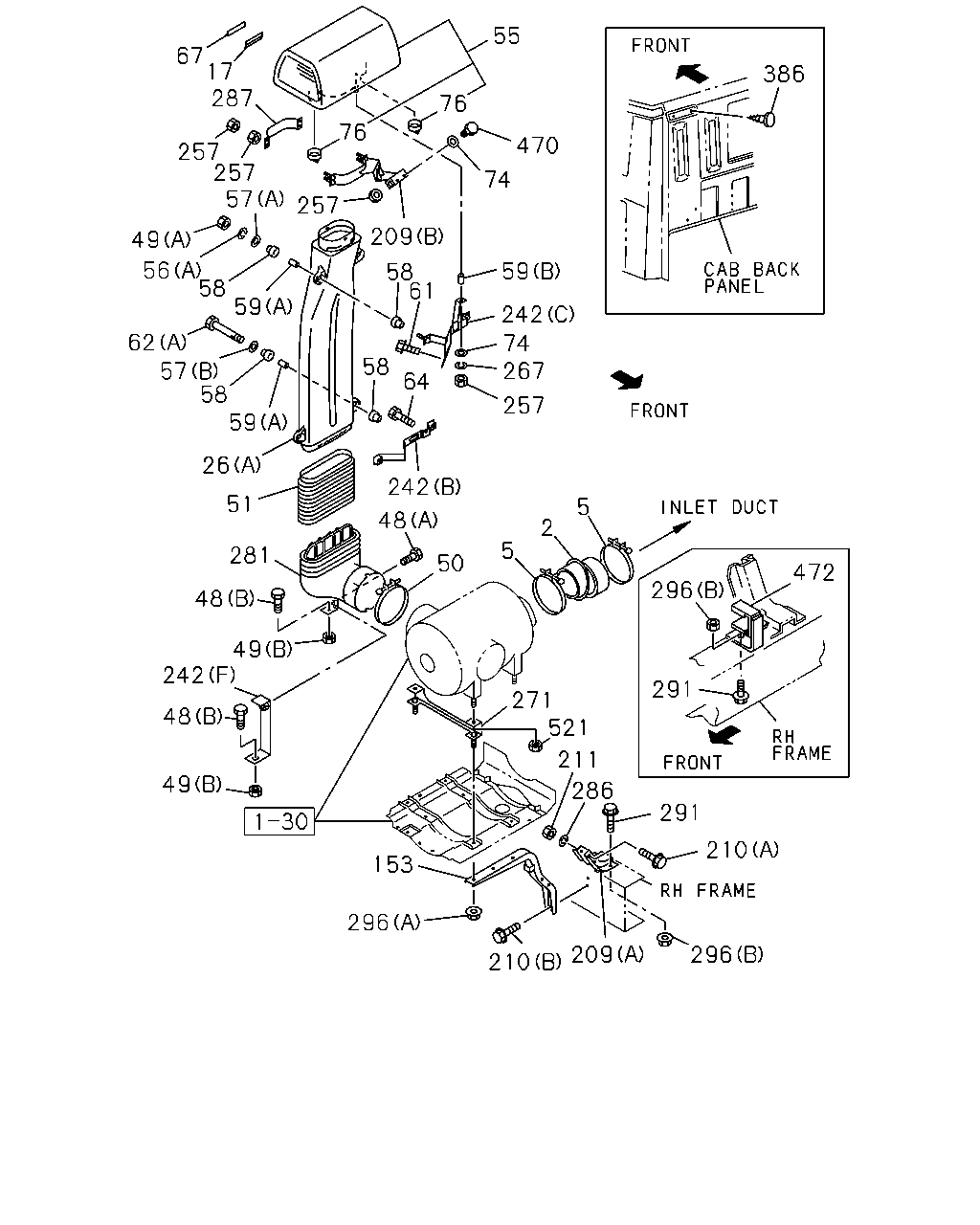

çizim 6656
55 67 17 287 386 76 76 470 257 257 57 74 257 209 49 56 58 59 59 58 61 242 62 74 267 58 57 58 59 64 257 26 242 51 5 48 2 5 281 50 472 296 48 49 242 291 271 521 48 211 49 286 291 153 210 296 209 210 296
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 HOSE; ACL 1-14231-871-0 01 1 9603-9606 ●
2 HOSE; ACL 1-14231-871-0 01 1 9607-9904 ● ●
2 HOSE; ACL 1-14231-871-0 01 1 9905- ● ●
2 HOSE; ACL
EXC. CAB UP +110MM<TGG> 		1-14231-871-0 01 1 9905- ●
2 HOSE; ACL
CAB UP +110MM<TGG> 		1-14231-955-0 01 1 9905- ●
2 HOSE; ACL 1-14231-955-0 01 1 9905- ●
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 9603-9606 ●
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 9607-9904 ● ●
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 9905- ● ● ● ●
17 GASKET; AIR DUCT
PRE CLEANER<W17> 		1-14239-170-0 01 1 9603-9904 ●
17 GASKET; AIR DUCT
PRE CLEANER<W17> 		1-14239-170-0 01 1 9905- ● ● ●
26 DUCT; AIR INT
PRE CLEANER<W17> (A) 		1-14231-938-0 01 1 9603-9904 ●
26 DUCT; AIR INT
PRE CLEANER<W17> (B) 		1-14219-258-0 01 1 9905-0011 ●
26 DUCT; AIR INT
PRE CLEANER<W17> EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		1-14219-258-0 01 1 0012- ●
26 DUCT; AIR INT
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-14219-258-0 01 1 0012- ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (C) 		1-14230-135-0 01 1 9603-9705 ● ● ● ● ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (C) 		1-14230-152-0 01 1 9706-9904 ● ● ● ● ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (C) 		1-14230-152-0 01 1 9905-0011 ● ● ● ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (C) 		1-14230-152-0 01 1 0012- ● ● ●
26 DUCT; AIR INT
EXC. NEW ZEALAND EQUIPMENT(PK5),PRE CLEANER<W17> (C) 		1-14230-152-0 01 1 0012- ●
26 DUCT; AIR INT
PRE CLEANER<W17> (A) 		1-14231-938-0 01 1 9905- ● ● ●
26 DUCT; AIR INT
NEW ZEALAND EQUIPMENT(PK5) EXC. PRE CLEANER<W17> (B) 		1-14230-168-0 01 1 0012- ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28081-025-0 01 1 9603-9606 ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28681-025-0 01 1 9607-9904 ● ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28681-025-0 01 1 9905-0011 ● ● ● ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28681-025-0 01 1 0012- ● ● ●
48 BOLT; AIR DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) M10X25 FLANGE 		0-28681-025-0 01 1 0012- ●
48 BOLT; AIR DUCT
CAB UP +110MM<TGG> (A) M8X25 FLANGE 		0-28680-825-0 01 1 9905-0011 ●
48 BOLT; AIR DUCT
(A) M8X25 FLANGE 		0-28680-825-0 01 1 9905-0011 ●
48 BOLT; AIR DUCT
CAB UP +110MM<TGG> (A) M8X25 FLANGE 		0-28680-825-0 01 1 0012- ●
48 BOLT; AIR DUCT
CAB UP +110MM<TGG> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) M8X25 FLANGE 		0-28680-825-0 01 1 0012- ●
48 BOLT; AIR DUCT
NEW ZEALAND EQUIPMENT(PK5) (A) M8X25 FLANGE 		0-28680-825-0 01 1 0012- ●
48 BOLT; AIR DUCT
PRE CLEANER<W17> (C) M10X26 		1-09030-044-1 02 1 9905-0011 ●
48 BOLT; AIR DUCT
PRE CLEANER<W17> EXC. NEW ZEALAND EQUIPMENT(PK5) (C) M10X26 		1-09030-044-1 02 1 0012- ●
48 BOLT; AIR DUCT
NEW ZEALAND EQUIPMENT(PK5) (C) M10X26 		1-09030-044-1 02 1 0012- ●
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91150-110-0 01 1 9603-9606 ●
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91150-210-0 01 1 9607-9904 ● ●
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91150-210-0 01 1 9905-0011 ● ● ● ●
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91150-210-0 01 1 0012- ● ● ●
49 NUT; AIR DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) M10 FLANGE 		0-91150-210-0 01 1 0012- ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (A) M10 		1-09984-145-0 02 1 9603-9904 ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (C) M8 FLANGE 		1-09984-126-0 04 1 9905-0011 ●
49 NUT; AIR DUCT
PRE CLEANER<W17> EXC. NEW ZEALAND EQUIPMENT(PK5) (C) M8 FLANGE 		1-09984-126-0 04 1 0012- ●
49 NUT; AIR DUCT
NEW ZEALAND EQUIPMENT(PK5) (C) M8 FLANGE 		1-09984-126-0 04 1 0012- ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (A) M10 		1-09984-145-0 01 1 9603-9904 ● ● ● ● ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (A) M10 		1-09984-145-0 01 1 9905-0011 ● ● ● ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (A) M10 		1-09984-145-0 01 1 0012- ● ● ●
49 NUT; AIR DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5),PRE CLEANER<W17> (A) M10 		1-09984-145-0 01 1 0012- ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (A) M10 		1-09984-145-0 02 1 9905- ● ● ●
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 9603-9606 ●
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 9607-9904 ● ●
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 9905- ● ● ● ●
51 GASKET ASM; RUBBER
PRE CLEANER<W17> 		1-14230-150-0 01 1 9603-9904 ●
51 GASKET ASM; RUBBER
PRE CLEANER<W17> 		1-14230-150-0 01 1 9905- ● ● ●
55 CLEANER ASM; AIR,PRE
PRE CLEANER<W17> 		1-14210-768-0 01 1 9603-9904 ●
55 CLEANER ASM; AIR,PRE
PRE CLEANER<W17> 		1-14210-768-0 01 1 9905- ● ● ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 02 1 9603-9904 ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> (B) ID=8.2 		1-09985-177-0 04 1 9905-0011 ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> EXC. NEW ZEALAND EQUIPMENT(PK5) (B) ID=8.2 		1-09985-177-0 04 1 0012- ●
56 WASHER; LK,AIR INT DUCT
NEW ZEALAND EQUIPMENT(PK5) (B) ID=8.2 		1-09985-177-0 04 1 0012- ●
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 01 1 9603-9904 ● ● ● ● ●
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 01 1 9905-0011 ● ● ● ●
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 01 1 0012- ● ● ●
56 WASHER; LK,AIR INT DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5),PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 01 1 0012- ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 02 1 9905- ● ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 02 1 9603-9904 ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (C) ID=8.4 OD=22 		1-09985-188-0 04 1 9905-0011 ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> EXC. NEW ZEALAND EQUIPMENT(PK5) (C) ID=8.4 OD=22 		1-09985-188-0 04 1 0012- ●
57 WASHER; PL,AIR INT DUCT
NEW ZEALAND EQUIPMENT(PK5) (C) ID=8.4 OD=22 		1-09985-188-0 04 1 0012- ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (B) ID=10.5 OD=26 		9-09160-710-0 02 1 9603-9904 ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (B) ID=10.5 OD=26 		9-09160-710-0 02 1 9905- ● ● ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 01 1 9603-9904 ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 02 1 9905- ● ● ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 01 1 9905- ● ● ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=11 OD=54 		1-09503-154-1 01 1 9707-9904 ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=11 OD=54 		1-09503-154-1 01 1 9905-0011 ●
57 WASHER; PL,AIR INT DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5),PRE CLEANER<W17> (A) ID=11 OD=54 		1-09503-154-1 01 1 0012- ●
58 SUPPORT; AIR INL DUCT
PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 08 1 9603-9904 ●
58 SUPPORT; AIR INL DUCT
PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 08 1 9905- ● ● ●
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 06 1 9603-9904 ●
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 06 1 9905- ● ● ●
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 04 1 9707-9904 ●
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 04 1 9905-0011 ●
58 SUPPORT; AIR INL DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5),PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 04 1 0012- ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (A) 		1-79998-228-0 04 1 9603-9904 ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (A) 		1-79998-228-0 04 1 9905- ● ● ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (B) L=22 		9-22159-024-0 01 1 9603-9904 ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (B) L=22 		9-22159-024-0 01 1 9905- ● ● ●
59 TUBE; DIST,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) 		1-79998-228-0 03 1 9603-9904 ●
59 TUBE; DIST,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) 		1-79998-228-0 03 1 9905- ● ● ●
59 TUBE; DIST,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) 		1-79998-228-0 02 1 9707-9904 ●
59 TUBE; DIST,AIR INT DUCT
(A) 		1-79998-228-0 02 1 9905- ●
61 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9603-9904 ● ●
61 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9905- ● ● ● ●
62 BOLT; AIR INT DUCT
PRE CLEANER<W17> (A) M10X80 FLANGE 		0-28081-080-0 01 1 9603-9904 ●
62 BOLT; AIR INT DUCT
PRE CLEANER<W17> (A) M10X80 FLANGE 		0-28081-080-0 01 1 9905- ● ● ●
62 BOLT; AIR INT DUCT
PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 01 1 9603-9904 ●
62 BOLT; AIR INT DUCT
PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 01 1 9905- ● ● ●
62 BOLT; AIR INT DUCT
EXC. PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 02 1 9603-0011 ● ● ● ● ●
62 BOLT; AIR INT DUCT
EXC. PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 02 1 0012- ● ● ● ●
62 BOLT; AIR INT DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5),PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 02 1 0012- ●
62 BOLT; AIR INT DUCT
EXC. PRE CLEANER<W17> (B) M10X35 FLANGE 		0-28681-035-0 01 1 9707-9904 ●
62 BOLT; AIR INT DUCT
EXC. PRE CLEANER<W17> (B) M10X35 FLANGE 		0-28681-035-0 01 1 9905-0011 ●
62 BOLT; AIR INT DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5),PRE CLEANER<W17> (B) M10X35 FLANGE 		0-28681-035-0 01 1 0012- ●
64 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9603-9904 ● ●
64 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9905- ● ● ● ●
67 SPACER; AIR DUCT
PRE CLEANER<W17> 		1-14239-171-0 01 1 9603-9904 ●
67 SPACER; AIR DUCT
PRE CLEANER<W17> 		1-14239-171-0 01 1 9905- ● ● ●
74 WASHER; PL,ACL
PRE CLEANER<W17> ID=10.5 		1-09985-107-0 03 1 9603-9904 ●
74 WASHER; PL,ACL
PRE CLEANER<W17> ID=10.5 		1-09985-107-0 03 1 9905- ● ● ●
76 VALVE; PRE ACL
PRE CLEANER<W17> 		1-14219-129-0 02 1 9603-9904 ●
76 VALVE; PRE ACL
PRE CLEANER<W17> 		1-14219-129-0 02 1 9905- ● ● ●
153 BRACKET; ACL,FRT 1-53419-265-1 01 1 9603-9904 ●
153 BRACKET; ACL,FRT 1-53419-265-1 01 1 9905- ● ● ●
153 BRACKET; ACL,FRT 1-53419-299-0 01 1 9707-9904 ●
153 BRACKET; ACL,FRT 1-53419-299-0 01 1 9905- ●
209 BRACKET; ACL
(A) 		1-53419-276-0 01 1 9603-9606 ●
209 BRACKET; ACL
(A) 		1-53419-276-0 01 1 9607-9904 ● ●
209 BRACKET; ACL
(A) 		1-53419-276-0 01 1 9905- ● ● ● ●
209 BRACKET; ACL
PRE CLEANER<W17> (B) 		1-14239-247-0 01 1 9603-9904 ●
209 BRACKET; ACL
PRE CLEANER<W17> EXC. HIGH ROOF<S2F> (B) 		1-14239-247-0 01 1 9905- ● ● ●
209 BRACKET; ACL
HIGH ROOF<S2F> PRE CLEANER<W17> (B) 		1-14239-257-0 01 1 9905- ● ● ●
210 BOLT; ACL BRKT
(A) M8X65 		0-10805-865-0 02 1 9603-9606 ●
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28080-870-0 02 1 9607-9904 ● ●
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28080-870-0 02 1 9905- ● ● ● ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28081-230-0 01 1 9603-9606 ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28681-230-0 01 1 9607-9904 ● ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28681-230-0 01 1 9905- ● ● ● ●
211 NUT; BRKT
M8 		9-09110-408-0 02 1 9603-9606 ●
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-9904 ● ●
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9905- ● ● ● ●
242 BRACKET; AIR DUCT
(B) 		1-79997-326-1 01 1 9603-9708 ●
242 BRACKET; AIR DUCT
(B) 		1-79997-326-1 01 1 9709-9804 ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (C) 		1-79996-119-0 01 1 9603-9612 ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> GRIP OUT SIDE<W52> (C) 		1-79996-361-0 01 1 9805-9904 ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> GRIP OUT SIDE<W52> (C) 		1-79996-361-0 01 1 9905- ● ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C) 		1-79996-119-0 01 1 9805-9904 ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C) 		1-79996-119-0 01 1 9905- ● ● ●
242 BRACKET; AIR DUCT
LONG CHASSIS(CXZ5MF) EXC. PRE CLEANER<W17> (A) 		1-79997-322-0 01 1 9603-9606 ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (A) 		1-79997-322-0 01 1 9607-9708 ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (A) 		1-79997-322-0 01 1 9709-9804 ● ●
242 BRACKET; AIR DUCT
(B) 		1-79997-326-1 01 1 9805-9904 ● ●
242 BRACKET; AIR DUCT
(B) 		1-79997-326-1 01 1 9905-0011 ● ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (B) 		1-79997-326-1 01 1 9905-0011 ●
242 BRACKET; AIR DUCT
(B) 		1-79997-326-1 01 1 0012- ● ● ●
242 BRACKET; AIR DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5),PRE CLEANER<W17> (B) 		1-79997-326-1 01 1 0012- ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> GRIP OUT SIDE<W52> (C) 		1-79996-361-0 01 1 9701-9711 ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> GRIP OUT SIDE<W52> (C) 		1-79996-361-0 01 1 9712-9804 ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C) 		1-79996-119-0 01 1 9701-9711 ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C) 		1-79996-119-0 01 1 9712-9804 ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (A) 		1-79997-322-1 01 1 9805-9904 ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (A) 		1-79997-322-1 01 1 9905- ● ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (D) 		1-47477-674-0 01 1 9707-9904 ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (D) 		1-47477-674-0 01 1 9905-0011 ●
242 BRACKET; AIR DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5),PRE CLEANER<W17> (D) 		1-47477-674-0 01 1 0012- ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (E) 		1-47477-675-0 01 1 9707-9904 ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (E) 		1-47477-675-0 01 1 9905-0011 ●
242 BRACKET; AIR DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5),PRE CLEANER<W17> (E) 		1-47477-675-0 01 1 0012- ●
242 BRACKET; AIR DUCT
CAB UP +110MM<TGG> (F) 		1-23957-006-0 01 1 9905-0011 ●
242 BRACKET; AIR DUCT
(F) 		1-23957-006-0 01 1 9905-0011 ●
242 BRACKET; AIR DUCT
CAB UP +110MM<TGG> (F) 		1-23957-006-0 01 1 0012- ●
242 BRACKET; AIR DUCT
CAB UP +110MM<TGG> EXC. NEW ZEALAND EQUIPMENT(PK5) (F) 		1-23957-006-0 01 1 0012- ●
242 BRACKET; AIR DUCT
NEW ZEALAND EQUIPMENT(PK5) (F) 		1-23957-006-0 01 1 0012- ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (G) 		1-79990-041-0 01 1 9905-0011 ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> EXC. NEW ZEALAND EQUIPMENT(PK5) (G) 		1-79990-041-0 01 1 0012- ●
242 BRACKET; AIR DUCT
NEW ZEALAND EQUIPMENT(PK5) (G) 		1-79990-041-0 01 1 0012- ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (H) 		1-79990-045-1 01 1 9905-0011 ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> EXC. NEW ZEALAND EQUIPMENT(PK5) (H) 		1-79990-045-1 01 1 0012- ●
242 BRACKET; AIR DUCT
NEW ZEALAND EQUIPMENT(PK5) (H) 		1-79990-045-1 01 1 0012- ●
257 NUT; BRKT
PRE CLEANER<W17> M10 		1-09400-053-0 11 1 9603-9904 ●
257 NUT; BRKT
PRE CLEANER<W17> M10 		1-09400-053-0 11 1 9905- ● ● ●
267 WASHER; LK,ACL
PRE CLEANER<W17> 		1-09500-033-0 01 1 9603-9904 ●
267 WASHER; LK,ACL
PRE CLEANER<W17> ID=10 		1-09985-180-0 01 1 9905- ● ● ●
271 SPACER; BRKT,ACL
CAB UP +110MM<TGG> 		1-53419-343-0 02 1 9905- ●
271 SPACER; BRKT,ACL 1-53419-343-0 02 1 9905- ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> 		1-14230-121-1 01 1 9603-9610 ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> 		1-14230-158-0 01 1 9611-9611 ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> 		1-14230-157-0 01 1 9612-9812 ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> 		1-14230-191-0 01 1 9901-9904 ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> 		1-14230-191-0 01 1 9905- ● ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> EXC. CAB UP +110MM<TGG> 		1-14230-191-0 01 1 9905- ●
281 DUCT; AIR,VERTICAL INT
CAB UP +110MM<TGG> PRE CLEANER<W17> 		1-14230-194-0 01 1 9905-0011 ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> 		1-14230-194-0 01 1 9905-0011 ●
281 DUCT; AIR,VERTICAL INT
CAB UP +110MM<TGG> PRE CLEANER<W17> 		1-14230-194-0 01 1 0012- ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-14230-194-0 01 1 0012- ●
281 DUCT; AIR,VERTICAL INT
NEW ZEALAND EQUIPMENT(PK5) 		1-14230-194-0 01 1 0012- ●
286 WASHER; LK,BRKT
ID=8.2 		9-09150-508-0 02 1 9603-9606 ●
287 CLIP; AIR DUCT
PRE CLEANER<W17> 		1-14239-165-1 01 1 9603-9904 ●
287 CLIP; AIR DUCT
PRE CLEANER<W17> 		1-14239-165-1 01 1 9905- ● ● ●
291 BOLT; ACL
M12X30 FLANGE 		0-28081-230-0 02 1 9603-9606 ●
291 BOLT; ACL
M12X30 FLANGE 		0-28681-230-0 02 1 9607-9904 ● ●
291 BOLT; ACL
M12X30 FLANGE 		0-28681-230-0 02 1 9905- ● ● ● ●
296 NUT; ACL
(B) M12 		9-99110-512-0 02 1 9603-9606 ●
296 NUT; ACL
(B) M12 FLANGE 		0-91150-212-0 02 1 9607-9904 ● ●
296 NUT; ACL
(B) M12 FLANGE 		0-91150-212-0 02 1 9905- ● ● ● ●
296 NUT; ACL
(A) M8 FLANGE 		0-91150-108-0 04 1 9603-9904 ● ●
296 NUT; ACL
(A) M8 FLANGE 		0-91150-108-0 04 1 9905- ● ● ● ●
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 01 1 9603-9708 ●
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 01 1 9709-9904 ● ●
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 01 1 9905-0002 ● ● ● ●
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 04 1 0003- ● ● ● ●
470 BOLT; BRKT
PRE CLEANER<W17> 		1-09000-372-0 02 1 9603-9904 ●
470 BOLT; BRKT
PRE CLEANER<W17> 		1-09000-372-0 02 1 9905- ● ● ●
472 STOPPER; LINK ROD 1-33659-173-1 01 1 9603-9706 ●
472 STOPPER; LINK ROD 1-33659-173-1 01 1 9707-9904 ● ●
472 STOPPER; LINK ROD 1-33659-173-1 01 1 9905- ● ●
472 STOPPER; LINK ROD
EXC. CAB UP +110MM<TGG> 		1-33659-173-1 01 1 9905- ●
472 STOPPER; LINK ROD
CAB UP +110MM<TGG> 		1-33659-196-0 01 1 9905- ●
472 STOPPER; LINK ROD 1-33659-196-0 01 1 9905- ●
521 NUT; SPACER
CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 04 1 0103- ●
521 NUT; SPACER
M8 FLANGE 		0-91150-108-0 04 1 0103- ●

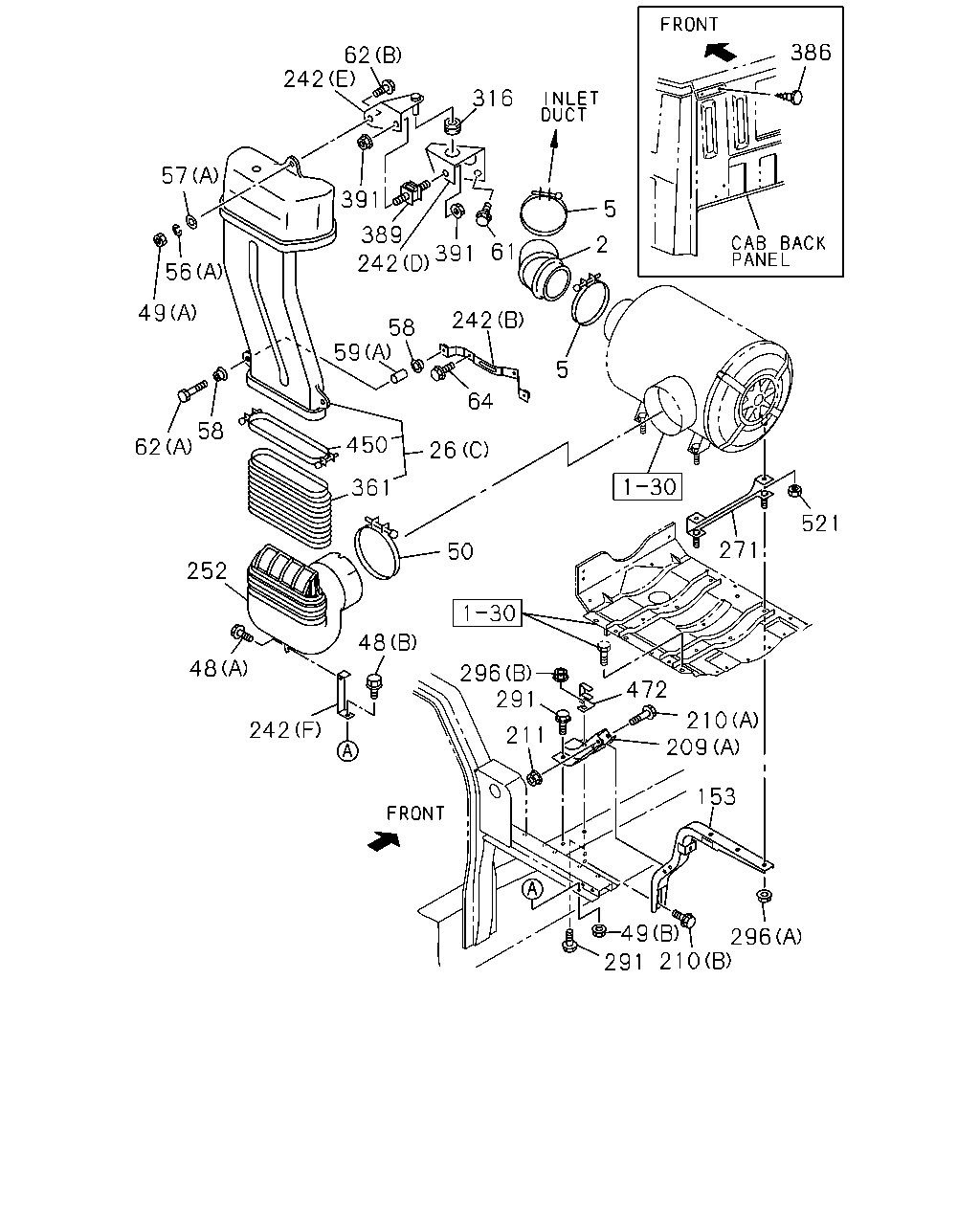

çizim 7841
386 62 242 316 57 391 5 389 391 242 2 61 56 49 242 58 59 5 64 58 450 62 26 361 521 271 50 252 48 48 296 291 472 210 209 242 211 153 49 296 210 291
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 HOSE; ACL 1-14231-871-0 01 1 9603-9606 ●
2 HOSE; ACL 1-14231-871-0 01 1 9607-9904 ● ●
2 HOSE; ACL 1-14231-871-0 01 1 9905- ● ●
2 HOSE; ACL
EXC. CAB UP +110MM<TGG> 		1-14231-871-0 01 1 9905- ●
2 HOSE; ACL
CAB UP +110MM<TGG> 		1-14231-955-0 01 1 9905- ●
2 HOSE; ACL 1-14231-955-0 01 1 9905- ●
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 9603-9606 ●
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 9607-9904 ● ●

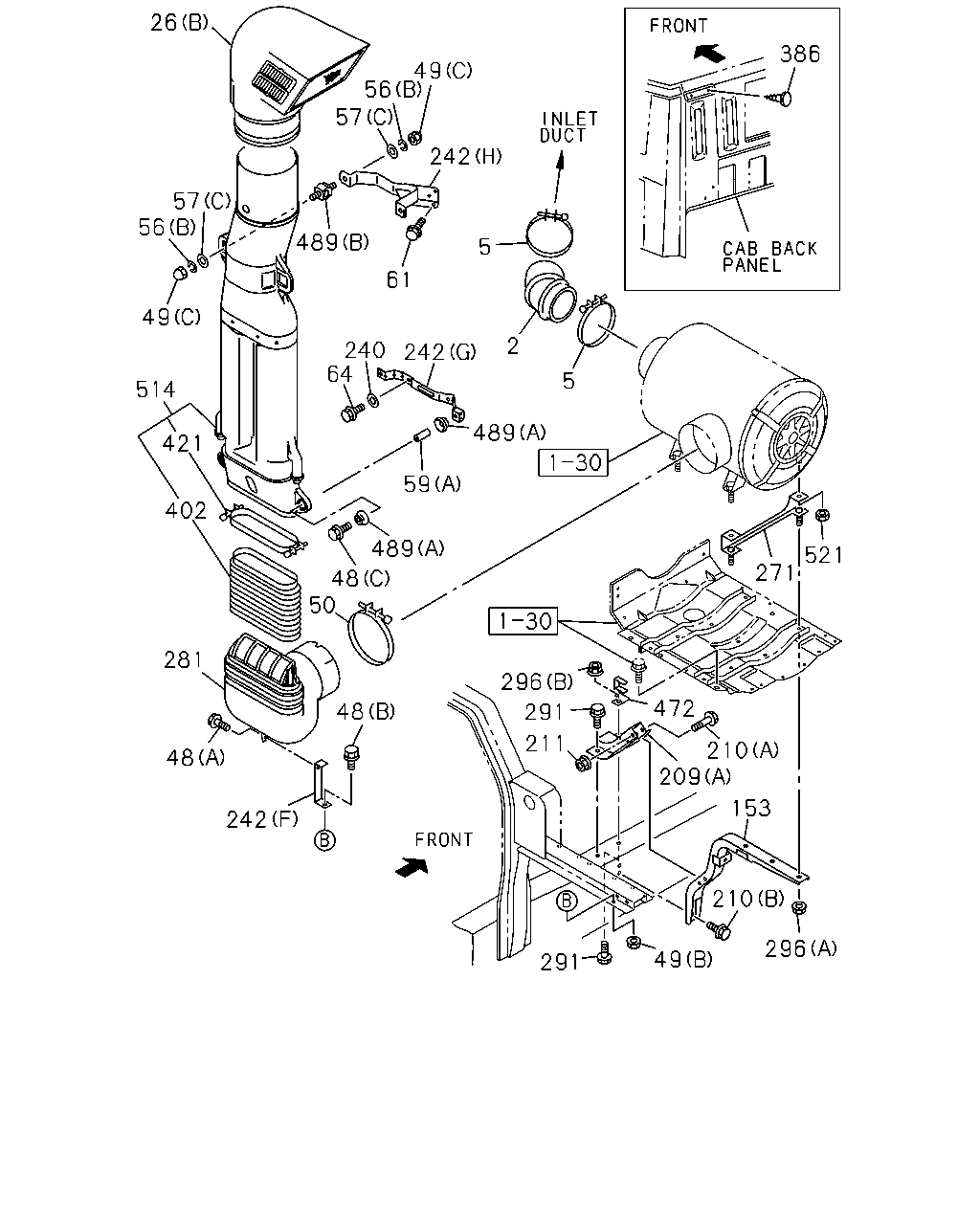

5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 9905- ● ● ● ●
26 DUCT; AIR INT
PRE CLEANER<W17> (A) 		1-14231-938-0 01 1 9603-9904 ●
26 DUCT; AIR INT
PRE CLEANER<W17> (B) 		1-14219-258-0 01 1 9905-0011 ●
26 DUCT; AIR INT
PRE CLEANER<W17> EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		1-14219-258-0 01 1 0012- ●
26 DUCT; AIR INT
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-14219-258-0 01 1 0012- ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (C) 		1-14230-135-0 01 1 9603-9705 ● ● ● ● ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (C) 		1-14230-152-0 01 1 9706-9904 ● ● ● ● ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (C) 		1-14230-152-0 01 1 9905-0011 ● ● ● ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (C) 		1-14230-152-0 01 1 0012- ● ● ●
26 DUCT; AIR INT
EXC. NEW ZEALAND EQUIPMENT(PK5),PRE CLEANER<W17> (C) 		1-14230-152-0 01 1 0012- ●
26 DUCT; AIR INT
PRE CLEANER<W17> (A) 		1-14231-938-0 01 1 9905- ● ● ●
26 DUCT; AIR INT
NEW ZEALAND EQUIPMENT(PK5) EXC. PRE CLEANER<W17> (B) 		1-14230-168-0 01 1 0012- ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28081-025-0 01 1 9603-9606 ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28681-025-0 01 1 9607-9904 ● ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28681-025-0 01 1 9905-0011 ● ● ● ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28681-025-0 01 1 0012- ● ● ●
48 BOLT; AIR DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) M10X25 FLANGE 		0-28681-025-0 01 1 0012- ●
48 BOLT; AIR DUCT
CAB UP +110MM<TGG> (A) M8X25 FLANGE 		0-28680-825-0 01 1 9905-0011 ●
48 BOLT; AIR DUCT
(A) M8X25 FLANGE 		0-28680-825-0 01 1 9905-0011 ●
48 BOLT; AIR DUCT
CAB UP +110MM<TGG> (A) M8X25 FLANGE 		0-28680-825-0 01 1 0012- ●
48 BOLT; AIR DUCT
CAB UP +110MM<TGG> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) M8X25 FLANGE 		0-28680-825-0 01 1 0012- ●
48 BOLT; AIR DUCT
NEW ZEALAND EQUIPMENT(PK5) (A) M8X25 FLANGE 		0-28680-825-0 01 1 0012- ●
48 BOLT; AIR DUCT
PRE CLEANER<W17> (C) M10X26 		1-09030-044-1 02 1 9905-0011 ●
48 BOLT; AIR DUCT
PRE CLEANER<W17> EXC. NEW ZEALAND EQUIPMENT(PK5) (C) M10X26 		1-09030-044-1 02 1 0012- ●
48 BOLT; AIR DUCT
NEW ZEALAND EQUIPMENT(PK5) (C) M10X26 		1-09030-044-1 02 1 0012- ●
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91150-110-0 01 1 9603-9606 ●
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91150-210-0 01 1 9607-9904 ● ●
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91150-210-0 01 1 9905-0011 ● ● ● ●
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91150-210-0 01 1 0012- ● ● ●
49 NUT; AIR DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) M10 FLANGE 		0-91150-210-0 01 1 0012- ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (A) M10 		1-09984-145-0 02 1 9603-9904 ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (C) M8 FLANGE 		1-09984-126-0 04 1 9905-0011 ●
49 NUT; AIR DUCT
PRE CLEANER<W17> EXC. NEW ZEALAND EQUIPMENT(PK5) (C) M8 FLANGE 		1-09984-126-0 04 1 0012- ●
49 NUT; AIR DUCT
NEW ZEALAND EQUIPMENT(PK5) (C) M8 FLANGE 		1-09984-126-0 04 1 0012- ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (A) M10 		1-09984-145-0 01 1 9603-9904 ● ● ● ● ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (A) M10 		1-09984-145-0 01 1 9905-0011 ● ● ● ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (A) M10 		1-09984-145-0 01 1 0012- ● ● ●
49 NUT; AIR DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5),PRE CLEANER<W17> (A) M10 		1-09984-145-0 01 1 0012- ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (A) M10 		1-09984-145-0 02 1 9905- ● ● ●
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 9603-9606 ●
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 9607-9904 ● ●
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 9905- ● ● ● ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 02 1 9603-9904 ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> (B) ID=8.2 		1-09985-177-0 04 1 9905-0011 ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> EXC. NEW ZEALAND EQUIPMENT(PK5) (B) ID=8.2 		1-09985-177-0 04 1 0012- ●
56 WASHER; LK,AIR INT DUCT
NEW ZEALAND EQUIPMENT(PK5) (B) ID=8.2 		1-09985-177-0 04 1 0012- ●
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 01 1 9603-9904 ● ● ● ● ●
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 01 1 9905-0011 ● ● ● ●
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 01 1 0012- ● ● ●
56 WASHER; LK,AIR INT DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5),PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 01 1 0012- ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 02 1 9905- ● ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 02 1 9603-9904 ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (C) ID=8.4 OD=22 		1-09985-188-0 04 1 9905-0011 ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> EXC. NEW ZEALAND EQUIPMENT(PK5) (C) ID=8.4 OD=22 		1-09985-188-0 04 1 0012- ●
57 WASHER; PL,AIR INT DUCT
NEW ZEALAND EQUIPMENT(PK5) (C) ID=8.4 OD=22 		1-09985-188-0 04 1 0012- ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (B) ID=10.5 OD=26 		9-09160-710-0 02 1 9603-9904 ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (B) ID=10.5 OD=26 		9-09160-710-0 02 1 9905- ● ● ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 01 1 9603-9904 ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 02 1 9905- ● ● ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 01 1 9905- ● ● ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=11 OD=54 		1-09503-154-1 01 1 9707-9904 ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=11 OD=54 		1-09503-154-1 01 1 9905-0011 ●
57 WASHER; PL,AIR INT DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5),PRE CLEANER<W17> (A) ID=11 OD=54 		1-09503-154-1 01 1 0012- ●
58 SUPPORT; AIR INL DUCT
PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 08 1 9603-9904 ●
58 SUPPORT; AIR INL DUCT
PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 08 1 9905- ● ● ●
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 06 1 9603-9904 ●
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 06 1 9905- ● ● ●
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 04 1 9707-9904 ●
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 04 1 9905-0011 ●
58 SUPPORT; AIR INL DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5),PRE CLEANER<W17> OD=40 T=18.5 		1-14119-267-0 04 1 0012- ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (A) 		1-79998-228-0 04 1 9603-9904 ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (A) 		1-79998-228-0 04 1 9905- ● ● ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (B) L=22 		9-22159-024-0 01 1 9603-9904 ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (B) L=22 		9-22159-024-0 01 1 9905- ● ● ●
59 TUBE; DIST,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) 		1-79998-228-0 03 1 9603-9904 ●
59 TUBE; DIST,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) 		1-79998-228-0 03 1 9905- ● ● ●
59 TUBE; DIST,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) 		1-79998-228-0 02 1 9707-9904 ●
59 TUBE; DIST,AIR INT DUCT
(A) 		1-79998-228-0 02 1 9905- ●
61 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9603-9904 ● ●
61 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9905- ● ● ● ●
62 BOLT; AIR INT DUCT
PRE CLEANER<W17> (A) M10X80 FLANGE 		0-28081-080-0 01 1 9603-9904 ●
62 BOLT; AIR INT DUCT
PRE CLEANER<W17> (A) M10X80 FLANGE 		0-28081-080-0 01 1 9905- ● ● ●
62 BOLT; AIR INT DUCT
PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 01 1 9603-9904 ●
62 BOLT; AIR INT DUCT
PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 01 1 9905- ● ● ●
62 BOLT; AIR INT DUCT
EXC. PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 02 1 9603-0011 ● ● ● ● ●
62 BOLT; AIR INT DUCT
EXC. PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 02 1 0012- ● ● ● ●
62 BOLT; AIR INT DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5),PRE CLEANER<W17> (A) M10X26 		1-09030-044-1 02 1 0012- ●
62 BOLT; AIR INT DUCT
EXC. PRE CLEANER<W17> (B) M10X35 FLANGE 		0-28681-035-0 01 1 9707-9904 ●
62 BOLT; AIR INT DUCT
EXC. PRE CLEANER<W17> (B) M10X35 FLANGE 		0-28681-035-0 01 1 9905-0011 ●
62 BOLT; AIR INT DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5),PRE CLEANER<W17> (B) M10X35 FLANGE 		0-28681-035-0 01 1 0012- ●
64 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9603-9904 ● ●
64 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9905- ● ● ● ●
153 BRACKET; ACL,FRT 1-53419-265-1 01 1 9603-9904 ●
153 BRACKET; ACL,FRT 1-53419-265-1 01 1 9905- ● ● ●
153 BRACKET; ACL,FRT 1-53419-299-0 01 1 9707-9904 ●
153 BRACKET; ACL,FRT 1-53419-299-0 01 1 9905- ●
209 BRACKET; ACL
(A) 		1-53419-276-0 01 1 9603-9606 ●
209 BRACKET; ACL
(A) 		1-53419-276-0 01 1 9607-9904 ● ●
209 BRACKET; ACL
(A) 		1-53419-276-0 01 1 9905- ● ● ● ●
209 BRACKET; ACL
PRE CLEANER<W17> (B) 		1-14239-247-0 01 1 9603-9904 ●
209 BRACKET; ACL
PRE CLEANER<W17> EXC. HIGH ROOF<S2F> (B) 		1-14239-247-0 01 1 9905- ● ● ●
209 BRACKET; ACL
HIGH ROOF<S2F> PRE CLEANER<W17> (B) 		1-14239-257-0 01 1 9905- ● ● ●
210 BOLT; ACL BRKT
(A) M8X65 		0-10805-865-0 02 1 9603-9606 ●
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28080-870-0 02 1 9607-9904 ● ●
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28080-870-0 02 1 9905- ● ● ● ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28081-230-0 01 1 9603-9606 ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28681-230-0 01 1 9607-9904 ● ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28681-230-0 01 1 9905- ● ● ● ●
211 NUT; BRKT
M8 		9-09110-408-0 02 1 9603-9606 ●
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-9904 ● ●
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9905- ● ● ● ●
242 BRACKET; AIR DUCT
(B) 		1-79997-326-1 01 1 9603-9708 ●
242 BRACKET; AIR DUCT
(B) 		1-79997-326-1 01 1 9709-9804 ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (C) 		1-79996-119-0 01 1 9603-9612 ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> GRIP OUT SIDE<W52> (C) 		1-79996-361-0 01 1 9805-9904 ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> GRIP OUT SIDE<W52> (C) 		1-79996-361-0 01 1 9905- ● ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C) 		1-79996-119-0 01 1 9805-9904 ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C) 		1-79996-119-0 01 1 9905- ● ● ●
242 BRACKET; AIR DUCT
LONG CHASSIS(CXZ5MF) EXC. PRE CLEANER<W17> (A) 		1-79997-322-0 01 1 9603-9606 ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (A) 		1-79997-322-0 01 1 9607-9708 ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (A) 		1-79997-322-0 01 1 9709-9804 ● ●
242 BRACKET; AIR DUCT
(B) 		1-79997-326-1 01 1 9805-9904 ● ●
242 BRACKET; AIR DUCT
(B) 		1-79997-326-1 01 1 9905-0011 ● ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (B) 		1-79997-326-1 01 1 9905-0011 ●
242 BRACKET; AIR DUCT
(B) 		1-79997-326-1 01 1 0012- ● ● ●
242 BRACKET; AIR DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5),PRE CLEANER<W17> (B) 		1-79997-326-1 01 1 0012- ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> GRIP OUT SIDE<W52> (C) 		1-79996-361-0 01 1 9701-9711 ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> GRIP OUT SIDE<W52> (C) 		1-79996-361-0 01 1 9712-9804 ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C) 		1-79996-119-0 01 1 9701-9711 ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C) 		1-79996-119-0 01 1 9712-9804 ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (A) 		1-79997-322-1 01 1 9805-9904 ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (A) 		1-79997-322-1 01 1 9905- ● ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (D) 		1-47477-674-0 01 1 9707-9904 ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (D) 		1-47477-674-0 01 1 9905-0011 ●
242 BRACKET; AIR DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5),PRE CLEANER<W17> (D) 		1-47477-674-0 01 1 0012- ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (E) 		1-47477-675-0 01 1 9707-9904 ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (E) 		1-47477-675-0 01 1 9905-0011 ●
242 BRACKET; AIR DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5),PRE CLEANER<W17> (E) 		1-47477-675-0 01 1 0012- ●
242 BRACKET; AIR DUCT
CAB UP +110MM<TGG> (F) 		1-23957-006-0 01 1 9905-0011 ●
242 BRACKET; AIR DUCT
(F) 		1-23957-006-0 01 1 9905-0011 ●
242 BRACKET; AIR DUCT
CAB UP +110MM<TGG> (F) 		1-23957-006-0 01 1 0012- ●
242 BRACKET; AIR DUCT
CAB UP +110MM<TGG> EXC. NEW ZEALAND EQUIPMENT(PK5) (F) 		1-23957-006-0 01 1 0012- ●
242 BRACKET; AIR DUCT
NEW ZEALAND EQUIPMENT(PK5) (F) 		1-23957-006-0 01 1 0012- ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (G) 		1-79990-041-0 01 1 9905-0011 ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> EXC. NEW ZEALAND EQUIPMENT(PK5) (G) 		1-79990-041-0 01 1 0012- ●
242 BRACKET; AIR DUCT
NEW ZEALAND EQUIPMENT(PK5) (G) 		1-79990-041-0 01 1 0012- ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (H) 		1-79990-045-1 01 1 9905-0011 ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> EXC. NEW ZEALAND EQUIPMENT(PK5) (H) 		1-79990-045-1 01 1 0012- ●
242 BRACKET; AIR DUCT
NEW ZEALAND EQUIPMENT(PK5) (H) 		1-79990-045-1 01 1 0012- ●
252 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		1-14230-121-1 01 1 9603-9610 ●
252 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		1-14230-158-0 01 1 9611-9611 ●
252 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		1-14230-157-0 01 1 9612-9812 ●
252 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		1-14230-191-0 01 1 9901-9904 ●
252 DUCT; AIR INT
EXC. CAB UP +110MM<TGG>,PRE CLEANER<W17> 		1-14230-191-0 01 1 9905- ● ● ●
252 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		1-14230-159-1 01 1 9707-9812 ●
252 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		1-14230-193-0 01 1 9901-9904 ●
252 DUCT; AIR INT
CAB UP +110MM<TGG> EXC. PRE CLEANER<W17> 		1-14230-194-0 01 1 9905-0011 ●
252 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		1-14230-194-0 01 1 9905-0011 ●
252 DUCT; AIR INT
CAB UP +110MM<TGG> EXC. PRE CLEANER<W17> 		1-14230-194-0 01 1 0012- ●
252 DUCT; AIR INT
EXC. NEW ZEALAND EQUIPMENT(PK5),PRE CLEANER<W17> 		1-14230-194-0 01 1 0012- ●
271 SPACER; BRKT,ACL
CAB UP +110MM<TGG> 		1-53419-343-0 02 1 9905- ●
271 SPACER; BRKT,ACL 1-53419-343-0 02 1 9905- ●
291 BOLT; ACL
M12X30 FLANGE 		0-28081-230-0 02 1 9603-9606 ●
291 BOLT; ACL
M12X30 FLANGE 		0-28681-230-0 02 1 9607-9904 ● ●
291 BOLT; ACL
M12X30 FLANGE 		0-28681-230-0 02 1 9905- ● ● ● ●
296 NUT; ACL
(B) M12 		9-99110-512-0 02 1 9603-9606 ●
296 NUT; ACL
(B) M12 FLANGE 		0-91150-212-0 02 1 9607-9904 ● ●
296 NUT; ACL
(B) M12 FLANGE 		0-91150-212-0 02 1 9905- ● ● ● ●
296 NUT; ACL
(A) M8 FLANGE 		0-91150-108-0 04 1 9603-9904 ● ●
296 NUT; ACL
(A) M8 FLANGE 		0-91150-108-0 04 1 9905- ● ● ● ●
316 RUBBER; CUSHION,DUCT
EXC. PRE CLEANER<W17> 		9-09575-525-0 01 1 9707-9904 ●
316 RUBBER; CUSHION,DUCT
EXC. PRE CLEANER<W17> 		9-09575-525-0 01 1 9905-0011 ●
316 RUBBER; CUSHION,DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5),PRE CLEANER<W17> 		9-09575-525-0 01 1 0012- ●
361 RUBBER; CUSHION,AIR DUCT
EXC. PRE CLEANER<W17> 		1-14230-124-0 01 1 9603-9606 ●
361 RUBBER; CUSHION,AIR DUCT
EXC. PRE CLEANER<W17> 		1-14230-124-0 01 1 9607-9904 ● ●
361 RUBBER; CUSHION,AIR DUCT
EXC. PRE CLEANER<W17> 		1-14230-124-0 01 1 9905-0011 ● ● ● ●
361 RUBBER; CUSHION,AIR DUCT
EXC. PRE CLEANER<W17> 		1-14230-124-0 01 1 0012- ● ● ●
361 RUBBER; CUSHION,AIR DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5),PRE CLEANER<W17> 		1-14230-124-0 01 1 0012- ●
361 RUBBER; CUSHION,AIR DUCT
NEW ZEALAND EQUIPMENT(PK5) EXC. PRE CLEANER<W17> 		1-14230-149-1 01 1 0012- ●
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 01 1 9603-9708 ●
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 01 1 9709-9904 ● ●
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 01 1 9905-0002 ● ● ● ●
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 04 1 0003- ● ● ● ●
389 RUBBER; SUPPORT,AIR INT UPR
EXC. PRE CLEANER<W17> 		8-97080-149-0 01 1 9707-9904 ●
389 RUBBER; SUPPORT,AIR INT UPR
EXC. PRE CLEANER<W17> 		8-97080-149-0 01 1 9905-0011 ●
389 RUBBER; SUPPORT,AIR INT UPR
EXC. NEW ZEALAND EQUIPMENT(PK5),PRE CLEANER<W17> 		8-97080-149-0 01 1 0012- ●
391 NUT; SUPPORT RUBBER,UPR
EXC. PRE CLEANER<W17> M8 FLANGE 		0-91150-108-0 02 1 9707-9904 ●
391 NUT; SUPPORT RUBBER,UPR
EXC. PRE CLEANER<W17> M8 FLANGE 		0-91150-108-0 02 1 9905-0011 ●
391 NUT; SUPPORT RUBBER,UPR
EXC. NEW ZEALAND EQUIPMENT(PK5),PRE CLEANER<W17> M8 FLANGE 		0-91150-108-0 02 1 0012- ●
450 CLAMP; HOSE
EXC. PRE CLEANER<W17> 		1-14239-237-0 01 1 9603-9606 ●
450 CLAMP; HOSE
EXC. PRE CLEANER<W17> 		1-14239-237-0 01 1 9607-9904 ● ●
450 CLAMP; HOSE
EXC. PRE CLEANER<W17> 		1-14239-237-0 01 1 9905- ● ● ● ●
472 STOPPER; LINK ROD 1-33659-173-1 01 1 9603-9706 ●
472 STOPPER; LINK ROD 1-33659-173-1 01 1 9707-9904 ● ●
472 STOPPER; LINK ROD 1-33659-173-1 01 1 9905- ● ●
472 STOPPER; LINK ROD
EXC. CAB UP +110MM<TGG> 		1-33659-173-1 01 1 9905- ●
472 STOPPER; LINK ROD
CAB UP +110MM<TGG> 		1-33659-196-0 01 1 9905- ●
472 STOPPER; LINK ROD 1-33659-196-0 01 1 9905- ●
521 NUT; SPACER
CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 04 1 0103- ●
521 NUT; SPACER
M8 FLANGE 		0-91150-108-0 04 1 0103- ●
çizim 7843
313 311 310
BalonParca AdiParca NoAdetTipApplied Date A B C D E
310 PROTECTOR; HEAT,ACL 1-14181-287-1 01 1 9603-9606 ●
310 PROTECTOR; HEAT,ACL 1-14181-287-1 01 1 9607-9904 ● ●
310 PROTECTOR; HEAT,ACL 1-14181-287-1 01 1 9905- ● ●
310 PROTECTOR; HEAT,ACL
EXC. CAB UP +110MM<TGG> 		1-14181-287-1 01 1 9905- ●
311 BOLT; HEAT PROTECTOR
M8X20 FLANGE 		0-28080-820-0 02 1 9603-9606 ●
311 BOLT; HEAT PROTECTOR
M8X20 FLANGE 		0-28680-820-0 02 1 9607-9904 ● ●
311 BOLT; HEAT PROTECTOR
M8X20 FLANGE 		0-28680-820-0 02 1 9905- ● ●
311 BOLT; HEAT PROTECTOR
EXC. CAB UP +110MM<TGG> M8X20 FLANGE 		0-28680-820-0 02 1 9905- ●
313 NUT; HEAT PROTECTOR
M8 		9-09110-508-0 01 1 9603-9606 ●
313 NUT; HEAT PROTECTOR
M8 FLANGE 		0-91150-108-0 01 1 9607-9904 ● ●
313 NUT; HEAT PROTECTOR
M8 FLANGE 		0-91150-108-0 01 1 9905- ● ●
313 NUT; HEAT PROTECTOR
EXC. CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 01 1 9905- ●
çizim 7844
26 386 49 56 57 242 57 56 489 5 61 49 2 240 64 242 5 514 489 421 59 402 489 521 271 48 50 281 296 472 48 291 211 210 209 48 153 242 210 296 49 291
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 HOSE; ACL 1-14231-871-0 01 1 9603-9606 ●
2 HOSE; ACL 1-14231-871-0 01 1 9607-9904 ● ●
2 HOSE; ACL 1-14231-871-0 01 1 9905- ● ●
2 HOSE; ACL
EXC. CAB UP +110MM<TGG> 		1-14231-871-0 01 1 9905- ●
2 HOSE; ACL
CAB UP +110MM<TGG> 		1-14231-955-0 01 1 9905- ●
2 HOSE; ACL 1-14231-955-0 01 1 9905- ●
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 9603-9606 ●
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 9607-9904 ● ●
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 9905- ● ● ● ●
26 DUCT; AIR INT
PRE CLEANER<W17> (A) 		1-14231-938-0 01 1 9603-9904 ●
26 DUCT; AIR INT
PRE CLEANER<W17> (B) 		1-14219-258-0 01 1 9905-0011 ●
26 DUCT; AIR INT
PRE CLEANER<W17> EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		1-14219-258-0 01 1 0012- ●
26 DUCT; AIR INT
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-14219-258-0 01 1 0012- ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (C) 		1-14230-135-0 01 1 9603-9705 ● ● ● ● ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (C) 		1-14230-152-0 01 1 9706-9904 ● ● ● ● ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (C) 		1-14230-152-0 01 1 9905-0011 ● ● ● ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (C) 		1-14230-152-0 01 1 0012- ● ● ●
26 DUCT; AIR INT
EXC. NEW ZEALAND EQUIPMENT(PK5),PRE CLEANER<W17> (C) 		1-14230-152-0 01 1 0012- ●
26 DUCT; AIR INT
PRE CLEANER<W17> (A) 		1-14231-938-0 01 1 9905- ● ● ●
26 DUCT; AIR INT
NEW ZEALAND EQUIPMENT(PK5) EXC. PRE CLEANER<W17> (B) 		1-14230-168-0 01 1 0012- ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28081-025-0 01 1 9603-9606 ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28681-025-0 01 1 9607-9904 ● ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28681-025-0 01 1 9905-0011 ● ● ● ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28681-025-0 01 1 0012- ● ● ●
48 BOLT; AIR DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) M10X25 FLANGE 		0-28681-025-0 01 1 0012- ●
48 BOLT; AIR DUCT
CAB UP +110MM<TGG> (A) M8X25 FLANGE 		0-28680-825-0 01 1 9905-0011 ●
48 BOLT; AIR DUCT
(A) M8X25 FLANGE 		0-28680-825-0 01 1 9905-0011 ●
48 BOLT; AIR DUCT
CAB UP +110MM<TGG> (A) M8X25 FLANGE 		0-28680-825-0 01 1 0012- ●
48 BOLT; AIR DUCT
CAB UP +110MM<TGG> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) M8X25 FLANGE 		0-28680-825-0 01 1 0012- ●
48 BOLT; AIR DUCT
NEW ZEALAND EQUIPMENT(PK5) (A) M8X25 FLANGE 		0-28680-825-0 01 1 0012- ●
48 BOLT; AIR DUCT
PRE CLEANER<W17> (C) M10X26 		1-09030-044-1 02 1 9905-0011 ●
48 BOLT; AIR DUCT
PRE CLEANER<W17> EXC. NEW ZEALAND EQUIPMENT(PK5) (C) M10X26 		1-09030-044-1 02 1 0012- ●
48 BOLT; AIR DUCT
NEW ZEALAND EQUIPMENT(PK5) (C) M10X26 		1-09030-044-1 02 1 0012- ●
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91150-110-0 01 1 9603-9606 ●
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91150-210-0 01 1 9607-9904 ● ●
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91150-210-0 01 1 9905-0011 ● ● ● ●
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91150-210-0 01 1 0012- ● ● ●
49 NUT; AIR DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) M10 FLANGE 		0-91150-210-0 01 1 0012- ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (A) M10 		1-09984-145-0 02 1 9603-9904 ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (C) M8 FLANGE 		1-09984-126-0 04 1 9905-0011 ●
49 NUT; AIR DUCT
PRE CLEANER<W17> EXC. NEW ZEALAND EQUIPMENT(PK5) (C) M8 FLANGE 		1-09984-126-0 04 1 0012- ●
49 NUT; AIR DUCT
NEW ZEALAND EQUIPMENT(PK5) (C) M8 FLANGE 		1-09984-126-0 04 1 0012- ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (A) M10 		1-09984-145-0 01 1 9603-9904 ● ● ● ● ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (A) M10 		1-09984-145-0 01 1 9905-0011 ● ● ● ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (A) M10 		1-09984-145-0 01 1 0012- ● ● ●
49 NUT; AIR DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5),PRE CLEANER<W17> (A) M10 		1-09984-145-0 01 1 0012- ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (A) M10 		1-09984-145-0 02 1 9905- ● ● ●
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 9603-9606 ●
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 9607-9904 ● ●
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 9905- ● ● ● ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 02 1 9603-9904 ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> (B) ID=8.2 		1-09985-177-0 04 1 9905-0011 ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> EXC. NEW ZEALAND EQUIPMENT(PK5) (B) ID=8.2 		1-09985-177-0 04 1 0012- ●
56 WASHER; LK,AIR INT DUCT
NEW ZEALAND EQUIPMENT(PK5) (B) ID=8.2 		1-09985-177-0 04 1 0012- ●
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 01 1 9603-9904 ● ● ● ● ●
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 01 1 9905-0011 ● ● ● ●
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 01 1 0012- ● ● ●
56 WASHER; LK,AIR INT DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5),PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 01 1 0012- ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10 		1-09985-185-0 02 1 9905- ● ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 02 1 9603-9904 ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (C) ID=8.4 OD=22 		1-09985-188-0 04 1 9905-0011 ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> EXC. NEW ZEALAND EQUIPMENT(PK5) (C) ID=8.4 OD=22 		1-09985-188-0 04 1 0012- ●
57 WASHER; PL,AIR INT DUCT
NEW ZEALAND EQUIPMENT(PK5) (C) ID=8.4 OD=22 		1-09985-188-0 04 1 0012- ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (B) ID=10.5 OD=26 		9-09160-710-0 02 1 9603-9904 ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (B) ID=10.5 OD=26 		9-09160-710-0 02 1 9905- ● ● ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 01 1 9603-9904 ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 02 1 9905- ● ● ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3 		1-09985-172-0 01 1 9905- ● ● ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=11 OD=54 		1-09503-154-1 01 1 9707-9904 ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=11 OD=54 		1-09503-154-1 01 1 9905-0011 ●
57 WASHER; PL,AIR INT DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5),PRE CLEANER<W17> (A) ID=11 OD=54 		1-09503-154-1 01 1 0012- ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (A) 		1-79998-228-0 04 1 9603-9904 ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (A) 		1-79998-228-0 04 1 9905- ● ● ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (B) L=22 		9-22159-024-0 01 1 9603-9904 ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> (B) L=22 		9-22159-024-0 01 1 9905- ● ● ●
59 TUBE; DIST,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) 		1-79998-228-0 03 1 9603-9904 ●
59 TUBE; DIST,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) 		1-79998-228-0 03 1 9905- ● ● ●
59 TUBE; DIST,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) 		1-79998-228-0 02 1 9707-9904 ●
59 TUBE; DIST,AIR INT DUCT
(A) 		1-79998-228-0 02 1 9905- ●
61 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9603-9904 ● ●
61 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9905- ● ● ● ●
64 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9603-9904 ● ●
64 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9905- ● ● ● ●
153 BRACKET; ACL,FRT 1-53419-265-1 01 1 9603-9904 ●
153 BRACKET; ACL,FRT 1-53419-265-1 01 1 9905- ● ● ●
153 BRACKET; ACL,FRT 1-53419-299-0 01 1 9707-9904 ●
153 BRACKET; ACL,FRT 1-53419-299-0 01 1 9905- ●
209 BRACKET; ACL
(A) 		1-53419-276-0 01 1 9603-9606 ●
209 BRACKET; ACL
(A) 		1-53419-276-0 01 1 9607-9904 ● ●
209 BRACKET; ACL
(A) 		1-53419-276-0 01 1 9905- ● ● ● ●
209 BRACKET; ACL
PRE CLEANER<W17> (B) 		1-14239-247-0 01 1 9603-9904 ●
209 BRACKET; ACL
PRE CLEANER<W17> EXC. HIGH ROOF<S2F> (B) 		1-14239-247-0 01 1 9905- ● ● ●
209 BRACKET; ACL
HIGH ROOF<S2F> PRE CLEANER<W17> (B) 		1-14239-257-0 01 1 9905- ● ● ●
210 BOLT; ACL BRKT
(A) M8X65 		0-10805-865-0 02 1 9603-9606 ●
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28080-870-0 02 1 9607-9904 ● ●
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28080-870-0 02 1 9905- ● ● ● ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28081-230-0 01 1 9603-9606 ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28681-230-0 01 1 9607-9904 ● ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28681-230-0 01 1 9905- ● ● ● ●
211 NUT; BRKT
M8 		9-09110-408-0 02 1 9603-9606 ●
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-9904 ● ●
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9905- ● ● ● ●
240 WASHER; PL,BRKT
PRE CLEANER<W17> ID=8.4 OD=22 		1-09985-188-0 01 1 9905-0011 ●
240 WASHER; PL,BRKT
PRE CLEANER<W17> EXC. NEW ZEALAND EQUIPMENT(PK5) ID=8.4 OD=22 		1-09985-188-0 01 1 0012- ●
240 WASHER; PL,BRKT
NEW ZEALAND EQUIPMENT(PK5) ID=8.4 OD=22 		1-09985-188-0 01 1 0012- ●
242 BRACKET; AIR DUCT
(B) 		1-79997-326-1 01 1 9603-9708 ●
242 BRACKET; AIR DUCT
(B) 		1-79997-326-1 01 1 9709-9804 ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (C) 		1-79996-119-0 01 1 9603-9612 ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> GRIP OUT SIDE<W52> (C) 		1-79996-361-0 01 1 9805-9904 ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> GRIP OUT SIDE<W52> (C) 		1-79996-361-0 01 1 9905- ● ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C) 		1-79996-119-0 01 1 9805-9904 ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C) 		1-79996-119-0 01 1 9905- ● ● ●
242 BRACKET; AIR DUCT
LONG CHASSIS(CXZ5MF) EXC. PRE CLEANER<W17> (A) 		1-79997-322-0 01 1 9603-9606 ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (A) 		1-79997-322-0 01 1 9607-9708 ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (A) 		1-79997-322-0 01 1 9709-9804 ● ●
242 BRACKET; AIR DUCT
(B) 		1-79997-326-1 01 1 9805-9904 ● ●
242 BRACKET; AIR DUCT
(B) 		1-79997-326-1 01 1 9905-0011 ● ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (B) 		1-79997-326-1 01 1 9905-0011 ●
242 BRACKET; AIR DUCT
(B) 		1-79997-326-1 01 1 0012- ● ● ●
242 BRACKET; AIR DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5),PRE CLEANER<W17> (B) 		1-79997-326-1 01 1 0012- ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> GRIP OUT SIDE<W52> (C) 		1-79996-361-0 01 1 9701-9711 ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> GRIP OUT SIDE<W52> (C) 		1-79996-361-0 01 1 9712-9804 ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C) 		1-79996-119-0 01 1 9701-9711 ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C) 		1-79996-119-0 01 1 9712-9804 ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (A) 		1-79997-322-1 01 1 9805-9904 ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (A) 		1-79997-322-1 01 1 9905- ● ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (D) 		1-47477-674-0 01 1 9707-9904 ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (D) 		1-47477-674-0 01 1 9905-0011 ●
242 BRACKET; AIR DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5),PRE CLEANER<W17> (D) 		1-47477-674-0 01 1 0012- ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (E) 		1-47477-675-0 01 1 9707-9904 ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (E) 		1-47477-675-0 01 1 9905-0011 ●
242 BRACKET; AIR DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5),PRE CLEANER<W17> (E) 		1-47477-675-0 01 1 0012- ●
242 BRACKET; AIR DUCT
CAB UP +110MM<TGG> (F) 		1-23957-006-0 01 1 9905-0011 ●
242 BRACKET; AIR DUCT
(F) 		1-23957-006-0 01 1 9905-0011 ●
242 BRACKET; AIR DUCT
CAB UP +110MM<TGG> (F) 		1-23957-006-0 01 1 0012- ●
242 BRACKET; AIR DUCT
CAB UP +110MM<TGG> EXC. NEW ZEALAND EQUIPMENT(PK5) (F) 		1-23957-006-0 01 1 0012- ●
242 BRACKET; AIR DUCT
NEW ZEALAND EQUIPMENT(PK5) (F) 		1-23957-006-0 01 1 0012- ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (G) 		1-79990-041-0 01 1 9905-0011 ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> EXC. NEW ZEALAND EQUIPMENT(PK5) (G) 		1-79990-041-0 01 1 0012- ●
242 BRACKET; AIR DUCT
NEW ZEALAND EQUIPMENT(PK5) (G) 		1-79990-041-0 01 1 0012- ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (H) 		1-79990-045-1 01 1 9905-0011 ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> EXC. NEW ZEALAND EQUIPMENT(PK5) (H) 		1-79990-045-1 01 1 0012- ●
242 BRACKET; AIR DUCT
NEW ZEALAND EQUIPMENT(PK5) (H) 		1-79990-045-1 01 1 0012- ●
271 SPACER; BRKT,ACL
CAB UP +110MM<TGG> 		1-53419-343-0 02 1 9905- ●
271 SPACER; BRKT,ACL 1-53419-343-0 02 1 9905- ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> 		1-14230-121-1 01 1 9603-9610 ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> 		1-14230-158-0 01 1 9611-9611 ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> 		1-14230-157-0 01 1 9612-9812 ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> 		1-14230-191-0 01 1 9901-9904 ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> 		1-14230-191-0 01 1 9905- ● ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> EXC. CAB UP +110MM<TGG> 		1-14230-191-0 01 1 9905- ●
281 DUCT; AIR,VERTICAL INT
CAB UP +110MM<TGG> PRE CLEANER<W17> 		1-14230-194-0 01 1 9905-0011 ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> 		1-14230-194-0 01 1 9905-0011 ●
281 DUCT; AIR,VERTICAL INT
CAB UP +110MM<TGG> PRE CLEANER<W17> 		1-14230-194-0 01 1 0012- ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-14230-194-0 01 1 0012- ●
281 DUCT; AIR,VERTICAL INT
NEW ZEALAND EQUIPMENT(PK5) 		1-14230-194-0 01 1 0012- ●
291 BOLT; ACL
M12X30 FLANGE 		0-28081-230-0 02 1 9603-9606 ●
291 BOLT; ACL
M12X30 FLANGE 		0-28681-230-0 02 1 9607-9904 ● ●
291 BOLT; ACL
M12X30 FLANGE 		0-28681-230-0 02 1 9905- ● ● ● ●
296 NUT; ACL
(B) M12 		9-99110-512-0 02 1 9603-9606 ●
296 NUT; ACL
(B) M12 FLANGE 		0-91150-212-0 02 1 9607-9904 ● ●
296 NUT; ACL
(B) M12 FLANGE 		0-91150-212-0 02 1 9905- ● ● ● ●
296 NUT; ACL
(A) M8 FLANGE 		0-91150-108-0 04 1 9603-9904 ● ●
296 NUT; ACL
(A) M8 FLANGE 		0-91150-108-0 04 1 9905- ● ● ● ●
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 01 1 9603-9708 ●
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 01 1 9709-9904 ● ●
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 01 1 9905-0002 ● ● ● ●
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 04 1 0003- ● ● ● ●
402 GASKET; RUBBER
PRE CLEANER<W17> 		1-14230-149-1 01 1 9905- ●
421 CLAMP; AIR DUCT
PRE CLEANER<W17> 		1-14239-237-0 01 1 9905- ●
472 STOPPER; LINK ROD 1-33659-173-1 01 1 9603-9706 ●
472 STOPPER; LINK ROD 1-33659-173-1 01 1 9707-9904 ● ●
472 STOPPER; LINK ROD 1-33659-173-1 01 1 9905- ● ●
472 STOPPER; LINK ROD
EXC. CAB UP +110MM<TGG> 		1-33659-173-1 01 1 9905- ●
472 STOPPER; LINK ROD
CAB UP +110MM<TGG> 		1-33659-196-0 01 1 9905- ●
472 STOPPER; LINK ROD 1-33659-196-0 01 1 9905- ●
489 RUBBER; SUPPORT
PRE CLEANER<W17> (A) OD=40 T=18.5 		1-14119-267-0 04 1 9905-0011 ●
489 RUBBER; SUPPORT
PRE CLEANER<W17> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) OD=40 T=18.5 		1-14119-267-0 04 1 0012- ●
489 RUBBER; SUPPORT
NEW ZEALAND EQUIPMENT(PK5) (A) OD=40 T=18.5 		1-14119-267-0 04 1 0012- ●
489 RUBBER; SUPPORT
PRE CLEANER<W17> (B) 		8-97080-149-0 02 1 9905-0011 ●
489 RUBBER; SUPPORT
PRE CLEANER<W17> EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		8-97080-149-0 02 1 0012- ●
489 RUBBER; SUPPORT
NEW ZEALAND EQUIPMENT(PK5) (B) 		8-97080-149-0 02 1 0012- ●
514 DUCT; PRE CLEANER
PRE CLEANER<W17> 		1-14230-170-0 01 1 9905- ●
521 NUT; SPACER
CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 04 1 0103- ●
521 NUT; SPACER
M8 FLANGE 		0-91150-108-0 04 1 0103- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
