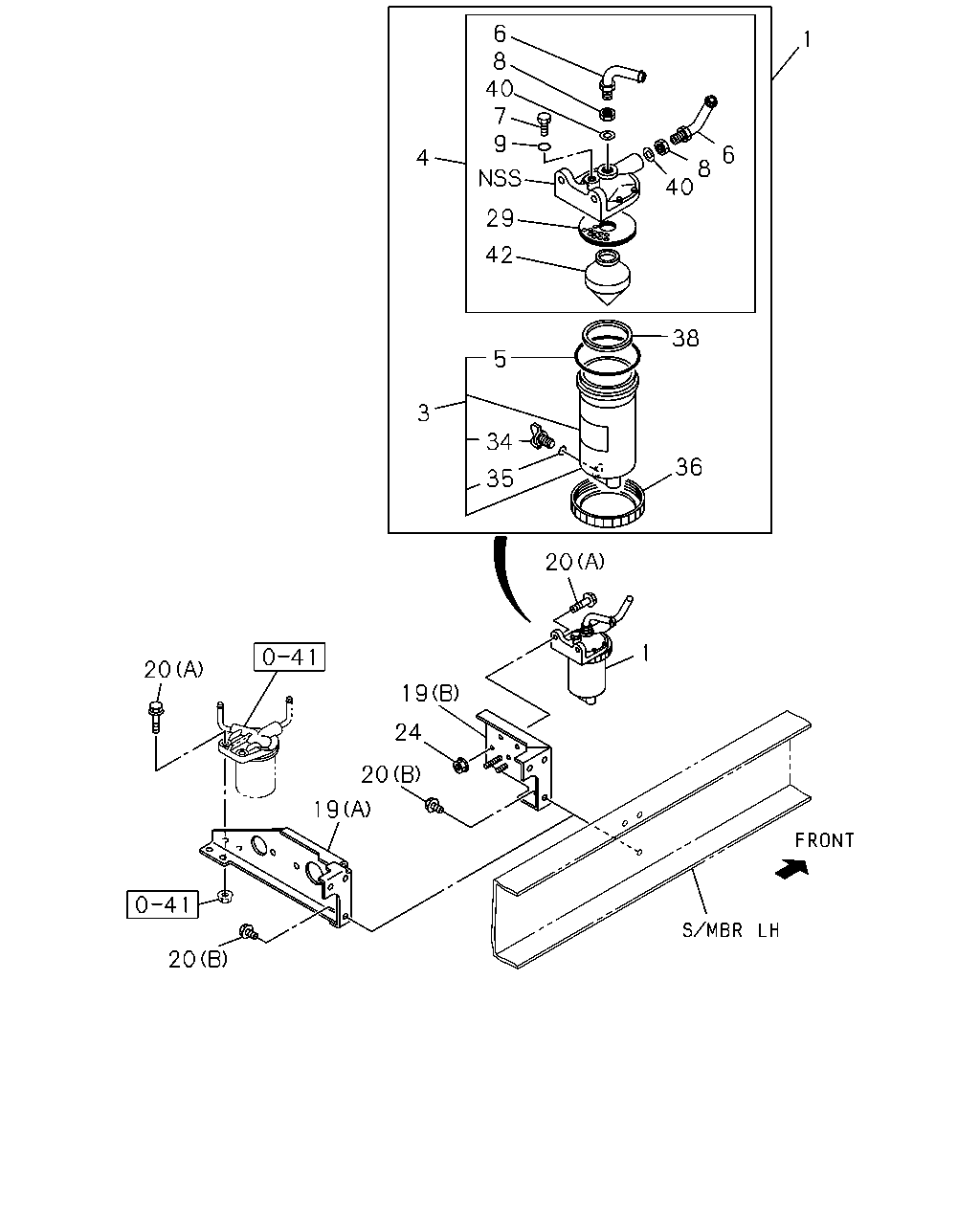

1-45 — WATER SEDIMENTER; FUEL (#42937) — 46 parça

6 8 40 7 9 1 6 4 8 40 29 42 38 5 3 34 36 35 20 1 20 19 24 20 19 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SEDIMENTER; FUEL 4HE1 ENG(RLY)	8-97188-042-0	01	1	0401-0607
1	SEDIMENTER; FUEL 4HE1-TCN ENG(RDR)	8-97188-042-1	01	1	0608-
3	BODY ASM; SEDIMENTER 4HE1 ENG(RLY)	1-13211-192-0	01	1	0401-0607
3	BODY ASM; SEDIMENTER 4HE1-TCN ENG(RDR)	1-13211-192-0	01	1	0608-
4	COVER; UPR,SEDIMENTER ASM 4HE1 ENG(RLY)	1-13212-146-0	01	1	0401-0607
4	COVER; UPR,SEDIMENTER ASM 4HE1-TCN ENG(RDR)	1-13212-146-0	01	1	0608-
5	GASKET; UPR COVER,SEDIMENTER 4HE1 ENG(RLY)	1-09623-491-0	01	1	0401-0607
5	GASKET; UPR COVER,SEDIMENTER 4HE1-TCN ENG(RDR)	1-09623-491-0	01	1	0608-
6	CONNECTOR ASM; SEDIMENTER 4HE1 ENG(RLY)	1-13229-002-0	02	1	0401-0607
6	CONNECTOR ASM; SEDIMENTER 4HE1-TCN ENG(RDR)	1-13229-002-0	02	1	0608-
7	PLUG; DRAIN,SEDIMENTER 4HE1 ENG(RLY)	9-13219-070-0	01	1	0401-0607
7	PLUG; DRAIN,SEDIMENTER 4HE1-TCN ENG(RDR)	9-13219-070-0	01	1	0608-
8	STOPPER; CONN,SEDIMENTER 4HE1 ENG(RLY)	1-13229-001-0	02	1	0401-0607
8	STOPPER; CONN,SEDIMENTER 4HE1-TCN ENG(RDR)	1-13229-001-0	02	1	0608-
9	GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG(RLY) ID=8.2 OD=13.2	1-09630-082-0	01	1	0401-0607
9	GASKET; DRAIN PLUG & CONNECTOR 4HE1-TCN ENG(RDR) ID=8.2 OD=13.2	1-09630-082-0	01	1	0608-
19	BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) (A)	8-97363-088-0	01	1	0401-0607
19	BRACKET; FUEL SEDIMENTER 4HE1-TCN ENG(RDR) FUEL FILTER DUAL(S6B) (A)	8-97363-088-0	01	1	0608-
19	BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL(S6B) (B)	8-97182-048-2	01	1	0401-0607
19	BRACKET; FUEL SEDIMENTER 4HE1-TCN ENG(RDR) EXC. FUEL FILTER DUAL(S6B) (B)	8-97182-048-2	01	1	0608-
20	BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) (B) M10X30 FLANGE	0-28681-030-0	03	1	0401-0512
20	BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) (B) M10X30 FLANGE	0-28651-030-0	03	1	0601-0607
20	BOLT; BRKT TO SEDIMENTER 4HE1-TCN ENG(RDR) (B) M10X30 FLANGE	0-28651-030-0	03	1	0608-
20	BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) (A) M10X30 FLANGE	0-28081-030-0	02	1	0401-0512
20	BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) (A) M10X30 FLANGE	0-28081-030-0	02	1	0401-0512
20	BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) (A) M10X30 FLANGE	0-28051-030-0	02	1	0601-0607
20	BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) (A) M10X30 FLANGE	0-28051-030-0	02	1	0601-0607
20	BOLT; BRKT TO SEDIMENTER 4HE1-TCN ENG(RDR) (A) M10X30 FLANGE	0-28051-030-0	02	1	0608-
20	BOLT; BRKT TO SEDIMENTER 4HE1-TCN ENG(RDR) FUEL FILTER DUAL(S6B) (A) M10X30 FLANGE	0-28051-030-0	02	1	0608-
24	NUT; SEDIMENTER 4HE1 ENG(RLY) M10 FLANGE	0-91150-210-0	02	1	0401-0602
24	NUT; SEDIMENTER 4HE1 ENG(RLY) M10 FLANGE	0-91180-210-0	02	1	0603-0607
24	NUT; SEDIMENTER 4HE1-TCN ENG(RDR) M10 FLANGE	0-91180-210-0	02	1	0608-
29	SCREEN ASM; SEDIMENTER 4HE1 ENG(RLY)	1-13219-228-0	01	1	0401-0607
29	SCREEN ASM; SEDIMENTER 4HE1-TCN ENG(RDR)	1-13219-228-0	01	1	0608-
34	PLUG; DRAIN,FUEL FILTER 4HE1 ENG(RLY)	1-13219-225-0	01	1	0401-0607
34	PLUG; DRAIN,FUEL FILTER 4HE1-TCN ENG(RDR)	1-13219-225-0	01	1	0608-
35	GASKET; DRAIN PLUG 4HE1 ENG(RLY)	1-09623-490-0	01	1	0401-0607
35	GASKET; DRAIN PLUG 4HE1-TCN ENG(RDR)	1-09623-490-0	01	1	0608-
36	RING; BODY TO CASE 4HE1 ENG(RLY)	1-13219-226-0	01	1	0401-0607
36	RING; BODY TO CASE 4HE1-TCN ENG(RDR)	1-13219-226-0	01	1	0608-
38	FLOAT; SEDIMENTER 4HE1 ENG(RLY)	1-13219-227-0	01	1	0401-0607
38	FLOAT; SEDIMENTER 4HE1-TCN ENG(RDR)	1-13219-227-0	01	1	0608-
40	GASKET; CONNECTOR TO COVER 4HE1 ENG(RLY) ID=14.2 OD=19.2	1-09630-085-0	02	1	0401-0607
40	GASKET; CONNECTOR TO COVER 4HE1-TCN ENG(RDR) ID=14.2 OD=19.2	1-09630-085-0	02	1	0608-
42	PLATE; BAFFLE 4HE1 ENG(RLY)	1-13219-229-0	01	1	0401-0607
42	PLATE; BAFFLE 4HE1-TCN ENG(RDR)	1-13219-229-0	01	1	0608-
