Isuzu WW
▶
TRUCKS
▶
NPR
▶
50980 - NPR(IRAN)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶
1-40 — FUEL TANK
(#42935) — 39 parça
◀

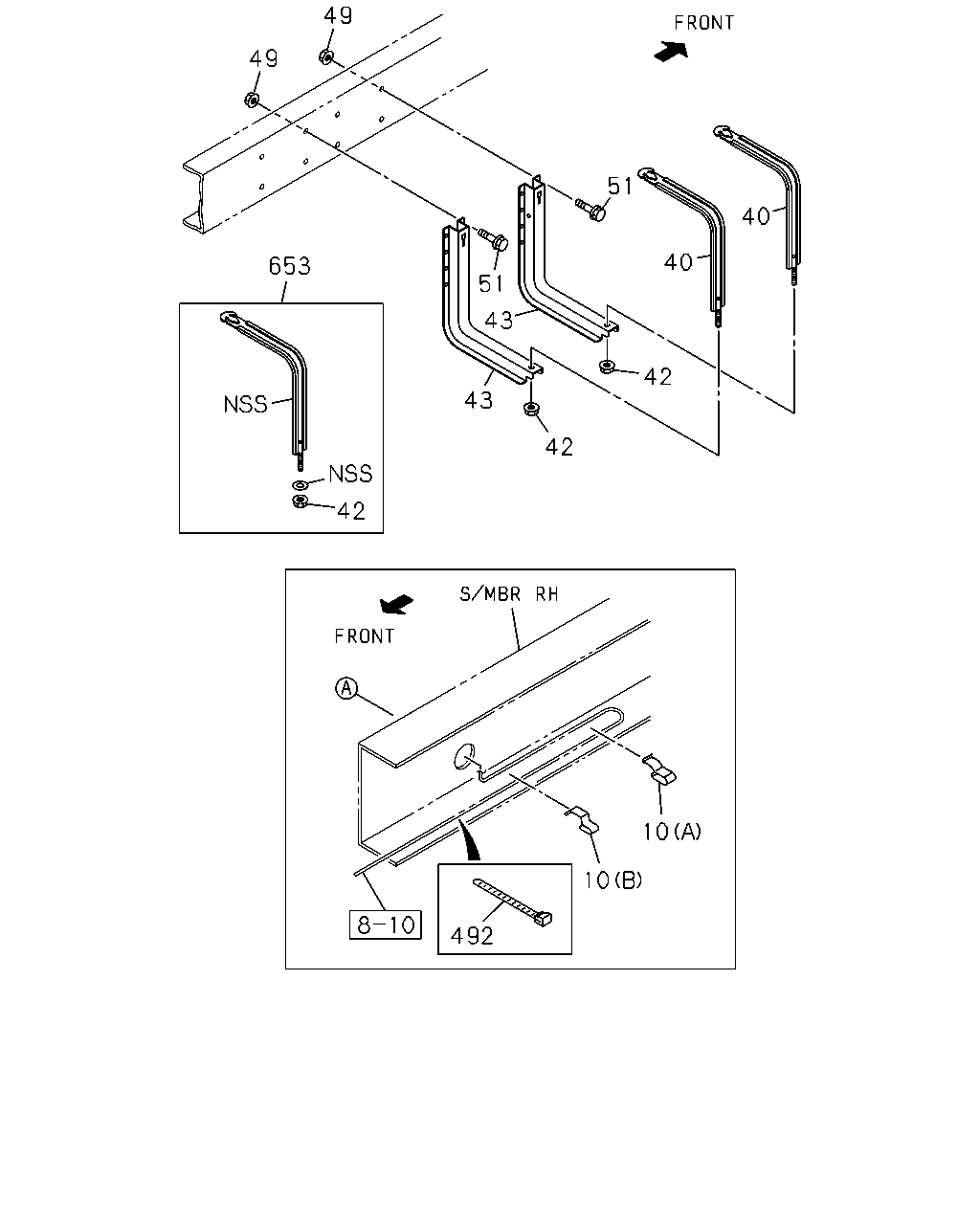

[140A] NO.2 (15 parça)
[140A] NO.1 (24 parça)
▶
49
49
653
42
43
42
43
42
51
40
40
51
10
10
492
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
CLIP; SPRING,FUEL TANK UNIT CABLE
(A) T=10.5
5-09709-014-0
AR
1
0401-
10
CLIP; SPRING,FUEL TANK UNIT CABLE
(B) T=6.0
5-09709-024-0
AR
1
0401-
10
CLIP; SPRING,FUEL TANK UNIT CABLE
(B) T=9 & 10.5
8-97041-091-0
AR
1
0401-
40
BELT; SUPPORT,FUEL TANK
L=668
8-97169-231-1
02
1
0401-0607
42
NUT; SUPPORT BELT
M8 FLANGE
9-09130-408-0
02
1
0401-
43
BRACKET; FUEL TANK
FRONT
8-97035-517-0
01
1
0401-
43
BRACKET; FUEL TANK
REAR
8-97181-220-0
01
1
0401-
49
NUT; BRKT
M10 FLANGE
0-91150-210-0
08
1
0401-0602
49
NUT; BRKT
M10 FLANGE
0-91180-210-0
08
1
0603-
51
BOLT; BRKT TO FRAME
4HE1 ENG(RLY) M10X30 FLANGE
0-28691-030-0
07
1
0401-0512
51
BOLT; BRKT TO FRAME
4HE1 ENG(RLY) M10X30 FLANGE
0-28661-030-0
07
1
0601-0607
51
BOLT; BRKT TO FRAME
4HE1-TCN ENG(RDR) M10X30 FLANGE
0-28661-030-0
07
1
0608-
492
CLIP; HARNESS TO VAC HOSE
4HE1 ENG(RLY) L=250
5-09707-030-1
01
1
0401-0607
492
CLIP; HARNESS TO VAC HOSE
L=250
5-09707-030-1
01
1
0608-
653
BAND KIT; FUEL TANK
5-87411-970-0
02
1
0608-
1
6
614
19
3
14
158
159
452
25
8
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
980X380X375 100L
8-97356-869-0
01
1
0401-0401
1
TANK; FUEL
979X380X375 100L
8-97375-634-2
01
1
0402-0607
1
TANK; FUEL
4HE1-TCN ENG(RDR) 979X380X375 100L
8-97375-634-5
01
1
0608-
3
UNIT; FUEL TANK,SUB
8-97363-006-0
01
1
0401-0607
3
UNIT; FUEL TANK,SUB
4HE1-TCN ENG(RDR)
8-97363-006-0
01
1
0608-
6
SCREW; TANK UNIT TO SUB FUEL TANK
M5X10 W/LK WASHER
9-03910-510-0
05
1
0401-0603
6
SCREW; TANK UNIT TO SUB FUEL TANK
M5X10 W/LK WASHER
0-36220-510-0
05
1
0604-0607
6
SCREW; TANK UNIT TO SUB FUEL TANK
4HE1-TCN ENG(RDR) M5X10 W/LK WASHER
0-36220-510-0
05
1
0608-
8
GASKET; DRAIN PLUG,FUEL TANK
ID=8.2 OD=17
9-09572-008-0
01
1
0401-0607
8
GASKET; DRAIN PLUG,FUEL TANK
4HE1-TCN ENG(RDR) ID=8.2 OD=17
9-09572-008-0
01
1
0608-
11
PLUG; DRAIN,FUEL TANK
M8X12 FLANGE
0-28080-812-0
01
1
0401-0512
11
PLUG; DRAIN,FUEL TANK
M8X12 FLANGE
0-28050-812-0
01
1
0601-0607
11
PLUG; DRAIN,FUEL TANK
4HE1-TCN ENG(RDR) M8X12 FLANGE
0-28050-812-0
01
1
0608-
14
HOSE; BREATHER,OUTLET
4HE1-TCN ENG(RDR) L=420
8-98157-809-0
01
1
0608-
19
GASKET; FUEL TANK UNIT
8-97363-616-0
01
1
0401-0607
19
GASKET; FUEL TANK UNIT
4HE1-TCN ENG(RDR)
8-97363-616-0
01
1
0608-
25
CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05>
8-94258-609-1
01
1
0401-
158
VALVE; ROLL OVER & FLOAT
8-97179-645-0
01
1
0401-0607
158
VALVE; ROLL OVER & FLOAT
4HE1-TCN ENG(RDR)
8-97179-645-0
01
1
0608-
159
SEAL; ROLL OVER & FLOAT VALVE
8-97326-488-0
01
1
0401-0607
159
SEAL; ROLL OVER & FLOAT VALVE
4HE1-TCN ENG(RDR)
8-97326-488-0
01
1
0608-
452
BREATHER; FUEL TANK
8-97357-261-0
01
1
0401-
614
HARNESS; FUEL
8-97363-614-0
01
1
0401-0607
614
HARNESS; FUEL
4HE1-TCN ENG(RDR)
8-97363-614-0
01
1
0608-
