◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10720 - CXZ RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30B - AIR CLEANER ▶
1-30B — AIR CLEANER (#4293) — 65 parça

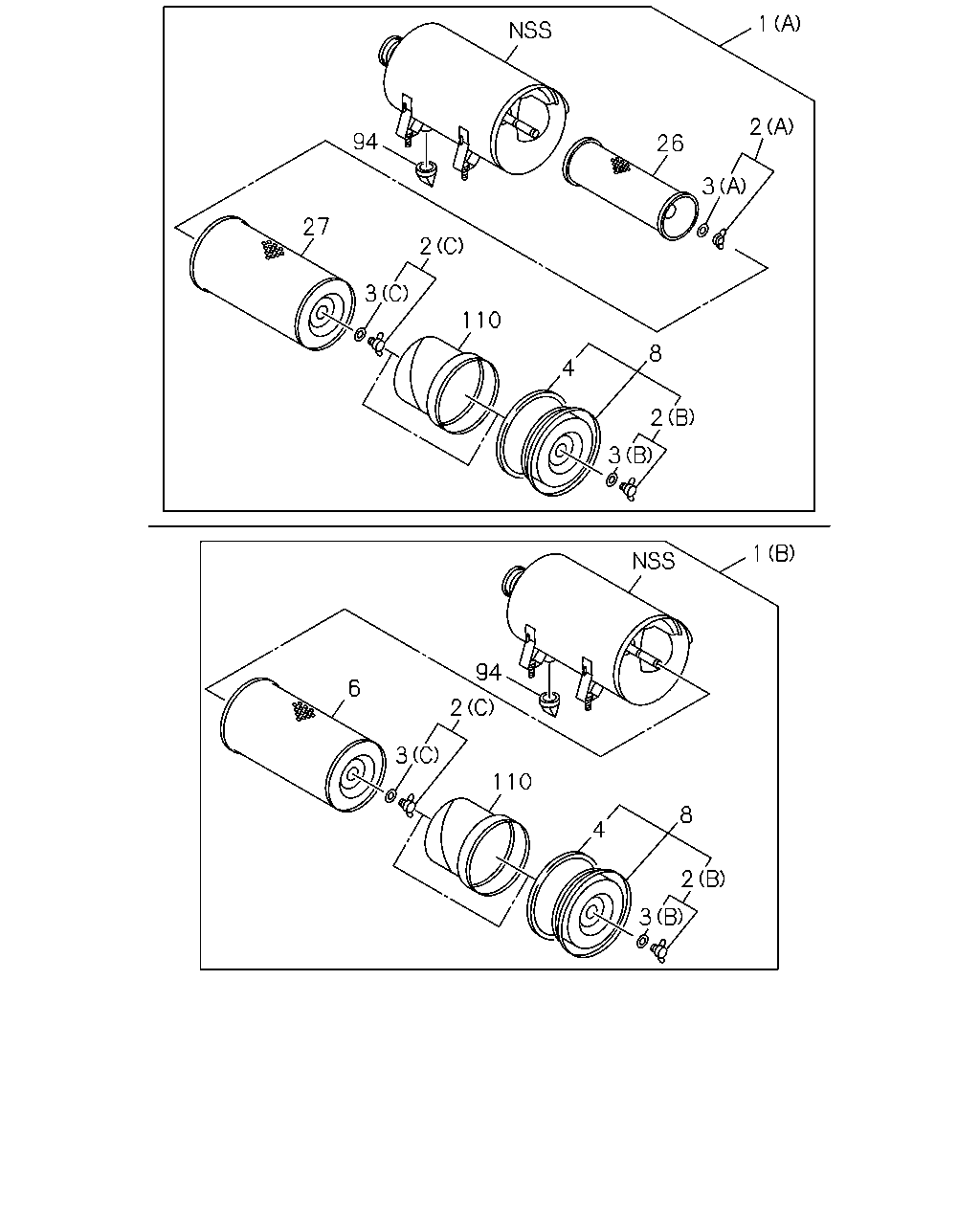

çizim 39928
1 2 94 26 3 27 2 3 110 8 4 2 3 1 94 6 2 3 110 8 4 2 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (A) 		1-14210-767-1 01 1 9603-9904 ● ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (A) 		1-14210-767-2 01 1 9905- ● ● ● ●
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (B) 		1-14210-783-1 01 1 9603-9904 ● ●
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (B) 		1-14210-783-2 01 1 9905- ● ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-049-0 01 1 9603-9904 ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-049-0 01 1 9905- ● ● ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-050-0 01 1 9603-9904 ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-050-0 01 1 9905- ● ● ● ●
2 NUT; WING,ELEMENT
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (A) 		1-14217-003-0 01 1 9603-9904 ● ●
2 NUT; WING,ELEMENT
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (A) 		1-14217-003-0 01 1 9905- ● ● ● ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-118-0 01 1 9603-9904 ● ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-118-0 01 1 9905- ● ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9603-9904 ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9905- ● ● ● ●
3 WASHER; SEAL,WING NUT
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (A) 		1-14219-032-0 01 1 9603-9904 ● ●
3 WASHER; SEAL,WING NUT
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (A) 		1-14219-032-0 01 1 9905- ● ● ● ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 9603-9904 ● ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 9905- ● ● ● ●
6 FILTER; ACL
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-184-1 01 1 9603-9904 ● ●
6 FILTER; ACL
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-184-1 01 1 9905- ● ● ● ●
8 COVER ASM; ACL 1-14212-064-0 01 1 9603-9904 ● ●
8 COVER ASM; ACL 1-14212-064-0 01 1 9905- ● ● ● ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-089-1 01 1 9603-9904 ● ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-089-1 01 1 9905- ● ● ● ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-184-1 01 1 9603-9904 ● ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-184-1 01 1 9905- ● ● ● ●
94 VALVE; VACUATOR 1-14219-129-0 01 1 9603-9904 ● ●
94 VALVE; VACUATOR 1-14219-129-0 01 1 9905- ● ● ● ●
110 ADAPTER; ACL 1-14219-175-0 01 1 9603-9904 ● ●
110 ADAPTER; ACL 1-14219-175-0 01 1 9905- ● ● ● ●
çizim 40497
56 1 1 172 144 212 65 144 144 211 211 108 64 64
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (A) 		1-14210-767-1 01 1 9603-9904 ● ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (A) 		1-14210-767-2 01 1 9905- ● ● ● ●
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (B) 		1-14210-783-1 01 1 9603-9904 ● ●
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (B) 		1-14210-783-2 01 1 9905- ● ● ● ●
56 SWITCH; ACL 1-81530-016-0 01 1 9603-9904 ● ●
56 SWITCH; ACL 1-81530-016-0 01 1 9905- ● ● ● ●
64 NUT; BAND BRKT
M10 FLANGE 		0-91150-110-0 07 1 9603-9606 ● ●
64 NUT; BAND BRKT
M10 FLANGE 		0-91150-210-0 03 1 9607-9709 ● ●
64 NUT; BAND BRKT
M10 FLANGE 		0-91150-210-0 06 1 9710-9804 ● ●
64 NUT; BAND BRKT
M10 FLANGE 		0-91150-210-0 04 1 9805-9904 ● ●
64 NUT; BAND BRKT
M10 FLANGE 		0-91150-210-0 04 1 9905- ● ● ● ●
65 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 03 1 9603-9709 ● ●
65 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 04 1 9710-9804 ● ●
65 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 03 1 9805-9904 ● ●
65 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 03 1 9905- ● ● ● ●
108 COVER; ACL 1-53419-300-0 01 1 9603-9904 ● ●
108 COVER; ACL 1-53419-300-0 01 1 9905- ● ● ● ●
144 CLIP; ACL
(A) 		5-09987-033-0 10 1 9603-9801 ● ●
144 CLIP; ACL
(A) 		5-09987-033-0 09 1 9802-9904 ● ●
144 CLIP; ACL
(A) 		5-09987-033-0 09 1 9905- ● ● ● ●
144 CLIP; ACL
(B) 		8-94279-048-0 07 1 9603-9904 ● ●
144 CLIP; ACL
(B) 		8-94279-048-0 07 1 9905- ● ● ● ●
172 INSULATOR; NOISE 1-53446-781-1 01 1 9603-9904 ● ●
172 INSULATOR; NOISE 1-53446-781-2 01 1 9905- ● ● ● ●
211 RUBBER; SEAL
(A) 		1-79931-007-0 01 1 9603-9706 ● ●
211 RUBBER; SEAL
(A) 		1-79931-007-0 01 1 9707-9904 ● ●
211 RUBBER; SEAL
(A) 		1-79931-007-0 01 1 9905- ● ● ● ●
211 RUBBER; SEAL
(B) 		1-79931-008-1 01 1 9603-9706 ● ●
211 RUBBER; SEAL
(B) 		1-79931-008-2 01 1 9707-9904 ● ●
211 RUBBER; SEAL
(B) 		1-79931-008-2 01 1 9905- ● ● ● ●
212 BOLT; MUD COVER
M10X20 FLANGE 		0-28081-020-0 07 1 9603-9606 ● ●
212 BOLT; MUD COVER
M10X25 FLANGE 		0-28681-025-0 03 1 9607-9709 ● ●
212 BOLT; MUD COVER
M10X25 FLANGE 		0-28681-025-0 06 1 9710-9804 ● ●
212 BOLT; MUD COVER
M10X25 FLANGE 		0-28681-025-0 04 1 9805-9904 ● ●
212 BOLT; MUD COVER
M10X25 FLANGE 		0-28681-025-0 04 1 9905- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
