1-01 — ACCELERATOR PEDAL AND CONTROL (#42929) — 82 parça

54 99 54 114 99 108 729 101 101 100 104 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CABLE; ENG CONT 4HE1 ENG(RLY) (A) L=2451	8-97148-583-4	01	1	0401-0607
54	CABLE; ENG CONT 4HE1-TCN ENG(RDR) (A) L=2451	8-97148-583-4	01	1	0608-
54	CABLE; ENG CONT 4HE1 ENG(RLY) (B) L=384	8-97168-299-1	01	1	0401-0607
54	CABLE; ENG CONT 4HE1-TCN ENG(RDR) (B) L=384	8-97168-299-1	01	1	0608-
99	BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY)	8-97167-871-3	01	1	0401-0607
99	BRACKET ASM; ENG CONT,INL MANIF 4HE1-TCN ENG(RDR)	8-97167-871-3	01	1	0608-
100	SHAFT ASM; ENG CONT 4HE1 ENG(RLY)	8-97167-870-2	01	1	0401-0607
100	SHAFT ASM; ENG CONT 4HE1-TCN ENG(RDR)	8-97167-870-2	01	1	0608-
101	WASHER; ENG CONT 4HE1 ENG(RLY)	8-94142-117-0	02	1	0401-0607
101	WASHER; ENG CONT 4HE1-TCN ENG(RDR)	8-94142-117-0	02	1	0608-
104	NUT; ENG CONT 4HE1 ENG(RLY) M8 FLANGE	0-91150-108-0	01	1	0401-0602
104	NUT; ENG CONT 4HE1 ENG(RLY) M8 FLANGE	0-91180-108-0	01	1	0603-0607
104	NUT; ENG CONT 4HE1-TCN ENG(RDR) M8 FLANGE	0-91180-108-0	01	1	0608-
108	BUSHING; ENG CONT 4HE1 ENG(RLY)	8-97120-004-0	01	1	0401-0607
108	BUSHING; ENG CONT 4HE1-TCN ENG(RDR)	8-97120-004-0	01	1	0608-
110	BOLT; BRKT TO HANGER 4HE1 ENG(RLY) M8X16 FLANGE	0-28080-816-0	02	1	0401-0512
110	BOLT; BRKT TO HANGER 4HE1 ENG(RLY) M8X16 FLANGE	0-28050-816-0	02	1	0601-0607
110	BOLT; BRKT TO HANGER 4HE1-TCN ENG(RDR) M8X16 FLANGE	0-28050-816-0	02	1	0608-
114	CLIP; HARNESS CONNECTOR 4HE1 ENG(RLY) ID=7-10	8-94472-578-0	01	1	0401-0607
114	CLIP; HARNESS CONNECTOR 4HE1-TCN ENG(RDR) ID=7-10	8-94472-578-0	01	1	0608-
729	COLLAR; JOINT 4HE1 ENG(RLY)	8-97118-760-0	01	1	0401-0607
729	COLLAR; JOINT 4HE1-TCN ENG(RDR)	8-97118-760-0	01	1	0608-

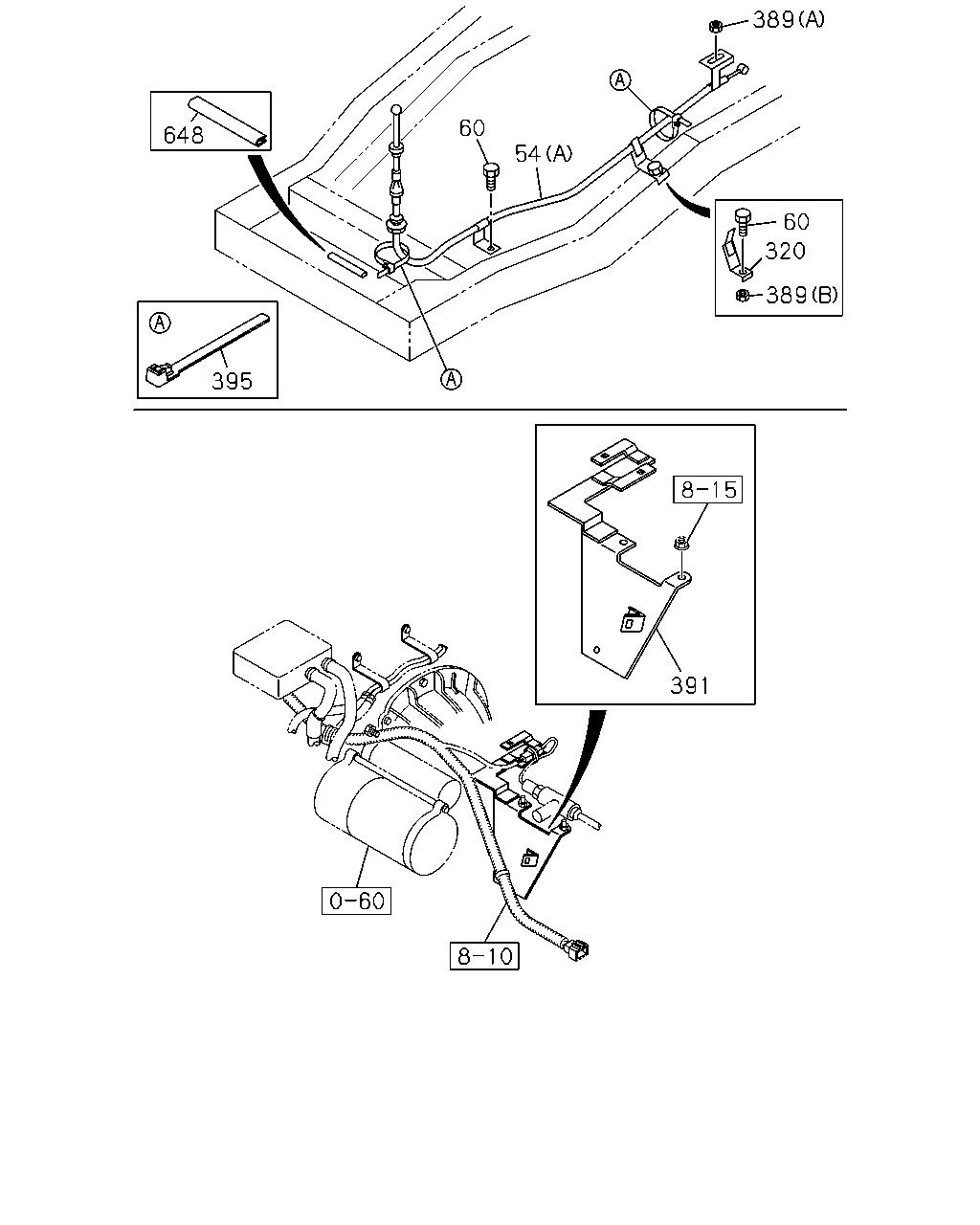

389 60 648 54 60 320 389 395 391

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CABLE; ENG CONT 4HE1 ENG(RLY) (A) L=2451	8-97148-583-4	01	1	0401-0607
54	CABLE; ENG CONT 4HE1-TCN ENG(RDR) (A) L=2451	8-97148-583-4	01	1	0608-
54	CABLE; ENG CONT 4HE1 ENG(RLY) (B) L=384	8-97168-299-1	01	1	0401-0607
54	CABLE; ENG CONT 4HE1-TCN ENG(RDR) (B) L=384	8-97168-299-1	01	1	0608-
60	BOLT; CABLE 4HE1 ENG(RLY) EXC. HEATER & DEFROSTER(C41) M8X25 FLANGE	0-28680-825-0	01	1	0401-0512
60	BOLT; CABLE 4HE1 ENG(RLY) M8X25 FLANGE	0-28680-825-0	01	1	0401-0512
60	BOLT; CABLE 4HE1 ENG(RLY) EXC. HEATER & DEFROSTER(C41) M8X25 FLANGE	0-28650-825-0	01	1	0601-0607
60	BOLT; CABLE 4HE1 ENG(RLY) M8X25 FLANGE	0-28650-825-0	01	1	0601-0607
60	BOLT; CABLE 4HE1-TCN ENG(RDR) EXC. HEATER & DEFROSTER(C41) M8X25 FLANGE	0-28650-825-0	01	1	0608-
60	BOLT; CABLE 4HE1-TCN ENG(RDR) M8X25 FLANGE	0-28650-825-0	01	1	0608-
60	BOLT; CABLE 4HE1-TCN ENG(RDR) M8X25 FLANGE	0-28650-825-0	02	1	0608-
320	CLIP; FRAME 4HE1 ENG(RLY) EXC. HEATER & DEFROSTER(C41)	8-94178-110-0	01	1	0401-0607
320	CLIP; FRAME 4HE1-TCN ENG(RDR) EXC. HEATER & DEFROSTER(C41)	8-94178-110-0	01	1	0608-
389	NUT; ACCEL CONT CABLE FIX 4HE1 ENG(RLY) (A) M6 FLANGE	0-91150-106-0	01	1	0401-0602
389	NUT; ACCEL CONT CABLE FIX 4HE1 ENG(RLY) (A) M6 FLANGE	0-91180-106-0	01	1	0603-0607
389	NUT; ACCEL CONT CABLE FIX 4HE1-TCN ENG(RDR) (A) M6 FLANGE	0-91180-106-0	01	1	0608-
389	NUT; ACCEL CONT CABLE FIX 4HE1 ENG(RLY) EXC. HEATER & DEFROSTER(C41) (B) M8 W/LK WASHER	8-94327-073-0	01	1	0401-0607
389	NUT; ACCEL CONT CABLE FIX 4HE1-TCN ENG(RDR) EXC. HEATER & DEFROSTER(C41) (B) M8 W/LK WASHER	8-94327-073-0	01	1	0608-0805
389	NUT; ACCEL CONT CABLE FIX 4HE1-TCN ENG(RDR) EXC. HEATER & DEFROSTER(C41) (B) M8 W/LK WASHER	8-97581-234-0	01	1	0806-
391	BRACKET; ENG CONT 4HE1 ENG(RLY)	8-97357-141-0	01	1	0401-0607
391	BRACKET; ENG CONT 4HE1-TCN ENG(RDR)	8-97357-141-0	01	1	0608-
395	CLIP; BAND,ACCEL CONT CABLE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41) L=250	5-09707-030-1	01	1	0401-0607
395	CLIP; BAND,ACCEL CONT CABLE 4HE1-TCN ENG(RDR) HEATER & DEFROSTER(C41) L=250	5-09707-030-1	01	1	0608-
648	PROTECTOR 4HE1 ENG(RLY) L=80	5-22439-006-0	01	1	0401-0607
648	PROTECTOR 4HE1-TCN ENG(RDR) L=80	5-22439-006-0	01	1	0608-

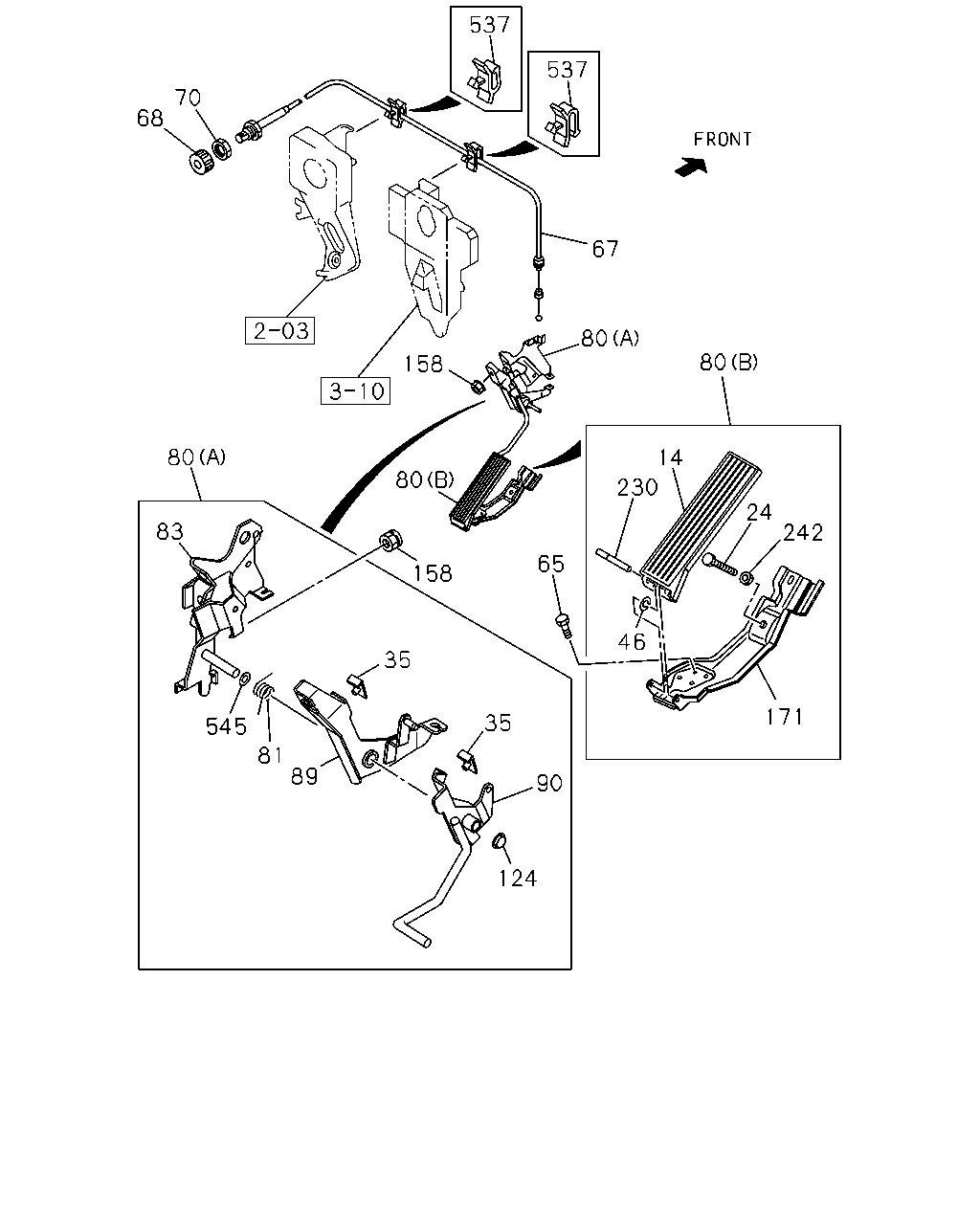

537 537 70 68 67 80 80 158 80 14 80 230 24 83 242 65 158 46 35 171 35 545 81 89 90 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	PAD; PEDAL,ACCEL	8-97859-101-0	01	1	0401-
24	BOLT; BRKT	0-20800-840-0	01	1	0401-
35	STOPPER; ACCEL PEDAL 4HE1 ENG(RLY)	8-97302-305-0	02	1	0401-0607
35	STOPPER; ACCEL PEDAL 4HE1-TCN ENG(RDR)	8-97302-305-0	02	1	0608-
46	RING; SNAP,ACCEL CONT PEDAL ID=4	9-09185-404-0	01	1	0401-0604
46	RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0605-
65	BOLT M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	0401-
67	CABLE ASM; IDLE CONT 4HE1 ENG(RLY) L=945	8-97856-223-4	01	1	0401-0607
67	CABLE ASM; IDLE CONT 4HE1-TCN ENG(RDR) L=945	8-97856-223-4	01	1	0608-
68	KNOB; IDLE CONT 4HE1 ENG(RLY)	8-97853-765-1	01	1	0401-0607
68	KNOB; IDLE CONT 4HE1-TCN ENG(RDR)	8-97853-765-1	01	1	0608-
70	NUT; CONT CABLE 4HE1 ENG(RLY) M18	8-97853-233-0	01	1	0401-0607
70	NUT; CONT CABLE 4HE1-TCN ENG(RDR) M18	8-97853-233-0	01	1	0608-
80	LINK ASM; ENG CONT (B)	8-97859-100-0	01	1	0401-
80	LINK ASM; ENG CONT 4HE1 ENG(RLY) (A)	8-97859-518-3	01	1	0401-0607
80	LINK ASM; ENG CONT 4HE1-TCN ENG(RDR) (A)	8-97859-518-3	01	1	0608-
81	SPRING; RETURN,ENG CONT LEVER 4HE1 ENG(RLY)	8-97853-205-1	01	1	0401-0607
81	SPRING; RETURN,ENG CONT LEVER 4HE1-TCN ENG(RDR)	8-97853-205-1	01	1	0608-
83	BRACKET; CONT LINK 4HE1 ENG(RLY)	8-97859-519-0	01	1	0401-0607
83	BRACKET; CONT LINK 4HE1-TCN ENG(RDR)	8-97859-519-0	01	1	0608-
89	LEVER; RELAY 4HE1 ENG(RLY)	8-97857-617-4	01	1	0401-0607
89	LEVER; RELAY 4HE1-TCN ENG(RDR)	8-97857-617-4	01	1	0608-
90	LEVER; RELAY,ENG CONT 4HE1 ENG(RLY)	8-97857-613-6	01	1	0401-0607
90	LEVER; RELAY,ENG CONT 4HE1-TCN ENG(RDR)	8-97857-613-6	01	1	0608-
124	NUT; LEVER 4HE1 ENG(RLY) ID=9.9 PUSH NUT	8-97012-098-0	01	1	0401-0607
124	NUT; LEVER 4HE1-TCN ENG(RDR) ID=9.9 PUSH NUT	8-97012-098-0	01	1	0608-
158	NUT; BRKT M8 FLANGE	8-94279-060-0	02	1	0401-
171	BRACKET ASM; ACCEL PEDAL	8-97857-482-1	01	1	0401-
230	PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0401-
242	NUT; ACCEL PEDAL M8	9-09110-408-0	01	1	0401-0512
242	NUT; ACCEL PEDAL M8	0-91110-508-0	01	1	0601-
537	CLIP; IDLING CONT CABLE 4HE1 ENG(RLY) ID=7	5-09707-053-0	02	1	0401-0607
537	CLIP; IDLING CONT CABLE 4HE1-TCN ENG(RDR) ID=7	5-09707-053-0	02	1	0608-
545	WASHER; NYLON 4HE1 ENG(RLY) ID=10.5 OD=16	9-09855-178-0	01	1	0401-0607
545	WASHER; NYLON 4HE1-TCN ENG(RDR) ID=10.5 OD=16	9-09855-178-0	01	1	0608-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
