◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50980 - NPR(IRAN) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-87 - COUPLING; INJECTION PUMP ▶
0-87 — COUPLING; INJECTION PUMP (#42928) — 18 parça

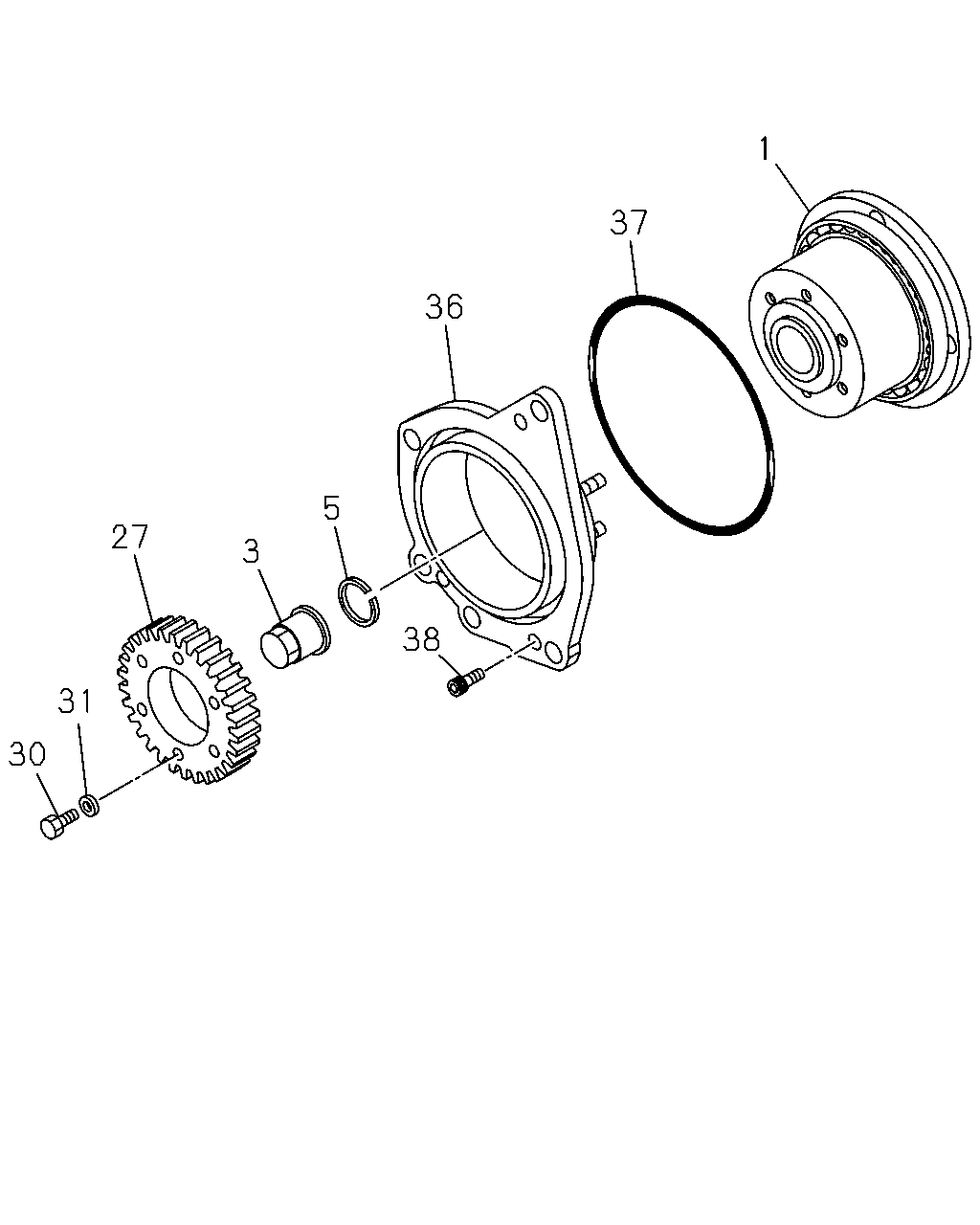

çizim 55866
1 37 36 5 27 3 38 31 30
BalonParca AdiParca NoAdetTipApplied Date A B
1 COUPLING; INJ PUMP DRIVE 8-97367-802-0 01 1 0401-0607 ●
1 COUPLING; INJ PUMP DRIVE 8-97367-802-0 01 1 0608- ●
3 NUT; COUPLING FIX,INJ PUMP 1-15749-144-0 01 1 0401-0607 ●
3 NUT; COUPLING FIX,INJ PUMP 1-15749-144-0 01 1 0608- ●
5 WASHER; COUPLING FIX,INJ PUMP 1-15749-145-0 01 1 0401-0607 ●
5 WASHER; COUPLING FIX,INJ PUMP 1-15749-145-0 01 1 0608- ●
27 GEAR; COUPLING 8-97367-803-0 01 1 0401-0607 ●
27 GEAR; COUPLING 8-97367-803-0 01 1 0608- ●
30 BOLT; GEAR TO COUPLING 8-97211-798-0 06 1 0401-0607 ●
30 BOLT; GEAR TO COUPLING 8-97211-798-0 06 1 0608- ●
31 WASHER; PL,GEAR TO COUPLING 8-97211-797-0 06 1 0401-0607 ●
31 WASHER; PL,GEAR TO COUPLING 8-97211-797-0 06 1 0608- ●
36 COVER; COUPLING 8-97202-360-2 01 1 0401-0607 ●
36 COVER; COUPLING 8-97202-360-2 01 1 0608- ●
37 GASKET; COUPLING 8-97201-279-0 01 1 0401-0607 ●
37 GASKET; COUPLING 8-97201-279-0 01 1 0608- ●
38 BOLT; COVER,COUPLING 1-09054-035-0 03 1 0401-0607 ●
38 BOLT; COVER,COUPLING 1-09054-035-0 03 1 0608- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
