Isuzu WW
▶
TRUCKS
▶
NPR
▶
50980 - NPR(IRAN)
▶
0 - Engine, Emission, Engine Electrical
▶
0-86 - MISCELLANEOUS PARTS; INJECTION PUMP
▶

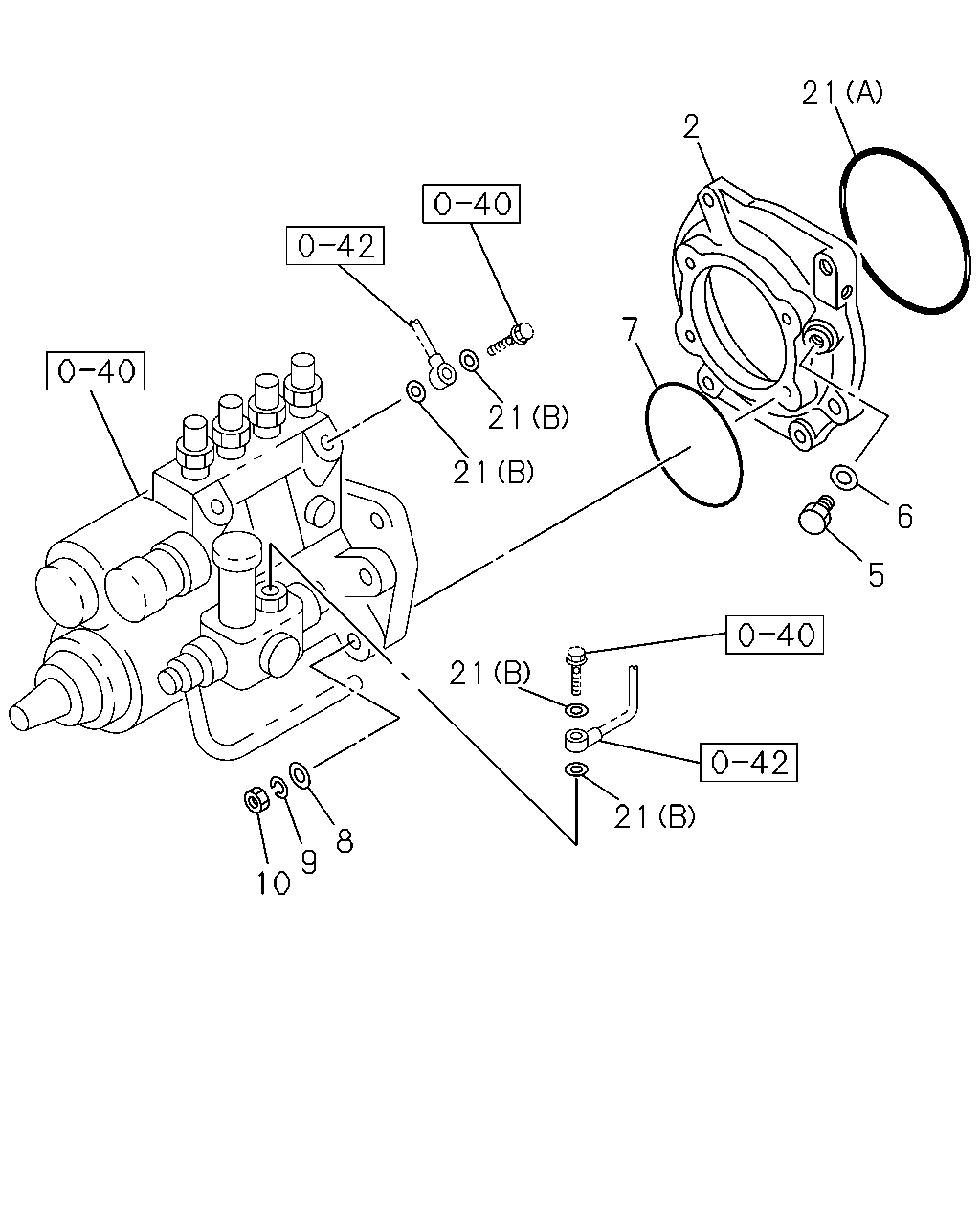

0-86 — MISCELLANEOUS PARTS; INJECTION PUMP
(#42927) — 18 parça
Tümü
A - 4HE1 ENG
B - 4HE1-TCN ENG
21
2
7
21
21
6
5
21
21
8
9
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
BRACKET; HSG & TIMER,INJ PUMP
8-97188-880-1
01
1
0401-0607
●
2
BRACKET; HSG & TIMER,INJ PUMP
8-97188-880-1
01
1
0608-
●
5
PLUG; HSG BRKT,INJ PUMP
8-97026-919-0
01
1
0401-0607
●
5
PLUG; HSG BRKT,INJ PUMP
8-97026-919-0
01
1
0608-
●
6
GASKET; PLUG,INJ PUMP BRKT
1-15729-787-0
01
1
0401-0607
●
6
GASKET; PLUG,INJ PUMP BRKT
1-15729-787-0
01
1
0608-
●
7
GASKET; HSG BRKT,ENG SIDE
8-97188-881-0
01
1
0401-0607
●
7
GASKET; HSG BRKT,ENG SIDE
8-97188-881-0
01
1
0608-
●
8
WASHER; PL,HSG BRKT,INJ PUMP
ID=10.5
9-09164-510-0
04
1
0401-0607
●
8
WASHER; PL,HSG BRKT,INJ PUMP
ID=10.5
9-09164-510-0
04
1
0608-
●
9
WASHER; LK,HSG BRKT,INJ PUMP
ID=10.2
9-09150-510-0
04
1
0401-0607
●
9
WASHER; LK,HSG BRKT,INJ PUMP
ID=10.2
9-09150-510-0
04
1
0608-
●
10
NUT; HSG BRKT,INJ PUMP
5-15639-002-0
04
1
0401-0607
●
10
NUT; HSG BRKT,INJ PUMP
5-15639-002-0
04
1
0608-
●
21
GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-97039-200-1
01
1
0401-0607
●
21
GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-97039-200-1
01
1
0608-
●
21
GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=23.0
9-09572-014-0
02
1
0401-0607
●
21
GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=23.0
9-09572-014-0
02
1
0608-
●
