0-81 — GOVERNOR; INJECTION PUMP (#42924) — 244 parça

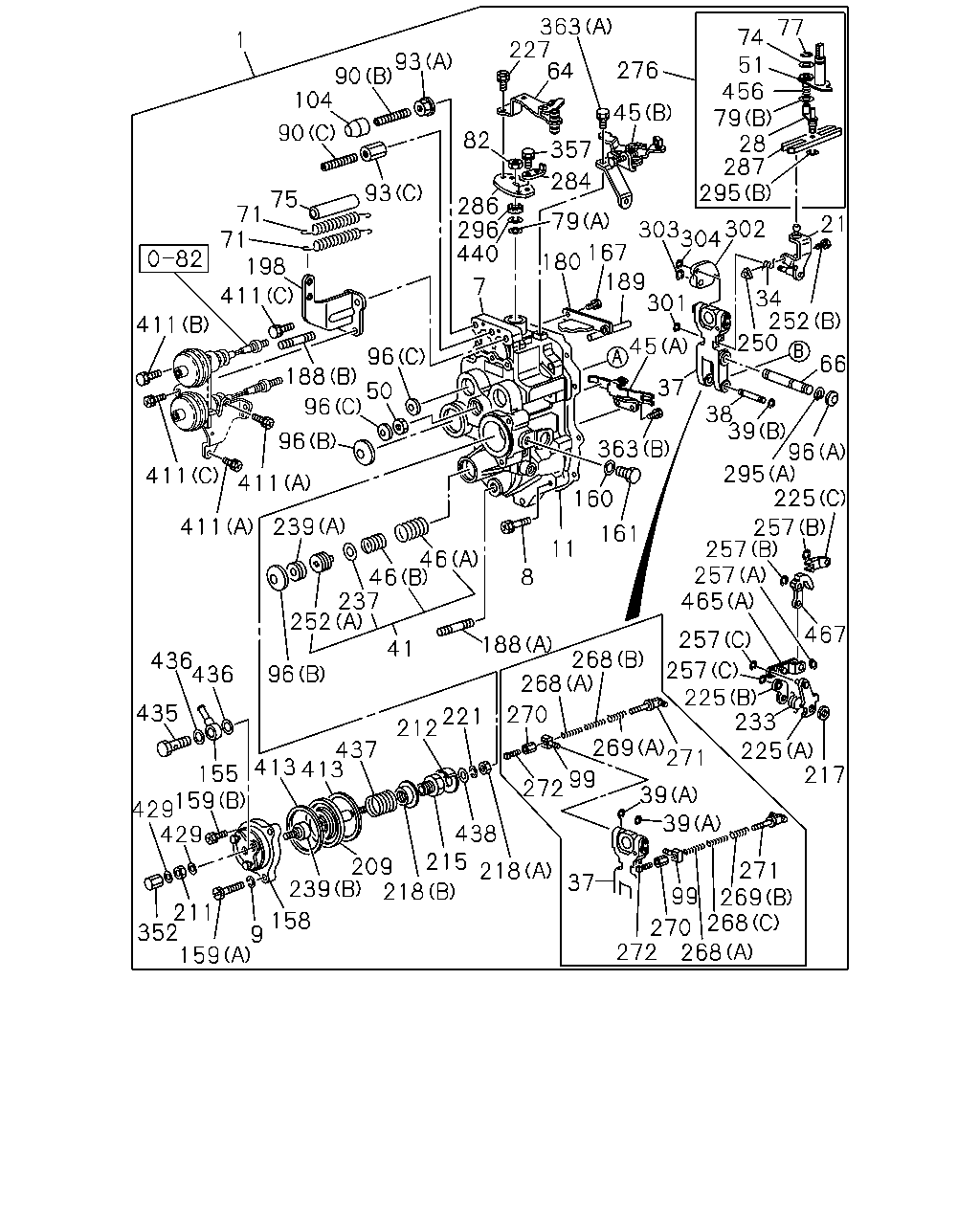

çizim 100918
363 227 64 77 74 51 456 79 28 287 295 1 93 90 104 276 45 90 82 357 284 93 75 286 296 440 71 71 198 79 21 303 302 304 167 180 189 301 7 411 34 252 250 411 45 96 66 188 37 50 96 38 39 96 295 225 96 363 411 411 160 239 411 257 257 257 465 161 11 46 46 237 252 8 467 257 188 41 268 268 436 436 257 225 233 96 435 270 221 212 269 271 437 413 413 225 217 155 159 429 429 99 272 39 39 438 215 209 239 218 271 268 218 37 211 352 159 158 270 9 99 269
BalonParca AdiParca NoAdetTipApplied Date
1 GOVERNOR ASM; INJ PUMP
ASM PART: A = 8-97212-189-1 		8-97212-751-1 01 1 -
7 COVER; GOV HSG,INJ PUMP
ASM PART: A = 8-97212-189-1 		8-97329-808-0 01 1 -
8 BOLT; GOV COVER,INJ PUMP
ASM PART: A = 8-97212-189-1 		5-15729-033-0 09 1 -
9 WASHER; LK,GOV COVER
ID=6.1 ASM PART: A = 8-97212-189-1 		9-09150-506-0 02 1 -
11 GASKET; COVER TO HSG,GOV
ASM PART: A = 8-97212-189-1 		8-97201-137-0 01 1 -
21 LEVER ASM; GUIDE,GOV
ASM PART: A = 8-97212-189-1 		8-97201-081-0 01 1 -
28 LEVER; SUPPORTING,GOV
ASM PART: A = 8-97212-189-1 		1-15725-780-0 01 1 -
34 SPRING; SPD CONT LEVER,GOV
ASM PART: A = 8-97212-189-1 		1-15723-549-0 01 1 -
37 LEVER ASM; TENSION,GOV
ASM PART: A = 8-97212-189-1 		8-97201-080-0 01 1 -
38 PIN; TENSION LEVER,GOV
ASM PART: A = 8-97212-189-1 		1-15779-271-0 01 1 -
39 RING; SNAP,LEVER PIN,GOV
(A) ASM PART: A = 8-97212-189-1 		1-09588-170-0 02 1 -
39 RING; SNAP,LEVER PIN,GOV
(B) ASM PART: A = 8-97212-189-1 		8-94244-599-0 02 1 -
41 SPRING CAPSULE; IDLE CONT,GOV
ASM PART: A = 8-97212-189-1 		8-97201-132-0 01 1 -
45 LEVER ASM; GOV,INJ PUMP
(A) ASM PART: A = 8-97212-189-1 		1-15725-819-0 01 1 -
45 LEVER ASM; GOV,INJ PUMP
(B) ASM PART: A = 8-97212-189-1 		8-97201-150-0 01 1 -
46 SPRING; GOV,INJ PUMP
(A) ASM PART: A = 8-97212-189-1 		1-15723-481-0 01 1 -
46 SPRING; GOV,INJ PUMP
(B) ASM PART: A = 8-97212-189-1 		8-97201-075-0 01 1 -
50 NUT; GOV SHAFT,INJ PUMP
ASM PART: A = 8-97212-189-1 		8-94171-147-0 01 1 -
51 SHAFT; LOAD CONT LEVER,GOV
ASM PART: A = 8-97212-189-1 		1-15779-528-0 01 1 -
64 LEVER; LOAD CONT,GOV
ASM PART: A = 8-97212-189-1 		5-86647-319-0 01 1 -
66 SHAFT; LEVER
ASM PART: A = 8-97212-189-1 		1-15779-234-0 01 1 -
71 SPRING; CONT LEVER,GOV
ASM PART: A = 8-97212-189-1 		8-97201-076-0 02 1 -
74 WASHER; LEVER SPR
ASM PART: A = 8-97212-189-1 		1-15779-232-0 01 1 -
75 TUBE; RETURN SPRING,STOPPER LEVER,GOV
ASM PART: A = 8-97212-189-1 		8-97201-141-0 02 1 -
77 RING; SNAP,CONT LEVER,GOV
ASM PART: A = 8-97212-189-1 		5-15729-023-0 01 1 -
79 SHIM; LEVER SETTING,GOV
(A) ASM PART: A = 8-97212-189-1 		1-15729-988-0 01 1 -
79 SHIM; LEVER SETTING,GOV
(B) ASM PART: A = 8-97212-189-1 		1-15779-232-0 01 1 -
82 NUT; CONT LEVER FIX,GOV
ASM PART: A = 8-97212-189-1 		1-15729-236-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(A), M8X45 ASM PART: A = 8-97212-189-1 		1-15779-244-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(A), M8X49 ASM PART: A = 8-97212-189-1 		1-15779-245-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(A), M8X53 ASM PART: A = 8-97212-189-1 		1-15779-246-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(B) ASM PART: A = 8-97212-189-1 		1-15779-247-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(C), M10X70 ASM PART: A = 8-97212-189-1 		1-15779-248-0 01 1 -
93 NUT; ADJ SCREW LK,INJ PUMP GOV
(A) ASM PART: A = 8-97212-189-1 		1-15729-756-0 01 1 -
93 NUT; ADJ SCREW LK,INJ PUMP GOV
(B) ASM PART: A = 8-97212-189-1 		1-15779-277-0 01 1 -
93 NUT; ADJ SCREW LK,INJ PUMP GOV
(C) ASM PART: A = 8-97212-189-1 		8-97201-134-0 01 1 -
96 PLUG; LEVER SHAFT,GOV
(B) ASM PART: A = 8-97212-189-1 		1-15779-293-0 02 1 -
96 PLUG; LEVER SHAFT,GOV
(A) ASM PART: A = 8-97212-189-1 		5-15729-076-0 02 1 -
96 PLUG; LEVER SHAFT,GOV
(C) ASM PART: A = 8-97212-189-1 		8-94171-148-0 03 1 -
99 PIN; TENSION LEVER,GOV
ASM PART: A = 8-97212-189-1 		8-97201-082-0 02 1 -
104 CAP; LOCK NUT,ADJ SCREW
ASM PART: A = 8-97212-189-1 		8-97085-022-0 02 1 -
155 JOINT; HOSE,HSG
ASM PART: A = 8-97212-189-1 		8-94171-178-0 01 1 -
158 COVER; GOV HSG
ASM PART: A = 8-97212-189-1 		8-97206-947-0 01 1 -
159 BOLT; COVER
(A) ASM PART: A = 8-97212-189-1 		1-15779-202-0 02 1 -
159 BOLT; COVER
(B), M6X20 ASM PART: A = 8-97212-189-1 		9-81325-187-0 01 1 -
160 GASKET; PLUG TO HSG
ID=12.2 ASM PART: A = 8-97212-189-1 		9-09571-412-0 01 1 -
161 PLUG; HSG
ASM PART: A = 8-97212-189-1 		8-97037-288-0 01 1 -
167 BOLT; PLATE
M6X16 ASM PART: A = 8-97212-189-1 		5-15729-071-0 02 1 -
180 PLATE; GOV COVER
ASM PART: A = 8-97212-189-1 		1-15779-532-0 01 1 -
188 STUD; COVER
(A) ASM PART: A = 8-97212-189-1 		8-97201-140-0 01 1 -
188 STUD; COVER
(B) ASM PART: A = 8-97212-189-1 		8-97212-809-0 01 1 -
189 ROD; PUSH,GOV
L=72.5 ASM PART: A = 8-97212-189-1 		1-15779-336-0 01 1 -
189 ROD; PUSH,GOV
L=73.0 ASM PART: A = 8-97212-189-1 		1-15779-337-0 01 1 -
189 ROD; PUSH,GOV
L=73.5 ASM PART: A = 8-97212-189-1 		1-15779-338-0 01 1 -
189 ROD; PUSH,GOV
L=74.0 ASM PART: A = 8-97212-189-1 		1-15779-339-0 01 1 -
189 ROD; PUSH,GOV
L=74.5 ASM PART: A = 8-97212-189-1 		1-15779-340-0 01 1 -
189 ROD; PUSH,GOV
L=75.0 ASM PART: A = 8-97212-189-1 		1-15779-341-0 01 1 -
189 ROD; PUSH,GOV
L=75.5 ASM PART: A = 8-97212-189-1 		1-15779-342-0 01 1 -
189 ROD; PUSH,GOV
L=76.0 ASM PART: A = 8-97212-189-1 		1-15779-343-0 01 1 -
189 ROD; PUSH,GOV
L=76.5 ASM PART: A = 8-97212-189-1 		1-15779-344-0 01 1 -
189 ROD; PUSH,GOV
L=77.0 ASM PART: A = 8-97212-189-1 		1-15779-345-0 01 1 -
189 ROD; PUSH,GOV
L=77.5 ASM PART: A = 8-97212-189-1 		1-15779-346-0 01 1 -
189 ROD; PUSH,GOV
L=78.0 ASM PART: A = 8-97212-189-1 		1-15779-347-0 01 1 -
189 ROD; PUSH,GOV
L=78.5 ASM PART: A = 8-97212-189-1 		1-15779-348-0 01 1 -
189 ROD; PUSH,GOV
L=79.0 ASM PART: A = 8-97212-189-1 		1-15779-349-0 01 1 -
189 ROD; PUSH,GOV
L=79.5 ASM PART: A = 8-97212-189-1 		1-15779-350-0 01 1 -
189 ROD; PUSH,GOV
L=80.0 ASM PART: A = 8-97212-189-1 		1-15779-351-0 01 1 -
189 ROD; PUSH,GOV
L=80.5 ASM PART: A = 8-97212-189-1 		1-15779-352-0 01 1 -
189 ROD; PUSH,GOV
L=81.0 ASM PART: A = 8-97212-189-1 		1-15779-353-0 01 1 -
189 ROD; PUSH,GOV
L=81.5 ASM PART: A = 8-97212-189-1 		1-15779-354-0 01 1 -
189 ROD; PUSH,GOV
L=82.0 ASM PART: A = 8-97212-189-1 		1-15779-355-0 01 1 -
189 ROD; PUSH,GOV
L=82.5 ASM PART: A = 8-97212-189-1 		1-15779-356-0 01 1 -
189 ROD; PUSH,GOV
L=83.0 ASM PART: A = 8-97212-189-1 		1-15779-426-0 01 1 -
189 ROD; PUSH,GOV
L=83.5 ASM PART: A = 8-97212-189-1 		1-15779-427-0 01 1 -
189 ROD; PUSH,GOV
L=84.0 ASM PART: A = 8-97212-189-1 		1-15779-428-0 01 1 -
189 ROD; PUSH,GOV
L=84.5 ASM PART: A = 8-97212-189-1 		1-15779-429-0 01 1 -
189 ROD; PUSH,GOV
L=85.0 ASM PART: A = 8-97212-189-1 		1-15779-430-0 01 1 -
189 ROD; PUSH,GOV
L=85.5 ASM PART: A = 8-97212-189-1 		1-15779-431-0 01 1 -
189 ROD; PUSH,GOV
L=86.0 ASM PART: A = 8-97212-189-1 		1-15779-432-0 01 1 -
189 ROD; PUSH,GOV
L=86.5 ASM PART: A = 8-97212-189-1 		1-15779-433-0 01 1 -
189 ROD; PUSH,GOV
L=87.0 ASM PART: A = 8-97212-189-1 		1-15779-434-0 01 1 -
189 ROD; PUSH,GOV
L=87.5 ASM PART: A = 8-97212-189-1 		1-15779-435-0 01 1 -
189 ROD; PUSH,GOV
L=88.0 ASM PART: A = 8-97212-189-1 		1-15779-436-0 01 1 -
189 ROD; PUSH,GOV
L=88.5 ASM PART: A = 8-97212-189-1 		1-15779-437-0 01 1 -
189 ROD; PUSH,GOV
L=89.0 ASM PART: A = 8-97212-189-1 		1-15779-438-0 01 1 -
189 ROD; PUSH,GOV
L=89.5 ASM PART: A = 8-97212-189-1 		1-15779-439-0 01 1 -
189 ROD; PUSH,GOV
L=90.0 ASM PART: A = 8-97212-189-1 		1-15779-440-0 01 1 -
198 BRACKET; COVER
ASM PART: A = 8-97212-189-1 		8-97201-138-0 01 1 -
209 DIAPHRAGM; GOV
ASM PART: A = 8-97212-189-1 		1-15713-006-0 01 1 -
211 NUT; LOCK,GOV
ASM PART: A = 8-97212-189-1 		9-88410-525-0 04 1 -
212 PLATE; GOV
ASM PART: A = 8-97212-189-1 		8-94122-719-0 01 1 -
215 BOLT; DIAPH
ASM PART: A = 8-97212-189-1 		8-97104-945-0 01 1 -
217 SHIM; GOV
T=0.5 ASM PART: A = 8-97212-189-1 		9-88410-122-0 01 1 -
218 NUT; DIAPH
(B) ASM PART: A = 8-97212-189-1 		8-97104-978-0 01 1 -
218 NUT; DIAPH
(A) ASM PART: A = 8-97212-189-1 		9-88410-525-0 01 1 -
221 WASHER; LK,DIAPH
ID=6.1 ASM PART: A = 8-97212-189-1 		9-09150-506-0 01 1 -
225 LEVER; GOV
(A) ASM PART: A = 8-97212-189-1 		8-97201-066-0 01 1 -
225 LEVER; GOV
(C) ASM PART: A = 8-97212-189-1 		8-97201-067-0 01 1 -
225 LEVER; GOV
(B) ASM PART: A = 8-97212-189-1 		8-97202-343-0 01 1 -
227 BOLT; GOV LEVER
ASM PART: A = 8-97212-189-1 		1-15719-005-0 02 1 -
233 SPRING; LEVER
ASM PART: A = 8-97212-189-1 		8-97201-077-0 01 1 -
237 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=2.00 ASM PART: A = 8-97212-189-1 		1-15729-891-0 AR 1 -
237 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=3.00 ASM PART: A = 8-97212-189-1 		1-15729-892-0 AR 1 -
237 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=4.00 ASM PART: A = 8-97212-189-1 		1-15729-893-0 AR 1 -
237 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.50 ASM PART: A = 8-97212-189-1 		5-15729-286-0 AR 1 -
237 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=1.50 ASM PART: A = 8-97212-189-1 		5-15729-287-0 AR 1 -
237 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.20 ASM PART: A = 8-97212-189-1 		9-81325-088-0 AR 1 -
237 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.30 ASM PART: A = 8-97212-189-1 		9-81325-551-0 AR 1 -
237 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.40 ASM PART: A = 8-97212-189-1 		9-81325-552-0 AR 1 -
237 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=1.00 ASM PART: A = 8-97212-189-1 		9-81325-553-0 AR 1 -
239 SCREW; GOV
(A) ASM PART: A = 8-97212-189-1 		1-15779-239-0 01 1 -
239 SCREW; GOV
(B) ASM PART: A = 8-97212-189-1 		8-97037-287-0 01 1 -
250 NUT; GUIDE SCREW,GOV SHAFT
ASM PART: A = 8-97212-189-1 		1-15779-287-0 01 1 -
252 SCREW; GUIDE
(A) ASM PART: A = 8-97212-189-1 		1-15779-238-0 01 1 -
252 SCREW; GUIDE
(B) ASM PART: A = 8-97212-189-1 		8-97201-122-0 01 1 -
257 RING; SNAP,GOV
(A) ASM PART: A = 8-97212-189-1 		5-15729-023-0 01 1 -
257 RING; SNAP,GOV
(B) ASM PART: A = 8-97212-189-1 		8-94244-599-0 02 1 -
257 RING; SNAP,GOV
(C), ID=4 ASM PART: A = 8-97212-189-1 		9-09185-404-0 02 1 -
268 SPRING; ROD INNER,TORQUE CAM,GOV
(A) ASM PART: A = 8-97212-189-1 		1-15723-445-0 02 1 -
268 SPRING; ROD INNER,TORQUE CAM,GOV
(B) ASM PART: A = 8-97212-189-1 		1-15723-446-0 01 1 -
268 SPRING; ROD INNER,TORQUE CAM,GOV
(C) ASM PART: A = 8-97212-189-1 		8-97201-074-0 01 1 -
269 SPRING; ROD OUTER,TORQUE CAM,GOV
(A) ASM PART: A = 8-97212-189-1 		1-15723-459-0 01 1 -
269 SPRING; ROD OUTER,TORQUE CAM,GOV
(B) ASM PART: A = 8-97212-189-1 		8-97201-073-0 01 1 -
270 NUT; TORQUE ROD LK,GOV
ASM PART: A = 8-97212-189-1 		1-15779-272-0 02 1 -
271 ROD; TORQUE CAM,GOV
ASM PART: A = 8-97212-189-1 		1-15779-235-1 02 1 -
272 SCREW; ADJ,TORQUE CAM ROD,GOV
ASM PART: A = 8-97212-189-1 		1-15779-289-0 02 1 -
276 LEVER ASM; LOAD CONT,GOV
ASM PART: A = 8-97212-189-1 		1-15725-901-0 01 1 -
284 PLATE; LEVER
ASM PART: A = 8-97212-189-1 		8-97201-135-0 01 1 -
286 LEVER; GOV
ASM PART: A = 8-97212-189-1 		1-15725-782-0 01 1 -
287 LEVER; GOV
ASM PART: A = 8-97212-189-1 		1-15725-781-0 01 1 -
295 RING; SNAP
(A) ASM PART: A = 8-97212-189-1 		1-15779-273-0 02 1 -
295 RING; SNAP
(B) ASM PART: A = 8-97212-189-1 		5-15729-023-0 01 1 -
296 SEAL; OIL,CONT SHAFT,GOV
ASM PART: A = 8-97212-189-1 		8-97024-879-0 01 1 -
301 RING; SNAP
ID=4 ASM PART: A = 8-97212-189-1 		9-09185-404-0 01 1 -
302 PLATE; CAM,GOV
ASM PART: A = 8-97212-189-1 		8-97367-922-0 01 1 -
303 RING; SNAP,CAM PLATE,GOV
ASM PART: A = 8-97212-189-1 		5-15729-023-0 01 1 -
304 RING; SNAP,LINK TO CAM PLATE,GOV
ID=4 ASM PART: A = 8-97212-189-1 		9-09185-404-0 01 1 -
352 NUT; CAP
CAP NUT ASM PART: A = 8-97212-189-1 		1-15729-093-0 01 1 -
357 BOLT; PLATE,GOV
ASM PART: A = 8-97212-189-1 		1-15719-005-0 02 1 -
363 BOLT; LEVER FIX
(A) ASM PART: A = 8-97212-189-1 		1-15719-005-0 02 1 -
363 BOLT; LEVER FIX
(B) ASM PART: A = 8-97212-189-1 		8-94247-029-0 02 1 -
411 BOLT; BRKT
(A) ASM PART: A = 8-97212-189-1 		1-15719-005-0 02 1 -
411 BOLT; BRKT
(B), M10X25 ASM PART: A = 8-97212-189-1 		9-02041-025-0 01 1 -
411 BOLT; BRKT
(C), M6X18 ASM PART: A = 8-97212-189-1 		9-81325-186-0 02 1 -
413 GASKET; GOV COVER
ASM PART: A = 8-97212-189-1 		1-15779-129-0 02 1 -
429 GASKET; CAP NUT
ASM PART: A = 8-97212-189-1 		5-15729-099-0 02 1 -
435 BOLT; EYE,GOV COVER
ASM PART: A = 8-97212-189-1 		1-15729-325-0 01 1 -
436 GASKET; EYE BOLT
ASM PART: A = 8-97212-189-1 		1-15639-009-0 02 1 -
437 SPRING; DIAPHRAGM
ASM PART: A = 8-97212-189-1 		1-15723-538-0 01 1 -
438 DISK; DIAPHRAGM
ASM PART: A = 8-97212-189-1 		1-15779-333-0 01 1 -
440 RING; SNAP,LEVER
ASM PART: A = 8-97212-189-1 		1-15729-989-0 01 1 -
456 SPRING; LEVER,GOV
ASM PART: A = 8-97212-189-1 		1-15723-551-0 01 1 -
465 LINK; GOVERNOR
(A) ASM PART: A = 8-97212-189-1 		8-97201-146-0 01 1 -
465 LINK; GOVERNOR
(B) ASM PART: A = 8-97212-189-1 		8-97201-154-0 01 1 -
467 CAM; TIMING,GOVERNOR
ASM PART: A = 8-97212-189-1 		8-97202-357-0 01 1 -

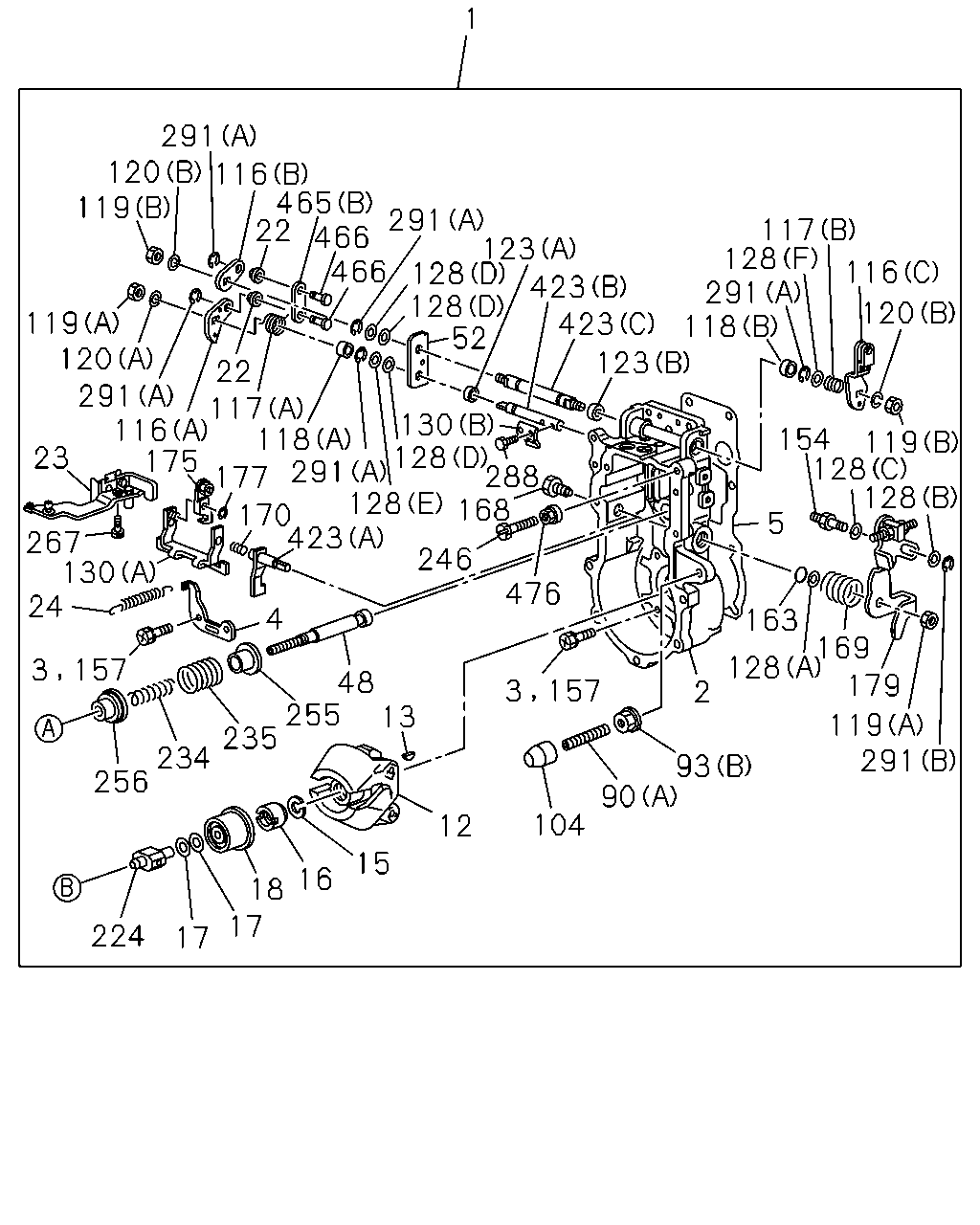

çizim 100919
1 291 120 119 116 465 22 466 466 291 123 128 128 119 52 120 22 291 117 116 130 118 175 128 291 288 128 170 168 423 117 128 291 118 123 116 423 423 120 154 119 128 128 23 177 5 267 130 24 246 476 4 163 169 128 3 157 48 255 13 235 234 256 179 3 17 2 119 291 93 90 104 12 15 16 18 17 224 17
BalonParca AdiParca NoAdetTipApplied Date
1 GOVERNOR ASM; INJ PUMP
ASM PART: A = 8-97212-189-1 		8-97212-751-1 01 1 -
2 HOUSING; GOV,INJ PUMP
ASM PART: A = 8-97212-189-1 		8-97201-060-0 01 1 -
3 BOLT; GOV HSG,INJ PUMP
ASM PART: A = 8-97212-189-1 		1-15779-226-0 08 1 -
4 PLATE; START SPRING,GOV
ASM PART: A = 8-97212-189-1 		1-15779-524-0 01 1 -
5 GASKET; GOV TO INJ PUMP HSG
ASM PART: A = 8-97212-189-1 		8-97201-136-0 01 1 -
12 FLYWEIGHT ASM; GOV
ASM PART: A = 8-97212-189-1 		8-97202-344-0 01 1 -
13 KEY; FLYWEIGHT,GOV
13MM ASM PART: A = 8-97212-189-1 		9-81325-030-0 01 1 -
15 WASHER; LK,FLYWEIGHT FIX,GOV
ASM PART: A = 8-97212-189-1 		5-15729-034-0 01 1 -
16 NUT; FLYWEIGHT FIX,GOV
ASM PART: A = 8-97212-189-1 		9-81325-086-0 01 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=2.00 ASM PART: A = 8-97212-189-1 		1-15729-891-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=3.00 ASM PART: A = 8-97212-189-1 		1-15729-892-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=4.00 ASM PART: A = 8-97212-189-1 		1-15729-893-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=0.50 ASM PART: A = 8-97212-189-1 		5-15729-286-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.50 ASM PART: A = 8-97212-189-1 		5-15729-287-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=0.20 ASM PART: A = 8-97212-189-1 		9-81325-088-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=0.30 ASM PART: A = 8-97212-189-1 		9-81325-551-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=0.40 ASM PART: A = 8-97212-189-1 		9-81325-552-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.00 ASM PART: A = 8-97212-189-1 		9-81325-553-0 AR 1 -
18 SLEEVE; GOV
ASM PART: A = 8-97212-189-1 		5-15729-372-0 01 1 -
22 COLLAR; LEVER,GOV
ASM PART: A = 8-97212-189-1 		8-97201-157-0 02 1 -
23 LINK; LEVER TO CONT RACK,GOV
ASM PART: A = 8-97212-189-1 		1-15725-900-1 01 1 -
24 SPRING; START,GOV,INJ PUMP
ASM PART: A = 8-97212-189-1 		1-15723-450-0 01 1 -
48 SHAFT; GOV,INJ PUMP
ASM PART: A = 8-97212-189-1 		1-15779-240-0 01 1 -
52 WASHER; CONT SHAFT,GOV
ASM PART: A = 8-97212-189-1 		8-97201-071-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(A), M8X45 ASM PART: A = 8-97212-189-1 		1-15779-244-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(A), M8X49 ASM PART: A = 8-97212-189-1 		1-15779-245-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(A), M8X53 ASM PART: A = 8-97212-189-1 		1-15779-246-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(B) ASM PART: A = 8-97212-189-1 		1-15779-247-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(C), M10X70 ASM PART: A = 8-97212-189-1 		1-15779-248-0 01 1 -
93 NUT; ADJ SCREW LK,INJ PUMP GOV
(A) ASM PART: A = 8-97212-189-1 		1-15729-756-0 01 1 -
93 NUT; ADJ SCREW LK,INJ PUMP GOV
(B) ASM PART: A = 8-97212-189-1 		1-15779-277-0 01 1 -
93 NUT; ADJ SCREW LK,INJ PUMP GOV
(C) ASM PART: A = 8-97212-189-1 		8-97201-134-0 01 1 -
104 CAP; LOCK NUT,ADJ SCREW
ASM PART: A = 8-97212-189-1 		8-97085-022-0 02 1 -
116 LEVER; ENG STOP,GOV
(C) ASM PART: A = 8-97212-189-1 		8-97201-064-0 01 1 -
116 LEVER; ENG STOP,GOV
(A) ASM PART: A = 8-97212-189-1 		8-97201-068-0 01 1 -
116 LEVER; ENG STOP,GOV
(B) ASM PART: A = 8-97212-189-1 		8-97201-069-0 01 1 -
117 SPRING; STOP LEVER,GOV
(A) ASM PART: A = 8-97212-189-1 		8-97201-072-0 01 1 -
117 SPRING; STOP LEVER,GOV
(B) ASM PART: A = 8-97212-189-1 		8-97201-078-1 01 1 -
118 COLLAR; CONT SHAFT,GOV
(A) ASM PART: A = 8-97212-189-1 		1-15779-389-0 01 1 -
118 COLLAR; CONT SHAFT,GOV
(B) ASM PART: A = 8-97212-189-1 		8-97201-155-1 01 1 -
119 NUT; ENG STOP LEVER,GOV
(B) ASM PART: A = 8-97212-189-1 		1-15729-006-0 02 1 -
119 NUT; ENG STOP LEVER,GOV
(A) ASM PART: A = 8-97212-189-1 		1-15729-236-0 02 1 -
120 WASHER; LK,SPD ADJ LEVER,GOV
(A) ASM PART: A = 8-97212-189-1 		1-83579-492-0 01 1 -
120 WASHER; LK,SPD ADJ LEVER,GOV
(B), ID=6.1 ASM PART: A = 8-97212-189-1 		9-09150-506-0 02 1 -
123 SEAL; OIL,CONT SHAFT,GOV
(A) ASM PART: A = 8-97212-189-1 		1-15779-282-0 01 1 -
123 SEAL; OIL,CONT SHAFT,GOV
(B) ASM PART: A = 8-97212-189-1 		5-15619-024-0 02 1 -
128 SHIM; CONT SHAFT,GOV
(A), T=0.60 ASM PART: A = 8-97212-189-1 		1-15729-897-0 AR 1 -
128 SHIM; CONT SHAFT,GOV
(A), T=0.80 ASM PART: A = 8-97212-189-1 		1-15729-898-0 AR 1 -
128 SHIM; CONT SHAFT,GOV
(A), T=0.90 ASM PART: A = 8-97212-189-1 		1-15729-899-0 AR 1 -
128 SHIM; CONT SHAFT,GOV
(B), T=0.30 ASM PART: A = 8-97212-189-1 		1-15749-097-0 01 1 -
128 SHIM; CONT SHAFT,GOV
(C), T=0.50 ASM PART: A = 8-97212-189-1 		1-15749-099-0 01 1 -
128 SHIM; CONT SHAFT,GOV
(D), T=0.50 ASM PART: A = 8-97212-189-1 		1-15779-230-0 AR 1 -
128 SHIM; CONT SHAFT,GOV
(D), T=0.20 ASM PART: A = 8-97212-189-1 		1-15779-231-0 AR 1 -
128 SHIM; CONT SHAFT,GOV
(E) ASM PART: A = 8-97212-189-1 		1-15779-388-0 01 1 -
128 SHIM; CONT SHAFT,GOV
(F) ASM PART: A = 8-97212-189-1 		8-97201-152-0 01 1 -
128 SHIM; CONT SHAFT,GOV
(A), T=0.50 ASM PART: A = 8-97212-189-1 		9-81325-556-0 AR 1 -
128 SHIM; CONT SHAFT,GOV
(A), T=0.30 ASM PART: A = 8-97212-189-1 		9-81325-557-0 AR 1 -
128 SHIM; CONT SHAFT,GOV
(A), T=0.40 ASM PART: A = 8-97212-189-1 		9-81325-558-0 AR 1 -
128 SHIM; CONT SHAFT,GOV
(A), T=0.25 ASM PART: A = 8-97212-189-1 		9-81325-559-0 AR 1 -
128 SHIM; CONT SHAFT,GOV
(A), T=0.35 ASM PART: A = 8-97212-189-1 		9-81325-560-0 AR 1 -
128 SHIM; CONT SHAFT,GOV
(A), T=0.20 ASM PART: A = 8-97212-189-1 		9-88410-421-0 AR 1 -
130 LEVER; CONT,GOV
(A) ASM PART: A = 8-97212-189-1 		1-15725-895-0 01 1 -
130 LEVER; CONT,GOV
(B) ASM PART: A = 8-97212-189-1 		8-97201-063-0 01 1 -
154 BOLT; GOV HSG
ASM PART: A = 8-97212-189-1 		8-97201-147-0 01 1 -
157 BOLT; START SPRING PLATE,GOV
ASM PART: A = 8-97212-189-1 		1-15779-226-0 02 1 -
163 GASKET; CONT SHAFT,GOV
ASM PART: A = 8-97212-189-1 		1-15779-227-0 01 1 -
168 PLUG; CONT SHAFT,GOV HSG
ASM PART: A = 8-97212-189-1 		1-15779-285-0 01 1 -
169 SPRING; LEVER SET,GOV
ASM PART: A = 8-97212-189-1 		1-15723-548-0 01 1 -
170 SPRING; LEVER TO LEVER,GOV
ASM PART: A = 8-97212-189-1 		5-15723-033-0 01 1 -
175 LEVER; GOV,INJ PUMP
ASM PART: A = 8-97212-189-1 		1-15725-893-0 01 1 -
177 RING; SNAP,GOV LEVER,INJ PUMP
ASM PART: A = 8-97212-189-1 		8-94324-735-0 01 1 -
179 LEVER; SPD ADJ,GOV
ASM PART: A = 8-97212-189-1 		8-97212-766-0 01 1 -
224 SHIFTER; TENSION LEVER,GOV
ASM PART: A = 8-97212-189-1 		1-15779-334-0 01 1 -
234 SPRING; INNER,GOV,INJ PUMP
ASM PART: A = 8-97212-189-1 		1-15723-500-0 01 1 -
235 SPRING; OUTER,GOV,INJ PUMP
ASM PART: A = 8-97212-189-1 		1-15723-517-0 01 1 -
246 BOLT; GOV
M6X42 ASM PART: A = 8-97212-189-1 		1-15779-104-0 01 1 -
255 SEAT; GOV SPRING,INJ PUMP
ASM PART: A = 8-97212-189-1 		1-15779-241-0 01 1 -
256 SEAT; GOV SPRING
ASM PART: A = 8-97212-189-1 		1-15779-242-0 01 1 -
267 BOLT; CONN,CONT RACK,GOV
ASM PART: A = 8-97212-189-1 		1-15749-747-0 01 1 -
288 BOLT; LEVER
ASM PART: A = 8-97212-189-1 		1-15729-197-0 02 1 -
291 RING; SNAP,CONT SHAFT,GOV
(A) ASM PART: A = 8-97212-189-1 		1-15779-196-0 05 1 -
291 RING; SNAP,CONT SHAFT,GOV
(B) ASM PART: A = 8-97212-189-1 		8-94244-599-0 01 1 -
423 SHAFT; CONT,GOV HSG,INJ PUMP
(A) ASM PART: A = 8-97212-189-1 		1-15779-525-0 01 1 -
423 SHAFT; CONT,GOV HSG,INJ PUMP
(B) ASM PART: A = 8-97212-189-1 		8-97201-070-0 01 1 -
423 SHAFT; CONT,GOV HSG,INJ PUMP
(C) ASM PART: A = 8-97212-189-1 		8-97201-151-1 01 1 -
465 LINK; GOVERNOR
(A) ASM PART: A = 8-97212-189-1 		8-97201-146-0 01 1 -
465 LINK; GOVERNOR
(B) ASM PART: A = 8-97212-189-1 		8-97201-154-0 01 1 -
466 PIN; LINK
ASM PART: A = 8-97212-189-1 		8-97201-156-0 02 1 -
476 NUT; HSG,GOVERNOR
ASM PART: A = 8-97212-189-1 		8-97201-153-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
