0-80 — INJECTION PUMP (#42923) — 144 parça

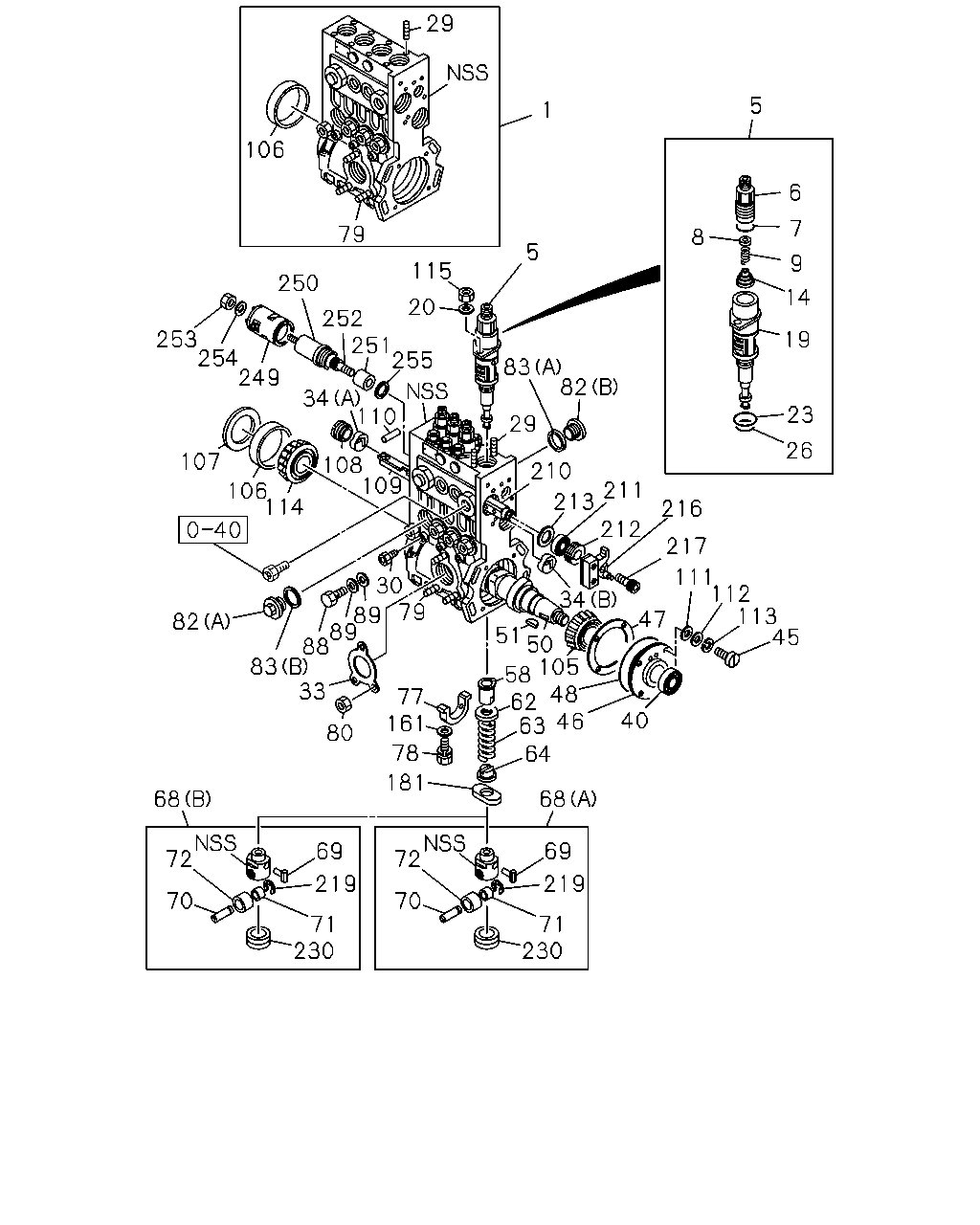

çizim 100917
29 5 1 106 6 7 79 8 5 9 115 250 14 20 252 251 255 253 254 249 19 83 82 110 34 23 29 26 107 108 109 210 211 213 212 106 114 216 217 34 111 112 113 45 30 79 89 89 88 83 33 47 82 51 50 105 48 46 58 62 63 77 161 40 80 78 64 181 68 68 72 72 69 69 219 219 70 70 71 230 71 230
BalonParca AdiParca NoAdetTipApplied Date
1 HOUSING; PUMP,FUEL INJ
ASM PART: A = 8-97212-189-1 		8-97201-040-0 01 1 -
5 PLUNGER COMPL; INJ PUMP
ASM PART: A = 8-97212-189-1 		8-97202-331-0 04 1 -
6 HOLDER; DELIVERY VLV,INJ PUMP
ASM PART: A = 8-97212-189-1 		1-15644-018-0 04 1 -
7 GASKET; HOLDER,DELIVERY VLV
ASM PART: A = 8-97212-189-1 		1-09623-052-0 04 1 -
8 STOPPER; DELIVERY VLV,INJ PUMP
ASM PART: A = 8-97212-189-1 		1-15639-104-0 04 1 -
9 SPRING; DELIVERY VLV
ASM PART: A = 8-97212-189-1 		8-97202-333-0 04 1 -
14 VALVE; DELIVERY,INJ PUMP
ASM PART: A = 8-97212-189-1 		1-15641-043-0 04 1 -
19 PLUNGER ASM; INJ PUMP
ASM PART: A = 8-97212-189-1 		8-97202-332-0 04 1 -
20 WASHER; PLUNGER BARREL
ASM PART: A = 8-97212-189-1 		1-15639-020-0 08 1 -
23 GASKET; PLUNGER,BARREL SIDE
ASM PART: A = 8-97212-189-1 		1-15629-131-0 04 1 -
26 GASKET; PLUNGER UPR
ASM PART: A = 8-97212-189-1 		1-15629-132-0 04 1 -
29 STUD; PLUNGER FIX,PUMP HSG
ASM PART: A = 8-97212-189-1 		1-15619-426-0 08 1 -
30 PLUG; SCREW,INJ PUMP HSG
ASM PART: A = 8-97212-189-1 		9-81215-130-0 04 1 -
33 GASKET; FUEL FEED PUMP,INJ PUMP
ASM PART: A = 8-97212-189-1 		1-15619-320-0 01 1 -
34 BUSHING; CONT RACK,INJ PUMP
(A) ASM PART: A = 8-97212-189-1 		1-15619-429-0 01 1 -
34 BUSHING; CONT RACK,INJ PUMP
(B) ASM PART: A = 8-97212-189-1 		9-81215-123-0 01 1 -
40 SEAL; OIL,CM/SHF FRT,INJ PUMP
ASM PART: A = 8-97212-189-1 		1-15619-084-0 01 1 -
45 BOLT; FRT COVER TO HSG
ASM PART: A = 8-97212-189-1 		8-97085-000-0 04 1 -
46 COVER; FRT,PUMP HSG
ASM PART: A = 8-97212-189-1 		8-97201-049-0 01 1 -
47 SHIM; FRT COVER,INJ PUMP HSG
T=0.10 ASM PART: A = 8-97212-189-1 		1-15639-166-0 AR 1 -
47 SHIM; FRT COVER,INJ PUMP HSG
T=0.12 ASM PART: A = 8-97212-189-1 		1-15639-167-0 AR 1 -
47 SHIM; FRT COVER,INJ PUMP HSG
T=0.14 ASM PART: A = 8-97212-189-1 		1-15639-168-0 AR 1 -
47 SHIM; FRT COVER,INJ PUMP HSG
T=0.16 ASM PART: A = 8-97212-189-1 		1-15639-169-0 AR 1 -
47 SHIM; FRT COVER,INJ PUMP HSG
T=0.18 ASM PART: A = 8-97212-189-1 		1-15639-170-0 AR 1 -
47 SHIM; FRT COVER,INJ PUMP HSG
T=0.30 ASM PART: A = 8-97212-189-1 		1-15639-171-0 AR 1 -
47 SHIM; FRT COVER,INJ PUMP HSG
T=0.50 ASM PART: A = 8-97212-189-1 		1-15639-172-0 AR 1 -
48 GASKET; FRT COVER TO HSG
ASM PART: A = 8-97212-189-1 		9-81215-128-0 01 1 -
50 CAMSHAFT; INJ PUMP
ASM PART: A = 8-97212-189-1 		8-97331-761-0 01 1 -
51 KEY; DRIVE GEAR,INJ PUMP
ASM PART: A = 8-97212-189-1 		8-97331-762-0 01 1 -
58 SLEEVE; CONT,INJ PUMP
ASM PART: A = 8-97212-189-1 		1-15635-006-0 04 1 -
62 SEAT; PLUNGER SPRING,INJ PUMP
ASM PART: A = 8-97212-189-1 		1-15634-020-0 04 1 -
63 SPRING; PLUNGER,INJ PUMP
ASM PART: A = 8-97212-189-1 		1-15634-022-0 04 1 -
64 SEAT; PLUNGER SPRING LWR,INJ PUMP
ASM PART: A = 8-97212-189-1 		1-15634-021-0 04 1 -
68 TAPPET; CM/SHF,INJ PUMP
(A) PLUNGER NO.1,4 ASM PART: A = 8-97212-189-1 		1-15622-014-0 02 1 -
68 TAPPET; CM/SHF,INJ PUMP
(B) PLUNGER NO.2,3 ASM PART: A = 8-97212-189-1 		1-15622-015-0 02 1 -
69 GUIDE; TAPPET,INJ PUMP
ASM PART: A = 8-97212-189-1 		1-15629-134-0 04 1 -
70 PIN; TAPPET ROLLER,INJ PUMP
ASM PART: A = 8-97212-189-1 		1-15619-431-0 04 1 -
71 BUSHING; TAPPET ROLLER,INJ PUMP
ASM PART: A = 8-97212-189-1 		1-15629-133-0 04 1 -
72 ROLLER; TAPPET,INJ PUMP
ASM PART: A = 8-97212-189-1 		1-15619-430-0 04 1 -
77 BEARING; CM/SHF CENTER,INJ PUMP
ASM PART: A = 8-97212-189-1 		1-15619-433-0 02 1 -
78 BOLT; CENTER BRG,INJ PUMP
ASM PART: A = 8-97212-189-1 		1-09054-030-0 04 1 -
79 STUD; FUEL FEED PUMP TO HSG
ASM PART: A = 8-97212-189-1 		9-81215-115-0 03 1 -
80 NUT; FUEL FEED PUMP FIX
ASM PART: A = 8-97212-189-1 		8-94171-110-0 03 1 -
82 PLUG; HSG,INJ PUMP
(A) ASM PART: A = 8-97212-189-1 		1-15619-436-0 04 1 -
82 PLUG; HSG,INJ PUMP
(B) ASM PART: A = 8-97212-189-1 		1-15619-437-0 05 1 -
83 GASKET; HSG PLUG
(A) ASM PART: A = 8-97212-189-1 		1-15619-102-0 05 1 -
83 GASKET; HSG PLUG
(B) ASM PART: A = 8-97212-189-1 		5-15729-021-0 04 1 -
88 BOLT; EYE,OIL FEED,INJ PUMP
ASM PART: A = 8-97212-189-1 		1-15619-092-0 01 1 -
89 GASKET; OIL FEED BOLT,INJ PUMP
ASM PART: A = 8-97212-189-1 		1-15639-009-0 02 1 -
105 BEARING; CM/SHF RR,INJ PUMP
ASM PART: A = 8-97212-189-1 		9-81225-068-0 01 1 -
106 RING; HSG,INJ PUMP
ASM PART: A = 8-97212-189-1 		9-81225-064-0 01 1 -
107 SHIM; RR BEARING,CM/SHF
T=0.60 ASM PART: A = 8-97212-189-1 		1-15639-019-0 AR 1 -
107 SHIM; RR BEARING,CM/SHF
T=1.50 ASM PART: A = 8-97212-189-1 		9-81215-176-0 AR 1 -
107 SHIM; RR BEARING,CM/SHF
T=1.80 ASM PART: A = 8-97212-189-1 		9-81215-177-0 AR 1 -
107 SHIM; RR BEARING,CM/SHF
T=2.00 ASM PART: A = 8-97212-189-1 		9-81215-178-0 AR 1 -
107 SHIM; RR BEARING,CM/SHF
T=1.20 ASM PART: A = 8-97212-189-1 		9-88410-441-0 AR 1 -
108 BUSHING; CONT RACK END,INJ PUMP
ASM PART: A = 8-97212-189-1 		9-81215-125-0 01 1 -
109 RACK; CONT,INJ PUMP
ASM PART: A = 8-97212-189-1 		8-97331-759-0 01 1 -
110 PIN; CONT RACK,INJ PUMP
ASM PART: A = 8-97212-189-1 		9-88410-440-0 01 1 -
111 GASKET; FRT COVER FIX
ASM PART: A = 8-97212-189-1 		1-15629-024-0 04 1 -
112 SHIM; FRT COVER FIX
ASM PART: A = 8-97212-189-1 		9-81315-216-0 04 1 -
113 WASHER; LK,FRT COVER TO HSG
ASM PART: A = 8-97212-189-1 		8-94128-928-0 04 1 -
114 BEARING; CM/SHF FRT,INJ PUMP
ASM PART: A = 8-97212-189-1 		9-81225-068-0 01 1 -
115 NUT; PLUNGER FIX,INJ PUMP
ASM PART: A = 8-97212-189-1 		1-15619-337-0 08 1 -
161 GASKET; SCREW,CENTER BRG
ASM PART: A = 8-97212-189-1 		5-15729-099-0 04 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.500 ASM PART: A = 8-97212-189-1 		1-15639-106-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.525 ASM PART: A = 8-97212-189-1 		1-15639-107-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.550 ASM PART: A = 8-97212-189-1 		1-15639-108-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.575 ASM PART: A = 8-97212-189-1 		1-15639-109-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.600 ASM PART: A = 8-97212-189-1 		1-15639-110-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.625 ASM PART: A = 8-97212-189-1 		1-15639-111-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.650 ASM PART: A = 8-97212-189-1 		1-15639-112-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.675 ASM PART: A = 8-97212-189-1 		1-15639-113-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.700 ASM PART: A = 8-97212-189-1 		1-15639-114-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.725 ASM PART: A = 8-97212-189-1 		1-15639-115-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.750 ASM PART: A = 8-97212-189-1 		1-15639-116-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.775 ASM PART: A = 8-97212-189-1 		1-15639-117-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.800 ASM PART: A = 8-97212-189-1 		1-15639-118-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.825 ASM PART: A = 8-97212-189-1 		1-15639-119-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.850 ASM PART: A = 8-97212-189-1 		1-15639-120-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.875 ASM PART: A = 8-97212-189-1 		1-15639-121-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.900 ASM PART: A = 8-97212-189-1 		1-15639-122-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.925 ASM PART: A = 8-97212-189-1 		1-15639-123-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.950 ASM PART: A = 8-97212-189-1 		1-15639-124-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.975 ASM PART: A = 8-97212-189-1 		1-15639-125-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.000 ASM PART: A = 8-97212-189-1 		1-15639-126-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.025 ASM PART: A = 8-97212-189-1 		1-15639-127-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.050 ASM PART: A = 8-97212-189-1 		1-15639-128-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.075 ASM PART: A = 8-97212-189-1 		1-15639-129-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.100 ASM PART: A = 8-97212-189-1 		1-15639-130-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.125 ASM PART: A = 8-97212-189-1 		1-15639-131-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.150 ASM PART: A = 8-97212-189-1 		1-15639-132-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.175 ASM PART: A = 8-97212-189-1 		1-15639-133-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.200 ASM PART: A = 8-97212-189-1 		1-15639-134-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.225 ASM PART: A = 8-97212-189-1 		1-15639-135-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.250 ASM PART: A = 8-97212-189-1 		1-15639-136-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.275 ASM PART: A = 8-97212-189-1 		1-15639-137-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.300 ASM PART: A = 8-97212-189-1 		1-15639-138-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.325 ASM PART: A = 8-97212-189-1 		1-15639-139-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.350 ASM PART: A = 8-97212-189-1 		1-15639-140-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.375 ASM PART: A = 8-97212-189-1 		1-15639-141-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.400 ASM PART: A = 8-97212-189-1 		1-15639-142-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.425 ASM PART: A = 8-97212-189-1 		1-15639-143-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.450 ASM PART: A = 8-97212-189-1 		1-15639-144-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.475 ASM PART: A = 8-97212-189-1 		1-15639-145-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.500 ASM PART: A = 8-97212-189-1 		1-15639-146-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.525 ASM PART: A = 8-97212-189-1 		1-15639-147-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.550 ASM PART: A = 8-97212-189-1 		1-15639-148-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.575 ASM PART: A = 8-97212-189-1 		1-15639-149-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.600 ASM PART: A = 8-97212-189-1 		1-15639-150-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.625 ASM PART: A = 8-97212-189-1 		1-15639-151-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.650 ASM PART: A = 8-97212-189-1 		1-15639-152-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.675 ASM PART: A = 8-97212-189-1 		1-15639-153-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.700 ASM PART: A = 8-97212-189-1 		1-15639-154-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.725 ASM PART: A = 8-97212-189-1 		1-15639-155-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.750 ASM PART: A = 8-97212-189-1 		1-15639-156-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.775 ASM PART: A = 8-97212-189-1 		1-15639-157-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.800 ASM PART: A = 8-97212-189-1 		1-15639-158-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.825 ASM PART: A = 8-97212-189-1 		1-15639-159-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.850 ASM PART: A = 8-97212-189-1 		1-15639-160-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.875 ASM PART: A = 8-97212-189-1 		1-15639-161-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.900 ASM PART: A = 8-97212-189-1 		1-15639-162-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.925 ASM PART: A = 8-97212-189-1 		1-15639-163-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.950 ASM PART: A = 8-97212-189-1 		1-15639-164-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.975 ASM PART: A = 8-97212-189-1 		1-15639-165-0 AR 1 -
210 ROD; CONT
ASM PART: A = 8-97212-189-1 		8-97201-044-0 01 1 -
211 BEARING; CONT ROD
ASM PART: A = 8-97212-189-1 		1-15629-098-0 01 1 -
212 BUSHING; CONT ROD
ASM PART: A = 8-97212-189-1 		1-15619-330-0 01 1 -
213 WASHER; CONT ROD
ASM PART: A = 8-97212-189-1 		1-15619-336-0 01 1 -
216 CONNECTOR; CONT ROD
ASM PART: A = 8-97212-189-1 		8-97201-045-1 01 1 -
217 BOLT; CONT ROD
ASM PART: A = 8-97212-189-1 		1-15619-335-0 01 1 -
219 RING; SNAP,ROLLER
ASM PART: A = 8-97212-189-1 		1-15619-432-0 04 1 -
230 PLUG; TAPPET
ASM PART: A = 8-97212-189-1 		1-15619-435-0 04 1 -
249 YOKE ASM; INJ PUMP
STAMP 2 ASM PART: A = 8-97212-189-1 		8-97202-337-0 01 1 -
249 YOKE ASM; INJ PUMP
STAMP 0 ASM PART: A = 8-97212-189-1 		8-97202-338-0 01 1 -
249 YOKE ASM; INJ PUMP
STAMP 1 ASM PART: A = 8-97212-189-1 		8-97202-339-0 01 1 -
249 YOKE ASM; INJ PUMP
STAMP 3 ASM PART: A = 8-97212-189-1 		8-97202-340-0 01 1 -
249 YOKE ASM; INJ PUMP
STAMP 4 ASM PART: A = 8-97212-189-1 		8-97202-341-0 01 1 -
250 SHAFT; YOKE,INJ PUMP
ASM PART: A = 8-97212-189-1 		8-97201-054-0 01 1 -
251 YOKE; SHAFT
ASM PART: A = 8-97212-189-1 		8-97202-336-0 01 1 -
252 BOLT; YOKE
ASM PART: A = 8-97212-189-1 		8-97201-053-0 01 1 -
253 NUT; YOKE
ASM PART: A = 8-97212-189-1 		9-88410-525-0 01 1 -
254 WASHER; YOKE
ID=6.4 ASM PART: A = 8-97212-189-1 		9-09160-506-0 01 1 -
255 GASKET; YOKE
ASM PART: A = 8-97212-189-1 		8-97201-051-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
