0-66 — GENERATOR (#42922) — 110 parça

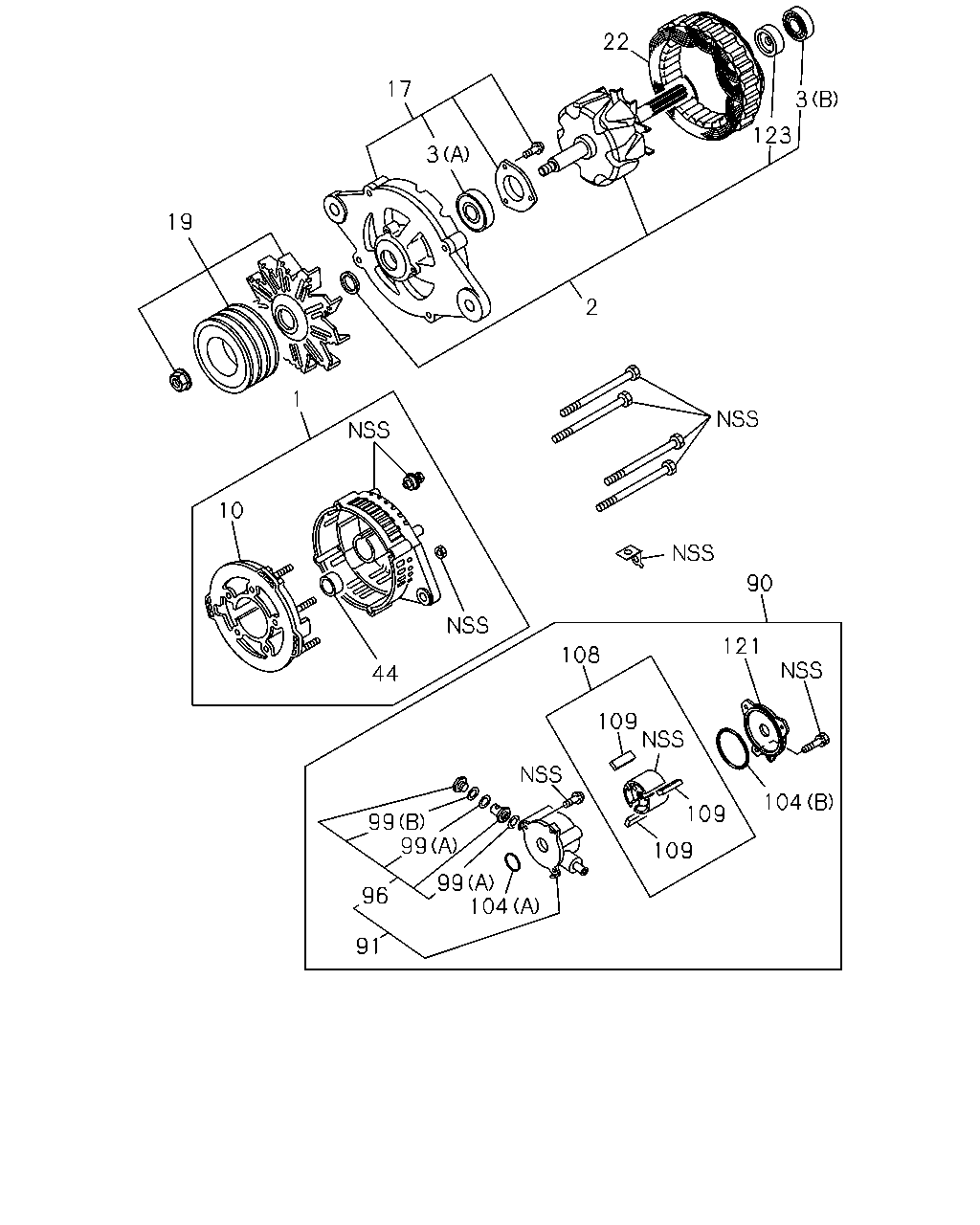

22 17 3 123 3 19 2 1 10 90 121 108 44 109 104 109 99 99 109 99 104 96 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: C = 8-97351-574-1	8-97249-332-0	01	1	-1208
1	COVER ASM; RR,GEN ASM PART: B = 8-97351-572-1	8-97253-370-0	01	1	-1208
1	COVER ASM; RR,GEN ASM PART: A = 8-97250-258-2	8-97264-867-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 8-97351-572-1	8-98230-320-0	01	1	1209-
1	COVER ASM; RR,GEN ASM PART: C = 8-97351-574-1	8-98230-322-0	01	1	1209-
2	ROTOR; GEN ASM PART: A = 8-97250-258-2	8-97147-621-0	01	1	-
2	ROTOR; GEN ASM PART: C = 8-97351-574-1	8-97249-330-1	01	1	-
2	ROTOR; GEN ASM PART: B = 8-97351-572-1	8-97351-705-0	01	1	-
3	BEARING; ROTOR,GEN (C) ASM PART: B = 8-97351-572-1	8-97062-744-0	01	1	1209-
3	BEARING; ROTOR,GEN (C) ASM PART: C = 8-97351-574-1	8-97062-744-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 8-97250-258-2	8-97083-273-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 8-97351-572-1	8-97148-112-0	01	1	-1007
3	BEARING; ROTOR,GEN (A) ASM PART: A = 8-97250-258-2	8-97161-473-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: C = 8-97351-574-1	8-97161-473-0	01	1	-1004
3	BEARING; ROTOR,GEN (B) ASM PART: B = 8-97351-572-1	8-97248-128-0	01	1	-1208
3	BEARING; ROTOR,GEN (A) ASM PART: C = 8-97351-574-1	8-98146-442-0	01	1	1005-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 8-97351-572-1	8-98159-457-0	01	1	1008-
10	RECTIFIER; GEN ASM PART: C = 8-97351-574-1	8-97249-333-0	01	1	-1208
10	RECTIFIER; GEN ASM PART: B = 8-97351-572-1	8-97253-577-0	01	1	-1208
10	RECTIFIER; GEN ASM PART: A = 8-97250-258-2	8-97264-868-0	01	1	-
10	RECTIFIER; GEN ASM PART: B = 8-97351-572-1	8-98230-330-0	01	1	1209-
10	RECTIFIER; GEN ASM PART: C = 8-97351-574-1	8-98230-331-0	01	1	1209-
17	COVER ASM; FRT,GEN ASM PART: A = 8-97250-258-2	8-97147-625-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: C = 8-97351-574-1	8-97249-334-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 8-97351-572-1	8-97351-706-0	01	1	-
19	PULLEY; GEN ASM PART: A = 8-97250-258-2	8-97083-292-0	01	1	-
19	PULLEY; GEN ASM PART: B = 8-97351-572-1	8-97148-113-0	01	1	-
19	PULLEY; GEN ASM PART: C = 8-97351-574-1	8-97249-335-0	01	1	-
22	STATOR; GEN ASM PART: A = 8-97250-258-2	8-97147-622-0	01	1	-
22	STATOR; GEN ASM PART: B = 8-97351-572-1	8-97192-850-0	01	1	-
22	STATOR; GEN ASM PART: C = 8-97351-574-1	8-97249-331-1	01	1	-
44	SEAL; RR COVER,GEN ASM PART: A = 8-97250-258-2, B = 8-97351-572-1, C = 8-97351-574-1	8-94156-589-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: A = 8-97250-258-2	8-97258-675-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: B = 8-97351-572-1, C = 8-97351-574-1	8-97351-707-0	01	1	-
91	BODY; VAC PUMP ASM PART: A = 8-97250-258-2, B = 8-97351-572-1, C = 8-97351-574-1	8-97148-117-0	01	1	-
96	VALVE ASM; VAC PUMP ASM PART: A = 8-97250-258-2, B = 8-97351-572-1, C = 8-97351-574-1	8-97148-118-0	01	1	-
99	GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97250-258-2, B = 8-97351-572-1, C = 8-97351-574-1	5-19679-002-0	02	1	-
99	GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97250-258-2, B = 8-97351-572-1, C = 8-97351-574-1	5-19679-003-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (A) ASM PART: A = 8-97250-258-2, B = 8-97351-572-1, C = 8-97351-574-1	8-94156-608-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-97250-258-2, B = 8-97351-572-1, C = 8-97351-574-1	8-97083-304-0	01	1	-
108	ROTOR; VAC PUMP ASM PART: A = 8-97250-258-2, B = 8-97351-572-1, C = 8-97351-574-1	8-97148-115-1	01	1	-
109	VANE; VAC PUMP ASM PART: A = 8-97250-258-2, B = 8-97351-572-1, C = 8-97351-574-1	8-97083-298-0	03	1	-
121	COVER; RR,VAC PUMP ASM PART: A = 8-97250-258-2, B = 8-97351-572-1, C = 8-97351-574-1	8-97148-116-0	01	1	-
123	GUIDE; BRUSH ASM PART: B = 8-97351-572-1, C = 8-97351-574-1	8-97062-644-0	01	1	-
123	GUIDE; BRUSH ASM PART: A = 8-97250-258-2	8-97083-274-0	01	1	-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	SCREW; RECTIFIER,GEN ASM PART: B = 8-97351-572-1	8-97131-532-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: C = 8-97351-574-1	8-97249-336-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: A = 8-97250-258-2	8-97258-681-0	01	1	-

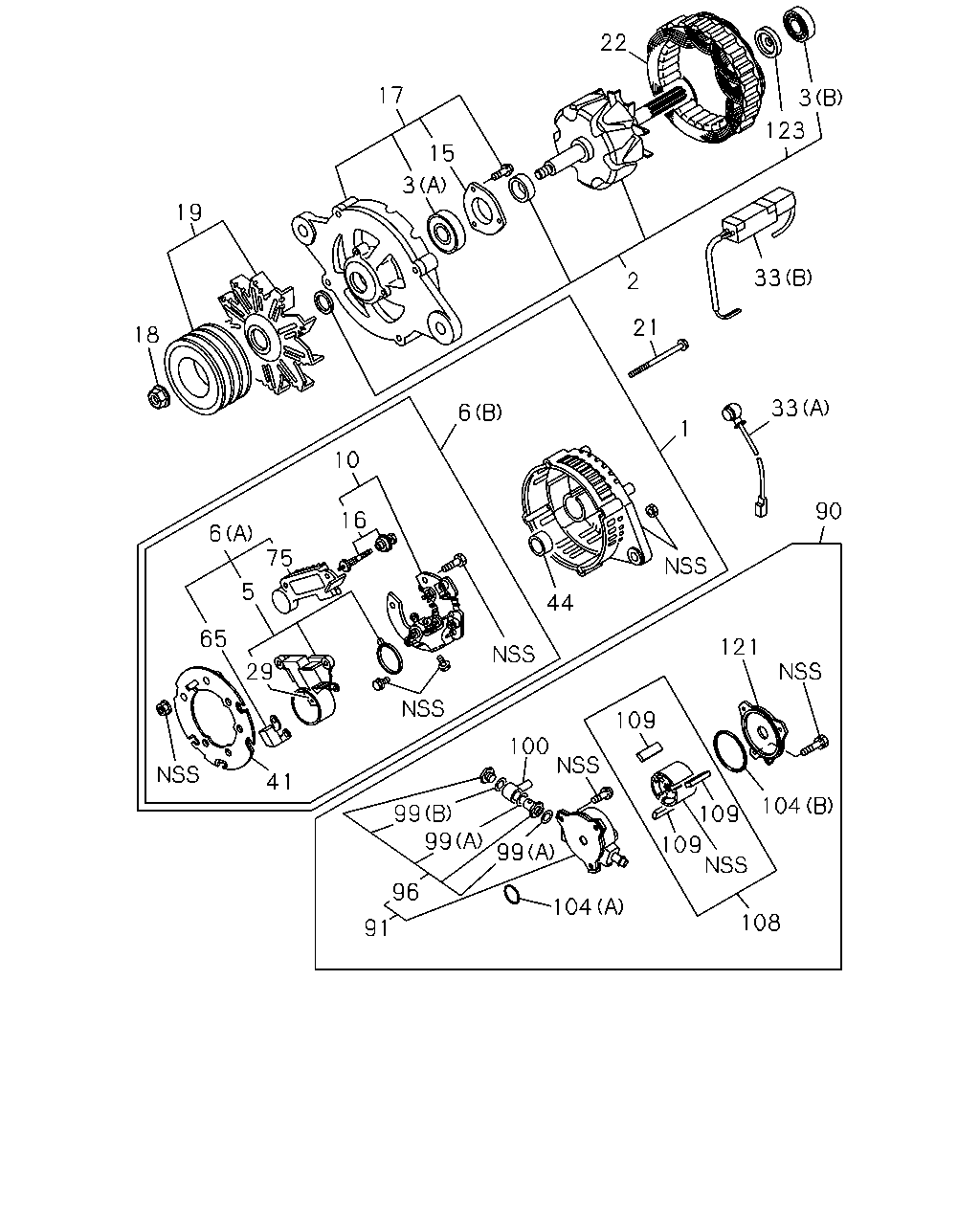

22 17 3 123 15 3 19 33 2 21 18 33 6 1 10 90 16 6 75 5 44 65 121 29 109 100 41 104 99 99 109 109 99 96 104 108 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: C = 8-97351-574-1	8-97249-332-0	01	1	-1208
1	COVER ASM; RR,GEN ASM PART: B = 8-97351-572-1	8-97253-370-0	01	1	-1208
1	COVER ASM; RR,GEN ASM PART: A = 8-97250-258-2	8-97264-867-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 8-97351-572-1	8-98230-320-0	01	1	1209-
1	COVER ASM; RR,GEN ASM PART: C = 8-97351-574-1	8-98230-322-0	01	1	1209-
2	ROTOR; GEN ASM PART: A = 8-97250-258-2	8-97147-621-0	01	1	-
2	ROTOR; GEN ASM PART: C = 8-97351-574-1	8-97249-330-1	01	1	-
2	ROTOR; GEN ASM PART: B = 8-97351-572-1	8-97351-705-0	01	1	-
3	BEARING; ROTOR,GEN (C) ASM PART: B = 8-97351-572-1	8-97062-744-0	01	1	1209-
3	BEARING; ROTOR,GEN (C) ASM PART: C = 8-97351-574-1	8-97062-744-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 8-97250-258-2	8-97083-273-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 8-97351-572-1	8-97148-112-0	01	1	-1007
3	BEARING; ROTOR,GEN (A) ASM PART: A = 8-97250-258-2	8-97161-473-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: C = 8-97351-574-1	8-97161-473-0	01	1	-1004
3	BEARING; ROTOR,GEN (B) ASM PART: B = 8-97351-572-1	8-97248-128-0	01	1	-1208
3	BEARING; ROTOR,GEN (A) ASM PART: C = 8-97351-574-1	8-98146-442-0	01	1	1005-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 8-97351-572-1	8-98159-457-0	01	1	1008-
5	HOLDER; BRUSH,GEN ASM PART: A = 8-97250-258-2	8-97083-283-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN (B) ASM PART: A = 8-97250-258-2	8-97111-263-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: A = 8-97250-258-2	8-97111-264-0	01	1	-
10	RECTIFIER; GEN ASM PART: C = 8-97351-574-1	8-97249-333-0	01	1	-1208
10	RECTIFIER; GEN ASM PART: B = 8-97351-572-1	8-97253-577-0	01	1	-1208
10	RECTIFIER; GEN ASM PART: A = 8-97250-258-2	8-97264-868-0	01	1	-
10	RECTIFIER; GEN ASM PART: B = 8-97351-572-1	8-98230-330-0	01	1	1209-
10	RECTIFIER; GEN ASM PART: C = 8-97351-574-1	8-98230-331-0	01	1	1209-
15	RETAINER; ROTOR,GEN ASM PART: A = 8-97250-258-2	8-97083-291-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: A = 8-97250-258-2	8-97264-869-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 8-97250-258-2	8-97147-625-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: C = 8-97351-574-1	8-97249-334-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 8-97351-572-1	8-97351-706-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: A = 8-97250-258-2	8-97083-293-0	01	1	-
19	PULLEY; GEN ASM PART: A = 8-97250-258-2	8-97083-292-0	01	1	-
19	PULLEY; GEN ASM PART: B = 8-97351-572-1	8-97148-113-0	01	1	-
19	PULLEY; GEN ASM PART: C = 8-97351-574-1	8-97249-335-0	01	1	-
21	BOLT; THROUGH,GEN ASM PART: A = 8-97250-258-2	8-97168-206-0	04	1	-
22	STATOR; GEN ASM PART: A = 8-97250-258-2	8-97147-622-0	01	1	-
22	STATOR; GEN ASM PART: B = 8-97351-572-1	8-97192-850-0	01	1	-
22	STATOR; GEN ASM PART: C = 8-97351-574-1	8-97249-331-1	01	1	-
29	BRUSH; GEN ASM PART: A = 8-97250-258-2	8-97084-356-0	02	1	-
33	WIRE; LEAD,GEN (A) ASM PART: A = 8-97250-258-2	8-97210-711-0	01	1	-
33	WIRE; LEAD,GEN (B) ASM PART: A = 8-97250-258-2	8-97264-870-0	01	1	-
41	GUIDE; FAN,GEN ASM PART: A = 8-97250-258-2	8-97083-288-0	01	1	-
44	SEAL; RR COVER,GEN ASM PART: A = 8-97250-258-2, B = 8-97351-572-1, C = 8-97351-574-1	8-94156-589-0	01	1	-
65	CONDENSER; GEN ASM PART: A = 8-97250-258-2	8-97084-357-0	01	1	-
75	REGULATOR; VOLTAGE,GEN ASM PART: A = 8-97250-258-2	8-97111-267-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: A = 8-97250-258-2	8-97258-675-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: B = 8-97351-572-1, C = 8-97351-574-1	8-97351-707-0	01	1	-
91	BODY; VAC PUMP ASM PART: A = 8-97250-258-2, B = 8-97351-572-1, C = 8-97351-574-1	8-97148-117-0	01	1	-
96	VALVE ASM; VAC PUMP ASM PART: A = 8-97250-258-2, B = 8-97351-572-1, C = 8-97351-574-1	8-97148-118-0	01	1	-
99	GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97250-258-2, B = 8-97351-572-1, C = 8-97351-574-1	5-19679-002-0	02	1	-
99	GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97250-258-2, B = 8-97351-572-1, C = 8-97351-574-1	5-19679-003-0	01	1	-
100	CONNECTOR; VAC PUMP ASM PART: A = 8-97250-258-2	8-97083-303-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (A) ASM PART: A = 8-97250-258-2, B = 8-97351-572-1, C = 8-97351-574-1	8-94156-608-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-97250-258-2, B = 8-97351-572-1, C = 8-97351-574-1	8-97083-304-0	01	1	-
108	ROTOR; VAC PUMP ASM PART: A = 8-97250-258-2, B = 8-97351-572-1, C = 8-97351-574-1	8-97148-115-1	01	1	-
109	VANE; VAC PUMP ASM PART: A = 8-97250-258-2, B = 8-97351-572-1, C = 8-97351-574-1	8-97083-298-0	03	1	-
121	COVER; RR,VAC PUMP ASM PART: A = 8-97250-258-2, B = 8-97351-572-1, C = 8-97351-574-1	8-97148-116-0	01	1	-
123	GUIDE; BRUSH ASM PART: B = 8-97351-572-1, C = 8-97351-574-1	8-97062-644-0	01	1	-
123	GUIDE; BRUSH ASM PART: A = 8-97250-258-2	8-97083-274-0	01	1	-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	SCREW; RECTIFIER,GEN ASM PART: B = 8-97351-572-1	8-97131-532-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: C = 8-97351-574-1	8-97249-336-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: A = 8-97250-258-2	8-97258-681-0	01	1	-
