◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50980 - NPR(IRAN) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#42919) — 108 parça

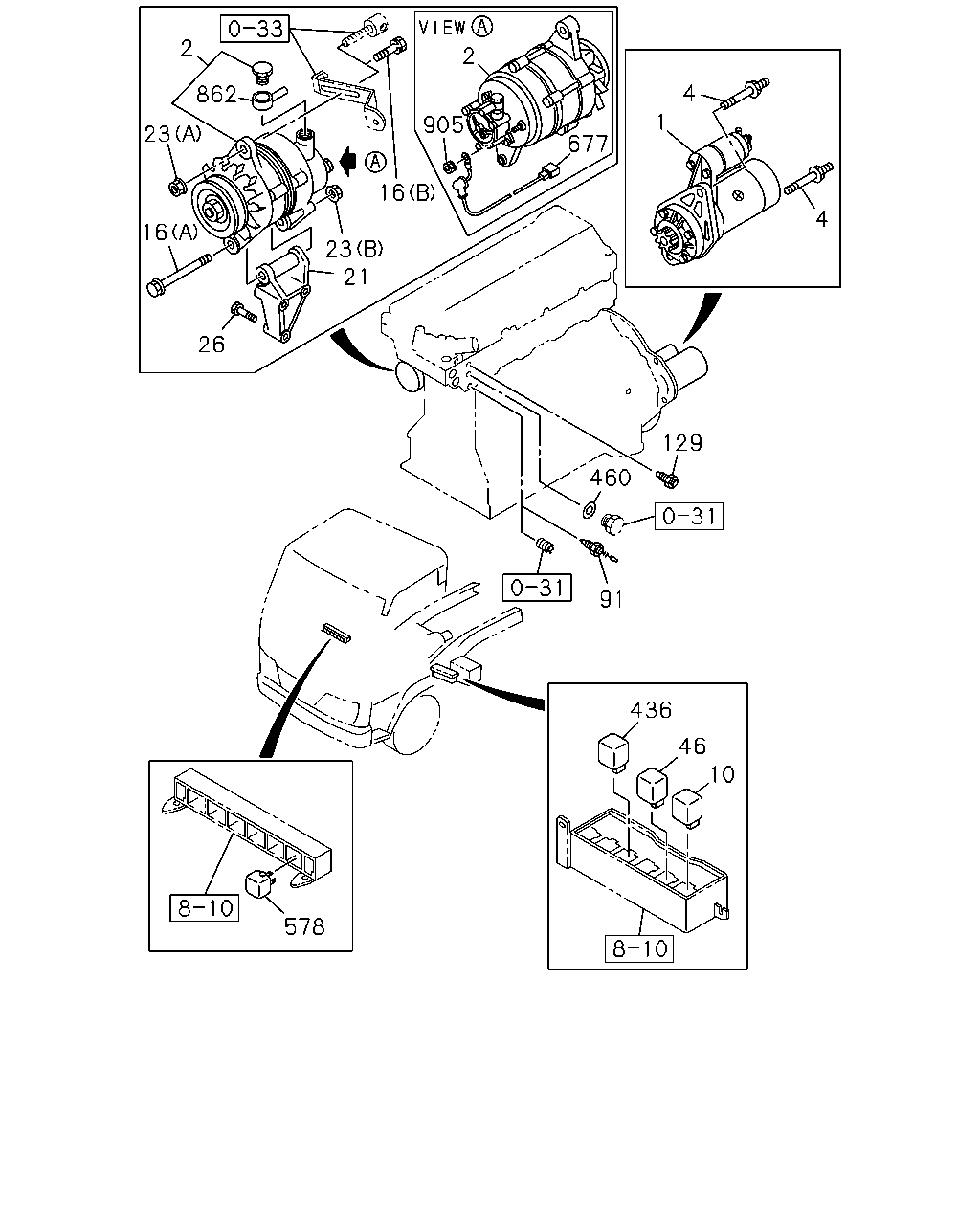

çizim 55018
2 2 4 862 1 905 23 677 16 4 16 23 21 26 129 460 91 436 46 10 578
BalonParca AdiParca NoAdetTipApplied Date A B
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-97323-935-2 01 1 0401-0607 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0608-1207 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-98222-019-0 01 1 1208-1311 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-98245-259-1 01 1 1312- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) 24V 80A HITACHI 		8-97351-574-1 01 1 1003- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A 		8-97250-258-2 01 1 0401-0607 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A 		8-97250-258-2 01 1 0608- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A HITACHI 		8-97351-572-0 01 1 0401-0607 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A HITACHI 		8-97351-572-1 01 1 0608-1002 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2),GENERATOR 24V80A(7YN) 24V 50A HITACHI 		8-97351-572-1 01 1 1003- ●
4 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0401-0607 ●
4 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0608- ●
10 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 0401-0607 ●
10 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 0608- ●
16 BOLT; GEN
(A) M10X133 		8-97146-998-0 01 1 0401-0607 ●
16 BOLT; GEN
(A) M10X133 		8-97146-998-0 01 1 0608- ●
16 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) (B) M8X40 W/WASHER 		8-97011-792-4 01 1 0401-0607 ●
16 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) (B) M8X40 W/WASHER 		8-97011-792-4 01 1 0608- ●
21 BRACKET; GEN 8-97075-884-2 01 1 0401-0607 ●
21 BRACKET; GEN 8-97075-884-2 01 1 0608- ●
23 NUT; GEN
(A) M8 FLANGE 		0-91150-108-0 01 1 0401-0602 ●
23 NUT; GEN
(A) M8 FLANGE 		0-91180-108-0 01 1 0603-0607 ●
23 NUT; GEN
(A) M8 FLANGE 		0-91180-108-0 01 1 0608- ●
23 NUT; GEN
(B) M10 FLANGE 		0-91150-210-0 01 1 0401-0602 ●
23 NUT; GEN
(B) M10 FLANGE 		0-91180-210-0 01 1 0603-0607 ●
23 NUT; GEN
(B) M10 FLANGE 		0-91180-210-0 01 1 0608- ●
26 BOLT; GEN BRKT
M10X50 FLANGE 		0-28181-050-0 01 1 0401-0512 ●
26 BOLT; GEN BRKT
M10X50 FLANGE 		0-28151-050-0 01 1 0601-0607 ●
26 BOLT; GEN BRKT
M10X50 FLANGE 		0-28151-050-0 01 1 0608- ●
26 BOLT; GEN BRKT
M10X70 FLANGE 		0-28181-070-0 02 1 0401-0512 ●
26 BOLT; GEN BRKT
M10X70 FLANGE 		0-28151-070-0 02 1 0601-0607 ●
26 BOLT; GEN BRKT
M10X70 FLANGE 		0-28151-070-0 02 1 0608- ●
46 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0401-0607 ●
46 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0608- ●
91 SWITCH; THERMO HTR 8-97038-625-0 01 1 0401-0402 ●
129 SENSOR; GLOW PLUG,THERMO
HITACHI 		8-97167-008-0 01 1 0401-0607 ●
129 SENSOR; GLOW PLUG,THERMO
HITACHI 		8-97167-008-0 01 1 0608- ●
129 SENSOR; GLOW PLUG,THERMO
TRANSTRON 		8-97170-327-0 01 1 0401-0607 ●
129 SENSOR; GLOW PLUG,THERMO
TRANSTRON 		8-97170-327-0 01 1 0608-1007 ●
129 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 1008- ●
436 RELAY; FAST IDLE (Q-CONTROL)
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0401-0607 ●
436 RELAY; FAST IDLE (Q-CONTROL)
24V 10A PANASONIC 		8-97173-035-1 01 1 0608- ●
460 GASKET; PLUG
ID=16.2 		1-09630-086-0 01 1 0401-0607 ●
460 GASKET; PLUG
ID=16.2 		1-09630-086-0 01 1 0608- ●
578 RELAY; CHARGE WARNING 8-97063-440-2 01 1 0401-0607 ●
578 RELAY; CHARGE WARNING
24V 10A PANASONIC 		8-97173-035-1 01 1 0608- ●
677 HARNESS; GEN
EXC. GENERATOR 24V60A(KG2) 		8-97367-772-0 01 1 0401-0607 ●
677 HARNESS; GEN
EXC. GENERATOR 24V60A(KG2) 		8-97367-772-0 01 1 0608-1002 ●
677 HARNESS; GEN
EXC. GENERATOR 24V60A(KG2),GENERATOR 24V80A(7YN) 		8-97367-772-0 01 1 1003- ●
862 CONNECTOR; GEN
EXC. GENERATOR 24V60A(KG2) 		8-97351-626-0 01 1 0401-0607 ●
862 CONNECTOR; GEN
EXC. GENERATOR 24V60A(KG2) 		8-97351-626-0 01 1 0608- ●
905 NUT; HARNESS
EXC. GENERATOR 24V60A(KG2) M6 W/LK WASHER 		8-94424-179-0 01 1 0401-0607 ●
905 NUT; HARNESS
EXC. GENERATOR 24V60A(KG2) M6 W/LK WASHER 		8-94424-179-0 01 1 0608-1002 ●
905 NUT; HARNESS
EXC. GENERATOR 24V60A(KG2),GENERATOR 24V80A(7YN) M6 W/LK WASHER 		8-94424-179-0 01 1 1003- ●

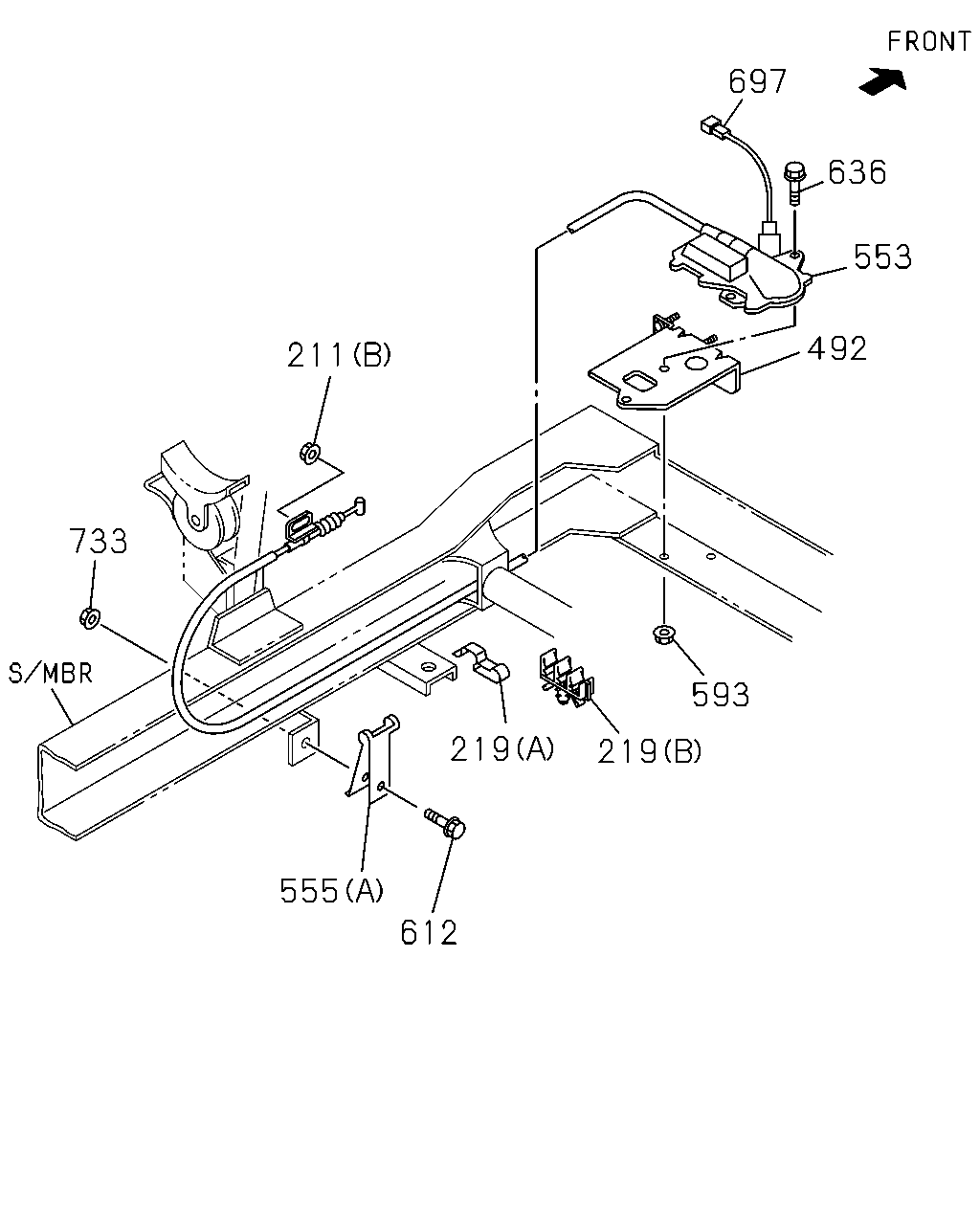

çizim 55019
697 636 553 492 211 733 593 219 219 555 612
BalonParca AdiParca NoAdetTipApplied Date A B
211 NUT; CABLE FIX
(B) M6 FLANGE 		0-91150-106-0 01 1 0401-0602 ●
211 NUT; CABLE FIX
(B) M6 FLANGE 		0-91180-106-0 01 1 0603-0607 ●
211 NUT; CABLE FIX
(B) M6 FLANGE 		0-91180-106-0 01 1 0608- ●
211 NUT; CABLE FIX
(A) M8 FLANGE 		0-91150-108-0 01 1 0401-0602 ●
211 NUT; CABLE FIX
(A) M8 FLANGE 		0-91180-108-0 01 1 0603-0607 ●
211 NUT; CABLE FIX
(A) M8 FLANGE 		0-91180-108-0 01 1 0608- ●
219 CLIP; ENG STOP CABLE
(C) L=140 		5-09707-031-1 01 1 0401-0607 ●
219 CLIP; ENG STOP CABLE
(C) L=140 		5-09707-031-1 01 1 0608- ●
219 CLIP; ENG STOP CABLE
(A) T=4.5 & 9 		5-09709-023-0 01 1 0401-0607 ●
219 CLIP; ENG STOP CABLE
(A) T=4.5 & 9 		5-09709-023-0 01 1 0608- ●
219 CLIP; ENG STOP CABLE
(B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0401-0607 ●
219 CLIP; ENG STOP CABLE
(B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0608- ●
492 BRACKET; ENG STOPPER 8-97127-037-0 01 1 0401-0607 ●
492 BRACKET; ENG STOPPER 8-97127-037-0 01 1 0608- ●
553 MOTOR ASM; ENG STOP 8-97255-071-0 01 1 0401-0607 ●
553 MOTOR ASM; ENG STOP 8-97255-071-1 01 1 0608- ●
555 BRACKET; ENG STOP
(A) 		8-97119-039-2 01 1 0401-0607 ●
555 BRACKET; ENG STOP
(A) 		8-97119-039-2 01 1 0608- ●
555 BRACKET; ENG STOP
(B) 		8-97188-280-0 01 1 0401-0607 ●
555 BRACKET; ENG STOP
(B) 		8-97188-280-0 01 1 0608- ●
593 NUT; BRKT
M10 FLANGE 		0-91150-110-0 02 1 0401-0602 ●
593 NUT; BRKT
M10 FLANGE 		0-91180-110-0 02 1 0603-0607 ●
593 NUT; BRKT
M10 FLANGE 		0-91180-110-0 02 1 0608- ●
612 BOLT; BRKT
M8X20 		1-09981-468-0 01 1 0401-0607 ●
612 BOLT; BRKT
M8X20 		1-09981-468-0 01 1 0608- ●
636 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0401-0512 ●
636 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-0607 ●
636 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0608- ●
697 HARNESS; CABLE 8-97126-038-0 01 1 0401-0607 ●
697 HARNESS; CABLE 8-97126-038-0 01 1 0608- ●
733 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0401-0602 ●
733 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-0607 ●
733 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0608- ●

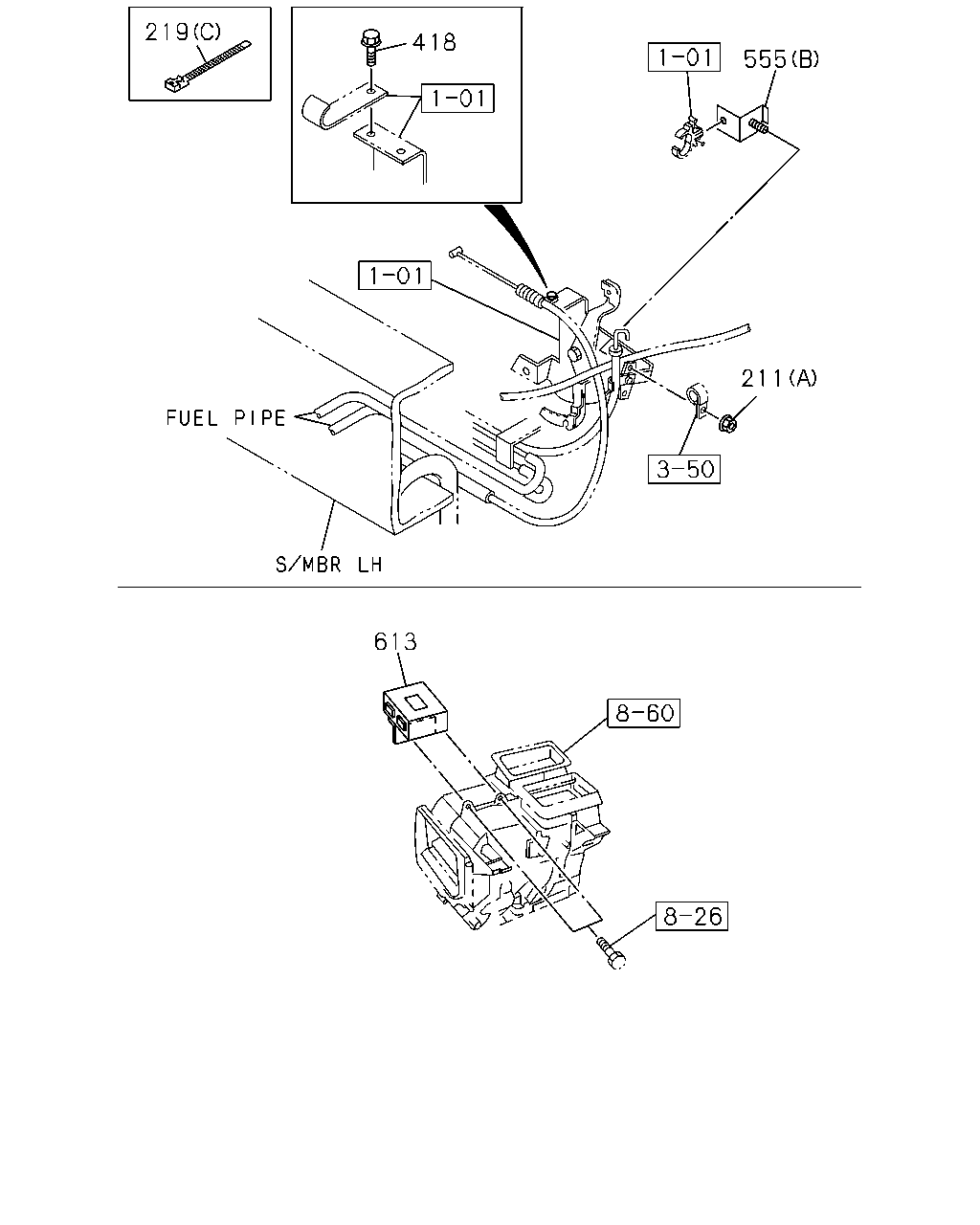

çizim 100888
219 418 555 211 613
BalonParca AdiParca NoAdetTipApplied Date A B
211 NUT; CABLE FIX
(B) M6 FLANGE 		0-91150-106-0 01 1 0401-0602 ●
211 NUT; CABLE FIX
(B) M6 FLANGE 		0-91180-106-0 01 1 0603-0607 ●
211 NUT; CABLE FIX
(B) M6 FLANGE 		0-91180-106-0 01 1 0608- ●
211 NUT; CABLE FIX
(A) M8 FLANGE 		0-91150-108-0 01 1 0401-0602 ●
211 NUT; CABLE FIX
(A) M8 FLANGE 		0-91180-108-0 01 1 0603-0607 ●
211 NUT; CABLE FIX
(A) M8 FLANGE 		0-91180-108-0 01 1 0608- ●
219 CLIP; ENG STOP CABLE
(C) L=140 		5-09707-031-1 01 1 0401-0607 ●
219 CLIP; ENG STOP CABLE
(C) L=140 		5-09707-031-1 01 1 0608- ●
219 CLIP; ENG STOP CABLE
(A) T=4.5 & 9 		5-09709-023-0 01 1 0401-0607 ●
219 CLIP; ENG STOP CABLE
(A) T=4.5 & 9 		5-09709-023-0 01 1 0608- ●
219 CLIP; ENG STOP CABLE
(B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0401-0607 ●
219 CLIP; ENG STOP CABLE
(B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0608- ●
418 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0401-0512 ●
418 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0601-0607 ●
418 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0608- ●
555 BRACKET; ENG STOP
(A) 		8-97119-039-2 01 1 0401-0607 ●
555 BRACKET; ENG STOP
(A) 		8-97119-039-2 01 1 0608- ●
555 BRACKET; ENG STOP
(B) 		8-97188-280-0 01 1 0401-0607 ●
555 BRACKET; ENG STOP
(B) 		8-97188-280-0 01 1 0608- ●
613 CONTROL UNIT; ENG 8-97223-181-1 01 1 0401-0607 ●
613 CONTROL UNIT; ENG 8-97223-181-3 01 1 0608- ●
