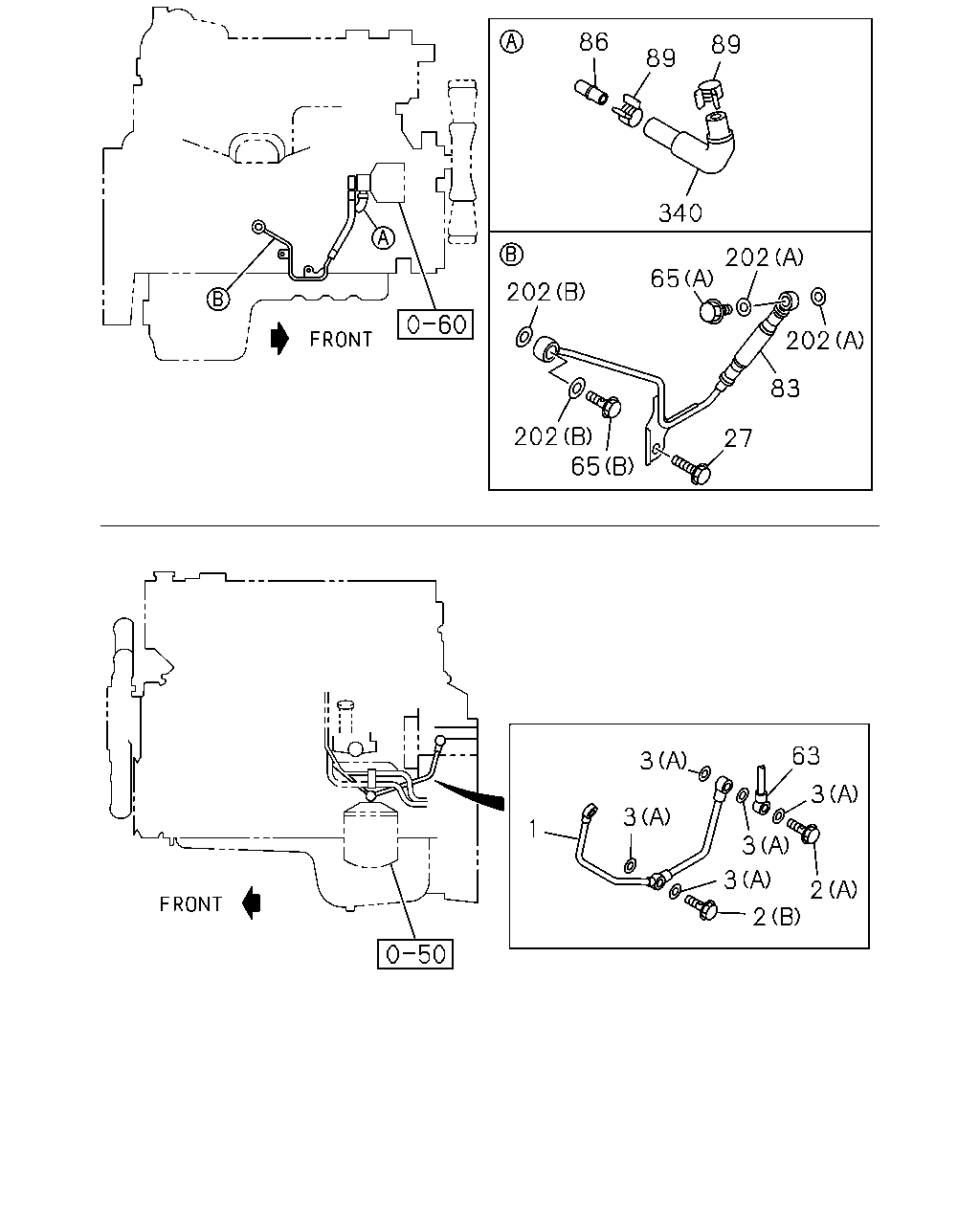

0-52 — OIL AND VACUUM PIPING; ENGINE (#42916) — 56 parça

86 89 89 340 202 65 202 202 83 202 65 27 63 3 3 3 1 3 3 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; OIL,INJ PUMP TO C/BL	8-97314-008-0	01	1	0401-0607	●
1	PIPE; OIL,INJ PUMP TO C/BL	8-97314-008-0	01	1	0608-0608		●
1	PIPE; OIL,INJ PUMP TO C/BL	8-98053-156-0	01	1	0608-		●
2	BOLT; EYE,OIL PIPE (A) M10X40 FLANGE	8-97182-847-0	01	1	0401-0607	●
2	BOLT; EYE,OIL PIPE (A) M10X40 FLANGE	8-97182-847-0	01	1	0608-		●
2	BOLT; EYE,OIL PIPE (B) M10X24	9-09906-205-1	01	1	0401-0607	●
2	BOLT; EYE,OIL PIPE (B) M10X24	9-09906-205-1	01	1	0608-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	0401-0607	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	0608-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	9-09571-412-0	02	1	0401-0607	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	9-09571-412-0	02	1	0608-1101		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.6	8-97331-137-1	01	1	1102-		●
27	BOLT; OIL PIPE FIX M8X16 FLANGE	0-28080-816-0	01	1	0401-0512	●
27	BOLT; OIL PIPE FIX M8X16 FLANGE	0-28050-816-0	01	1	0601-0607	●
27	BOLT; OIL PIPE FIX M8X16 FLANGE	0-28050-816-0	01	1	0608-		●
27	BOLT; OIL PIPE FIX HEATER & DEFROSTER(C41) M8X16 FLANGE	0-28050-816-0	01	1	0608-		●
63	PIPE; OIL,TURBOCHARGER FEED	8-97214-394-0	01	1	0401-0607	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97214-394-0	01	1	0608-		●
65	BOLT; JOINT,OIL PIPE (A) M10X21 FLANGE	1-09675-078-0	01	1	0401-0607	●
65	BOLT; JOINT,OIL PIPE (A) M10X21 FLANGE	1-09675-078-0	01	1	0608-0805		●
65	BOLT; JOINT,OIL PIPE (A) M10X21 FLANGE	8-97372-239-0	01	1	0806-		●
65	BOLT; JOINT,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	01	1	0401-0607	●
65	BOLT; JOINT,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	01	1	0608-		●
83	PIPE; OIL,C/BL TO VAC PUMP	8-97228-671-0	01	1	0401-0607	●
83	PIPE; OIL,C/BL TO VAC PUMP	8-97228-671-0	01	1	0608-		●
86	PIPE; OIL,VAC PUMP RETURN	8-94455-311-1	01	1	0401-0607	●
86	PIPE; OIL,VAC PUMP RETURN	8-94455-311-1	01	1	0608-		●
89	CLIP; VAC HOSE ID=17.1	8-94122-679-0	01	1	0401-0607	●
89	CLIP; VAC HOSE ID=17.1	8-94122-679-0	01	1	0608-		●
89	CLIP; VAC HOSE HEATER & DEFROSTER(C41) ID=17.1	8-94122-679-0	01	1	0608-		●
202	GASKET; OIL PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0401-0607	●
202	GASKET; OIL PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0608-		●
202	GASKET; OIL PIPE (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0401-0607	●
202	GASKET; OIL PIPE (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0608-1312		●
202	GASKET; OIL PIPE (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
340	HOSE; VAC PUMP,RETURN	8-94339-073-3	01	1	0401-0607	●
340	HOSE; VAC PUMP,RETURN	8-94339-073-3	01	1	0608-		●

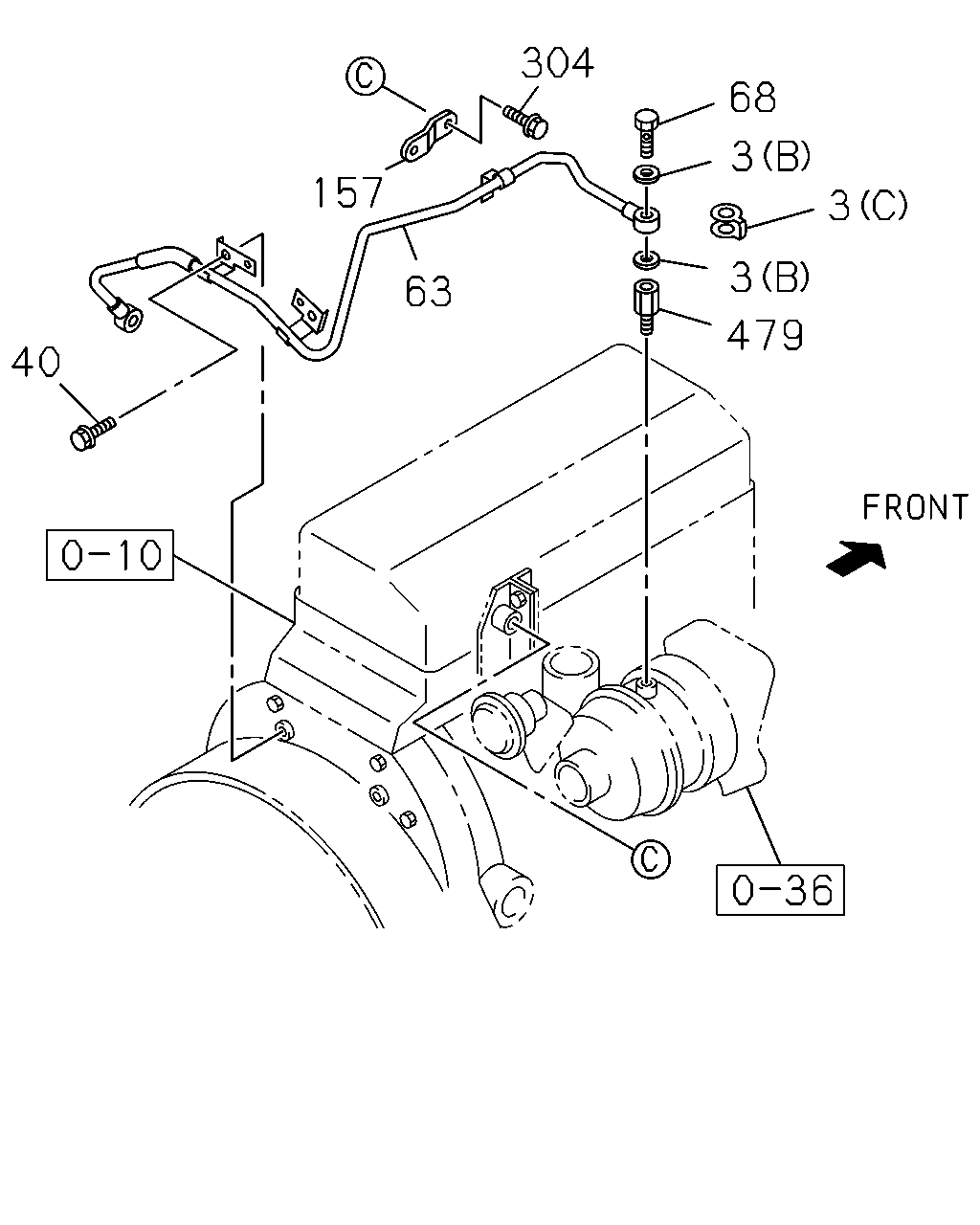

304 68 3 3 157 3 63 479 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	0401-0607	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	0608-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	9-09571-412-0	02	1	0401-0607	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	9-09571-412-0	02	1	0608-1101		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.6	8-97331-137-1	01	1	1102-		●
40	BOLT; OIL PIPE M10X16 FLANGE	0-28181-016-0	02	1	0401-0512	●
40	BOLT; OIL PIPE M10X16 FLANGE	0-28151-016-0	02	1	0601-0607	●
40	BOLT; OIL PIPE M10X16 FLANGE	0-28151-016-0	02	1	0608-		●
63	PIPE; OIL,TURBOCHARGER FEED	8-97214-394-0	01	1	0401-0607	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97214-394-0	01	1	0608-		●
68	BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE M12X28 FLANGE	8-97166-518-0	01	1	0401-0607	●
68	BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE M12X28 FLANGE	8-97166-518-1	01	1	0608-		●
157	BRACKET; OIL PIPE	8-97181-586-0	01	1	0401-0607	●
157	BRACKET; OIL PIPE	8-97181-586-0	01	1	0608-		●
304	BOLT; BRKT,OIL PIPE M8X16 FLANGE	0-28080-816-0	01	1	0401-0512	●
304	BOLT; BRKT,OIL PIPE M8X16 FLANGE	0-28050-816-0	01	1	0601-0607	●
304	BOLT; BRKT,OIL PIPE M8X16 FLANGE	0-28050-816-0	01	1	0608-		●
479	ADAPTER	8-94436-891-0	01	1	0401-0607	●
479	ADAPTER	8-94436-891-0	01	1	0608-		●
