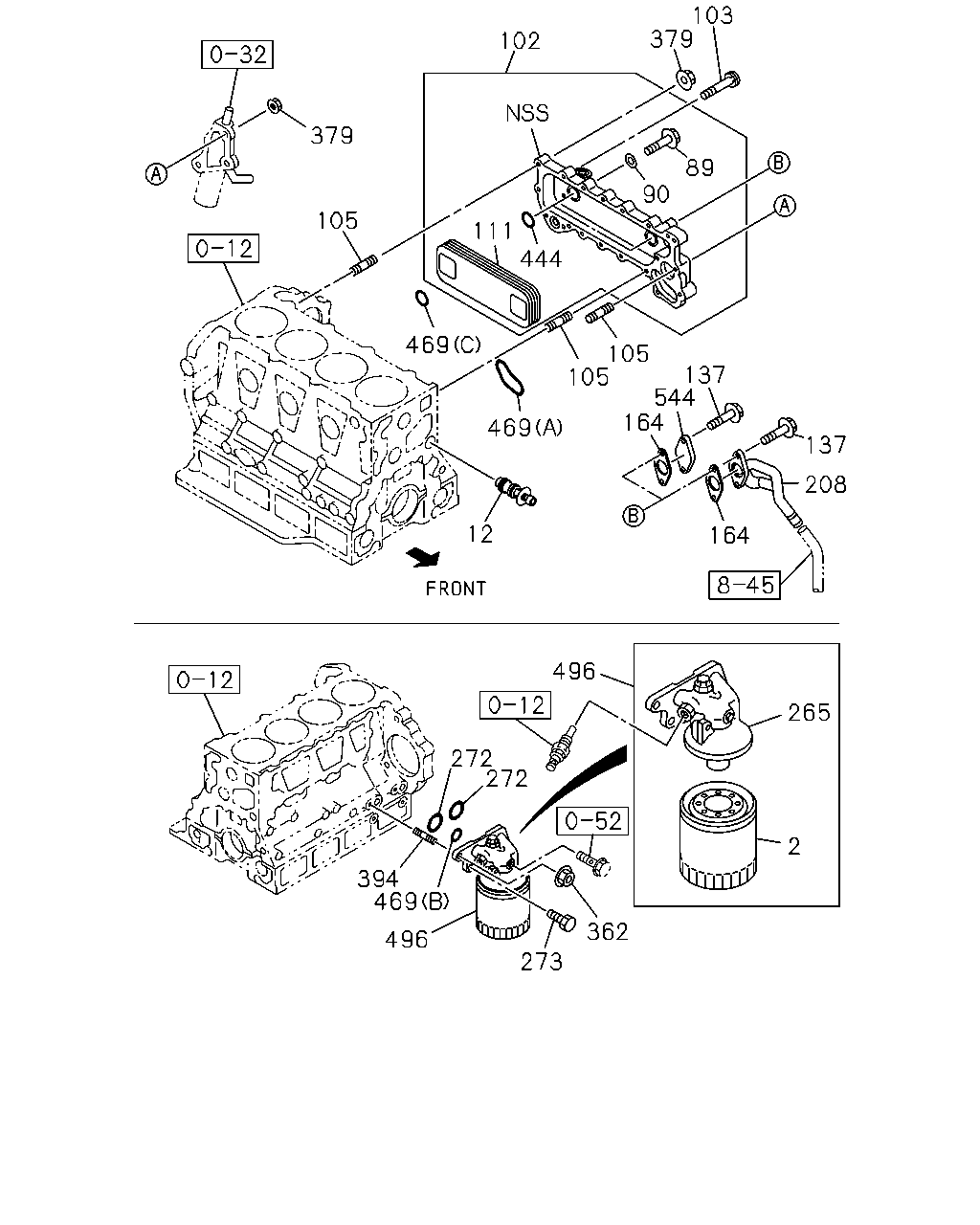

0-50 — OIL COOLER AND OIL FILTER (#42914) — 60 parça

103 379 102 379 89 90 105 111 444 469 105 105 137 544 164 469 137 208 12 164 496 265 272 272 2 394 469 362 496 273

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	ELEMENT; OIL FILTER	8-97148-270-1	02	1	0608-	●
2	ELEMENT; OIL FILTER	8-97148-270-1	01	1	0401-0607		●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-117-0	02	1	0608-	●
12	VALVE ASM; BYPASS	8-97075-754-0	01	1	0401-0607		●
12	VALVE ASM; BYPASS	8-97075-754-0	01	1	0608-	●
89	BOLT; ELEMENT TO CASE M8X16 FLANGE	0-28080-816-0	04	1	0401-0607		●
89	BOLT; ELEMENT TO CASE M8X16 FLANGE	0-28080-816-0	04	1	0608-0707	●
89	BOLT; ELEMENT TO CASE M8X16 FLANGE	0-28050-816-0	04	1	0708-	●
90	GASKET; BOLT,OIL COOLER	1-21729-043-0	04	1	0401-0607		●
90	GASKET; BOLT,OIL COOLER	1-21729-043-0	04	1	0608-	●
102	COOLER ASM; OIL	8-97333-877-0	01	1	0401-0406		●
102	COOLER ASM; OIL	8-97385-201-1	01	1	0407-0607		●
102	COOLER ASM; OIL	8-97385-201-1	01	1	0608-0707	●
102	COOLER ASM; OIL	8-98085-312-5	01	1	0708-	●
103	BOLT; OIL COOLER M8X20 FLANGE	0-28080-820-0	08	1	0401-0512		●
103	BOLT; OIL COOLER M8X20 FLANGE	0-28050-820-0	08	1	0601-0607		●
103	BOLT; OIL COOLER M8X20 FLANGE	0-28050-820-0	08	1	0608-	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	08	1	0401-0512		●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28050-835-0	08	1	0601-0607		●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28050-835-0	08	1	0608-	●
105	STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	0401-0607		●
105	STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	0608-	●
111	CORE; OIL COOLER	8-97334-100-1	01	1	0401-0607		●
111	CORE; OIL COOLER	8-97334-100-2	01	1	0608-	●
137	BOLT M8X20 FLANGE	0-28680-820-0	02	1	0401-0512		●
137	BOLT M8X20 FLANGE	0-28650-820-0	02	1	0601-0607		●
137	BOLT M8X20 FLANGE	0-28650-820-0	02	1	0608-	●
164	GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97146-684-0	01	1	0401-0607		●
164	GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97146-684-0	01	1	0608-	●
208	PIPE; WATER,HTR HEATER & DEFROSTER(C41)	8-97146-519-0	01	1	0401-0607		●
208	PIPE; WATER,HTR	8-97146-519-0	01	1	0608-	●
265	BODY; OIL FILTER	8-97096-677-3	01	1	0401-0607		●
265	BODY; OIL FILTER	8-97096-677-4	01	1	0608-	●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	0401-0607		●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	0608-	●
273	BOLT; OIL FILTER M10X30 FLANGE	0-28781-030-0	02	1	0401-0512		●
273	BOLT; OIL FILTER M10X30 FLANGE	0-28751-030-0	02	1	0601-0607		●
273	BOLT; OIL FILTER M10X30 FLANGE	0-28751-030-0	02	1	0608-	●
362	NUT; OIL FILTER M10 FLANGE	0-91150-110-0	02	1	0401-0602		●
362	NUT; OIL FILTER M10 FLANGE	0-91180-110-0	02	1	0603-0607		●
362	NUT; OIL FILTER M10 FLANGE	0-91180-110-0	02	1	0608-	●
379	NUT; OIL COOLER M8 FLANGE	0-91150-108-0	03	1	0401-0602		●
379	NUT; OIL COOLER M8 FLANGE	0-91180-108-0	03	1	0603-0607		●
379	NUT; OIL COOLER M8 FLANGE	0-91180-108-0	03	1	0608-	●
394	STUD; OIL FILTER M10X25 L=40	0-49841-025-0	02	1	0401-0512		●
394	STUD; OIL FILTER M10X25 L=48.5	0-49241-025-0	02	1	0601-0607		●
394	STUD; OIL FILTER M10X25 L=48.5	0-49241-025-0	02	1	0608-	●
444	GASKET; ELEMENT TO BODY	8-97028-586-0	02	1	0401-0406		●
444	GASKET; ELEMENT TO BODY	8-97384-130-0	02	1	0407-0607		●
444	GASKET; ELEMENT TO BODY	8-97384-130-0	02	1	0608-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	0401-0607		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	0608-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	0401-0607		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	0608-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.2	9-09566-226-0	01	1	0401-0606		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	0607-0607		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	0608-	●
496	FILTER ASM; OIL	8-97148-268-2	01	1	0401-0607		●
496	FILTER ASM; OIL	8-97148-268-4	01	1	0608-	●
544	COVER; HEATER EXC. HEATER & DEFROSTER(C41)	8-97147-028-0	01	1	0401-0607		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
