◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50980 - NPR(IRAN) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#42911) — 104 parça

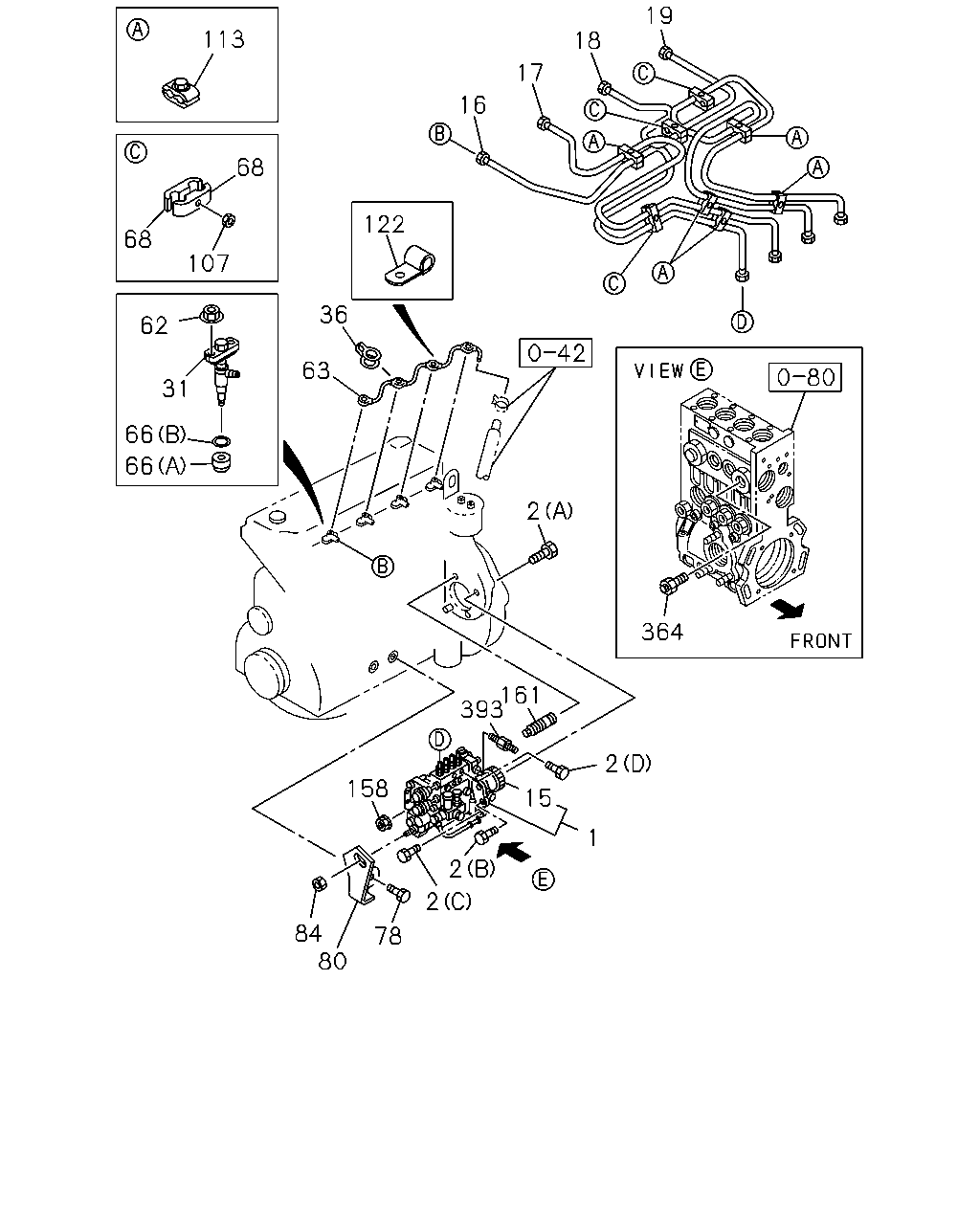

çizim 54766
19 113 18 17 16 68 122 68 107 36 62 63 31 66 66 2 364 161 393 2 158 15 1 2 2 84 80 78
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97212-189-1 01 1 0401-0607 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97212-189-1 01 1 0608- ●
2 BOLT; INJ PUMP
(C) M10X70 FLANGE 		0-28181-070-0 01 1 0401-0512 ●
2 BOLT; INJ PUMP
(C) M10X70 FLANGE 		0-28151-070-0 01 1 0601-0607 ●
2 BOLT; INJ PUMP
(C) M10X70 FLANGE 		0-28151-070-0 01 1 0608- ●
2 BOLT; INJ PUMP
(B) M12X70 FLANGE 		0-28181-270-0 01 1 0401-0512 ●
2 BOLT; INJ PUMP
(B) M12X70 FLANGE 		0-28151-270-0 01 1 0601-0607 ●
2 BOLT; INJ PUMP
(B) M12X70 FLANGE 		0-28151-270-0 01 1 0608- ●
2 BOLT; INJ PUMP
(A) M12X110 		0-28186-211-0 01 1 0401-0512 ●
2 BOLT; INJ PUMP
(A) M12X110 FLANGE 		0-28156-211-0 01 1 0601-0607 ●
2 BOLT; INJ PUMP
(A) M12X110 FLANGE 		0-28156-211-0 01 1 0608- ●
2 BOLT; INJ PUMP
(D) M14X27 FLANGE 		1-09675-086-0 01 1 0401-0607 ●
2 BOLT; INJ PUMP
(D) M14X27 FLANGE 		1-09675-086-0 01 1 0608- ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-97367-625-0 01 1 0401-0607 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-97367-625-0 01 1 0608- ●
16 PIPE; INJ NO.1 8-97148-963-4 01 1 0401-0607 ●
16 PIPE; INJ NO.1 8-97148-963-4 01 1 0608- ●
17 PIPE; INJ NO.2 8-97148-964-3 01 1 0401-0607 ●
17 PIPE; INJ NO.2 8-97148-964-3 01 1 0608- ●
18 PIPE; INJ NO.3 8-97148-965-4 01 1 0401-0607 ●
18 PIPE; INJ NO.3 8-97148-965-4 01 1 0608- ●
19 PIPE; INJ NO.4 8-97148-966-3 01 1 0401-0607 ●
19 PIPE; INJ NO.4 8-97148-966-3 01 1 0608- ●
31 NOZZLE ASM; INJ 8-97148-960-1 04 1 0401-0607 ●
31 NOZZLE ASM; INJ 8-97148-960-1 04 1 0608- ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6 		8-94395-214-0 04 1 0401-0607 ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6 		8-94395-214-0 04 1 0608-1312 ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6 		8-98246-930-0 04 1 1401- ●
62 NUT; NOZZLE HOLDER
M8 FLANGE 		0-91150-108-0 08 1 0401-0602 ●
62 NUT; NOZZLE HOLDER
M8 FLANGE 		0-91180-108-0 08 1 0603-0607 ●
62 NUT; NOZZLE HOLDER
M8 FLANGE 		0-91180-108-0 08 1 0608- ●
63 PIPE; FUEL,NOZZLE LEAK OFF 8-97148-969-2 01 1 0401-0607 ●
63 PIPE; FUEL,NOZZLE LEAK OFF 8-97148-969-2 01 1 0608- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		8-94326-439-0 04 1 0401-0607 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		8-94326-439-0 04 1 0608- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-97171-922-0 04 1 0401-0607 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-97171-922-0 04 1 0608- ●
68 CLIP; INJ PIPE 8-97213-049-0 06 1 0401-0607 ●
68 CLIP; INJ PIPE 8-97213-049-0 06 1 0608- ●
78 BOLT; BRKT TO C/BL
M10X20 FLANGE 		0-28781-020-0 01 1 0401-0512 ●
78 BOLT; BRKT TO C/BL
M10X20 FLANGE 		0-28751-020-0 01 1 0601-0607 ●
78 BOLT; BRKT TO C/BL
M10X20 FLANGE 		0-28751-020-0 01 1 0608- ●
80 BRACKET; PUMP 8-97148-958-1 01 1 0401-0607 ●
80 BRACKET; PUMP 8-97148-958-1 01 1 0608- ●
84 NUT; BRKT TO BRKT
M12 FLANGE 		0-91150-212-0 01 1 0401-0602 ●
84 NUT; BRKT TO BRKT
M12 FLANGE 		0-91180-212-0 01 1 0603-0607 ●
84 NUT; BRKT TO BRKT
M12 FLANGE 		0-91180-212-0 01 1 0608- ●
107 NUT; INJ PIPE CLIP
M5 FLANGE 		8-94178-699-0 03 1 0401-0607 ●
107 NUT; INJ PIPE CLIP
M5 FLANGE 		8-94178-699-0 03 1 0608- ●
113 CLIP; INJ PIPE 8-97213-050-0 05 1 0401-0607 ●
113 CLIP; INJ PIPE 8-97213-050-0 05 1 0608- ●
122 CLIP; LEAK OFF PIPE 9-09524-662-0 01 1 0401-0606 ●
122 CLIP; LEAK OFF PIPE
ID=7 L=32 		0-95234-662-0 01 1 0607-0607 ●
122 CLIP; LEAK OFF PIPE
ID=7 L=32 		0-95234-662-0 01 1 0608- ●
158 NUT; INJ PUMP
M10 FLANGE 		0-91150-110-0 02 1 0401-0602 ●
158 NUT; INJ PUMP
M10 FLANGE 		0-91180-110-0 02 1 0603-0607 ●
158 NUT; INJ PUMP
M10 FLANGE 		0-91180-110-0 02 1 0608- ●
158 NUT; INJ PUMP
M12 FLANGE 		0-91250-112-0 01 1 0401-0602 ●
158 NUT; INJ PUMP
M12 FLANGE 		0-91280-112-0 01 1 0603-0607 ●
158 NUT; INJ PUMP
M12 FLANGE 		0-91280-112-0 01 1 0608- ●
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0401-0607 ●
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0608-0910 ●
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97066-386-1 02 1 0911- ●
364 VALVE; OVER FLOW,INJ PUMP 1-15619-321-0 01 1 0401-0607 ●
364 VALVE; OVER FLOW,INJ PUMP 1-15619-321-0 01 1 0608- ●
393 STUD; COVER 8-97212-809-0 02 1 0401-0403 ●
çizim 55079
31 32 34 58 140 44 43 146 46 33 35
BalonParca AdiParca NoAdetTipApplied Date A B
31 NOZZLE ASM; INJ 8-97148-960-1 04 1 0401-0607 ●
31 NOZZLE ASM; INJ 8-97148-960-1 04 1 0608- ●
32 HOLDER ASM; NOZZLE 8-94311-966-2 04 1 0401-0607 ●
32 HOLDER ASM; NOZZLE 8-94311-966-2 04 1 0608- ●
33 NOZZLE; INJ 8-97148-961-1 04 1 0401-0607 ●
33 NOZZLE; INJ 8-97148-961-1 04 1 0608- ●
34 BOLT; EYE,NOZZLE HOLDER 1-15339-009-0 04 1 0401-0607 ●
34 BOLT; EYE,NOZZLE HOLDER 1-15339-009-0 04 1 0608- ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 8-94174-184-0 04 1 0401-0607 ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 8-94174-184-0 04 1 0608- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER 8-94329-555-0 04 1 0401-0607 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER 8-94329-555-0 04 1 0608- ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94174-141-0 04 1 0401-0607 ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94174-141-0 04 1 0608- ●
46 PIN; NOZZLE SET,NOZZLE HOLDER 8-94174-139-0 08 1 0401-0607 ●
46 PIN; NOZZLE SET,NOZZLE HOLDER 8-94174-139-0 08 1 0608- ●
58 FLANGE; INJ,NOZZLE HOLDER 8-97065-713-0 04 1 0401-0607 ●
58 FLANGE; INJ,NOZZLE HOLDER 8-97065-713-0 04 1 0608- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.10 		8-97027-432-0 AR 1 0401-0607 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.10 		8-97027-432-0 AR 1 0608- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.20 		8-97027-433-0 AR 1 0401-0607 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.20 		8-97027-433-0 AR 1 0608- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.30 		8-97027-434-0 AR 1 0401-0607 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.30 		8-97027-434-0 AR 1 0608- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.40 		8-97027-435-0 AR 1 0401-0607 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.40 		8-97027-435-0 AR 1 0608- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.50 		8-97027-436-0 AR 1 0401-0607 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.50 		8-97027-436-0 AR 1 0608- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.52 		8-97027-437-0 AR 1 0401-0607 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.52 		8-97027-437-0 AR 1 0608- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.54 		8-97027-438-0 AR 1 0401-0607 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.54 		8-97027-438-0 AR 1 0608- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.56 		8-97027-439-0 AR 1 0401-0607 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.56 		8-97027-439-0 AR 1 0608- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.58 		8-97027-440-0 AR 1 0401-0607 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.58 		8-97027-440-0 AR 1 0608- ●
146 SPACER; NOZZLE 8-94344-439-0 04 1 0401-0607 ●
146 SPACER; NOZZLE 8-94344-439-0 04 1 0608- ●
