0-31 — THERMOSTAT AND HOUSING (#42906) — 27 parça

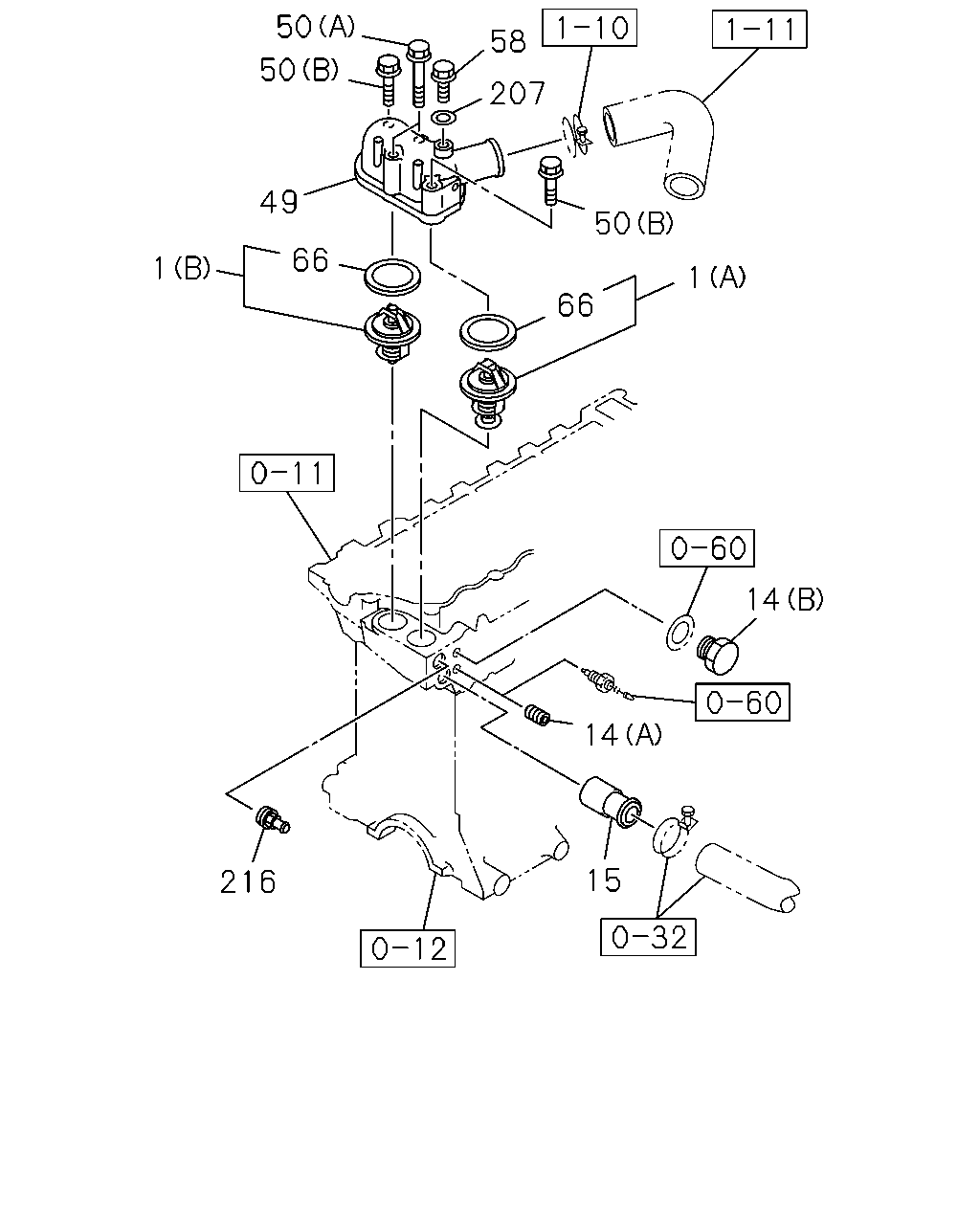

çizim 54810
50 58 50 207 49 50 66 1 1 66 14 14 15 216
BalonParca AdiParca NoAdetTipApplied Date A B
1 THERMOSTAT
(B) 85 CELSIUS 		8-97300-787-2 01 1 0401-0607 ●
1 THERMOSTAT
(B) 85 CELSIUS 		8-97300-787-3 01 1 0608- ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97300-790-1 01 1 0401-0607 ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97300-790-3 01 1 0608- ●
14 PLUG; SW
(B) M16X8 PLUG 		9-09661-005-0 01 1 0401-0607 ●
14 PLUG; SW
(B) M16X8 PLUG 		9-09661-005-0 01 1 0608- ●
14 PLUG; SW
(A) PT3/8 		5-09605-005-0 01 1 0404-0607 ●
14 PLUG; SW
(A) PT3/8 		5-09605-005-0 01 1 0608- ●
15 PIPE; BYPASS 8-94342-574-0 01 1 0401-0607 ●
15 PIPE; BYPASS 8-94342-574-0 01 1 0608- ●
49 PIPE; WATER OUTLET 8-97200-620-0 01 1 0401-0407 ●
49 PIPE; WATER OUTLET 8-97372-769-0 01 1 0408-0607 ●
49 PIPE; WATER OUTLET 8-97372-769-1 01 1 0608- ●
50 BOLT; OUTLET PIPE
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0401-0512 ●
50 BOLT; OUTLET PIPE
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601-0607 ●
50 BOLT; OUTLET PIPE
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0608- ●
50 BOLT; OUTLET PIPE
(B) M8X65 FLANGE 		1-09044-072-1 02 1 0401-0607 ●
50 BOLT; OUTLET PIPE
(B) M8X65 FLANGE 		1-09044-072-1 02 1 0608- ●
58 PLUG; WATER OUTLET PIPE
M8X16 		8-97021-211-1 01 1 0401-0607 ●
58 PLUG; WATER OUTLET PIPE
M8X16 		8-97021-211-1 01 1 0608- ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 0401-0607 ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 0608-1501 ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 02 1 1502- ●
207 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=8.2 OD=13.2 		1-09630-082-0 01 1 0401-0607 ●
207 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=8.2 OD=13.2 		1-09630-082-0 01 1 0608- ●
216 PIPE ASM; WATER,TURBOCHARGER RETURN 8-97358-699-0 01 1 0401-0607 ●
216 PIPE ASM; WATER,TURBOCHARGER RETURN 8-97358-699-0 01 1 0608- ●
