Isuzu WW
▶
TRUCKS
▶
NPR
▶
50980 - NPR(IRAN)
▶
0 - Engine, Emission, Engine Electrical
▶
0-27 - EXHAUST MANIFOLD
▶

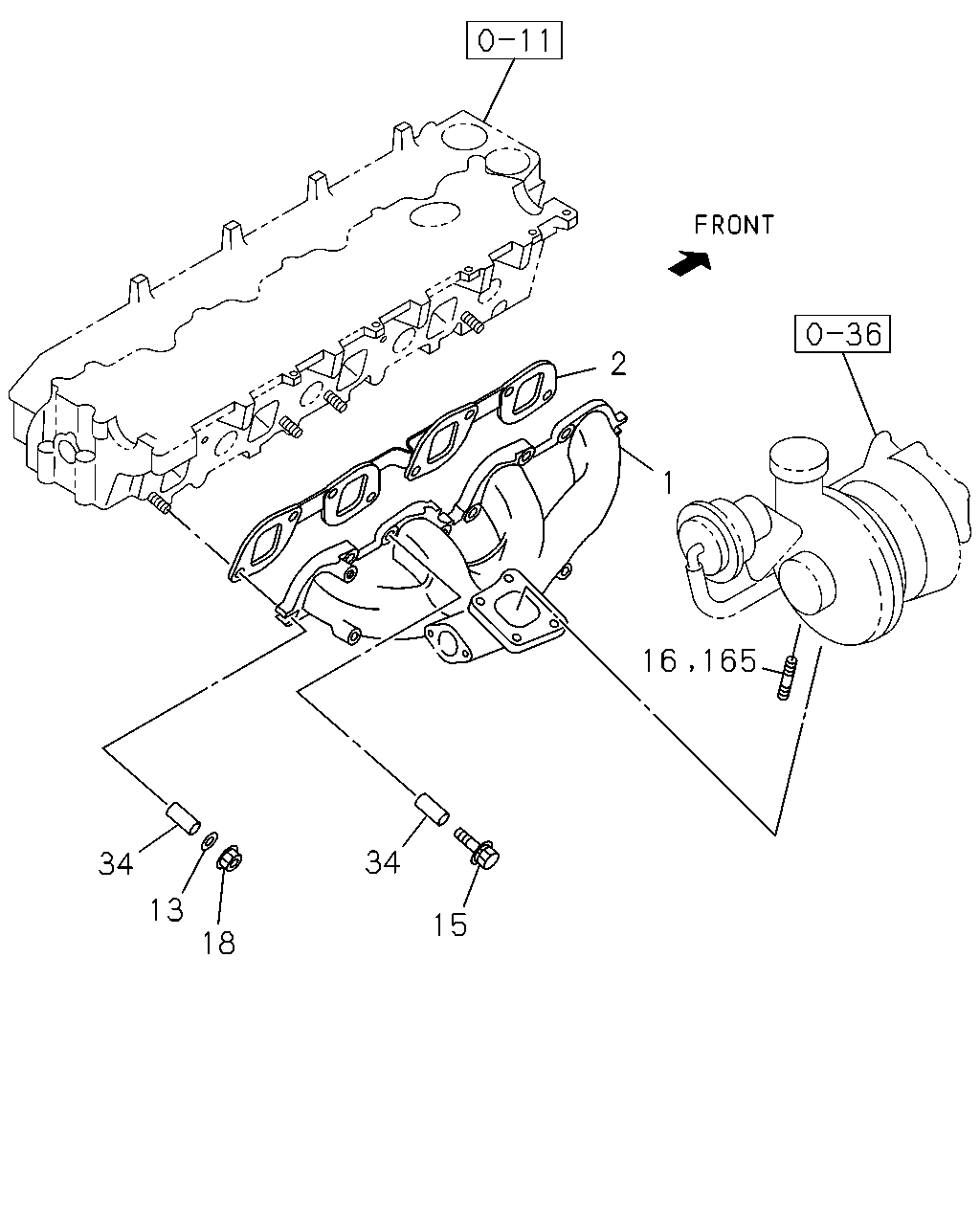

0-27 — EXHAUST MANIFOLD
(#42903) — 18 parça
Tümü
A - 4HE1 ENG
B - 4HE1-TCN ENG
2
1
34
34
13
15
18
16
165
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
MANIFOLD; EXHAUST
8-97148-949-2
01
1
0401-0607
●
1
MANIFOLD; EXHAUST
8-97148-949-2
01
1
0608-0608
●
1
MANIFOLD; EXHAUST
8-98027-968-1
01
1
0608-
●
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97146-499-0
01
1
0401-0607
●
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97146-499-2
01
1
0608-
●
13
WASHER; LK,EXH MANIF
T=2.2
1-09556-015-0
02
1
0401-0607
●
13
WASHER; LK,EXH MANIF
T=2.2
1-09556-015-0
02
1
0608-
●
15
BOLT; EXH MANIF
M10X60
8-97061-543-0
06
1
0401-0607
●
15
BOLT; EXH MANIF
M10X60
8-97061-543-0
06
1
0608-
●
16
STUD; EXH PIPE TO MANIF
M10X25 L=40
9-04731-025-0
02
1
0401-0607
●
16
STUD; EXH PIPE TO MANIF
M10X25 L=40
9-04731-025-0
02
1
0608-
●
18
NUT; EXH MANIF
M10
9-09110-510-0
02
1
0401-0512
●
18
NUT; EXH MANIF
M10
0-91110-510-0
02
1
0601-0607
●
18
NUT; EXH MANIF
M10
0-91110-510-0
02
1
0608-
●
34
COLLAR; DIST,EXH MANIF
L=28
8-97250-073-1
08
1
0401-0607
●
34
COLLAR; DIST,EXH MANIF
L=28
8-97250-073-1
08
1
0608-
●
165
STUD; EGR PIPE
M8X22 L=33
8-94257-319-0
02
1
0401-0607
●
165
STUD; EGR PIPE
M8X22 L=33
8-94257-319-0
02
1
0608-
●
