0-25 — INLET MANIFOLD (#42902) — 64 parça

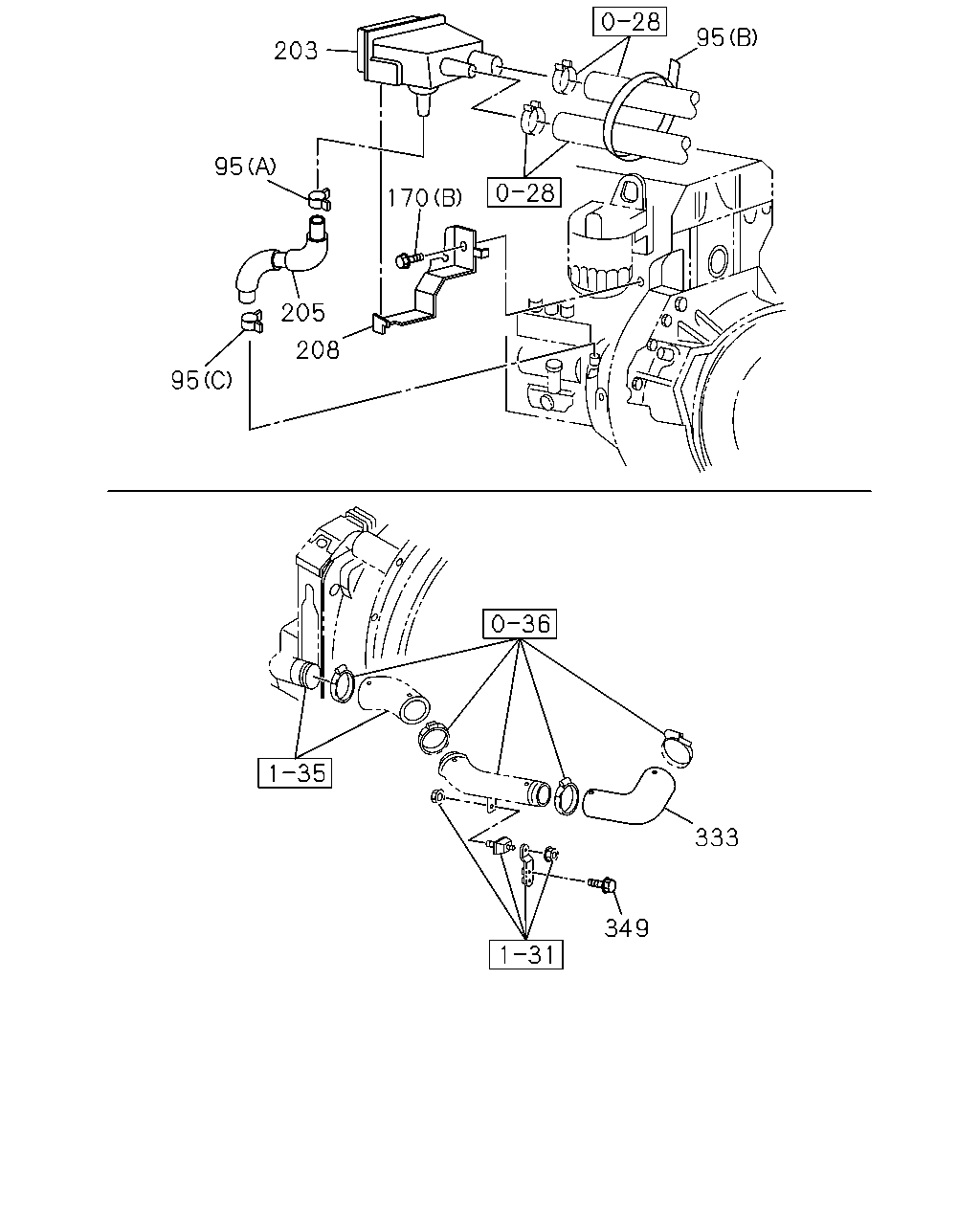

çizim 54819
95 203 95 170 205 208 95 333 349
BalonParca AdiParca NoAdetTipApplied Date A B
95 CLIP; RUBBER HOSE
(B) L=140 		5-09707-031-1 01 1 0401-0607 ●
95 CLIP; RUBBER HOSE
(B) L=140 		5-09707-031-1 01 1 0608- ●
95 CLIP; RUBBER HOSE
(A) ID=11 		8-94238-570-0 01 1 0401-0607 ●
95 CLIP; RUBBER HOSE
(C) ID=11 		8-94238-925-0 01 1 0401-0607 ●
170 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0401-0512 ●
170 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601-0607 ●
170 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0608- ●
170 BOLT; BRKT
(B) M12X20 FLANGE 		0-28181-220-0 01 1 0401-0512 ●
170 BOLT; BRKT
(B) M12X20 FLANGE 		0-28151-220-0 01 1 0601-0607 ●
170 BOLT; BRKT
(B) M12X20 FLANGE 		0-28151-220-0 01 1 0608- ●
203 TANK; CATCH,PRESSURE CONT VLV 8-97088-685-1 01 1 0401-0607 ●
203 TANK; CATCH,PRESSURE CONT VLV 8-97088-685-1 01 1 0608- ●
205 HOSE; OIL DRAIN 8-97149-011-1 01 1 0401-0607 ●
208 BRACKET; CATCH TANK,OIL 8-97166-887-0 01 1 0401-0607 ●
208 BRACKET; CATCH TANK,OIL 8-97166-887-0 01 1 0608- ●
333 HOSE; RUBBER,INL PIPE 8-97189-631-1 01 1 0401-0607 ●
333 HOSE; RUBBER,INL PIPE 8-97189-631-1 01 1 0608-0608 ●
333 HOSE; RUBBER,INL PIPE 8-98053-755-0 01 1 0609- ●
349 BOLT; BRKT,INL PIPE
M8X20 FLANGE 		0-28480-820-0 04 1 0401-0512 ●
349 BOLT; BRKT,INL PIPE
M8X20 FLANGE 		0-28450-820-0 04 1 0601-0607 ●

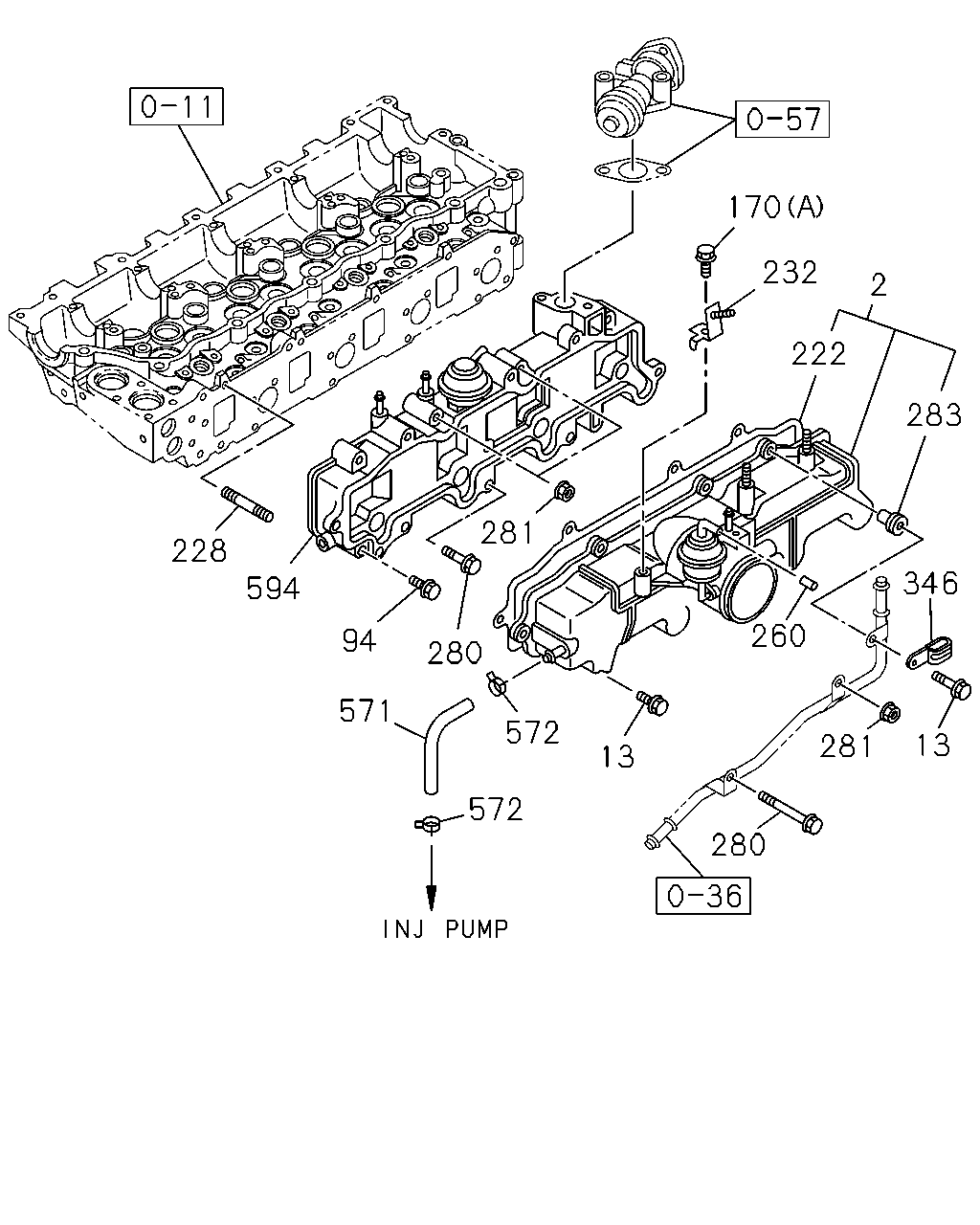

çizim 55221
170 232 2 222 283 281 228 346 594 260 94 280 571 572 13 281 13 572 280
BalonParca AdiParca NoAdetTipApplied Date A B
2 COVER; INL 8-97219-653-1 01 1 0401-0607 ●
2 COVER; INL 8-97219-653-2 01 1 0608- ●
13 BOLT; INL MANIF
M8X30 FLANGE 		0-28080-830-0 06 1 0401-0512 ●
13 BOLT; INL MANIF
M8X30 FLANGE 		0-28050-830-0 06 1 0601-0607 ●
13 BOLT; INL MANIF
M8X30 FLANGE 		0-28050-830-0 06 1 0608- ●
94 BOLT
M8X45 FLANGE 		0-28080-845-0 04 1 0401-0512 ●
94 BOLT
M8X45 FLANGE 		0-28050-845-0 04 1 0601-0607 ●
94 BOLT
M8X45 FLANGE 		0-28050-845-0 04 1 0608- ●
94 BOLT
M8X50 FLANGE 		0-28080-850-0 02 1 0401-0512 ●
94 BOLT
M8X50 FLANGE 		0-28050-850-0 02 1 0601-0607 ●
94 BOLT
M8X50 FLANGE 		0-28050-850-0 02 1 0608- ●
170 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0401-0512 ●
170 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601-0607 ●
170 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0608- ●
170 BOLT; BRKT
(B) M12X20 FLANGE 		0-28181-220-0 01 1 0401-0512 ●
170 BOLT; BRKT
(B) M12X20 FLANGE 		0-28151-220-0 01 1 0601-0607 ●
170 BOLT; BRKT
(B) M12X20 FLANGE 		0-28151-220-0 01 1 0608- ●
222 GASKET; INL COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97219-649-0 01 1 0401-0607 ●
222 GASKET; INL COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97219-649-0 01 1 0608- ●
228 STUD; INL COVER
M8X84 L=95 		8-97181-739-0 02 1 0401-0607 ●
228 STUD; INL COVER
M8X84 L=95 		8-97181-739-0 02 1 0608- ●
232 BRACKET; INJ PIPE 8-97190-249-0 01 1 0401-0607 ●
232 BRACKET; INJ PIPE 8-97190-249-0 01 1 0608- ●
260 CAP; RUBBER
ID=4 		8-94217-809-0 01 1 0401-0607 ●
260 CAP; RUBBER
ID=4 		8-94217-809-0 01 1 0608- ●
280 BOLT; INL COVER
M8X80 FLANGE 		0-28080-880-0 01 1 0401-0512 ●
280 BOLT; INL COVER
M8X80 FLANGE 		0-28050-880-0 01 1 0601-0607 ●
280 BOLT; INL COVER
M8X80 FLANGE 		0-28050-880-0 01 1 0608- ●
281 NUT; INL COVER
M8 FLANGE 		0-91150-108-0 02 1 0401-0602 ●
281 NUT; INL COVER
M8 FLANGE 		0-91180-108-0 02 1 0603-0607 ●
281 NUT; INL COVER
M8 FLANGE 		0-91180-108-0 02 1 0608- ●
283 RUBBER
L=18 		8-97219-650-0 09 1 0401-0607 ●
283 RUBBER
L=18 		8-97219-650-0 09 1 0608- ●
346 CLIP; ENG HARNESS
ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 0401-0607 ●
346 CLIP; ENG HARNESS
ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 0608-0801 ●
346 CLIP; ENG HARNESS
ID=12 VINYL CHLORIDE 		8-97367-984-1 04 1 0802- ●
571 HOSE; AIR BOOST
L=350 SERVICED BY L=3000 		0-01254-300-0 01 1 0401-0607 ●
571 HOSE; AIR BOOST
L=350 SERVICED BY L=3000 		0-01254-300-0 01 1 0608- ●
572 CLIP; BOOST HOSE
ID=11 		8-94238-570-0 02 1 0401-0607 ●
572 CLIP; BOOST HOSE
ID=11 		8-94238-570-0 02 1 0608- ●
594 CASE 8-97187-617-0 01 1 0401-0503 ●
594 CASE 8-98012-738-0 01 1 0504-0607 ●
594 CASE 8-98012-738-0 01 1 0608-0801 ●
594 CASE 8-98096-150-0 01 1 0802- ●
