◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50980 - NPR(IRAN) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-22 - ENGINE MOUNTING ▶
0-22 — ENGINE MOUNTING (#42901) — 50 parça

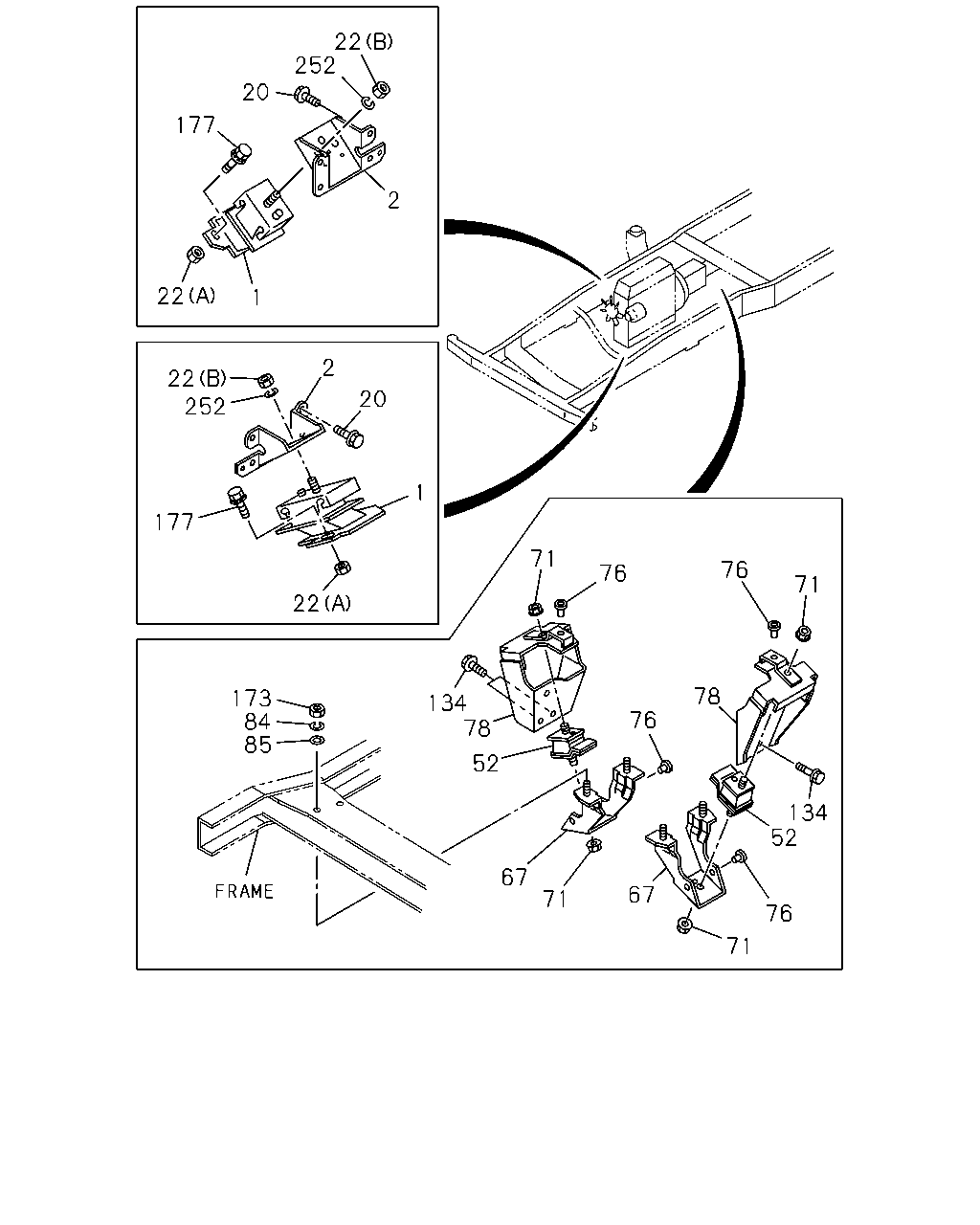

çizim 56324
22 252 20 177 2 22 1 2 22 252 20 1 177 71 76 76 71 22 78 173 84 85 134 78 76 2 134 52 67 67 71 76 71
BalonParca AdiParca NoAdetTipApplied Date A B
1 RUBBER; ENG FOOT,FRT 8-97187-417-0 01 1 0401-0607 ●
1 RUBBER; ENG FOOT,FRT 8-97187-417-0 01 1 0608- ●
1 RUBBER; ENG FOOT,FRT 8-97187-416-0 01 1 0401-0607 ●
1 RUBBER; ENG FOOT,FRT 8-97187-416-0 01 1 0608- ●
2 FOOT; ENG 8-97228-669-2 02 1 0401-0607 ●
2 FOOT; ENG 8-97228-669-2 02 1 0608- ●
20 BOLT; ENG FOOT
M10X20 FLANGE 		0-28191-020-0 08 1 0401-0512 ●
20 BOLT; ENG FOOT
M10X20 FLANGE 		0-28161-020-0 08 1 0601-0607 ●
20 BOLT; ENG FOOT
M10X20 FLANGE 		0-28161-020-0 08 1 0608- ●
22 NUT; CUSHION RUBBER TO BRKT
(A) M10 FLANGE 		0-91150-210-0 04 1 0401-0602 ●
22 NUT; CUSHION RUBBER TO BRKT
(A) M10 FLANGE 		0-91180-210-0 04 1 0603-0607 ●
22 NUT; CUSHION RUBBER TO BRKT
(A) M10 FLANGE 		0-91180-210-0 04 1 0608- ●
22 NUT; CUSHION RUBBER TO BRKT
(B) M12 		9-99110-412-0 02 1 0401-0512 ●
22 NUT; CUSHION RUBBER TO BRKT
(B) M12 		0-91110-512-0 02 1 0601-0607 ●
22 NUT; CUSHION RUBBER TO BRKT
(B) M12 		0-91110-512-0 02 1 0608-0612 ●
22 NUT; CUSHION RUBBER TO BRKT
(B) M12 FLANGE 		0-91180-112-0 02 1 0701- ●
52 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-1 02 1 0401-0607 ●
52 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-1 02 1 0608- ●
67 BRACKET; SUPPORT,ENG MTG,RR 8-97371-918-0 01 1 0401-0607 ●
67 BRACKET; SUPPORT,ENG MTG,RR 8-97371-918-1 01 1 0608- ●
67 BRACKET; SUPPORT,ENG MTG,RR 8-97325-567-0 01 1 0401-0607 ●
67 BRACKET; SUPPORT,ENG MTG,RR 8-97325-567-1 01 1 0608- ●
71 NUT; SUPPORT RUBBER TO BRKT
M10 FLANGE 		0-91150-110-0 04 1 0401-0602 ●
71 NUT; SUPPORT RUBBER TO BRKT
M10 FLANGE 		0-91180-110-0 04 1 0603-0607 ●
71 NUT; SUPPORT RUBBER TO BRKT
M10 FLANGE 		0-91180-110-0 04 1 0608- ●
76 STOPPER; ENG MTG RUBBER 8-97039-947-1 04 1 1404- ●
76 STOPPER; ENG MTG RUBBER 8-94111-904-0 06 1 0401-0607 ●
76 STOPPER; ENG MTG RUBBER 8-94111-904-0 06 1 0608-1403 ●
76 STOPPER; ENG MTG RUBBER 8-94111-904-0 02 1 1404- ●
78 BRACKET; ENG MTG,RR 8-97325-564-0 01 1 0401-0607 ●
78 BRACKET; ENG MTG,RR 8-97325-564-1 01 1 0608- ●
78 BRACKET; ENG MTG,RR 8-97325-565-0 01 1 0401-0607 ●
78 BRACKET; ENG MTG,RR 8-97325-565-1 01 1 0608- ●
84 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		9-09164-810-0 04 1 0401-0605 ●
84 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 0606-0607 ●
84 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 0608- ●
85 WASHER; LK,ENG MTG RR TO FRAME
ID=10.2 		9-09150-610-0 04 1 0401-0603 ●
85 WASHER; LK,ENG MTG RR TO FRAME
ID=10.2 		0-91510-610-0 04 1 0604-0607 ●
85 WASHER; LK,ENG MTG RR TO FRAME
ID=10.2 		0-91510-610-0 04 1 0608-0610 ●
134 BOLT; SUPPORT BRKT
M12X25 		0-28781-225-0 06 1 0401-0512 ●
134 BOLT; SUPPORT BRKT
M12X25 FLANGE 		0-28751-225-0 06 1 0601- ●
173 NUT; ENG MTG RR TO FRAME
M10 		9-09110-410-0 04 1 0401-0512 ●
173 NUT; ENG MTG RR TO FRAME
M10 		0-91110-510-0 04 1 0601-0607 ●
173 NUT; ENG MTG RR TO FRAME
M10 		0-91110-510-0 04 1 0608-0610 ●
173 NUT; ENG MTG RR TO FRAME
M10 FLANGE 		0-91180-110-0 04 1 0611- ●
177 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 0401-0607 ●
177 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 0608- ●
252 WASHER; LK,SUPPORT RUBBER
ID=12.2 		9-09150-612-0 02 1 0401-0603 ●
252 WASHER; LK,SUPPORT RUBBER
ID=12.2 		0-91510-612-0 02 1 0604-0607 ●
252 WASHER; LK,SUPPORT RUBBER
ID=12.2 		0-91510-612-0 02 1 0608-0612 ●
