1-11A — RADIATOR HOSE AND SUB TANK (#4290) — 306 parça

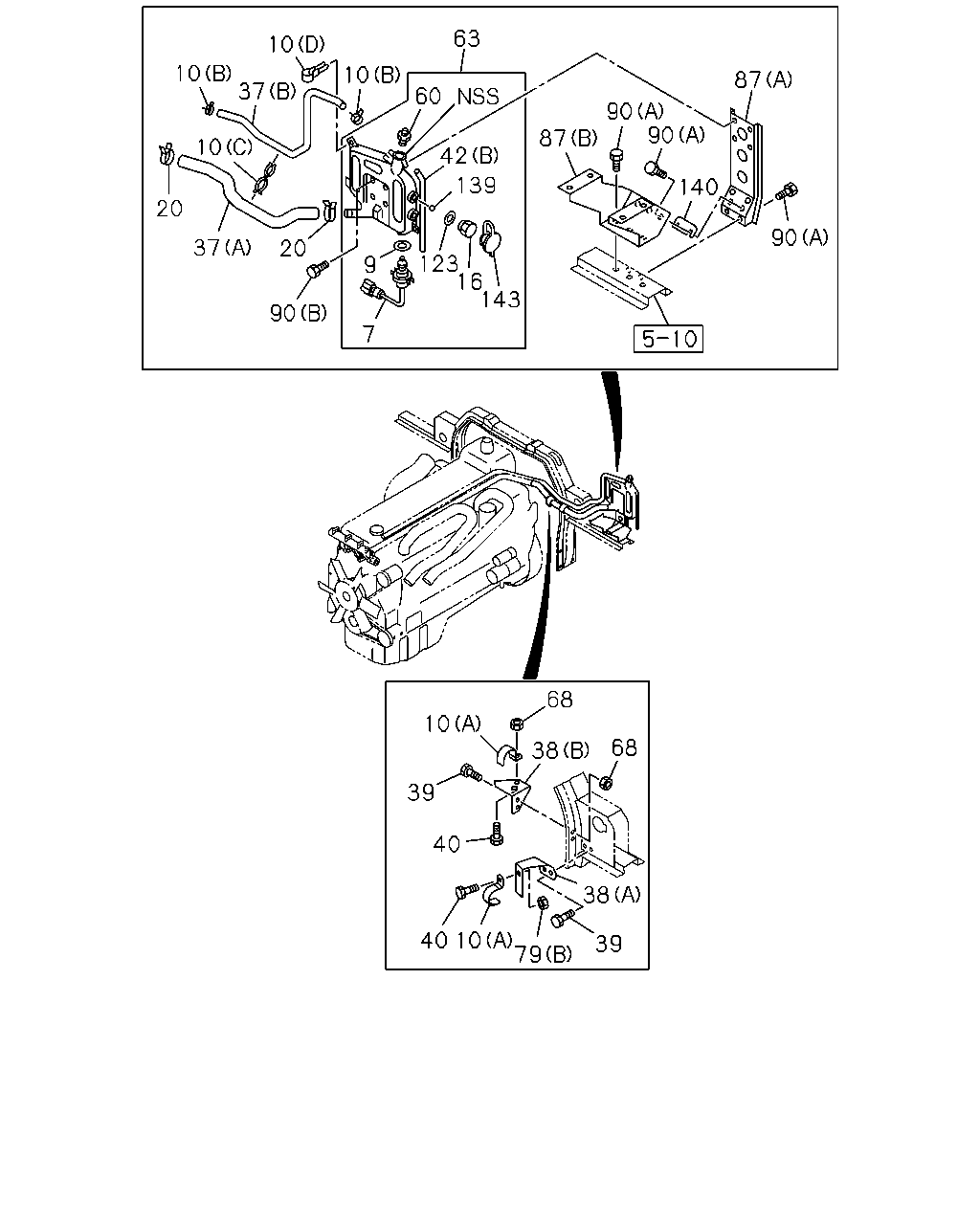

çizim 8539
63 10 10 37 10 87 60 90 87 90 140 42 10 139 20 90 37 20 123 16 143 9 90 7 68 10 68 38 39 40 38 40 10 79 39
BalonParca AdiParca NoAdetTipApplied Date A B C D E
7 SWITCH ASM; TANK 1-82480-045-0 01 1 9603-9904 ● ●
7 SWITCH ASM; TANK 1-82480-045-0 01 1 9905-0103 ● ● ● ●
7 SWITCH ASM; TANK 1-82480-093-1 01 1 0104- ● ● ● ●
9 GASKET; SWITCH
ID=28 T=2.5 		1-09630-126-0 01 1 9603-9904 ● ●
9 GASKET; SWITCH
ID=28 T=2.5 		1-09630-126-0 01 1 9905- ● ● ● ●
10 CLIP; RUBBER HOSE
(E) ID=15 H=24 L=20 		1-09700-606-0 01 1 9603-9606 ●
10 CLIP; RUBBER HOSE
(E) ID=15 H=24 L=20 		1-09700-606-0 01 1 9607-9904 ● ●
10 CLIP; RUBBER HOSE
(E) ID=15 H=24 L=20 		1-09700-606-0 01 1 9905- ● ● ● ●
10 CLIP; RUBBER HOSE
(A) D=43 		1-09700-703-0 01 1 9603-9904 ● ●
10 CLIP; RUBBER HOSE
CAB UP +110MM<TGG> (A) D=43 		1-09700-703-0 02 1 9905- ●
10 CLIP; RUBBER HOSE
(A) D=43 		1-09700-703-0 02 1 9905- ●
10 CLIP; RUBBER HOSE
(A) D=43 		1-09700-703-0 01 1 9905- ● ●
10 CLIP; RUBBER HOSE
EXC. CAB UP +110MM<TGG> (A) D=43 		1-09700-703-0 01 1 9905- ●
10 CLIP; RUBBER HOSE
(B) ID=14 		1-09704-102-0 04 1 9603-9904 ● ●
10 CLIP; RUBBER HOSE
(B) ID=14 		1-09704-102-0 04 1 9905- ● ● ● ●
10 CLIP; RUBBER HOSE
(C) ID=44 & 16 		1-09709-125-0 04 1 9603-9904 ● ●
10 CLIP; RUBBER HOSE
(C) ID=44 & 16 		1-09709-125-0 04 1 9905- ● ● ● ●
10 CLIP; RUBBER HOSE
(D) ID=14 L=44 		9-09917-427-0 02 1 9603-9904 ● ●
10 CLIP; RUBBER HOSE
(D) ID=14 L=44 		9-09917-427-0 02 1 9905- ● ● ● ●
10 CLIP; RUBBER HOSE
(F) L=250 		1-09707-126-0 01 1 0010-0010 ● ● ● ●
10 CLIP; RUBBER HOSE
(F) L=350 		1-09707-183-0 01 1 0011- ● ● ● ●
16 PLUG; TANK 1-21464-425-0 02 1 9603-9609 ●
16 PLUG; TANK 1-21464-514-0 02 1 9610-9904 ● ●
16 PLUG; TANK 1-21464-514-0 02 1 9905- ● ● ● ●
20 CLIP; HOSE,RAD
ID=31 		1-09707-093-1 02 1 9603-9904 ● ●
20 CLIP; HOSE,RAD
ID=31 		1-09707-093-1 02 1 9905- ● ● ● ●
37 HOSE; RUBBER
(A) 		1-21437-583-0 01 1 9603-9606 ●
37 HOSE; RUBBER
(A) 		1-21437-583-0 01 1 9607-9904 ● ●
37 HOSE; RUBBER
(A) 		1-21437-583-0 01 1 9905- ● ●
37 HOSE; RUBBER
EXC. CAB UP +110MM<TGG> (A) 		1-21437-583-0 01 1 9905- ●
37 HOSE; RUBBER
(B) L=1350 SERVICED BY L=3000 		0-03259-300-0 01 1 9603-9904 ● ●
37 HOSE; RUBBER
CAB UP +110MM<TGG> (B) L=1450 SERVICED BY L=3000 		0-03259-300-0 01 1 9905-0103 ●
37 HOSE; RUBBER
(B) L=1450 SERVICED BY L=3000 		0-03259-300-0 01 1 9905-0103 ●
37 HOSE; RUBBER
CAB UP +110MM<TGG> (B) L=1450 SERVICED BY L=3000 		0-03559-300-0 01 1 0104- ●
37 HOSE; RUBBER
(B) L=1450 SERVICED BY L=3000 		0-03559-300-0 01 1 0104- ●
37 HOSE; RUBBER
(B) L=1350 SERVICED BY L=3000 		0-03259-300-0 01 1 9905-0103 ● ●
37 HOSE; RUBBER
EXC. CAB UP +110MM<TGG> (B) L=1350 SERVICED BY L=3000 		0-03259-300-0 01 1 9905-0103 ●
37 HOSE; RUBBER
(B) L=1350 SERVICED BY L=3000 		0-03559-300-0 01 1 0104- ● ●
37 HOSE; RUBBER
EXC. CAB UP +110MM<TGG> (B) L=1350 SERVICED BY L=3000 		0-03559-300-0 01 1 0104- ●
37 HOSE; RUBBER
CAB UP +110MM<TGG> (A) 		1-21437-568-1 01 1 9905- ●
37 HOSE; RUBBER
(A) 		1-21437-568-1 01 1 9905- ●
38 BRACKET; RUBBER HOSE
CAB UP +110MM<TGG> (A) 		1-21489-158-2 01 1 9905- ●
38 BRACKET; RUBBER HOSE
(A) 		1-21489-158-2 01 1 9905- ●
38 BRACKET; RUBBER HOSE
CAB UP +110MM<TGG> (B) 		1-21489-165-1 01 1 9905- ●
38 BRACKET; RUBBER HOSE
(B) 		1-21489-165-1 01 1 9905- ●
39 BOLT; BRKT FIX
CAB UP +110MM<TGG> M8X20 FLANGE 		0-28680-820-0 04 1 9905- ●
39 BOLT; BRKT FIX
M8X20 FLANGE 		0-28680-820-0 04 1 9905- ●
40 BOLT; CLIP
M10X20 FLANGE 		0-28081-020-0 01 1 9603-9606 ●
40 BOLT; CLIP
M10X20 FLANGE 		0-28681-020-0 01 1 9607-9802 ● ●
40 BOLT; CLIP
M10X25 FLANGE 		0-28681-025-0 01 1 9803-9904 ● ●
40 BOLT; CLIP
M10X25 FLANGE 		0-28681-025-0 01 1 9905- ● ● ● ●
40 BOLT; CLIP
CAB UP +110MM<TGG> M10X25 FLANGE 		0-28681-025-0 02 1 9905- ●
40 BOLT; CLIP
M10X25 FLANGE 		0-28681-025-0 02 1 9905- ●
42 HOSE; RUBBER
(A) L=560 SERVICED BY L=3000 		0-03259-300-0 01 1 9603-9706 ●
42 HOSE; RUBBER
(A) L=560 SERVICED BY L=3000 		0-03259-300-0 01 1 9707-9904 ● ●
42 HOSE; RUBBER
(A) L=560 SERVICED BY L=3000 		0-03259-300-0 01 1 9905-0103 ● ● ● ●
42 HOSE; RUBBER
(A) L=560 SERVICED BY L=3000 		0-03559-300-0 01 1 0104- ● ● ● ●
42 HOSE; RUBBER
(B) L=850 		1-21489-154-0 01 1 9603-9904 ● ●
42 HOSE; RUBBER
(B) L=850 		1-21489-154-0 01 1 9905- ● ● ● ●
60 CAP; SUB TANK 1-21450-083-4 01 1 9603-9807 ● ●
60 CAP; SUB TANK 1-21450-137-0 01 1 9808-9904 ● ●
60 CAP; SUB TANK 1-21450-137-0 01 1 9905- ● ● ● ●
63 TANK ASM; SUB 1-21481-097-1 01 1 9603-9609 ●
63 TANK ASM; SUB 1-21481-106-1 01 1 9610-9904 ● ●
63 TANK ASM; SUB 1-21481-106-1 01 1 9905-0003 ● ● ● ●
63 TANK ASM; SUB 1-21481-128-0 01 1 0004-0103 ● ● ● ●
63 TANK ASM; SUB 1-21481-144-0 01 1 0104- ● ● ● ●
68 NUT; BRKT
CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 04 1 9905- ●
68 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 9905- ●
79 NUT; CLIP,HOSE
(A) M8 FLANGE 		0-91150-108-0 01 1 9603-9606 ●
79 NUT; CLIP,HOSE
(A) M8 FLANGE 		0-91150-108-0 01 1 9607-9904 ● ●
79 NUT; CLIP,HOSE
(A) M8 FLANGE 		0-91150-108-0 01 1 9905- ● ● ● ●
79 NUT; CLIP,HOSE
(B) M10 FLANGE 		0-91150-210-0 01 1 9607-9904 ● ●
79 NUT; CLIP,HOSE
(B) M10 FLANGE 		0-91150-210-0 01 1 9905- ● ● ● ●
87 BRACKET; SUB TANK
(A) 		1-21489-156-0 01 1 9603-9606 ●
87 BRACKET; SUB TANK
(A) 		1-21489-156-0 01 1 9607-9904 ● ●
87 BRACKET; SUB TANK
(A) 		1-21489-156-0 01 1 9905- ● ●
87 BRACKET; SUB TANK
EXC. CAB UP +110MM<TGG> (A) 		1-21489-156-0 01 1 9905- ●
87 BRACKET; SUB TANK
(B) 		1-21489-155-0 01 1 9603-9904 ● ●
87 BRACKET; SUB TANK
(B) 		1-21489-155-0 01 1 9905- ● ● ● ●
87 BRACKET; SUB TANK
CAB UP +110MM<TGG> (A) 		1-21489-162-0 01 1 9905- ●
87 BRACKET; SUB TANK
(A) 		1-21489-162-0 01 1 9905- ●
90 BOLT; SUB TANK TO BRKT
(A) M8X20 FLANGE 		0-28080-820-0 06 1 9603-9606 ● ●
90 BOLT; SUB TANK TO BRKT
(A) M8X20 FLANGE 		0-28680-820-0 06 1 9607-9904 ● ●
90 BOLT; SUB TANK TO BRKT
(A) M8X20 FLANGE 		0-28680-820-0 06 1 9905- ● ● ● ●
90 BOLT; SUB TANK TO BRKT
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 04 1 9603-9904 ● ●
90 BOLT; SUB TANK TO BRKT
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 04 1 9905- ● ● ● ●
123 GASKET
ID=26.2 		8-94399-716-1 02 1 9603-9904 ● ●
123 GASKET
ID=26.2 		8-94399-716-1 02 1 9905- ● ● ● ●
139 FLOAT 1-21489-118-1 02 1 9603-9609 ●
139 FLOAT 1-21489-161-0 02 1 9610-9904 ● ●
139 FLOAT 1-21489-161-0 02 1 9905- ● ● ● ●
140 SHIM
T=0.8 		1-53458-716-0 AR 1 9603-9606 ●
140 SHIM
T=0.8 		1-53458-716-0 AR 1 9607-9904 ● ●
140 SHIM
T=0.8 		1-53458-716-0 AR 1 9905- ● ● ● ●
143 COVER; PLUG 1-82389-017-0 02 1 9610-9904 ● ●
143 COVER; PLUG 1-82389-017-0 02 1 9905- ● ● ● ●

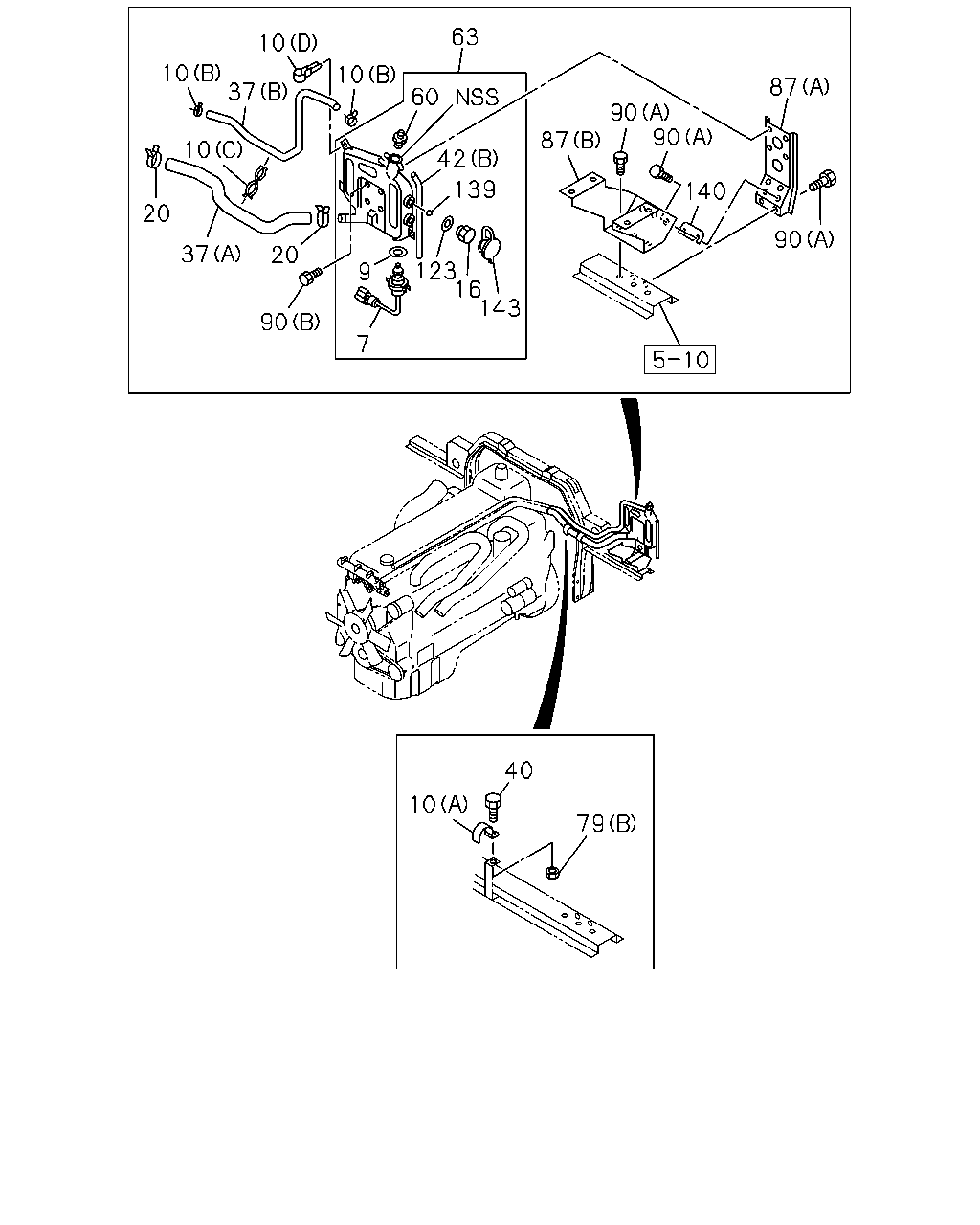

çizim 40006
63 10 10 37 10 87 60 90 87 90 42 10 139 140 20 90 37 20 123 16 143 9 90 7 40 10 79
BalonParca AdiParca NoAdetTipApplied Date A B C D E
7 SWITCH ASM; TANK 1-82480-045-0 01 1 9603-9904 ● ●
7 SWITCH ASM; TANK 1-82480-045-0 01 1 9905-0103 ● ● ● ●
7 SWITCH ASM; TANK 1-82480-093-1 01 1 0104- ● ● ● ●
9 GASKET; SWITCH
ID=28 T=2.5 		1-09630-126-0 01 1 9603-9904 ● ●
9 GASKET; SWITCH
ID=28 T=2.5 		1-09630-126-0 01 1 9905- ● ● ● ●
10 CLIP; RUBBER HOSE
(E) ID=15 H=24 L=20 		1-09700-606-0 01 1 9603-9606 ●
10 CLIP; RUBBER HOSE
(E) ID=15 H=24 L=20 		1-09700-606-0 01 1 9607-9904 ● ●
10 CLIP; RUBBER HOSE
(E) ID=15 H=24 L=20 		1-09700-606-0 01 1 9905- ● ● ● ●
10 CLIP; RUBBER HOSE
(A) D=43 		1-09700-703-0 01 1 9603-9904 ● ●
10 CLIP; RUBBER HOSE
CAB UP +110MM<TGG> (A) D=43 		1-09700-703-0 02 1 9905- ●
10 CLIP; RUBBER HOSE
(A) D=43 		1-09700-703-0 02 1 9905- ●
10 CLIP; RUBBER HOSE
(A) D=43 		1-09700-703-0 01 1 9905- ● ●
10 CLIP; RUBBER HOSE
EXC. CAB UP +110MM<TGG> (A) D=43 		1-09700-703-0 01 1 9905- ●
10 CLIP; RUBBER HOSE
(B) ID=14 		1-09704-102-0 04 1 9603-9904 ● ●
10 CLIP; RUBBER HOSE
(B) ID=14 		1-09704-102-0 04 1 9905- ● ● ● ●
10 CLIP; RUBBER HOSE
(C) ID=44 & 16 		1-09709-125-0 04 1 9603-9904 ● ●
10 CLIP; RUBBER HOSE
(C) ID=44 & 16 		1-09709-125-0 04 1 9905- ● ● ● ●
10 CLIP; RUBBER HOSE
(D) ID=14 L=44 		9-09917-427-0 02 1 9603-9904 ● ●
10 CLIP; RUBBER HOSE
(D) ID=14 L=44 		9-09917-427-0 02 1 9905- ● ● ● ●
10 CLIP; RUBBER HOSE
(F) L=250 		1-09707-126-0 01 1 0010-0010 ● ● ● ●
10 CLIP; RUBBER HOSE
(F) L=350 		1-09707-183-0 01 1 0011- ● ● ● ●
16 PLUG; TANK 1-21464-425-0 02 1 9603-9609 ●
16 PLUG; TANK 1-21464-514-0 02 1 9610-9904 ● ●
16 PLUG; TANK 1-21464-514-0 02 1 9905- ● ● ● ●
20 CLIP; HOSE,RAD
ID=31 		1-09707-093-1 02 1 9603-9904 ● ●
20 CLIP; HOSE,RAD
ID=31 		1-09707-093-1 02 1 9905- ● ● ● ●
37 HOSE; RUBBER
(A) 		1-21437-583-0 01 1 9603-9606 ●
37 HOSE; RUBBER
(A) 		1-21437-583-0 01 1 9607-9904 ● ●
37 HOSE; RUBBER
(A) 		1-21437-583-0 01 1 9905- ● ●
37 HOSE; RUBBER
EXC. CAB UP +110MM<TGG> (A) 		1-21437-583-0 01 1 9905- ●
37 HOSE; RUBBER
(B) L=1350 SERVICED BY L=3000 		0-03259-300-0 01 1 9603-9904 ● ●
37 HOSE; RUBBER
CAB UP +110MM<TGG> (B) L=1450 SERVICED BY L=3000 		0-03259-300-0 01 1 9905-0103 ●
37 HOSE; RUBBER
(B) L=1450 SERVICED BY L=3000 		0-03259-300-0 01 1 9905-0103 ●
37 HOSE; RUBBER
CAB UP +110MM<TGG> (B) L=1450 SERVICED BY L=3000 		0-03559-300-0 01 1 0104- ●
37 HOSE; RUBBER
(B) L=1450 SERVICED BY L=3000 		0-03559-300-0 01 1 0104- ●
37 HOSE; RUBBER
(B) L=1350 SERVICED BY L=3000 		0-03259-300-0 01 1 9905-0103 ● ●
37 HOSE; RUBBER
EXC. CAB UP +110MM<TGG> (B) L=1350 SERVICED BY L=3000 		0-03259-300-0 01 1 9905-0103 ●
37 HOSE; RUBBER
(B) L=1350 SERVICED BY L=3000 		0-03559-300-0 01 1 0104- ● ●
37 HOSE; RUBBER
EXC. CAB UP +110MM<TGG> (B) L=1350 SERVICED BY L=3000 		0-03559-300-0 01 1 0104- ●
37 HOSE; RUBBER
CAB UP +110MM<TGG> (A) 		1-21437-568-1 01 1 9905- ●
37 HOSE; RUBBER
(A) 		1-21437-568-1 01 1 9905- ●
40 BOLT; CLIP
M10X20 FLANGE 		0-28081-020-0 01 1 9603-9606 ●
40 BOLT; CLIP
M10X20 FLANGE 		0-28681-020-0 01 1 9607-9802 ● ●
40 BOLT; CLIP
M10X25 FLANGE 		0-28681-025-0 01 1 9803-9904 ● ●
40 BOLT; CLIP
M10X25 FLANGE 		0-28681-025-0 01 1 9905- ● ● ● ●
40 BOLT; CLIP
CAB UP +110MM<TGG> M10X25 FLANGE 		0-28681-025-0 02 1 9905- ●
40 BOLT; CLIP
M10X25 FLANGE 		0-28681-025-0 02 1 9905- ●
42 HOSE; RUBBER
(A) L=560 SERVICED BY L=3000 		0-03259-300-0 01 1 9603-9706 ●
42 HOSE; RUBBER
(A) L=560 SERVICED BY L=3000 		0-03259-300-0 01 1 9707-9904 ● ●
42 HOSE; RUBBER
(A) L=560 SERVICED BY L=3000 		0-03259-300-0 01 1 9905-0103 ● ● ● ●
42 HOSE; RUBBER
(A) L=560 SERVICED BY L=3000 		0-03559-300-0 01 1 0104- ● ● ● ●
42 HOSE; RUBBER
(B) L=850 		1-21489-154-0 01 1 9603-9904 ● ●
42 HOSE; RUBBER
(B) L=850 		1-21489-154-0 01 1 9905- ● ● ● ●
60 CAP; SUB TANK 1-21450-083-4 01 1 9603-9807 ● ●
60 CAP; SUB TANK 1-21450-137-0 01 1 9808-9904 ● ●
60 CAP; SUB TANK 1-21450-137-0 01 1 9905- ● ● ● ●
63 TANK ASM; SUB 1-21481-097-1 01 1 9603-9609 ●
63 TANK ASM; SUB 1-21481-106-1 01 1 9610-9904 ● ●
63 TANK ASM; SUB 1-21481-106-1 01 1 9905-0003 ● ● ● ●
63 TANK ASM; SUB 1-21481-128-0 01 1 0004-0103 ● ● ● ●
63 TANK ASM; SUB 1-21481-144-0 01 1 0104- ● ● ● ●
79 NUT; CLIP,HOSE
(A) M8 FLANGE 		0-91150-108-0 01 1 9603-9606 ●
79 NUT; CLIP,HOSE
(A) M8 FLANGE 		0-91150-108-0 01 1 9607-9904 ● ●
79 NUT; CLIP,HOSE
(A) M8 FLANGE 		0-91150-108-0 01 1 9905- ● ● ● ●
79 NUT; CLIP,HOSE
(B) M10 FLANGE 		0-91150-210-0 01 1 9607-9904 ● ●
79 NUT; CLIP,HOSE
(B) M10 FLANGE 		0-91150-210-0 01 1 9905- ● ● ● ●
87 BRACKET; SUB TANK
(A) 		1-21489-156-0 01 1 9603-9606 ●
87 BRACKET; SUB TANK
(A) 		1-21489-156-0 01 1 9607-9904 ● ●
87 BRACKET; SUB TANK
(A) 		1-21489-156-0 01 1 9905- ● ●
87 BRACKET; SUB TANK
EXC. CAB UP +110MM<TGG> (A) 		1-21489-156-0 01 1 9905- ●
87 BRACKET; SUB TANK
(B) 		1-21489-155-0 01 1 9603-9904 ● ●
87 BRACKET; SUB TANK
(B) 		1-21489-155-0 01 1 9905- ● ● ● ●
87 BRACKET; SUB TANK
CAB UP +110MM<TGG> (A) 		1-21489-162-0 01 1 9905- ●
87 BRACKET; SUB TANK
(A) 		1-21489-162-0 01 1 9905- ●
90 BOLT; SUB TANK TO BRKT
(A) M8X20 FLANGE 		0-28080-820-0 06 1 9603-9606 ● ●
90 BOLT; SUB TANK TO BRKT
(A) M8X20 FLANGE 		0-28680-820-0 06 1 9607-9904 ● ●
90 BOLT; SUB TANK TO BRKT
(A) M8X20 FLANGE 		0-28680-820-0 06 1 9905- ● ● ● ●
90 BOLT; SUB TANK TO BRKT
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 04 1 9603-9904 ● ●
90 BOLT; SUB TANK TO BRKT
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 04 1 9905- ● ● ● ●
123 GASKET
ID=26.2 		8-94399-716-1 02 1 9603-9904 ● ●
123 GASKET
ID=26.2 		8-94399-716-1 02 1 9905- ● ● ● ●
139 FLOAT 1-21489-118-1 02 1 9603-9609 ●
139 FLOAT 1-21489-161-0 02 1 9610-9904 ● ●
139 FLOAT 1-21489-161-0 02 1 9905- ● ● ● ●
140 SHIM
T=0.8 		1-53458-716-0 AR 1 9603-9606 ●
140 SHIM
T=0.8 		1-53458-716-0 AR 1 9607-9904 ● ●
140 SHIM
T=0.8 		1-53458-716-0 AR 1 9905- ● ● ● ●
143 COVER; PLUG 1-82389-017-0 02 1 9610-9904 ● ●
143 COVER; PLUG 1-82389-017-0 02 1 9905- ● ● ● ●

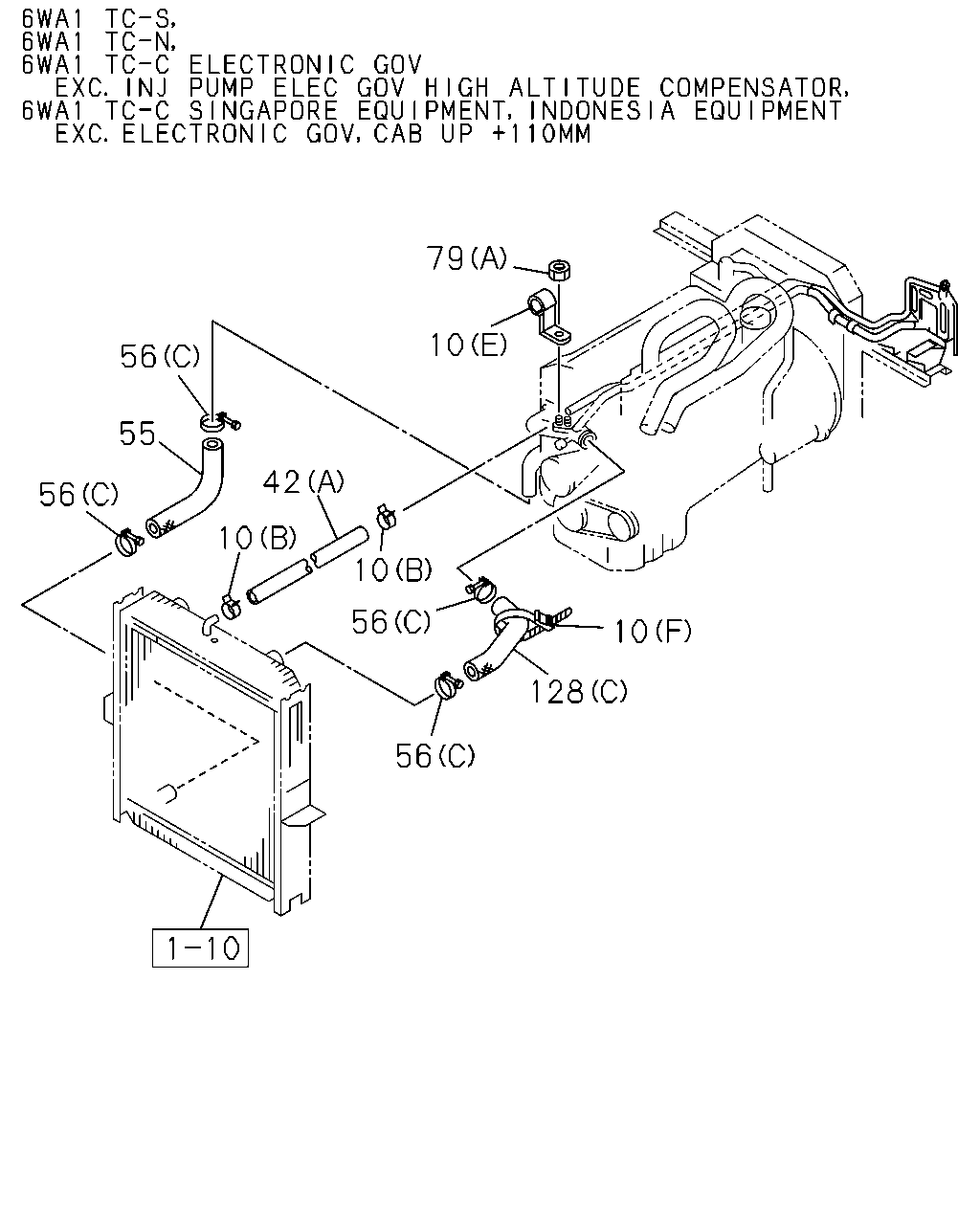

çizim 40325
79 10 56 55 42 56 10 10 56 10 128 56
BalonParca AdiParca NoAdetTipApplied Date A B C D E
10 CLIP; RUBBER HOSE
(E) ID=15 H=24 L=20 		1-09700-606-0 01 1 9603-9606 ●
10 CLIP; RUBBER HOSE
(E) ID=15 H=24 L=20 		1-09700-606-0 01 1 9607-9904 ● ●
10 CLIP; RUBBER HOSE
(E) ID=15 H=24 L=20 		1-09700-606-0 01 1 9905- ● ● ● ●
10 CLIP; RUBBER HOSE
(A) D=43 		1-09700-703-0 01 1 9603-9904 ● ●
10 CLIP; RUBBER HOSE
CAB UP +110MM<TGG> (A) D=43 		1-09700-703-0 02 1 9905- ●
10 CLIP; RUBBER HOSE
(A) D=43 		1-09700-703-0 02 1 9905- ●
10 CLIP; RUBBER HOSE
(A) D=43 		1-09700-703-0 01 1 9905- ● ●
10 CLIP; RUBBER HOSE
EXC. CAB UP +110MM<TGG> (A) D=43 		1-09700-703-0 01 1 9905- ●
10 CLIP; RUBBER HOSE
(B) ID=14 		1-09704-102-0 04 1 9603-9904 ● ●
10 CLIP; RUBBER HOSE
(B) ID=14 		1-09704-102-0 04 1 9905- ● ● ● ●
10 CLIP; RUBBER HOSE
(C) ID=44 & 16 		1-09709-125-0 04 1 9603-9904 ● ●
10 CLIP; RUBBER HOSE
(C) ID=44 & 16 		1-09709-125-0 04 1 9905- ● ● ● ●
10 CLIP; RUBBER HOSE
(D) ID=14 L=44 		9-09917-427-0 02 1 9603-9904 ● ●
10 CLIP; RUBBER HOSE
(D) ID=14 L=44 		9-09917-427-0 02 1 9905- ● ● ● ●
10 CLIP; RUBBER HOSE
(F) L=250 		1-09707-126-0 01 1 0010-0010 ● ● ● ●
10 CLIP; RUBBER HOSE
(F) L=350 		1-09707-183-0 01 1 0011- ● ● ● ●
42 HOSE; RUBBER
(A) L=560 SERVICED BY L=3000 		0-03259-300-0 01 1 9603-9706 ●
42 HOSE; RUBBER
(A) L=560 SERVICED BY L=3000 		0-03259-300-0 01 1 9707-9904 ● ●
42 HOSE; RUBBER
(A) L=560 SERVICED BY L=3000 		0-03259-300-0 01 1 9905-0103 ● ● ● ●
42 HOSE; RUBBER
(A) L=560 SERVICED BY L=3000 		0-03559-300-0 01 1 0104- ● ● ● ●
42 HOSE; RUBBER
(B) L=850 		1-21489-154-0 01 1 9603-9904 ● ●
42 HOSE; RUBBER
(B) L=850 		1-21489-154-0 01 1 9905- ● ● ● ●
55 HOSE; WATER,RAD OUTLET 1-21437-448-2 01 1 9603-9904 ●
55 HOSE; WATER,RAD OUTLET 1-21437-448-2 01 1 9905-9912 ● ● ●
55 HOSE; WATER,RAD OUTLET
EXC. CAB UP +110MM<TGG> 		1-21437-448-2 01 1 9905-9912 ●
55 HOSE; WATER,RAD OUTLET
EXC. CAB UP +110MM<TGG> 		1-21437-448-2 01 1 0001- ● ● ● ●
55 HOSE; WATER,RAD OUTLET 1-21437-609-1 01 1 9707-9904 ●
55 HOSE; WATER,RAD OUTLET 1-21437-615-1 01 1 9905- ●
55 HOSE; WATER,RAD OUTLET
CAB UP +110MM<TGG> 		1-21437-710-0 01 1 9905- ●
56 CLIP; WATER HOSE,RAD
(C) ID=72 		1-09704-068-0 04 1 9603-9904 ●
56 CLIP; WATER HOSE,RAD
(C) ID=72 		1-09704-068-0 04 1 9905-9912 ● ●
56 CLIP; WATER HOSE,RAD
ELECTRONIC GOV RED3(KG5) EXC. INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATO R(Q3T) (C) ID=72 		1-09704-068-0 04 1 9905-9912 ●
56 CLIP; WATER HOSE,RAD
SINGAPORE EQUIPMENT(WQ3),INDONESIA EQUIPMENT(WR7) EXC. ELECTRONIC GOV RED3(KG5) (C) ID=72 		1-09704-068-0 04 1 9905-9912 ●
56 CLIP; WATER HOSE,RAD
CAB UP +110MM<TGG> (C) ID=72 		1-09704-068-0 02 1 0001- ●
56 CLIP; WATER HOSE,RAD
(C) ID=72 		1-09704-068-0 02 1 0001- ●
56 CLIP; WATER HOSE,RAD
(A) ID=57 		1-09704-066-0 02 1 9707-9904 ●
56 CLIP; WATER HOSE,RAD
CAB UP +110MM<TGG> (A) ID=57 		1-09704-066-0 02 1 9905- ●
56 CLIP; WATER HOSE,RAD
(A) ID=57 		1-09704-066-0 02 1 9905- ●
56 CLIP; WATER HOSE,RAD
(B) ID=63 		1-09704-067-0 02 1 9707-9904 ●
56 CLIP; WATER HOSE,RAD
CAB UP +110MM<TGG> (B) ID=63 		1-09704-067-0 02 1 9905- ●
56 CLIP; WATER HOSE,RAD
(B) ID=63 		1-09704-067-0 02 1 9905- ●
56 CLIP; WATER HOSE,RAD
(C) ID=72 		1-09704-068-0 02 1 9707-9904 ●
56 CLIP; WATER HOSE,RAD
(C) ID=72 		1-09704-068-0 02 1 9905-9912 ● ● ●
56 CLIP; WATER HOSE,RAD
EXC. CAB UP +110MM<TGG> (C) ID=72 		1-09704-068-0 02 1 9905-9912 ●
56 CLIP; WATER HOSE,RAD
EXC. CAB UP +110MM<TGG> (C) ID=72 		1-09704-068-0 04 1 0001- ● ● ● ●
79 NUT; CLIP,HOSE
(A) M8 FLANGE 		0-91150-108-0 01 1 9603-9606 ●
79 NUT; CLIP,HOSE
(A) M8 FLANGE 		0-91150-108-0 01 1 9607-9904 ● ●
79 NUT; CLIP,HOSE
(A) M8 FLANGE 		0-91150-108-0 01 1 9905- ● ● ● ●
79 NUT; CLIP,HOSE
(B) M10 FLANGE 		0-91150-210-0 01 1 9607-9904 ● ●
79 NUT; CLIP,HOSE
(B) M10 FLANGE 		0-91150-210-0 01 1 9905- ● ● ● ●
128 HOSE; WATER,RAD INL
(C) 		1-21437-495-1 01 1 9603-9904 ●
128 HOSE; WATER,RAD INL
(C) 		1-21437-495-1 01 1 9905-9912 ● ● ●
128 HOSE; WATER,RAD INL
EXC. CAB UP +110MM<TGG> (C) 		1-21437-495-1 01 1 9905-9912 ●
128 HOSE; WATER,RAD INL
EXC. CAB UP +110MM<TGG> (C) 		1-21437-495-1 01 1 0001- ● ● ● ●
128 HOSE; WATER,RAD INL
(B) 		1-21437-553-0 01 1 9707-9904 ●
128 HOSE; WATER,RAD INL
CAB UP +110MM<TGG> (B) 		1-21437-618-1 01 1 9905- ●
128 HOSE; WATER,RAD INL
(B) 		1-21437-618-1 01 1 9905- ●
128 HOSE; WATER,RAD INL
(A) 		1-21437-552-0 01 1 9707-9904 ●
128 HOSE; WATER,RAD INL
CAB UP +110MM<TGG> (A) 		1-21437-617-0 01 1 9905- ●
128 HOSE; WATER,RAD INL
(A) 		1-21437-617-0 01 1 9905- ●

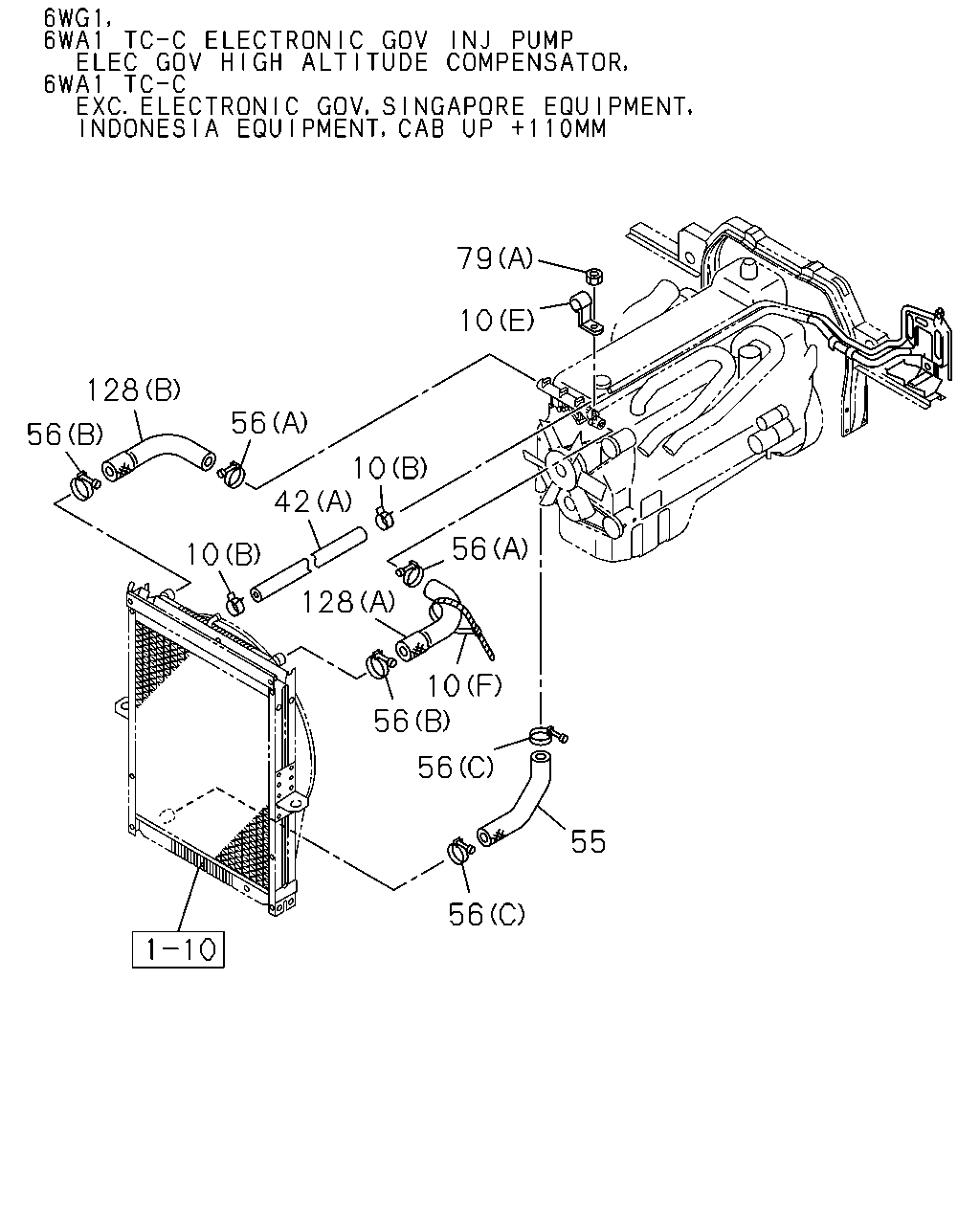

çizim 43424
79 10 128 56 56 10 42 56 10 128 10 56 56 55 56
BalonParca AdiParca NoAdetTipApplied Date A B C D E
10 CLIP; RUBBER HOSE
(E) ID=15 H=24 L=20 		1-09700-606-0 01 1 9603-9606 ●
10 CLIP; RUBBER HOSE
(E) ID=15 H=24 L=20 		1-09700-606-0 01 1 9607-9904 ● ●
10 CLIP; RUBBER HOSE
(E) ID=15 H=24 L=20 		1-09700-606-0 01 1 9905- ● ● ● ●
10 CLIP; RUBBER HOSE
(A) D=43 		1-09700-703-0 01 1 9603-9904 ● ●
10 CLIP; RUBBER HOSE
CAB UP +110MM<TGG> (A) D=43 		1-09700-703-0 02 1 9905- ●
10 CLIP; RUBBER HOSE
(A) D=43 		1-09700-703-0 02 1 9905- ●
10 CLIP; RUBBER HOSE
(A) D=43 		1-09700-703-0 01 1 9905- ● ●
10 CLIP; RUBBER HOSE
EXC. CAB UP +110MM<TGG> (A) D=43 		1-09700-703-0 01 1 9905- ●
10 CLIP; RUBBER HOSE
(B) ID=14 		1-09704-102-0 04 1 9603-9904 ● ●
10 CLIP; RUBBER HOSE
(B) ID=14 		1-09704-102-0 04 1 9905- ● ● ● ●
10 CLIP; RUBBER HOSE
(C) ID=44 & 16 		1-09709-125-0 04 1 9603-9904 ● ●
10 CLIP; RUBBER HOSE
(C) ID=44 & 16 		1-09709-125-0 04 1 9905- ● ● ● ●
10 CLIP; RUBBER HOSE
(D) ID=14 L=44 		9-09917-427-0 02 1 9603-9904 ● ●
10 CLIP; RUBBER HOSE
(D) ID=14 L=44 		9-09917-427-0 02 1 9905- ● ● ● ●
10 CLIP; RUBBER HOSE
(F) L=250 		1-09707-126-0 01 1 0010-0010 ● ● ● ●
10 CLIP; RUBBER HOSE
(F) L=350 		1-09707-183-0 01 1 0011- ● ● ● ●
42 HOSE; RUBBER
(A) L=560 SERVICED BY L=3000 		0-03259-300-0 01 1 9603-9706 ●
42 HOSE; RUBBER
(A) L=560 SERVICED BY L=3000 		0-03259-300-0 01 1 9707-9904 ● ●
42 HOSE; RUBBER
(A) L=560 SERVICED BY L=3000 		0-03259-300-0 01 1 9905-0103 ● ● ● ●
42 HOSE; RUBBER
(A) L=560 SERVICED BY L=3000 		0-03559-300-0 01 1 0104- ● ● ● ●
42 HOSE; RUBBER
(B) L=850 		1-21489-154-0 01 1 9603-9904 ● ●
42 HOSE; RUBBER
(B) L=850 		1-21489-154-0 01 1 9905- ● ● ● ●
55 HOSE; WATER,RAD OUTLET 1-21437-448-2 01 1 9603-9904 ●
55 HOSE; WATER,RAD OUTLET 1-21437-448-2 01 1 9905-9912 ● ● ●
55 HOSE; WATER,RAD OUTLET
EXC. CAB UP +110MM<TGG> 		1-21437-448-2 01 1 9905-9912 ●
55 HOSE; WATER,RAD OUTLET
EXC. CAB UP +110MM<TGG> 		1-21437-448-2 01 1 0001- ● ● ● ●
55 HOSE; WATER,RAD OUTLET 1-21437-609-1 01 1 9707-9904 ●
55 HOSE; WATER,RAD OUTLET 1-21437-615-1 01 1 9905- ●
55 HOSE; WATER,RAD OUTLET
CAB UP +110MM<TGG> 		1-21437-710-0 01 1 9905- ●
56 CLIP; WATER HOSE,RAD
(C) ID=72 		1-09704-068-0 04 1 9603-9904 ●
56 CLIP; WATER HOSE,RAD
(C) ID=72 		1-09704-068-0 04 1 9905-9912 ● ●
56 CLIP; WATER HOSE,RAD
ELECTRONIC GOV RED3(KG5) EXC. INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATO R(Q3T) (C) ID=72 		1-09704-068-0 04 1 9905-9912 ●
56 CLIP; WATER HOSE,RAD
SINGAPORE EQUIPMENT(WQ3),INDONESIA EQUIPMENT(WR7) EXC. ELECTRONIC GOV RED3(KG5) (C) ID=72 		1-09704-068-0 04 1 9905-9912 ●
56 CLIP; WATER HOSE,RAD
CAB UP +110MM<TGG> (C) ID=72 		1-09704-068-0 02 1 0001- ●
56 CLIP; WATER HOSE,RAD
(C) ID=72 		1-09704-068-0 02 1 0001- ●
56 CLIP; WATER HOSE,RAD
(A) ID=57 		1-09704-066-0 02 1 9707-9904 ●
56 CLIP; WATER HOSE,RAD
CAB UP +110MM<TGG> (A) ID=57 		1-09704-066-0 02 1 9905- ●
56 CLIP; WATER HOSE,RAD
(A) ID=57 		1-09704-066-0 02 1 9905- ●
56 CLIP; WATER HOSE,RAD
(B) ID=63 		1-09704-067-0 02 1 9707-9904 ●
56 CLIP; WATER HOSE,RAD
CAB UP +110MM<TGG> (B) ID=63 		1-09704-067-0 02 1 9905- ●
56 CLIP; WATER HOSE,RAD
(B) ID=63 		1-09704-067-0 02 1 9905- ●
56 CLIP; WATER HOSE,RAD
(C) ID=72 		1-09704-068-0 02 1 9707-9904 ●
56 CLIP; WATER HOSE,RAD
(C) ID=72 		1-09704-068-0 02 1 9905-9912 ● ● ●
56 CLIP; WATER HOSE,RAD
EXC. CAB UP +110MM<TGG> (C) ID=72 		1-09704-068-0 02 1 9905-9912 ●
56 CLIP; WATER HOSE,RAD
EXC. CAB UP +110MM<TGG> (C) ID=72 		1-09704-068-0 04 1 0001- ● ● ● ●
79 NUT; CLIP,HOSE
(A) M8 FLANGE 		0-91150-108-0 01 1 9603-9606 ●
79 NUT; CLIP,HOSE
(A) M8 FLANGE 		0-91150-108-0 01 1 9607-9904 ● ●
79 NUT; CLIP,HOSE
(A) M8 FLANGE 		0-91150-108-0 01 1 9905- ● ● ● ●
79 NUT; CLIP,HOSE
(B) M10 FLANGE 		0-91150-210-0 01 1 9607-9904 ● ●
79 NUT; CLIP,HOSE
(B) M10 FLANGE 		0-91150-210-0 01 1 9905- ● ● ● ●
128 HOSE; WATER,RAD INL
(C) 		1-21437-495-1 01 1 9603-9904 ●
128 HOSE; WATER,RAD INL
(C) 		1-21437-495-1 01 1 9905-9912 ● ● ●
128 HOSE; WATER,RAD INL
EXC. CAB UP +110MM<TGG> (C) 		1-21437-495-1 01 1 9905-9912 ●
128 HOSE; WATER,RAD INL
EXC. CAB UP +110MM<TGG> (C) 		1-21437-495-1 01 1 0001- ● ● ● ●
128 HOSE; WATER,RAD INL
(B) 		1-21437-553-0 01 1 9707-9904 ●
128 HOSE; WATER,RAD INL
CAB UP +110MM<TGG> (B) 		1-21437-618-1 01 1 9905- ●
128 HOSE; WATER,RAD INL
(B) 		1-21437-618-1 01 1 9905- ●
128 HOSE; WATER,RAD INL
(A) 		1-21437-552-0 01 1 9707-9904 ●
128 HOSE; WATER,RAD INL
CAB UP +110MM<TGG> (A) 		1-21437-617-0 01 1 9905- ●
128 HOSE; WATER,RAD INL
(A) 		1-21437-617-0 01 1 9905- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
