0-14 — CAMSHAFT AND VALVE (#42898) — 116 parça

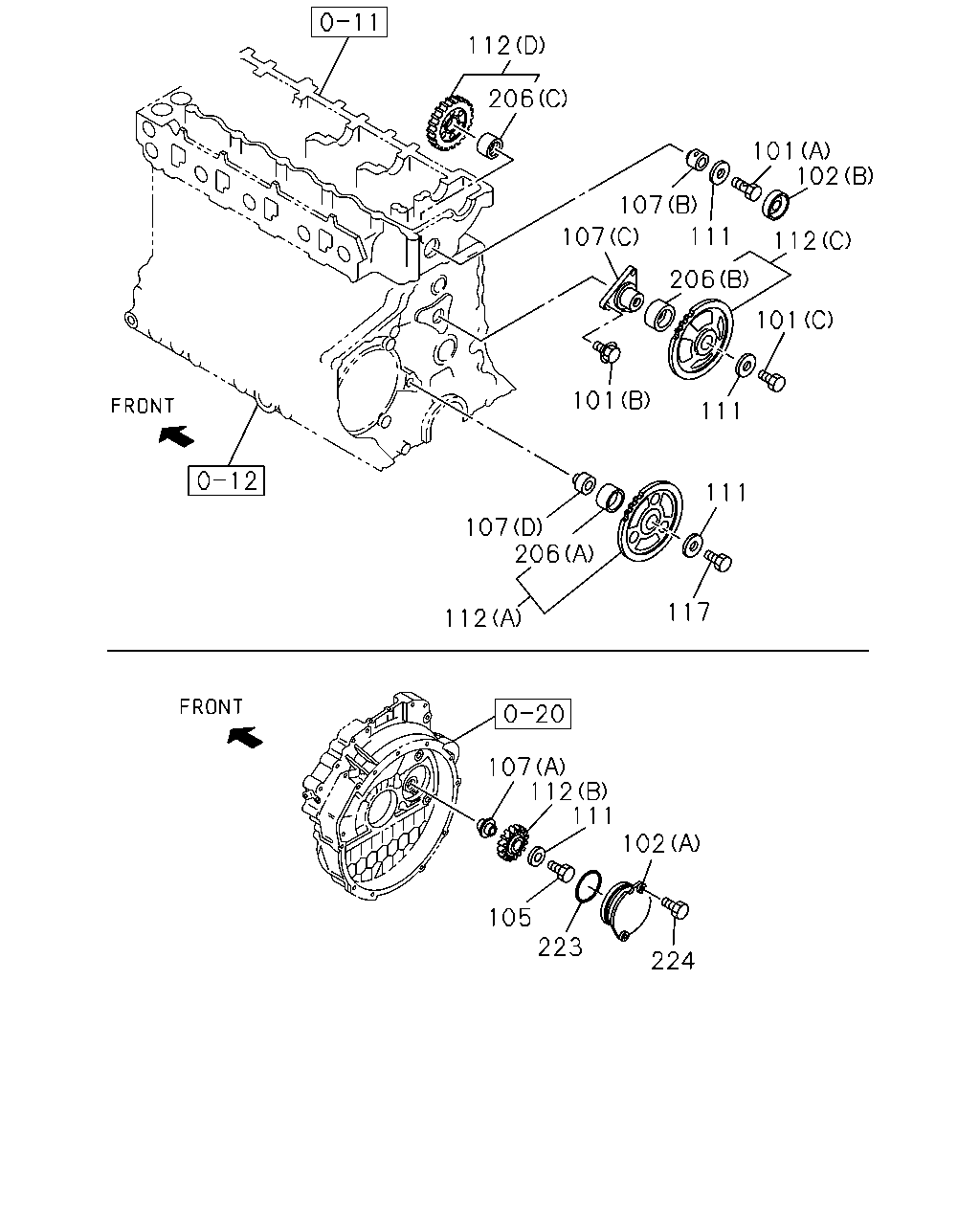

112 206 101 102 107 107 111 112 206 101 101 111 111 107 206 117 112 107 112 111 102 105 223 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	0401-0512	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0601-0607	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0608-		●
101	BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	0401-0607	●
101	BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	0608-		●
101	BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	0401-0607	●
101	BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	0608-1310		●
101	BOLT; THRUST COLLAR (C) M14X25	0-23951-425-0	01	1	1311-		●
102	COVER; IDLE GEAR (A)	8-94334-681-1	01	1	0401-0607	●
102	COVER; IDLE GEAR (A)	8-94334-681-1	01	1	0608-		●
102	COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	0401-0607	●
102	COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	0608-		●
105	BOLT; IDLE GEAR SHAFT M14X60	9-91666-460-0	01	1	0401-0512	●
105	BOLT; IDLE GEAR SHAFT M14X60	0-16956-460-0	01	1	0601-0607	●
105	BOLT; IDLE GEAR SHAFT M14X60	0-16956-460-0	01	1	0608-		●
107	SHAFT; IDLE GEAR (A)	8-94334-682-0	01	1	0401-0607	●
107	SHAFT; IDLE GEAR (A)	8-94334-682-1	01	1	0608-		●
107	SHAFT; IDLE GEAR (D)	8-97104-380-0	01	1	0401-0607	●
107	SHAFT; IDLE GEAR (D)	8-97104-380-0	01	1	0608-0609		●
107	SHAFT; IDLE GEAR (D)	8-98060-780-0	01	1	0610-		●
107	SHAFT; IDLE GEAR (B)	8-97186-398-1	01	1	0401-0607	●
107	SHAFT; IDLE GEAR (B)	8-97186-398-1	01	1	0608-		●
107	SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	0401-0607	●
107	SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	0608-		●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	04	1	0401-0607	●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	04	1	0608-		●
112	GEAR; IDLE (C) Z=61	8-94393-439-3	01	1	0401-0607	●
112	GEAR; IDLE (C) Z=61	8-94393-439-4	01	1	0608-		●
112	GEAR; IDLE (D) Z=41	8-97112-607-0	01	1	0401-0607	●
112	GEAR; IDLE (D) Z=41	8-97112-607-1	01	1	0608-		●
112	GEAR; IDLE (B) Z=34	8-97120-005-0	01	1	0401-0607	●
112	GEAR; IDLE (B) Z=34	8-97120-005-1	01	1	0608-		●
112	GEAR; IDLE (A) Z=72-30	8-97223-189-0	01	1	0401-0607	●
112	GEAR; IDLE (A) Z=72-30	8-97223-189-0	01	1	0608-		●
117	BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	0401-0607	●
117	BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	0608-		●
206	BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-006-0	01	1	0401-0607	●
206	BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-006-0	01	1	0608-		●
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-94369-340-0	01	1	0401-0607	●
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-94369-340-0	01	1	0608-0802		●
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-97606-768-0	01	1	0803-		●
206	BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97112-608-0	01	1	0401-0607	●
206	BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97112-608-0	01	1	0608-0809		●
206	BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97606-770-0	01	1	0810-		●
223	GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	0401-0607	●
223	GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	0608-		●
224	BOLT; COVER M8X16 FLANGE	0-28080-816-0	02	1	0401-0512	●
224	BOLT; COVER M8X16 FLANGE	0-28050-816-0	02	1	0601-0607	●
224	BOLT; COVER M8X16 FLANGE	0-28050-816-0	02	1	0608-		●

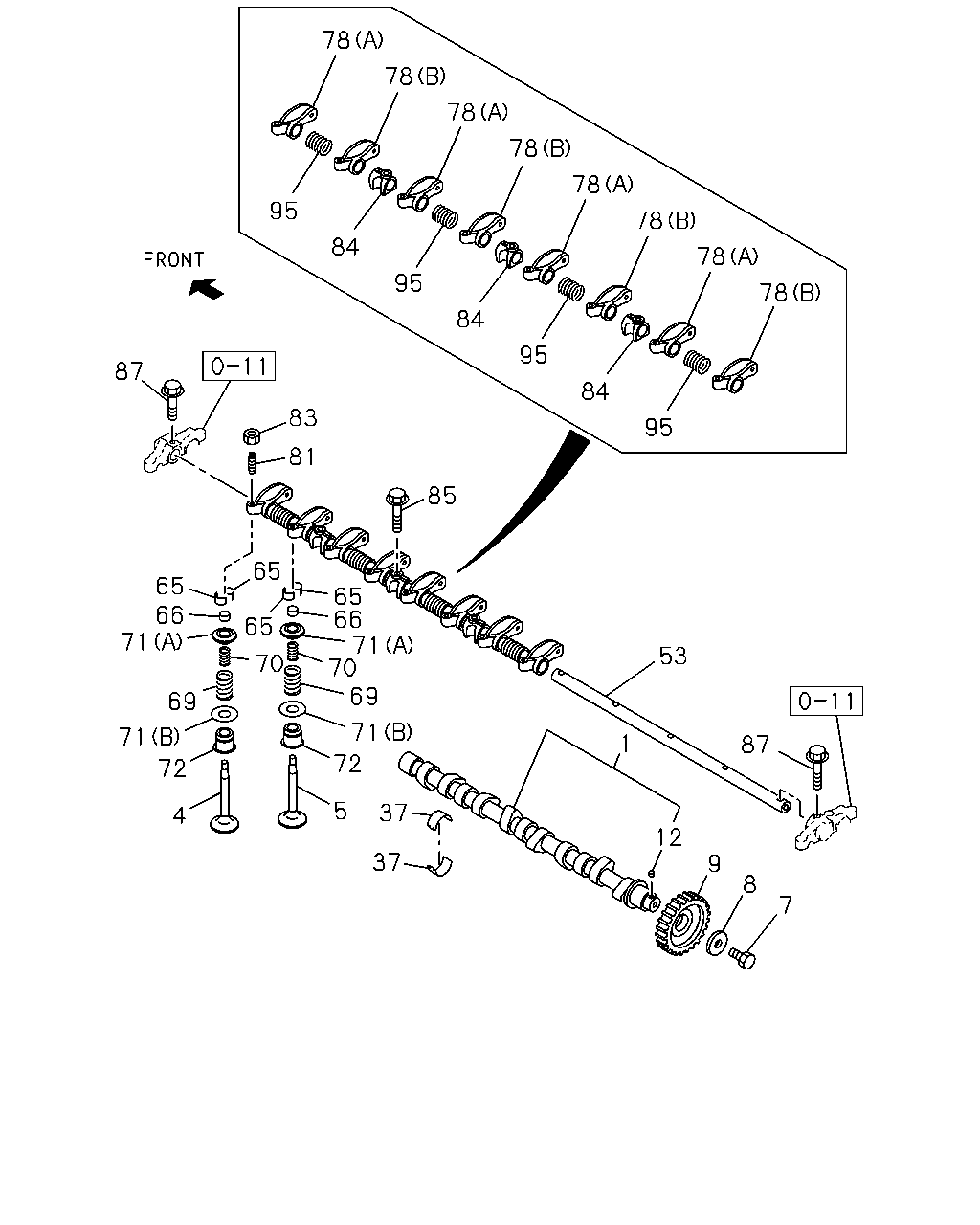

78 78 78 78 78 95 78 84 78 95 78 84 95 87 84 83 95 81 85 65 65 66 71 65 66 71 70 69 65 70 53 69 71 71 1 87 72 72 5 37 4 12 37 9 8 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAMSHAFT	8-97077-830-0	01	1	0401-0607	●
1	CAMSHAFT	8-97077-830-0	01	1	0608-		●
4	VALVE; INL	8-97033-864-2	04	1	0401-0607	●
4	VALVE; INL	8-97033-864-2	04	1	0608-		●
5	VALVE; EXH	8-97219-509-2	04	1	0401-0607	●
5	VALVE; EXH	8-97219-509-2	04	1	0608-		●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0401-0607	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0608-		●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0401-0607	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0608-		●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	0401-0607	●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	0608-		●
12	KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	01	1	0401-0607	●
12	KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	01	1	0608-		●
37	METAL; CM/SHF B=16	8-97356-939-0	10	1	0401-0607	●
37	METAL; CM/SHF B=16	8-97356-939-0	10	1	0608-0706		●
37	METAL; CM/SHF B=16	8-97386-189-0	10	1	0707-		●
53	SHAFT; ROCKER ARM JBK	8-97074-617-1	01	1	0401-0607	●
53	SHAFT; ROCKER ARM JBK	8-97074-617-1	01	1	0608-		●
53	SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	0401-0607	●
53	SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	0608-		●
65	COLLAR; SPLIT	5-12565-006-0	16	1	0401-0607	●
65	COLLAR; SPLIT	5-12565-006-0	16	1	0608-		●
66	CAP; VLV STEM END	8-94396-015-2	08	1	0401-0607	●
66	CAP; VLV STEM END	8-94396-015-2	08	1	0608-		●
69	SPRING; VLV,OUTER EXHAUST MARK GREEN	8-97120-905-0	04	1	0401-0607	●
69	SPRING; VLV,OUTER EXHAUST MARK GREEN	8-97120-905-0	04	1	0608-		●
69	SPRING; VLV,OUTER INLET MARK PINK	8-97120-912-0	04	1	0401-0607	●
69	SPRING; VLV,OUTER INLET MARK PINK	8-97120-912-0	04	1	0608-		●
70	SPRING; VLV,INNER EXHAUST MARK GREEN	8-97120-899-0	04	1	0401-0607	●
70	SPRING; VLV,INNER EXHAUST MARK GREEN	8-97120-899-0	04	1	0608-		●
70	SPRING; VLV,INNER INLET MARK PINK	8-97120-911-0	04	1	0401-0607	●
70	SPRING; VLV,INNER INLET MARK PINK	8-97120-911-0	04	1	0608-		●
71	SEAT; SPR (A) OD=38	8-94385-029-2	08	1	0401-0607	●
71	SEAT; SPR (A) OD=38	8-94385-029-2	08	1	0608-		●
71	SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-1	08	1	0401-0607	●
71	SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-1	08	1	0608-		●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	08	1	0401-0607	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	08	1	0608-		●
78	ARM; ROCKER (B) JBK	8-97014-258-2	04	1	0401-0607	●
78	ARM; ROCKER (B) JBK	8-97014-258-2	04	1	0608-		●
78	ARM; ROCKER (A) JBK	8-97074-614-1	04	1	0401-0607	●
78	ARM; ROCKER (A) JBK	8-97074-614-1	04	1	0608-		●
78	ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	0401-0607	●
78	ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	0608-		●
78	ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	0401-0607	●
78	ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	0608-		●
81	SCREW; ADJ,ROCKER ARM	8-94367-526-2	16	1	0401-0607	●
81	SCREW; ADJ,ROCKER ARM	8-94367-526-2	16	1	0608-		●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	08	1	0401-0512	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	0601-0607	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	0608-		●
84	BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	0401-0607	●
84	BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	0608-		●
84	BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	0401-0607	●
84	BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	0608-		●
85	BOLT; BRKT JBK M10X62 FLANGE	8-94393-131-0	03	1	0401-0607	●
85	BOLT; BRKT JBK M10X62 FLANGE	8-94393-131-0	03	1	0608-		●
85	BOLT; BRKT KEIHIN SEIMITSU M10X62 FLANGE	8-97174-650-0	03	1	0401-0607	●
85	BOLT; BRKT KEIHIN SEIMITSU M10X62 FLANGE	8-97174-650-0	03	1	0608-		●
87	BOLT; ROCKER SHAFT M8X35 FLANGE	0-28080-835-0	04	1	0401-0512	●
87	BOLT; ROCKER SHAFT M8X35 FLANGE	0-28050-835-0	04	1	0601-0607	●
87	BOLT; ROCKER SHAFT M8X35 FLANGE	0-28050-835-0	04	1	0608-		●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	0401-0607	●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	0608-		●
95	SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	0401-0607	●
95	SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	0608-		●
