0-13 — OIL PAN AND LEVEL GAUGE (#42897) — 24 parça

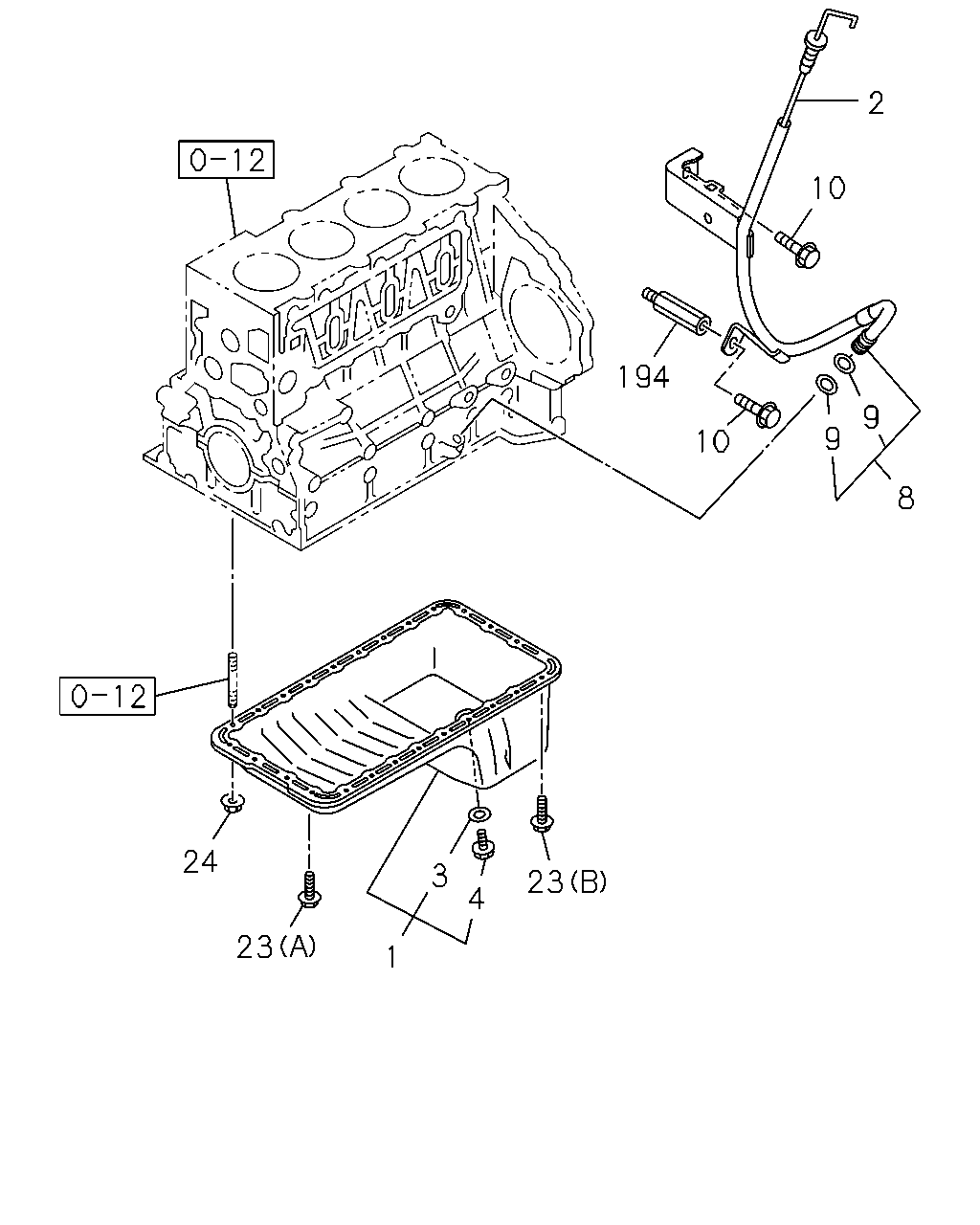

çizim 55259
2 10 194 9 9 10 8 24 3 23 4 23 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAN ASM; OIL 8-97149-314-0 01 1 0401-0607 ●
1 PAN ASM; OIL 8-97149-314-0 01 1 0608- ●
2 GAUGE; OIL LEVEL 8-97019-885-1 01 1 0401-0607 ●
2 GAUGE; OIL LEVEL 8-97019-885-1 01 1 0608- ●
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 0401-0607 ●
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 0608- ●
4 PLUG; DRAIN,OIL
M14X14 		8-94152-613-0 01 1 0401-0607 ●
4 PLUG; DRAIN,OIL
M14X14 		8-94152-613-0 01 1 0608- ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-97354-831-0 01 1 0401-0607 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-97354-831-0 01 1 0608- ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 0401-0607 ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 0608- ●
10 BOLT; GUIDE TUBE
M8X20 FLANGE 		0-28680-820-0 02 1 0401-0512 ●
10 BOLT; GUIDE TUBE
M8X20 FLANGE 		0-28650-820-0 02 1 0601-0607 ●
10 BOLT; GUIDE TUBE
M8X20 FLANGE 		0-28650-820-0 02 1 0608- ●
23 BOLT; OIL PAN
(A) M8X14 W/SCOTCH GRIP 		8-97047-004-1 01 1 0401-0607 ●
23 BOLT; OIL PAN
(A) M8X14 W/SCOTCH GRIP 		8-97047-004-1 01 1 0608- ●
23 BOLT; OIL PAN
(B) M8X14 		8-97047-005-0 18 1 0401-0607 ●
23 BOLT; OIL PAN
(B) M8X14 		8-97047-005-0 18 1 0608- ●
24 NUT; OIL PAN
M8 W/LK WASHER 		8-94327-073-0 07 1 0401-0607 ●
24 NUT; OIL PAN
M8 W/LK WASHER 		8-94327-073-0 07 1 0608-0805 ●
24 NUT; OIL PAN
M8 W/LK WASHER 		8-97581-234-0 07 1 0806- ●
194 SPACER; GUIDE TUBE 8-97101-215-0 01 1 0401-0607 ●
194 SPACER; GUIDE TUBE 8-97101-215-0 01 1 0608- ●
