0-11 — CYLINDER HEAD (#42895) — 54 parça

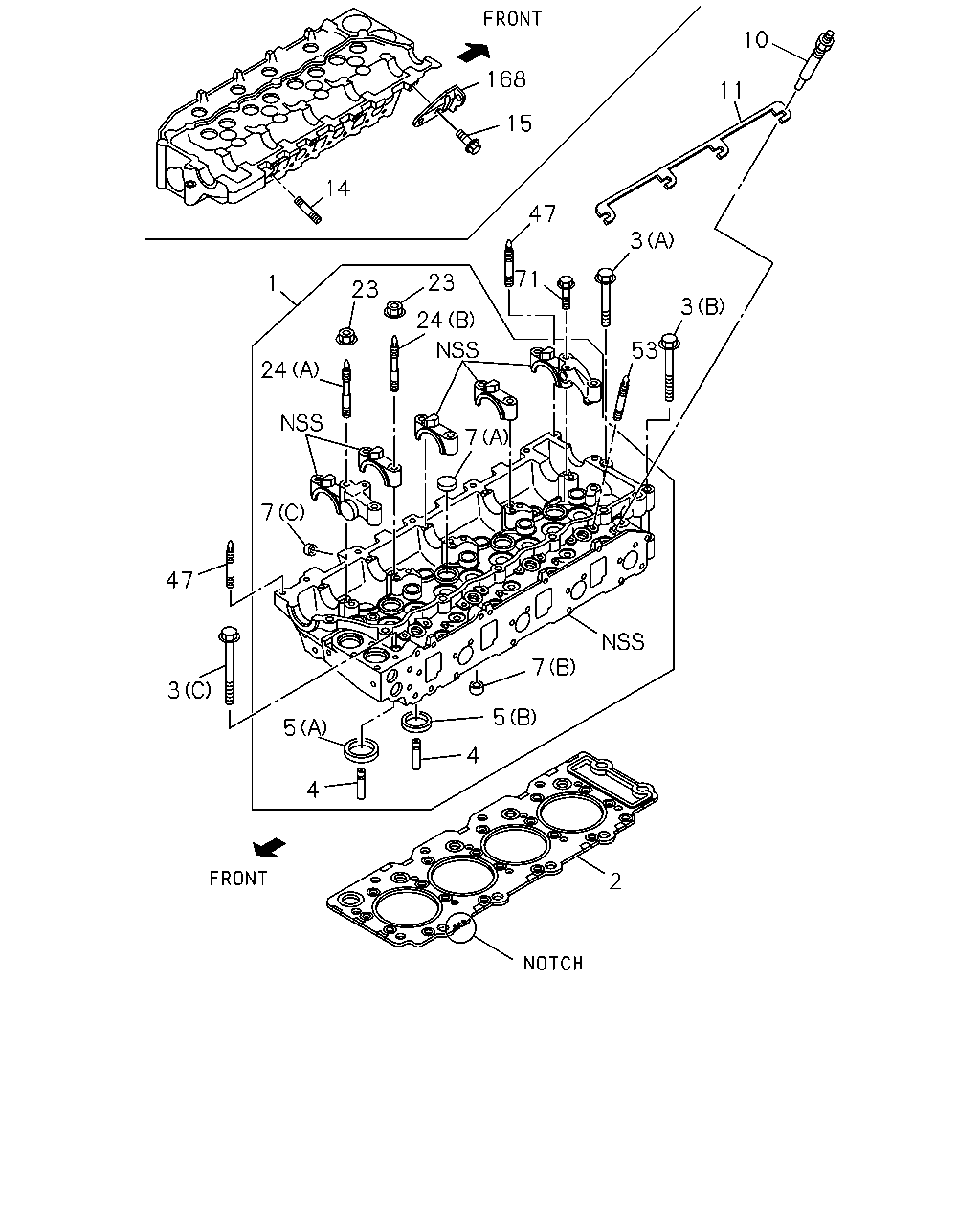

çizim 54817
10 168 11 15 14 47 3 71 23 1 23 3 24 53 24 7 7 47 7 3 5 5 4 4 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 8-97358-366-2 01 1 0401-0607 ●
1 HEAD ASM; CYL 8-97358-366-2 01 1 0608- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 WO/NOTCH 		8-97354-196-1 01 1 0401-0607 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 WO/NOTCH 		8-97354-196-1 01 1 0608- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.75 1-NOTCH 		8-97354-197-1 01 1 0401-0607 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.75 1-NOTCH 		8-97354-197-1 01 1 0608- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.80 2-NOTCH 		8-97354-198-1 01 1 0401-0607 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.80 2-NOTCH 		8-97354-198-1 01 1 0608- ●
3 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 0401-0607 ●
3 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 0608- ●
3 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 0401-0607 ●
3 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 0608- ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0401-0607 ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0608-1503 ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-98260-005-0 18 1 1504- ●
4 GUIDE; VLV 8-94396-598-0 08 1 0401-0607 ●
4 GUIDE; VLV 8-94396-598-0 08 1 0608- ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=43 		8-94396-172-0 04 1 0401-0607 ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=43 		8-94396-172-0 04 1 0608- ●
5 SEAT; VLV INSERT
(A) INLET OD=51 		8-97088-460-0 04 1 0401-0607 ●
5 SEAT; VLV INSERT
(A) INLET OD=51 		8-97088-460-0 04 1 0608- ●
7 CUP; SEALING,CYL HEAD
(B) OD=25 		1-09600-016-0 02 1 0401-0607 ●
7 CUP; SEALING,CYL HEAD
(B) OD=25 		1-09600-016-0 02 1 0608- ●
7 CUP; SEALING,CYL HEAD
(C) OD=12 		8-97036-335-1 04 1 0401-0607 ●
7 CUP; SEALING,CYL HEAD
(C) OD=12 		8-97036-335-1 04 1 0608- ●
7 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 12 1 0401-0607 ●
7 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 12 1 0608- ●
10 PLUG; GLOW
BOSCH 		1-82513-044-3 04 1 0401-0607 ●
10 PLUG; GLOW
BOSCH 		1-82513-044-3 04 1 0608- ●
10 PLUG; GLOW
NGK 		8-97033-761-1 04 1 0401-0607 ●
10 PLUG; GLOW
NGK 		8-97033-761-2 04 1 0608- ●
11 CONNECTOR; GLOW PLUG 8-97136-565-0 01 1 0401-0607 ●
11 CONNECTOR; GLOW PLUG 8-97136-565-0 01 1 0608- ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 0401-0607 ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 0608- ●
15 BOLT; HANGER,FRT
M10X20 FLANGE 		0-28781-020-0 02 1 0401-0512 ●
15 BOLT; HANGER,FRT
M10X20 FLANGE 		0-28751-020-0 02 1 0601-0607 ●
15 BOLT; HANGER,FRT
M10X20 FLANGE 		0-28751-020-0 02 1 0608- ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 10 1 0401-0602 ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91180-208-0 10 1 0603-0607 ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91180-208-0 10 1 0608- ●
24 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 0401-0607 ●
24 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 0608- ●
24 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 0401-0607 ●
24 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 0608- ●
47 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 02 1 0401-0607 ●
47 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 02 1 0608- ●
53 STUD; INJ NOZZLE
M8X64 L=85 		8-97178-608-0 08 1 0401-0607 ●
53 STUD; INJ NOZZLE
M8X64 L=85 		8-97178-608-0 08 1 0608- ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 0401-0512 ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 0601-0607 ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 0608- ●
168 HANGER; ENG,FRT 8-97127-373-0 01 1 0401-0607 ●
168 HANGER; ENG,FRT 8-97127-373-0 01 1 0608- ●
