Isuzu WW
▶
TRUCKS
▶
NPR
▶
50980 - NPR(IRAN)
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶

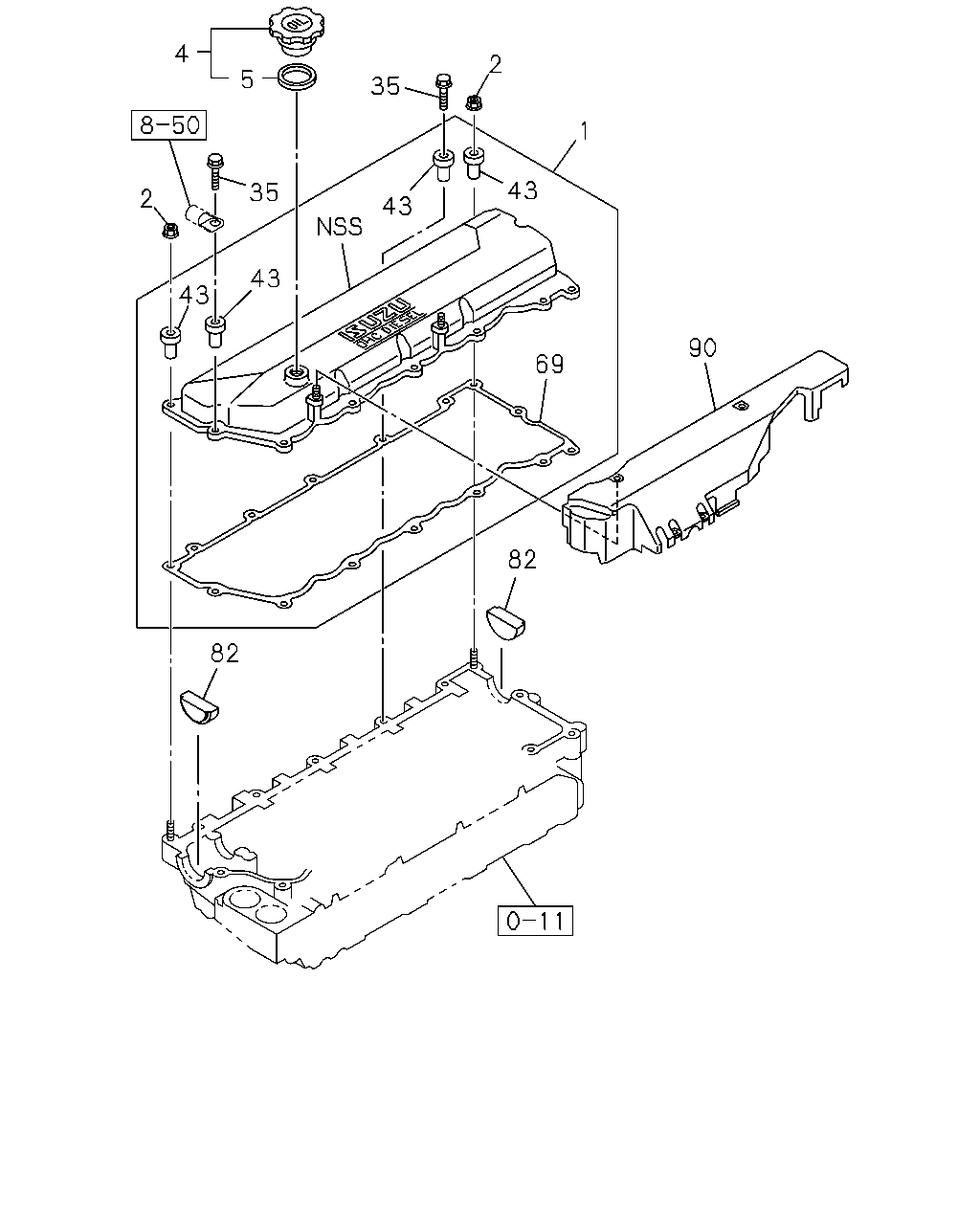

0-10 — CYLINDER HEAD COVER
(#42894) — 21 parça
Tümü
A - 4HE1 ENG
B - 4HE1-TCN ENG
4
2
5
35
1
43
35
2
43
43
43
90
69
82
82
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
COVER; CYL HD
8-97113-025-3
01
1
0401-0607
●
1
COVER; CYL HD
8-97113-025-3
01
1
0608-
●
2
NUT; COVER,HD
M8 FLANGE
0-91150-108-0
02
1
0401-0602
●
2
NUT; COVER,HD
M8 FLANGE
0-91180-108-0
02
1
0603-0607
●
2
NUT; COVER,HD
M8 FLANGE
0-91180-108-0
02
1
0608-
●
4
CAP; OIL FILLER
8-94133-207-5
01
1
0401-0607
●
4
CAP; OIL FILLER
8-94133-207-5
01
1
0608-
●
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40
8-94123-623-1
01
1
0401-0607
●
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40
8-94123-623-1
01
1
0608-
●
35
BOLT; NOISE SHIELD COVER
M8X30 FLANGE
0-28680-830-0
13
1
0401-0512
●
35
BOLT; NOISE SHIELD COVER
M8X30 FLANGE
0-28650-830-0
13
1
0601-0607
●
35
BOLT; NOISE SHIELD COVER
M8X30 FLANGE
0-28650-830-0
13
1
0608-
●
43
RUBBER; MTG,HD COVER,OUTER
OD=23
8-97105-689-6
15
1
0401-0607
●
43
RUBBER; MTG,HD COVER,OUTER
OD=23
8-97105-689-6
15
1
0608-
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97105-690-2
01
1
0401-0607
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97105-690-2
01
1
0608-
●
82
PLUG; CYL HD COVER
8-94399-605-0
02
1
0401-0607
●
82
PLUG; CYL HD COVER
8-94399-605-0
02
1
0608-1005
●
82
PLUG; CYL HD COVER
8-98163-813-0
02
1
1006-
●
90
COVER; NOZZLE,INJ
8-97175-141-0
01
1
0401-0607
●
90
COVER; NOZZLE,INJ
8-97175-141-0
01
1
0608-
●
