◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50971 - NPR/NQR(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-80 - WINDSHIELD WIPER AND WASHER ▶
8-80 — WINDSHIELD WIPER AND WASHER (#42889) — 54 parça

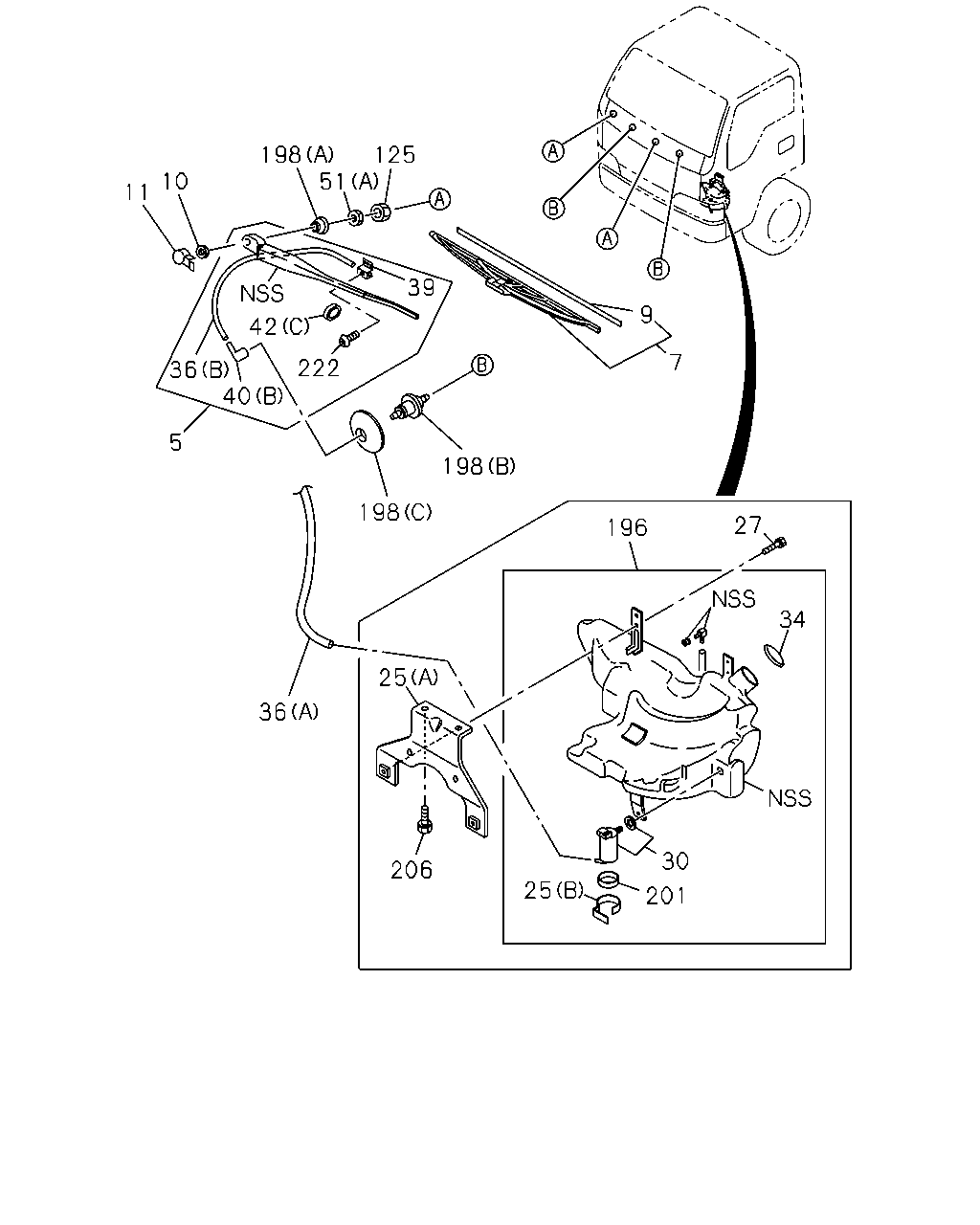

çizim 54134
198 51 125 10 11 39 9 42 7 222 36 40 5 198 198 27 196 34 25 36 30 206 25 201
BalonParca AdiParca NoAdetTipApplied Date A B C
5 ARM; WIPER 8-97223-211-1 02 1 0309- ● ● ●
7 BLADE; WIPER
L=500 		8-97134-563-2 02 1 0309- ● ● ●
9 RUBBER; FRT WIPER BLADE 8-97804-040-1 02 1 0309- ● ● ●
10 NUT; WIPER ARM TO WIPER PIVOT
M8 		9-09110-408-0 02 1 0404- ● ● ●
10 NUT; WIPER ARM TO WIPER PIVOT
M8 		9-09110-408-0 02 1 0309-0407 ● ● ●
11 COVER; WIPER ARM
BLACK 		8-94282-851-0 02 1 0309- ● ● ●
24 TANK ASM; WASHER 8-97855-017-8 01 1 0309- ● ● ●
25 BRACKET; WASHER TANK
(A) 		8-97855-023-2 01 1 0309- ● ● ●
25 BRACKET; WASHER TANK
(B) 		8-97855-226-0 01 1 0309- ● ● ●
27 BOLT; WASHER TANK
M8X16 W/LK&PL WASHER 		8-94310-730-0 03 1 0309- ● ● ●
30 MOTOR ASM; FRT WASHER TANK 8-97855-139-0 01 1 0309- ● ● ●
34 CAP; WASHER TANK 8-97855-140-0 01 1 0309- ● ● ●
36 HOSE; WASHER
(A) SERVICED BY L=10000 THA 		8-94389-303-0 01 1 0309- ● ● ●
36 HOSE; WASHER
(B) 		8-97216-111-0 02 1 0309- ● ● ●
39 NOZZLE; WINDSHIELD WASHER 8-97216-107-1 02 1 0309- ● ● ●
40 JOINT; WASHER HOSE
(A) 		8-97167-258-0 01 1 0309- ● ● ●
40 JOINT; WASHER HOSE
(B) 		8-97216-115-0 02 1 0309- ● ● ●
40 JOINT; WASHER HOSE
(C) 		8-97307-026-0 01 1 0309- ● ● ●
42 CLIP; WASHER HOSE
(A) 		8-94144-956-0 02 1 0309- ● ● ●
42 CLIP; WASHER HOSE
(B) 		8-94279-819-0 07 1 0309- ● ● ●
42 CLIP; WASHER HOSE
(C) 		8-97216-114-0 02 1 0309- ● ● ●
51 NUT; WIPER MOTOR LINK
(B) M8 FLANGE THA 		5-09440-005-0 04 1 0309- ● ● ●
51 NUT; WIPER MOTOR LINK
(A) 		8-97135-435-0 02 1 0309- ● ● ●
125 SPACER; WIPER PIVOT 8-97135-434-0 02 1 0309- ● ● ●
196 TANK; WASHER 8-97855-017-8 01 1 0309- ● ● ●
198 COVER; PIVOT,WIPER
(A) 		8-97359-329-0 02 1 0309- ● ● ●
198 COVER; PIVOT,WIPER
(B) 		8-97855-134-1 02 1 0309- ● ● ●
198 COVER; PIVOT,WIPER
(C) 		8-97855-135-0 02 1 0309- ● ● ●
201 LINING; WIPER MOTOR 8-97352-826-0 01 1 0309- ● ● ●
206 BOLT; BRKT,WASHER TANK
M6X16 FLANGE 		0-28680-616-0 02 1 0309- ● ● ●
222 SCREW; WASHER NOZZLE 8-97216-113-0 02 1 0309- ● ● ●

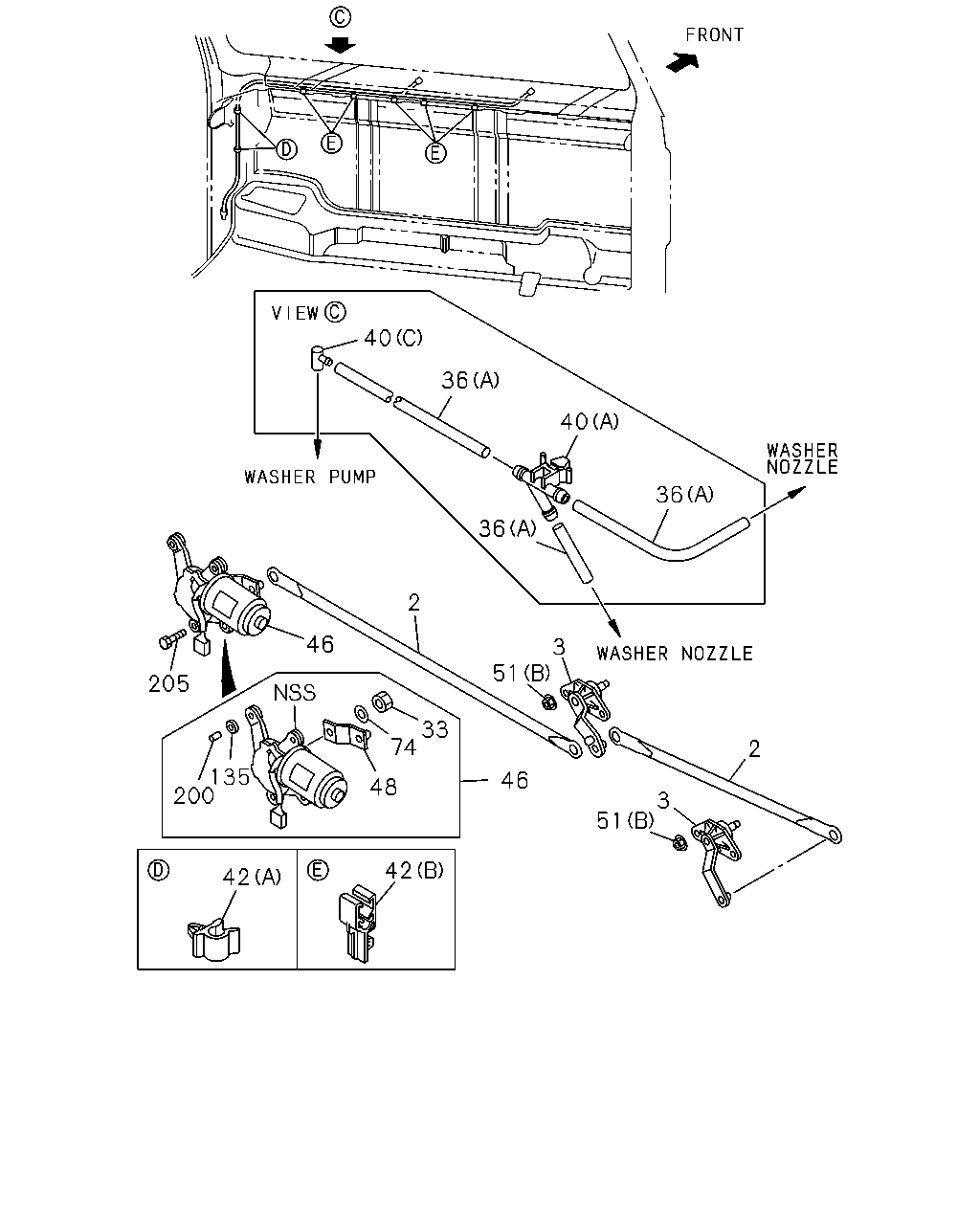

çizim 55942
40 36 40 36 36 2 46 3 51 205 33 74 2 135 200 46 48 3 51 42 42
BalonParca AdiParca NoAdetTipApplied Date A B C
2 LINK; FRT WIPER
PIVOT TO PIVOT L=580 W/CAP L=791 W/CAP 		8-97855-154-0 01 1 0309- ● ● ●
2 LINK; FRT WIPER
MOTOR TO PIVOT L=511 W/CAP 		8-97855-151-0 01 1 0309- ● ● ●
3 PIVOT ASM; FRT WIPER
MOTOR TO PIVOT 		8-97855-146-2 01 1 0309- ● ● ●
3 PIVOT ASM; FRT WIPER
PIVOT TO PIVOT 		8-97855-148-2 01 1 0309- ● ● ●
24 TANK ASM; WASHER 8-97855-017-8 01 1 0309- ● ● ●
33 NUT; MOTOR TO ARM
M8 THA 		8-97855-157-0 01 1 0309- ● ● ●
36 HOSE; WASHER
(A) SERVICED BY L=10000 THA 		8-94389-303-0 01 1 0309- ● ● ●
36 HOSE; WASHER
(B) 		8-97216-111-0 02 1 0309- ● ● ●
40 JOINT; WASHER HOSE
(A) 		8-97167-258-0 01 1 0309- ● ● ●
40 JOINT; WASHER HOSE
(B) 		8-97216-115-0 02 1 0309- ● ● ●
40 JOINT; WASHER HOSE
(C) 		8-97307-026-0 01 1 0309- ● ● ●
42 CLIP; WASHER HOSE
(A) 		8-94144-956-0 02 1 0309- ● ● ●
42 CLIP; WASHER HOSE
(B) 		8-94279-819-0 07 1 0309- ● ● ●
42 CLIP; WASHER HOSE
(C) 		8-97216-114-0 02 1 0309- ● ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER
THA 		8-97915-717-0 01 1 0309- ● ● ●
48 ARM; WIPER MOTOR
THA 		8-97218-924-0 01 1 0309- ● ● ●
51 NUT; WIPER MOTOR LINK
(B) M8 FLANGE THA 		5-09440-005-0 04 1 0309- ● ● ●
51 NUT; WIPER MOTOR LINK
(A) 		8-97135-435-0 02 1 0309- ● ● ●
74 WASHER; ARM TO MOTOR
ID=8 THA 		8-97855-158-0 01 1 0309- ● ● ●
135 RUBBER; CUSHION,WIPER MOTOR
THA 		8-97855-159-0 03 1 0309- ● ● ●
200 COLLAR; WIPER MOTOR
THA 		8-97855-160-0 03 1 0309- ● ● ●
205 BOLT; WIPER MOTOR
THA 		8-97916-755-0 03 1 0309-0409 ● ● ●
205 BOLT; WIPER MOTOR
THA 		8-97922-739-0 03 1 0410- ● ● ●
