8-50 — AIR CONDITIONING SYSTEM; FRONT (#42887) — 21 parça

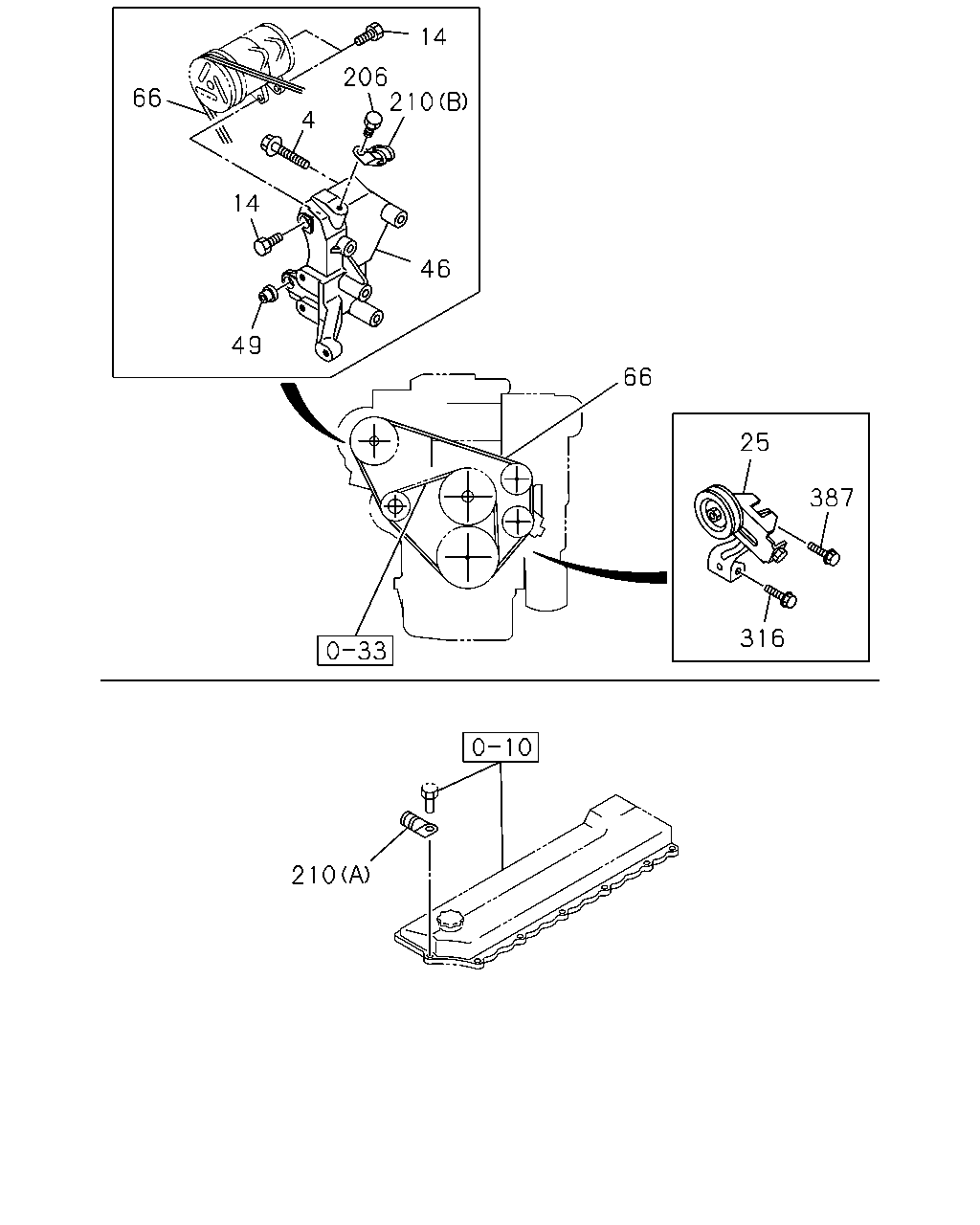

çizim 55012
14 206 210 66 4 14 46 49 66 25 387 316 210
BalonParca AdiParca NoAdetTipApplied Date A B C
4 BOLT; A/C CMPR BRKT
4HG1 ENG<RJH> AIR CONDITIONER MANUAL CONT<C60> M10X90 FLANGE 		0-28181-090-0 01 1 0309- ● ●
4 BOLT; A/C CMPR BRKT
4HG1 ENG<RJH> AIR CONDITIONER MANUAL CONT<C60> M10X55 FLANGE THA 		8-94399-863-1 02 1 0309- ● ●
14 BOLT; CMPR
4HG1 ENG<RJH> AIR CONDITIONER MANUAL CONT<C60> M10X40 FLANGE 		0-28681-040-0 04 1 0309- ● ●
25 PULLEY ASM; IDLER,CMPR
4HG1 ENG<RJH> AIR CONDITIONER MANUAL CONT<C60> 1-GROOVE 		8-97161-198-1 01 1 0309- ● ●
26 BRACKET; IDLE PULLEY,A/C
4HG1 ENG<RJH> AIR CONDITIONER MANUAL CONT<C60> 		8-97161-031-1 01 1 0406- ● ●
27 PULLEY; IDLE,A/C
4HG1 ENG<RJH> AIR CONDITIONER MANUAL CONT<C60> 		8-97386-869-0 01 1 0406- ● ●
29 COVER; DUST,IDLE PULLEY
4HG1 ENG<RJH> AIR CONDITIONER MANUAL CONT<C60> 		8-97384-114-0 01 1 0406- ● ●
29 COVER; DUST,IDLE PULLEY
4HG1 ENG<RJH> AIR CONDITIONER MANUAL CONT<C60> 		8-97384-115-0 01 1 0406- ● ●
30 COLLAR; IDLE PULLEY
4HG1 ENG<RJH> AIR CONDITIONER MANUAL CONT<C60> 		8-97384-117-0 01 1 0406- ● ●
31 BOLT; ADJ,IDLE PULLEY
4HG1 ENG<RJH> AIR CONDITIONER MANUAL CONT<C60> 		8-97384-113-0 01 1 0406- ● ●
33 NUT; IDLER PULLEY
4HG1 ENG<RJH> AIR CONDITIONER MANUAL CONT<C60> 		8-97384-118-0 01 1 0406- ● ●
34 SHAFT; IDLE PULLEY
4HG1 ENG<RJH> AIR CONDITIONER MANUAL CONT<C60> 		8-97384-116-0 01 1 0406- ● ●
46 BRACKET; CMPR
4HG1 ENG<RJH> AIR CONDITIONER MANUAL CONT<C60> 		8-97147-029-0 01 1 0309- ● ●
49 COLLAR; BRKT,CMPR
4HG1 ENG<RJH> AIR CONDITIONER MANUAL CONT<C60> 		8-97147-059-0 02 1 0309- ● ●
66 BELT; A/C CMPR
4HG1 ENG<RJH> AIR CONDITIONER MANUAL CONT<C60> L=1569 		8-97180-183-2 01 1 0309- ● ●
206 BOLT; CLIP BRKT
4HG1 ENG<RJH> AIR CONDITIONER MANUAL CONT<C60> M6X12 FLANGE 		0-28280-612-0 01 1 0309- ● ●
210 CLIP; HARNESS
4HG1 ENG<RJH> AIR CONDITIONER MANUAL CONT<C60> (B) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0309- ● ●
210 CLIP; HARNESS
(A) ID=12 B=14 ID=8.5 THA 		5-09700-350-0 01 1 0309- ● ● ●
316 BOLT; BRKT FIX
4HG1 ENG<RJH> AIR CONDITIONER MANUAL CONT<C60> M8X50 FLANGE 		0-28080-850-0 01 1 0309- ● ●
316 BOLT; BRKT FIX
4HG1 ENG<RJH> AIR CONDITIONER MANUAL CONT<C60> M10X65 FLANGE 		8-94344-540-1 01 1 0309- ● ●
387 BOLT; TENSIONER FIX
M8X30 FLANGE 		0-28680-830-0 01 1 0309- ● ● ●
