Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#42880) — 182 parça

16 48 16 48 464 48 48 16 48 48 48 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	CLIP; HARNESS (D) L=135	1-09987-143-1	AR	1	0309-	●	●	●
16	CLIP; HARNESS (B) 1 SET=5 PIECE	1-09987-214-0	AR	1	0309-	●	●	●
16	CLIP; HARNESS (A) ID=14 L=47	5-09700-319-0	AR	1	0309-	●	●	●
16	CLIP; HARNESS (G) L=140	5-09707-031-1	AR	1	0309-	●	●	●
16	CLIP; HARNESS (H) L=100 THA	8-94327-067-1	AR	1	0309-	●	●	●
16	CLIP; HARNESS (I) ID=10 & 16.5	8-94360-745-0	AR	1	0309-	●	●	●
16	CLIP; HARNESS (E) ID=16	8-94413-325-0	AR	1	0309-	●	●	●
16	CLIP; HARNESS (C) ID=22 & 22	8-94464-837-0	AR	1	0309-	●	●	●
16	CLIP; HARNESS (J) L=155 THA	8-97173-307-0	AR	1	0309-	●	●	●
16	CLIP; HARNESS (F) ID=15-32	8-97174-404-0	AR	1	0309-	●	●	●
48	CLIP; FRAME HARNESS (F) ID=32 L=75	1-09700-702-0	AR	1	0309-	●	●	●
48	CLIP; FRAME HARNESS (B) ID=33 L=63	1-09700-807-0	AR	1	0309-	●	●	●
48	CLIP; FRAME HARNESS (J) ID=31 L=30	1-09700-969-0	AR	1	0309-	●	●	●
48	CLIP; FRAME HARNESS (K) L=170.3 THA	1-09987-182-0	AR	1	0309-	●	●	●
48	CLIP; FRAME HARNESS (G) ID=14 L=47	5-09700-319-0	AR	1	0309-	●	●	●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> ID=33 L=63	1-09700-807-0	07	1	0408-	●	●
48	CLIP; FRAME HARNESS (H) ID=12 B=14 ID=8.5 THA	5-09700-350-0	AR	1	0309-	●	●	●
48	CLIP; FRAME HARNESS (A) L=140	5-09707-031-1	AR	1	0309-	●	●	●
48	CLIP; FRAME HARNESS (C) T=4.5 & 9	5-09709-023-0	AR	1	0309-	●	●	●
48	CLIP; FRAME HARNESS (D) T=9 & 10.5	8-97041-091-0	AR	1	0309-	●	●	●
48	CLIP; FRAME HARNESS (I) ID=9	8-97063-874-0	AR	1	0309-	●	●	●
48	CLIP; FRAME HARNESS (E) ID=30 W/STUD	8-97078-642-2	AR	1	0309-	●	●	●
464	CLIP; SEDIMENTER HARNESS 4HG1 ENG<RJH> (B) ID=6.5 THA	8-94257-639-0	01	1	0309-	●	●
464	CLIP; SEDIMENTER HARNESS 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=14 L=47	5-09700-319-0	01	1	0309-	●	●

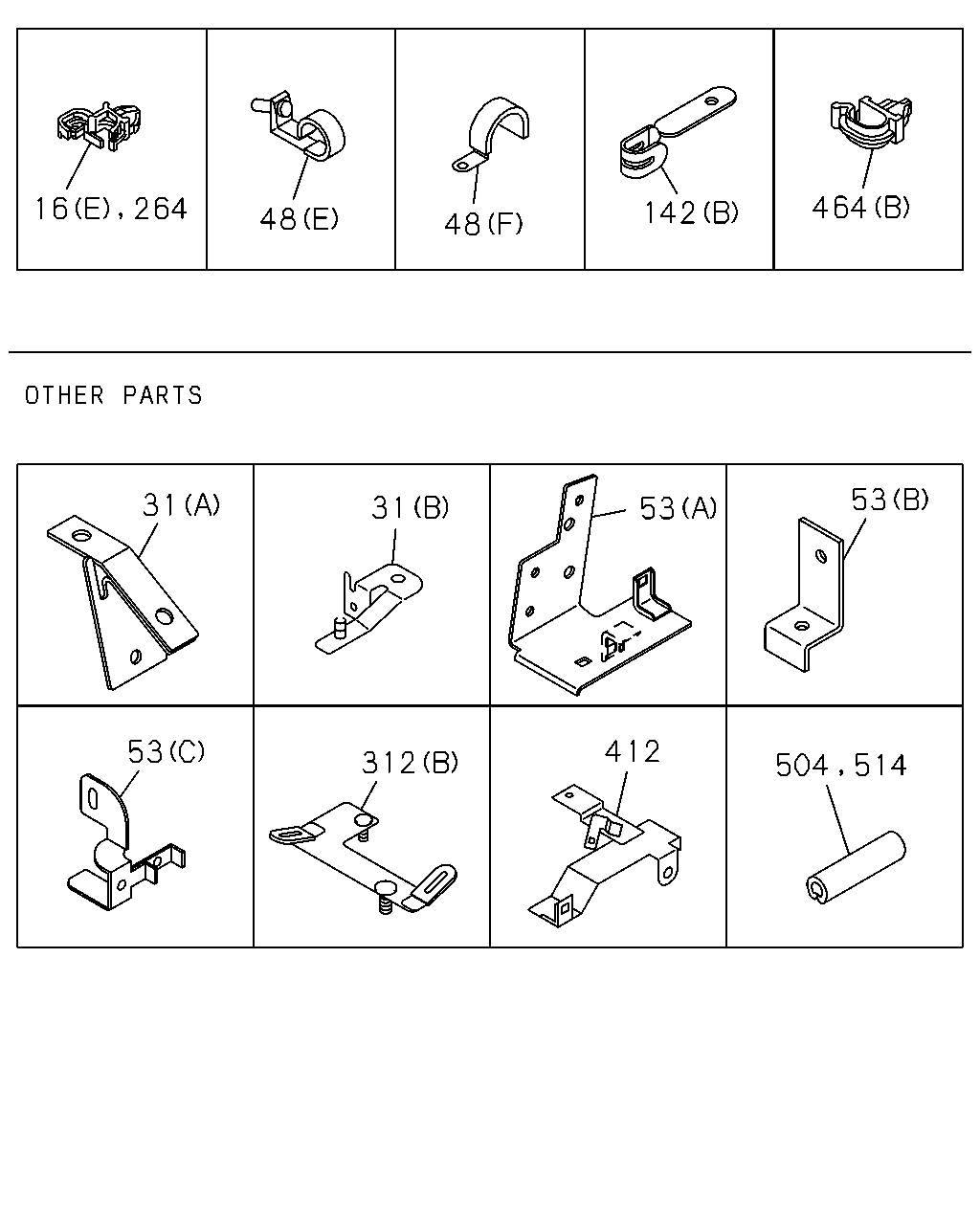

464 142 48 48 53 31 31 53 412 53 312 504 514 264 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	CLIP; HARNESS (D) L=135	1-09987-143-1	AR	1	0309-	●	●	●
16	CLIP; HARNESS (B) 1 SET=5 PIECE	1-09987-214-0	AR	1	0309-	●	●	●
16	CLIP; HARNESS (A) ID=14 L=47	5-09700-319-0	AR	1	0309-	●	●	●
16	CLIP; HARNESS (G) L=140	5-09707-031-1	AR	1	0309-	●	●	●
16	CLIP; HARNESS (H) L=100 THA	8-94327-067-1	AR	1	0309-	●	●	●
16	CLIP; HARNESS (I) ID=10 & 16.5	8-94360-745-0	AR	1	0309-	●	●	●
16	CLIP; HARNESS (E) ID=16	8-94413-325-0	AR	1	0309-	●	●	●
16	CLIP; HARNESS (C) ID=22 & 22	8-94464-837-0	AR	1	0309-	●	●	●
16	CLIP; HARNESS (J) L=155 THA	8-97173-307-0	AR	1	0309-	●	●	●
16	CLIP; HARNESS (F) ID=15-32	8-97174-404-0	AR	1	0309-	●	●	●
31	BRACKET; HARNESS CLIP,PIPE FRAME STRAIGHT TYPE<7KJ> (B) L=47	8-97042-635-0	01	1	0309-	●
31	BRACKET; HARNESS CLIP,PIPE 4HE1 ENG<RLY> (B) L=47	8-97042-635-0	01	1	0309-			●
31	BRACKET; HARNESS CLIP,PIPE FRAME STRAIGHT TYPE<7KJ> (B) L=73	8-97077-845-0	02	1	0309-	●
31	BRACKET; HARNESS CLIP,PIPE 4HE1 ENG<RLY> (B) L=73	8-97077-845-0	02	1	0309-			●
31	BRACKET; HARNESS CLIP,PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97362-859-0	03	1	0309-	●
31	BRACKET; HARNESS CLIP,PIPE (A)	8-97362-859-0	03	1	0309-		●
48	CLIP; FRAME HARNESS (F) ID=32 L=75	1-09700-702-0	AR	1	0309-	●	●	●
48	CLIP; FRAME HARNESS (B) ID=33 L=63	1-09700-807-0	AR	1	0309-	●	●	●
48	CLIP; FRAME HARNESS (J) ID=31 L=30	1-09700-969-0	AR	1	0309-	●	●	●
48	CLIP; FRAME HARNESS (K) L=170.3 THA	1-09987-182-0	AR	1	0309-	●	●	●
48	CLIP; FRAME HARNESS (G) ID=14 L=47	5-09700-319-0	AR	1	0309-	●	●	●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> ID=33 L=63	1-09700-807-0	07	1	0408-	●	●
48	CLIP; FRAME HARNESS (H) ID=12 B=14 ID=8.5 THA	5-09700-350-0	AR	1	0309-	●	●	●
48	CLIP; FRAME HARNESS (A) L=140	5-09707-031-1	AR	1	0309-	●	●	●
48	CLIP; FRAME HARNESS (C) T=4.5 & 9	5-09709-023-0	AR	1	0309-	●	●	●
48	CLIP; FRAME HARNESS (D) T=9 & 10.5	8-97041-091-0	AR	1	0309-	●	●	●
48	CLIP; FRAME HARNESS (I) ID=9	8-97063-874-0	AR	1	0309-	●	●	●
48	CLIP; FRAME HARNESS (E) ID=30 W/STUD	8-97078-642-2	AR	1	0309-	●	●	●
53	BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97065-158-2	01	1	0309-	●
53	BRACKET; HARNESS (C)	8-97065-158-2	01	1	0309-		●
53	BRACKET; HARNESS 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97357-140-0	01	1	0309-	●	●
53	BRACKET; HARNESS 4HE1 ENG<RLY> M/T MYY5T<RSM> (B)	8-97352-527-0	01	1	0309-0403	●		●
53	BRACKET; HARNESS 4HE1 ENG<RLY> (B)	8-97352-527-0	01	1	0404-	●		●
142	CLIP; HARNESS,ENG (A) L=170.3 THA	1-09987-182-0	01	1	0309-0403	●	●	●
142	CLIP; HARNESS,ENG FLOOR REMOTE SHIFT<M11> L=170.3 THA	1-09987-182-0	01	1	0404-	●
142	CLIP; HARNESS,ENG L=170.3 THA	1-09987-182-0	01	1	0404-		●	●
142	CLIP; HARNESS,ENG 4HE1 ENG<RLY> (B) THA	8-97101-436-0	01	1	0309-	●		●
264	CLIP; HARNESS,HEADLAMP ID=16	8-94413-325-0	03	1	0309-	●	●	●
312	BRACKET; CLIP HARNESS FRAME STRAIGHT TYPE<7KJ> (A)	8-97017-072-2	01	1	0309-	●
312	BRACKET; CLIP HARNESS 4HE1 ENG<RLY> (A)	8-97017-072-2	01	1	0309-			●
312	BRACKET; CLIP HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97357-050-0	01	1	0309-	●
312	BRACKET; CLIP HARNESS 4HG1 ENG<RJH> (A)	8-97357-050-0	01	1	0309-		●
312	BRACKET; CLIP HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97357-051-1	01	1	0309-	●
312	BRACKET; CLIP HARNESS 4HG1 ENG<RJH> (B)	8-97357-051-1	01	1	0309-		●
412	BRACKET; HARNESS,TRANS	8-97324-451-1	01	1	0309-	●	●	●
464	CLIP; SEDIMENTER HARNESS 4HG1 ENG<RJH> (B) ID=6.5 THA	8-94257-639-0	01	1	0309-	●	●
464	CLIP; SEDIMENTER HARNESS 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=14 L=47	5-09700-319-0	01	1	0309-	●	●
504	PROTECTOR; HARNESS FRAME STRAIGHT TYPE<7KJ> L=200	8-97096-423-0	01	1	0309-	●
504	PROTECTOR; HARNESS L=200	8-97096-423-0	01	1	0309-			●
514	FINISHER; HARNESS L=120 SERVICED BY L=2040	1-71997-513-1	03	1	0309-	●	●	●
514	FINISHER; HARNESS L=175 SERVICED BY L=2040	1-71997-513-1	01	1	0309-	●	●	●

48 16 16 48 464 48 16 48 220 483 488 16 205 48 142 14 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	CLIP; BAND,HARNESS L=200	8-94464-835-0	01	1	0309-	●	●	●
16	CLIP; HARNESS (D) L=135	1-09987-143-1	AR	1	0309-	●	●	●
16	CLIP; HARNESS (B) 1 SET=5 PIECE	1-09987-214-0	AR	1	0309-	●	●	●
16	CLIP; HARNESS (A) ID=14 L=47	5-09700-319-0	AR	1	0309-	●	●	●
16	CLIP; HARNESS (G) L=140	5-09707-031-1	AR	1	0309-	●	●	●
16	CLIP; HARNESS (H) L=100 THA	8-94327-067-1	AR	1	0309-	●	●	●
16	CLIP; HARNESS (I) ID=10 & 16.5	8-94360-745-0	AR	1	0309-	●	●	●
16	CLIP; HARNESS (E) ID=16	8-94413-325-0	AR	1	0309-	●	●	●
16	CLIP; HARNESS (C) ID=22 & 22	8-94464-837-0	AR	1	0309-	●	●	●
16	CLIP; HARNESS (J) L=155 THA	8-97173-307-0	AR	1	0309-	●	●	●
16	CLIP; HARNESS (F) ID=15-32	8-97174-404-0	AR	1	0309-	●	●	●
48	CLIP; FRAME HARNESS (F) ID=32 L=75	1-09700-702-0	AR	1	0309-	●	●	●
48	CLIP; FRAME HARNESS (B) ID=33 L=63	1-09700-807-0	AR	1	0309-	●	●	●
48	CLIP; FRAME HARNESS (J) ID=31 L=30	1-09700-969-0	AR	1	0309-	●	●	●
48	CLIP; FRAME HARNESS (K) L=170.3 THA	1-09987-182-0	AR	1	0309-	●	●	●
48	CLIP; FRAME HARNESS (G) ID=14 L=47	5-09700-319-0	AR	1	0309-	●	●	●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> ID=33 L=63	1-09700-807-0	07	1	0408-	●	●
48	CLIP; FRAME HARNESS (H) ID=12 B=14 ID=8.5 THA	5-09700-350-0	AR	1	0309-	●	●	●
48	CLIP; FRAME HARNESS (A) L=140	5-09707-031-1	AR	1	0309-	●	●	●
48	CLIP; FRAME HARNESS (C) T=4.5 & 9	5-09709-023-0	AR	1	0309-	●	●	●
48	CLIP; FRAME HARNESS (D) T=9 & 10.5	8-97041-091-0	AR	1	0309-	●	●	●
48	CLIP; FRAME HARNESS (I) ID=9	8-97063-874-0	AR	1	0309-	●	●	●
48	CLIP; FRAME HARNESS (E) ID=30 W/STUD	8-97078-642-2	AR	1	0309-	●	●	●
142	CLIP; HARNESS,ENG (A) L=170.3 THA	1-09987-182-0	01	1	0309-0403	●	●	●
142	CLIP; HARNESS,ENG FLOOR REMOTE SHIFT<M11> L=170.3 THA	1-09987-182-0	01	1	0404-	●
142	CLIP; HARNESS,ENG L=170.3 THA	1-09987-182-0	01	1	0404-		●	●
142	CLIP; HARNESS,ENG 4HE1 ENG<RLY> (B) THA	8-97101-436-0	01	1	0309-	●		●
205	CLIP; BACK LAMP HARNESS L=135	1-09987-143-1	01	1	0309-	●	●	●
220	CLIP; HARNESS TO CABLE 4HE1 ENG<RLY> M/T MYY5T<RSM> CHARGE AIR COOLER<6PL> L=140	5-09707-031-1	01	1	0309-0403	●
220	CLIP; HARNESS TO CABLE 4HE1 ENG<RLY> M/T MYY5T<RSM> L=140	5-09707-031-1	01	1	0309-0403			●
220	CLIP; HARNESS TO CABLE 4HE1 ENG<RLY> L=140	5-09707-031-1	01	1	0404-	●		●
464	CLIP; SEDIMENTER HARNESS 4HG1 ENG<RJH> (B) ID=6.5 THA	8-94257-639-0	01	1	0309-	●	●
464	CLIP; SEDIMENTER HARNESS 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=14 L=47	5-09700-319-0	01	1	0309-	●	●
483	CLIP; ENG HARNESS 4HE1 ENG<RLY> FLOOR REMOTE SHIFT<M11> EURO2 SPECIFICATION<NT2> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> L=140	5-09707-031-1	01	1	0502-	●		●
483	CLIP; ENG HARNESS 4HG1 ENG<RJH> L=140	5-09707-031-1	02	1	0309-0407	●	●
483	CLIP; ENG HARNESS L=140	5-09707-031-1	02	1	0408-	●	●	●
483	CLIP; ENG HARNESS 4HE1 ENG<RLY> ENGINE POWER N-SPEC<7QV> L=140	5-09707-031-1	01	1	0309-0403	●		●
483	CLIP; ENG HARNESS 4HE1 ENG<RLY> FLOOR REMOTE SHIFT<M11> EURO2 SPECIFICATION<NT2> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> L=140	5-09707-031-1	01	1	0404-0407	●		●
488	CLIP; CABLE,TRAILER L=250 THA	5-09707-030-1	01	1	0309-	●	●	●

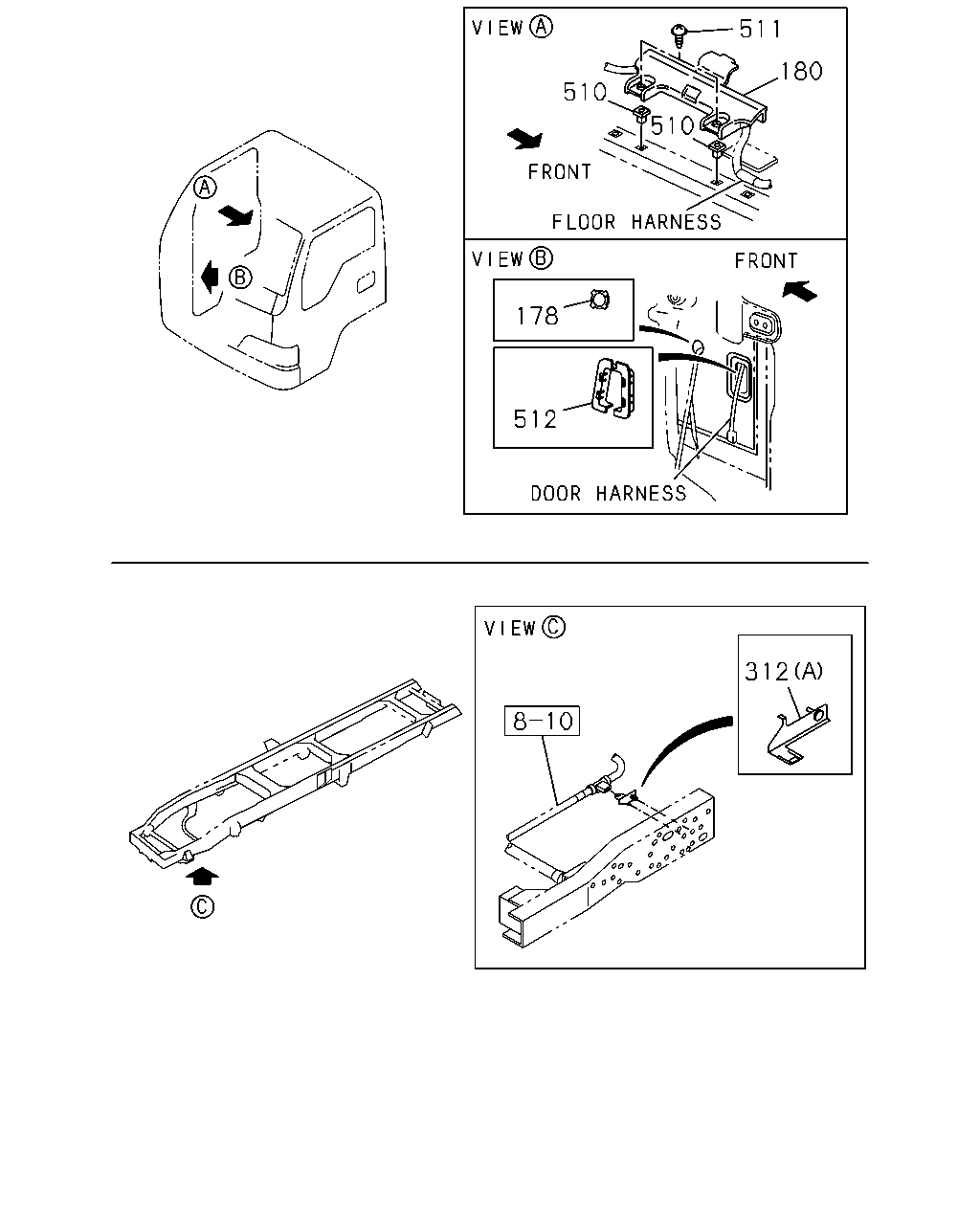

511 180 510 510 178 512 312

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
178	GROMMET; HARNESS ID=47	8-94279-735-0	01	1	0309-	●	●	●
180	COVER; HARNESS	8-97856-130-4	02	1	0309-	●	●	●
312	BRACKET; CLIP HARNESS FRAME STRAIGHT TYPE<7KJ> (A)	8-97017-072-2	01	1	0309-	●
312	BRACKET; CLIP HARNESS 4HE1 ENG<RLY> (A)	8-97017-072-2	01	1	0309-			●
312	BRACKET; CLIP HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97357-050-0	01	1	0309-	●
312	BRACKET; CLIP HARNESS 4HG1 ENG<RJH> (A)	8-97357-050-0	01	1	0309-		●
312	BRACKET; CLIP HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97357-051-1	01	1	0309-	●
312	BRACKET; CLIP HARNESS 4HG1 ENG<RJH> (B)	8-97357-051-1	01	1	0309-		●
510	GROMMET; SCREW H=15	8-94463-268-1	04	1	0309-	●	●	●
511	SCREW; HARNESS COVER M5X14 TAPPING W/PL WASHER	0-74110-514-0	04	1	0309-	●	●	●
512	PROTECTOR; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	0309-	●	●	●
512	PROTECTOR; HARNESS POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	0309-	●	●	●
512	PROTECTOR; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FMW/CASSETTE 2 SPEAKERS<6VL>	8-97072-950-0	02	1	0309-	●	●	●
512	PROTECTOR; HARNESS RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	0309-	●	●	●

139 38 386 377 38 239 38 19 38 139 219 294 515 219 294 515 219 294 469 519 525

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	BOLT; PROTECTOR FRAME STRAIGHT TYPE<7KJ> M10X35 FLANGE	0-28681-035-0	01	1	0309-	●
19	BOLT; PROTECTOR M10X35 FLANGE	0-28681-035-0	01	1	0309-			●
38	BOLT; CLIP,HARNESS 4HG1 ENG<RJH> M/T MYY5T<RSM> EXC. FRAME STRAIGHT TYPE<7KJ> M6X25 FLANGE	0-28680-625-0	01	1	0404-	●	●
38	BOLT; CLIP,HARNESS 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> M6X25 FLANGE	0-28680-625-0	02	1	0404-	●	●
38	BOLT; CLIP,HARNESS FRAME STRAIGHT TYPE<7KJ> (A) M8X30 FLANGE	0-28680-830-0	01	1	0309-	●
38	BOLT; CLIP,HARNESS (A) M8X30 FLANGE	0-28680-830-0	01	1	0309-			●
38	BOLT; CLIP,HARNESS 4HG1 ENG<RJH> M/T MYY5T<RSM> EXC. FRAME STRAIGHT TYPE<7KJ> (C) M6X25 FLANGE	0-28680-625-0	01	1	0309-0407	●
38	BOLT; CLIP,HARNESS 4HG1 ENG<RJH> M/T MYY5T<RSM> (C) M6X25 FLANGE	0-28680-625-0	01	1	0309-0407		●
38	BOLT; CLIP,HARNESS 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (C) M6X25 FLANGE	0-28680-625-0	02	1	0309-0407	●	●
38	BOLT; CLIP,HARNESS 4HG1 ENG<RJH> M/T MYY5T<RSM> EXC. FRAME STRAIGHT TYPE<7KJ> (B) M10X35 FLANGE	0-28681-035-0	01	1	0309-	●	●
38	BOLT; CLIP,HARNESS (D) M8X25 FLANGE	0-28680-825-0	01	1	0309-	●	●	●
38	BOLT; CLIP,HARNESS 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (D) M8X25 FLANGE	0-28680-825-0	01	1	0309-	●
38	BOLT; CLIP,HARNESS (D) M8X25 FLANGE	0-28680-825-0	01	1	0309-		●	●
38	BOLT; CLIP,HARNESS 4HE1 ENG<RLY> (D) M8X25 FLANGE	0-28680-825-0	01	1	0309-			●
139	BOLT; BRKT 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97028-451-3	01	1	0309-	●	●
139	BOLT; BRKT (B) M8X16 FLANGE	0-28080-816-0	03	1	0309-	●	●	●
219	NUT EXC. FRAME STRAIGHT TYPE<7KJ> (B) M6 FLANGE	0-91150-106-0	03	1	0309-	●
219	NUT 4HG1 ENG<RJH> (B) M6 FLANGE	0-91150-106-0	03	1	0309-		●
219	NUT 4HG1 ENG<RJH> M/T MYY5T<RSM> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE	0-91150-110-0	01	1	0309-0407	●
219	NUT 4HG1 ENG<RJH> M/T MYY5T<RSM> (A) M10 FLANGE	0-91150-110-0	01	1	0309-0407		●
219	NUT 4HG1 ENG<RJH> M/T MYY5T<RSM> EXC. FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91150-110-0	01	1	0408-	●	●
219	NUT 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (B) M6 FLANGE	0-91150-106-0	02	1	0309-	●	●
219	NUT FRAME STRAIGHT TYPE<7KJ> (B) M6 FLANGE	0-91150-106-0	02	1	0309-	●		●
219	NUT (C) M8 FLANGE	0-91150-108-0	01	1	0309-	●	●	●
219	NUT FRAME STRAIGHT TYPE<7KJ> (C) M8 FLANGE	0-91150-108-0	01	1	0309-	●		●
219	NUT 4HE1 ENG<RLY> (C) M8 FLANGE	0-91150-108-0	01	1	0309-	●		●
219	NUT FRAME STRAIGHT TYPE<7KJ> (C) M8 FLANGE	0-91150-108-0	01	1	0309-	●		●
239	BOLT; GRAND M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0309-	●	●	●
294	NUT (A) M6 FLANGE	0-91150-106-0	01	1	0309-0403	●
294	NUT EXC. FRAME STRAIGHT TYPE<7KJ> (A) M6 FLANGE	0-91150-106-0	01	1	0309-0403	●
294	NUT 4HG1 ENG<RJH> (A) M6 FLANGE	0-91150-106-0	01	1	0309-0403		●
294	NUT 4HG1 ENG<RJH> (A) M6 FLANGE	0-91150-106-0	01	1	0309-0403		●
294	NUT 4HE1 ENG<RLY> (A) M6 FLANGE	0-91150-106-0	01	1	0309-0403			●
294	NUT (A) M6 FLANGE	0-91150-106-0	01	1	0404-	●	●
294	NUT EXC. HYDRO BRAKE BOOSTER<7QQ> (A) M6 FLANGE	0-91150-106-0	01	1	0404-	●
294	NUT EXC. FRAME STRAIGHT TYPE<7KJ> (A) M6 FLANGE	0-91150-106-0	01	1	0404-	●
294	NUT 4HG1 ENG<RJH> (A) M6 FLANGE	0-91150-106-0	01	1	0404-		●
294	NUT 4HG1 ENG<RJH> (A) M6 FLANGE	0-91150-106-0	01	1	0404-		●
294	NUT 4HE1 ENG<RLY> (A) M6 FLANGE	0-91150-106-0	01	1	0404-			●
294	NUT (C) M8 FLANGE	0-91150-108-0	02	1	0309-0403	●	●	●
294	NUT FLOOR REMOTE SHIFT<M11> (C) M8 FLANGE	0-91150-108-0	02	1	0404-	●
294	NUT (C) M8 FLANGE	0-91150-108-0	02	1	0404-		●	●
294	NUT (B) M10 FLANGE	0-91150-110-0	01	1	0309-0403	●	●	●
294	NUT FLOOR REMOTE SHIFT<M11> (B) M10 FLANGE	0-91150-110-0	01	1	0404-	●
294	NUT (B) M10 FLANGE	0-91150-110-0	01	1	0404-		●	●
377	BOLT; CAB EARTH M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0309-	●	●	●
386	BOLT; GRAND HARNESS M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	0309-	●	●	●
469	NUT; PROTECTOR FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91150-110-0	01	1	0309-	●
469	NUT; PROTECTOR M10 FLANGE	0-91150-110-0	01	1	0309-			●
515	NUT; BRKT 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M6 FLANGE	0-91150-106-0	02	1	0309-	●	●
515	NUT; BRKT 4HE1 ENG<RLY> M/T MYY5T<RSM> (B) M8 FLANGE	0-91150-108-0	01	1	0309-0403	●		●
515	NUT; BRKT 4HE1 ENG<RLY> (B) M8 FLANGE	0-91150-108-0	01	1	0404-	●		●
519	NUT; EARTH CABLE M10 FLANGE	0-91150-110-0	01	1	0309-	●	●	●
525	NUT; CLIP 4HE1 ENG<RLY> M10 FLANGE	0-91150-110-0	01	1	0309-	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
